Product Description

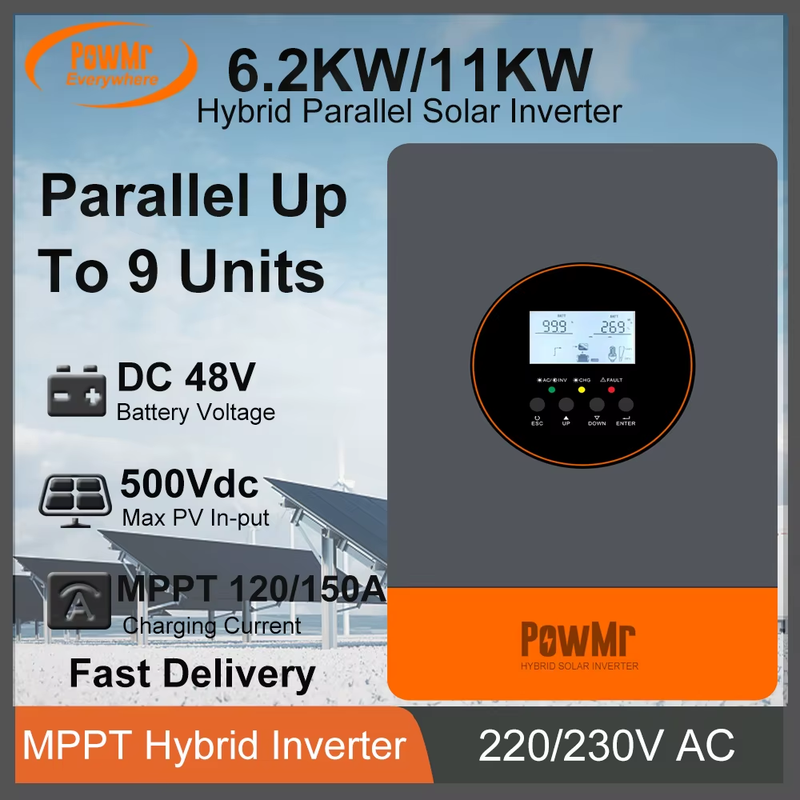

Solar Inverters 6.2KW 11KW 48Vdc Built 120A 150A MPPT Solar Charge Controller 220Vac Fit for LifePo4 Batteries Hybrid Inversor
Solar Inverters 6.2KW 11KW 48Vdc Built 120A 150A MPPT Solar Charge Controller 220Vac Fit for LifePo4 Batteries Hybrid Inversor6.2KW 11KW 48Vdc Solar Inverter Built 120A 150A MPPT Solar Charger Controller 220Vac Fit for LifePo4 Battery Hybrid Inversor
Feature
1. Pure sine wave inverter
2. Configurable input voltage range for home appliances and personal computers via LCD setting
3. Configurable battery charging current based on applications via LCD setting
4. Compatible to mains voltage or generator power
5. Auto restart while AC is recovering
6. Overload/Over temperature/short circuit protection
7. Smart battery charger design for optimized battery performance
8. Cold start function
9. The maximum number of parallel units is 9
POW 11KW:
1. MPPT 150A Solar Charger
2. 48V battery voltage+230V AC
3. Dual MPPT, Dual output, MAX. PV Input Power 7500W/7500W
4. MPPT Tracking Range 90~500Vdc

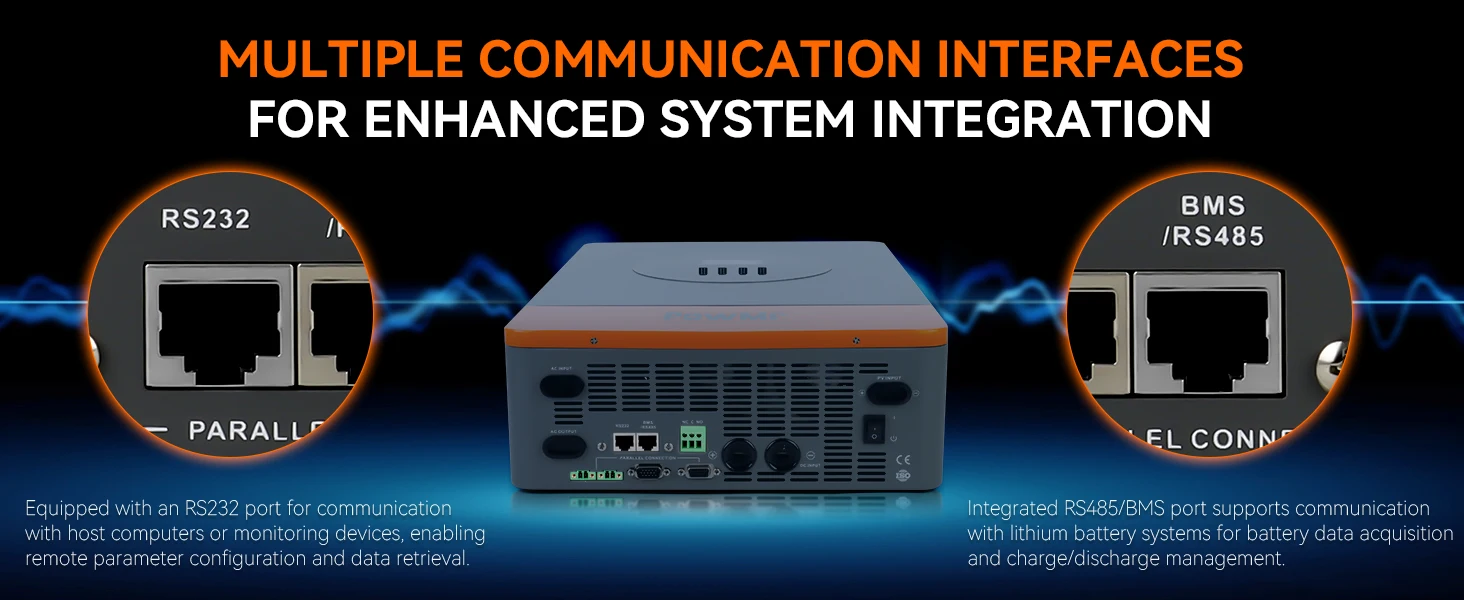

5. Support RS232, BMS/RS485 Communication port and Lithium Battery
6. Parallel up to 9 units
POW 6.2KW
1. MPPT 120A Solar Charger
2. 48V battery voltage+230V AC
3. Dual output, MAX. PV Input Power 8500W
4. MPPT Tracking Range 60~500Vdc
5. Support RS232, BMS/RS485 Communication port and Lithium Battery
6. Parallel up to 9 units
| Model | 6.2KW | 11KW |
| Input Sources | L+N+PE | |
| Rated Input Voltage | 220/230/240VAC | |
| Voltage Range | 90-280VAC±3V(APL Mode) ;170-280VAC±3V(UPS Mode) | |
| Frequency | 50Hz/60Hz(Auto Adaptive) | |
| Output Voltage | 220/230/240VAC | |
| Waveform | Pure Sine Wave | |
| Transfer Time (Adjustable) | Computers(UPS Mode)10ms, Appliance(APL Mode)20ms | |
| Peak Power | 12400VA | 22000VA |
| Overload Capacity | Battery mode: 11s@105%~150%Load;2s@150%~200%Load; 400ms@>200%Load | |
| Feed Into the Grid Voltage Range | 170-265VAC | |
| Maximum Conversion Efficiency (DC/AC) | 98% | |
| Battery Voltage | 48Vdc | |
| Constant Charging Voltage | 56.4Vdc | |
| Float Charging Voltage | 54Vdc | |
| PV Charging Mode | MPPT | |
| PV Charging Mode | MPPT | Dual MPPT |

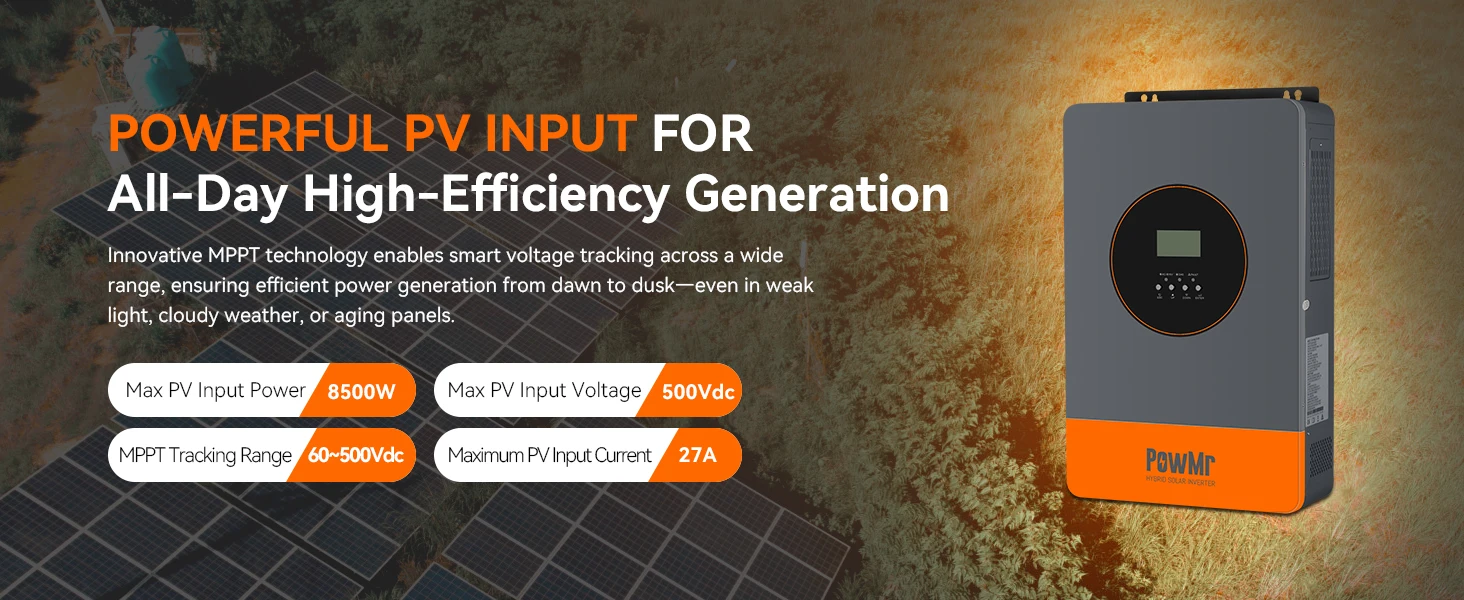

| MAX. PV Input Power | 8500W | 7500W/7500W |
| MPPT Tracking Range | 60~500Vdc | 90~500Vdc |
| Operating Voltage | 360~430V | |
| MAX. PV Input Voltage | 500Vdc | |
| PV Max Input Current | 27A | 27A/27A |
| MAX. PV Charging Current | 120A | 150A |
| MAX. AC Charging Current | 100A | 150A |
| MAX. Charging Current | 120A | 150A |
| LCD Interface | CAN display running mode/load/input/output, etc. | |
| Extend the SocketCommunication Interface | Lithium Battery BMS Communication Card, WiFi Card,Dry Contact | |
| Parallel Machine Interface | Parallel Machine(network) function | |
| Operating Temperature | -10℃~50℃ | |
| Humidity | 20%~95%(Non-condensing) | |
| Storage Temperature | -15℃~60℃ | |
| Noise | ≤50db | |
| Standards and Certification | EN-IEC 60335-1, EN IEC 60335-2-29, IEC 62109- 1 |

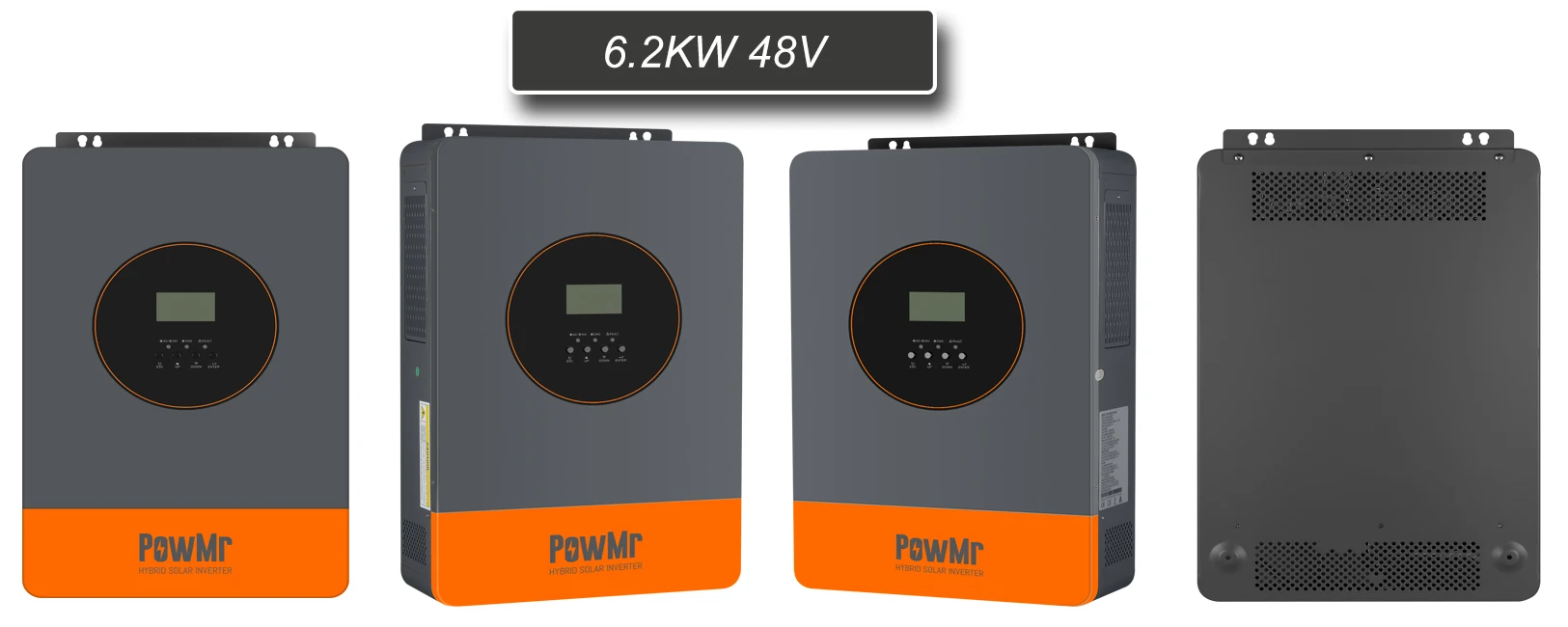

6.2KW 48V MPPT 120A Solar Charging Hybrid Inverter

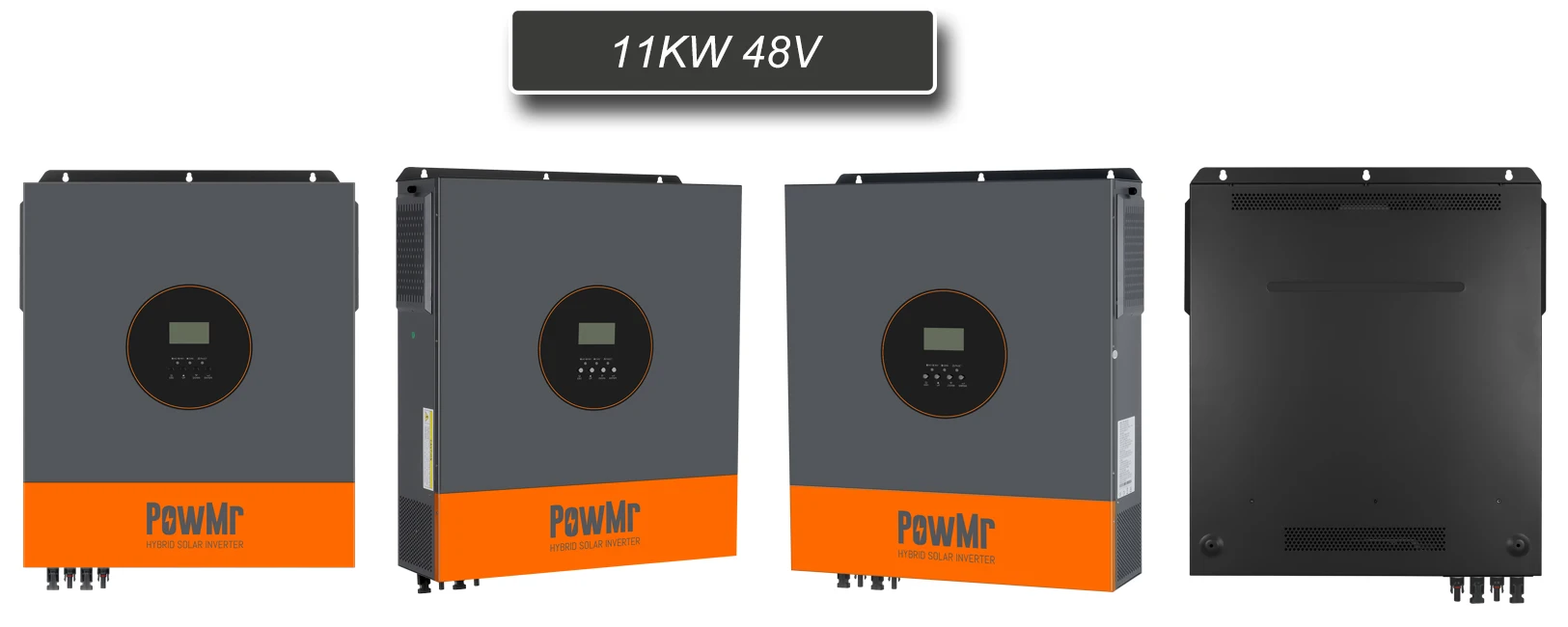

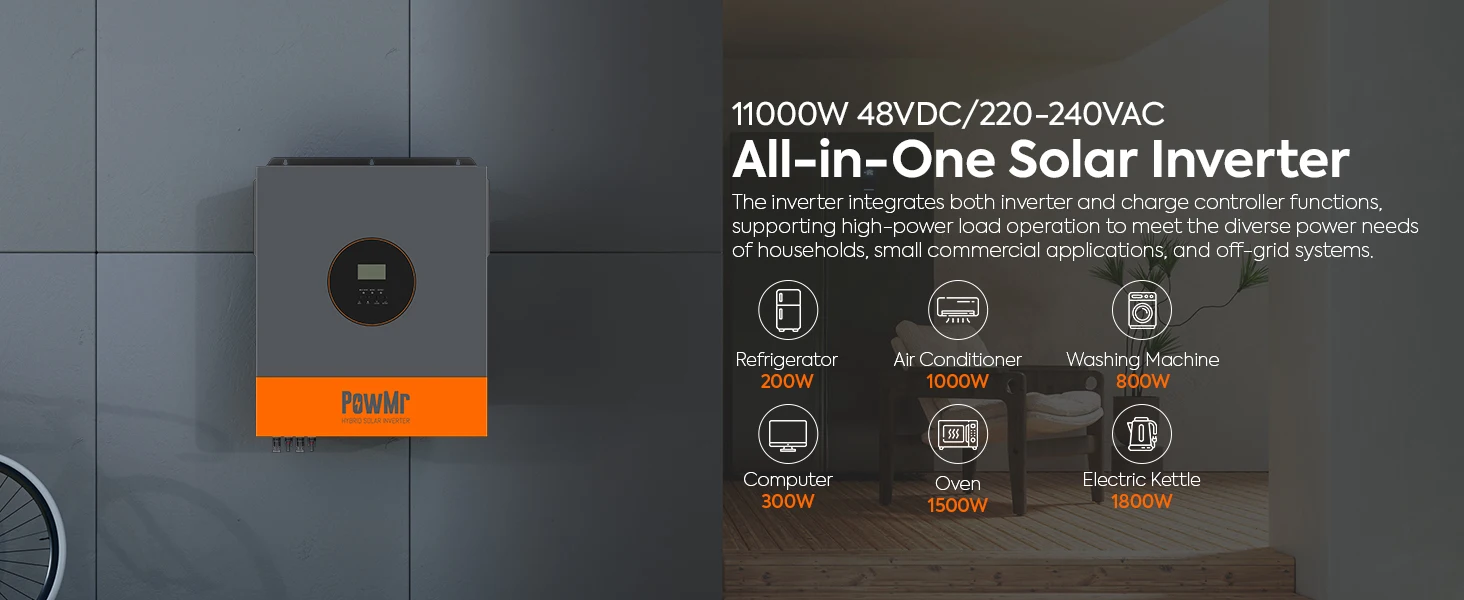

11KW 48V MPPT 150A Solar Charging Hybrid Inverter
