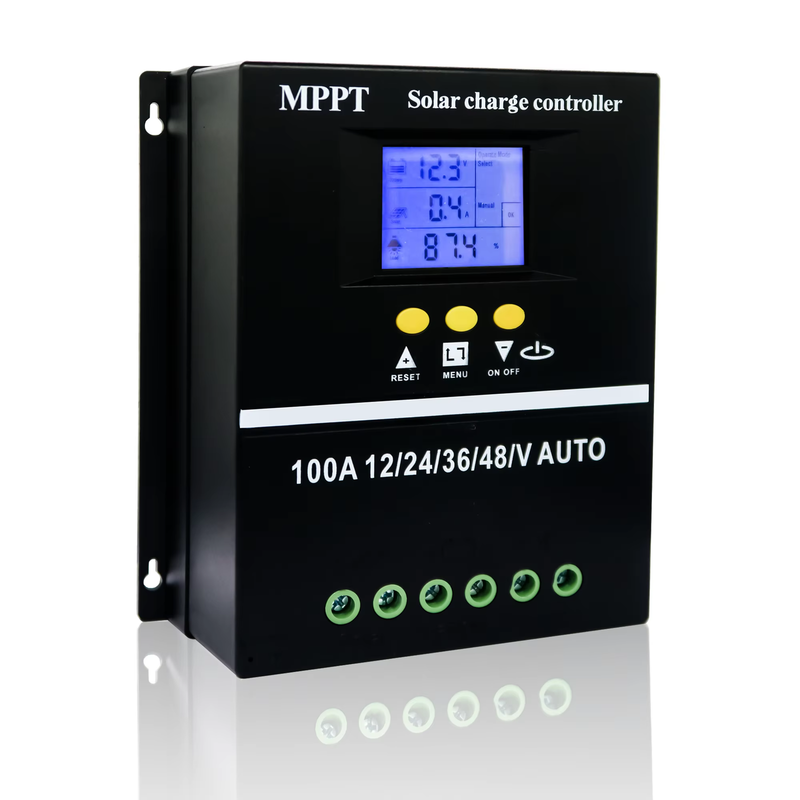

100A 80A 60A Solar Charge Controller 12V 24V 36V 48V Auto MPPT Focusing Regulato

Product Description

Your Reliable Power Manager for 12V/24V/36V/48V Systems

Upgrade your solar system with the POWLSOJX SY Series controller. Featuring advanced Focusing MPPT technology, a durable Aluminum Alloy Heat Sink, and Wide Battery Compatibility (including LiFePO4), it is the perfect choice for home systems, RVs, and off-grid applications.

⚠️ IMPORTANT: READ BEFORE PURCHASE ⚠️

To ensure your system safety and warranty validity, please strictly follow these voltage matching rules.

This is a Focusing MPPT controller (high-efficiency PWM upgrade), NOT a step-down (Buck) MPPT transformer. It cannot step down high voltage (e.g., 70V) to charge a low voltage battery (e.g., 12V). You MUST match the solar panel voltage to your battery voltage.

✅ Correct Voltage Matching Guide:

•


  For 12V Battery: Use Solar Panel 15V - 23V



•


  For 24V Battery: Use Solar Panel 30V - 46V



•


  For 36V Battery: Use Solar Panel 45V - 66V



•


  For 48V Battery: Use Solar Panel 60V - 90V




❌ Never use a high-voltage panel to charge a low-voltage battery, or the controller will overheat and be damaged.

🌟 Key Features

1. Focusing MPPT Technology

Detects the maximum charging current automatically. The charging efficiency is 10% - 30% higher than ordinary PWM controllers. (Note: It stops focusing when the battery is fully charged).

2. Multi-Voltage & Battery Compatibility

•


  Auto-Recognition: Automatically identifies 12V, 24V, 36V, and 48V systems.




• Battery Types: Supports Lead-Acid (Sealed, Gel, Flooded) and Lithium-Ion (LiFePO4) batteries.

3. Superior Heat Dissipation

Unlike cheap plastic controllers, the SY series uses a robust Aluminum Alloy Backplane. This ensures excellent heat dissipation, ventilation, and a sturdy structure for long-term use.

4. 7 Intelligent Working Modes

Designed for various scenarios:

1. Charging Mode (Always on)

2.


   Light Control Mode (Auto ON at night/OFF at day)



3.


   Light Control + Time Delay (Auto ON + Countdown timer 1-23h)




4. Universal Control

5.


   Manual Mode (ON/OFF via button)




6. Timing Control

7. Test Mode (Factory use)

5. Full Safety Protection

Built-in multiple protection mechanisms: Short circuit, Open circuit, Reverse protection, Overload protection, and Lightning protection.

📊 Technical Specifications

🛠️ Installation Guide (Must Follow Sequence)

Step 1: Connect the BATTERY First 🔋

Connect your battery to the controller FIRST.

• Note: The screen will light up. If not, check if your battery has enough voltage (12V battery needs >10V to start).




Step 2: Connect the SOLAR PANEL Second ☀️

Connect the PV array to the controller. The charging indicator will flash if there is sunlight.

Step 3: Connect the LOAD (Optional) 💡

Connect your DC load (lamps, etc.) to the output port.

💡 Tip: We recommend adding an air switch (Circuit Breaker) between the controller and the battery for double safety.

❓ Troubleshooting FAQ

Q: The controller screen does not turn on?

A: Please check the battery wiring. The battery must have a minimum voltage to activate the controller (12V system needs >10V, 24V needs >20V).

Q: Why is the solar panel not charging?

A: Check if the PV cables are reversed or loose. Ensure the panel voltage is within the correct range for your battery.

Q: My load light is flashing?

A: Slow flashing means overload (reduce load power). Fast flashing means short circuit protection (remove short circuit).

📦 Package Includes

• 1 x Solar Charge Controller

• 1 x User Manual
