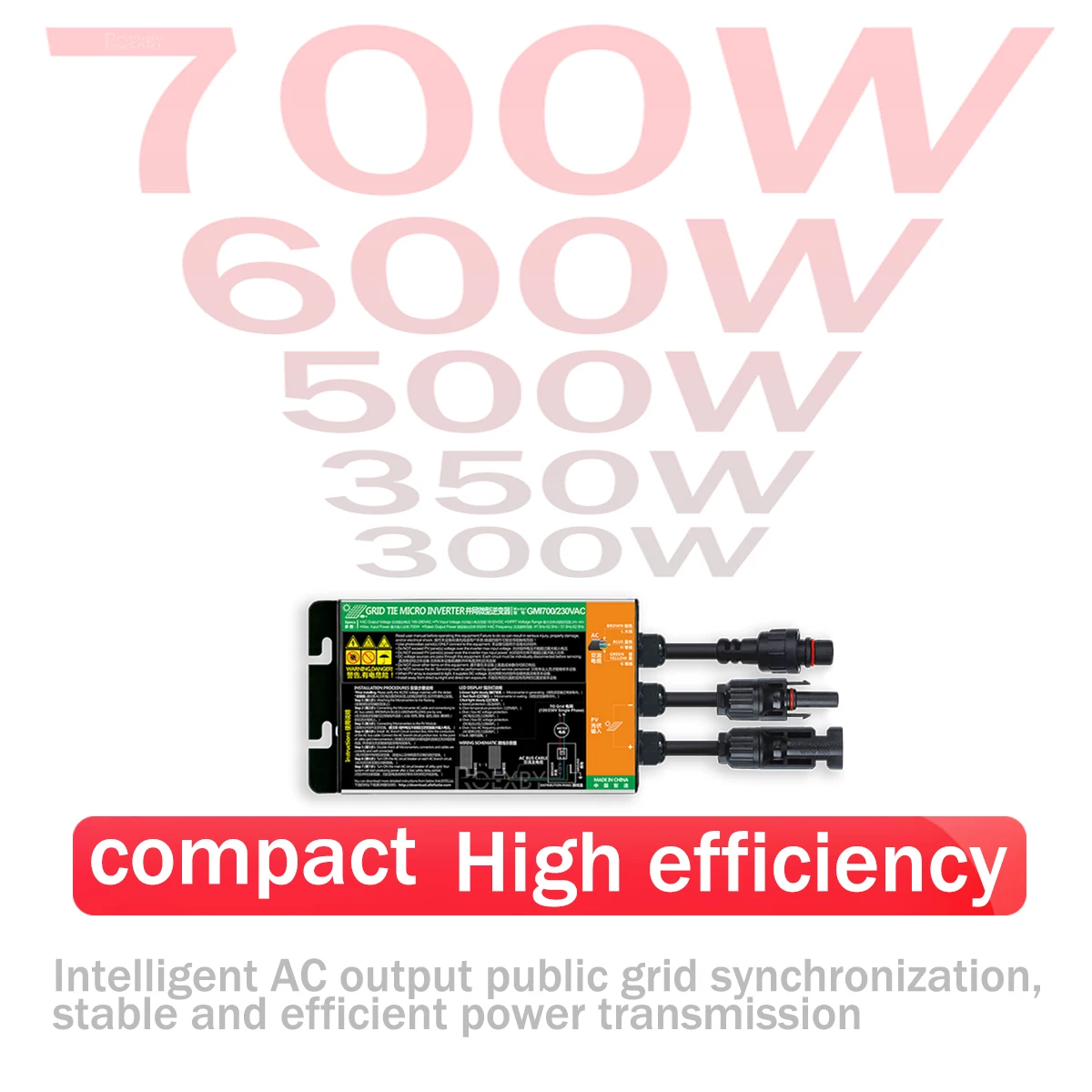

On-Grid Inverter 110V/220V Dual Option, 24V Start 50V Voc, Plug & Play Solar Mic

Product Description

Description:

----Grid micro solar power inverter: the mppt solar power inverter has a built-in three-layer grid design, which is more energy-saving than traditional grids. it can also be used as a solar panel for electricity inverter.

This solar grid inverter can be used for a variety of applications, such as camping, fishing, hiking, outdoor activities, etc.

This solar grid inverter is very easy to install and use. just plug it into a power source, then plug it into the power supply and start using it.

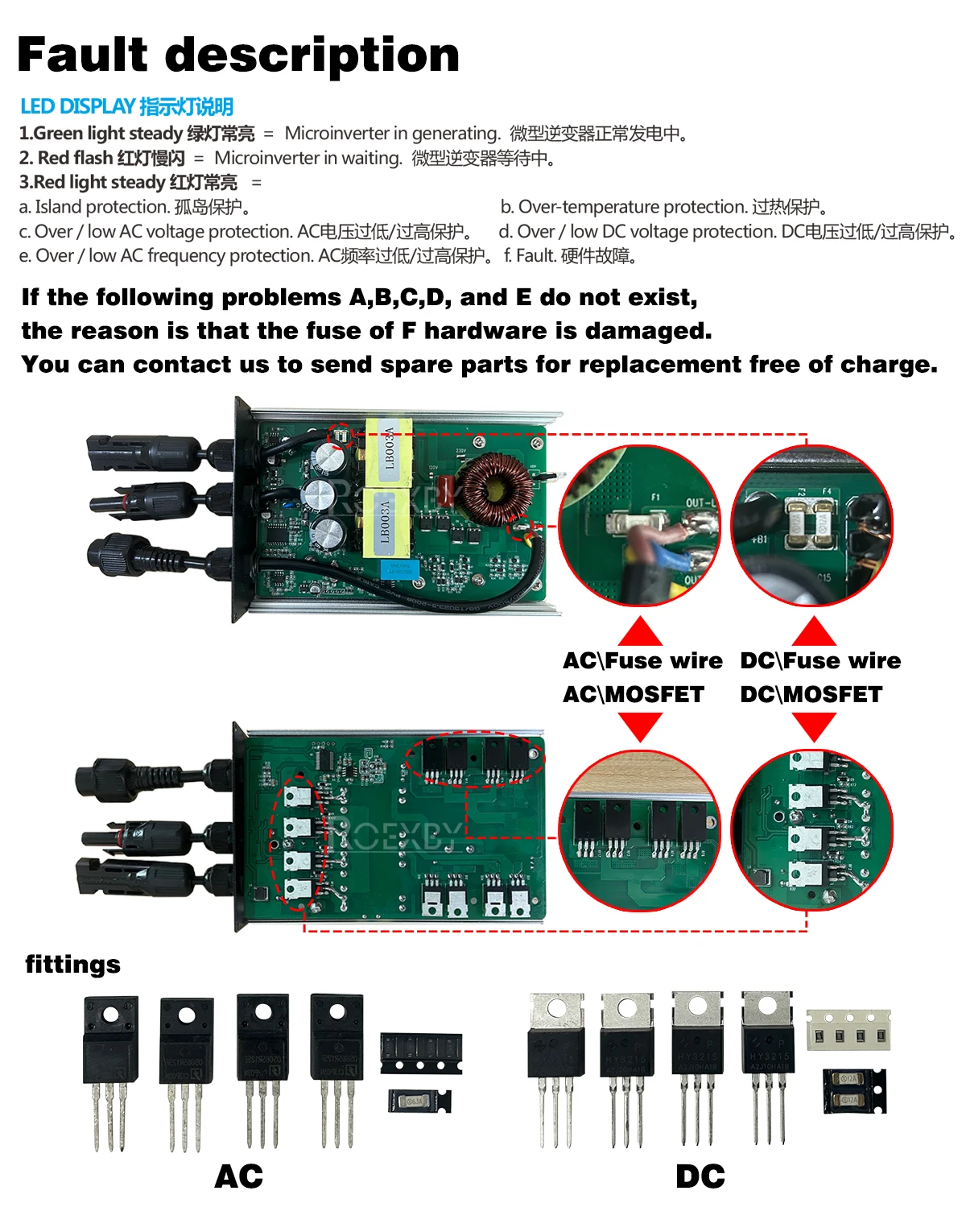

LED DISPLAY:

1.Green light steady=Microinverter in generating.

2.Red flash=Microinverter in waiting.

3.Red light steady

a.Island protection.

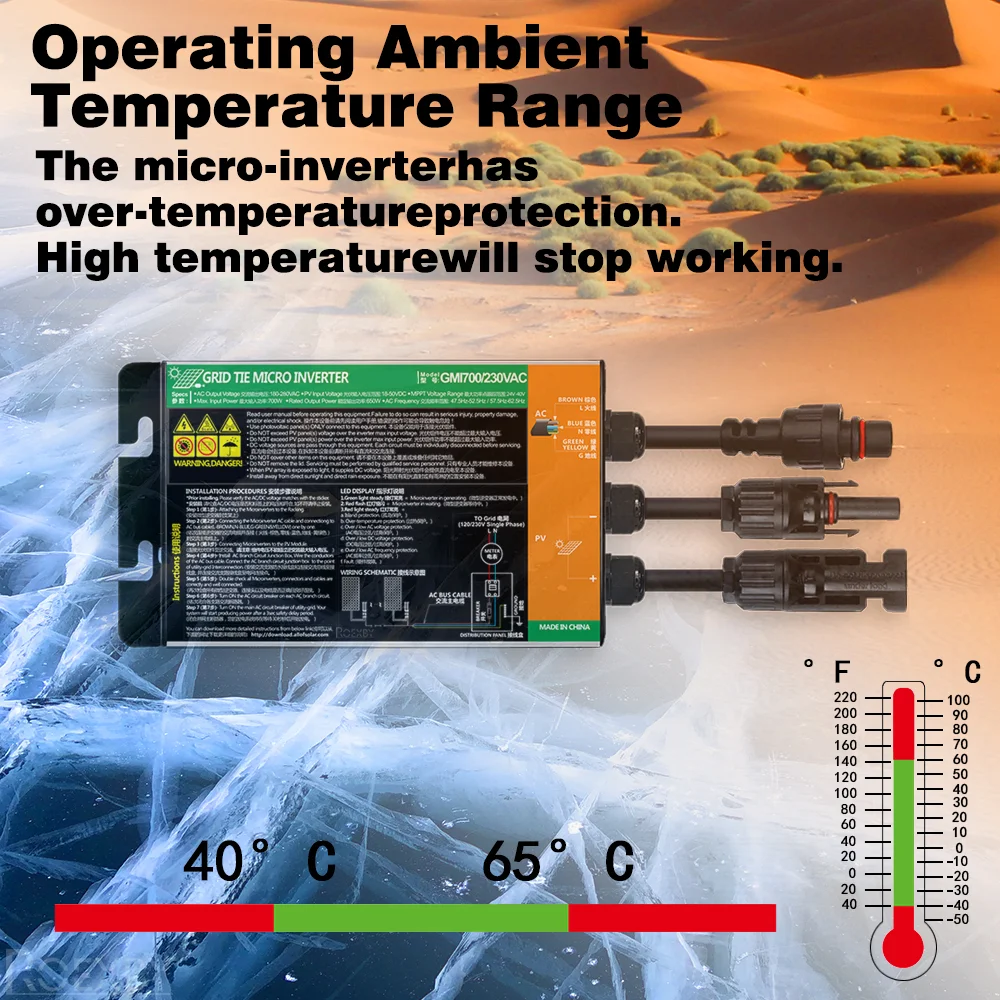

b.Over-temperature protection.

c.Over/low AC voltage protection.

d.Over/low DC voltage protection.

e.Over/low AC frequency protection.

f.Fault.

Package Include:

1XGrid Tie Inverter

1 x AC Cable 30CM

1 x English User's Manaul

User notice：

• Use solar panel ONLY connect to this equipment.

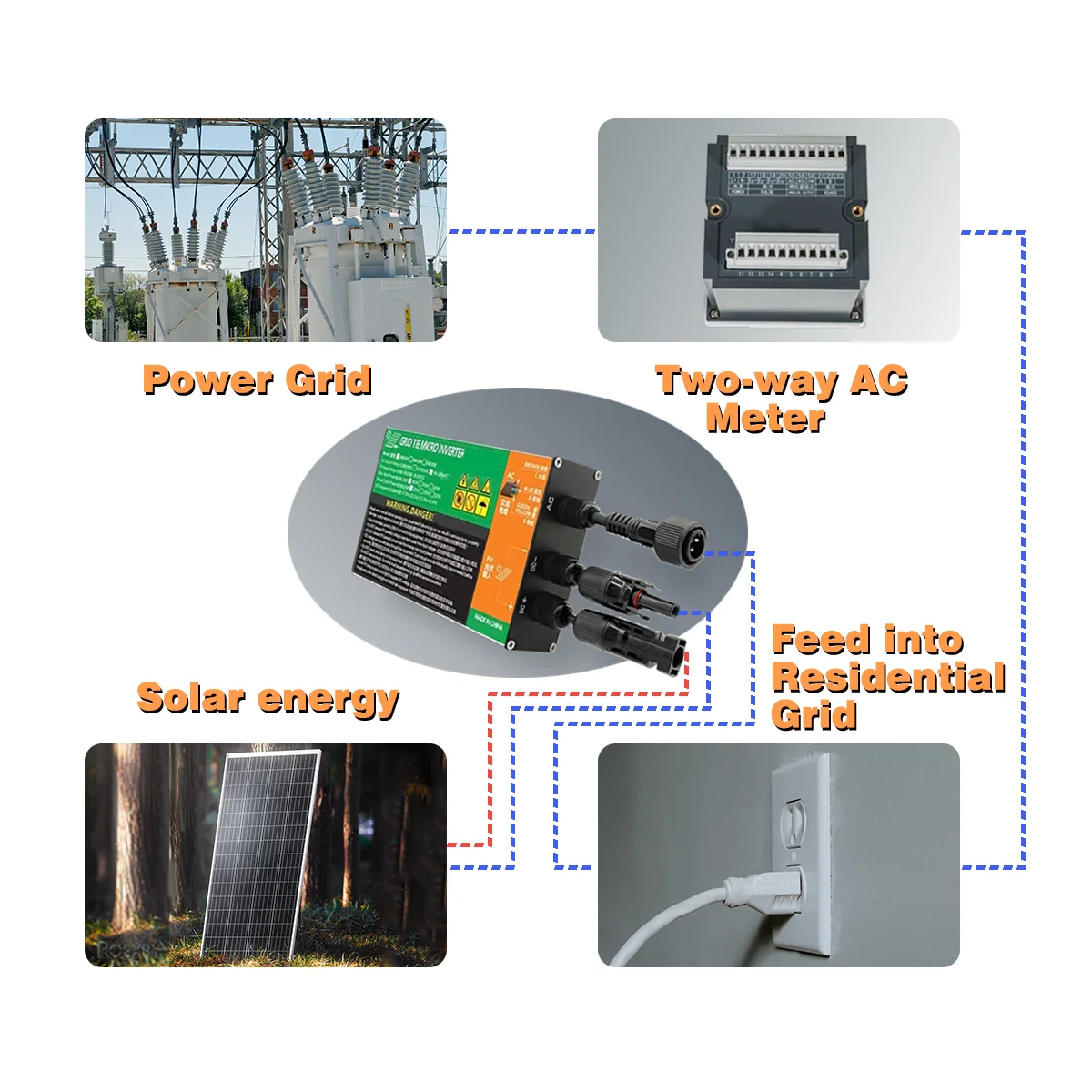

• This equipment is ON-GRID Microinverter, To make it work properly, it must be connected to the power grid correctly,and the power grid is working properly, When the power grid stopped working, it will also stop generating.

• Do NOT exceed PV panel(s) voltage over the inverter max input voltage.（Voc＜50V）

• Do NOT exceed PV panel(s) power over the inverter max input power.

• The positive and negative poles of the solar panel cannot be reversed. If you extend the solar panel cable. You need to be careful about this problem.

• Install away from direct sunlight and direct rain exposure.(Ventilated, dry, cool)

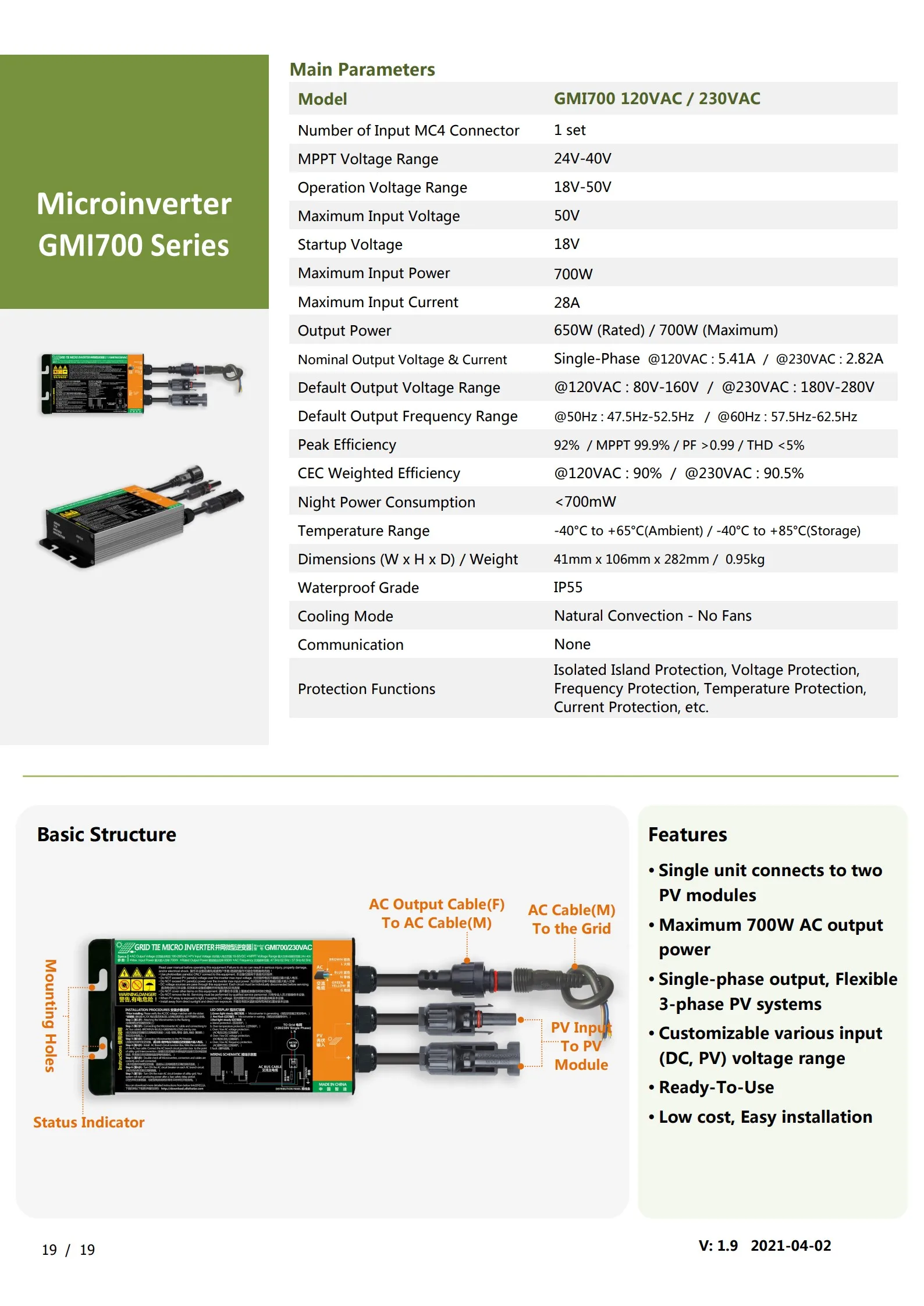

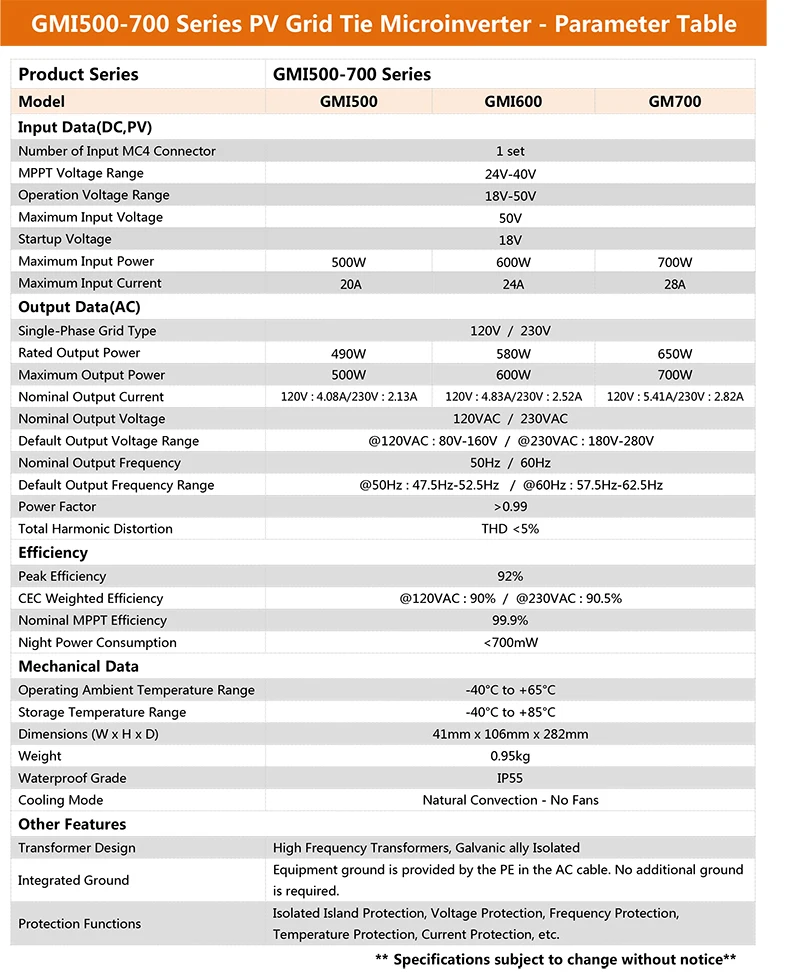

The 18-50V grid tie micro inverter will start up at 24V, after starting, the inverter can work in 18V-39V (Vmp).Solar Panel Voc cannot be higher than 50V.

Why not use 12V solar panels? 12V panel working voltage Vmp18-20V, open circuit voltage Voc20-24V.

the 12V panel is just a starting voltage. If the sunlight is weak, the working voltage will be lower than 18V. It is easy to make the inverter work unstable, and the inverter will start repeatedly. It is easy to damage the inverter.

Recommended Solar Panel Voltage: Vmp30-39V; Voc38-46V
