MS6818 Cable Tester Wire Tracker Portable Underground Wire Detection Short Open

Product Description

Product Name: Multi-function Cable Detector

Model:MS6818(MY6818)

Product Description:
Electrical professionals often encounter the need to track cables or wiring systems, as well as to determine which fuse is connected to a particular circuit, or to identify and track metal pipes, heating lines, or underground cables. The new MS6818 (MY6818) cable detector can help such users.

Working principle:

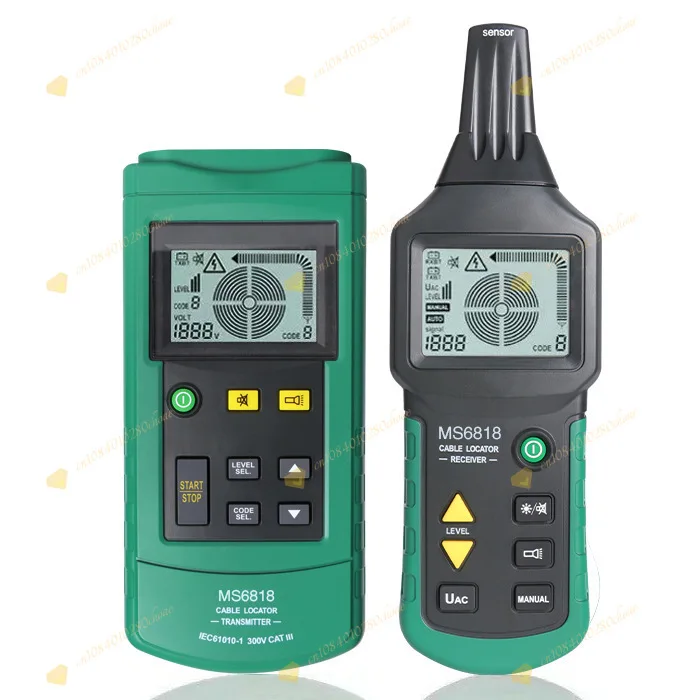

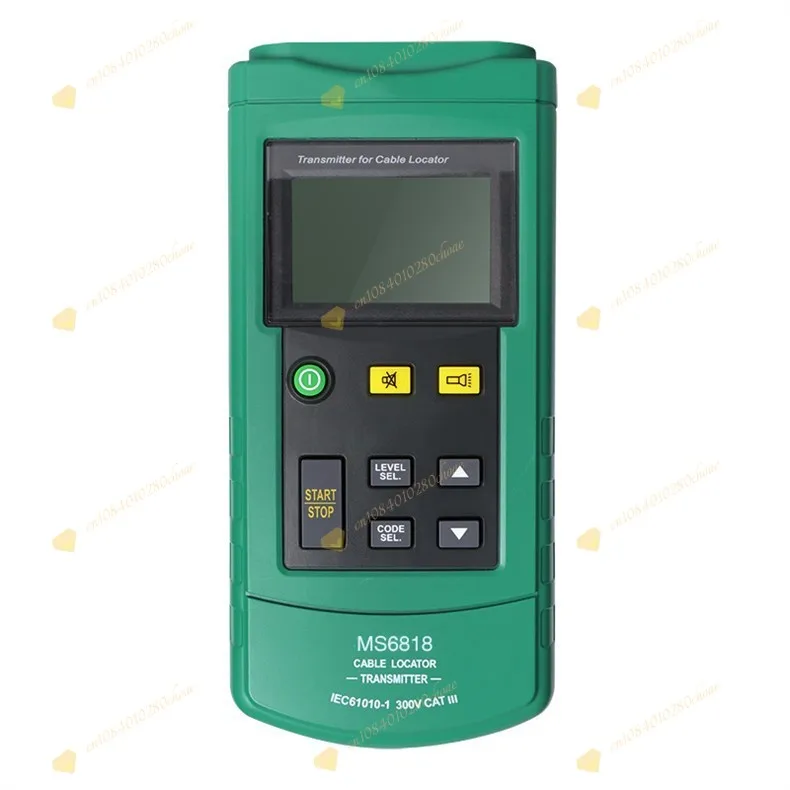

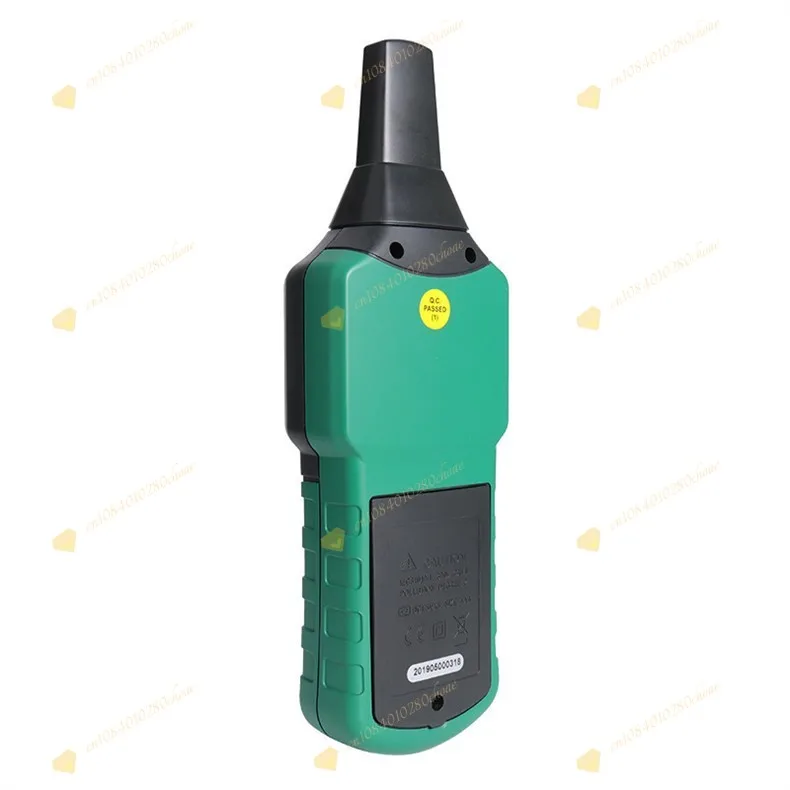

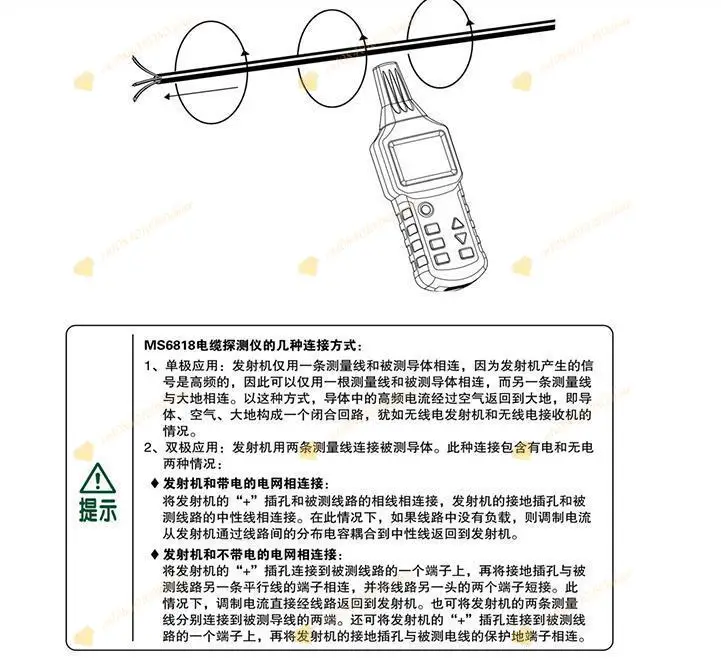

The MS6818 (MY6818) cable detector includes a transmitter and a receiver. The transmitter provides a modulated AC voltage to the corresponding cable, which creates an electric field around the cable; The receiver is mounted with a coil, and if the receiver is placed close to the corresponding electrical conductor, the flux wire will pass through the coil and into the receiver. This phenomenon is also known aspenetrating coils. A small voltage is generated in the coil, which is calculated by the receiver's electronic circuit and displayed on the display. The special feature of MS6818 (MY6818) is that the signal sent is digitally encoded. This ensures that the signal can be clearly received by the receiver and avoids any false display caused by interference fields such as electronic fluorescent lamp ballasts or frequency converters

Applications:
This instrument is widely used in communication cable construction, power cable construction, building pipeline construction, communication cable power supply circuit and electric heating line maintenance work, and is an indispensable tool for front-line construction and maintenance personnel

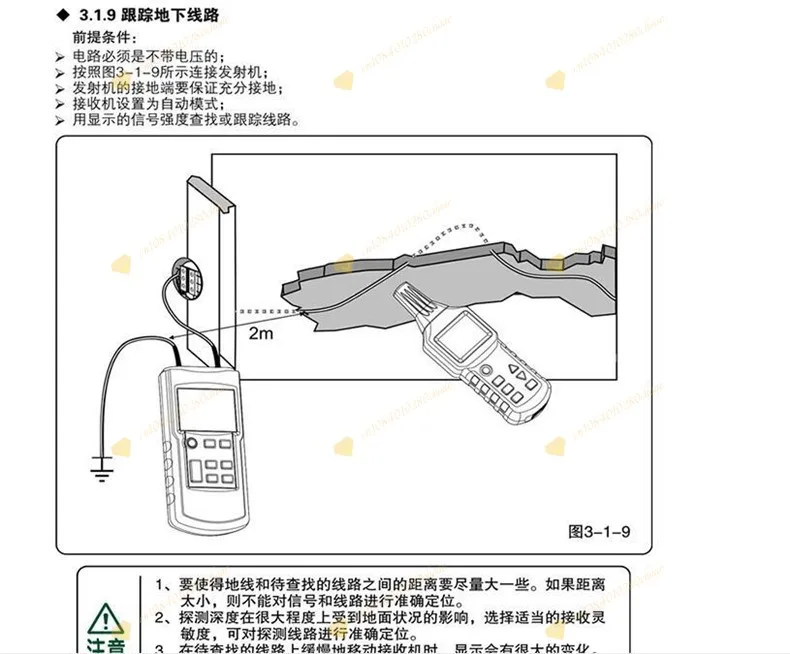

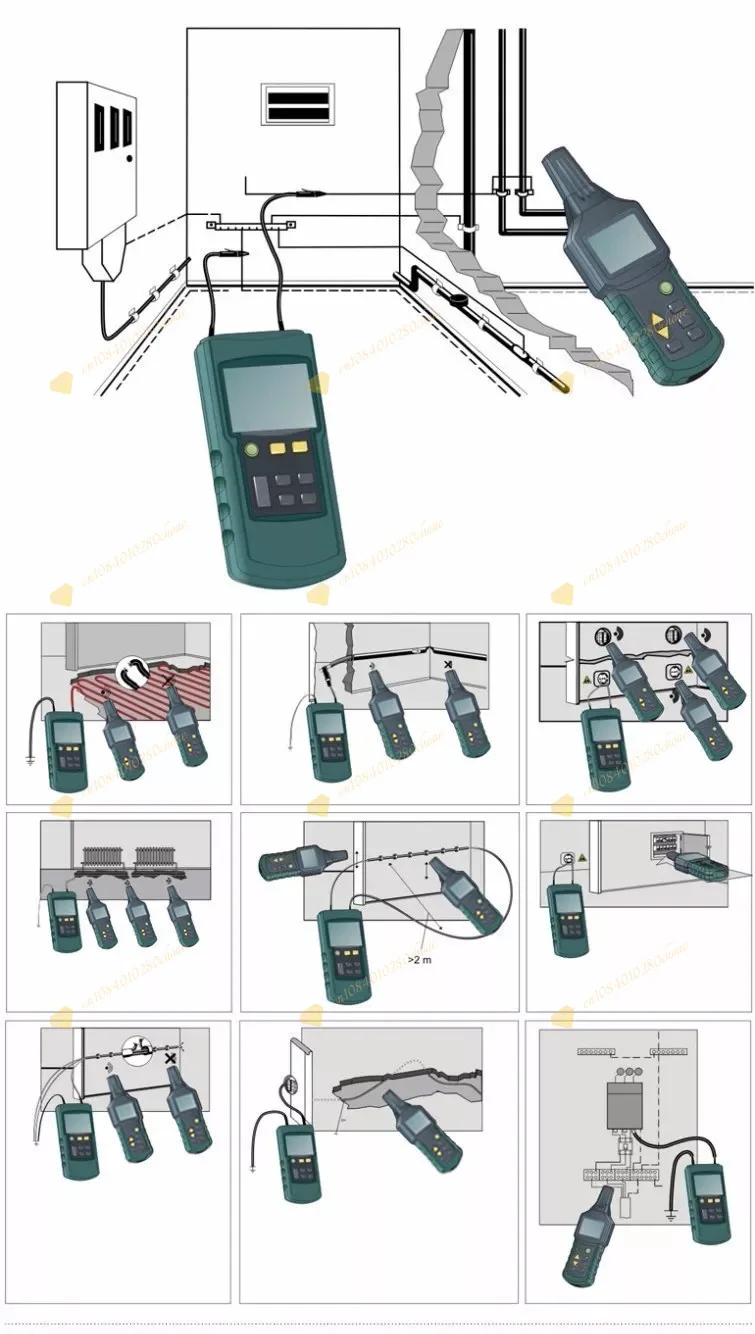

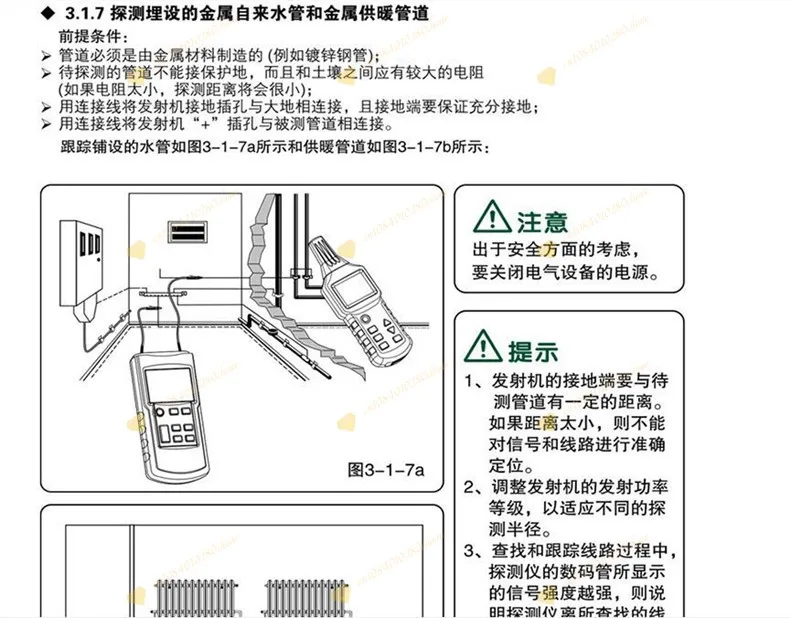

Detect the laying path of cables, electrical lines, and water supply and gas pipelines buried in walls and underground

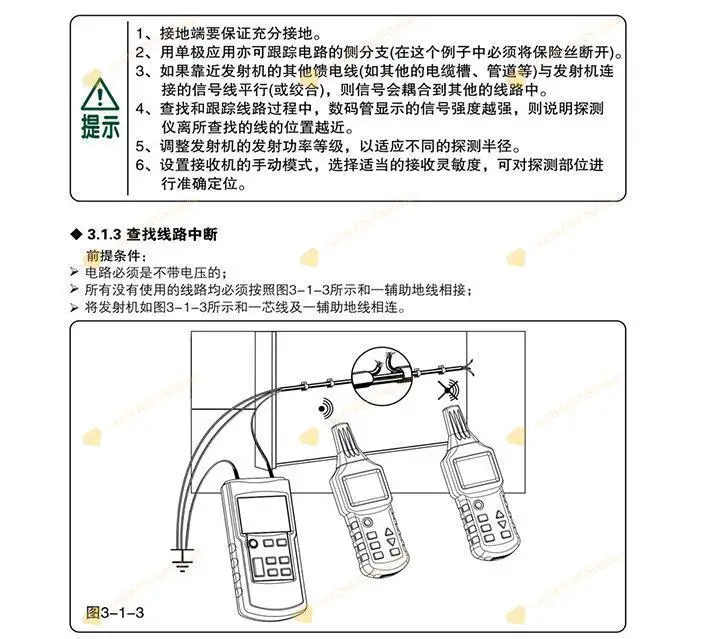

Detect broken circuits and short circuit faults in cables buried in walls and underground, electrical circuits

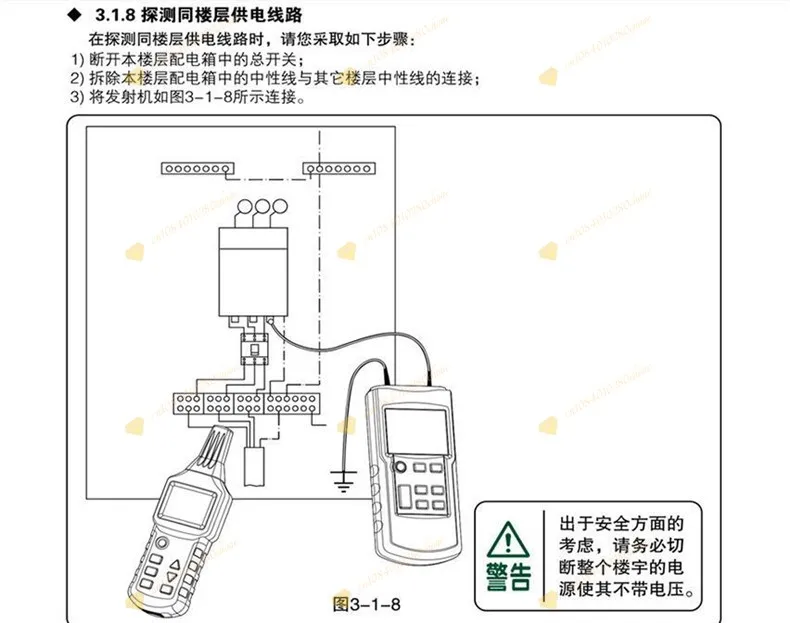

Look for fuses and their insurance circuits
Look for covered sockets and distribution boxes

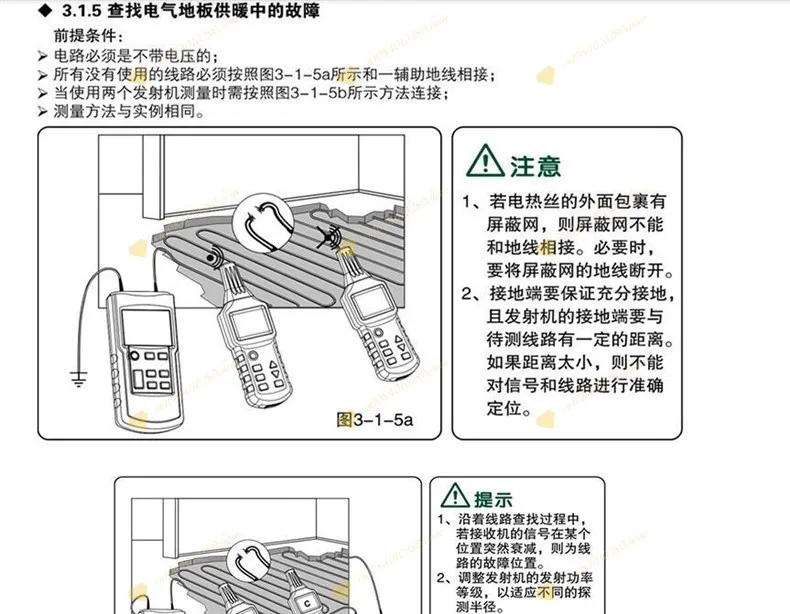

Look for broken and short-circuit faults in the electric heating line under the floor
Functions and features:
Transmitter embedded AC and DC voltmeter function, can measure linearly 12-
400 volts AC and DC voltage

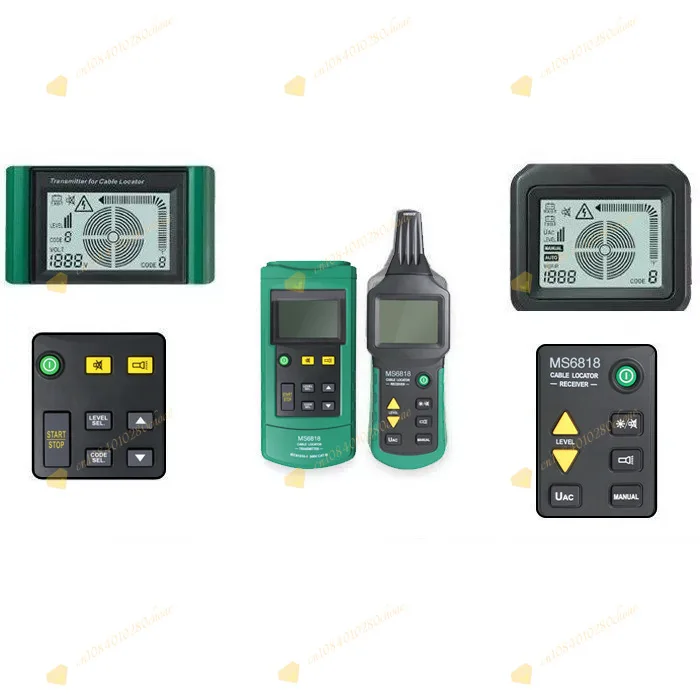

The transmitter can display the set transmit power level, transmit code, battery level information, measured external voltage value and type, and external high voltage warning symbol, which can also be displayed on the receiver.
The transmitter has a self-test function, and the sensitivity of the receiver can be adjusted automatically or manually
The receiver has an automatic sweep function, and both the transmitter and receiver have a silent function, which is convenient for use in hospitals and other environments that require quiet testing

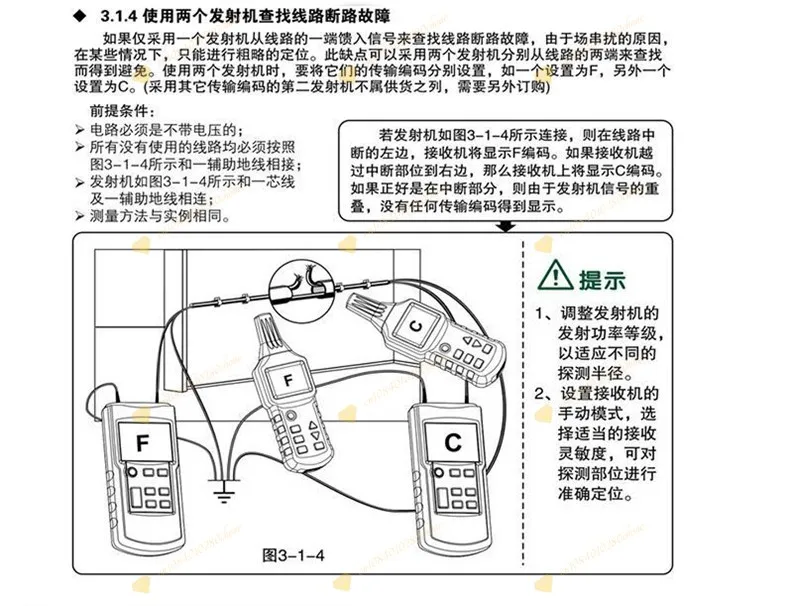

Additional transmitters are available to amplify or distinguish multiple signals
Compact structure, strong and durable, easy to carry
Technical Specifications:
Voltage measurement range Transmitter: 12V-400V(AC/DC)
Output Signal Transmitter: 125KHz
Voltage Transmitter: Up to 400V (AC/DC)
Cable measurement depth Receiver: 0-2.5 meters (wall/underground cable)
Main voltage measurement receiver: 0-0.4 meters
Environmental indicators:
Working environment Transmitter: 0~40°C; Receiver: 0~40°C
Storage temperature Transmitter: -20°C~60°C
Receiver: -20°C~60°C
· Relative humidity (non-condensing) Transmitter: up to 80%; Receiver: up to 80%
Measuring height, transmitter: up to 2000 meters
Receiver: up to 2000 meters

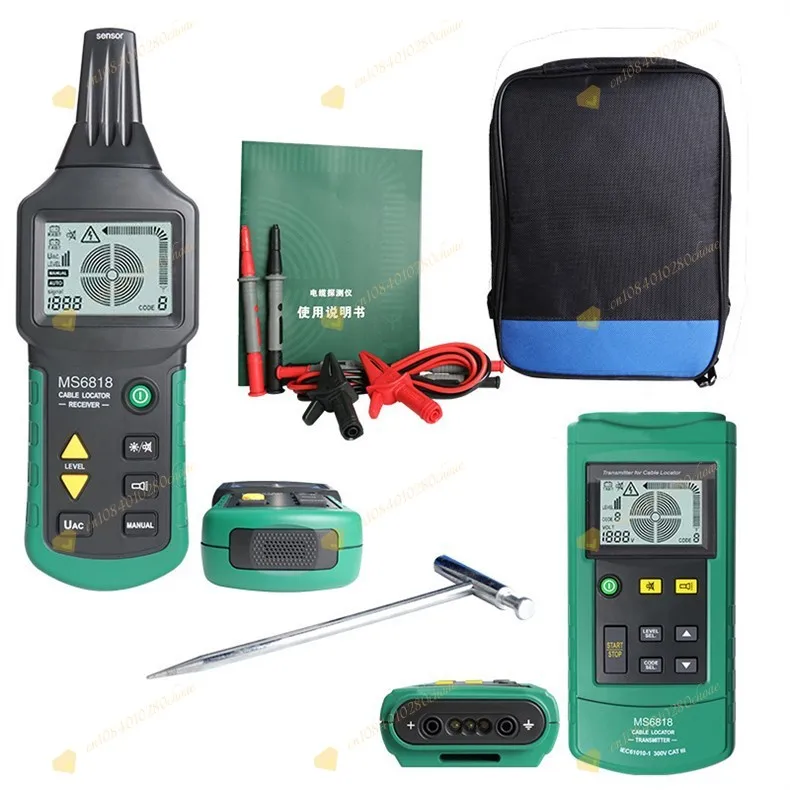

Main parts:
① Cloth bag
② Receiver: 1 unit
③ Transmitter: 1 unit

Attachment:
④ Crocodile clips: 2 (one red and one black)
⑤ Battery: 1 (9V alkaline battery GL6F22A1604A)
6 batteries (1.5V AAA alkaline battery, LR03 SIZE)
Instructions: 1 copy
< unk > Measuring lines: 2 (one red and one black, 1.5 meters long)
Test pens: 2 pcs (one red and one black)
🥰 Grounding rod
