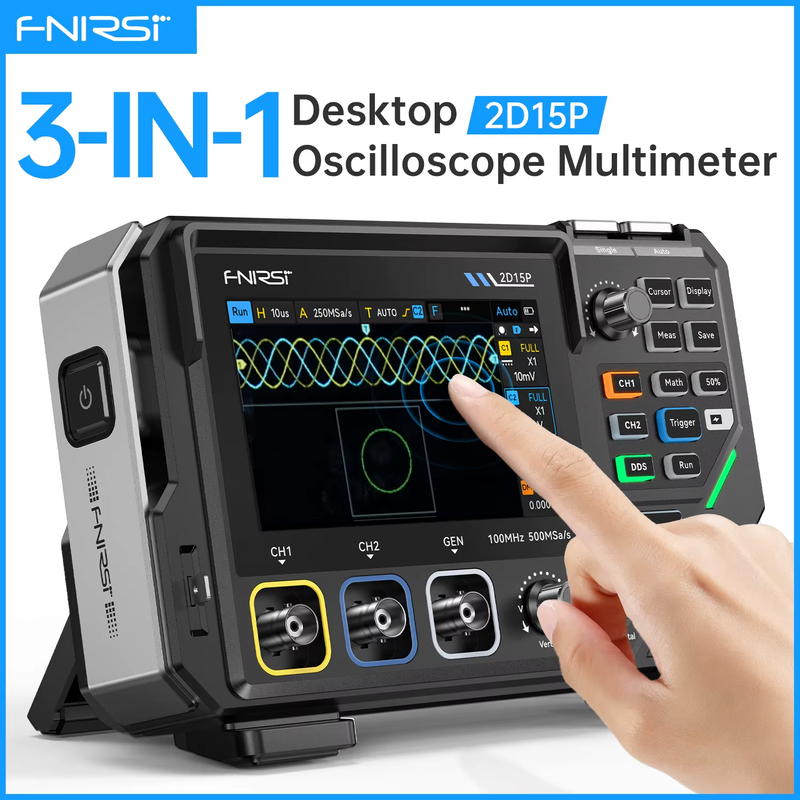

2D15P Touch Screen Digital Oscilloscope Multimeter Signal Generator 3-in-1 Dual

Product Description

This product adopts a combination of physical buttons and a 4.3-inch capacitive touchscreen to enhance user interaction and usability. It features a sampling rate of 500 MSa/s and an analog bandwidth of 100 MHz (100 MHz for single-channel operation; 50 MHz per channel when both channels are active). It supports memory depths of 10K, 100K, and 1M. With 128-level grayscale display and support for persistence and color temperature visualization, the oscilloscope provides a clearer view of waveform details. The waveform capture rate reaches up to approximately 1,200 frames per second, allowing effective capture of abnormal signals. The unit includes 6 types of math operations (such as addition, subtraction, multiplication, and division) for real-time time-domain and frequency-domain analysis. It also offers 13 parameter measurements to assist users in analyzing various signal parame-ters efficiently. Additionally, the device integrates a 10 MHz waveform generator, capable of outputting 9 common waveforms with adjustable amplitude and duty cycle. The built-in 4.5-digit (20,000 counts) True RMS digital multimeter supports AC/DC voltage and current measurement, as well as capaci-tance, resistance, diode, and continuity testing.

Basic Parameters

Product Name: 3-in-1 2CH 100MHz Phosphor Oscilloscope

Model: 2D15P

Screen: 4.3-inch capacitive touchscreen

Battery: 5000mAh rechargeable lithium battery

Operation Method: Touch + knob + physical buttons

Display: 128-level grayscale, color temperature, persistence

Oscilloscope

Channels: 2 channels

Analog Bandwidth: 100MHz (single channel) / 50MHz (dual)

Sampling Rate: 500MSa/s

Memory Depth: 10K / 100K / 1M

Input Impedance: 1MΩ

Time Base Range: 5ns/div – 50s/div

Vertical Sensitivity: 10mV/div – 10V/div

Max Input Voltage: 800V (×10 probe)

Trigger Modes: Auto / Normal / Single

Trigger Type: Rising / Falling / Both Edges

Coupling: AC / DC

Display Modes: Dot / Vector / Color Temperature

Math Operations: 6 Basic Ops

Persistence: Adjustable (min/2s/5s/10s/20s/50s/∞)

Waveform Capture: Supported

Waveform Export: Supported

Cursor measurement: Supported

Multimeter

DC Voltage: 1.9999V / 19.999V / 199.99V / 1000V

AC Voltage: 1.9999V / 19.999V / 199.99V / 750V

DC Current: 19.999mA / 199.99mA / 1.9999A / 9.999A

AC Current: 19.999mA / 199.99mA / 1.9999A / 9.999A

Resistance: 1.9999KΩ – 19.999MΩ

Capacitance: 9.999nF – 99.99mF

Diode / Continuity: Supported

Signal Generator

Channel: 1 channel

Frequency: 0–10MHz

Amplitude: 0.1–3.0Vpp

Duty Cycle: 0–100%

Waveform Types: Sine, Square, Triangle, DC, Noise, Half-wave, Full-wave, Positive Staircase, Negative Staircase.

1.2D15P Host *1

2.P6100 Probe * 2

3.Multimeter Probe *1

4.Alligator Clip Probe *1

5.USB-A to TYPE-C Cable*1

6.User Manual*1
