Digital Ultrasonic Flow Meter RS485 Card Type Pipeline Water Meter Industrial Ag

Product Description

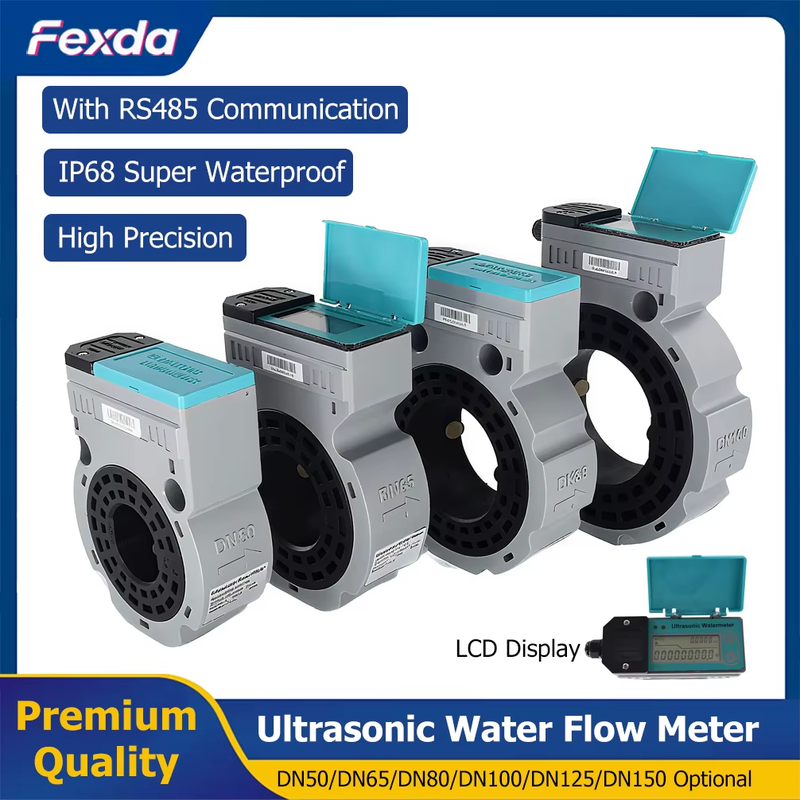

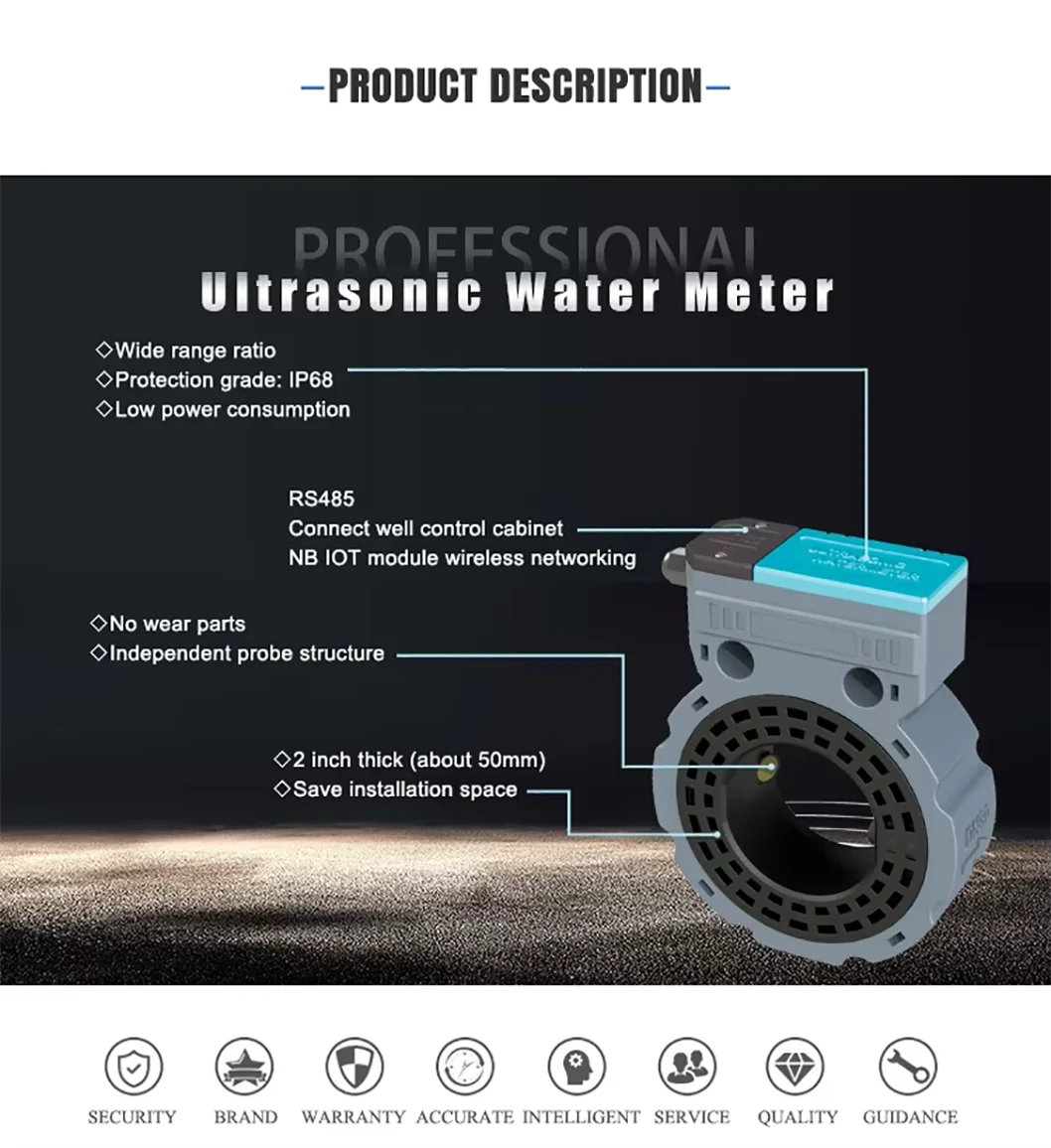

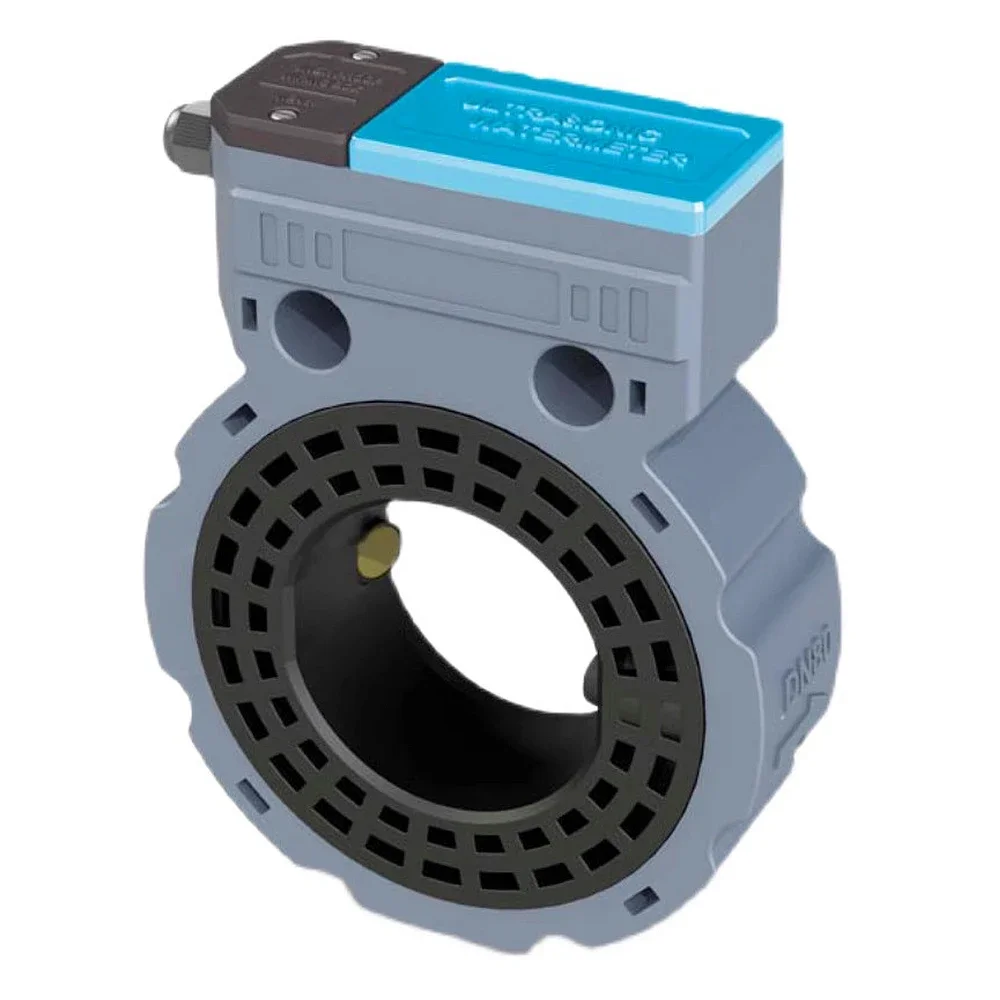

Digital Ultrasonic Flow Meter RS485 Card Type Pipeline Water Meter Industrial Agriculture Irrigation Water Flow Sensor DN50-150

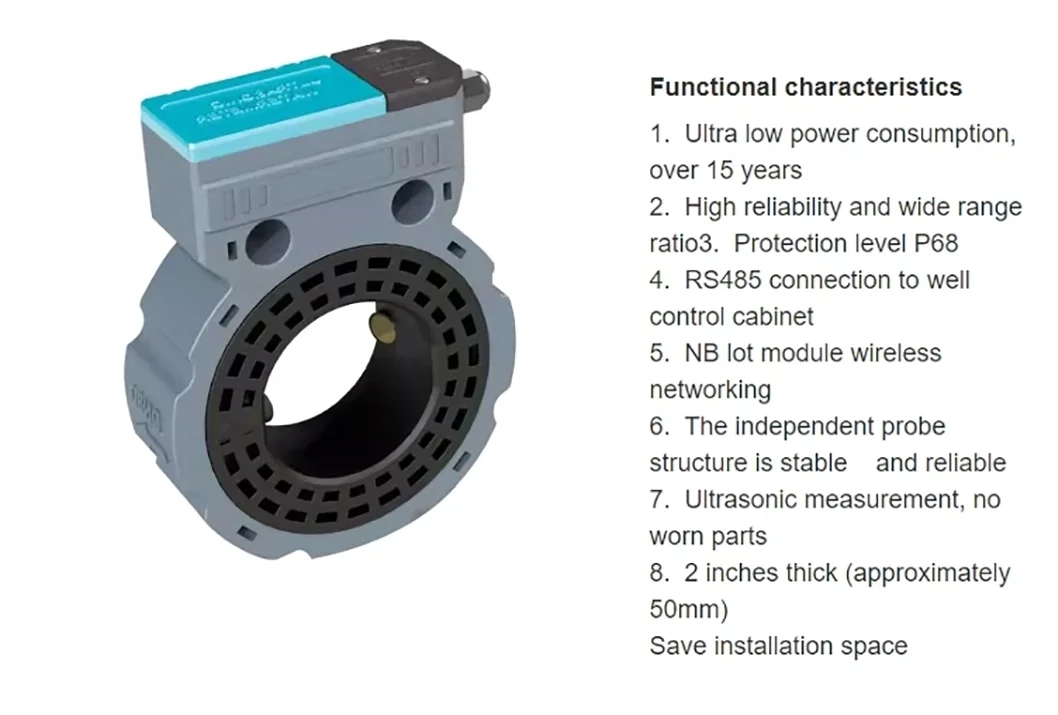

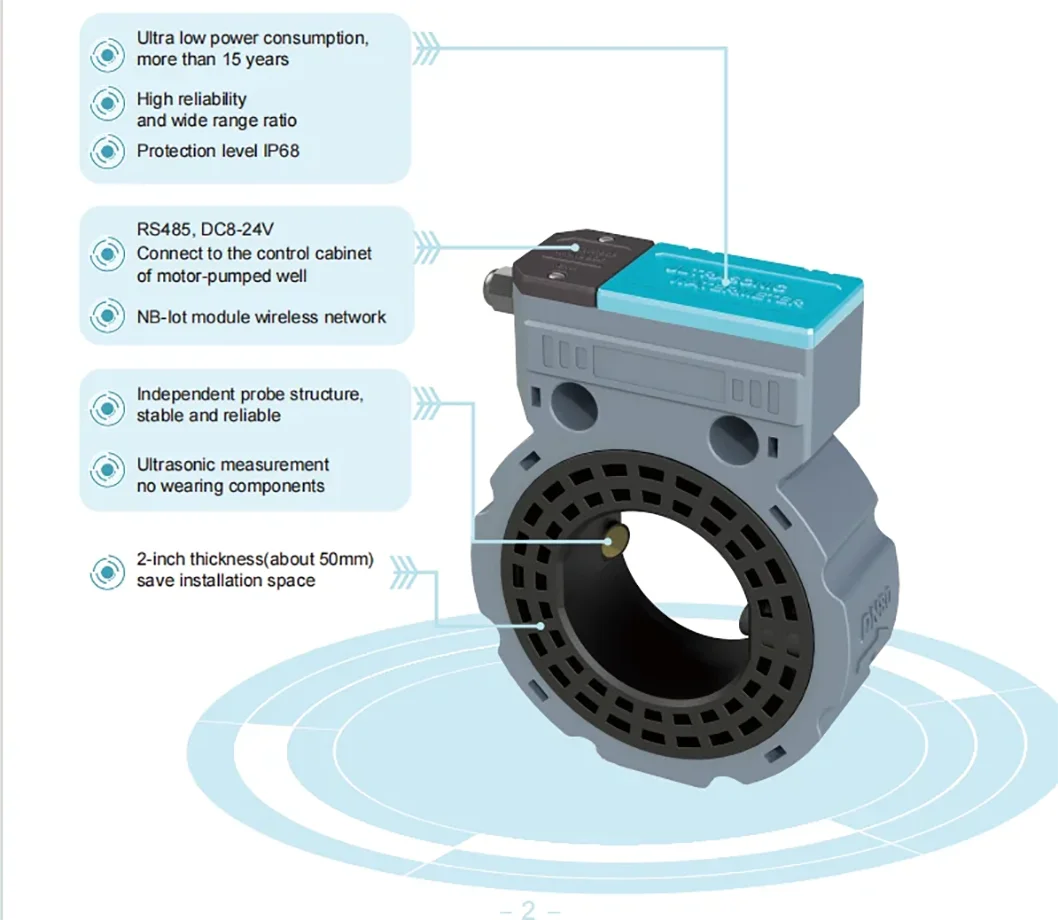

1. Ultrasonic Flow MeterWater Flow MeterWide Pipe Size Compatibility: Supports DN50-150 pipes, ensuring versatile application for various flow measurement needs.

2. Multiple Pipe Material Support: Compatible with steel, stainless steel, aluminum, and PVC, catering to diverse pipeline materials.

3. Advanced Interface Options: Features RS485 and Infrared interfaces, with optional M-BUS and NB-IoT for enhanced connectivity.

4. Extended Power Supply Options: Offers both 3.6V Lithium Battery and DC8-24V power supply flexibility for diverse installation scenarios.

5. High Accuracy Measurement: Boasts ±1% accuracy, ensuring reliable and precise flow data for water and wastewater management.

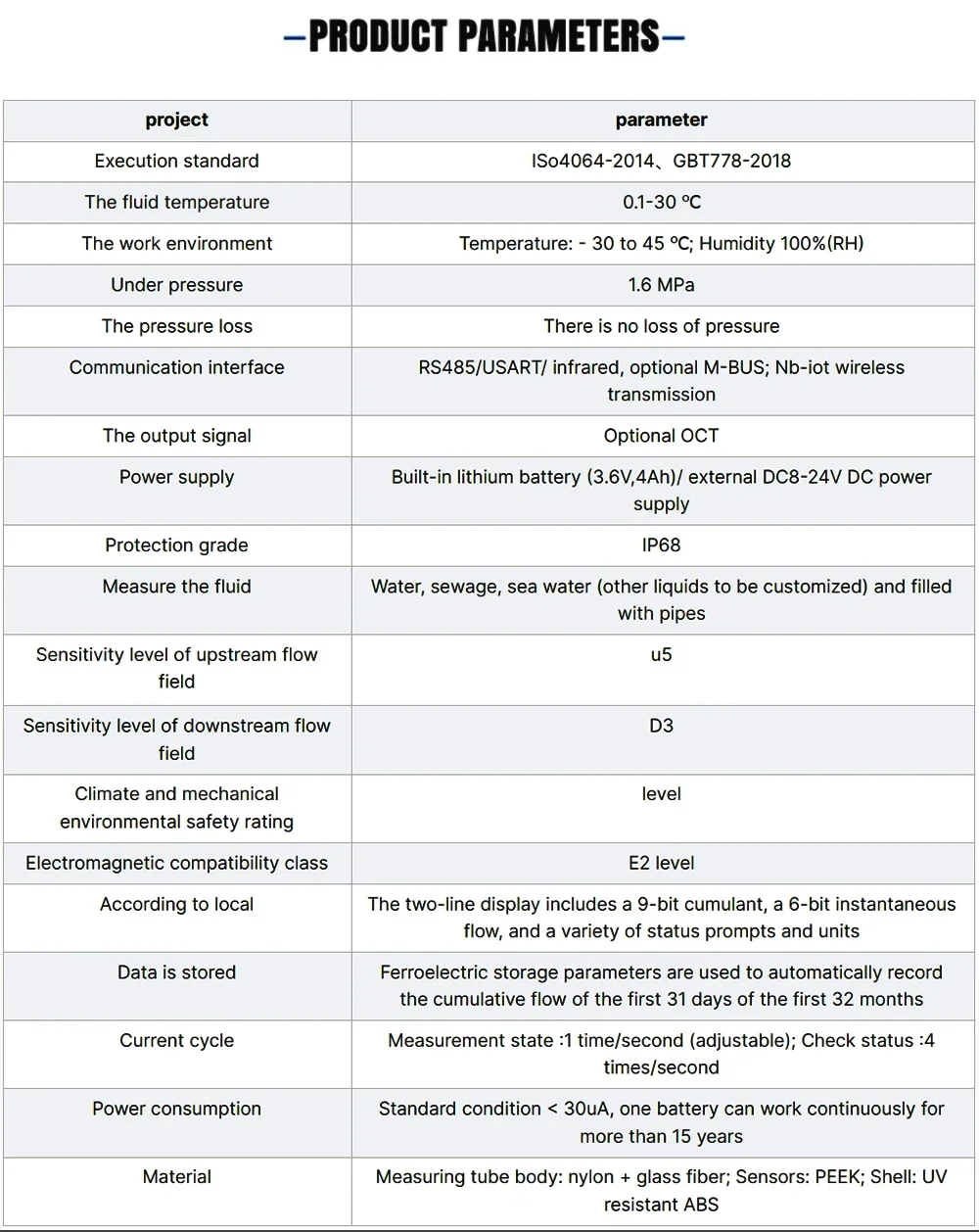

Executive standard: ISO4064-2014, GBT778-2018

Measured fluid: Water, sewage, seawater (Measuring other liquids requires customization) Ensure that water fills the pipe

Fluid temperature: 0.1-30℃

Working environment: Temperature: -30-45℃; Humidity100%(RH)

Working pressure: 1.6MPa

Pressure loss: No pressure loss

Sensitivity level of upstream flow field: U5

Sensitivity level of downstream flow field: D3

Climate and mechanical safety leve: Level C

Electromagnetic compatibility level: Level E2

Communication interface: RS485/USART/Infrared interface,optional M-BUS, NB-IOT wireless transmission

Output signal: Optional OCT

Power supply: Built-in lithium battery/External DC 8-24V power supply

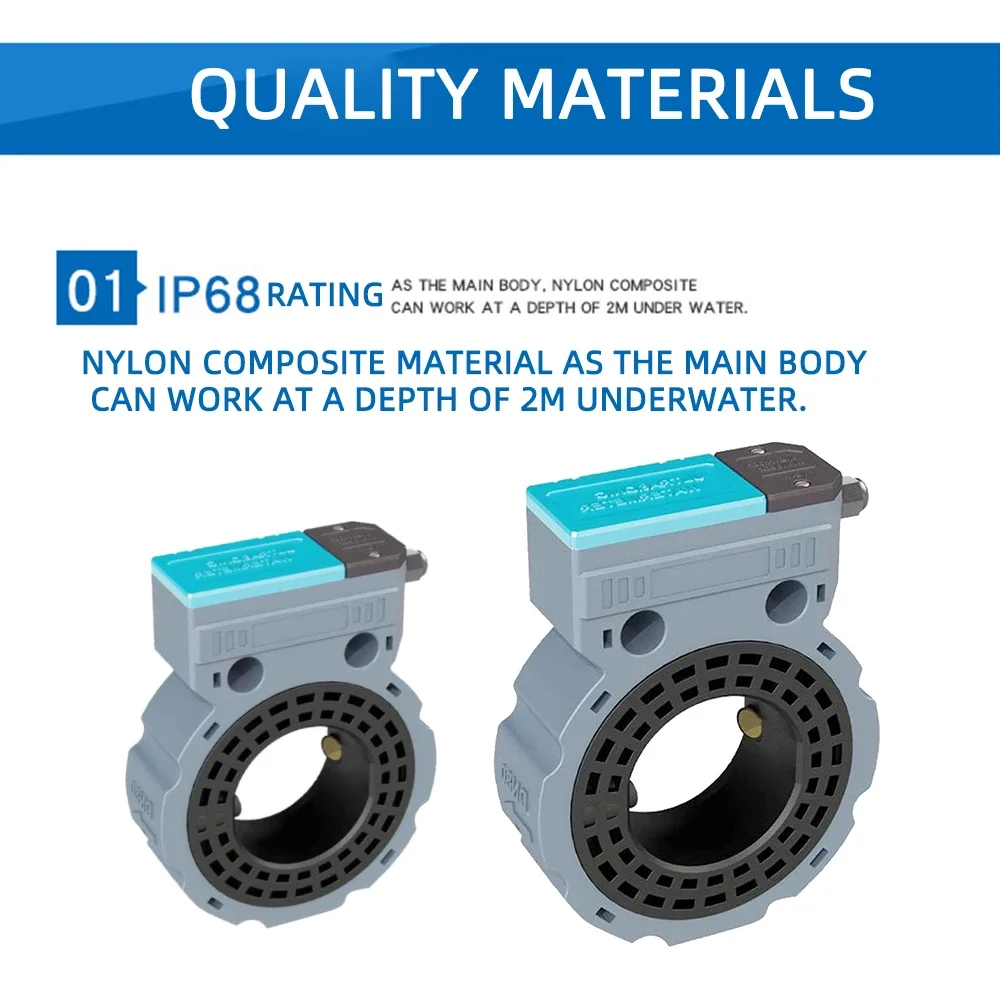

Protection level: IP68

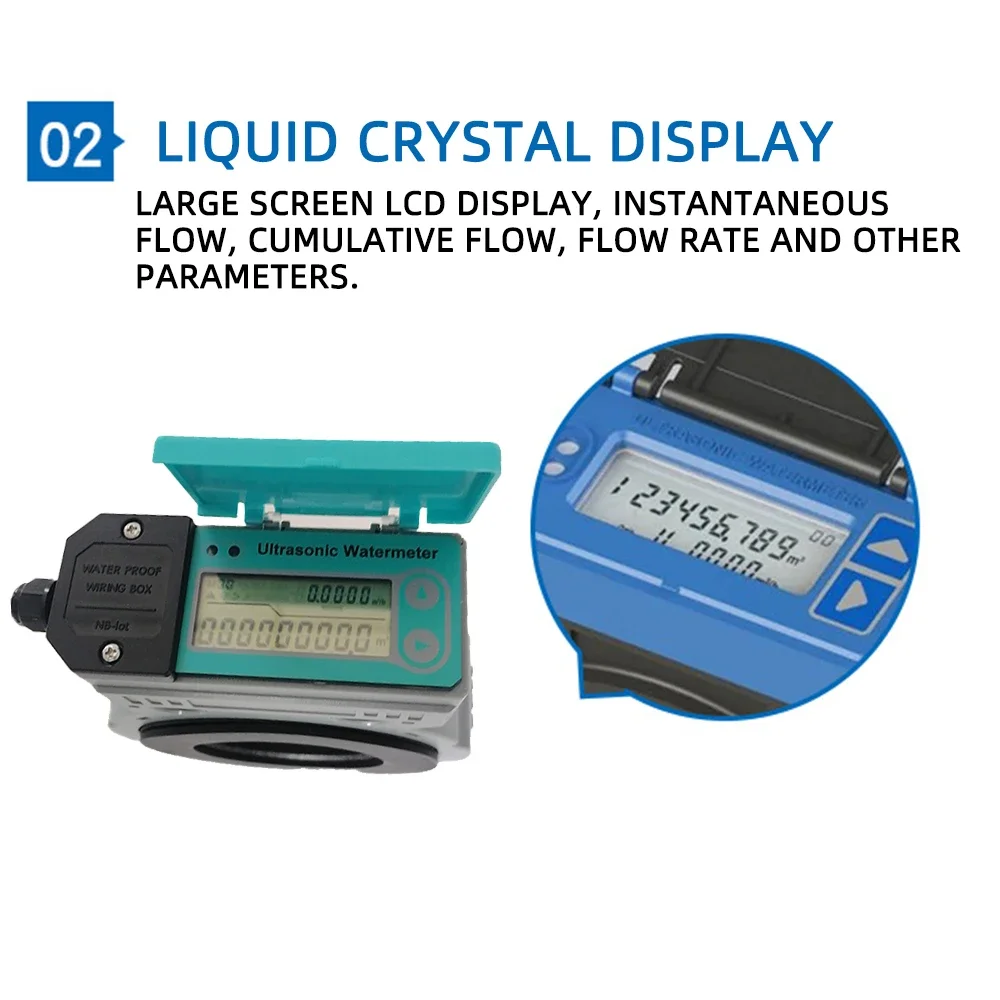

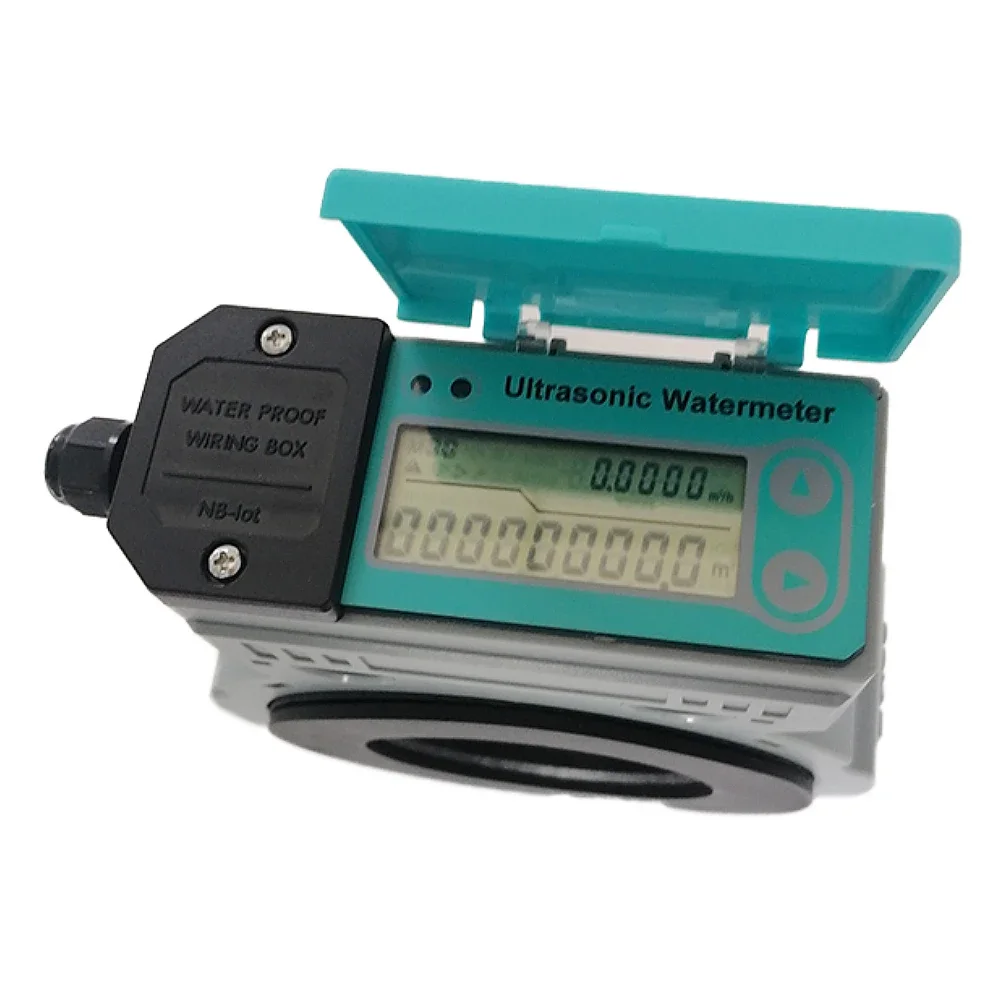

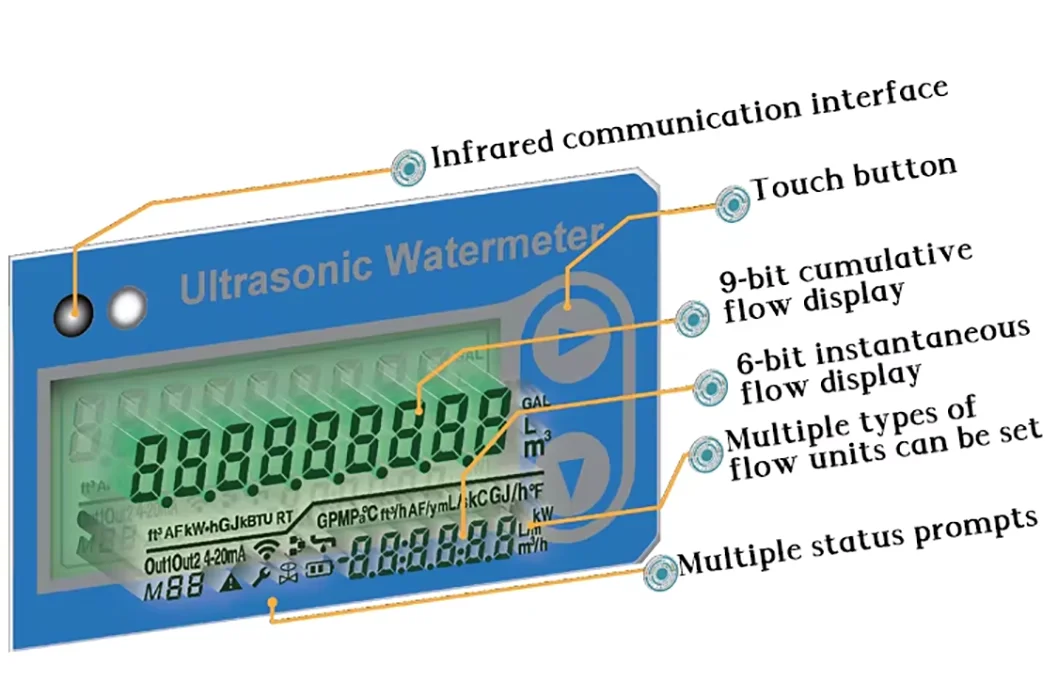

Local display: Two lines show 9-bit cumulative flow, 6-bit instantaneous flow, various status prompts and units

Data storage: Lithium battery power is required for storing parameters. It can automatically record the cumulative flow of 31 months and the daily flow of the 32nd month.

Flow measurement period: Application status: once/second; Verification status: 4times/second

Power consumption: Standard status:<30uA,The longest working time of a battery can be more than 15 years.

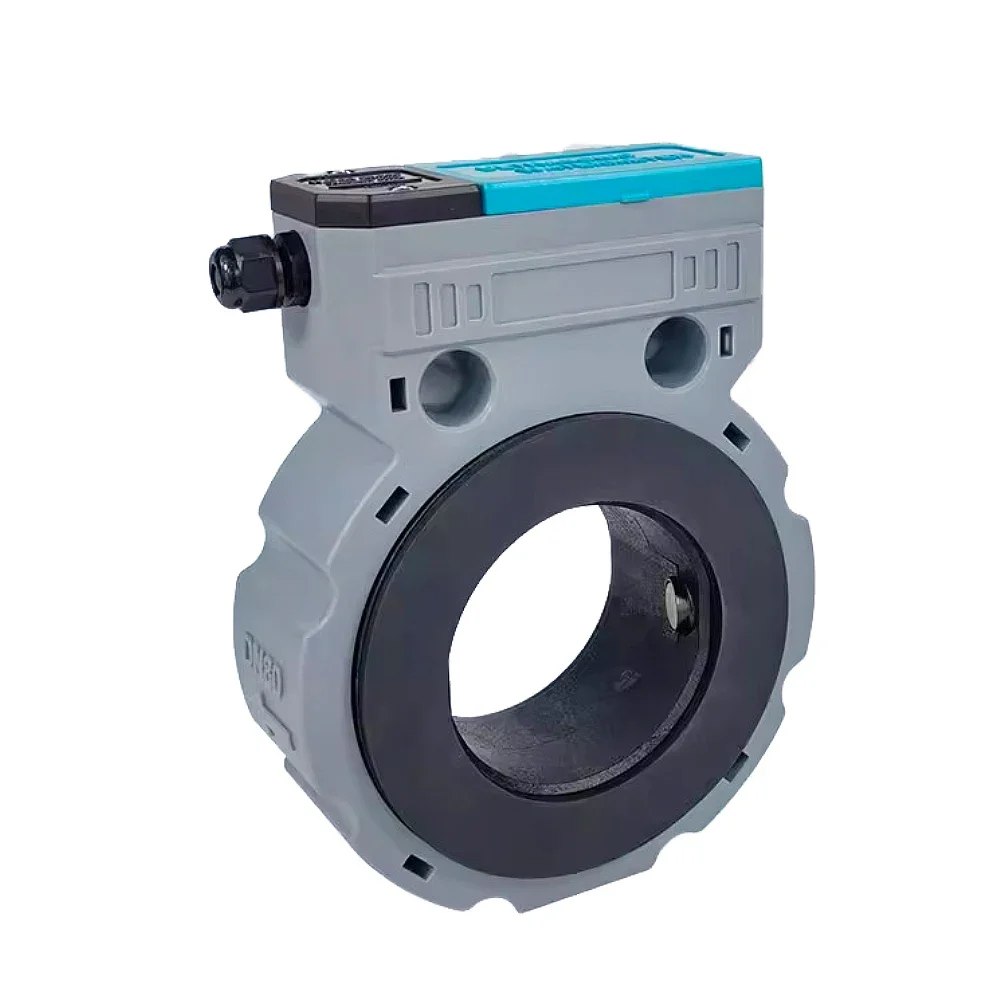

Material: Measuring tube: nylon+GF; Sensor: PEEK; Housing: ABS

Digital Ultrasonic Flow Meter*1
