New DSO510 DSO153 DSO152 10MHz Bandwidth 48MS/s Sampling Rate Mini Handheld Elec

Product Description

Our company proudly introduces three high-quality and cost-effective handheld measurement tools—DSO510, DSO153, and DSO152—designed to meet the needs of both the maintenance and educational development industries. These portable, easy-to-use devices feature robust functionality, making them ideal for signal measurement and troubleshooting in various scenarios.

DSO510: High-Performance Flagship Model

The DSO510 is a powerful measurement tools, offering advanced performance suitable for complex signal testing, research, and development. This model is an excellent choice for professionals handling intricate repairs or education environments requiring precise measurements.

Real-time Sampling Rate: 48MS/s

Bandwidth: 10MHz

Signal Type Support: Periodic analog signals and non-periodic digital signals

Trigger Modes: Single, Normal, Auto

Voltage Measurement Range: ±400V

Signal Generator: 50KHz

Key Features:

One-Click AUTO Mode: Displays waveforms instantly without complex adjustments.

HD LCD Screen: 2.8-inch display with 320×240 resolution.

Battery Life: Built-in 1000mAh lithium battery supports up to 4 hours of continuous use.

Recommended Use: Ideal for advanced repairs, development, and education projects.

DSO153: Balanced and Versatile Option

The DSO153 combines performance and portability, making it an excellent tool for routine maintenance and educational use. It offers a well-rounded feature set suitable for general signal testing.

Real-time Sampling Rate: 5MS/s

Bandwidth: 1MHz

Signal Type Support: Periodic analog signals and non-periodic digital signals

Trigger Modes: Single, Normal, Auto

Voltage Measurement Range: ±400V

Signal Generator: 10KHz

Key Features:

8 different languages: Chinese, English, Russian, Japanese, Spanish, Portuguese, German, Korean

One-Click AUTO Mode: Effortlessly display waveforms with minimal input.

HD LCD Screen: 2.8-inch display with 320×240 resolution.

Battery Life: Built-in 1000mAh lithium battery provides up to 4 hours of operation.

Recommended Use: Suitable for routine equipment maintenance and educational signal demonstrations.

DSO152: Lightweight Entry-Level Model

The DSO152 is a compact, entry-level measurement tools, designed for basic signal analysis and maintenance tasks. It provides essential measurement tools functions in a lightweight and easy-to-carry design.

Real-time Sampling Rate: 2.5MS/s

Bandwidth: 200KHz

Signal Type Support: Periodic analog signals and non-periodic digital signals

Trigger Modes: Single, Normal, Auto

Voltage Measurement Range: ±400V

Key Features:

One-Click AUTO Mode: Quickly generate waveforms with ease.

HD LCD Screen: 2.8-inch display with 320×240 resolution.

Battery Life: Built-in 1000mAh lithium battery with 4 hours of use per charge.

Recommended Use: Perfect for basic maintenance and educational labs requiring fundamental signal analysis.

Summary

These three models—DSO510, DSO153, and DSO152—are designed to address different levels of testing requirements.

DSO510: Best for advanced applications with the highest sampling rate and bandwidth.

DSO153: A well-balanced option for everyday maintenance and education.

DSO152: Ideal for entry-level needs with essential functions in a lightweight design.

All models feature one-click AUTO functionality, portable design, vivid 2.8-inch LCD screens, and 4-hour battery life, making them reliable tools for both professionals and students.

Channel：1

Sampling rate：48MSa/s

Vertical sensitivity：10mV/Div-20V/Div（Progress according to the 1-2-5 way）

Time base range：50ns/Div-20s/Div（Progress according to the 1-2-5 way）

Voltage range：X1:士40V (Vpp:80V) X10: 士400V (Vpp :800V)

Trigger method：Auto / Normal / Single

Coupling method：AC/DC

* Signal Source*

Frequency：0-50KHz

Duty cycle：0-100% (rectangular and sawtooth waves)

Amplitude：0.1-3.0V

Waveforms：Sine wave, rectangular wave, sawtooth wave, half wave, full wave, step wave, anti step wave, exponential rise, exponential drop, DC signal,
multi tone, Sink pulse, Lorentz wave.

* Other Parameters *

Display：2.8 inches/PPI:320*240

USB charging：5V/1A

Lithium battery capacity：1000mAh

Size：99x68.3x19.5mm

Weight：104g

Channel：1

Sampling rate：5MSa/s

Vertical sensitivity：10mV/Div-20V/Div（Progress according to the 1-2-5 way）

Time base range：500ns/Div-20s/Div（Progress according to the 1-2-5 way）

Voltage range：X1:士40V (Vpp:80V) X10: 士400V (Vpp :800V)

Trigger method：Auto / Normal / Single

Coupling method：AC/DC

* Signal Source*

Frequency：0-10KHz

Duty cycle：0-100% (rectangular and sawtooth waves)

Amplitude：0.1-3.3V

Waveforms：Sine wave, rectangular wave, sawtooth wave, half wave, full wave, step wave, anti step wave, noise wave, exponential rise, exponential drop, DC signal,

multi tone, Sink pulse, Lorentz wave.

* Other Parameters *

Display：2.8 inches/PPI:320*240

USB charging：5V/1A

Lithium battery capacity：1000mAh

Size：99x68.3x19.5mm

Weight：100g

Channel：1

Sampling rate：2.5MS/s

Vertical sensitivity：10mV/Div-20V/Div(Progress according to the 1-2-5 way)

Time base range：10μs/Div-50s/Div(Progress according to the 1-2-5 way)

Voltage range：X1:40V (Vpp:80V) X10: 400V (Vpp :800V)

Trigger method：Auto/Normal/Single

Coupling method：AC/DC

Display：2.8 inches/PPI:320*240

USB charging：5V/1A

Lithium battery capacity：1000mAh

Square wave calibration：Frequency: 1K Duty cycle: 50%

Size：99x68.3x19.5mm

Weight：100g

NO.1 (Option)

DSO510 Host device *1

P6100 High Voltage Probe *1

Adapter *1

Alligator clip probe *1

Charging cable *1

Lanyard *1

User Manual *1

Packaging color box *1

NO.1 (Standard)

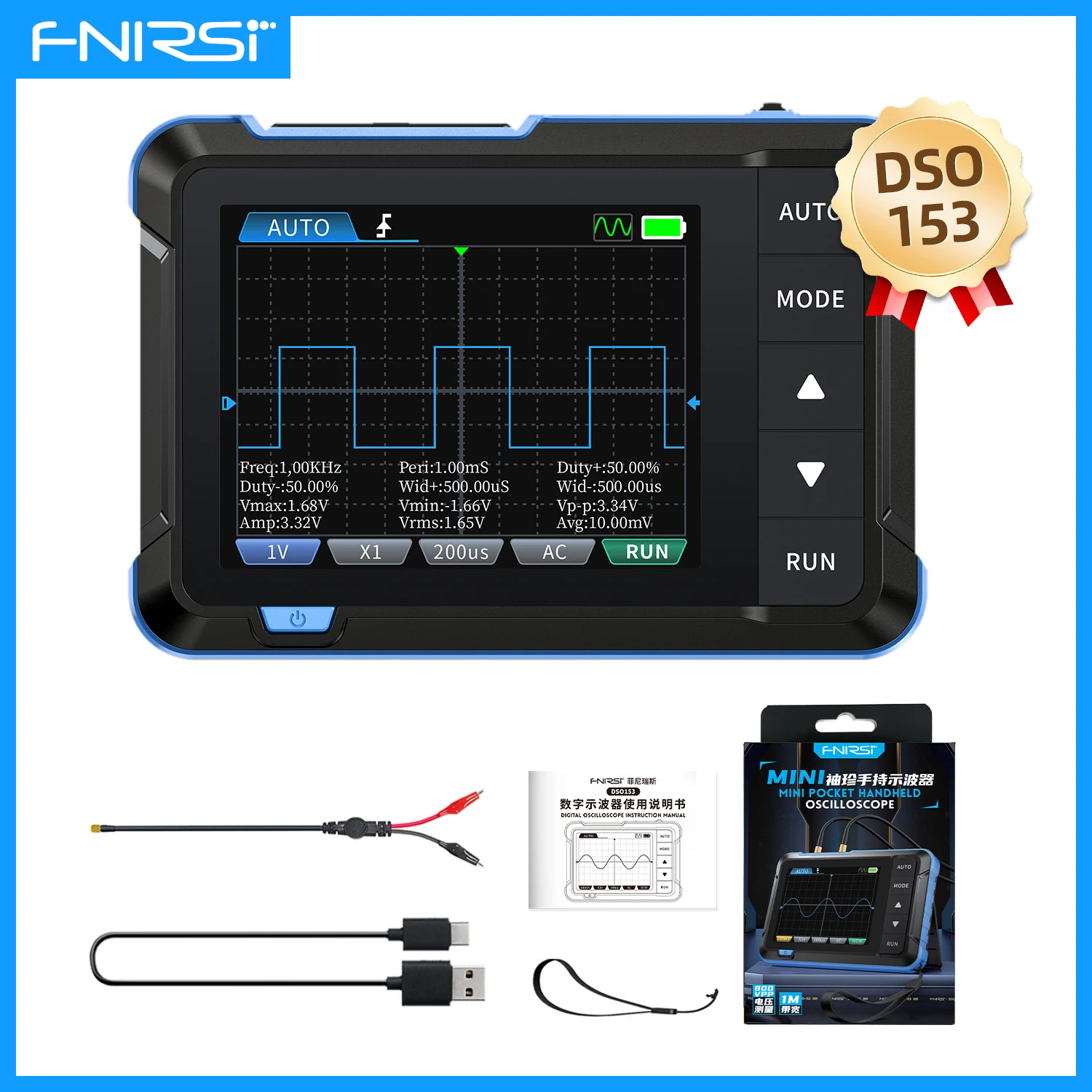

DSO153 Host device *1

Alligator clip probe *1

Charging cable *1

Lanyard *1

User Manual *1

Packaging color box *1

NO.2 (Option)

DSO 153 Host device *1

P6100 High Voltage Probe *1

Adapter *1

Alligator clip probe *1

Charging cable *1

Lanyard *1

User Manual *1

Packaging color box *1

NO.1 (Standard)

DSO152 Host device *1

Alligator clip probe *1

Charging cable *1

Lanyard *1

User Manual *1

Packaging color box *1

NO.2 (Option)

DSO 152 Host device *1

P6100 High Voltage Probe *1

Adapter *1

Alligator clip probe *1

Charging cable *1

Lanyard *1

User Manual *1

Packaging color box *1
