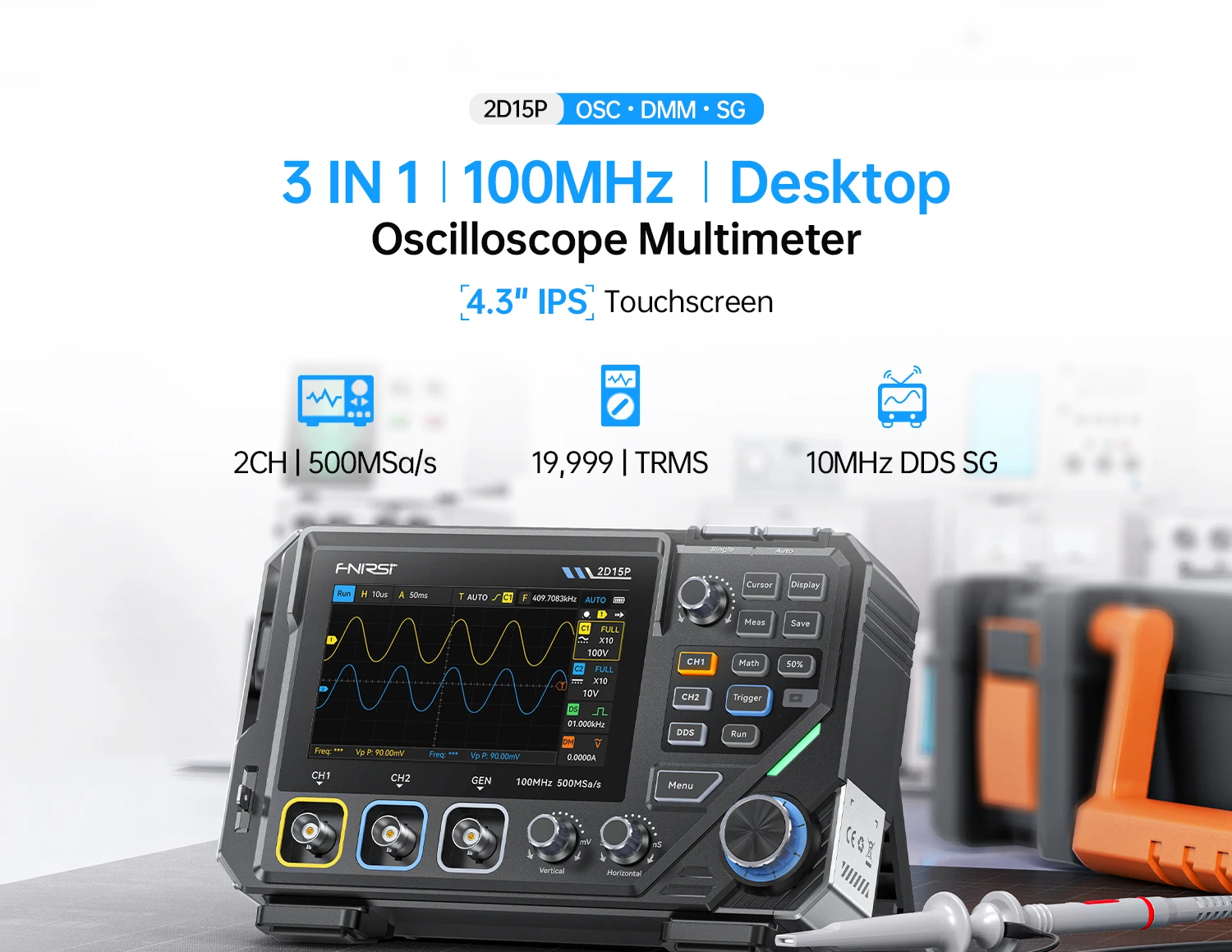

2D15P 3-in-1 Touch Screen Repair Device: 2-Channel, 100MHz，for home appliance or

Product Description

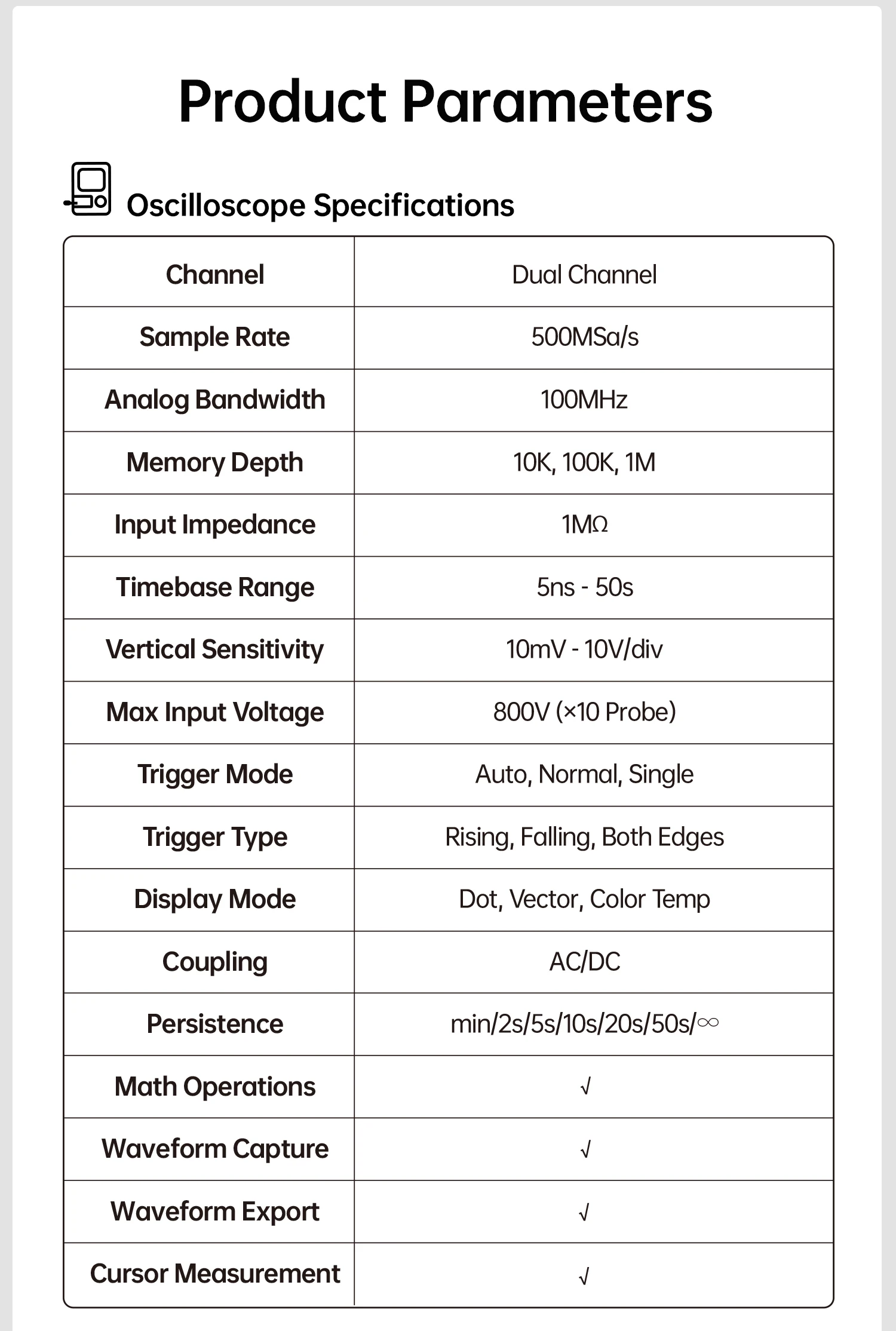

Basic Parameters

Model: 2D15P

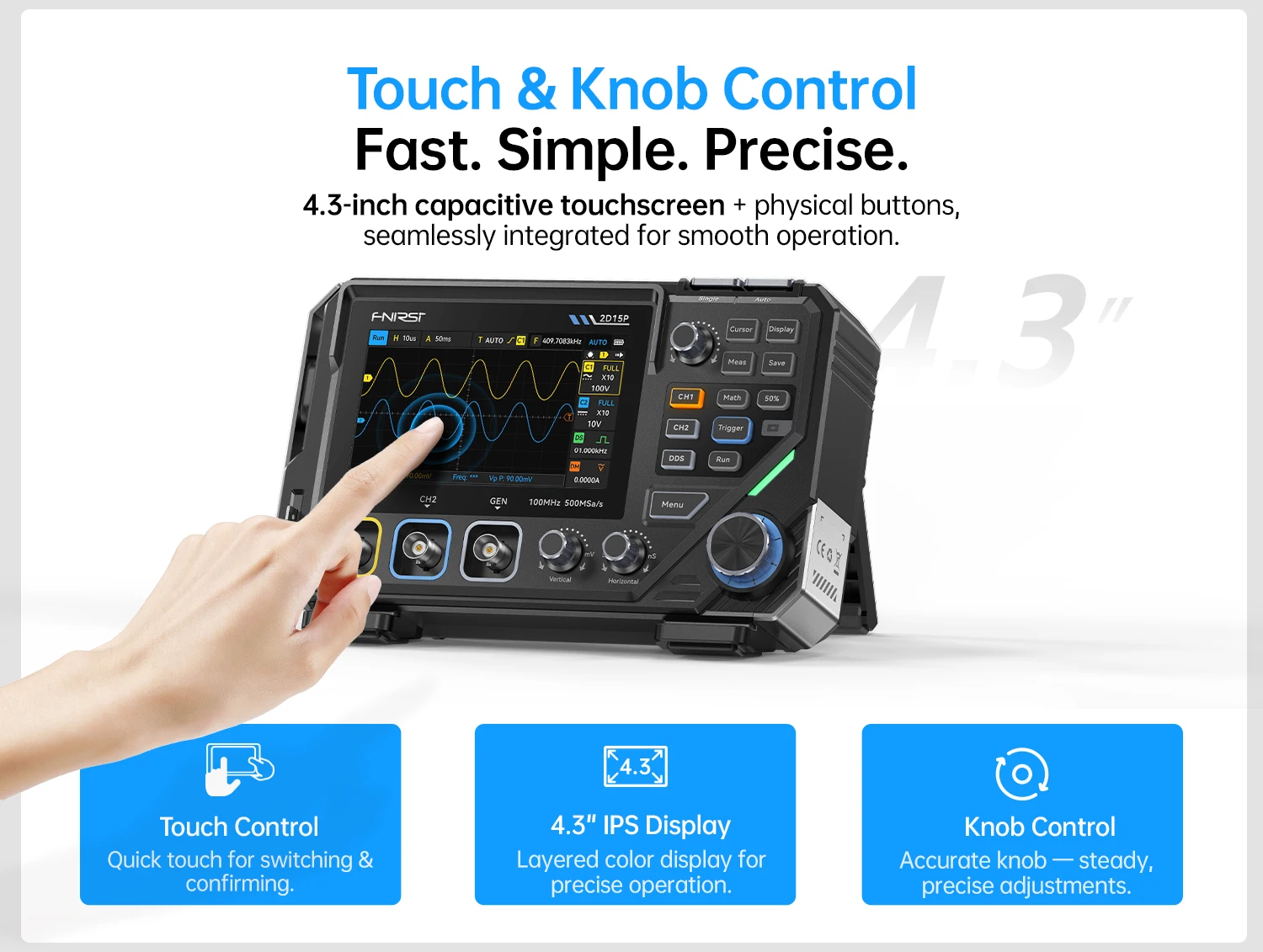

Screen: 4.3-inch capacitive touchscreen

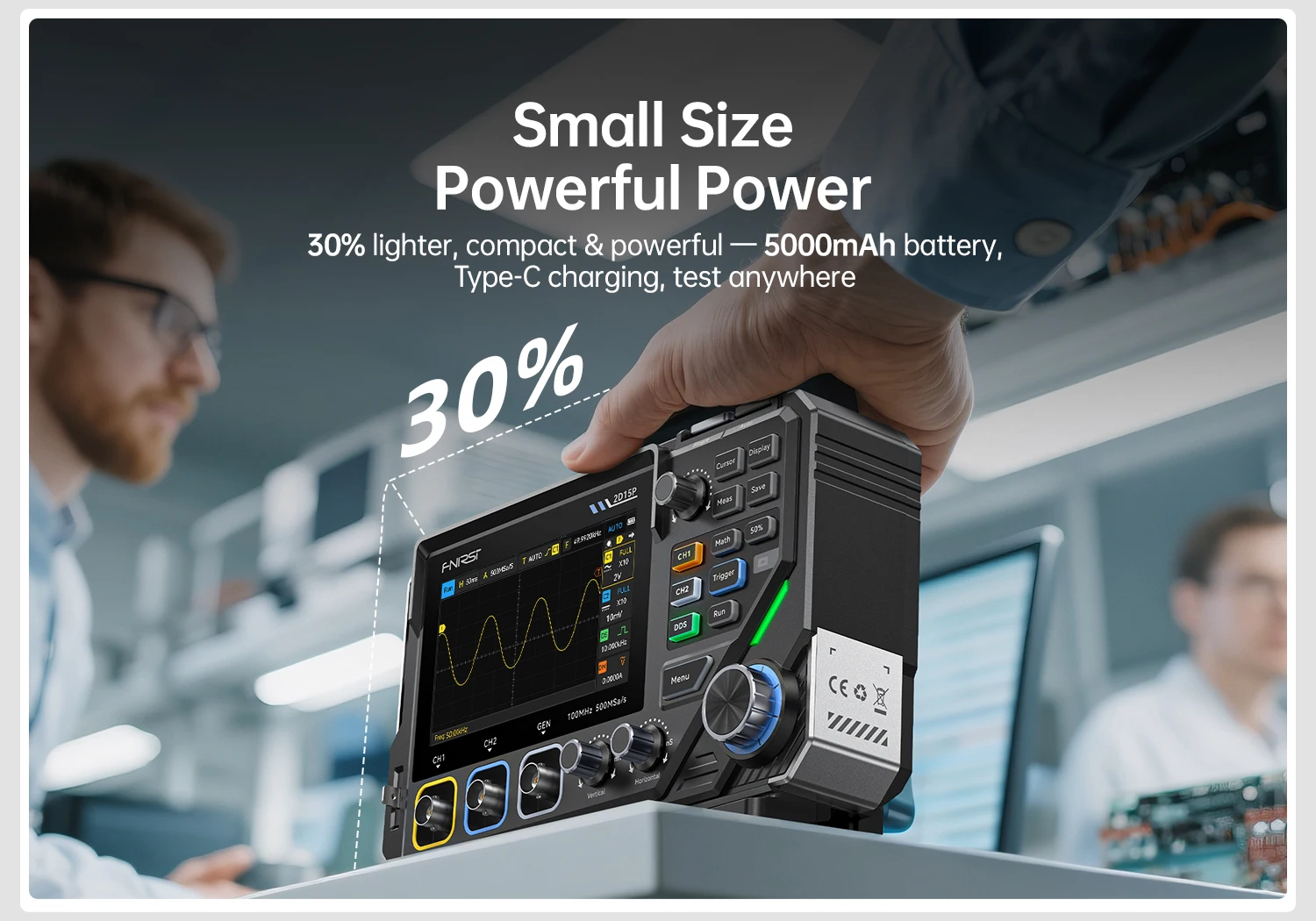

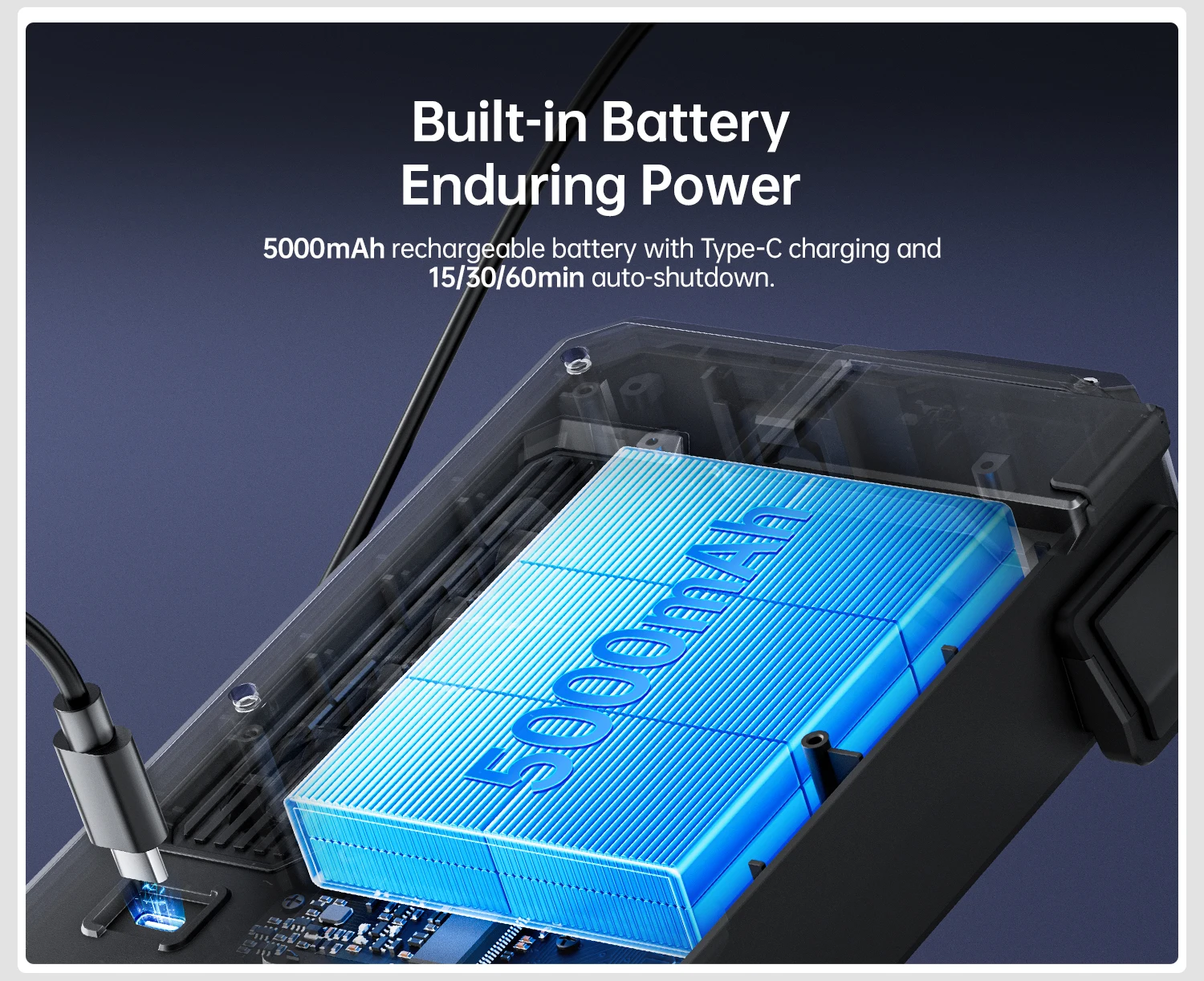

Battery: 5000mAh rechargeable lithium battery

Operation Method: Touch + knob + physical buttons

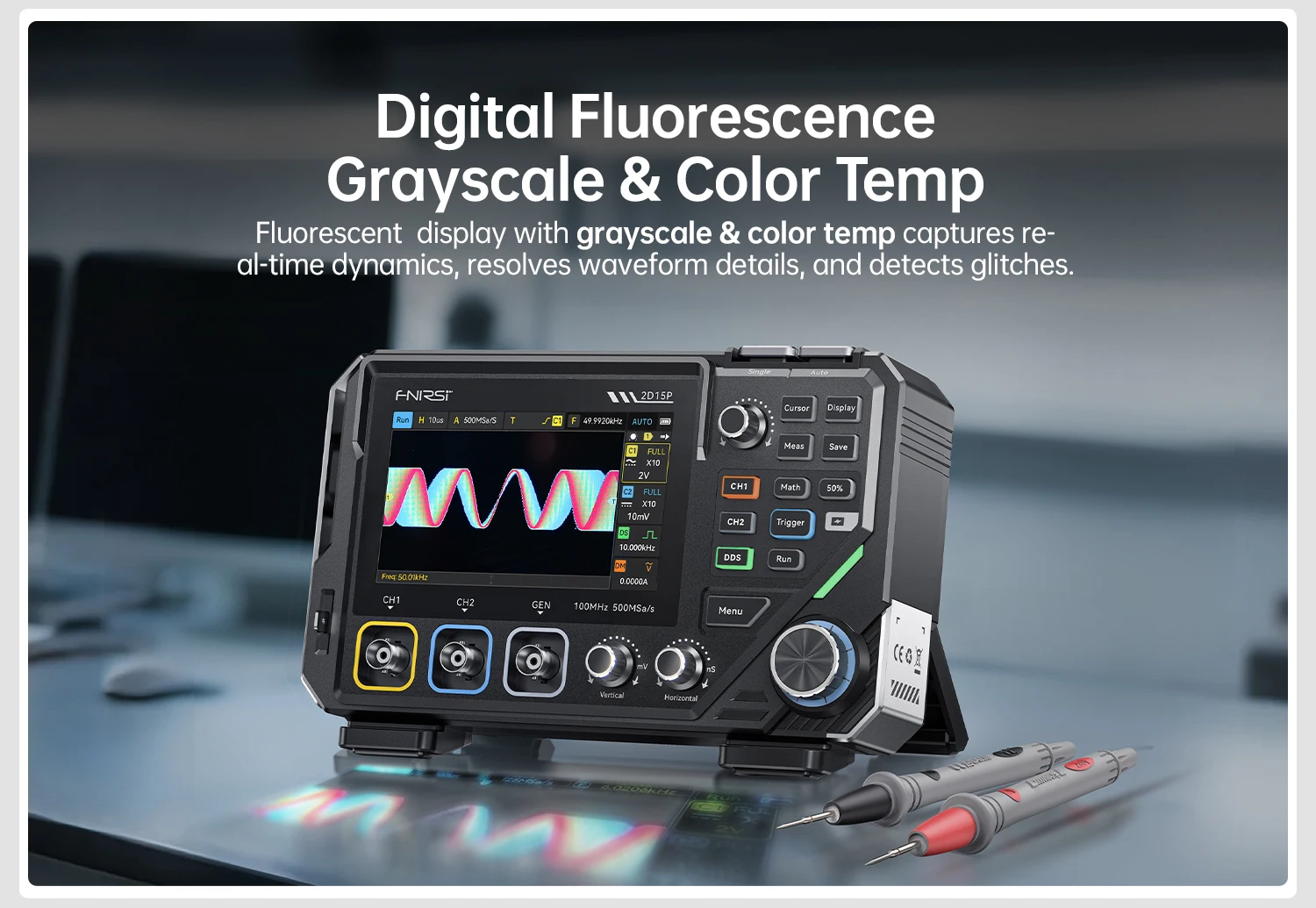

Display: 128-level grayscale, color temperature, persistence

Channels: 2 channels

Analog Bandwidth: 100MHz (single channel) / 50MHz (dual)

Sampling Rate: 500MSa/s

Memory Depth: 10K / 100K / 1M

Input Impedance: 1MΩ

Time Base Range: 5ns/div – 50s/div

Vertical Sensitivity: 10mV/div – 10V/div

Max Input Voltage: 800V (×10 probe)

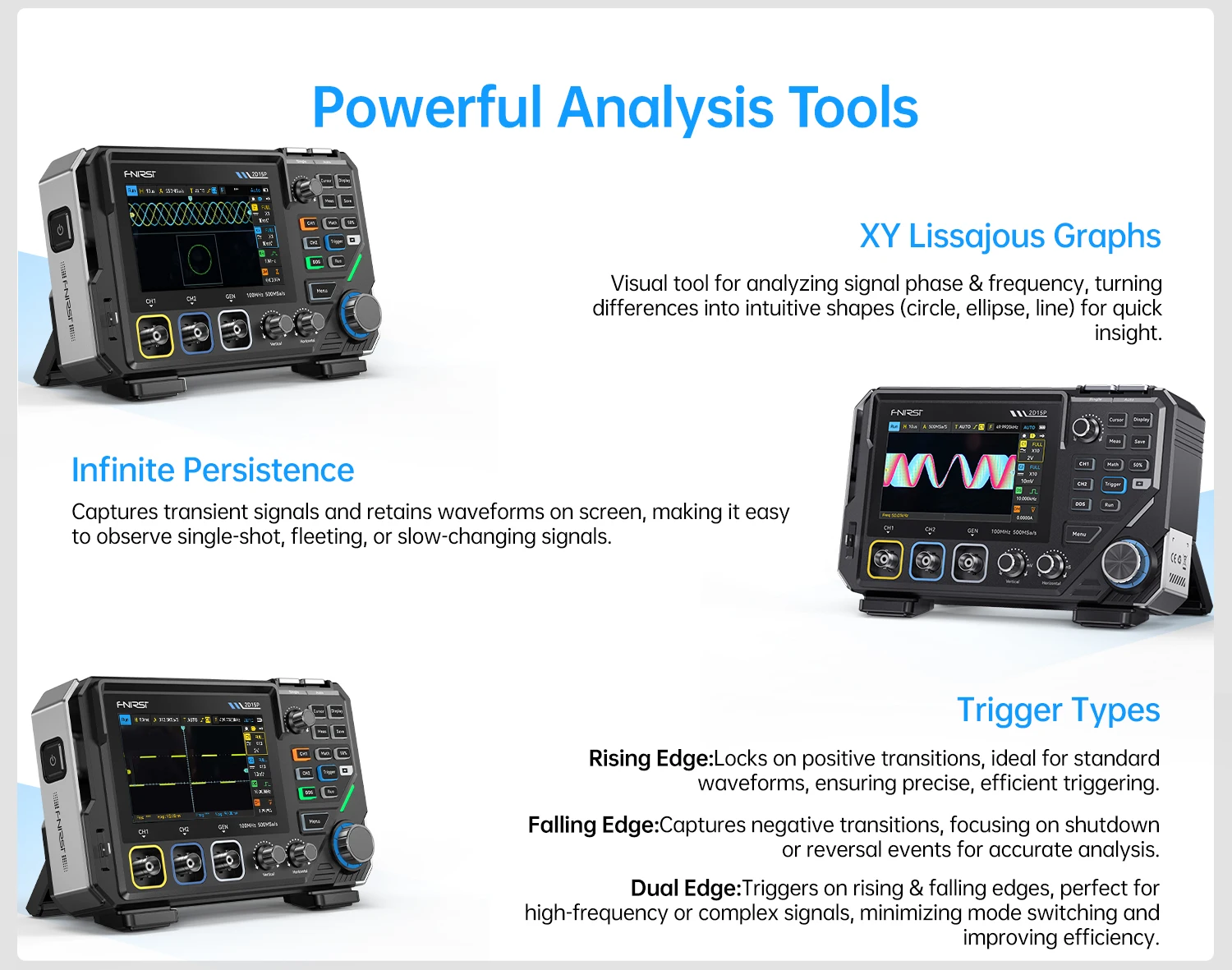

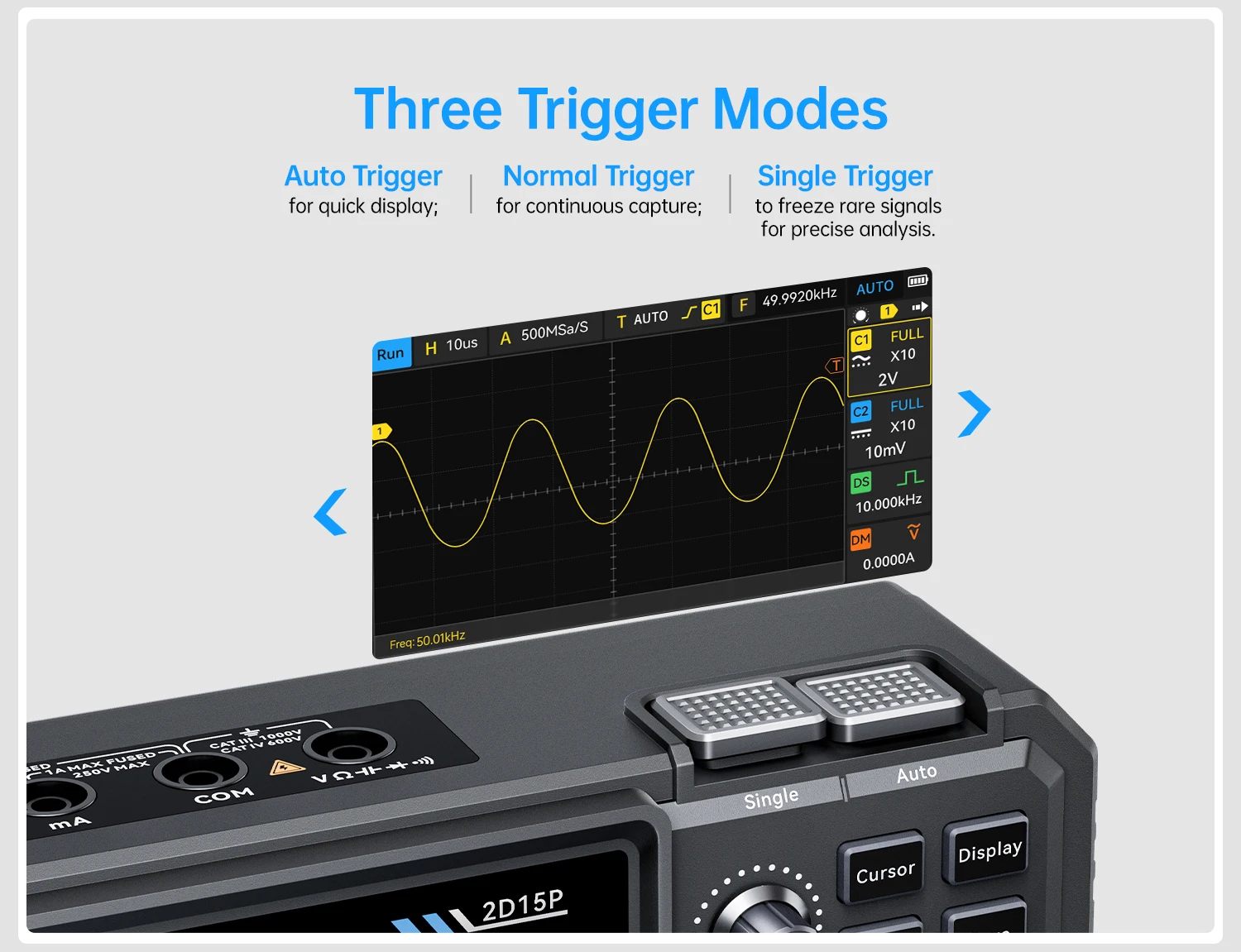

Trigger Modes: Auto / Normal / Single

Trigger Type: Rising / Falling / Both Edges

Coupling: AC / DC

Display Modes: Dot / Vector / Color Temperature

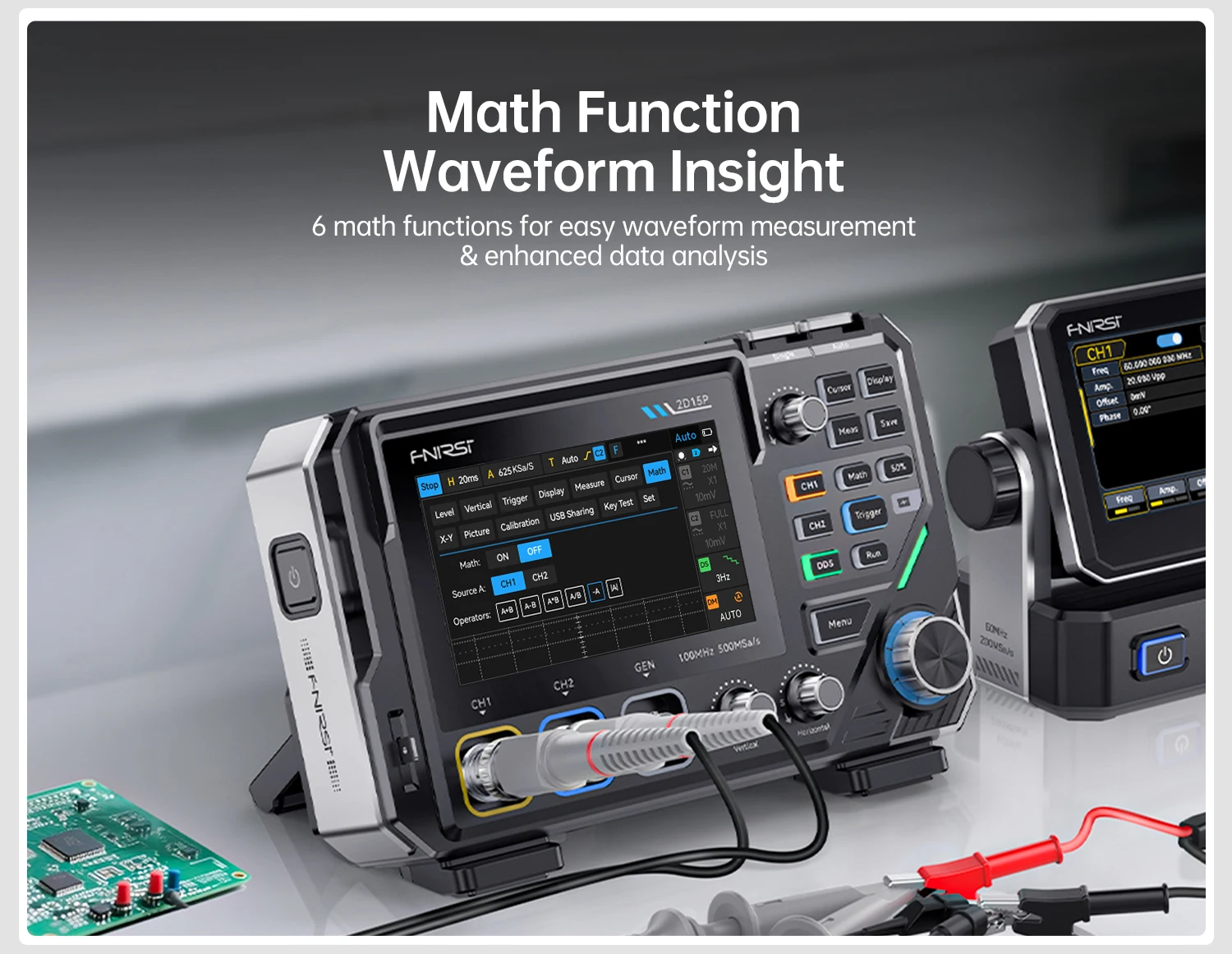

Math Operations: 6 Basic Ops

Persistence: Adjustable (min/2s/5s/10s/20s/50s/∞)

Waveform Capture: Supported

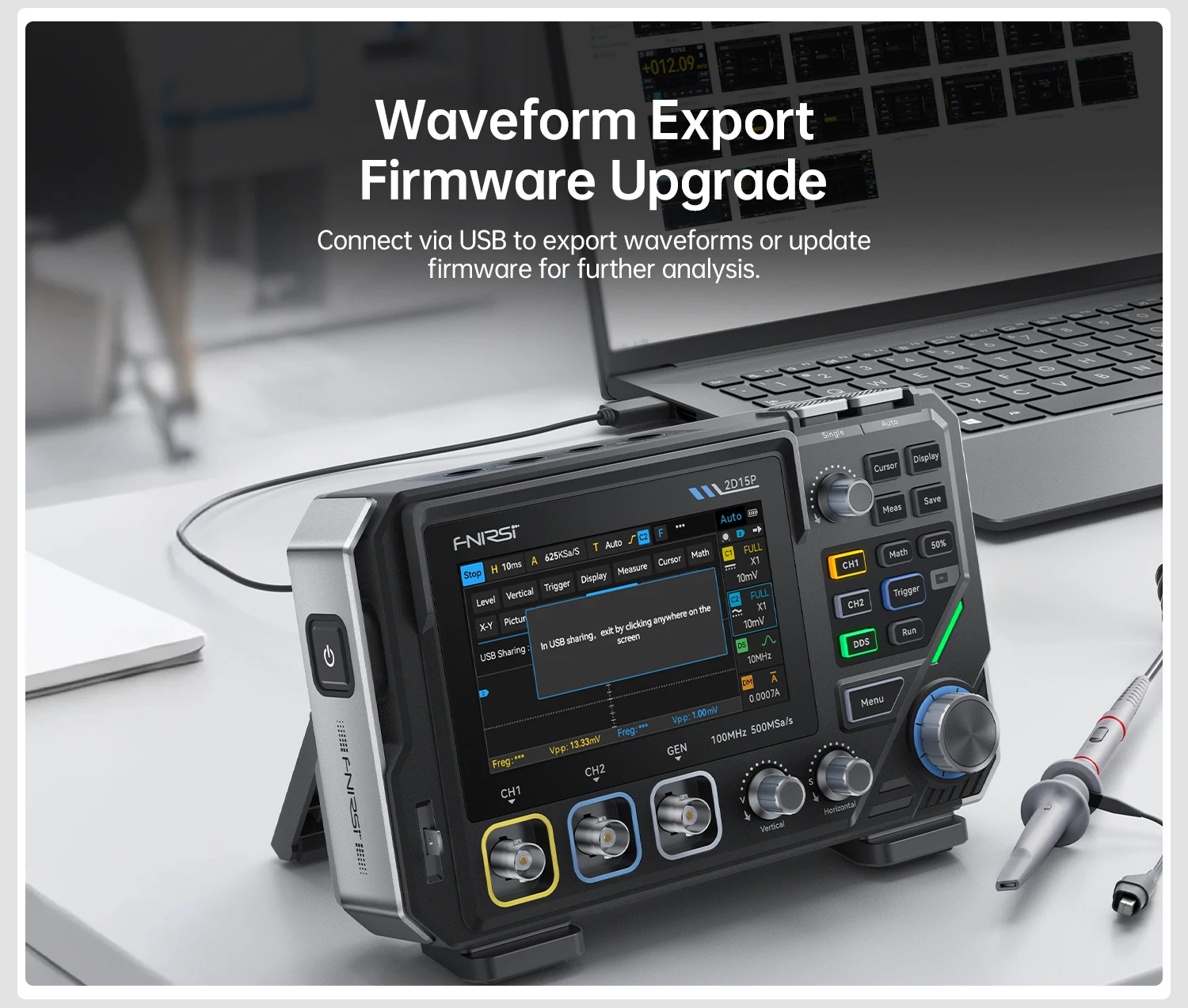

Waveform Export: Supported

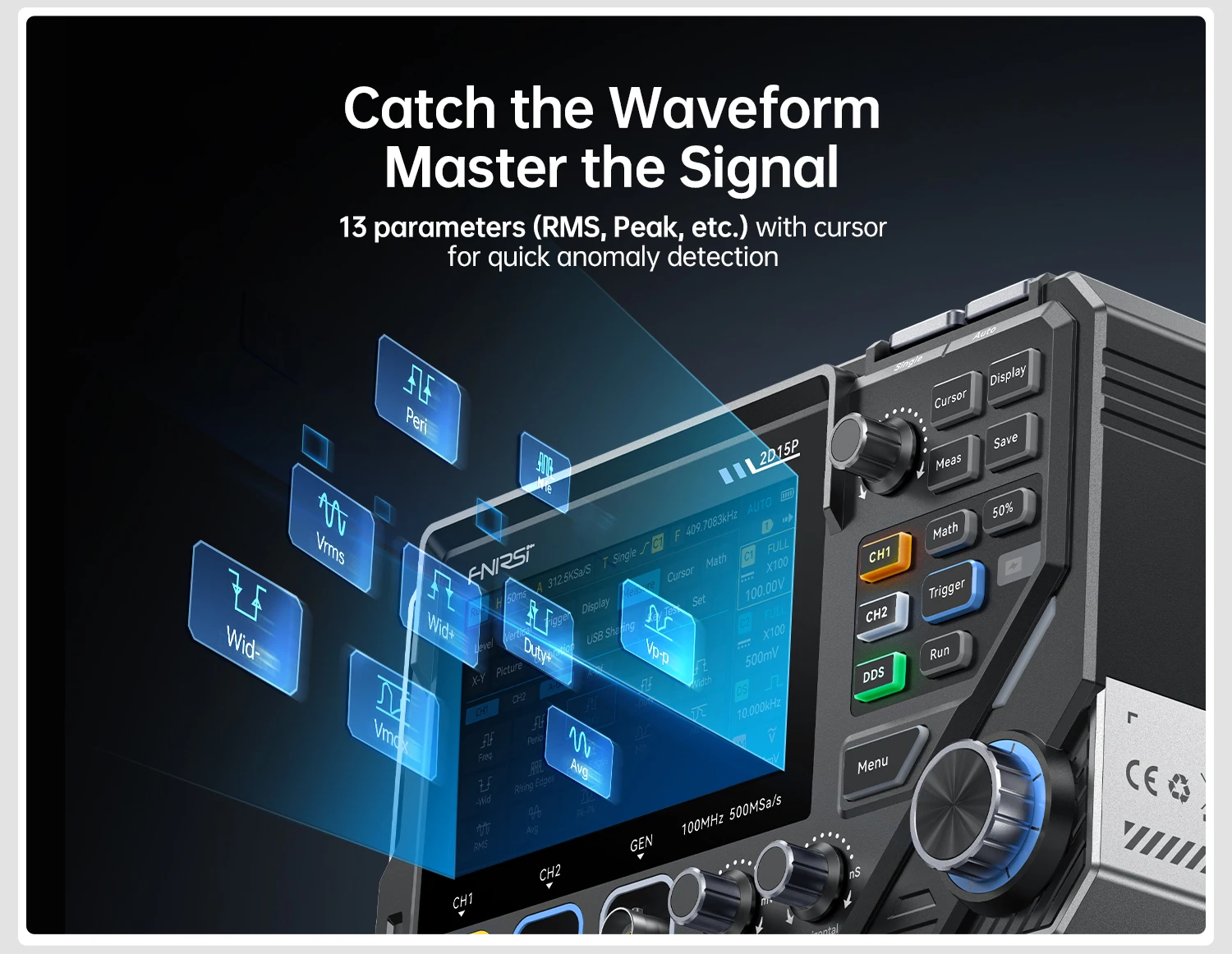

Cursor measurement: Supported

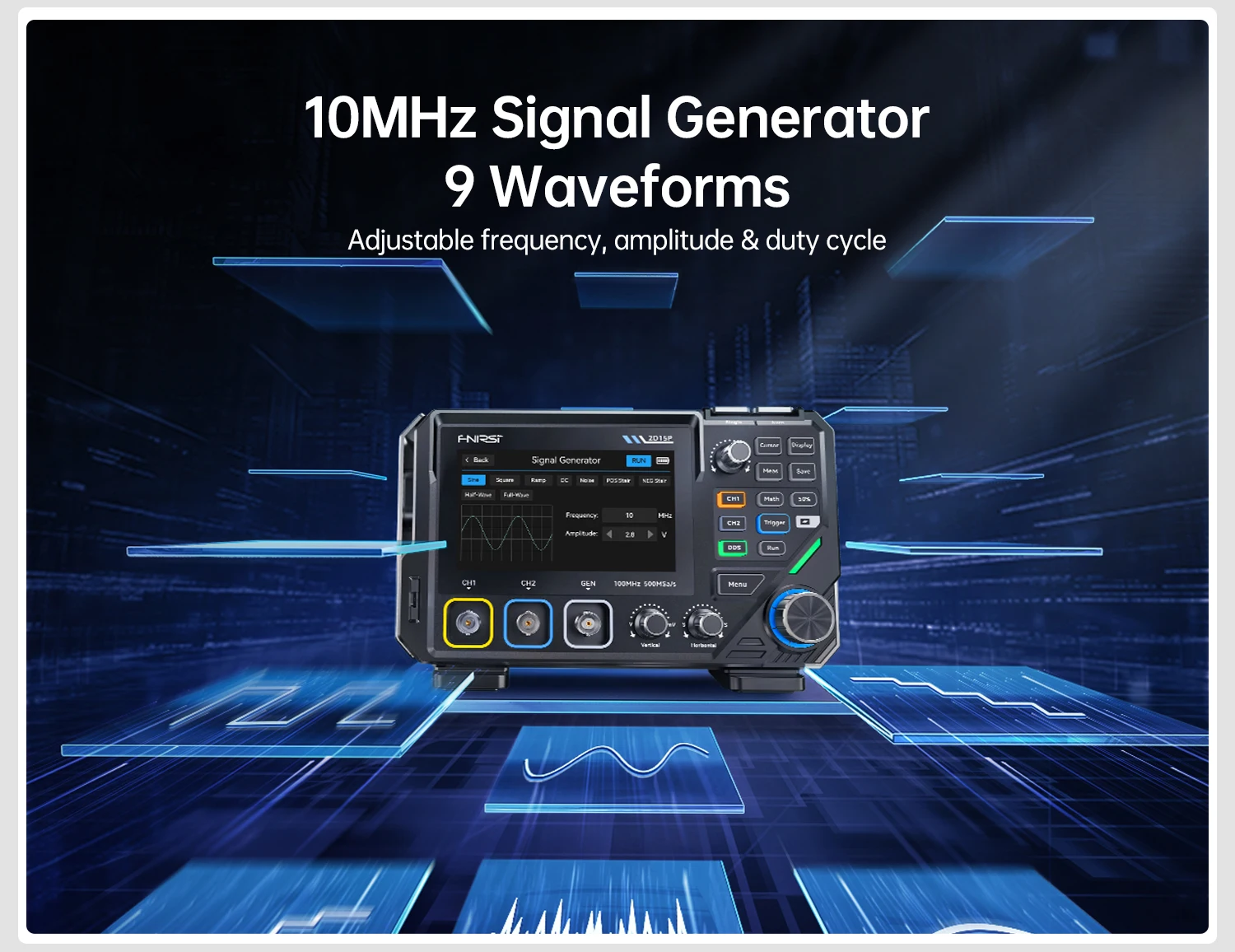

DDS

Channel: 1 channel

Frequency: 0–10MHz

Amplitude: 0.1–3.0Vpp

Duty Cycle: 0–100%

Waveform Types: Sine, Square, Triangle, DC, Noise, Half-wave, Full-wave, Positive Staircase, Negative Staircase.

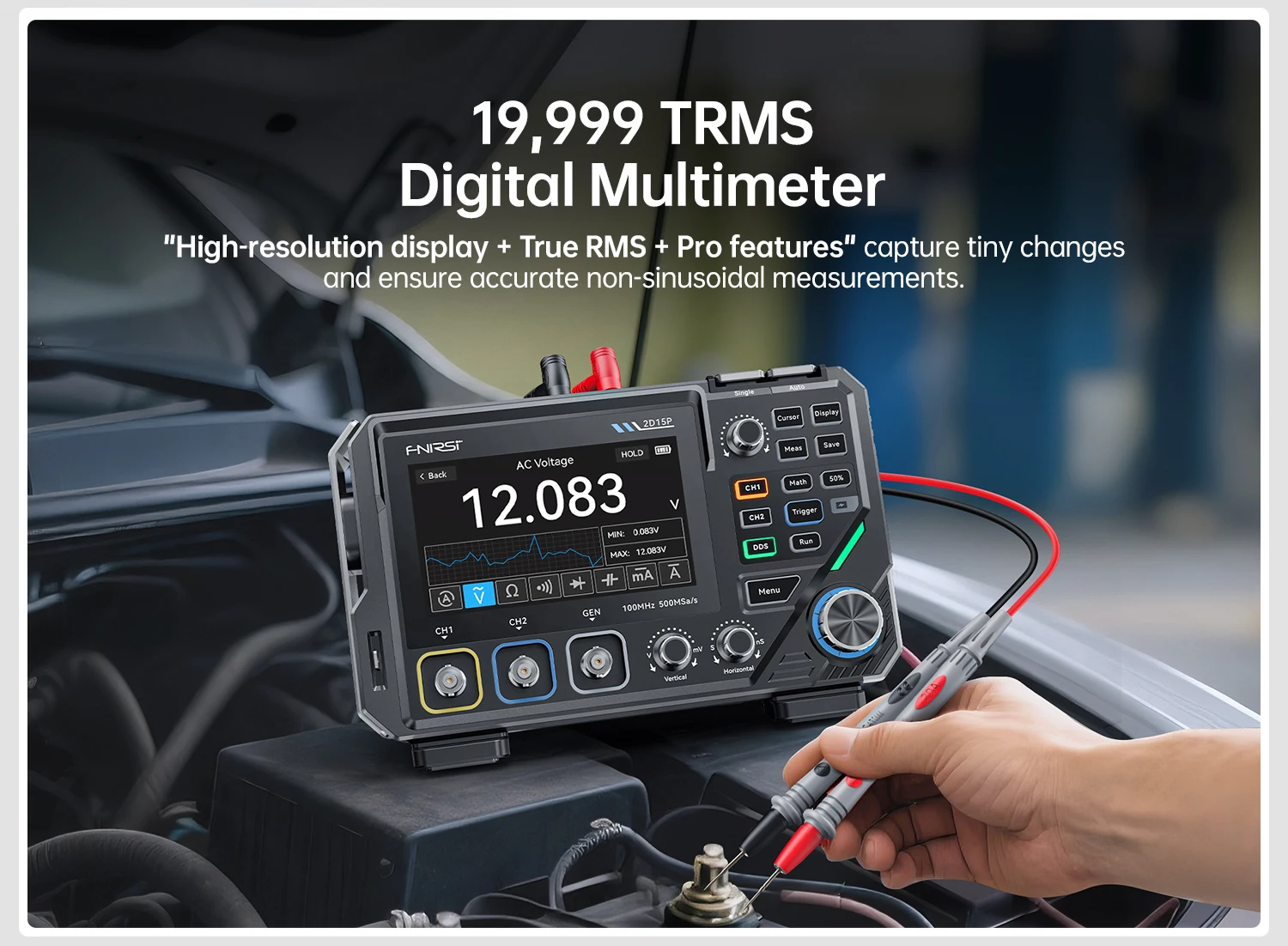

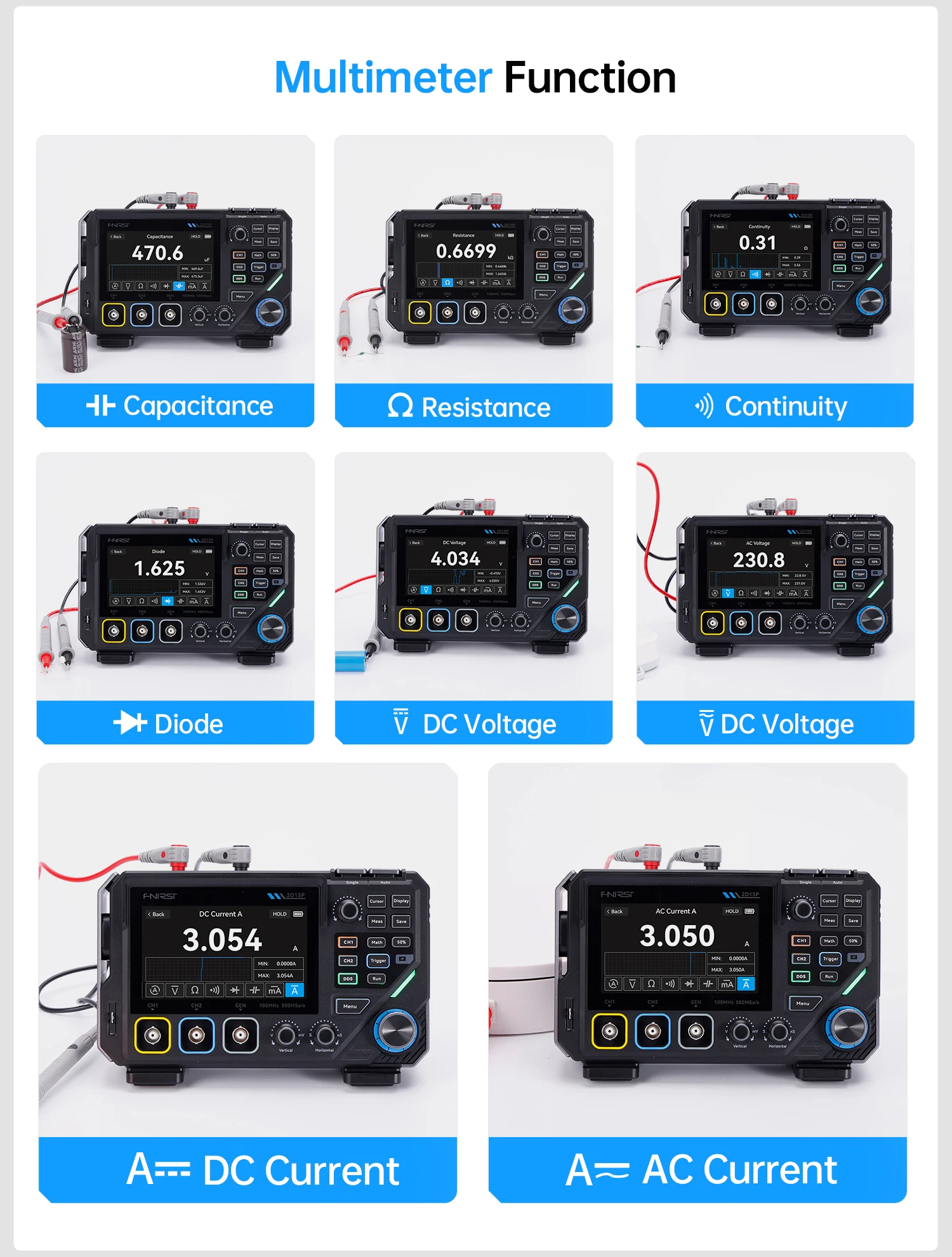

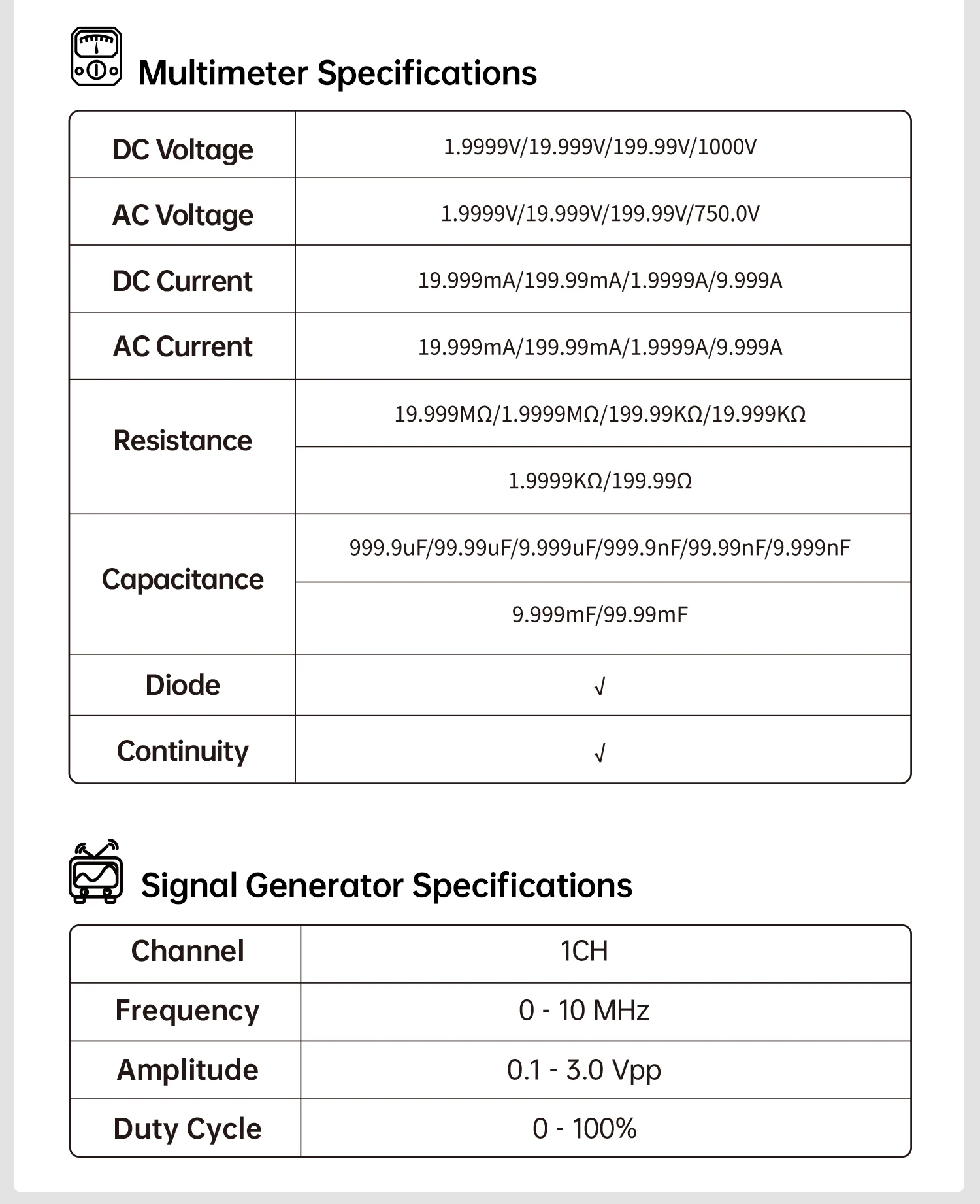

DMM

DC Voltage: 1.9999V / 19.999V / 199.99V / 1000V

AC Voltage: 1.9999V / 19.999V / 199.99V / 750V

DC Current: 19.999mA / 199.99mA / 1.9999A / 9.999A

AC Current: 19.999mA / 199.99mA / 1.9999A / 9.999A

Resistance: 1.9999KΩ – 19.999MΩ

Capacitance: 9.999nF – 99.99mF

Diode / Continuity: Supported

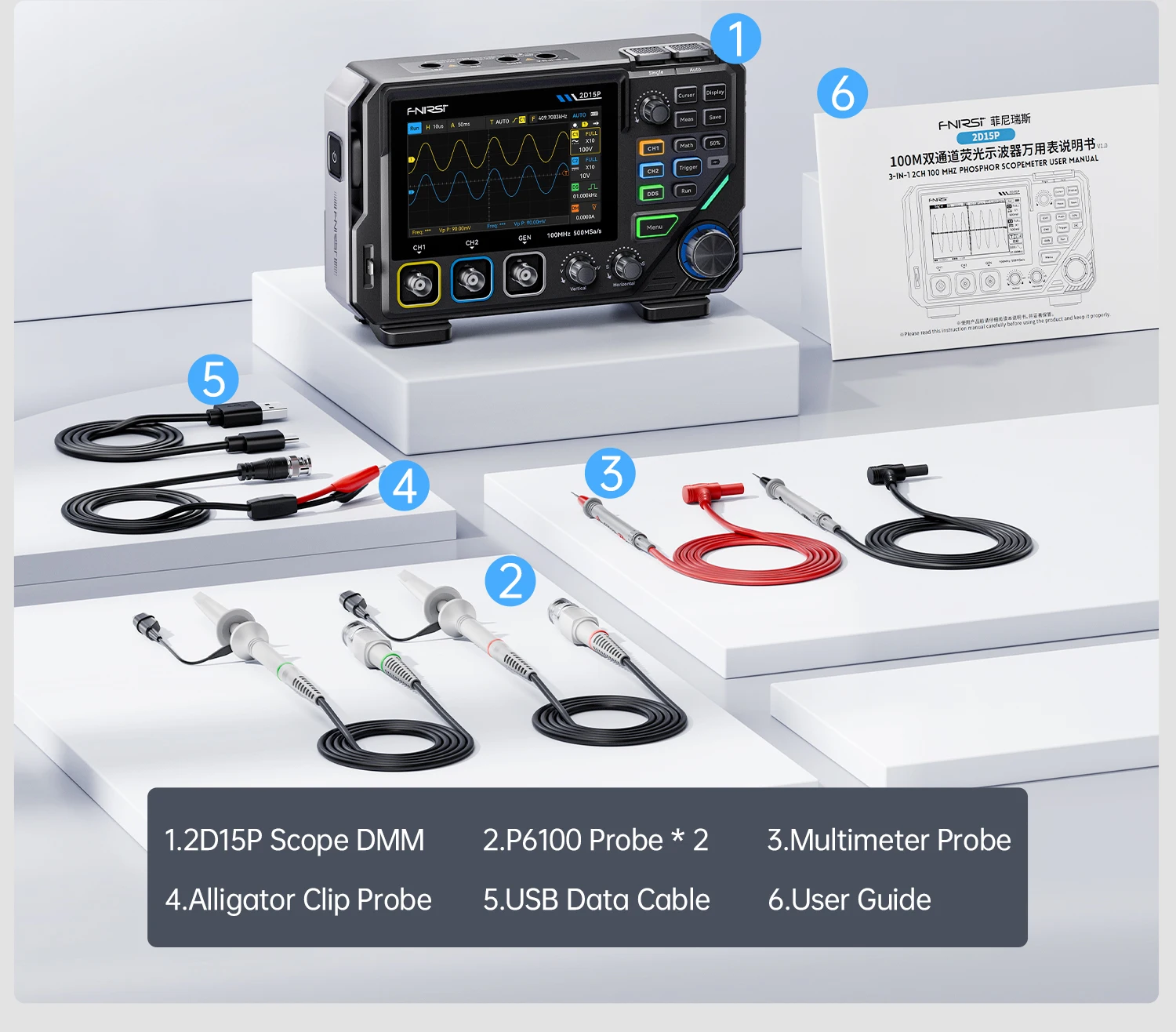

1.2D15P Host *1

2.P6100 Probe * 2

3.Multimeter Probe *1

4.Alligator Clip Probe *1

5.USB-A to TYPE-C Cable*1

6.User Manual*1
