LC1020E Precision Smart Analyzer Tool, Supports Auto Measurement and Sorting of

Product Description

1、Display: 2.8-inch TFT LCD display

2、Basic Accuracy: 0.3%

3、Display Digits: Main Parameter: 4.5 digits; Secondary Parameter: 4.5 digits

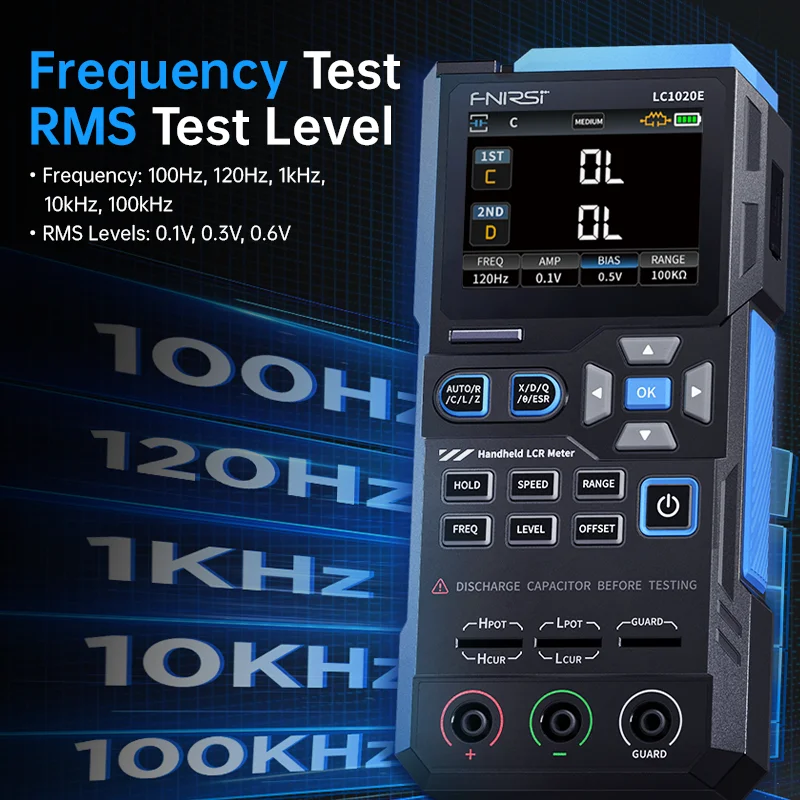

4、Test Frequency: 100Hz, 120Hz, 1KHz, 10KHz, 100KHz

5、Test Level: 0.1V, 0.3V, 0.6V

6、Internal Bias: 0.0V, 0.5V

7、Measurement Parameters: Main Parameters: AUTO/R/C/L/Z; Secondary Parameters: X/D/Q/θ/ESR

8、Measurement Range: L: 0-100H, C: 0-100mF, R: 0-10MΩ

9、Measurement Speed: Fast (4 times/s), Medium (2 times/s), Slow (1 time/s)

10、Calibration Functions: Open circuit calibration, Short circuit calibration

11、Comparison Function: Used to calculate the relative error between the component measurement value and the nominal value, displayed as a percentage, and provides filtering results. Nominal values and tolerance can be set, with a tolerance range adjustable from 0.1% to 99.9%.

12、Record Function: Checks if the measured component data meets the set nominal value and tolerance, recording the number of successful and failed measurements.

13、Test Terminal Configuration: Three-terminal, Five-terminal

14、Output Impedance: 100Ω

15、Communication Interface: USB-TypeC (Virtual serial port)

16、Other Features: Language settings, Screen brightness, Sound settings, Auto power-off, Calibration settings, System information.

1. LC1020E Host *1

2. Data Cable *1

3. Shorting Plate *1

4. Kelvin Test Clip *1

5. Test Leads (Black *1+Red *1)

6. User Manual *1
