EPEVER MT75 New Generation Remote Meter Monitor EPEVER Solar Controller And Inve

Product Description

EPEVER MT75 New Generation Remote Meter Monitor EPEVER Solar Controller And Inverter On One Screen Simultaneously

Features:

Dual RJ45 communication port

4.7-inch LCD screen, real-time dynamic display of system data

Visually error codes, timely notification of warnings and faults

Load ON/OFF button to control the load output directly

Dry contact output and enable switch design

Remote control inverter ON or OFF

Friendly connect with different EPEVER devices

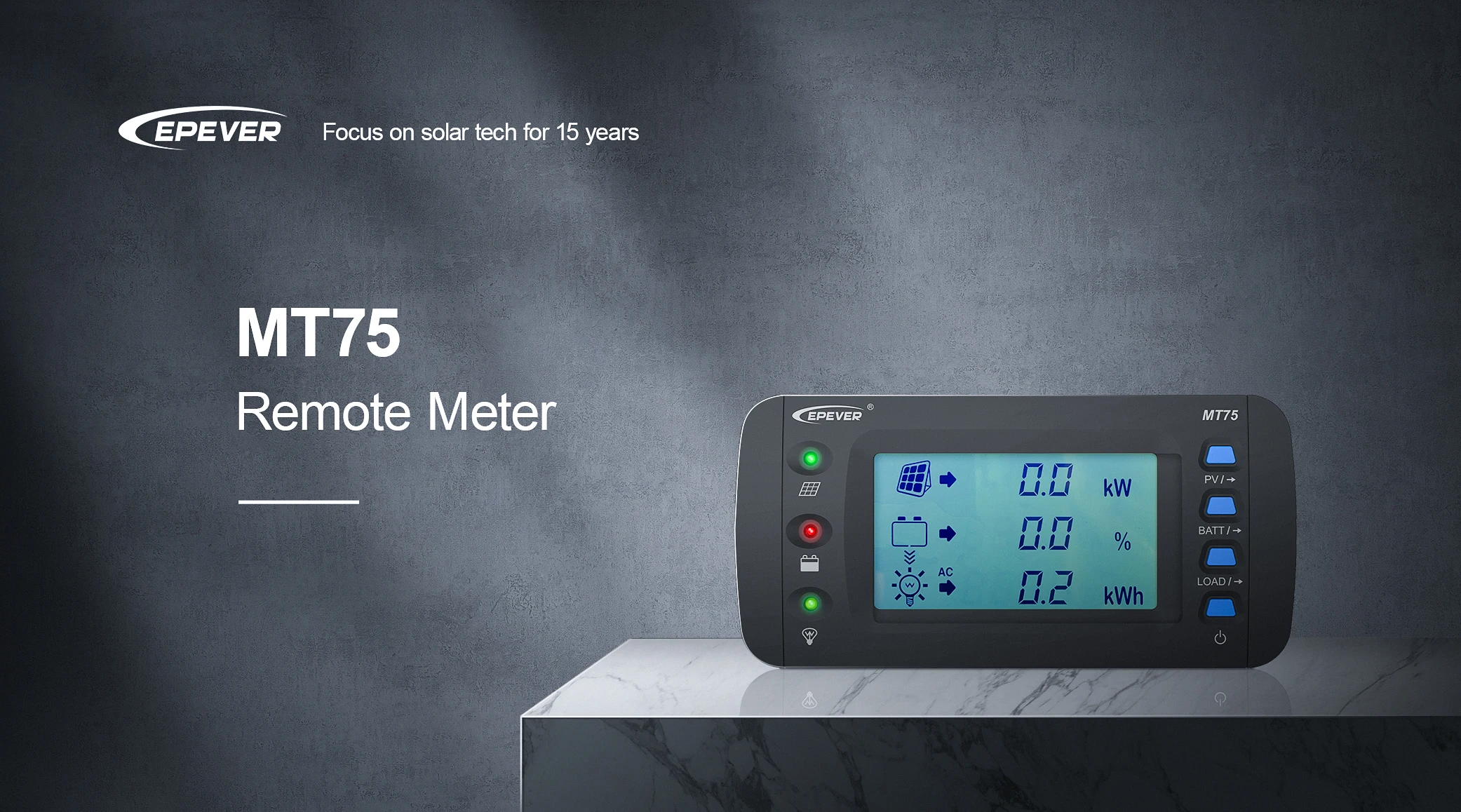

MT75 is a new generation of remote meter which can monitor the EPEVER solar charge controller and inverter on one screen at the same time. This product provides multiple solutions to fit different requirements from off-grid users.

Features

* Dual RJ45 communication ports

* 4.7-inch LCD screen, real-time dynamic display of system data

* Visually error codes, timely notification of warnings and faults

* Load ON/OFF button to control the load output directly

* Dry contact output and enable switch design

* Remote control inverter ON or OFF

* Friendly connect with different EPEVER devices

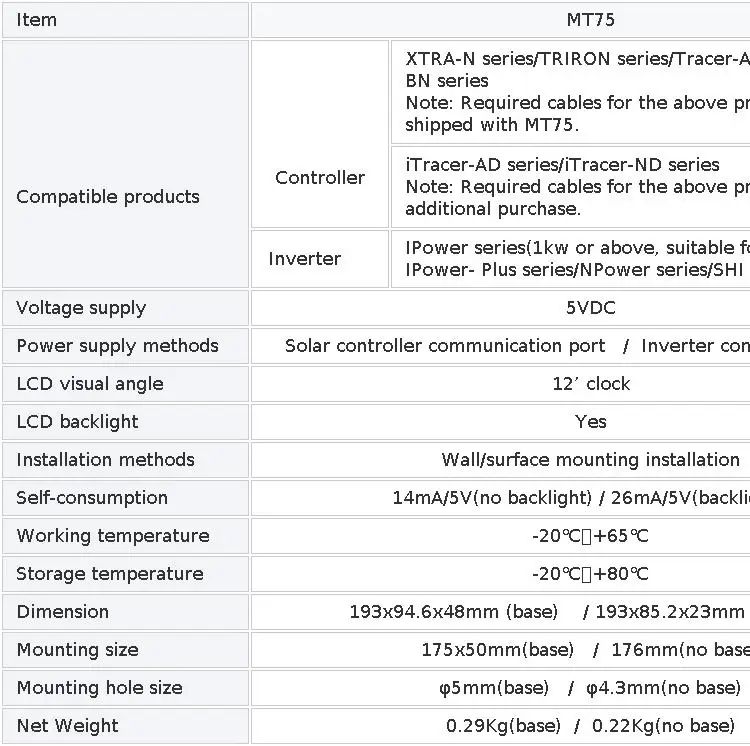

Technical Specifications

Application

1.Standard Application

1) Advantages

MT75 monitors the operational status and error codes of the solar controller and inverter at the same time.

The load ON/OFF button controls the inverter start or stop, which can effectively reduce the loss of the

inverter and extend the lifetime of the system.

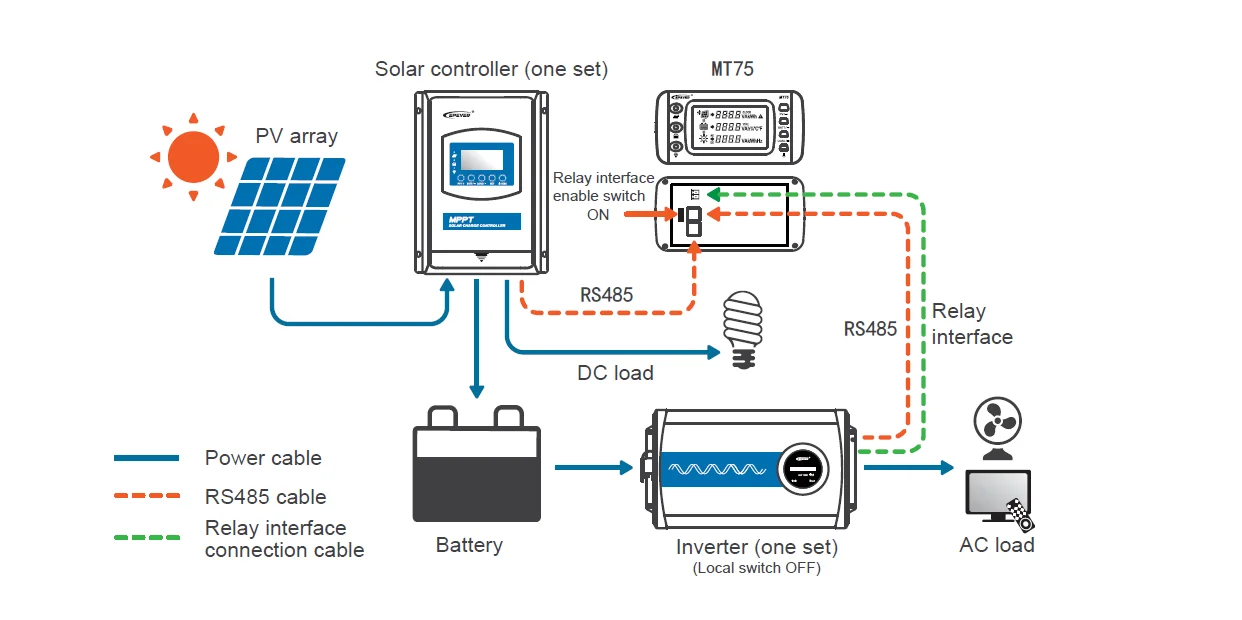

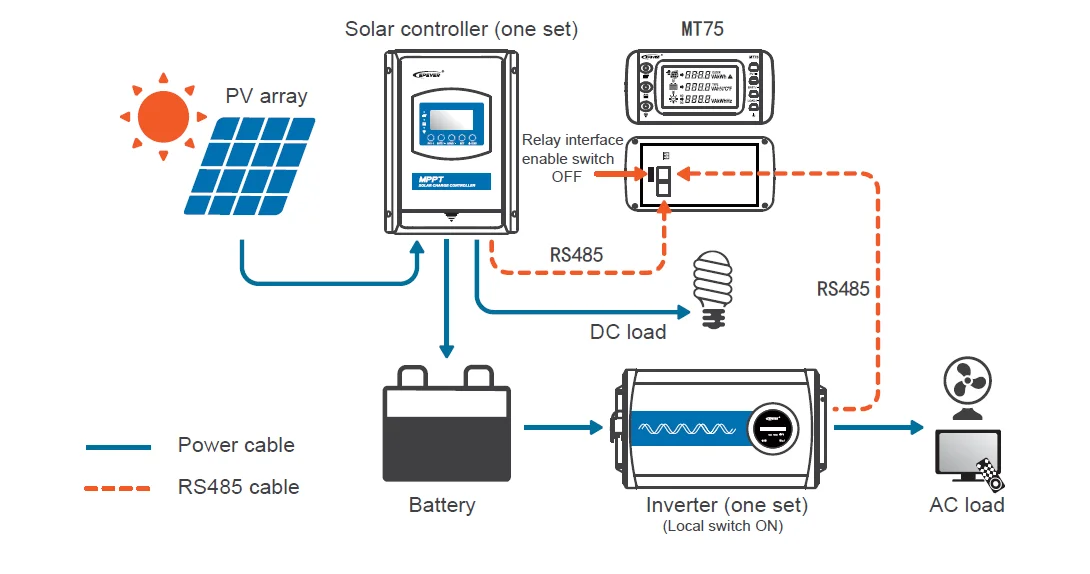

2) Connection Diagram

2.Upgrade Application

1) Advantages

MT75 monitors the operational status and error codes of the solar controller and inverter at the same time.

The load ON/OFF button controls the inverter start or stop, which can effectively reduce the loss of the

inverter and extend the lifetime of the system.

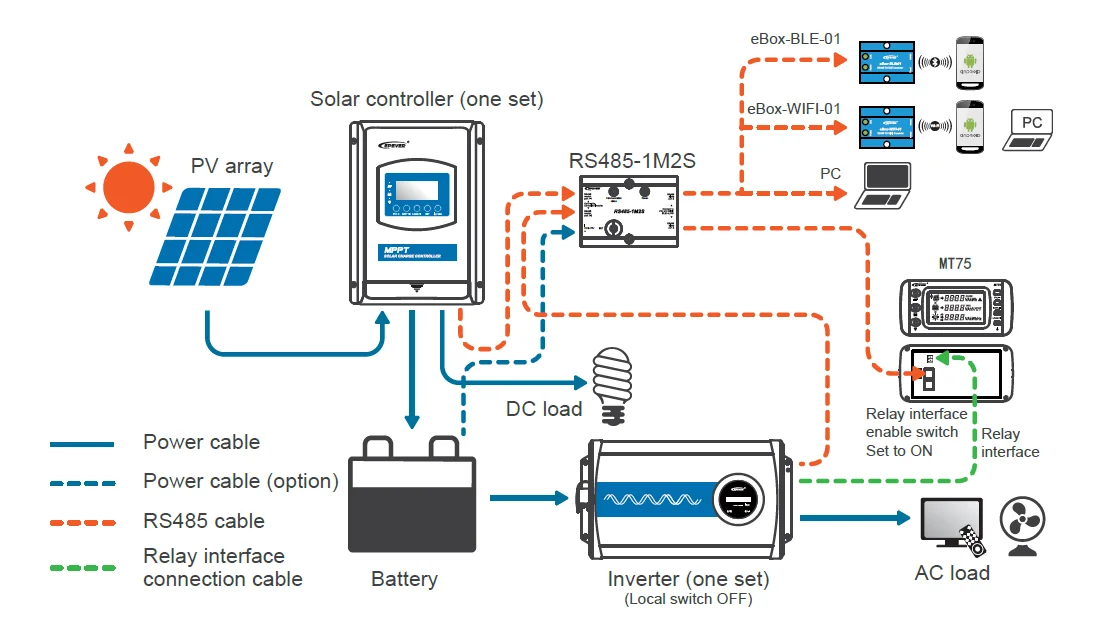

2) Connection Diagram

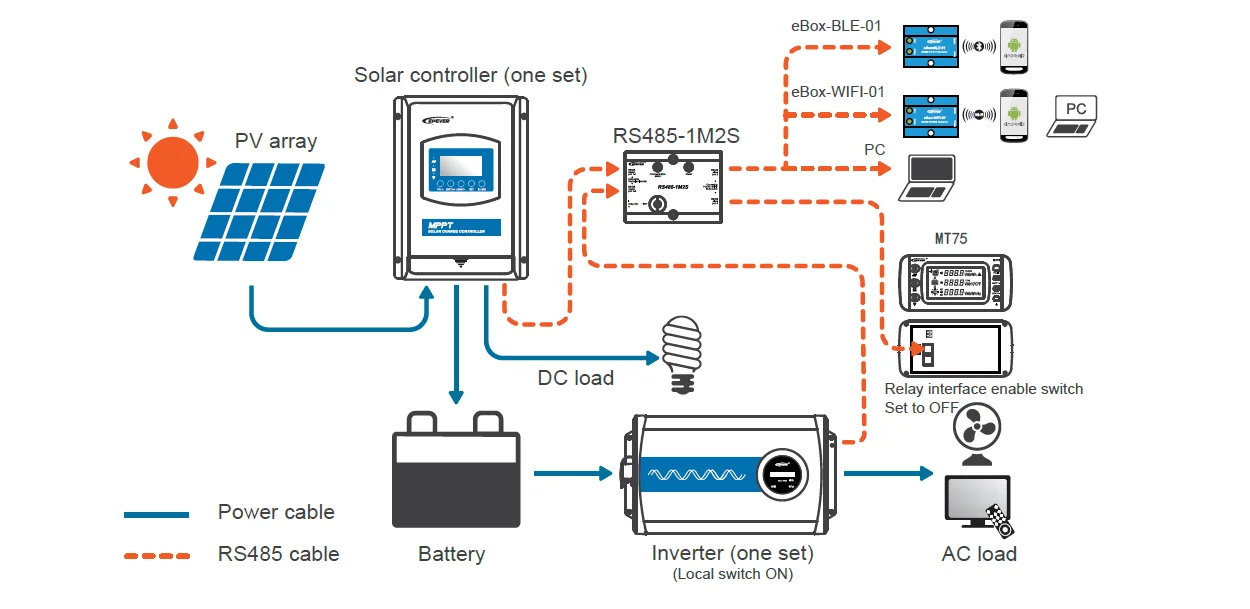

3. Advanced Application

1) Advantages

With the RS485-1M2S module, the MT75 not only can monitor the operational status of the solar

controller and inverter, but it also can connect with external WIFI, Bluetooth module, or PC. The

parameter settings and operational status monitoring can be collected by phone APP or PC software.
