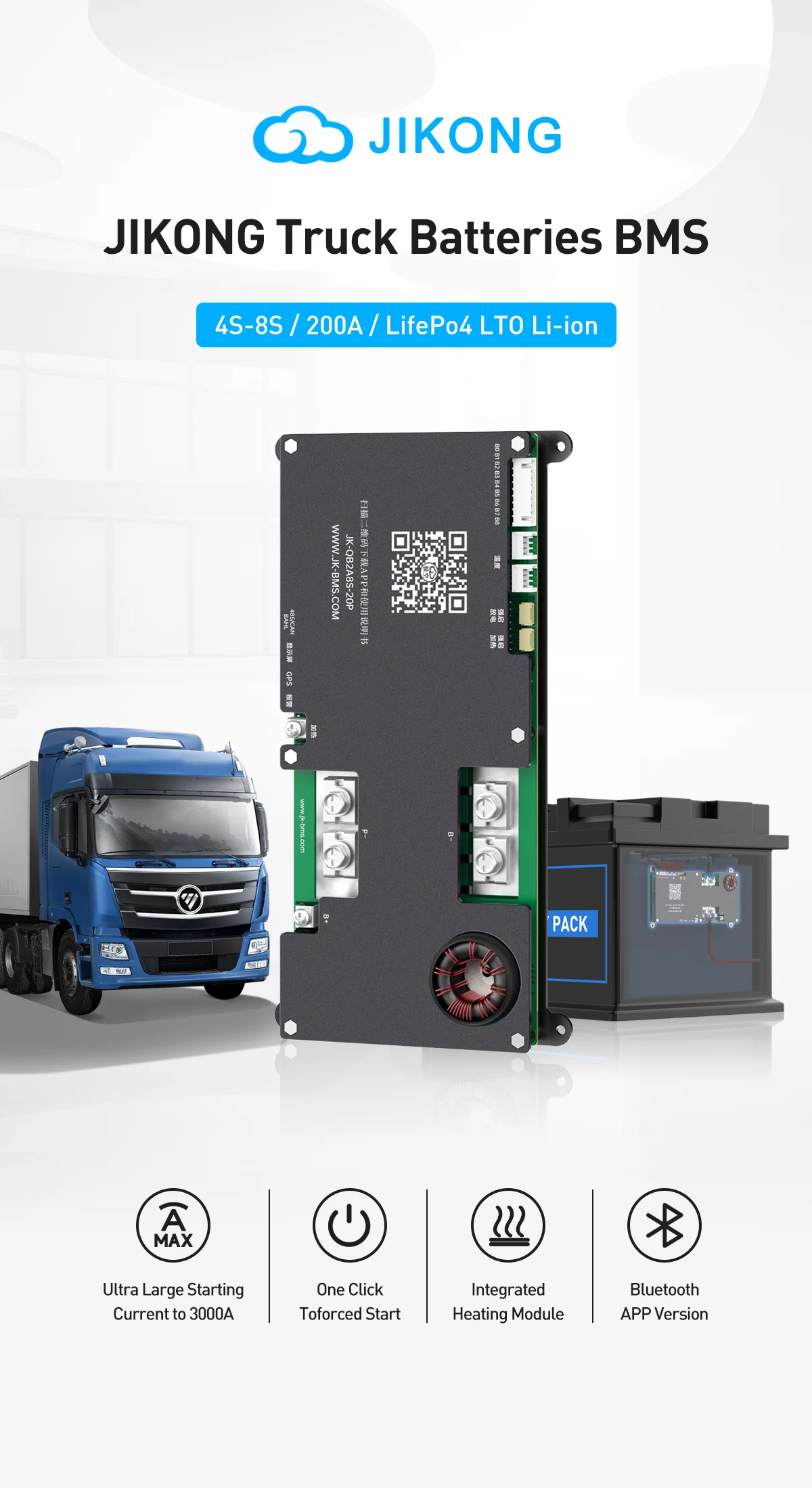

Smart Active Truck BMS 4S 6S 7S 8S 12V 24V 200A Active Balance 2A and Bluetooth

Product Description

Description：

The protection board adopts active equalization technology, and the principle of equalization is to transfer the

energy of the high-voltage cell to the low-voltage cell, and realize the energy transfer through the medium of the

protection board. Before using the balancing function, users need to set the basic parameters of the battery and

download the extreme space BMS-APP. After downloading, set the battery type on the parameter setting page of the

extreme space APP. For default parameters, see Chapter 4.

Users can set the balance trigger pressure difference (mV) in the parameter setting of the APP. When the balance

is turned on, the balance will be turned on automatically when the pressure difference of any two strings of batteries

in the battery pack is greater than the set value, and the balance will be turned off when the pressure difference is less

than the set value. The default balance current is 2 A. Users can adjust the balance current according to their own

battery capacity. It is recommended that the balance current not exceed 0.2C of the battery capacity (C). If you do not

need the balancing function, you can set the balancing switch to off in the BMS control page of the APP.

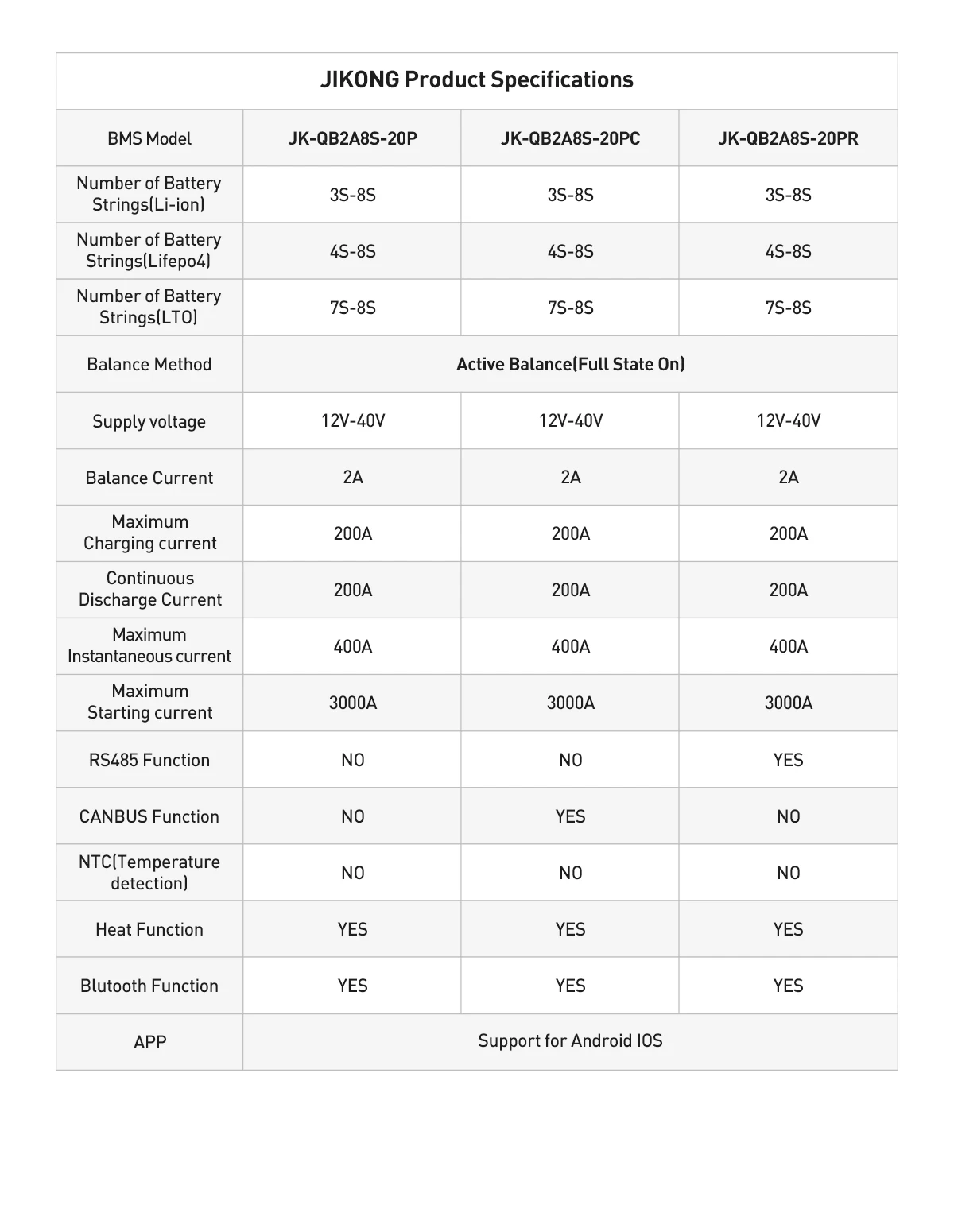

Model：JK-QB2A8S20P ( Bluetooth heat display funcstions)
Supply voltage： 12-40V
Maximum balancing current: 2A

Maximum charging current: 200 A

Maximum discharge current: 200 A

Maximum instantaneous current: 400 A

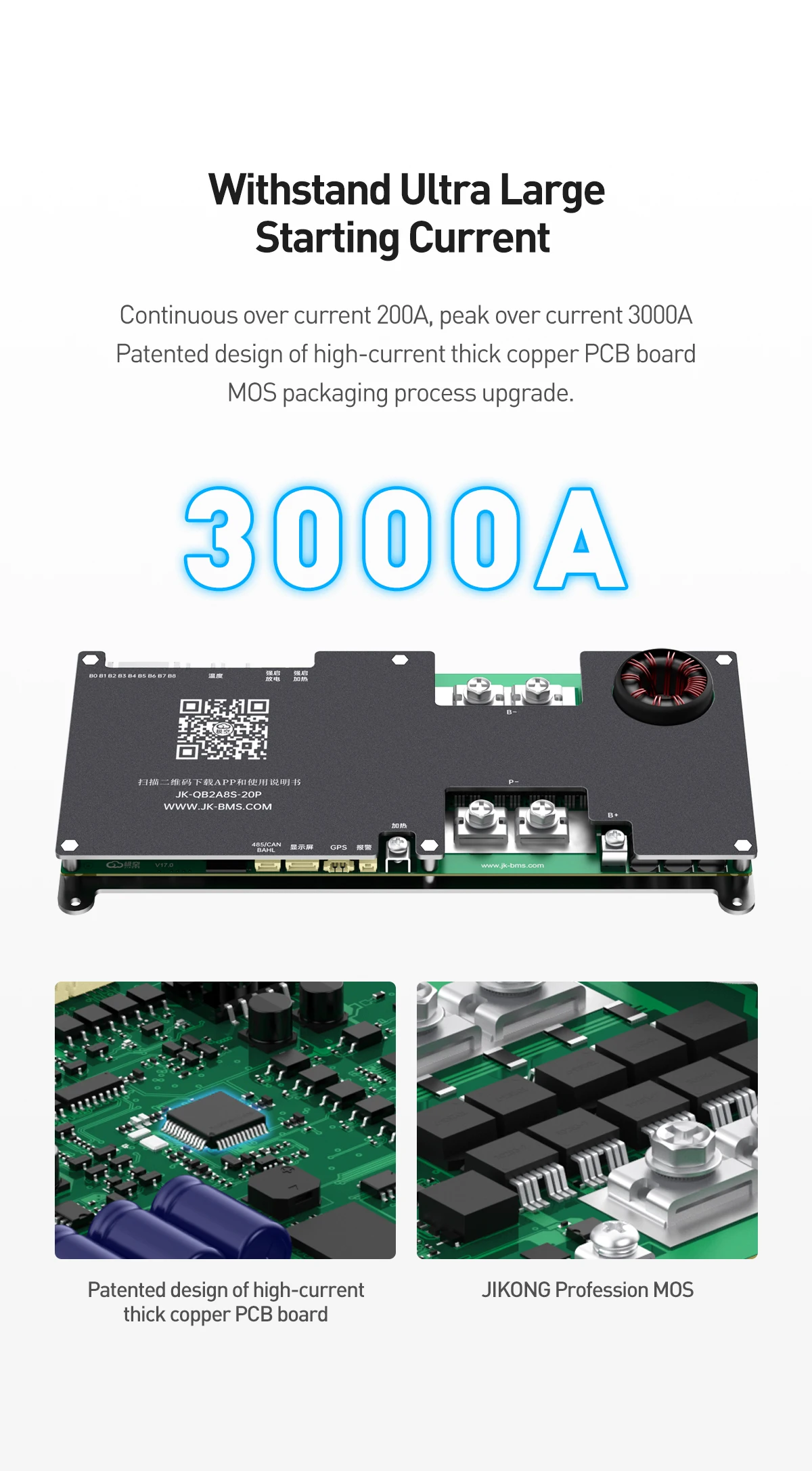

Maximum starting current: 3000 A
Battery type: Ternary lithium battery =3s-8s Lithium iron battery= 4s-8s Lithium titanate battery=7s=8s
