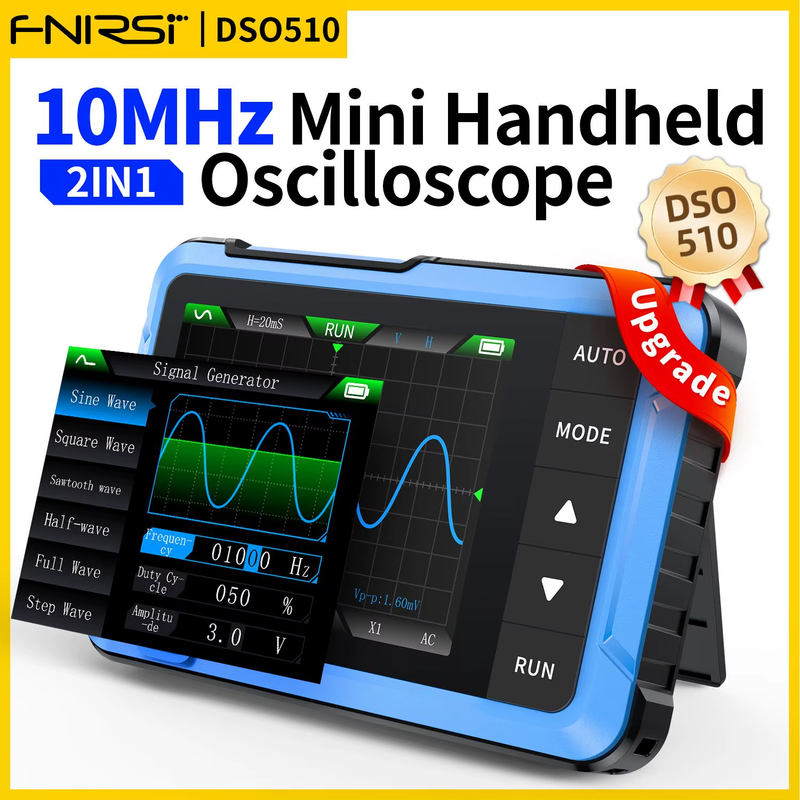

DSO510 New 10MHz Handheld Digital Oscilloscope 2 in 1 Signal Generator 48MS/s Sa

Product Description

DSO-510 is a highly practical and cost-effective handheld oscilloscope launched by our company, targeting the maintenance industry and development education industry.

This oscilloscope has a real-time sampling rate of 48MS/s, 10MHz bandwidth, and complete triggering function (single, normal, auto).

It can be used freely for both periodic analog signals and non periodic digital signals, and can measure up to ± 400V voltage with an efficient one click AUTO, which can display the measured waveform without complicated adjustments.

In addition, it also comes with multiple functions signal generator (50KHz).

Equipped with a 2.8-inch 320 * 240 resolution HD LCD screen and a built-in 1000mAh high-quality lithium battery, it can be used for about 4 hours when fully charged.DSO510 2 IN 1 —— 10MHz Bandwidth

* Mini Oscilloscope *

Channel：1

Sampling rate：48MSa/s

Vertical sensitivity：10mV/Div-20V/Div（Progress according to the 1-2-5 way）

Time base range：50ns/Div-20s/Div（Progress according to the 1-2-5 way）

Voltage range：X1:士40V (Vpp:80V) X10: 士400V (Vpp :800V)

Trigger method：Auto / Normal / Single

Coupling method：AC/DC

* Signal generator *

Frequency：0-50KHz

Duty cycle：0-100% (rectangular and sawtooth waves)

Amplitude：0.1-3.0V

Waveforms：Sine wave, rectangular wave, sawtooth wave, half wave, full wave, step wave, anti step wave, exponential rise, exponential drop, DC signal,
multi tone, Sink pulse, Lorentz wave.

* Other Parameters *

Display：2.8 inches/PPI:320*240

USB charging：5V/1A

Lithium battery capacity：1000mAh

Size：99x68.3x19.5mm

Weight：104g

NO.1 (Option)

DSO510 Host device *1

P6100 High Voltage Probe *1

Adapter *1

Alligator clip probe *1

Charging cable *1

Lanyard *1

User Manual *1

Packaging color box *1
