EBC-B20H 12-72V 20A Lead Acid Lithium Battery Capacity Tester Support External C

Product Description

Specification:

Name: EBC-B20H battery capacity tester
Voltage: 100-240V
Power: 1700W
Packing size: 55*36*30cm
Weight: 9.4kg
Volume weight: 11.88kg
Bill of materials: 1pc tester, 1pc cable, 1pc power cord, 1pair of test clips

Power supply mode: AC 100-240V
Voltage setting: 9.00-88.00V, minimum step 0.01V
Discharge current: 0.10-20.00A, minimum step 0.01A (12V battery pack maximum 10A)
Discharge mode:
DSC: Constant current discharge, automatic stop when the voltage is lower than the set
termination voltage
CHG: Charging by external charger, the current will stop automatically when the current
is lower than the set termination current
Voltage measurement:
0.10-89.00V , accurate to 0.01V, error +-0.5%
Current measurement:
0.10V-20.00A , accurate to 0.01A, error +-0.5%
Capacity measurement:
Within 10Ah, resolution 0.001Ah
10Ah-100Ah, resolution 0.01Ah
Above 100Ah, resolution 0.1Ah
Wiring method: four-wire detection, voltage measurement and current channel separate
wiring to ensure measurement accuracy
LCD display: test data of voltage, current, capacity, time, etc.
Computer connection: dedicated USB to TTL serial cable.

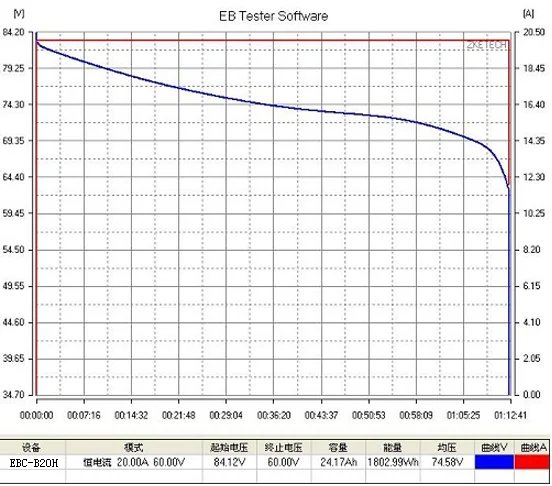

Computer control, drawing curves, calibrating measurement benchmarks, upgrading
device firmware,cycle charging and discharging, etc.

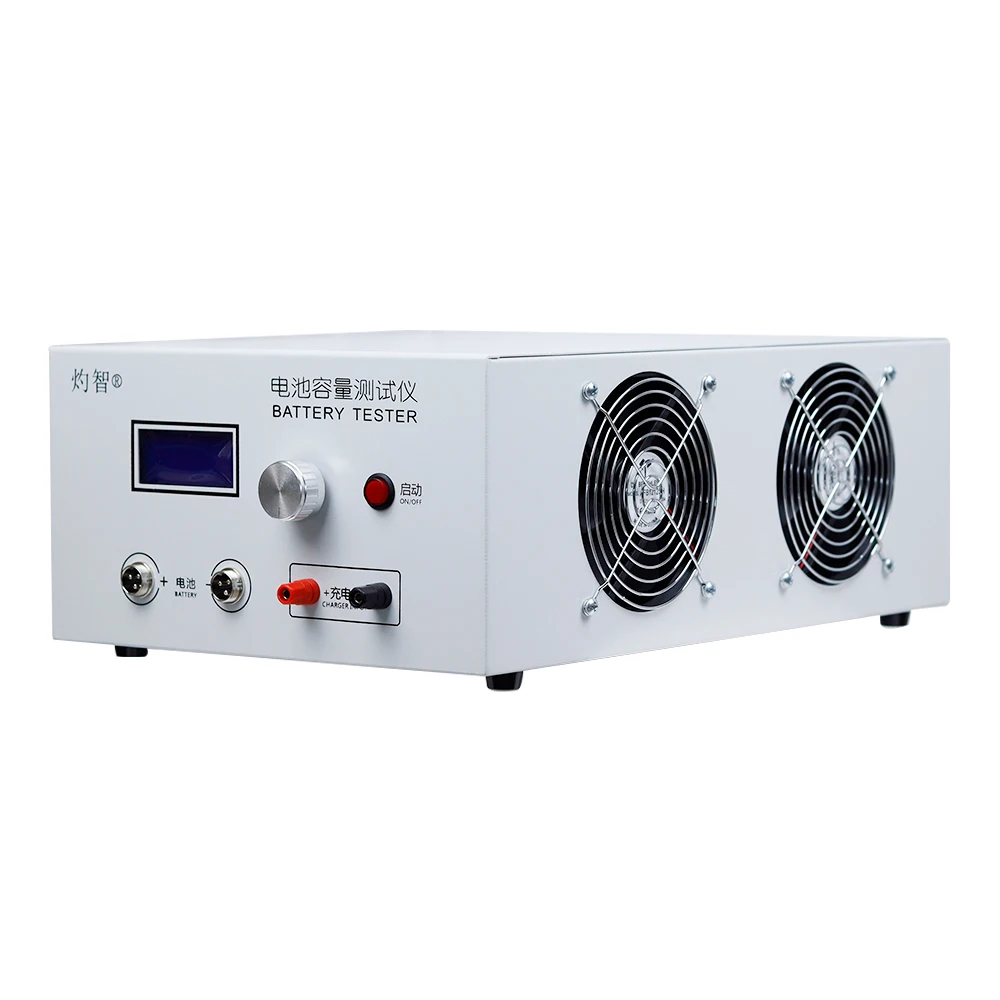

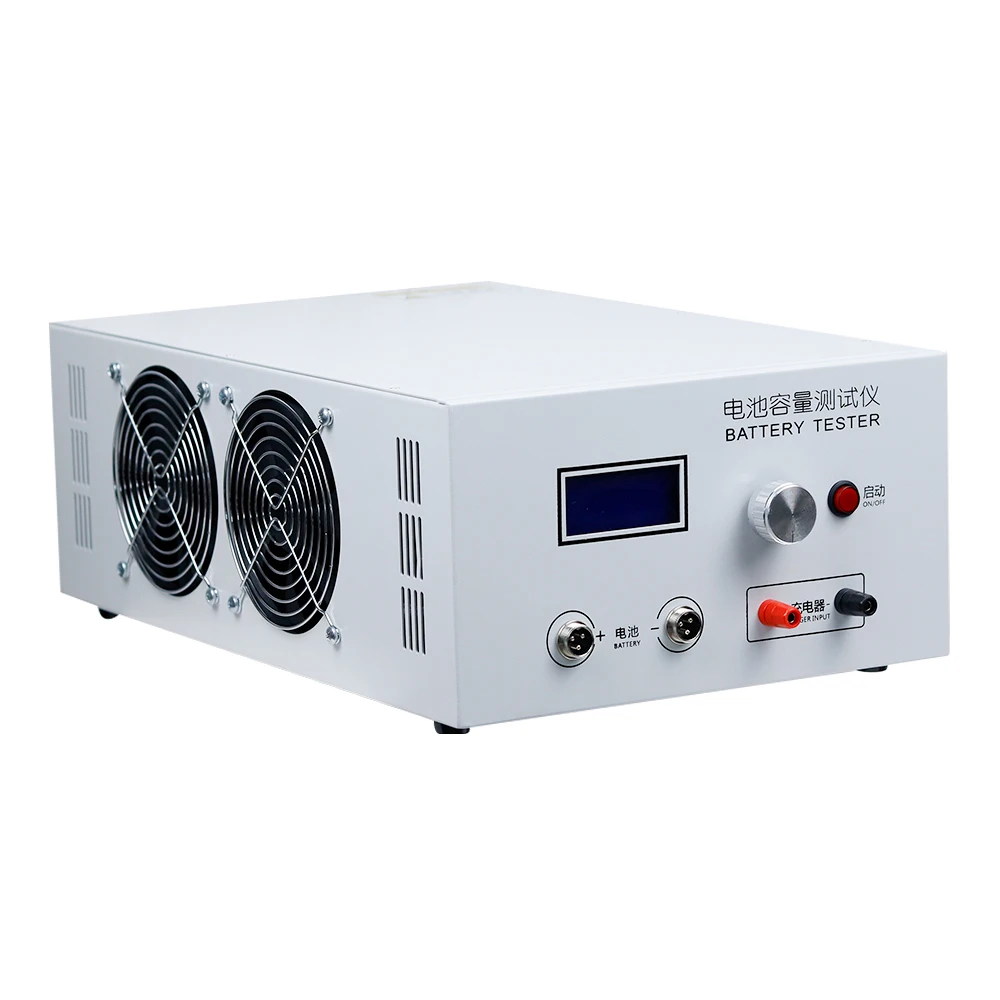

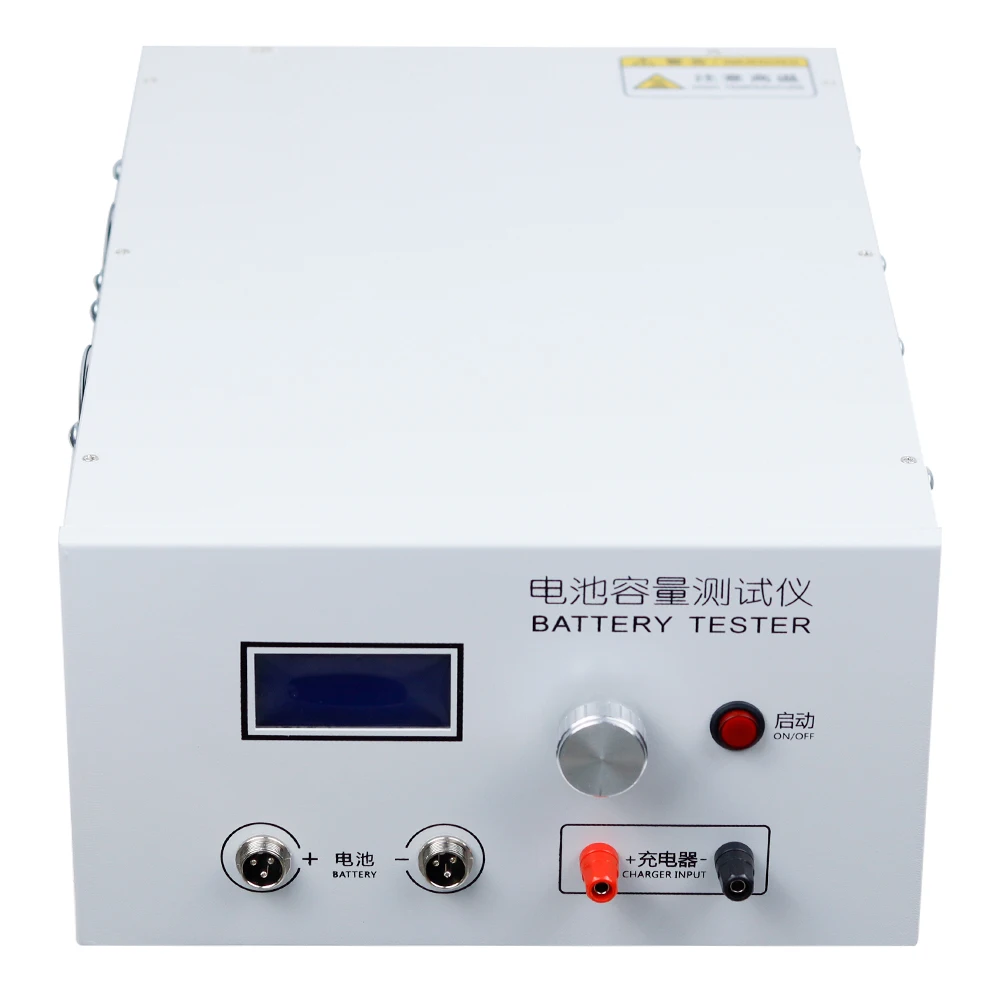

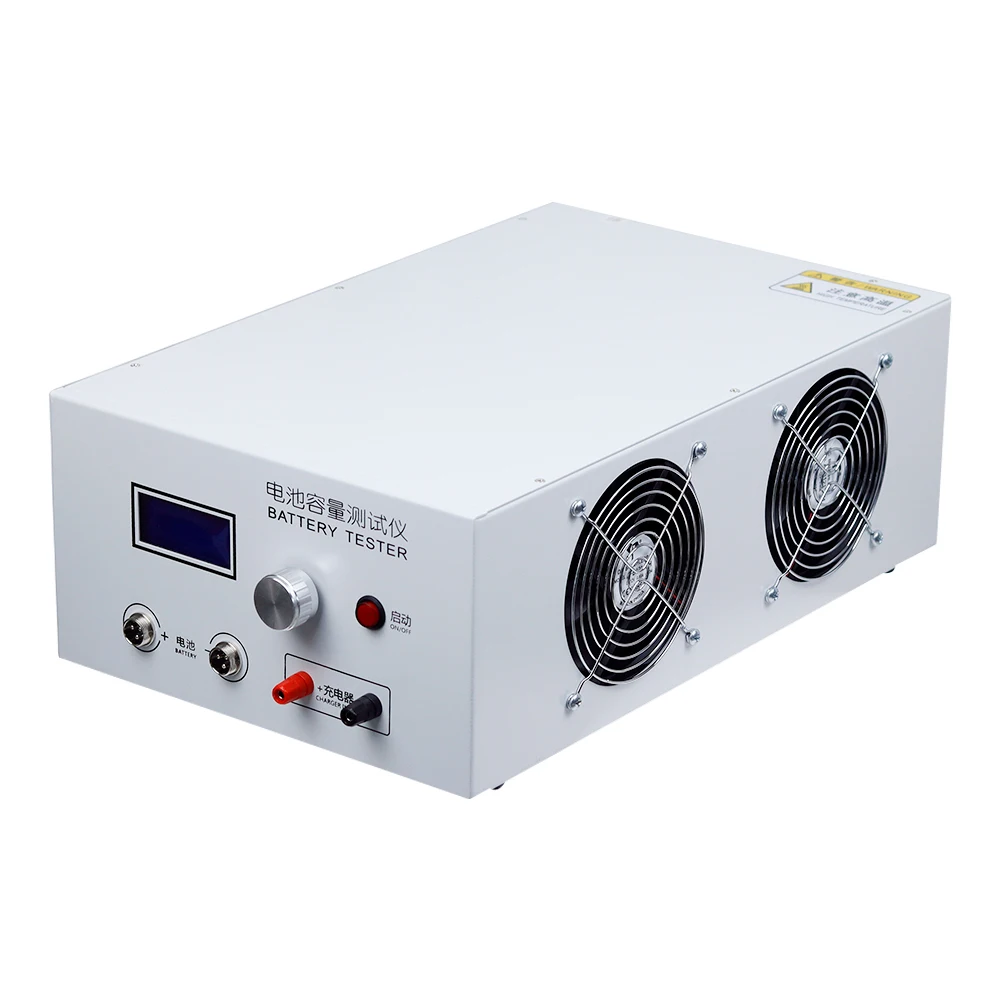

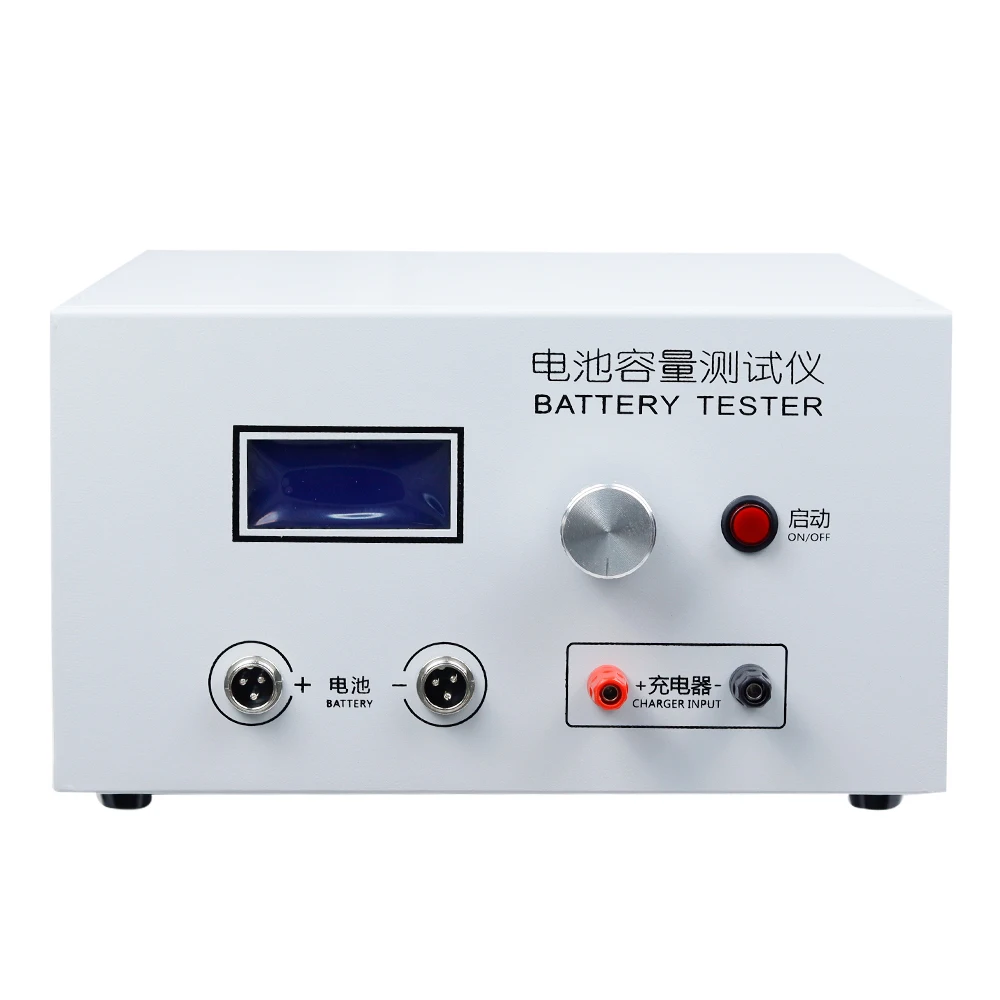

EBC-B20H is a battery pack capacity tester for battery capacity test in the range of
12V-72V, built-in discharge load resistor, support charger for external battery pack,
automatic switching charge and discharge, support computer online drawing curve .

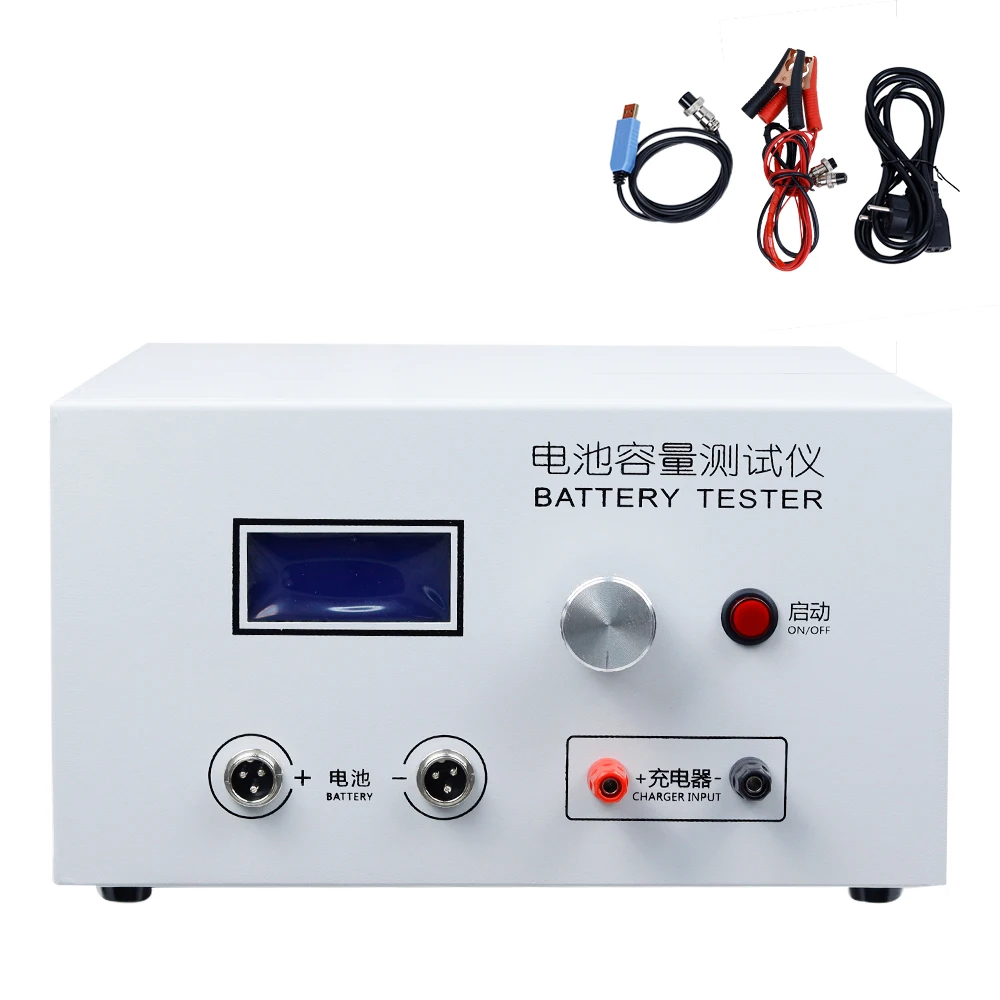

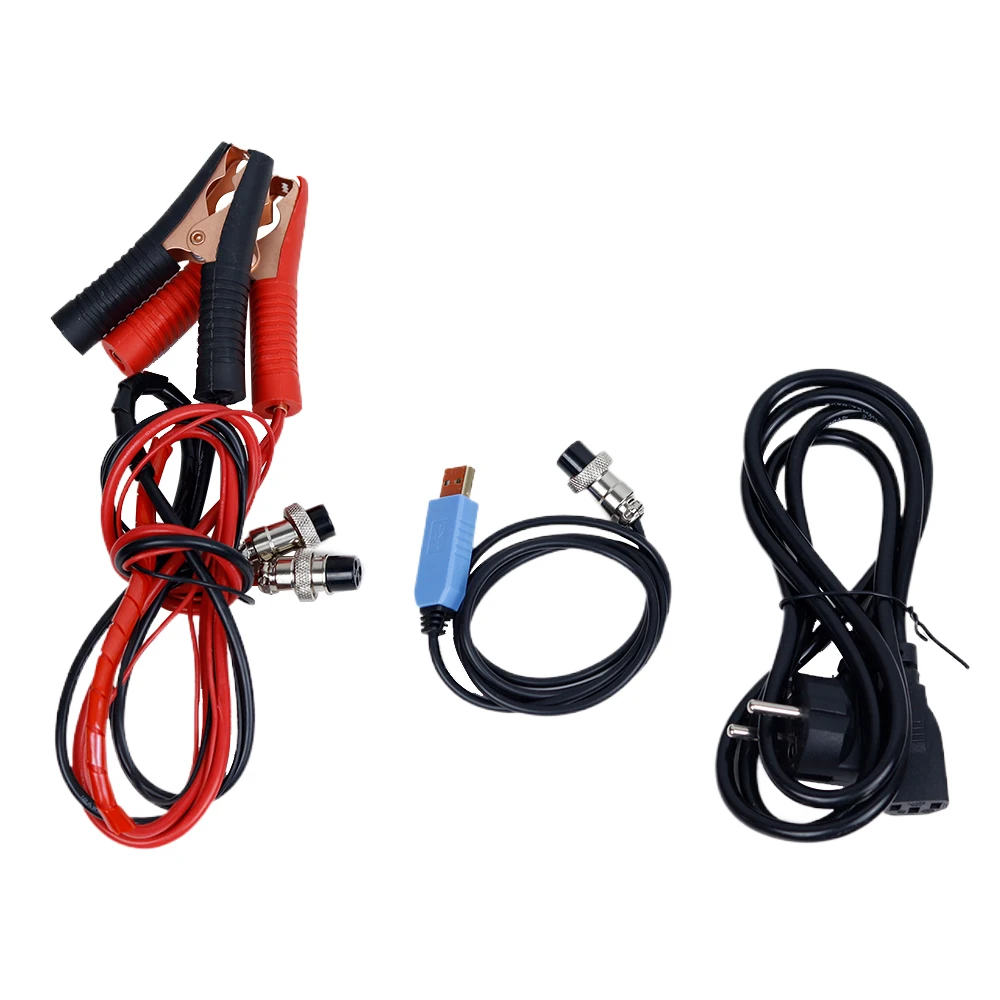

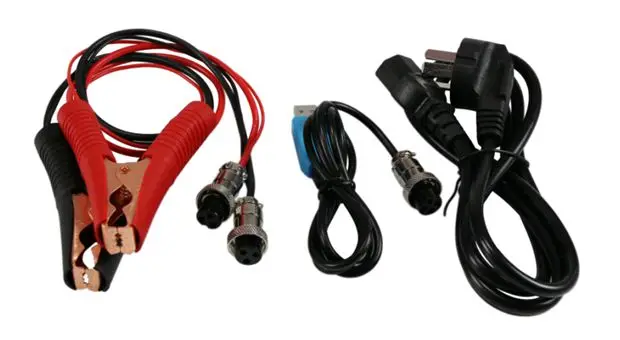

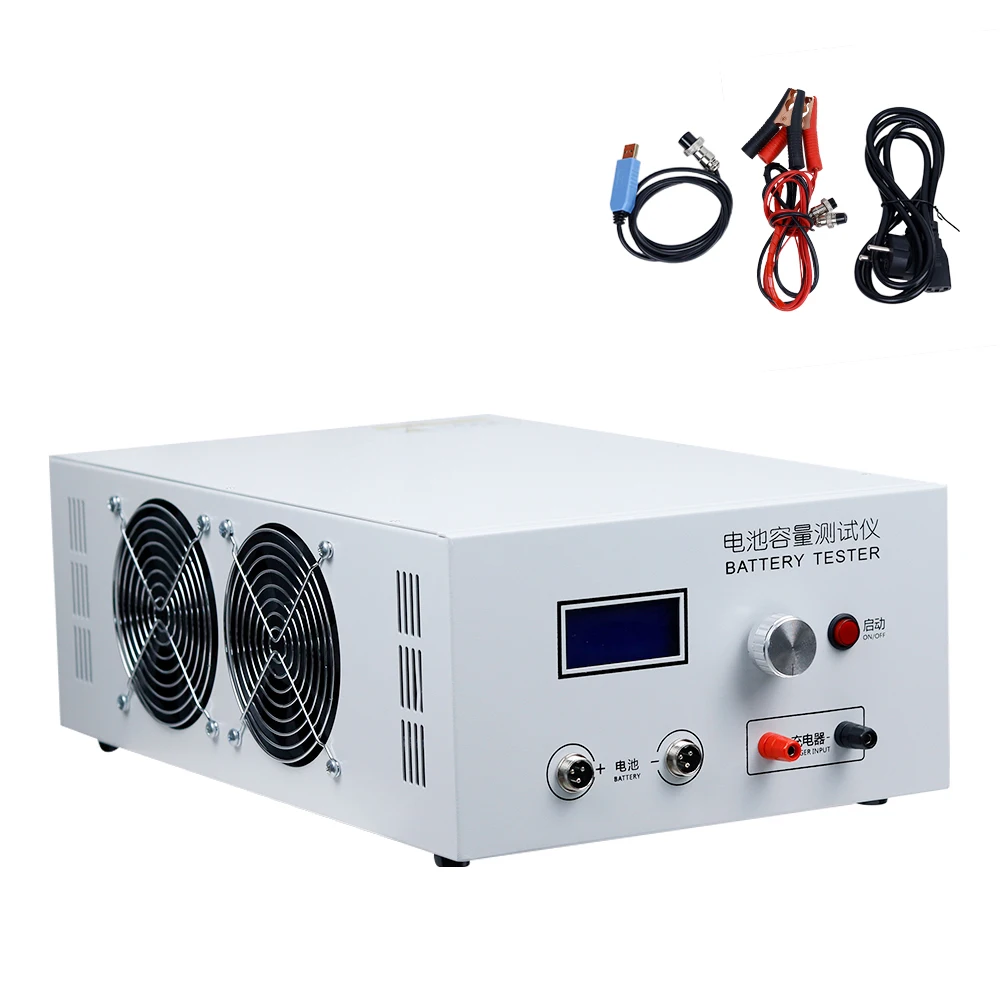

Product Details:

1. One tester

2. One online line

3. One power cord

4. Test a pair of clamp wires
