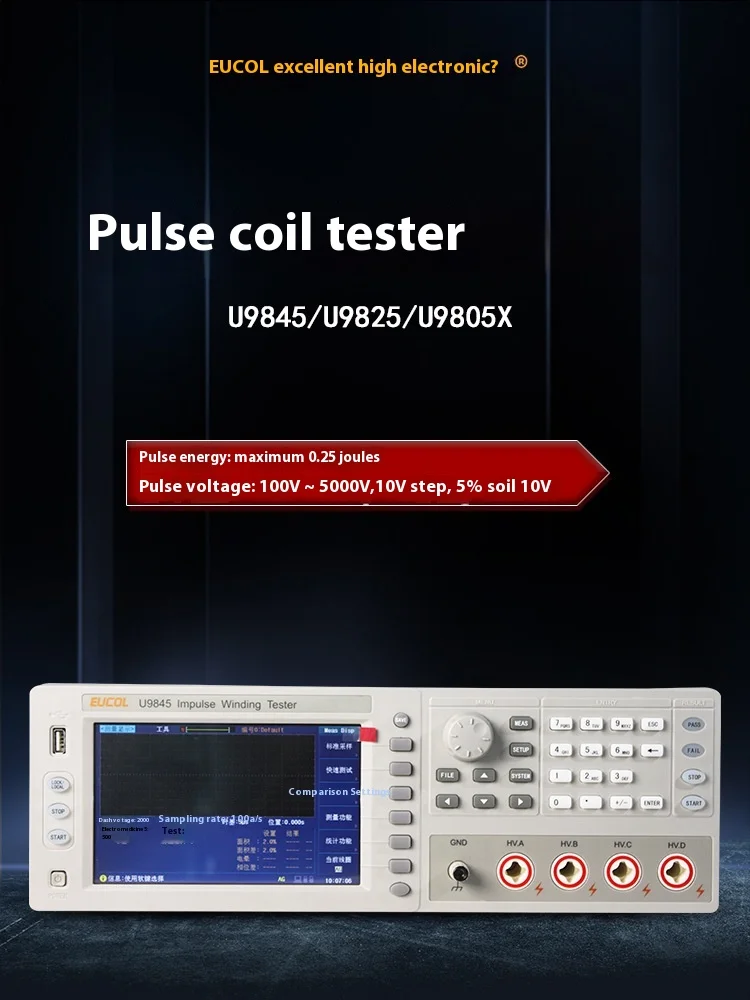

U9845 7" TFT Display 4 Channels Impulse Winding Turns Tester Single/Three Phase

Product Description

U9845 7" TFT Display 4 Channels Impulse Winding Turns Tester Single/Three Phase Motor Turn Short Circuit Tester Meter 100V~5000V

Features:

■ Delta and star connection of three-phase machine, Primary and secondary windings, primary and secondary secondary windings, primary and secondary + primary and secondary windings of single-phase machine can be tested; satisfying motor interturn testing of all series (U9845, all-powerful motor test)
■ Provide 8-channel sweep test at most (U9805X)
■ Two-channel comparison test, dispense with standard waveform acquisition

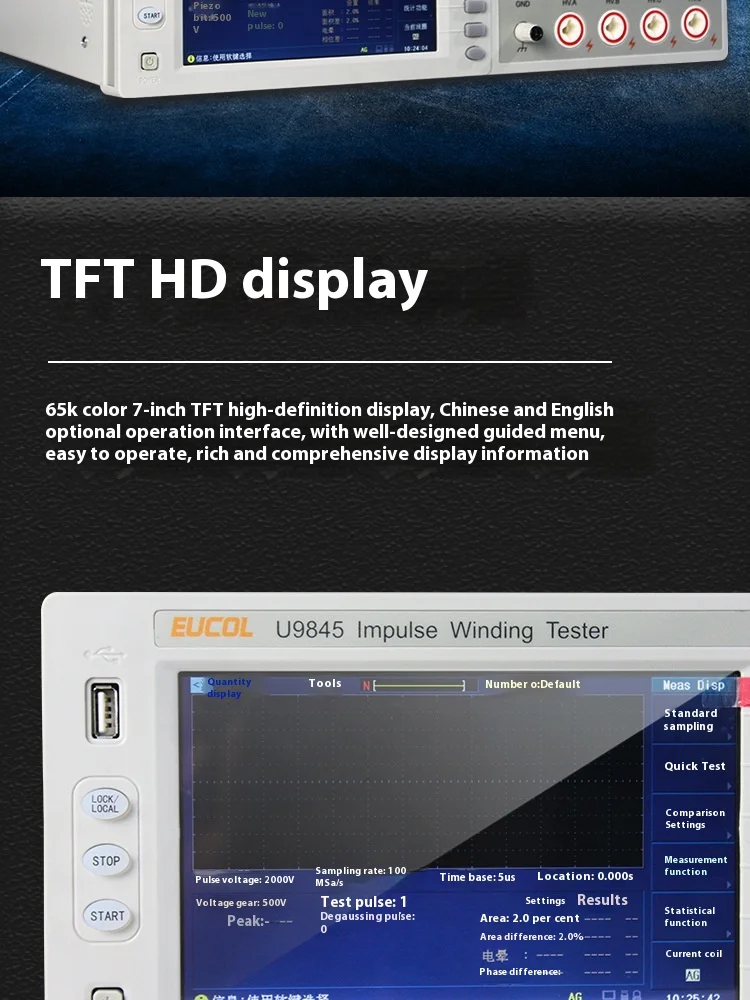

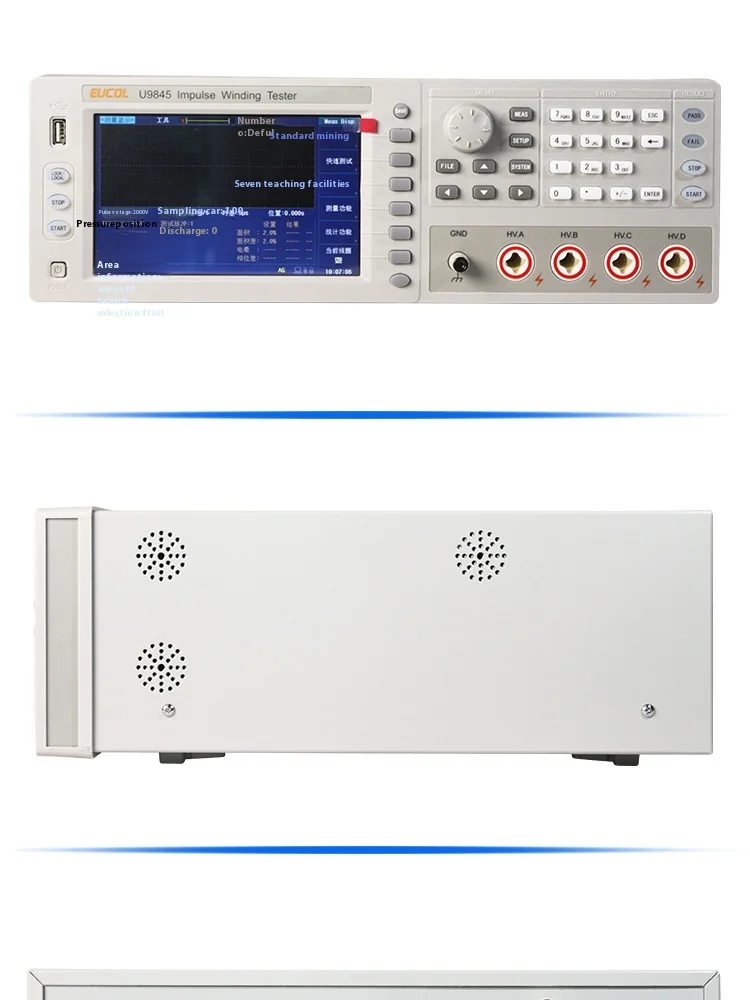

■ 65k color 7" TFT high definition display screen, selectable Chinese and English interfaces

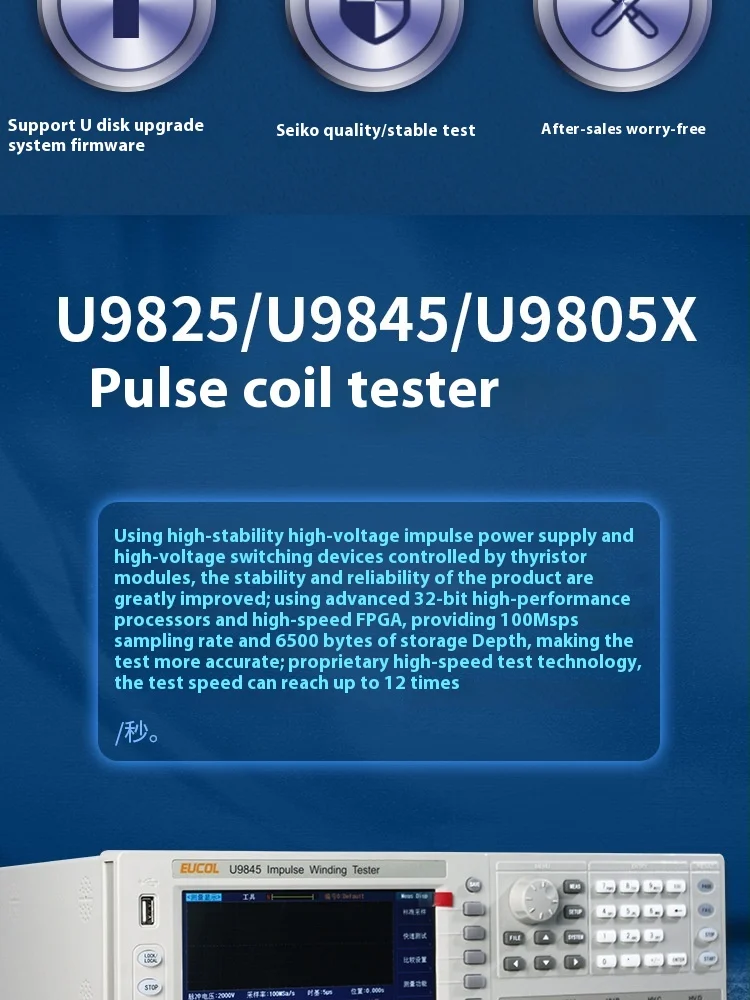

■ Waveform sampling rate:100Msps; memory depth: 6500bytes
■ Max. Test speed: 12 meas/sec

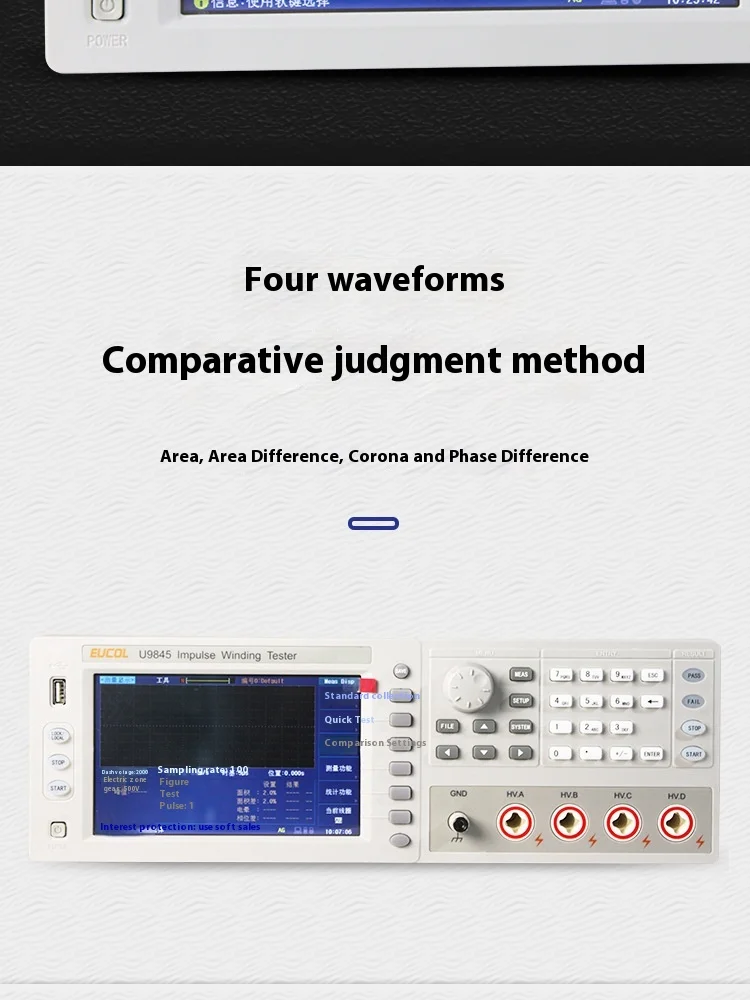

■ Four waveform comparison methods: Area, differential area, corona and differential phase

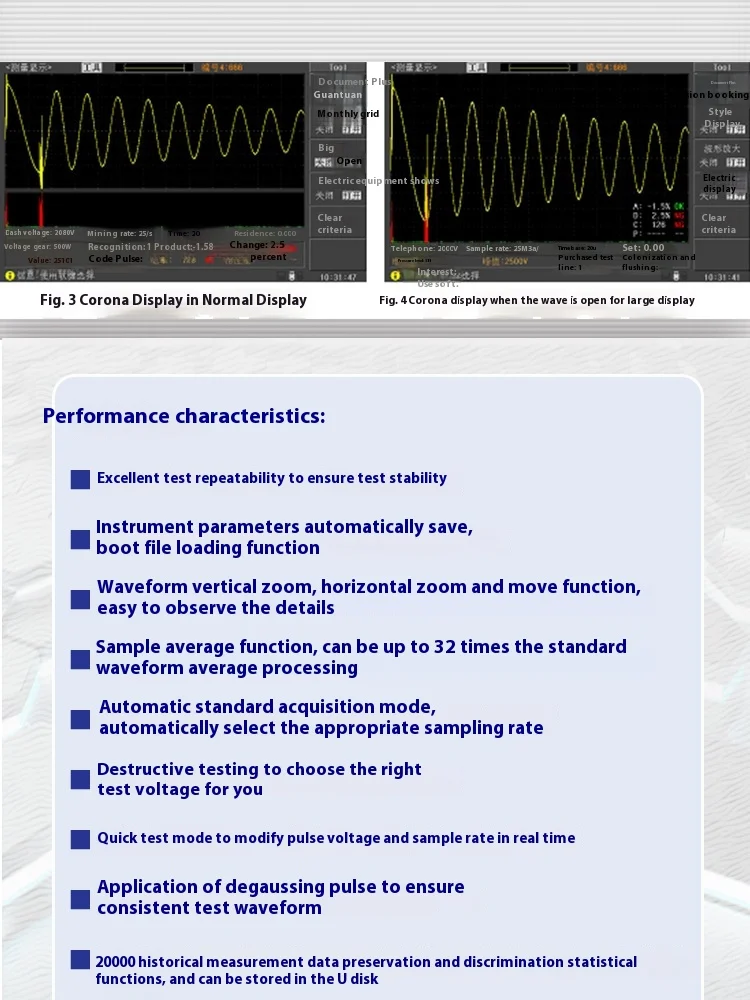

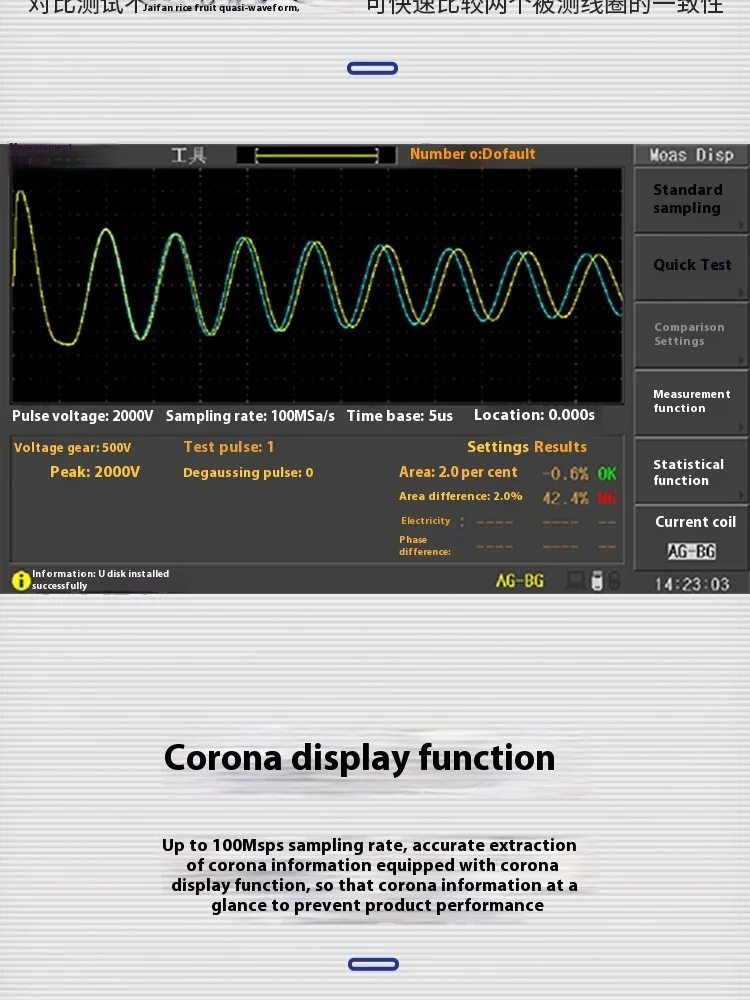

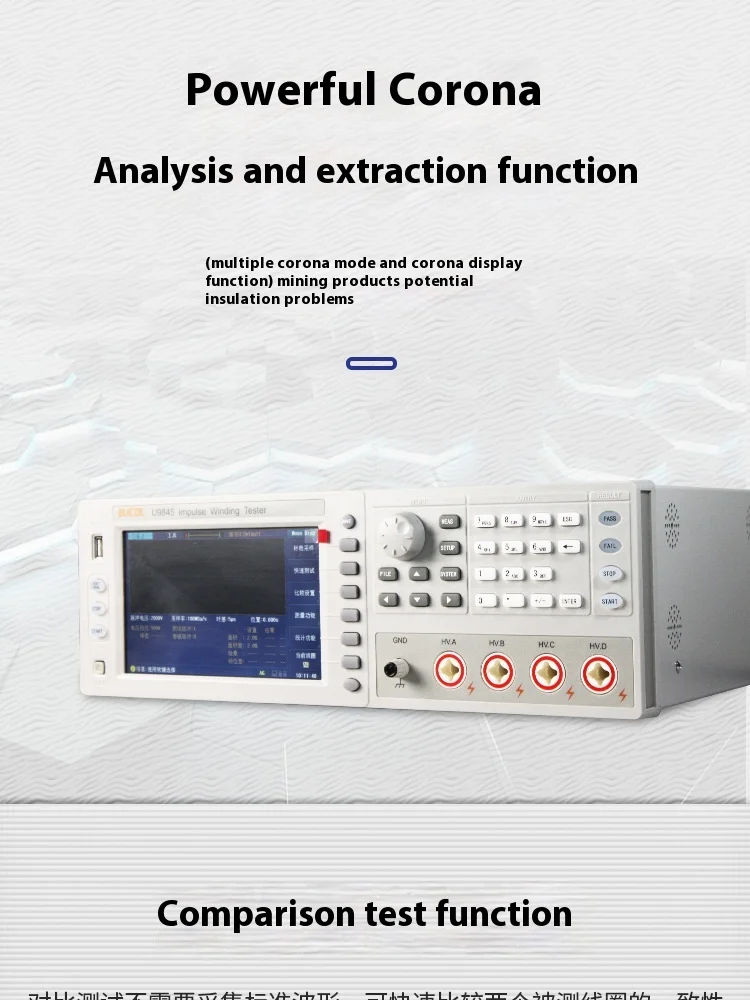

■ Strong corona analysis and extraction function (several corona modes and corona display function) to excavate potential defective insulation of products
■ Excellent test repeatability to guarantee stable measurement
■ Instrument parameters automatic storage and boot-up file load function
■ Vertical exaggeration, horizontal zoom and movement of waveforms for detail observation
■ Sample average function, average processing of 32 standard waveforms
■ Automatic standard acquisition mode to select suitable sampling rate
■ Destructive testing bring the right test voltage for you
■ Fast test mode can make real-time change of impulse voltage and sampling rate
■ Imposed demagnetized impulse to ensure the conformity of the tested waveforms
■ 20000 pieces of historical measured data storage and discrimination statistics function; can be saved to the U-disk
■ Directly save the screen pictures (BMP, GIF, PNG) or waveform data to U-disk through SAVE key
■ System firmware upgrade through U-disk
■ Foot switch interface for easy and fast measurements
■ Handler.RS232C.USB Device.USB Host and GPIB(option)

Specifications:

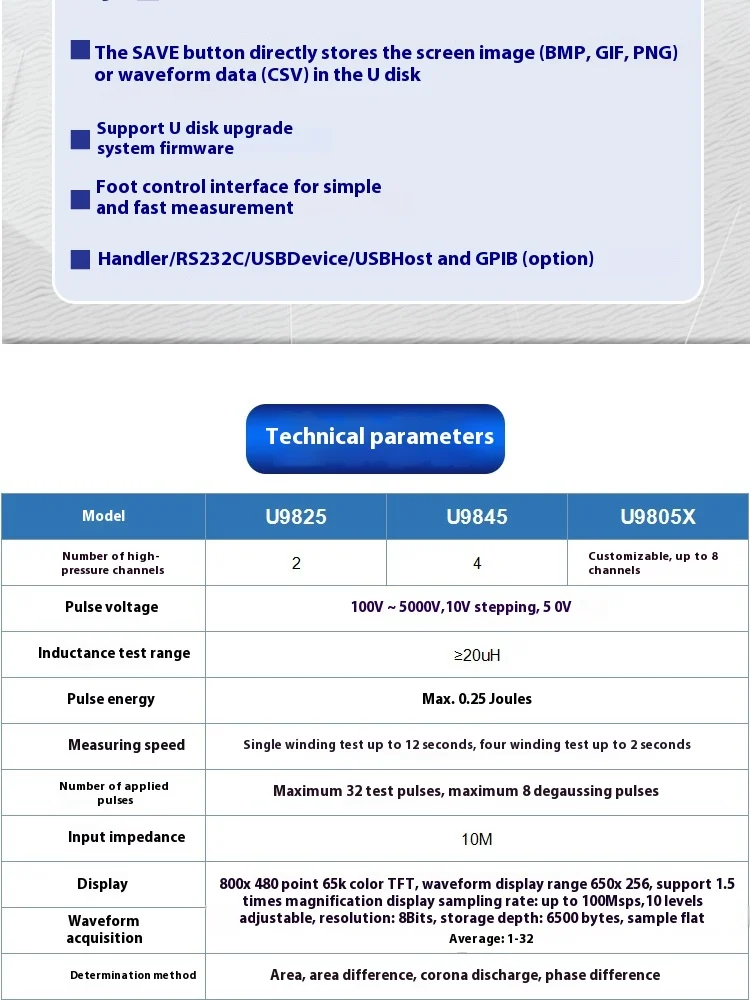

•Model:U9845
•Channel:4
•Impulse Voltage:100V~5000V,10V steps;Accuracy: ±5%±10V
•Inductance Range:≥20uH
•Impulse Energy:Max. 0.25 Joule
•Measuring Speed:
Single channel:15 meas/sec
Multi channel:single winding test 12 meas/sec,four windings test 2 meas/sec
•Pulses Applied:Measuring pulse up to 32, demagnetization pulse up to 8
•Input Impedance:10MΩ
•Waveform acquisition:
Sampling rate: Max. 100Msps, 10 grades (adjustable)
Resolution: 8 Bits
Memory depth :6500 Bytes
Average:1-32
•Comparison Methods:
Comparison with standard waveform:
Area Size Comparison
Differential Area Comparison
Corona Discharge Comparison
Differential Phase Comparison
•Accuracy of repetition:±1%
•Waveform Measurement:Voltage, Frequency, Time
•Trigger Mode:Manual/External/BUS/Internal
•Detection Output:OK/NG display，LED indicators, Sound Alarm

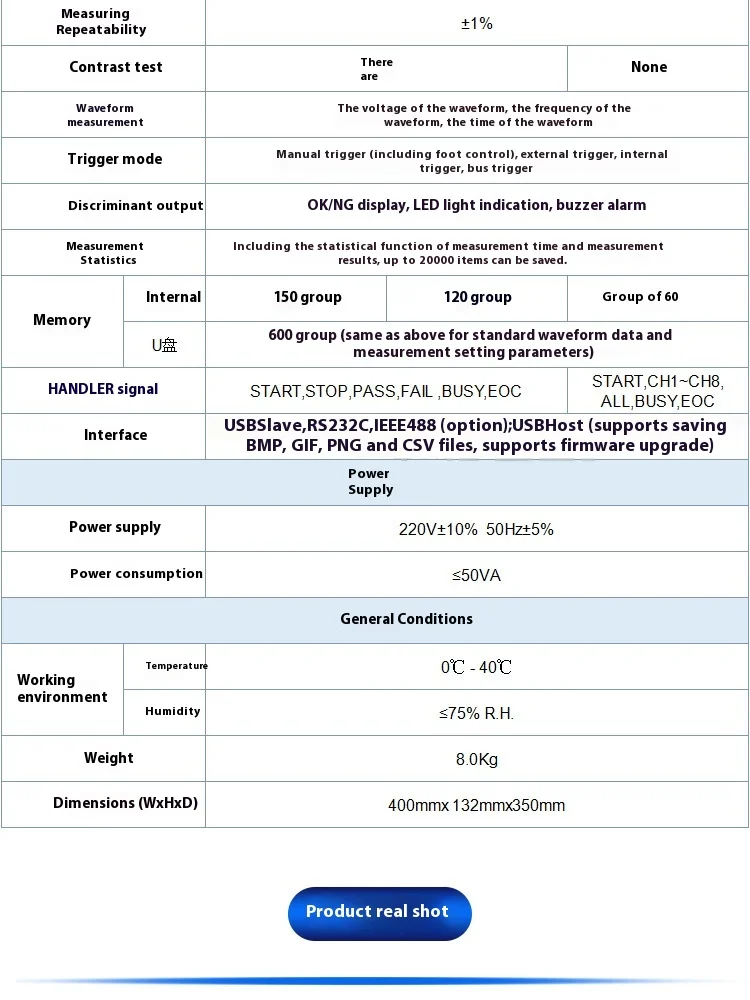

Measurement Statistics:Statistics for measurement results and time, Max. 20000
•Memory:
Internal:120 gruous(standard waveforms and measurement settings)
USB disk: 600 gruous(standard waveforms and measurement settings)

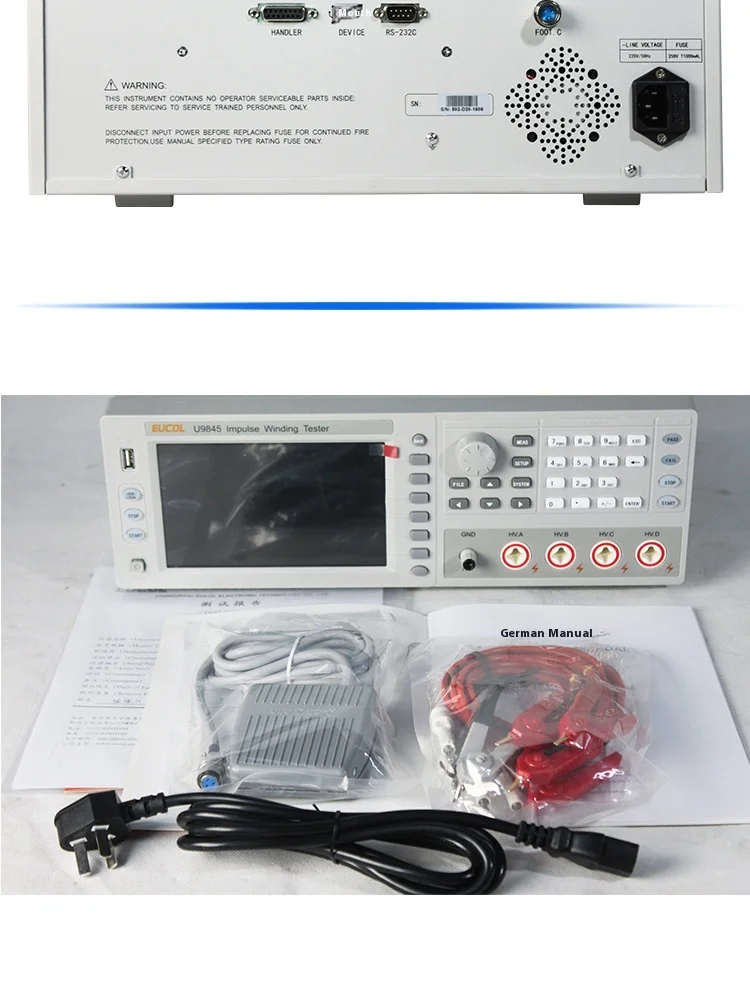

•Interface:
Handler(START,STOP,PASS,FAIL ,BUSY,EOC)
RS232C
USB Device(support USB TMC and USB CDC)
USB Host(support FAT16 and FAT32， BMP、GIF、PNG、 CSV files)
GPIB(option)
•Power supply:220V 50Hz/110V 60Hz
•Power Consumption:≤50VA
•Display type:
800x480 dots, 65kcolor TFT
Waveform display dots: 650x256，Support 1.5 times amplification display
•Language:Chinese&English
