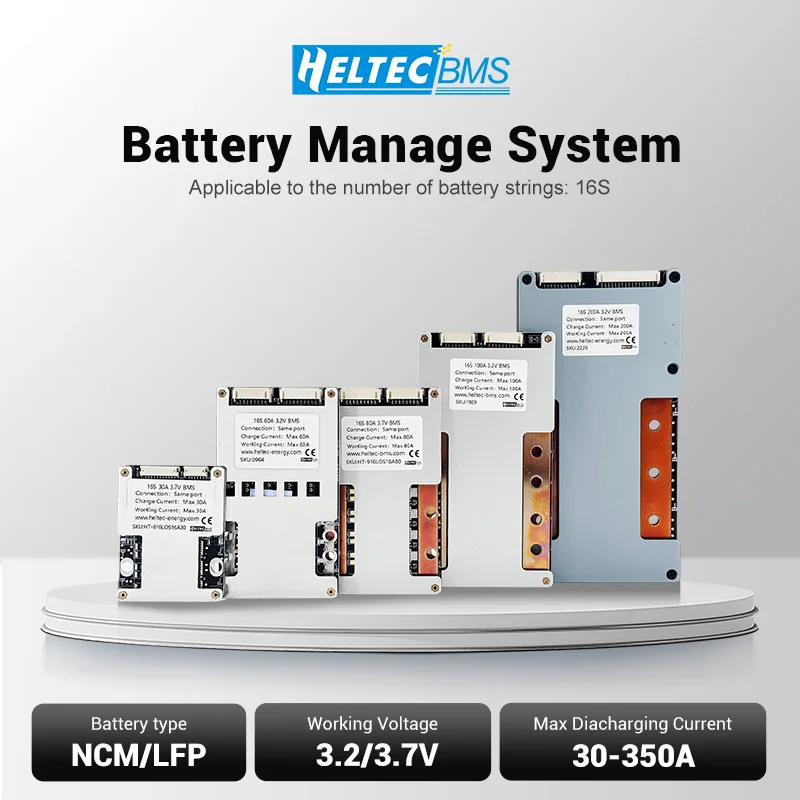

bms 48v 16s lifepo4/Lipo 16s 60v with balance 30a 50a 80a 100a 120a 160a 200a 25

Product Description

16S 30A 50A 3.7V Same Port

Size: 72*55*8mm

Overcharge protection: 4.25v±0.25v

Charging recovery: 4.2V±0.25v

Over-discharge protection: 2.8v±0.25v

Discharge recovery: 3.0v±0.25v

Maximum continuous current: 30A/50A

Peak Current: 90A/150A
Balance current: 80 mA

Balanced starting voltage: 4.22v±0.25v

Charging recovery

Self-consumption: ≤35uA

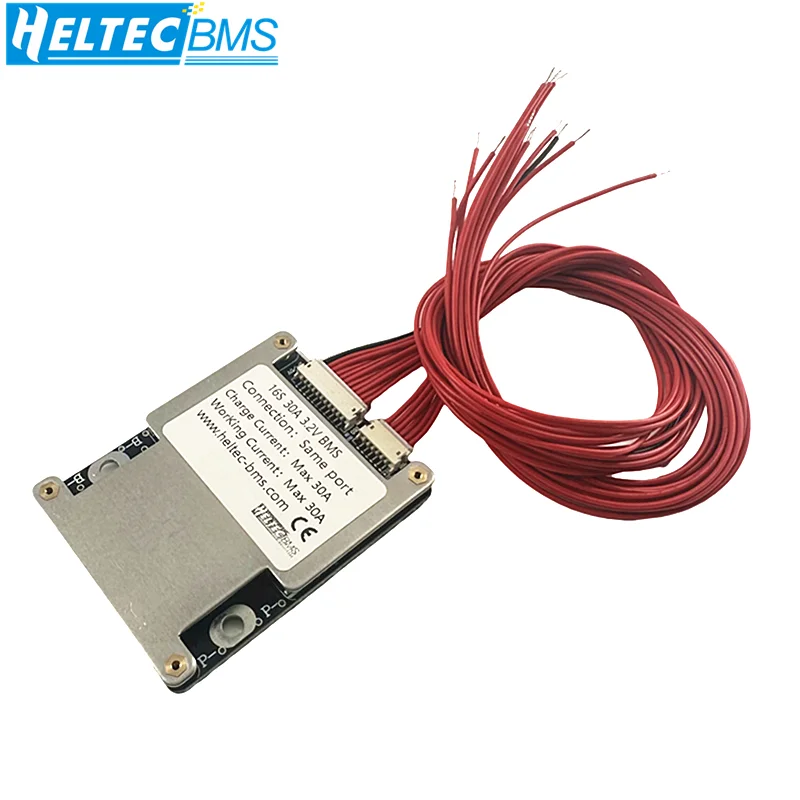

16S 30A 50A 3.2V Same Port

Size: 72*55*8mm

Overcharge protection: 3.65v±0.25v

Charging recovery: 3.55V±0.25v

Over-discharge protection: 2.35v±0.25v

Discharge recovery: 2.55v±0.25v

Maximum continuous current: 30A/50A

Peak Current: 30A/150A

Balance current: 80 mA

Balanced starting voltage: 3.405v±0.25v

Charging recovery

Self-consumption: ≤35uA

16S 80A 120A 160A 3.7V Same Port

Size:115*66*8/12mm

Overcharge protection: 4.25v±0.25v

Charging recovery: 4.2V±0.25v

Over-discharge protection: 2.8v±0.25v

Discharge recovery: 3.0v±0.25v

Maximum continuous current: 80A/120A/160A

Peak Current: 240A/360A/480A

Balance current: 100 mA

Balanced starting voltage: 4.22v±0.25v

Charging recovery

Self-consumption: ≤35uA

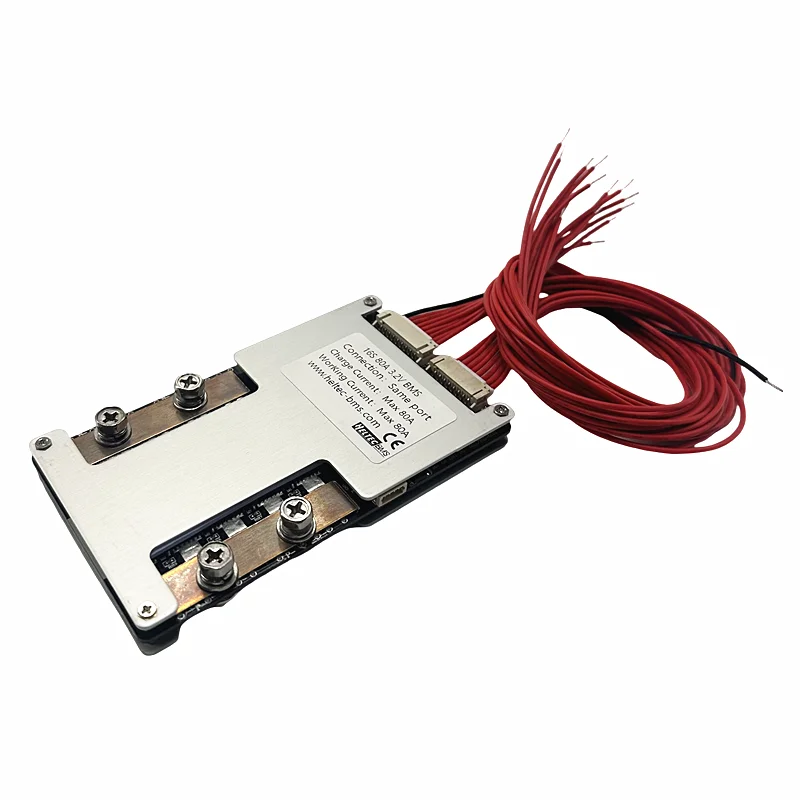

16S 80A 120A 160A 3.2V Same Port

Size: 115×66×18

Overcharge protection voltage: 3.65V

Charge protection release voltage:3.55V

Over-discharge protection voltage: 2.35V

Discharge release voltage :2.55V

Balance start Volatge:3.4V

Abnormal high voltage protection: yes

Temperature protection: Optional

Maximal continuous current: 60A/80A/120/160A

Peak current :180A/240A/360A/480A

Balanced current:100Ma

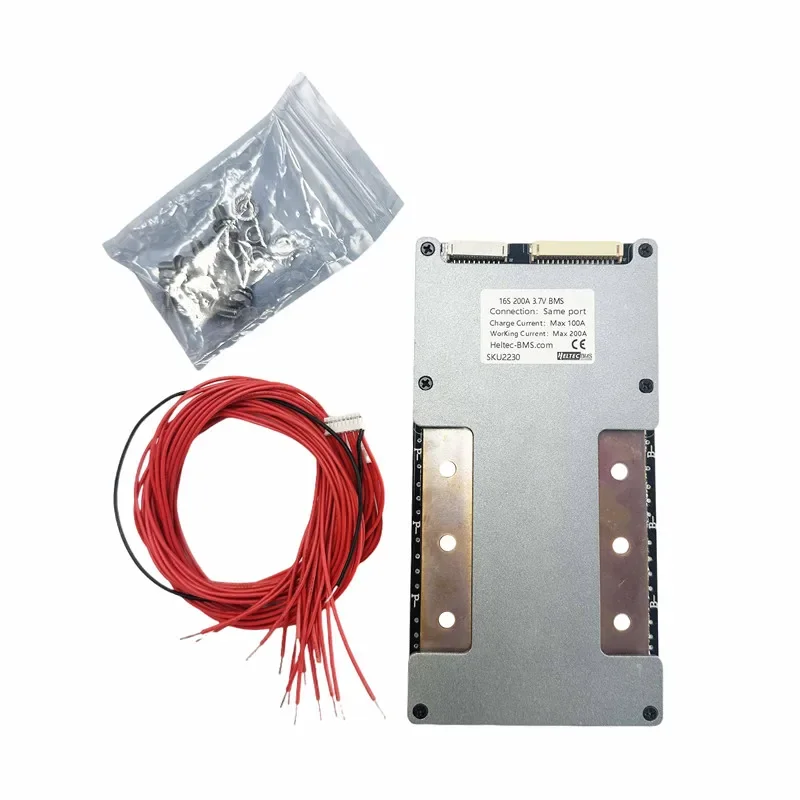

16S 200A 350A 3.7V Same Port

Size: 190*97*14mm

Overcharge protection: 4.25v±0.25v

Charging recovery: 4.2V

Over-discharge protection: 2.8v±0.25v

Discharge recovery: 3.0v

Max continuous current: 160A

Max Charge Current :200A/350A

Peak Current: 600A/1050A

Balance current: 100 mA

Balanced starting voltage: 4.22v±0.25v

Charging recovery

16S 200A 350A 3.2V Same Port

Size: 190*97*14mm

Overcharge protection voltage: 3.65V

Charge protection release voltage:3.55V

Over-discharge protection voltage: 2.35V

Discharge release voltage :2.55V

Balance start Volatge:3.4V

Abnormal high voltage protection: yes

Temperature protection: Optional

Maximal continuous current: 200A/350A

Peak current :600A/1050A

Balanced current:100Ma

16S 250A 3.7V Same Port

Size: 150*80*14mm

Overcharge protection: 4.25v±0.25v

Charging recovery: 4.2V

Over-discharge protection: 2.8v±0.25v

Discharge recovery: 3.0v

Max continuous current:250A

Max Charge Current :750A

Peak Current: 240A/360A/480A

Balance current: 100 mA

Balanced starting voltage: 4.22v±0.25v

Charging recovery

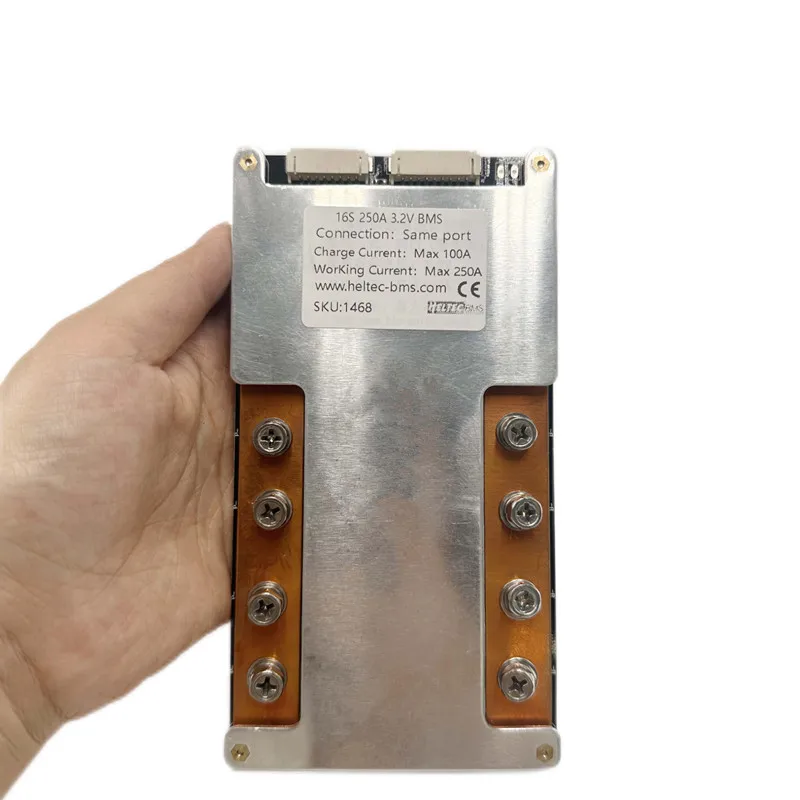

16S 250A 3.2V Same Port

Size: 150*80*14mm

Overcharge protection voltage: 3.65V

Charge protection release voltage:3.55V

Over-discharge protection voltage: 2.35V

Discharge release voltage :2.55V

Balance start Volatge:3.4V

Abnormal high voltage protection: yes

Temperature protection: Optional

Maximal continuous current: 250A

Peak current :750A

Balanced current:100Ma

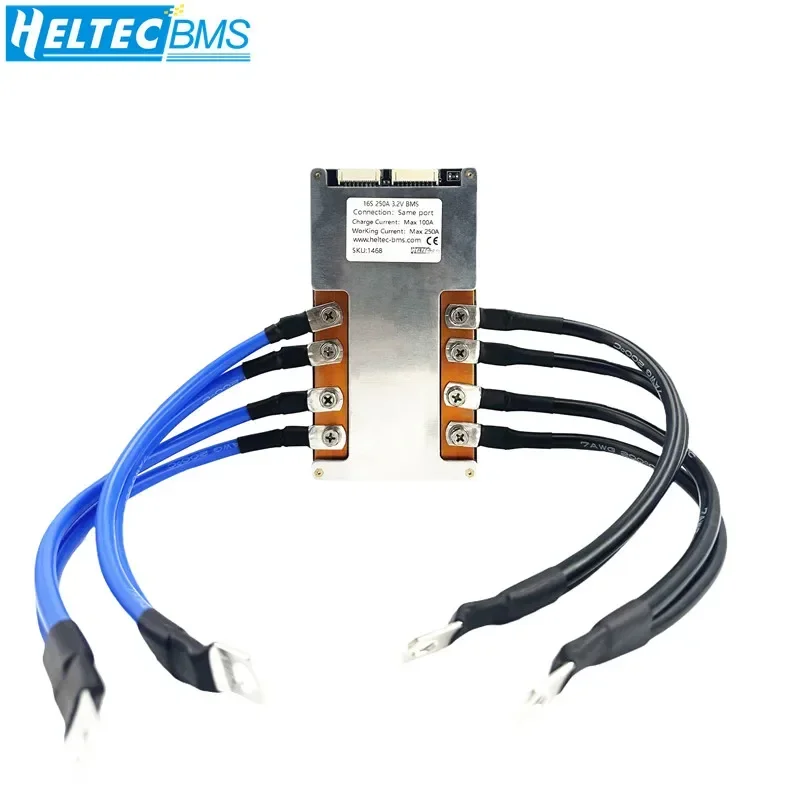

Sugget to conenct with Silicone cable with copper nose

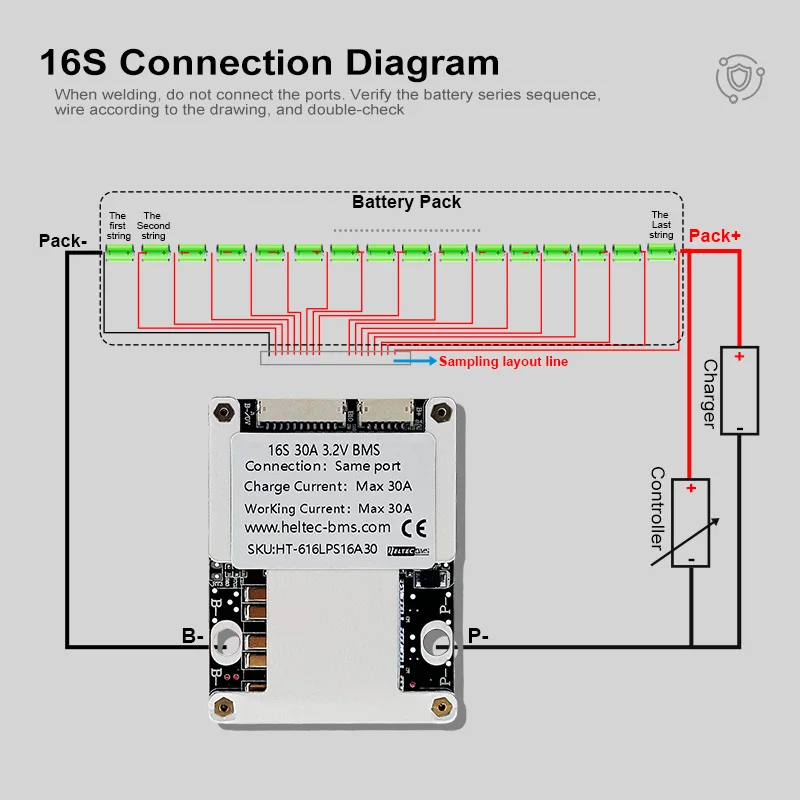

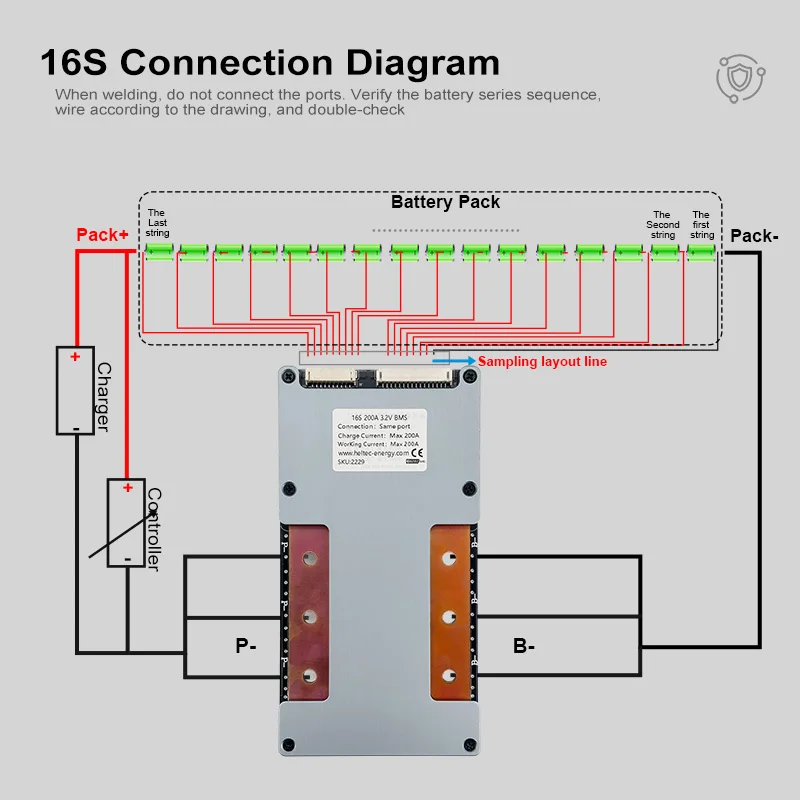

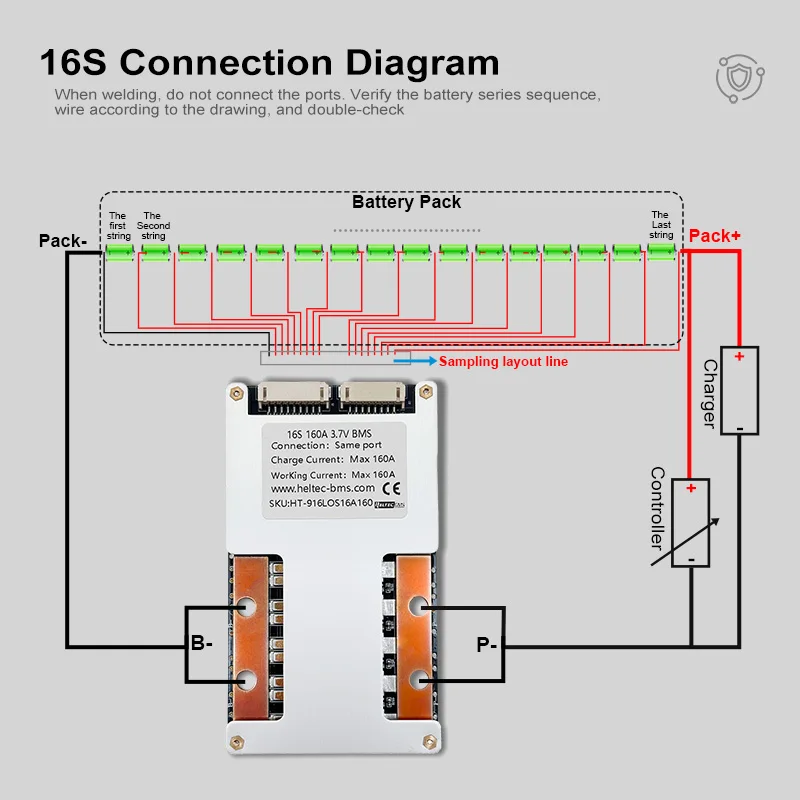

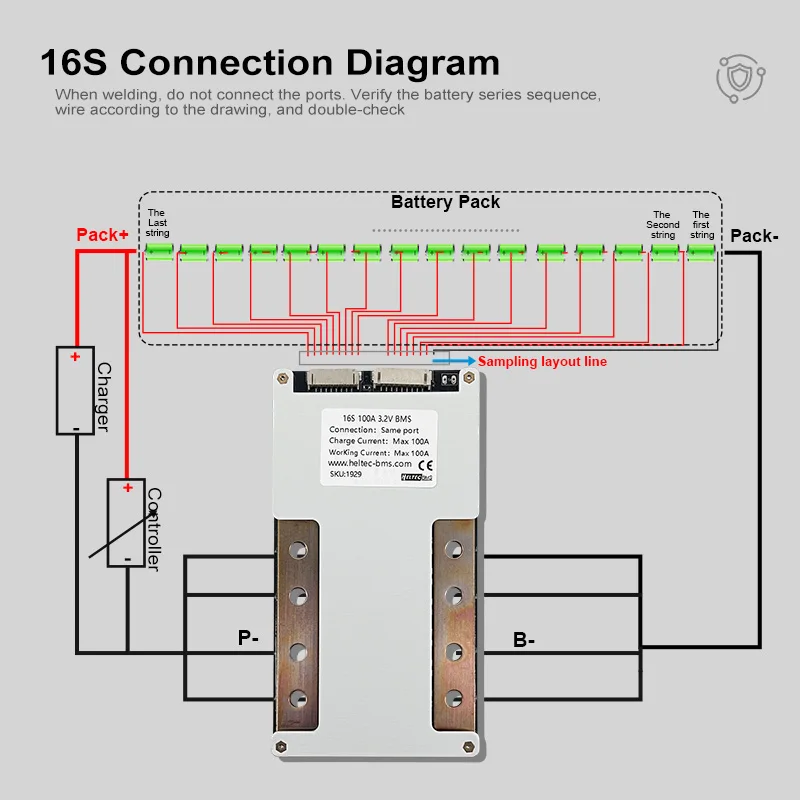

Note: All holes need to be connect as pictures shows

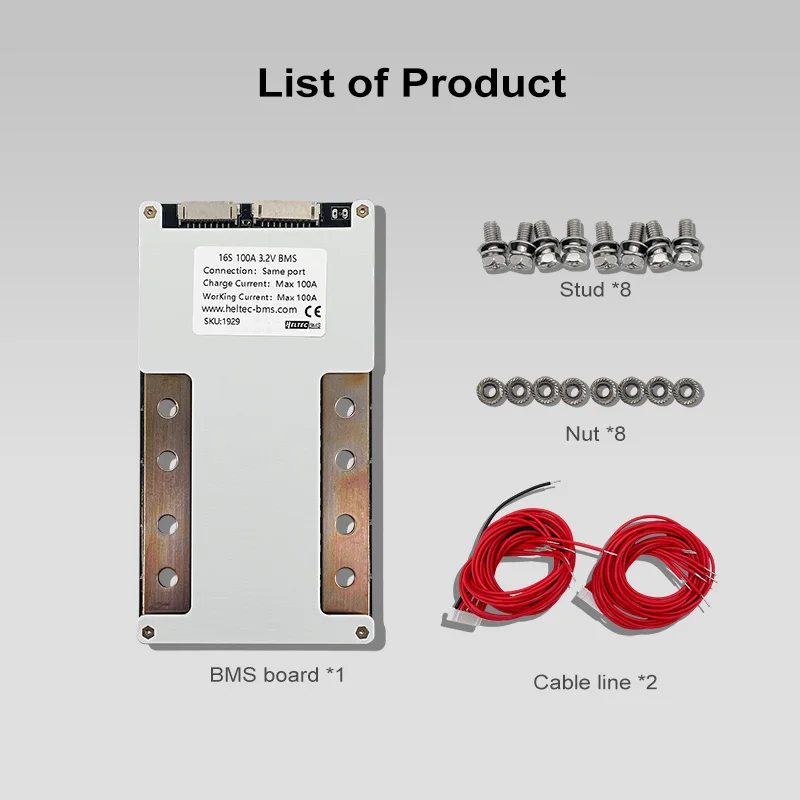

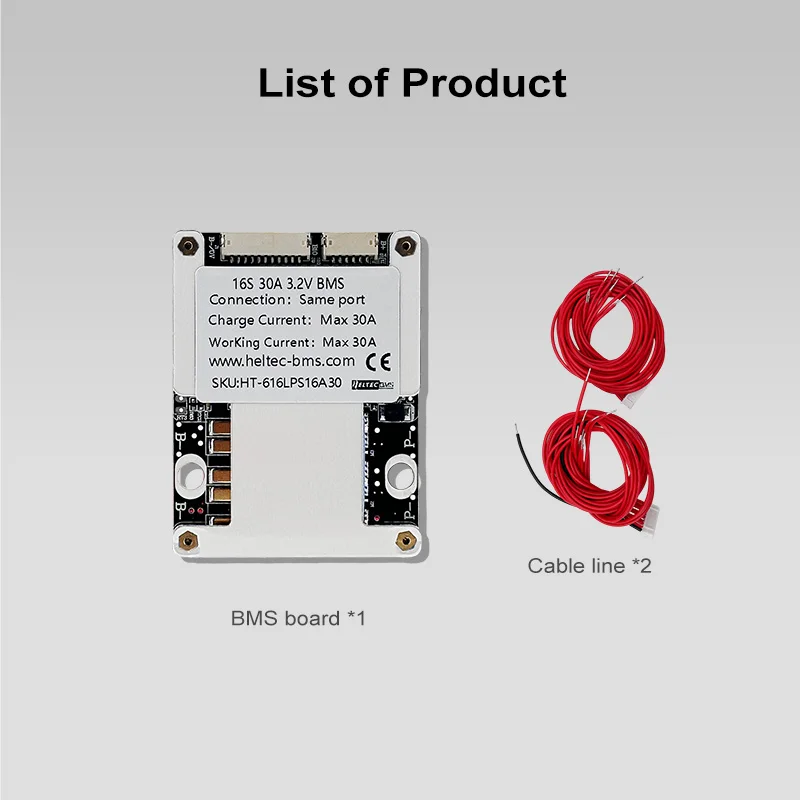

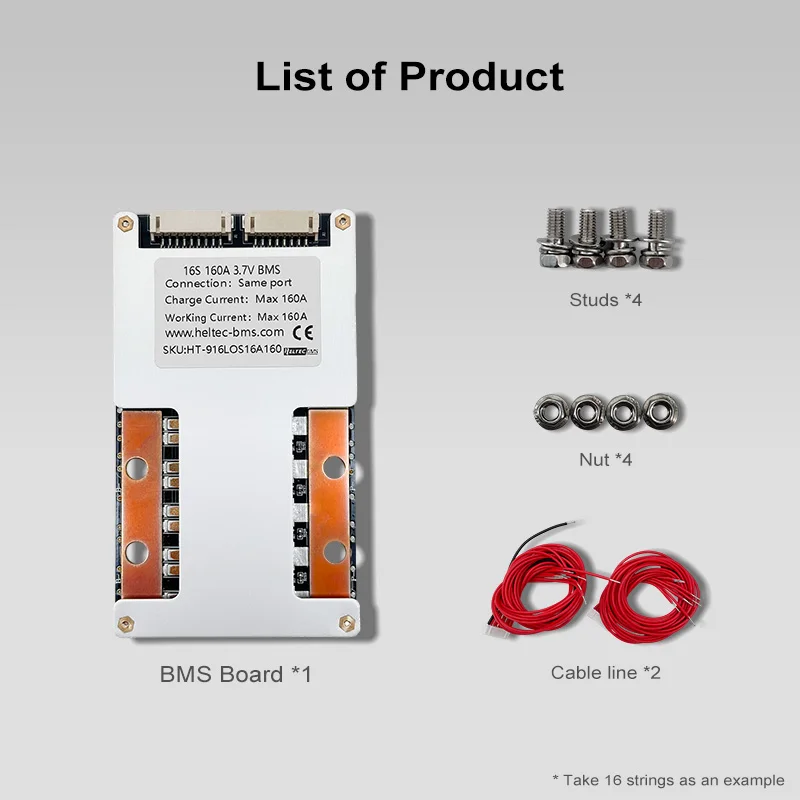

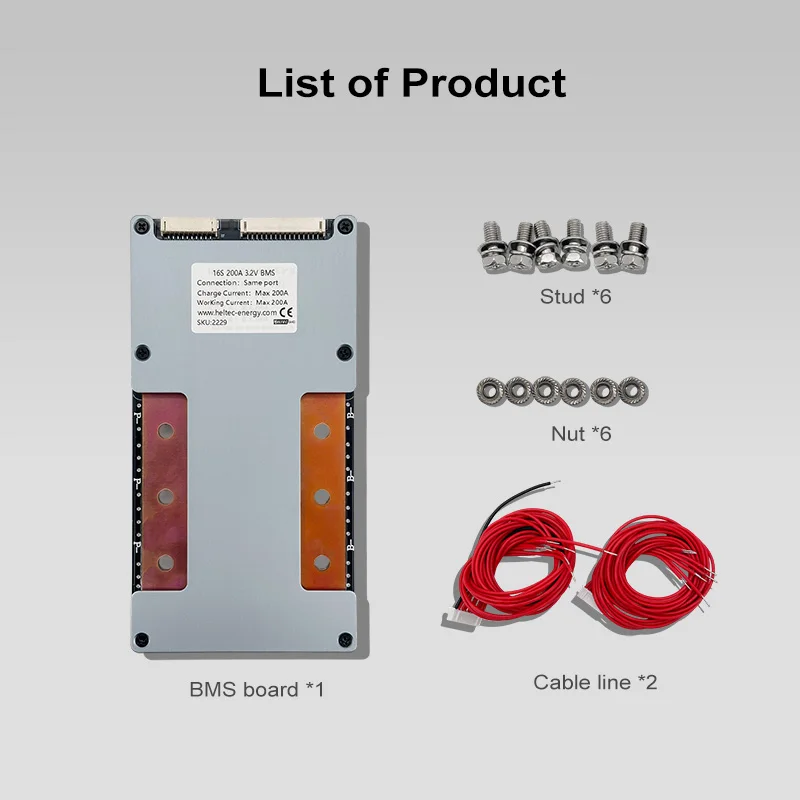

Package include
