lipo 3s bms 4s lifepo4 12v 40a 80a 120a 160a 200a 330a 380a balanced lithium/Iro

Product Description

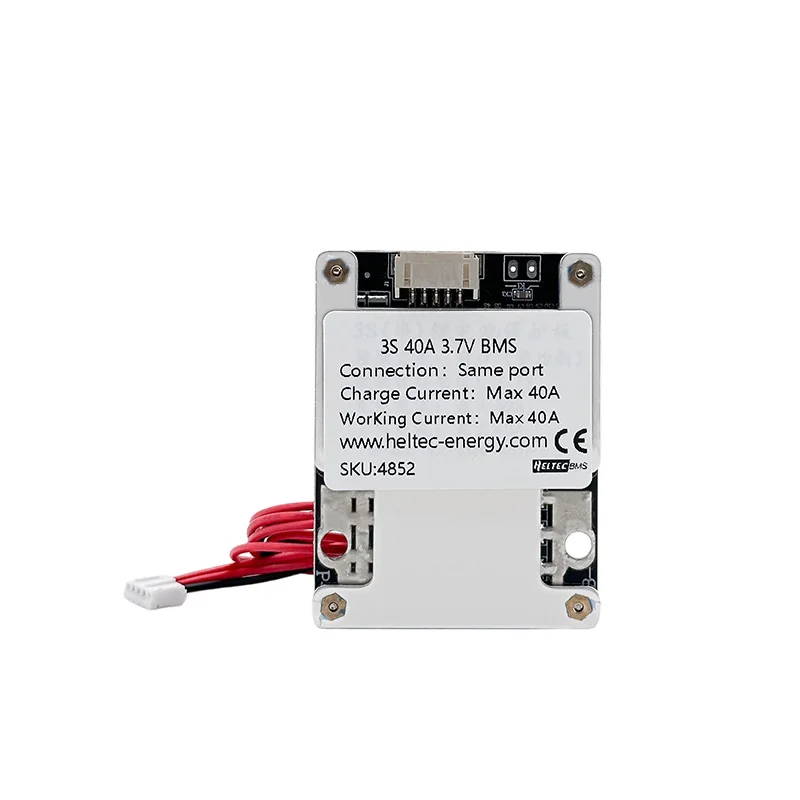

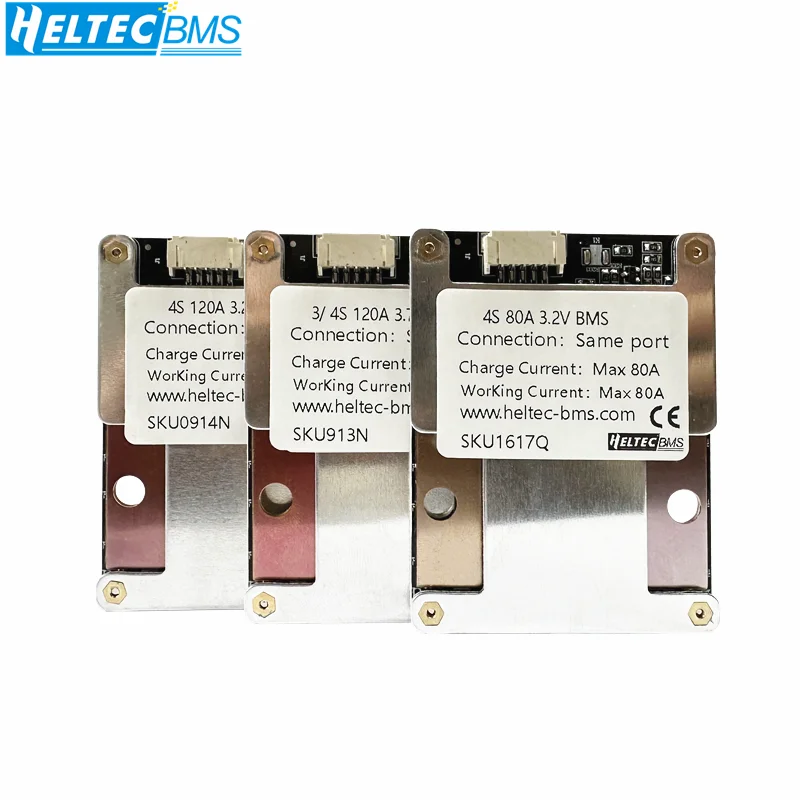

3-4S 40A 80A 120A 3.7V bms Same Port

Charging protection voltage: 4.25V

Charge release voltage: 4.19V

Balanced opening voltage 4.17V

Discharge protection voltage: 2.8V

Discharge release voltage: 3.0V

Balance current: 105 mA

Continuous discharge current: 40A/80A/120A

Continuous charging current: 40A/80A/120A

Current limit protection: 150A/300A/450A

Specification size: 72*55*8mm

Suitable for motors within 300W,600W 1000W.often used in marine propellers, and low-power energy storage around 300W/600W /1000W

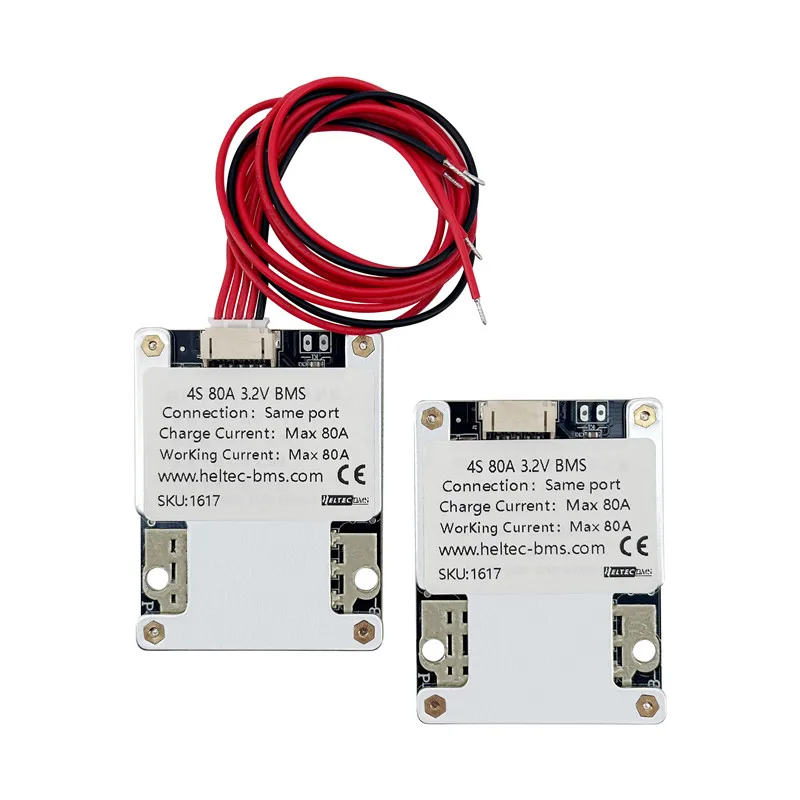

3S 4S 3.2V 40A 80A 120A BMS Same Port

Charging protection voltage: 3.65V

Charge release voltage: 3.6V

Balanced opening voltage 3.55V

Discharge protection voltage: 2.1V

Discharge release voltage: 2.5V

Balance current: 95 mA

Continuous discharge current: 40A/80A/120A

Continuous charging current: 40A/80A/120A

Current limit protection:150A/300A/450A

Specification size: 72*55*8mm

It is suitable for motors within 300W/600W /1000W, often used in marine propellers, and low-power energy storage around 300W/600W /1000W

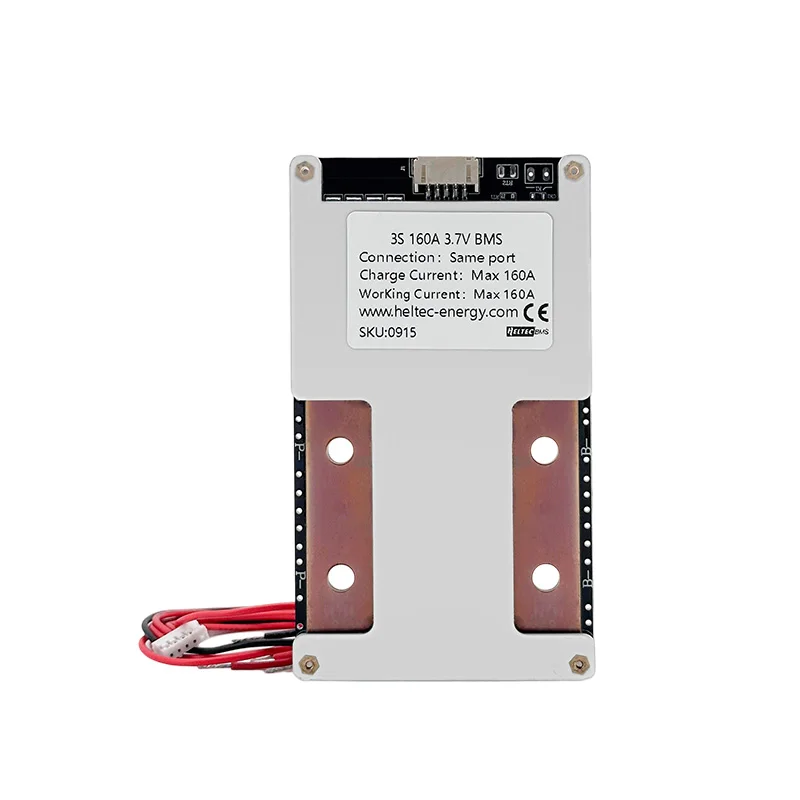

3S 4S 160A 3.7V Same Port

Applicable assembly：3.7V Ternary lithium battery, 18650 battery, etc

Serial port: 3s 4s/ Same port

Size:115×66×18

Overcharge protection voltage: 4.28V

Over-discharge protection voltage: 2.5V

Abnormal high voltage protection: yes

Temperature protection: yes(if you need twmperature control swith need to contatc us to add )

Maximal continuous current: 160A

Discharge instantaneous limit current protection:750A

Balanced current:110mA

Load short circuit protection: protection, disconnect the load and self-recovery.

Applicable scope: Suitable for load battery less than 1500W. The type of load can be motor etc

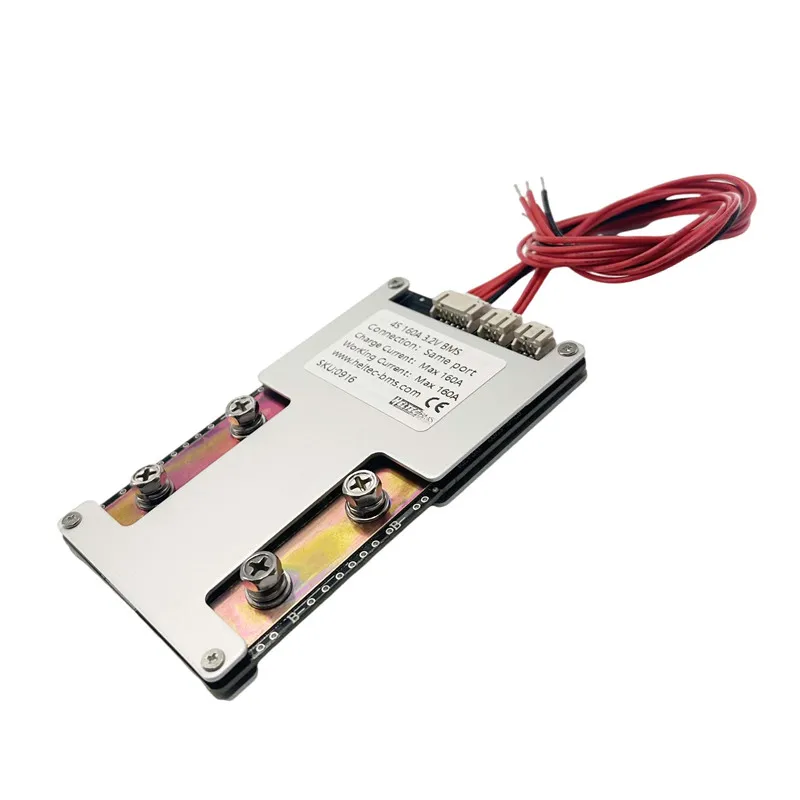

4S 160A 32.V Same Port

Applicable assembly：3.2V Lithium iron phosphate battery

Serial port: 4s/ Same port

Size: 115×66×18

Overcharge protection voltage: 3.75V

Over-discharge protection voltage: 2.1V

Abnormal high voltage protection: yes

Temperature protection: yes

Maximal continuous current: 160A

Discharge over-current protection:750A

Balanced current:92mA

Load short circuit protection: protection, disconnect the load and self-recovery.

Applicable scope: Suitable for load battery less than 1500W. The type of load can be motor etc.

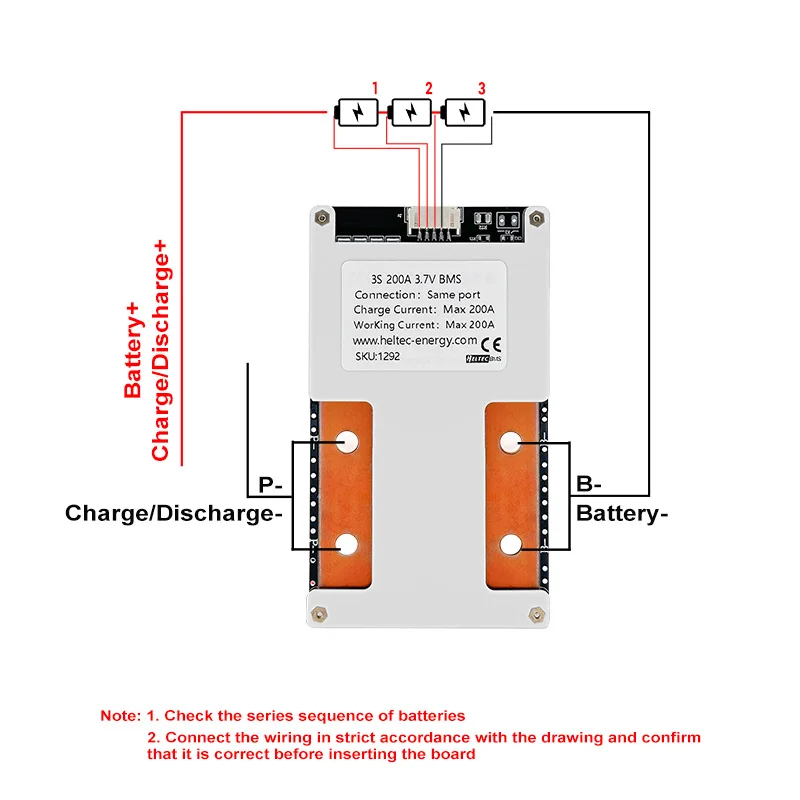

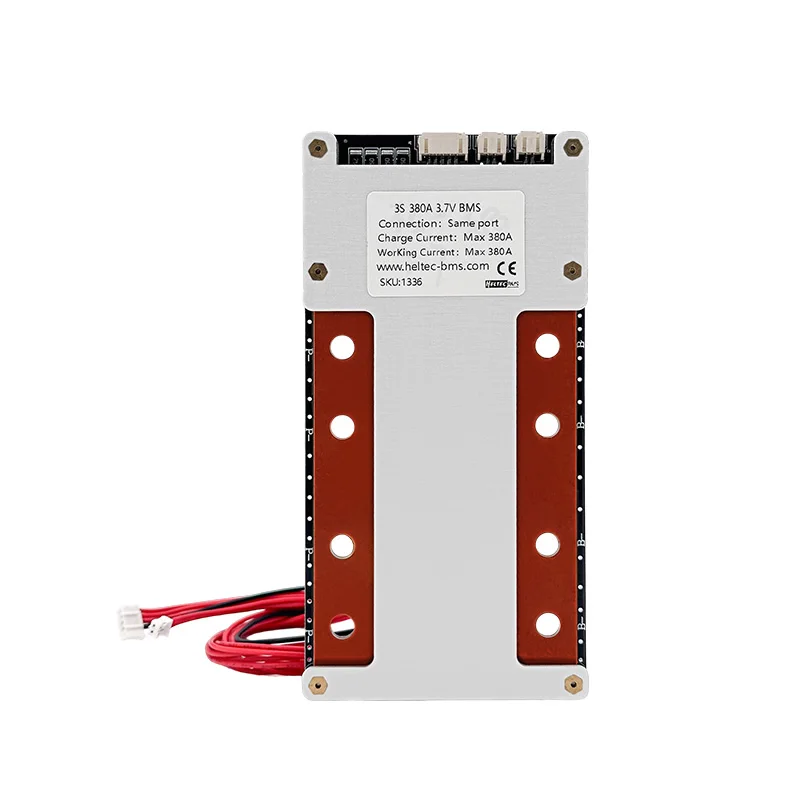

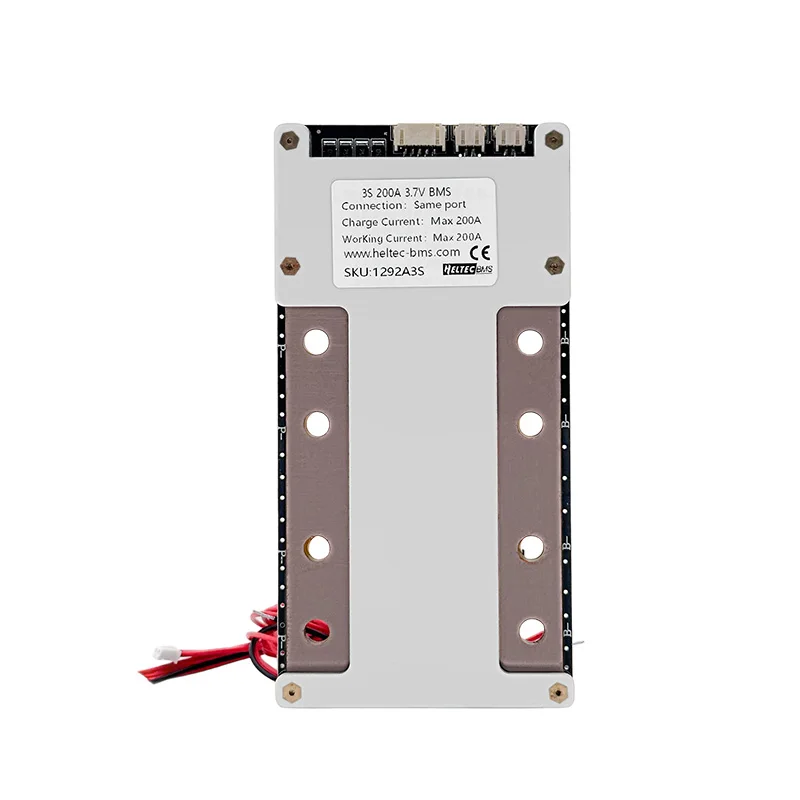

3S 200A/380A 3.7V Same Port

Connection : Same Port

Size: 163×82×12mm

Overcharge protection: 4.25v±0.25v

Charging recovery: 4.2V±0.25v

Over-discharge protection: 2.8v±0.25v

Discharge recovery: 3.0v±0.25v

Max continuous current: 200A/380A

Max Charge Current :600A/1140A

Peak Current: 1000A

Balance current: 200 mA

Balanced starting voltage: 4.21v±0.25v

Charging recovery

Self-consumption: ≤35uA

4S 200A 380A 3.2V Same Port

Size: 163*82*12MM

Charge protection voltage: 3.65V

Charge release voltage 3.55V

Discharge protection voltage 2.35V

Discharge release voltage 2.55V

Balanced voltage 3.405V

Balanced current: 200MA

Maximum continuous overcurrent ：200A/380A

Peak Current:600A/1440A

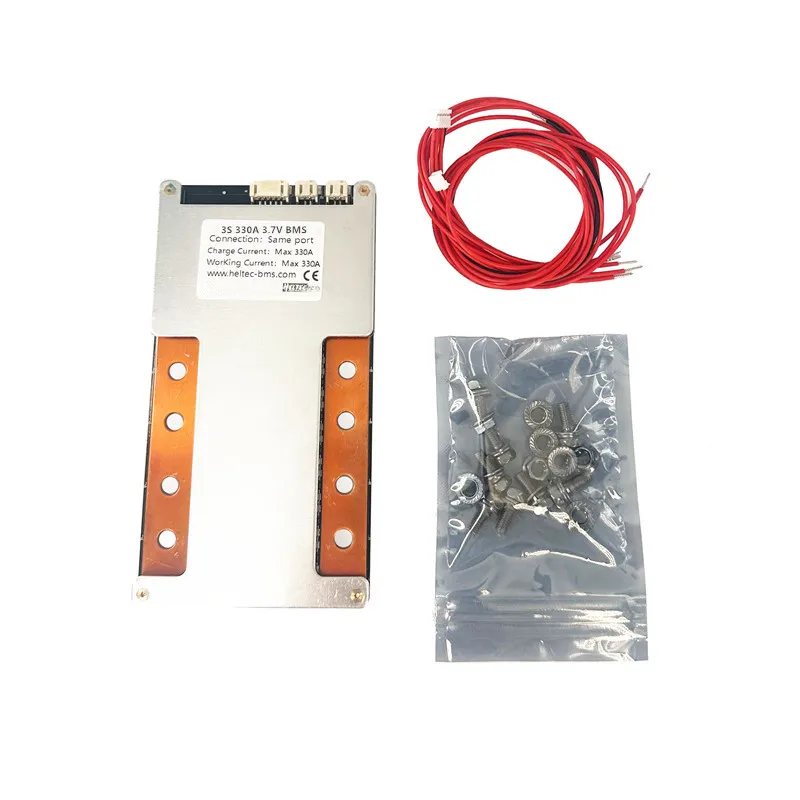

3S 330A 3.7V Same Port

Connection : Same Port

Size: 150*80*12mm

Overcharge protection: 4.25v±0.25v

Charging recovery: 4.2V±0.25v

Over-discharge protection: 2.8v±0.25v

Discharge recovery: 3.0v±0.25v

Max continuous current: 330A

Max Charge Current :150A

Peak Current: 1000A

Balance current: 100 mA

Balanced starting voltage: 4.21v±0.25v

Charging recovery

4S 330A 3.2V Same Port

Size: 150*80*12MM

Charge protection voltage: 3.65V

Charge release voltage 3.55V

Discharge protection voltage 2.35V

Discharge release voltage 2.55V

Balanced voltage 3.405V

Balanced current: 200MA

Maximum continuous overcurrent ：330A

Peak Current:1000 A

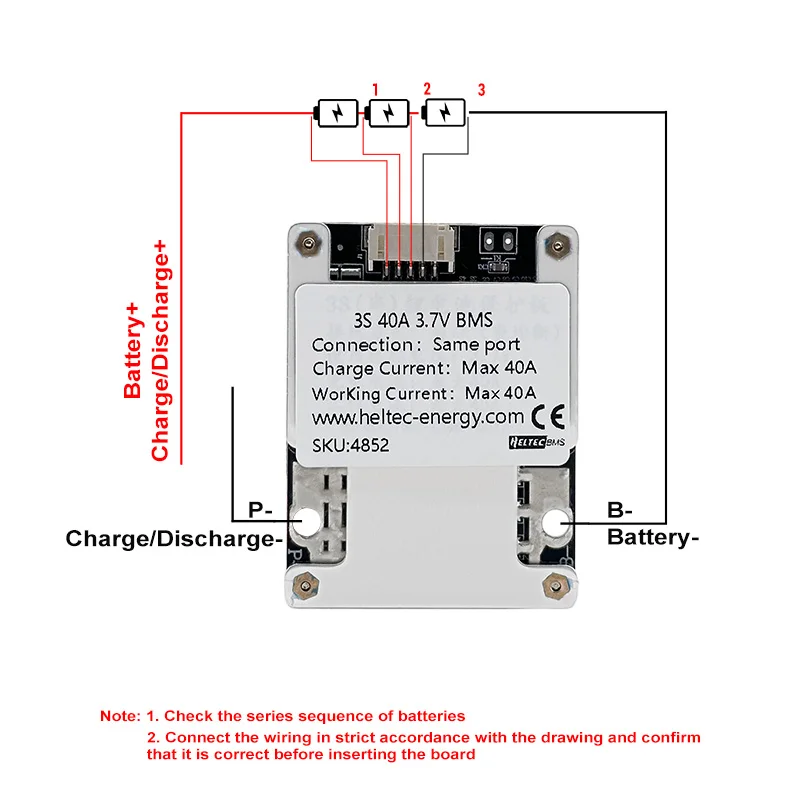

Connetcion
