1S- 24S Voltage Tester Lithium Battery Pack Single Cell Measurement Identify Str

Product Description

Product Introduction

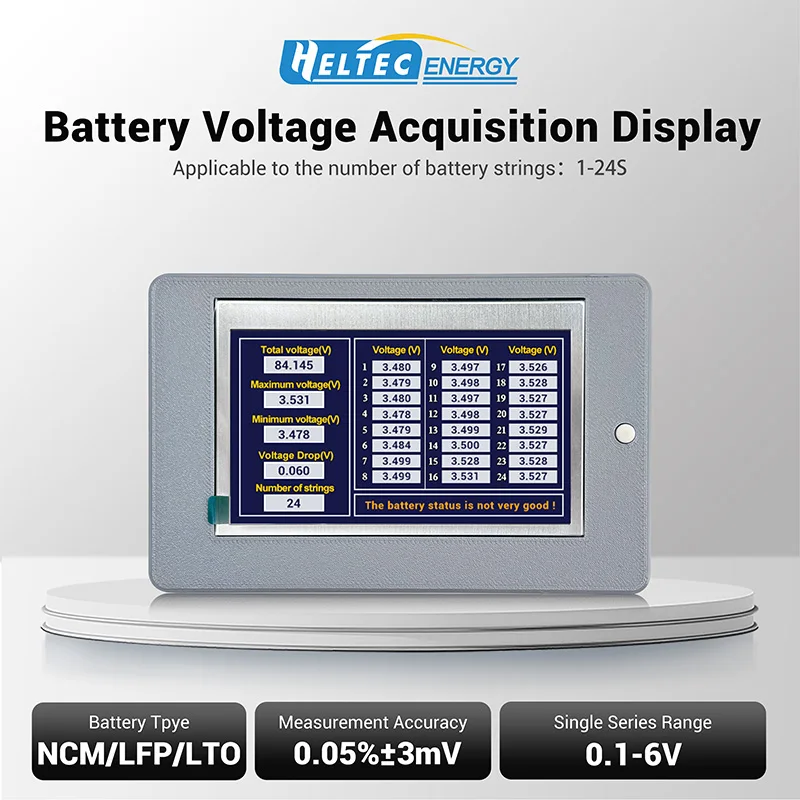

The 24-string battery voltage acquisition display screen is an electronic device or module that integrates the functions of voltage signal acquisition, processing, analysis and visual display. The voltage acquisition chip is used to collect the voltage of a single string and the entire battery pack in real time. The range of a single string is 0.1V to 9V, with high precision and real-time update, which is convenient for checking the battery usage status. It can effectively protect the circuit and improve the safety and reliability of the product. The core purpose is to monitor and measure one or more voltage signals in real time or near real time, and present the measurement results to users in intuitive and easy-to-read digital or graphical form.

Feture

1. Support negative - voltage display

2. Single series voltage range 0.3V-9V

3. Measurement accuracy 0.05%±3MV

4. Automatically identify the number of battery series

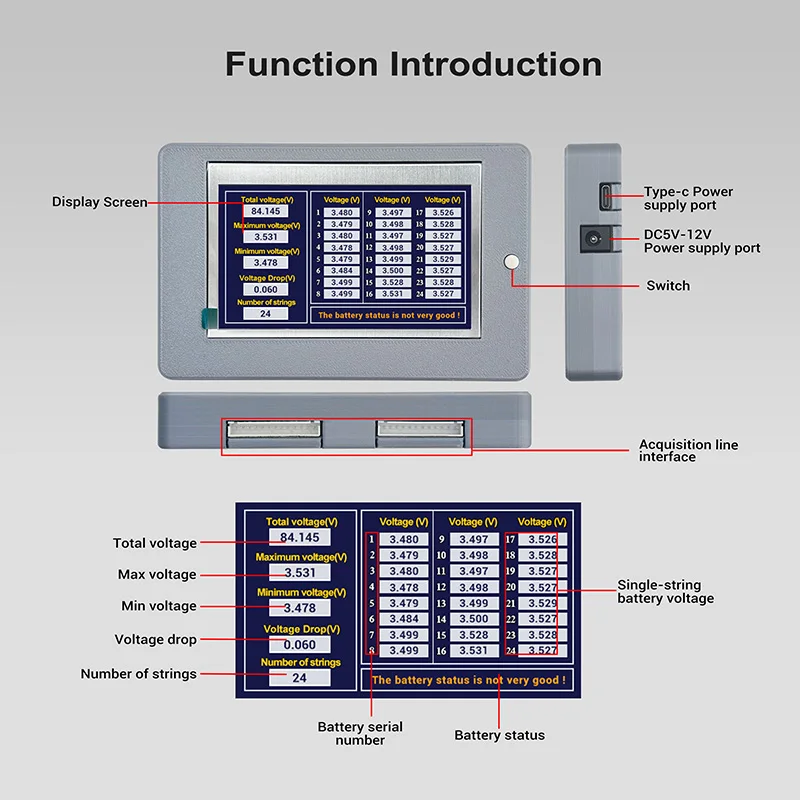

5. Display the highest voltage, the lowest voltage, and the maximum differential voltage between series

6. Power supply:DC5V~12V TypeC port power supply(supply 2.1 power cable in default )

7. Color LCD display with 1S to 24S battery pack measurement

Usage instructions:

First, the DC5-12V power supply
Button: Short press to power on, short press to power off; after powering on
Long press (about 10 seconds) to switch between Chinese and English display
