Car Start BMS LTO 4S 5S 6S 7S 8S 9S 10S 80A 100A 2.3V 2.4V 1000A Peak Lithium t

Product Description

Feture

A high precision protection chip is adopted

The two original development of the TI platform adapts to a wide variety of lithium compounds, such as three yuan lithium polymer, lithium iron phosphate, and lithium titanate

High voltage VDS, low RDS conduction internal resistance, low CGD mueller capacitance,-252 packages TO power MOSFET

WenPiao tiny, the accuracy is 1% high power 2512 encapsulation alloy measuring resistance

Jiantao, 94 V-0 level KB high fire prevention level double glass fiber board

Standard high thermal conductivity aluminum heat sink

The maximum working current 100 A, continuous rated current 80 A

Maximum pulse start current 1000 A/10S, normal pulse start current 800 A/10S

Very low power consumption, static standby power consumption and 10uA. Work power consumption 100uA and balanced start-up power consumption 50 mA + 10 uA (single battery)

The state overall PCBA discharge resistance < 25 m Ω, charging the state 35 m Ω resistance

The typical voltage of the detection methods of charging protection, a discharge protection, over current protection, short circuit protection, temperture protection balanced management

Feture

Normal charging input voltage (maximum) Each section 2.80V

Charging nominal working current / Working current (maximum) 80A / 100A

Normal charging overcharge protection voltage 2.80V

Normal charging over-discharge protection voltage 1.80V

Discharge nominal working current / Working current (maximum) 80A / 100A

Overcurrent protection current and delay 1000A / 100ms

Short circuit protection and delay < 500μs

Protection board over-temperature protection temperature and delay 65°C

Protection board working temperature adaptation range -20°C ~ 65°C

Balance

Balanced starting voltage 2.40V

Balanced current 50mA (Energy-consuming)

Parameter

Protection board static power consumption ≤100μA (Power consumption in sleep state)

Protection board working power consumption ≤300μA (Power consumption in activation state)

Protective board internal resistance ≤10mΩ (Discharge path)
≤15mΩ (Charge path)

APPLICATION

Mobile power or test equipment power supply

electric bicycle

electric power tool

Cars below 3.5 are activated

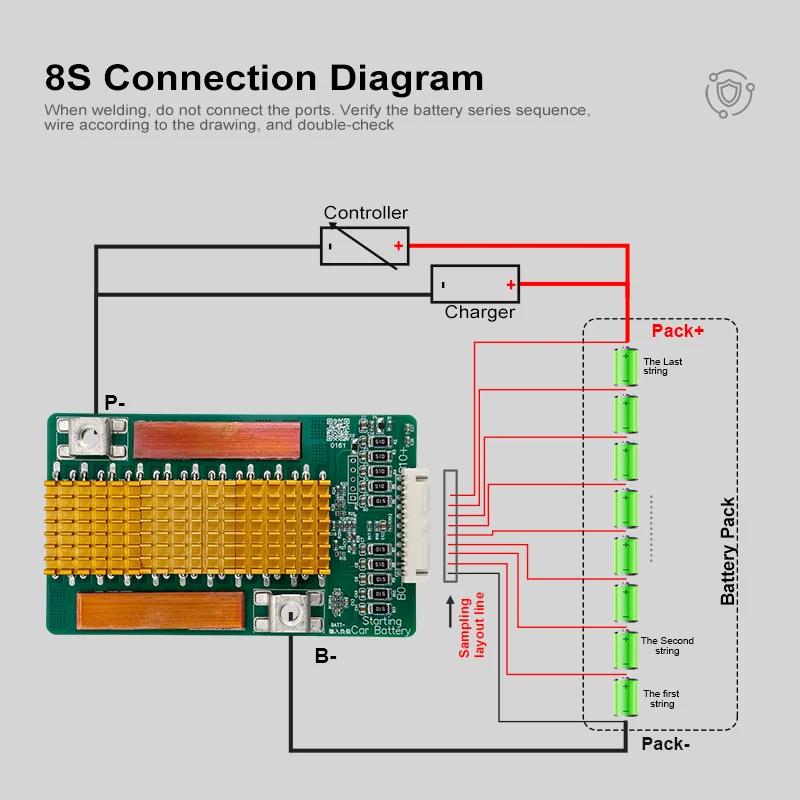

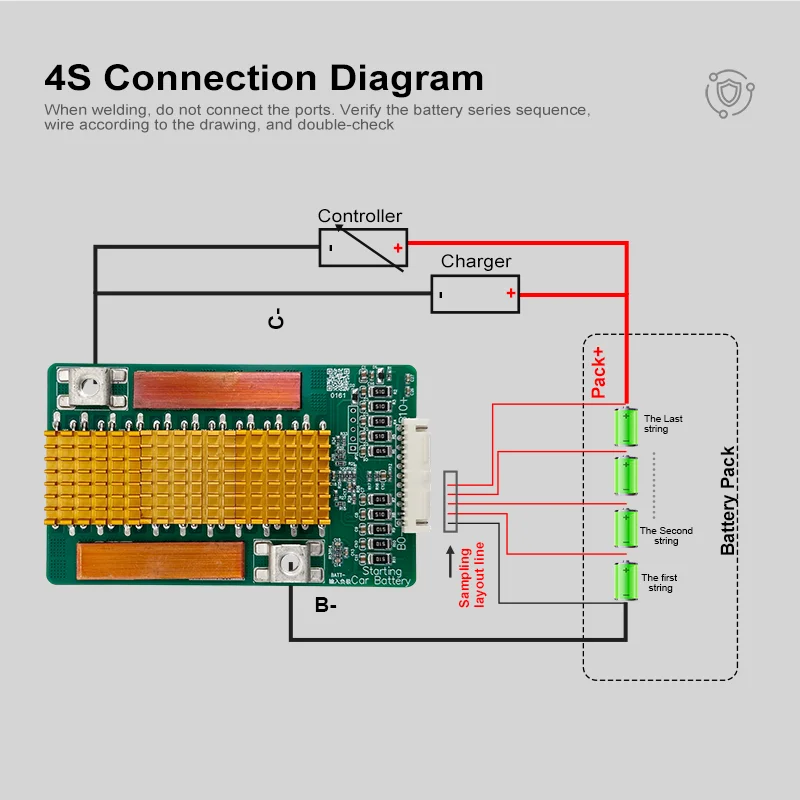

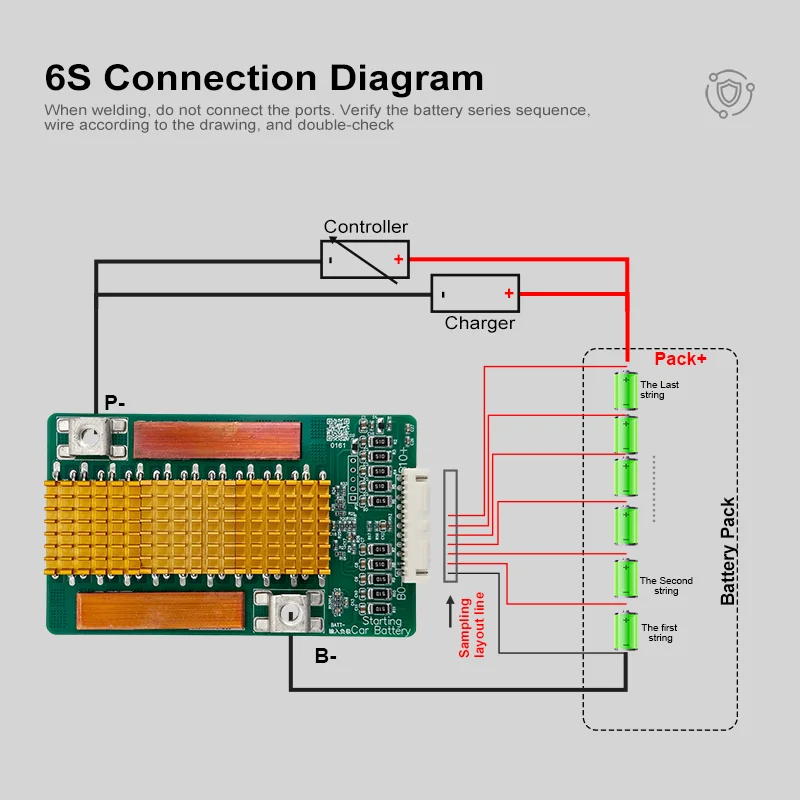

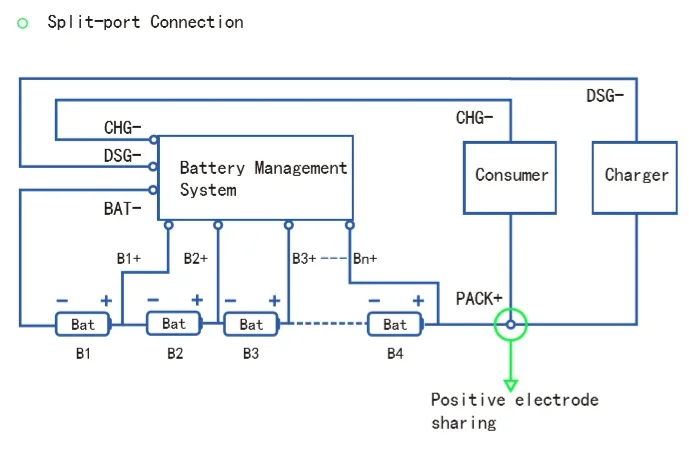

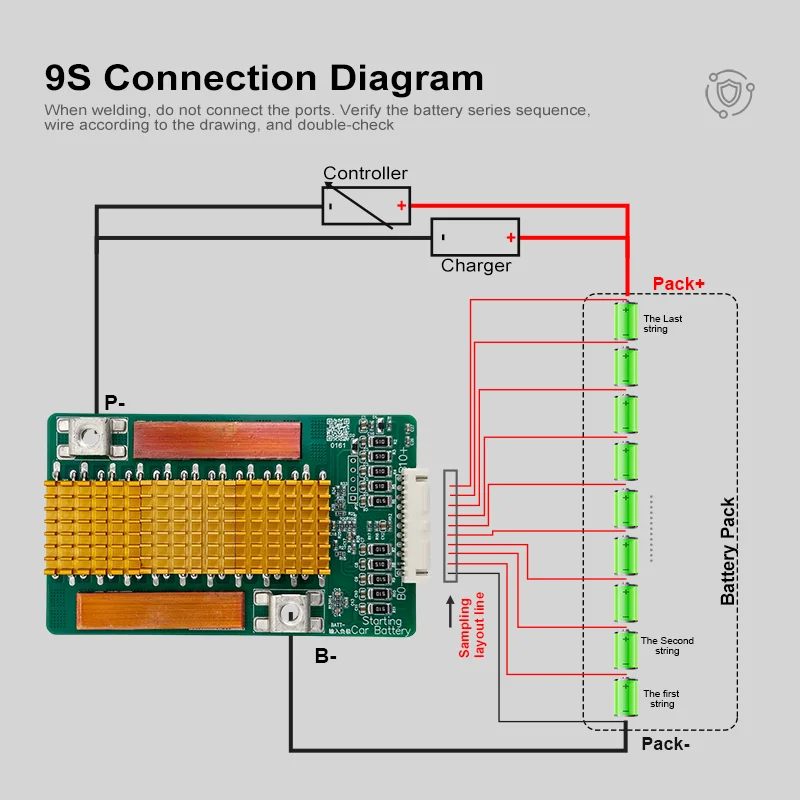

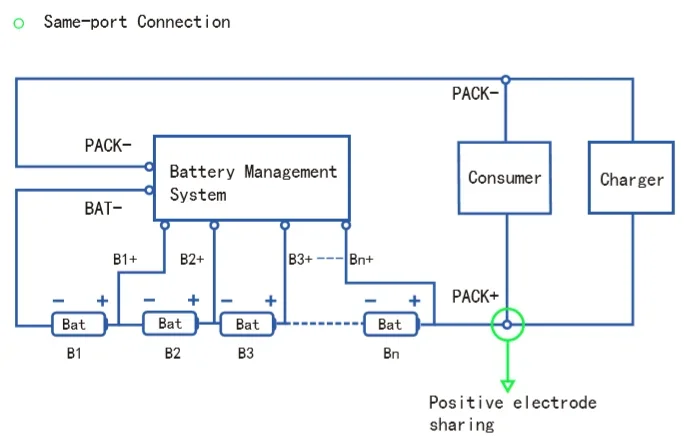

Connection
