4A/10A/15A/20A Smart Active Balancer 2-24S Lifepo4 / Li-ion/ LTO Battery Equaliz

Product Description

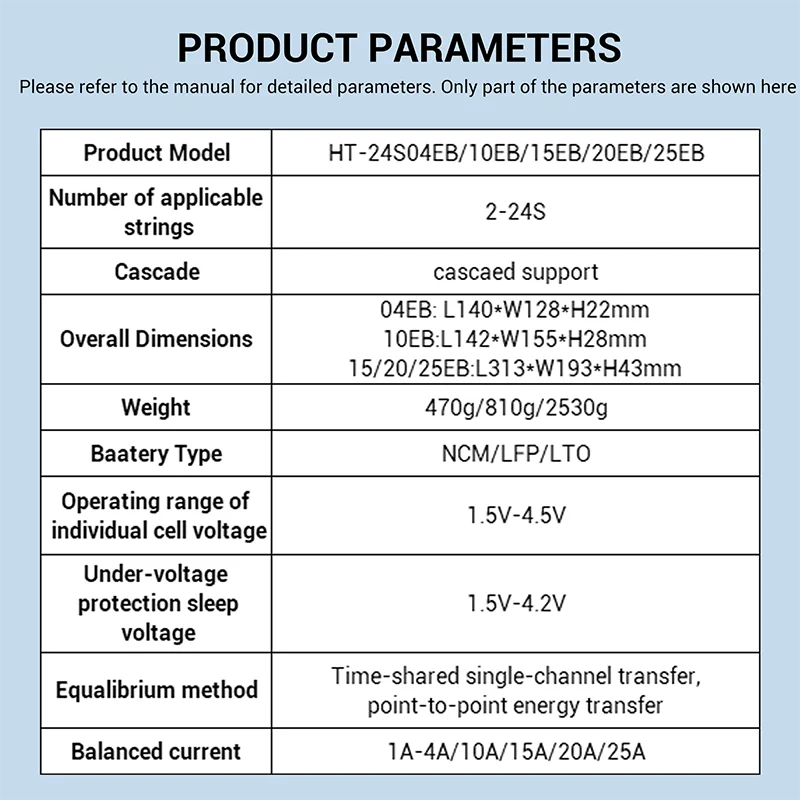

PRODUCT PARAMETERS

Please refer to the manual for detailed parameters. Only part of the parameters are shown here

Product Model: HT-24S04EB/10EB/15EB/20EB/25EB

Number of applicable strings: 2-24S

Cascade: cascaded support

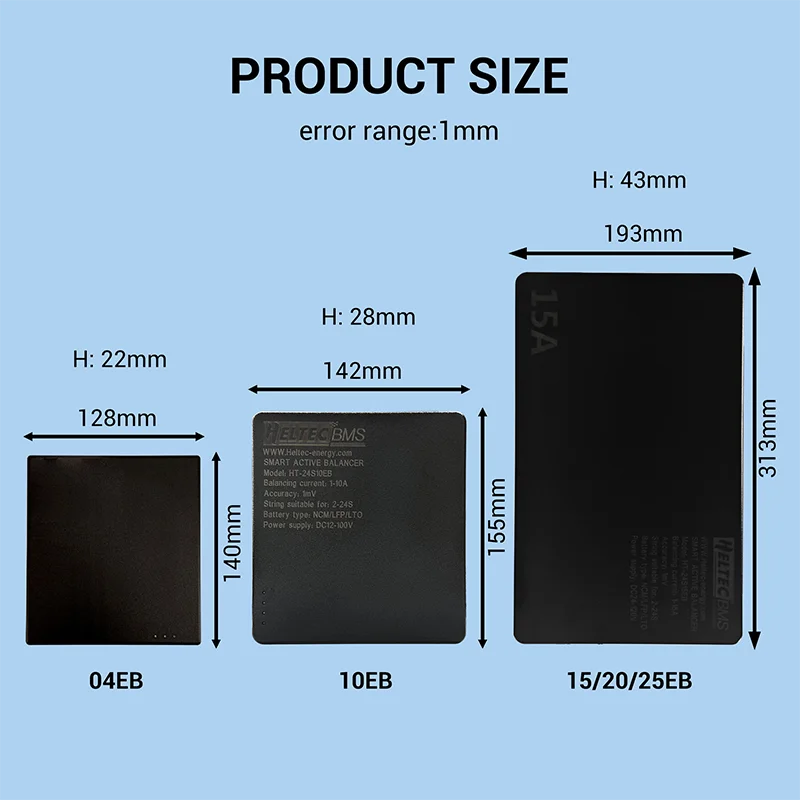

Overall Dimensions:

04EB: 140*128*22mm

10EB: 142*155*28mm

15/20/25EB: 313*193*43mm

Weight: 470g/810g/2530g

Battery Type: NCM/LFP/LTO

Operating range of individual cell voltage: 1.5V-4.5V

Under-voltage protection sleep voltage: 1.5V-4.2V

Equilibrium method: Time-shared single-channel transfer, point-to-point energy transfer

Balanced current: 1A-4A/10A/15A/20A/25A

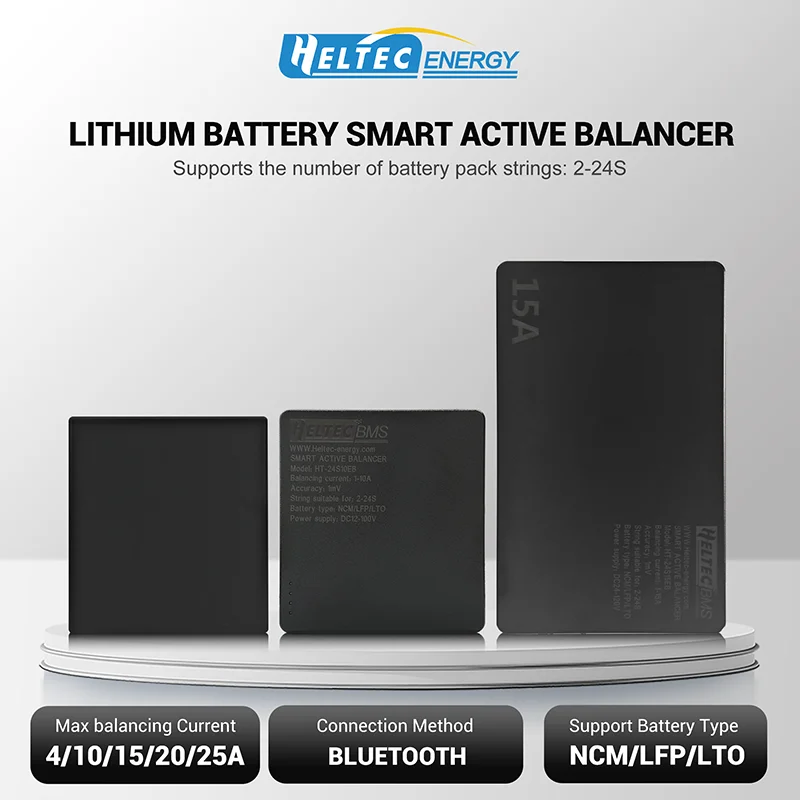

Product Overview: Intelligent Active Battery Balancer

This is a high-current active battery balancer designed for battery packs (2-24S strings), compatible with NCM/LFP/LTO/ternary lithium batteries. It features intelligent management, energy transfer balancing, and multi-scenario applications.

Core Features

Intelligent Balancing & Performance

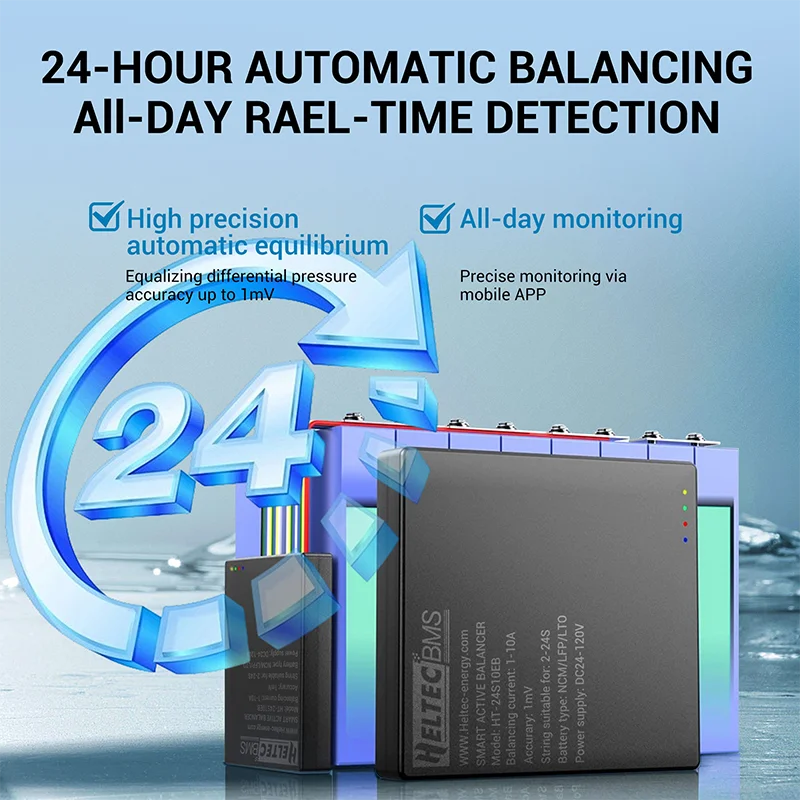

24-hour automatic balancing (1mV equalization precision) with all-day real-time monitoring (via mobile APP).

High-current active balancing (1A/4A/10A/15A/20A/25A) to extend battery life; low power consumption (≈1W when active, ≈0.5W when off).

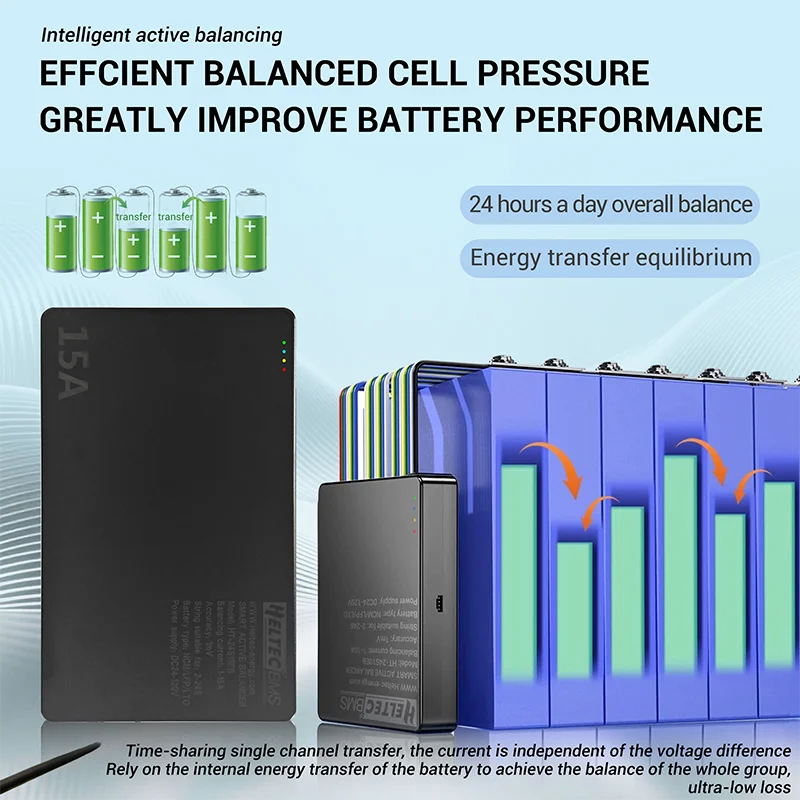

Time-shared single-channel energy transfer (ultra-low loss, independent of voltage difference).

Quality & Protection

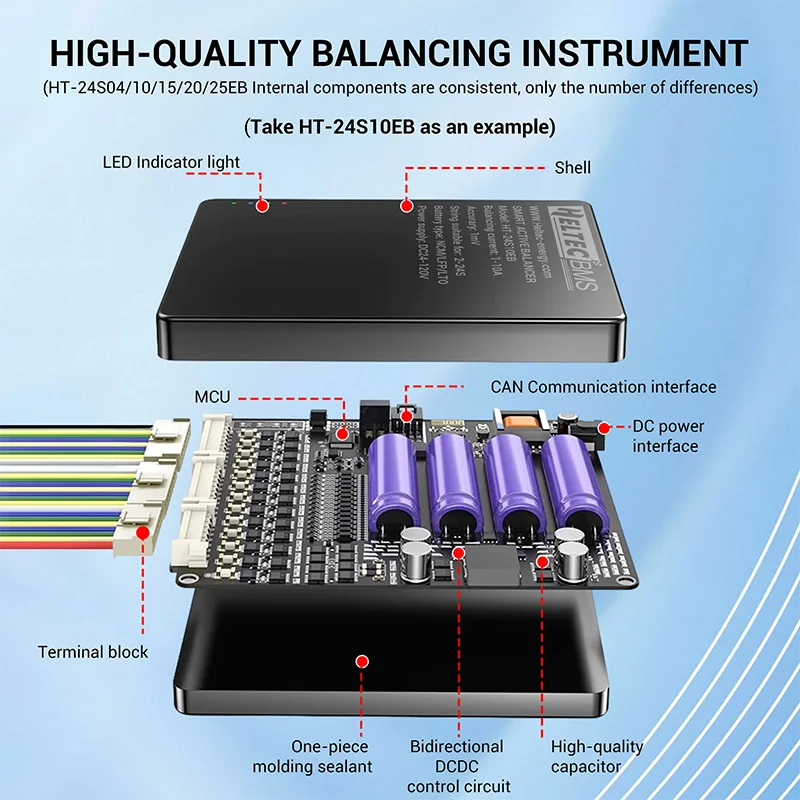

Built with high-quality capacitors/chips; low internal resistance & advanced thermal design.

9 protection functions: Cell/Short-circuit/High-temperature/Over-charge/Over-current/Reset/High-voltage/Waterproof/Electromagnetic field protection.

User-Friendly Design

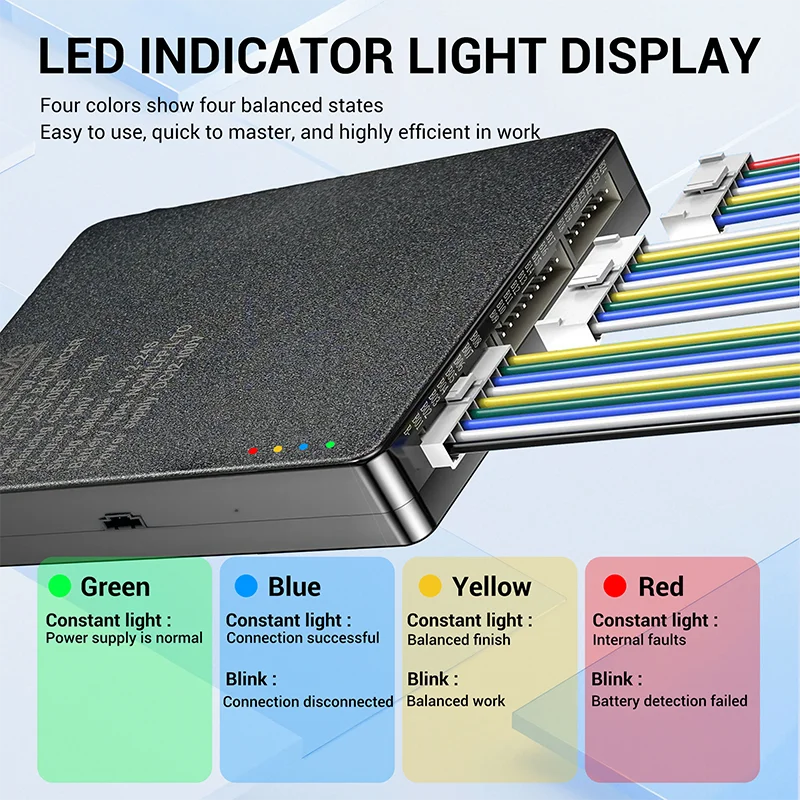

LED indicator (4 colors: Green=normal power; Blue=connection status; Yellow=balancing progress; Red=fault).

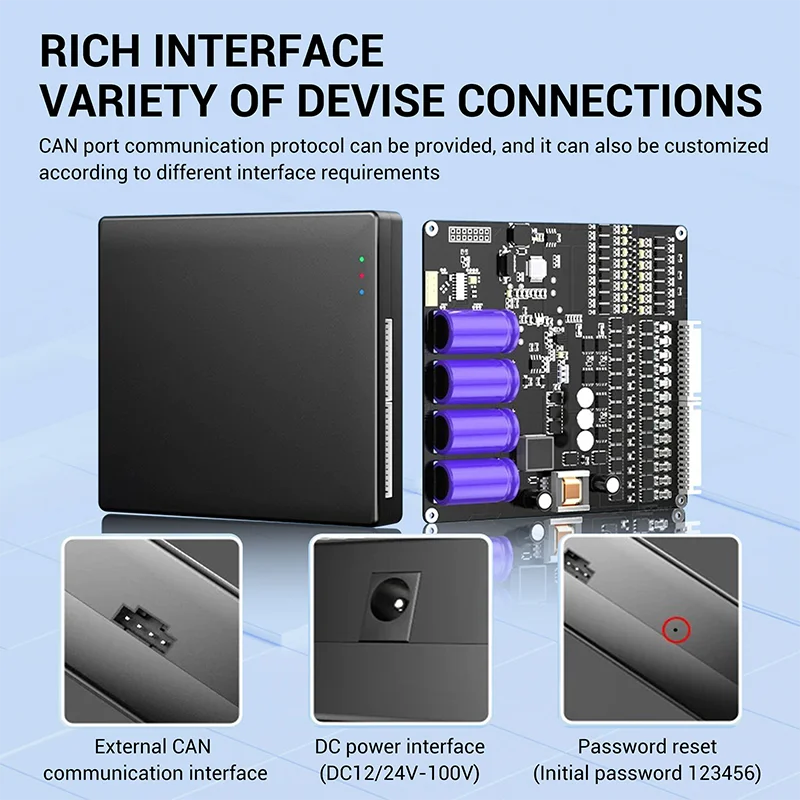

Rich interfaces: External CAN communication port, DC power interface (12/24-100V), password reset (initial: 123456).

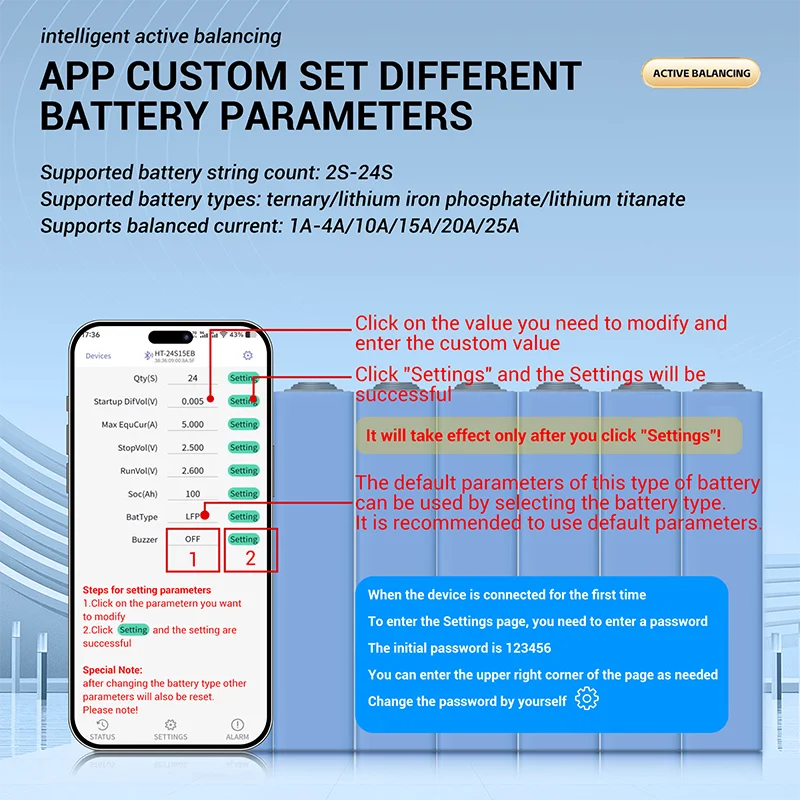

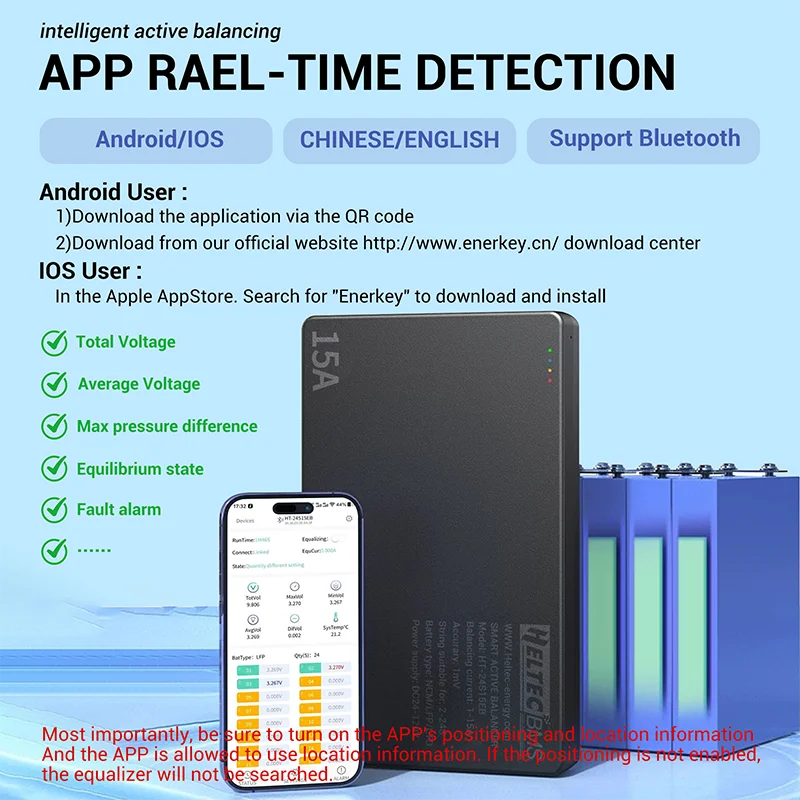

APP Smart Control

Functions: Real-time monitoring (total/average voltage, max pressure difference, etc.), custom parameter setting (battery string count, type, balancing current), fault alarms.

Applications

Suitable for battery packs in electric bicycles/tricycles/vehicles, RVs, forklifts, sightseeing vehicles, photovoltaic energy storage, emergency UPS, etc.
