Product Description

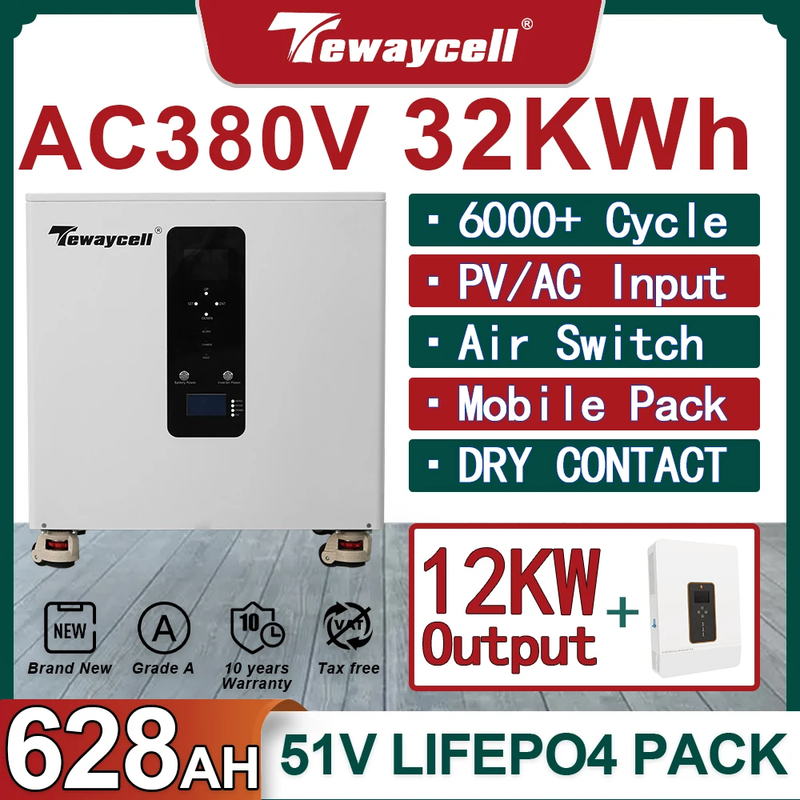

AC380V 3-phase 48V Powerwall 32KWh 20KWh ALL in One ESS 51V 628Ah 400Ah LiFePO4 Battery Pack Buitl-in 12KW Inverter WiFi Monitor
AC380V 3-phase 48V Powerwall 32KWh 20KWh ALL in One ESS 51V 628Ah 400Ah LiFePO4 Battery Pack Buitl-in 12KW Inverter WiFi MonitorUpgrade instructionsStarting April 1, 2026, the option 30KWH-12KW-AC380V will be upgraded to 32KWH-12KW-AC380V (due to AliExpress rules, the image and text of the option cannot be modified. We will modify the display on April 30, 2026). Orders with this option will be shipped with batteries of model TW-AO-MB51628-AC380V-12KW-EU starting April 1.EU NO VAT
1. This battery is transported to the EU and the US without the customer paying tariffs.
2. Customers in the EU do not need to pay VAT.
3. Because it is a super large product and super power battery, our transportation will arrive at the destination port by sea and then be transported to the customer's location by truck.
It takes about 45 days to deliver.
4. European islands don't support delivery.
Product Specification | ||
Type | TW-AO-MB51628-AC380V- 12KW-EU | TW-AO-MB51400-AC380V-12KW-EU |
SKU | 30KWH-12KW-AC380V | 20KWH-12KW-AC380V |
BATTERY TECHNICAL SPECIFICATION | ||
Battery model | TW-MB51628-300A-HWB | TW-MB51400-300A-HWB |
Number of batteries | 1 | |
Battery Energy | 32154Wh | 20480wh |
Battery Capacity | 314Ah | 400Ah |
BatteryType | LiFePO4 | |
Battery Rated Voltage | 51.2V | |
Battery Working Voltage Range | 44.8~57.6V | |
Maximum Charging Current | 300A | |
Maximum Discharging Current | 300A | |
DOD Designed Life-span | >6000 Cycles @ 0.2c/25'℃ charging/Discharging at 80%DoD,Until 80% | |
INVERTER TECHNICAL SPECIFICATION | ||
INVERTER TECHNICAL | ASP48120SH3 | |
Solar Charge Type | MPPT | |
Maximum Output Power | 9000W/9000W | |
Maximum PV Charging Current | 22/22A | |
Maximum PV Operating Voltage | 800Vdc/800Vdc | |
MPPT Voltage Range | 200-650Vdc/200-650Vdc | |
AC CHARGE | ||
Input Voltage Range | Phase voltage 170~280v, line voltage 305~485V | |
Input frequency range | 50/60H | |
Bypass Overload phase Current | 35A | |
ACOUTPUT | ||
Rated Output Power | 12000W | |
Frequency | 50Hz+0.3Hz/60Hz+0.3Hz | |
switching time | 10ms（Typical value） | |
EFFICIENCY | ||
MPPT tracking efficiency | 99% | |
Maximum efficiency of battery inverter | ≥92% | |
European efficiency | 97.50% | |
GENERAL DATA | ||
Communication | RS485/CAN/WIFI | |
Storage time/temperature | 6 months @25℃;3 months @35℃;1 months @45℃; | |
Charging temperature range | 0〜45℃ | |
Discharging temperature range | -10〜45℃ | |
Operation Humidity | 5% 〜 85% | |
Nominal Operation Altitude | ＜2000m | |
Cooling Mode | Force-Air Cooling | |
Ingress Protection Rating | IP20 | |
Recommended Operation Environment | Indoor |
        |
NOTICE
1,Do not immerse the battery in water or allow it to get wet.
2.Do not use or store the battery where is exposed to extremely hot.
3.Do not use battery in the strong electrostatic and magnetic field, otherwise probably the battery safety.
4.Do not reverse the positive (+) and negative (-) terminals，prevent reverse connection.
5.Charge with specified charge according to charging requirement.
6. Please use the connection between inverter and MPPT correctly. If there is any technical problem, please contact Tewaycell in time, 24 hours online.
