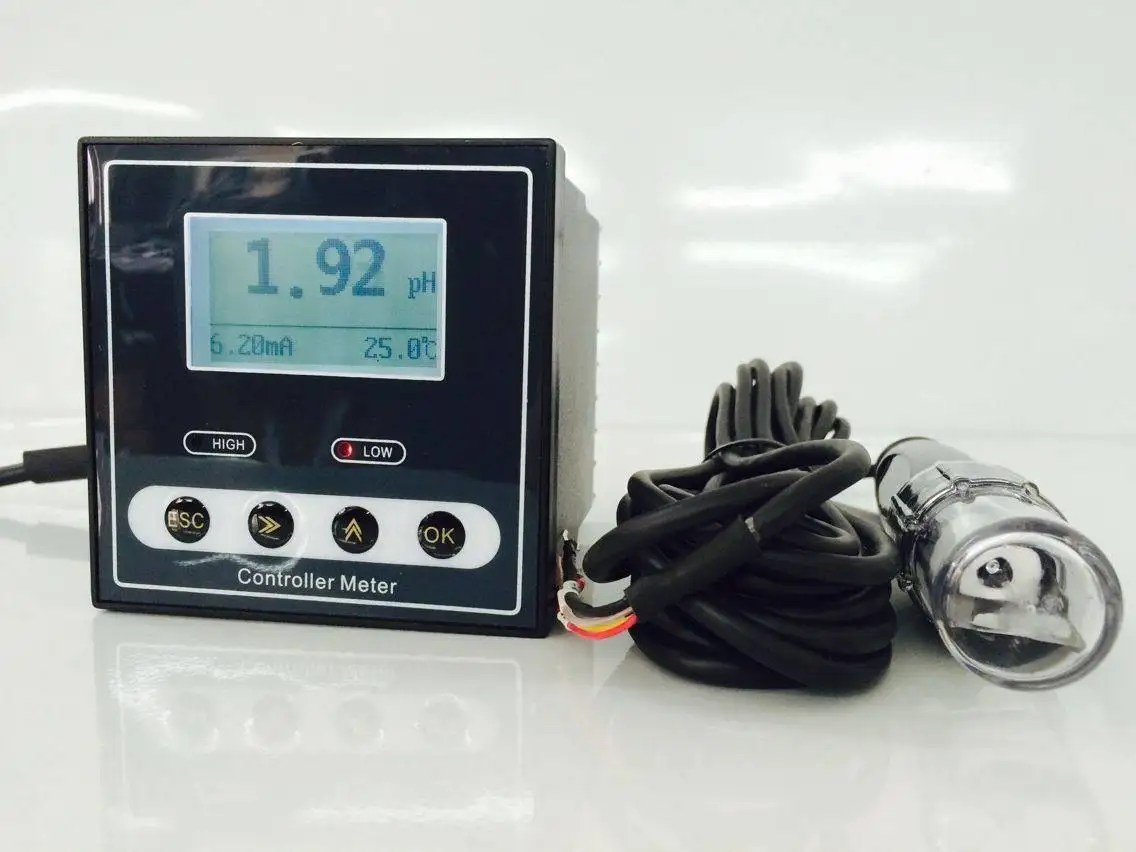

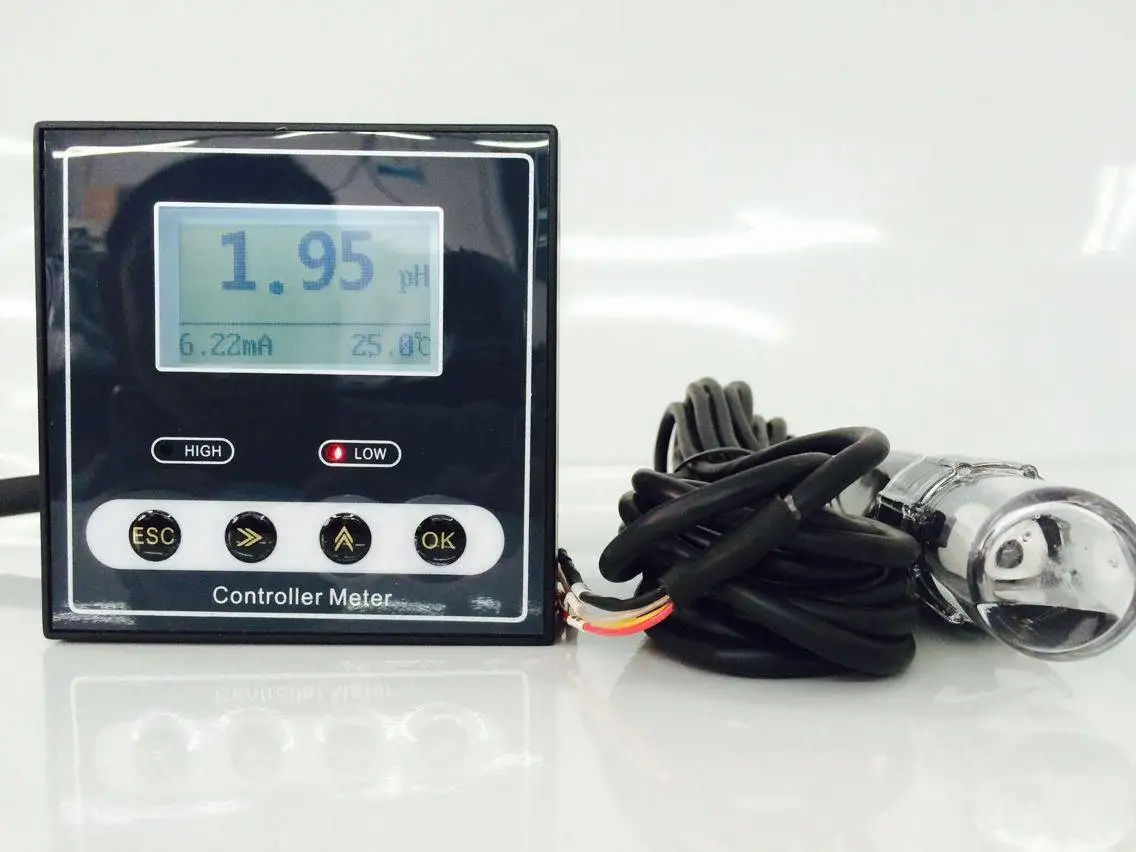

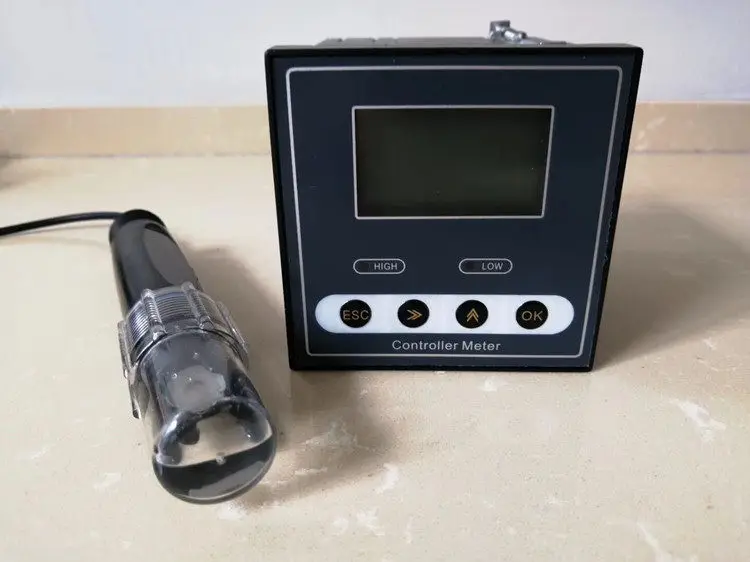

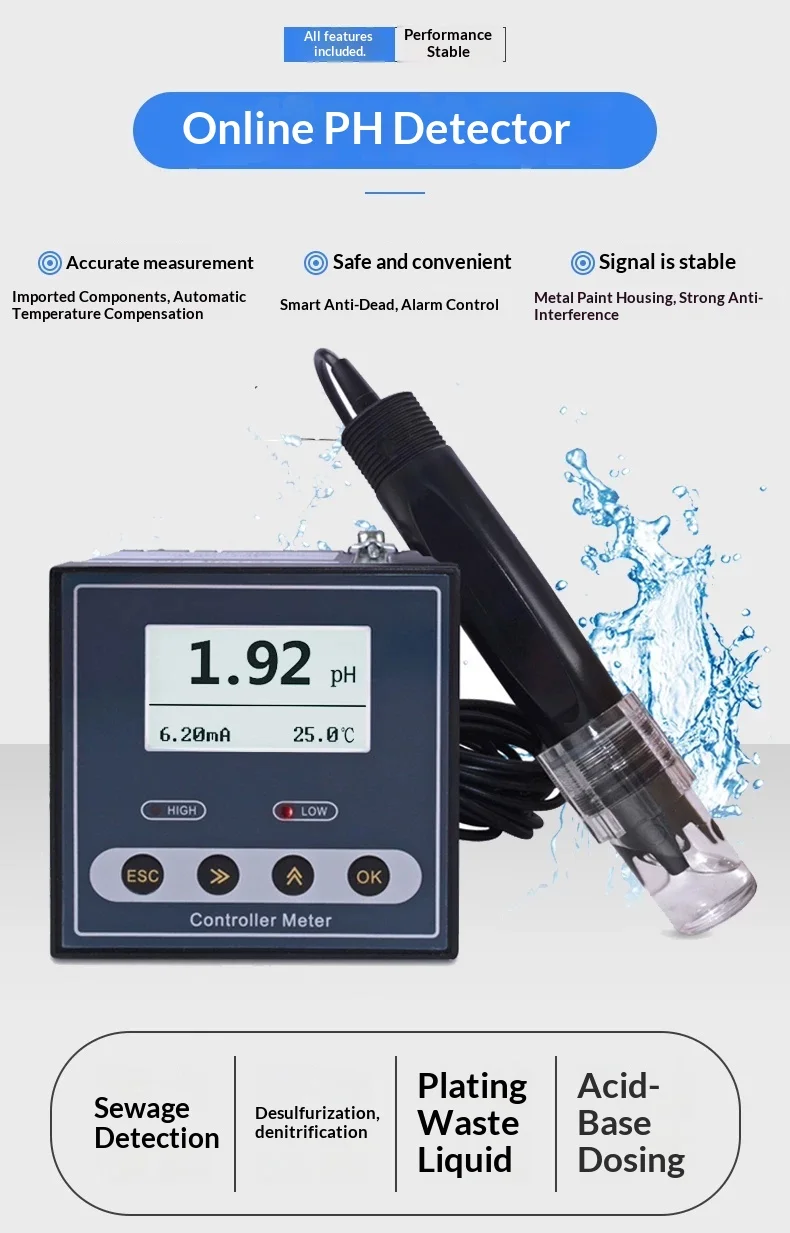

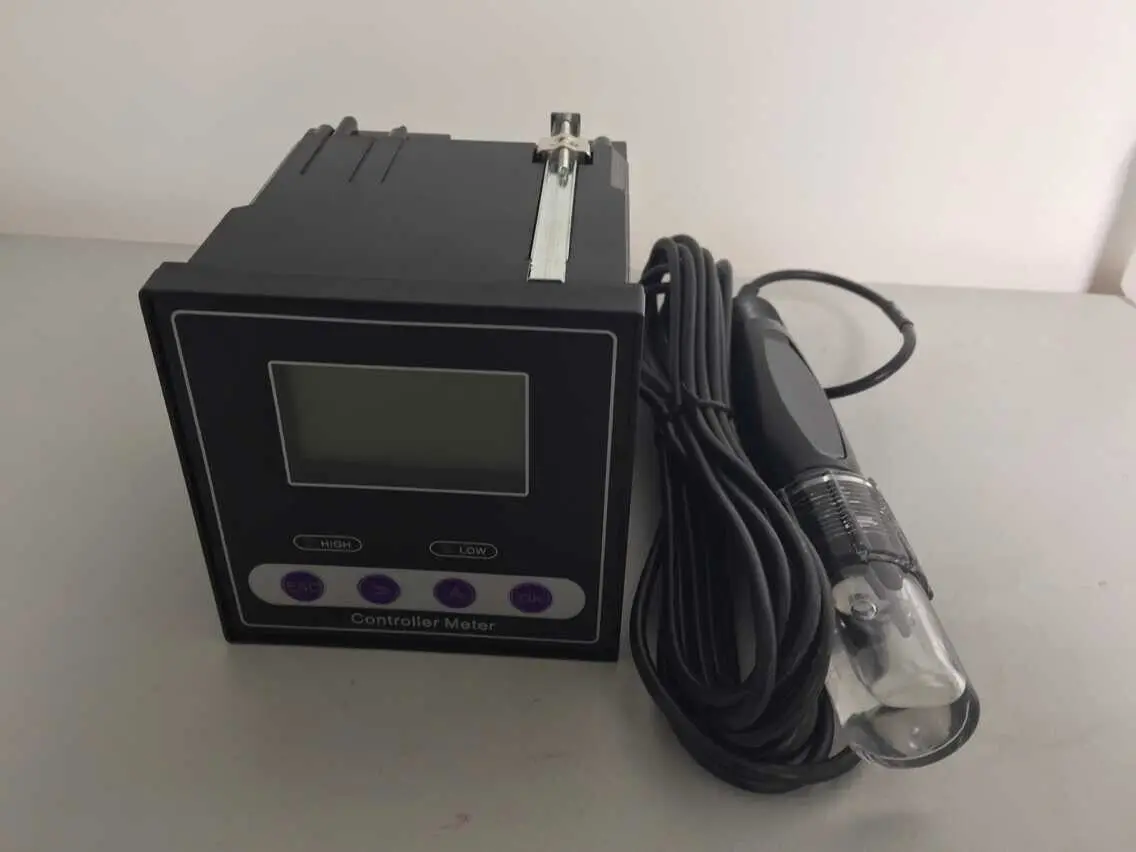

PH-110 Industrial pH ORP Meter Controller 4‑20mA RS485 Online pH Sensor Wastewat

Product Description

1.NOTE

Default Configuration:
This controller comes standard with the following:

Measurement: pH (0–14) or ORP (–1000~+1000mV)

Accuracy: ±0.02pH / ±1mV

Temperature Compensation: Manual/Auto (NTC10K)

Output: 4–20mA isolated signal (max loop 750Ω)

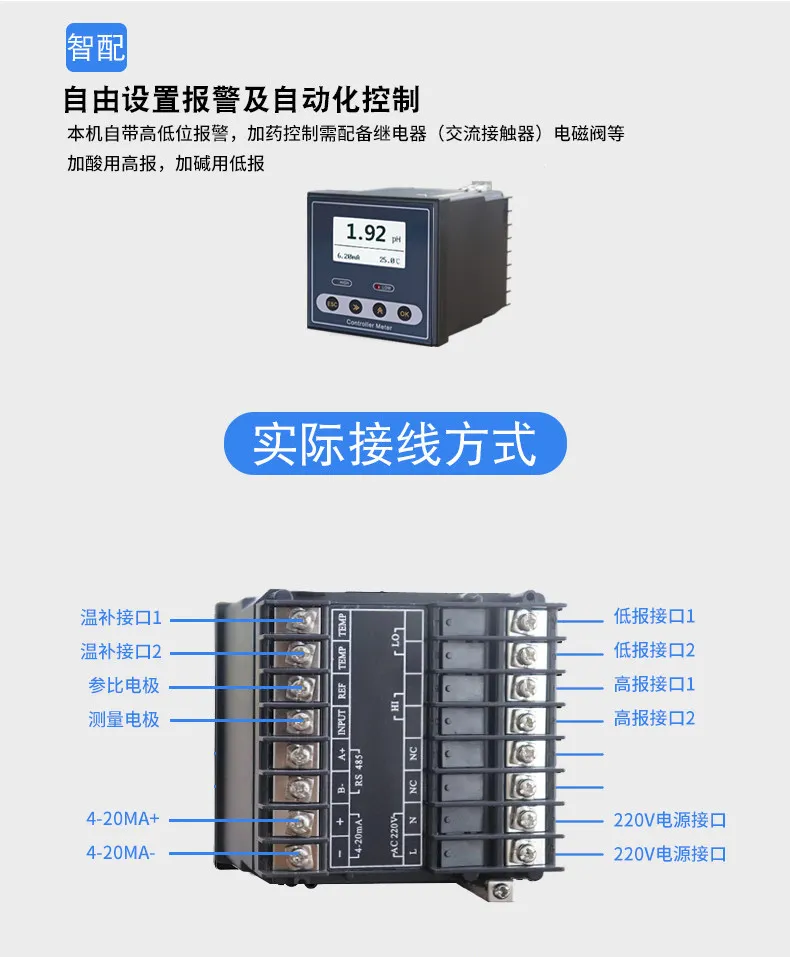

Alarm: Dual relay outputs (3A/250VAC, normally open)

Power: AC 220V ±10%, 50/60Hz

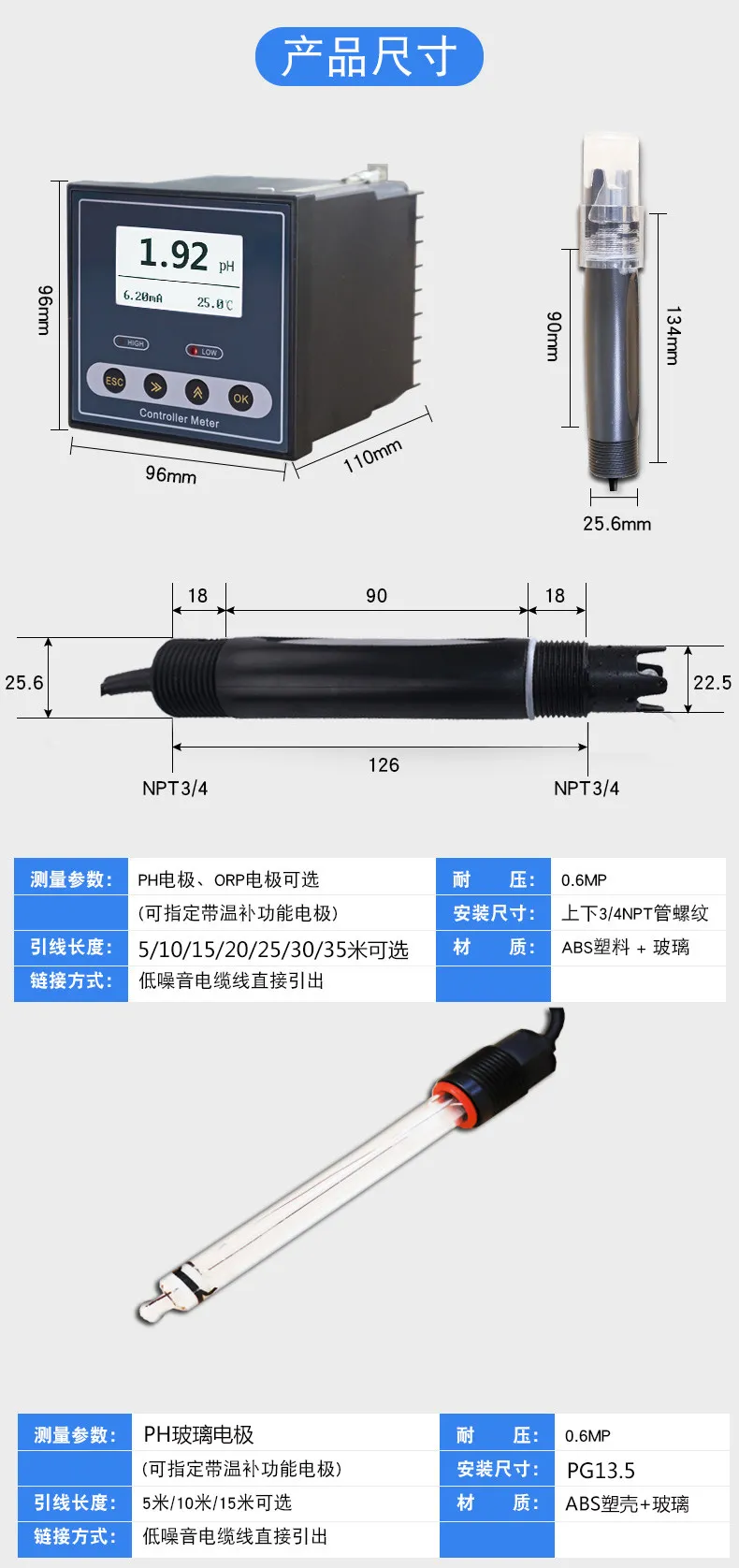

Mounting: Panel type, 96×96mm, Cut-out 92×92mm

Optional Configurations:

ORP range extension: –1900 to +1900mV

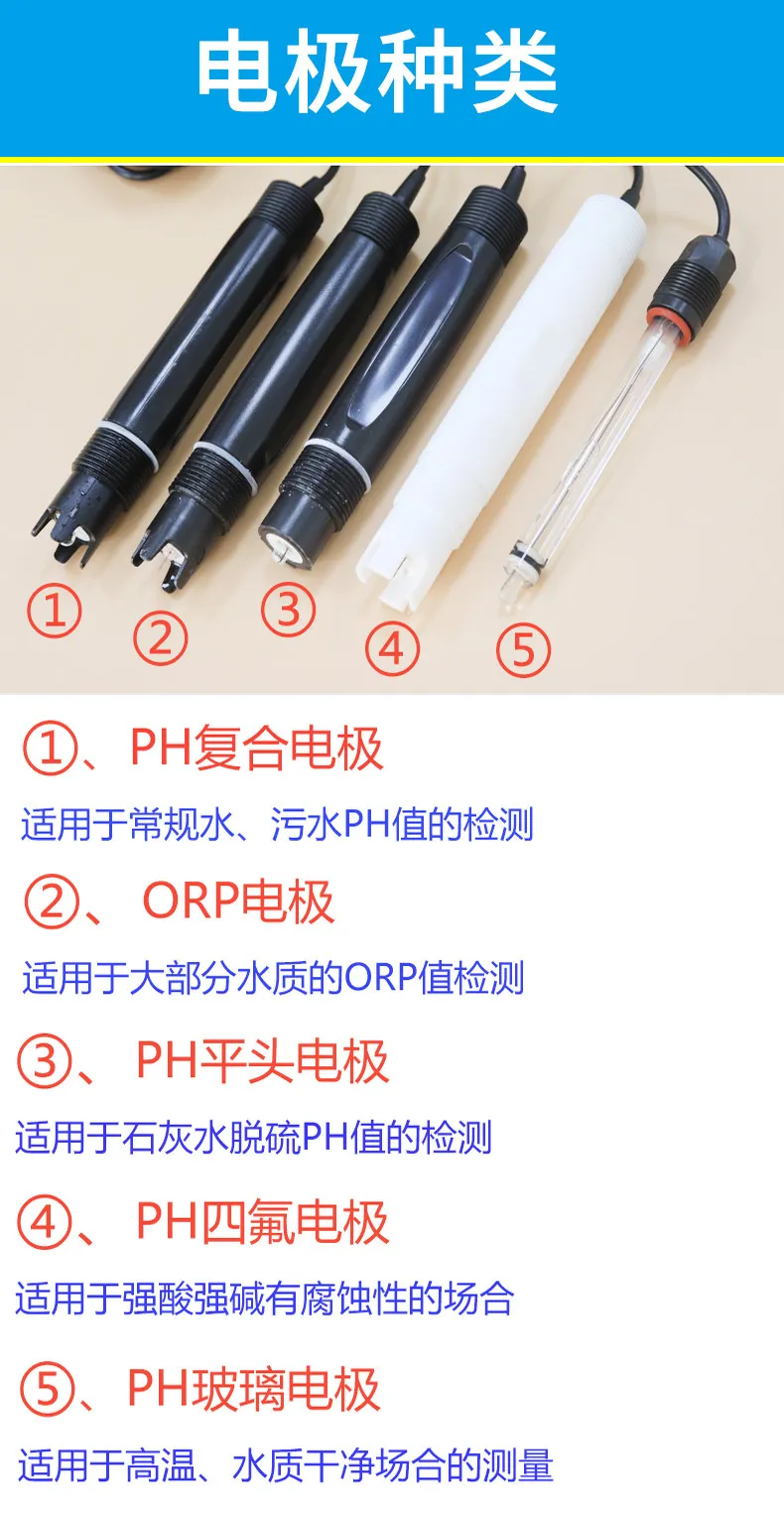

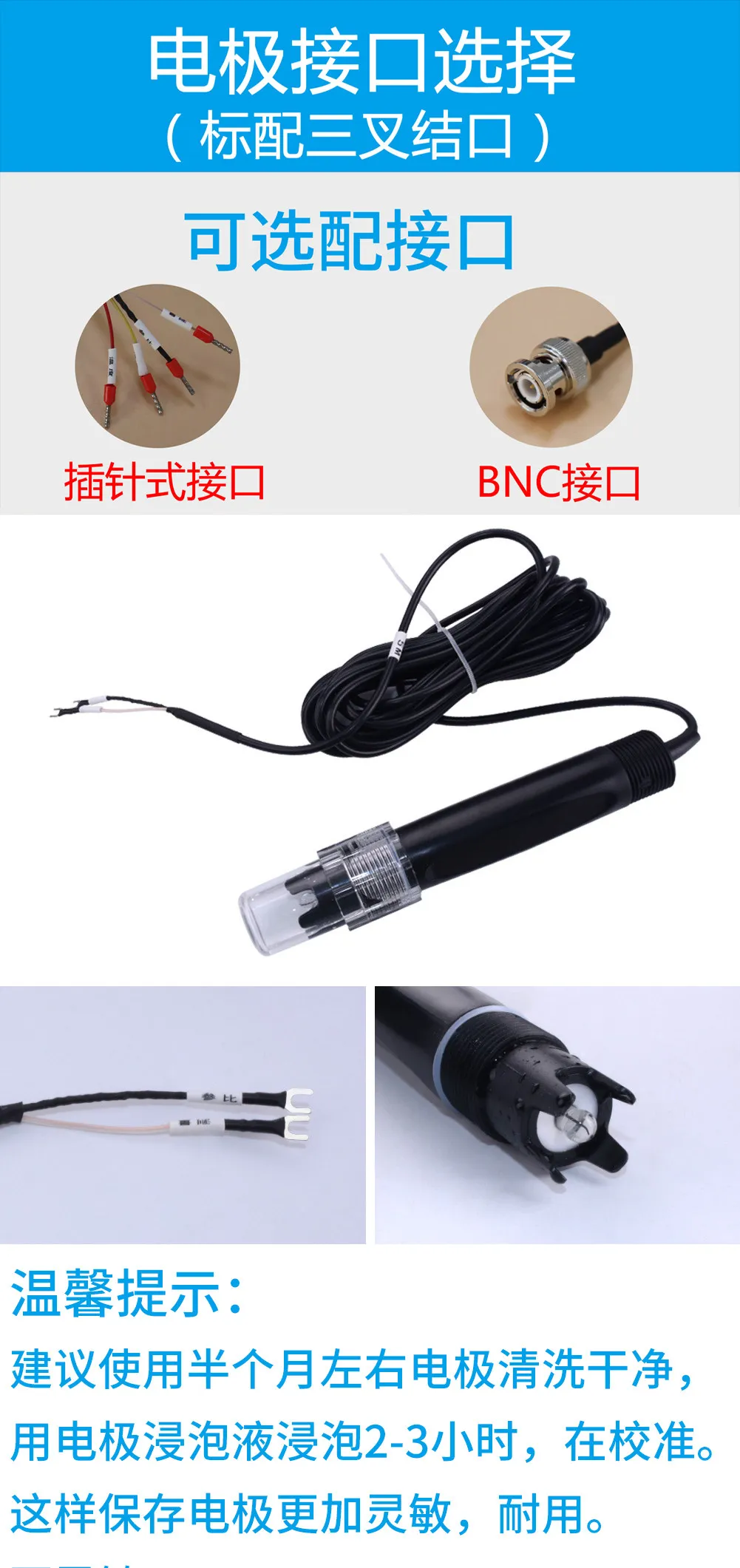

Electrode types: pH or ORP, with/without temperature compensation

Electrode length: 5m / 10m / 15m / 20m / 25m / 30m / 35m

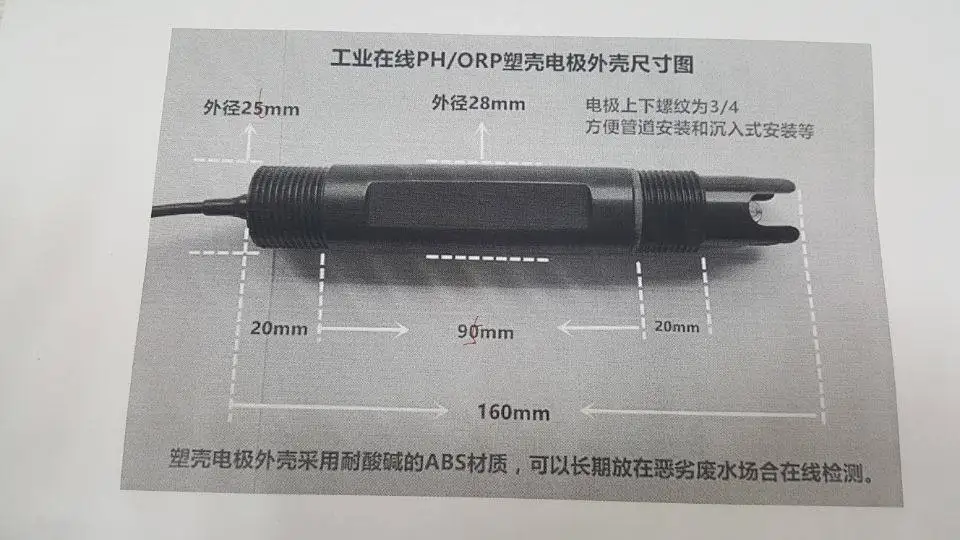

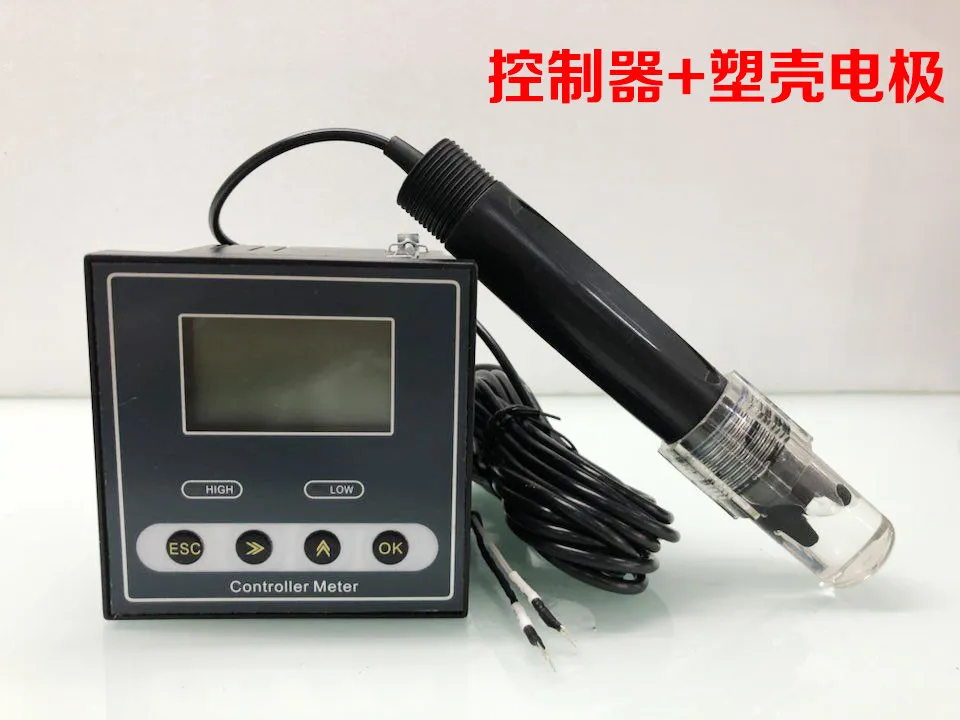

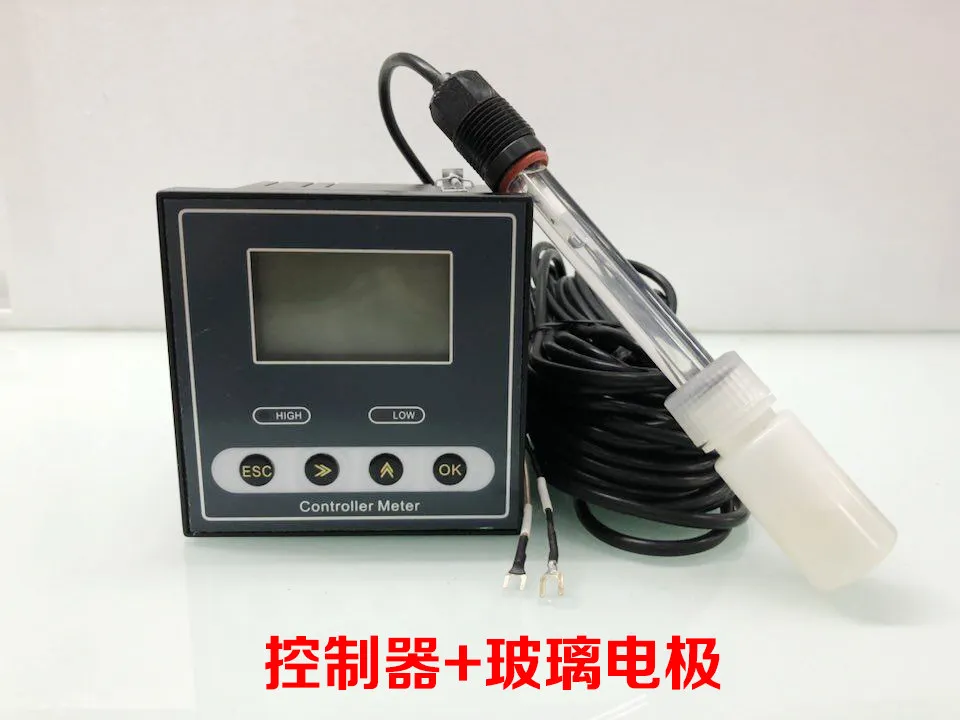

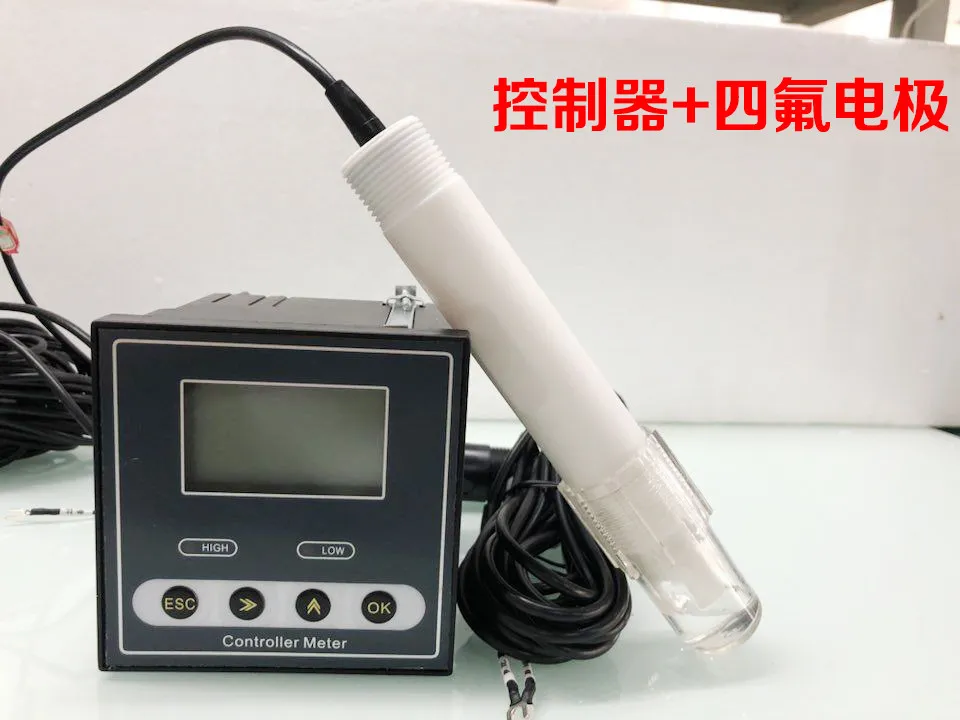

Materials: ABS + Glass (standard) or Full Glass

Mounting thread: 3/4 NPT or PG13.5

Power supply options: 24VDC / 24VAC

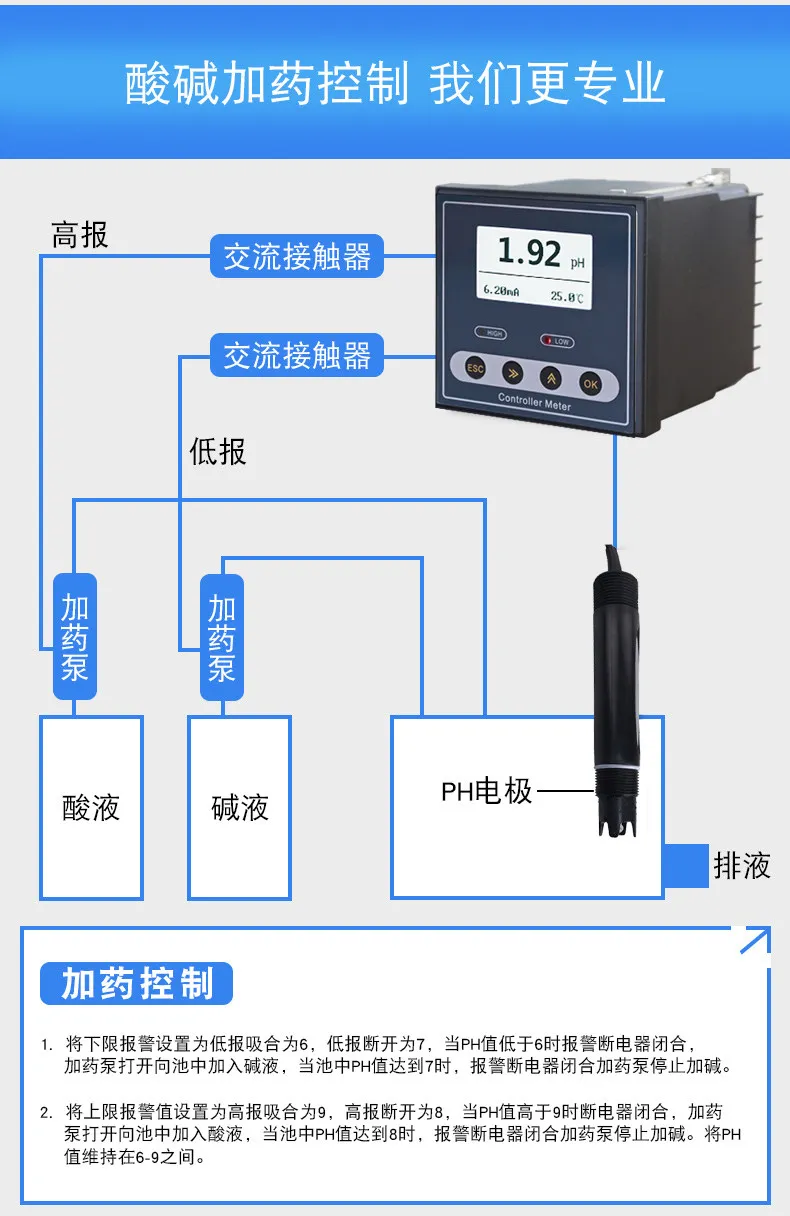

Dosing control: Requires external relay, solenoid valve, or contactor

Important Notice:
Some options may not be shown due to space limitations. Please contact us.

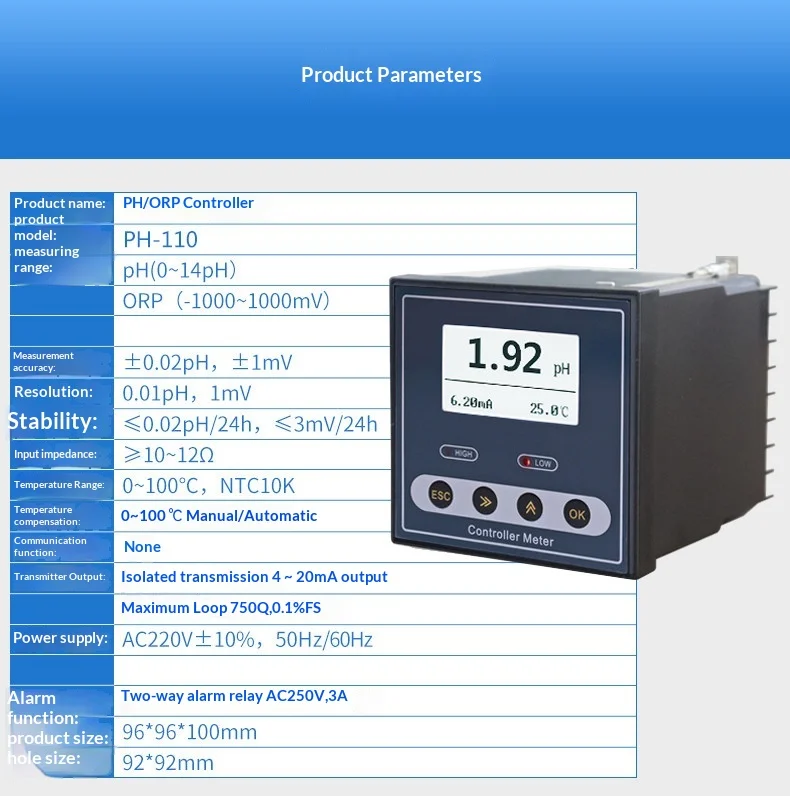

2.Parameters

3. Features

Dual Measurement Modes (pH and ORP)
One device for simultaneous pH and ORP measurement and control.

Auto or Manual Temperature Compensation
Ensures high measurement accuracy under varying environmental conditions.

Dual Alarm Relays with Adjustable Setpoints
Supports high and low limit alarms for automation and safety.

Isolated 4–20mA Analog Output
Stable and interference-free signal for external control systems.

Intelligent LCD Interface
Easy to operate with optional multilingual menu.

High-Performance CPU and EMC Design
Excellent electromagnetic compatibility and reliability in industrial environments.

Password Protection
Prevents unauthorized changes by non-professional users.

Optional Electrodes with Temperature Sensor
Compatible with various electrode types to meet diverse needs.

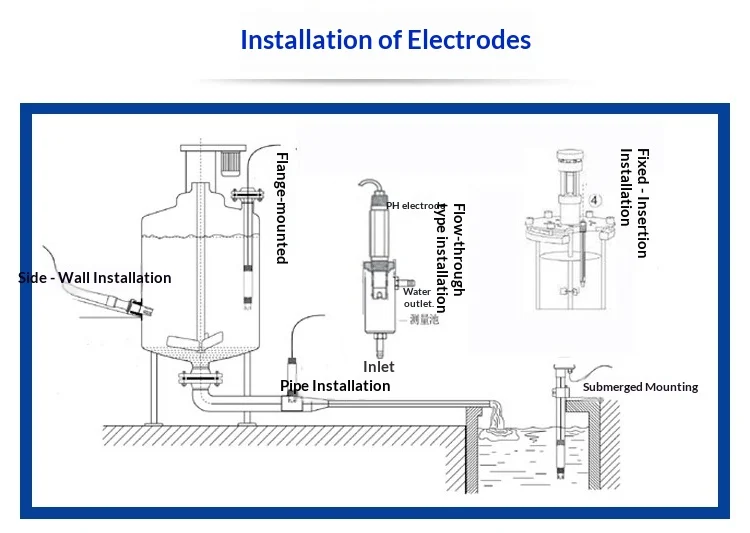

Flexible Installation
Available with ¾ NPT or PG13.5 thread for easy setup.

4. Application

Suitable for:

Municipal and industrial wastewater treatment

Chemical production and processing

Textile and dyeing industries

Electroplating and pharmaceutical plants

Environmental monitoring systems
