Rail Type Temperature Difference Meter Solar Hot Water Circulation Temperature D

Product Description

Description

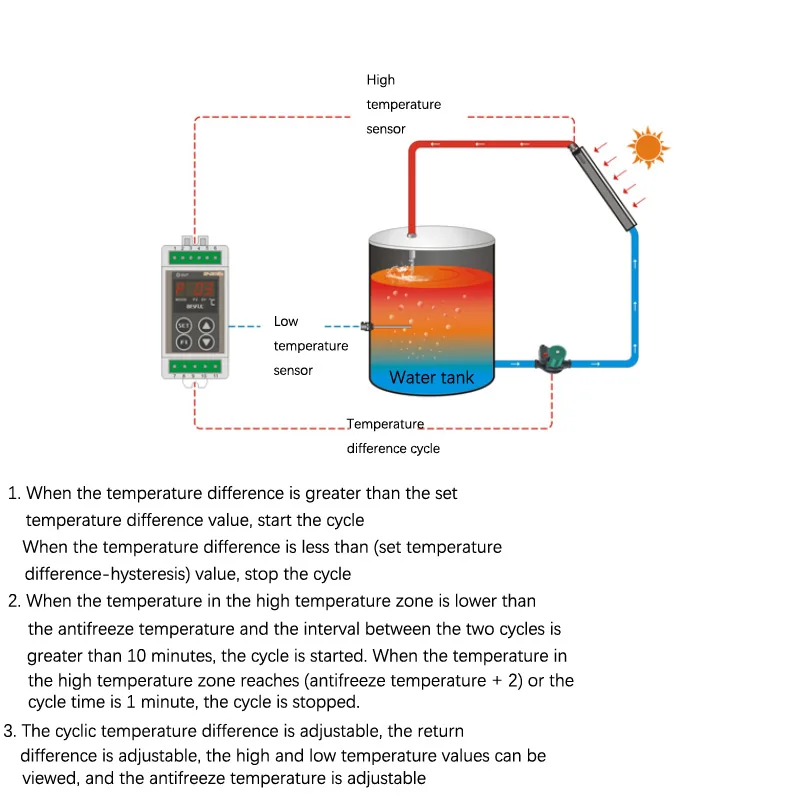

BF-D215B+ microcomputer temperature difference controller is mainly used in hot water circulation, return water system control and other occasions. The LED screen displays the current temperature difference value in real time, and can view the temperature difference value between the high and low temperature areas, the set temperature difference value, and the temperature difference lower limit return difference value at any time to control the relay output, realize the cooling and heating cycle, improve the thermal efficiency, and also realize the integration Antifreeze cycle of hot plate. At the same time, it has the temperature measurement deviation correction function, which can effectively correct the temperature deviation caused by long-distance transmission or due to different temperature measurement points.

Specification

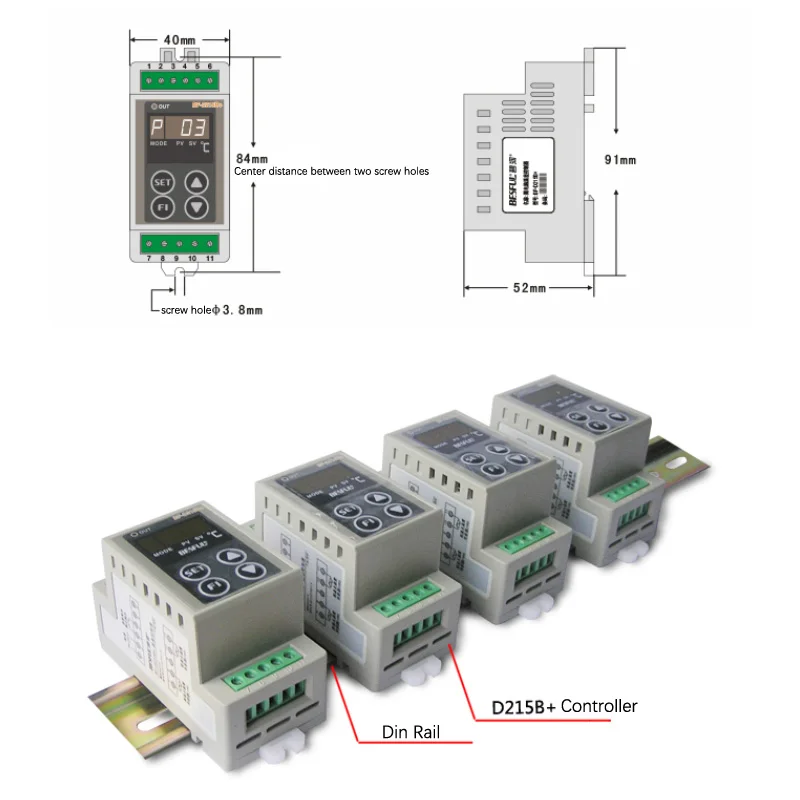

Appearance size: 91*40*52mm

Power supply: AC90V~250V

Power consumption: 2W

Display mode: four-digit LED digital display

Input: Two 10K NTC thermistor sensor inputs

Temperature measurement range: -50~120℃

The temperature difference measurement range is: -99~120℃

Accuracy: ±1

Setting range: 0℃~180℃

Control range: 0℃~180℃

Output: 1. Relay normally open and normally closed contact temperature difference cyclic output. 2. The output contact current capacity is 5 A times for resistive loads and 1 A times for inductive loads. It can control 1000W electric heating or 200W motor water pump. For larger loads, an AC contactor should be used to expand the capacity.

Relay life: 100,000 times on and off

Use environment: -10℃~50℃

The temperature sensor line can be connected with ordinary wires for a long distance of 100 meters

Set parameters to keep memory for a long time after power off

Temperature control return difference is 1~30℃

Delay time: 1~30℃

Deviation correction: -15~15℃

Package Included

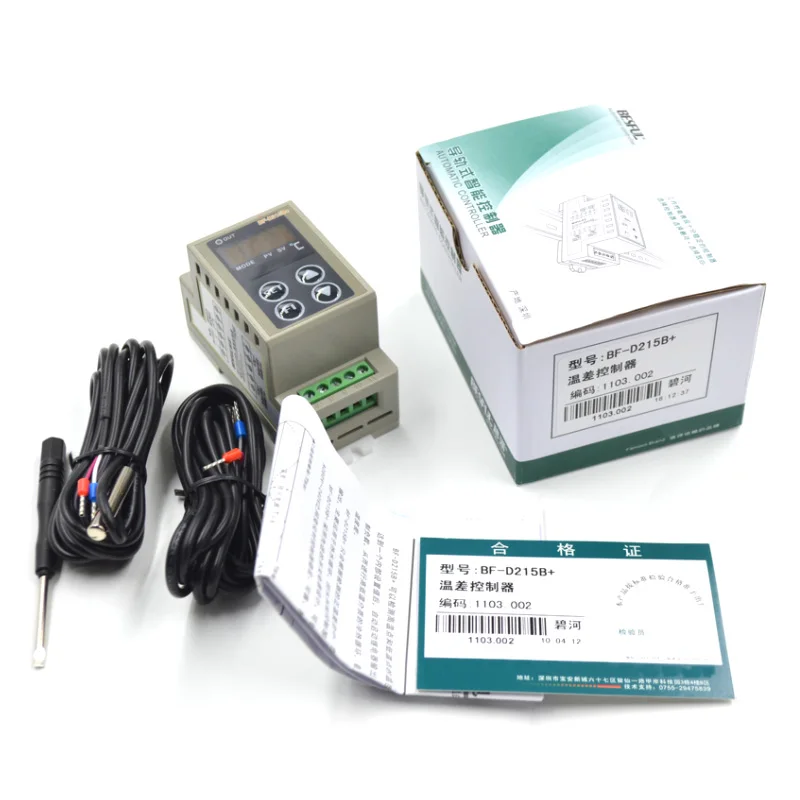

1 × BF-D215B+ two temperature sensing lines

Please note that this product does not come with a screwdriver！！！
