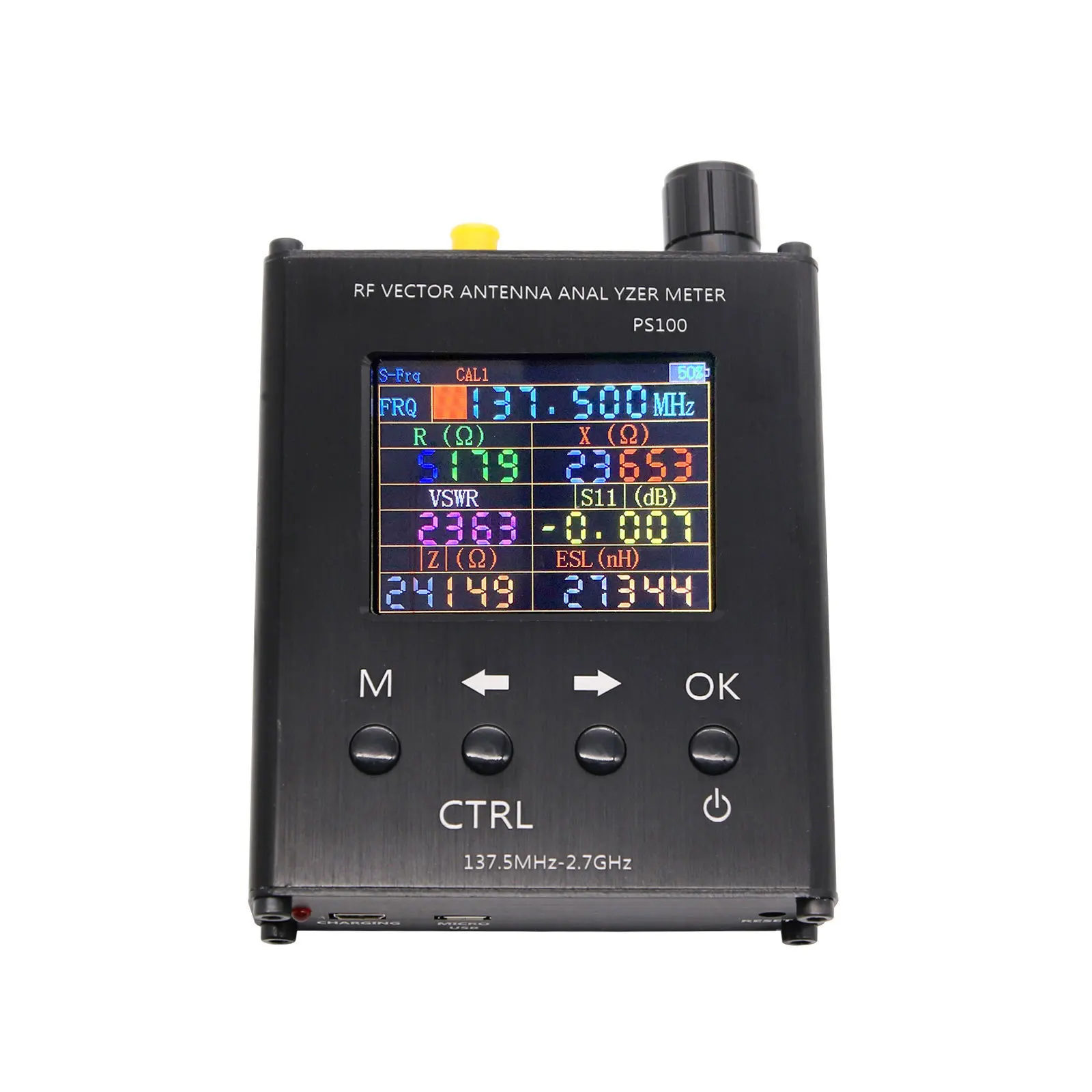

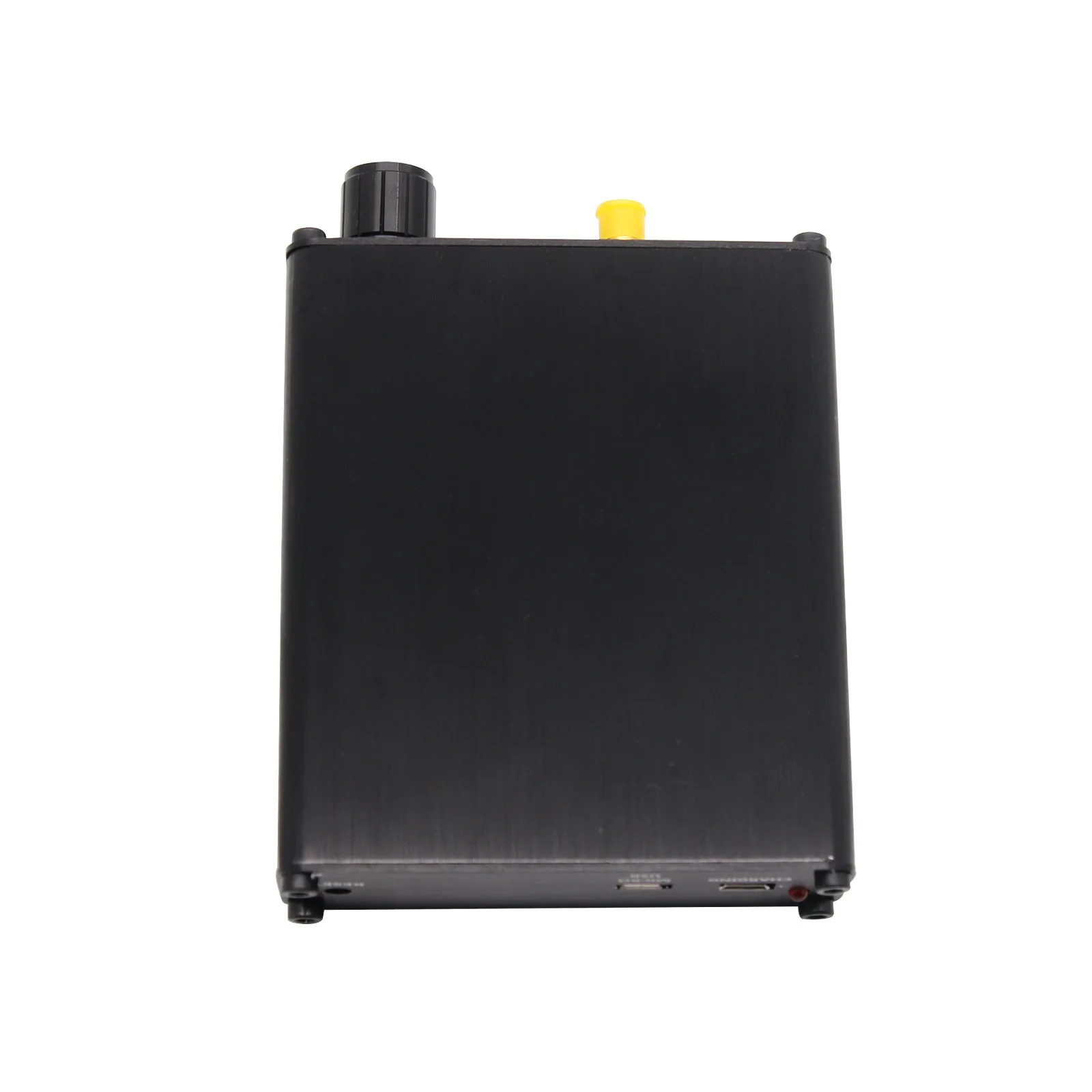

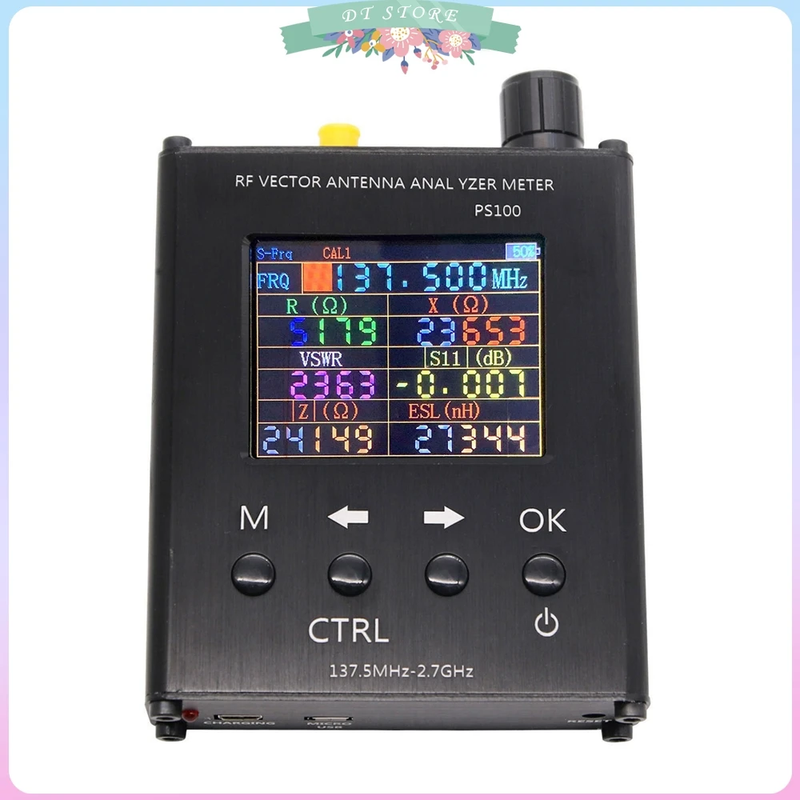

Original AAI Accuracy Agility Instrument N1201SA 140MHz - 2.7GHz UV RF Vector Im

Product Description

Dear friends, welcome to DT store:

If you encounter any problems when purchasing products, please feel free to contact us at any time

If you have any questions regarding the arrival or non arrival of the product, please do not raise any disputes or negative reviews. You can contact us in a timely manner and we will do our best to resolve your issue.

Please clear customs as soon as the goods arrive! Please note that if the package is destroyed after the deadline, we will not issue a refund as we have informed you and mentioned on our website that the customer is responsible for taxes and fees. I hope you can understand!

Regarding import tariffs: If the customs need to pay related fees, the buyer needs to pay the tariffs, and we do not Bear any customs duties or import taxes. If the buyer refuses to cooperate with customs to pay the relevant fees midway for the products purchased from our store, our store will not refund.

Our prices do not include any customs duties, and we are not responsible for any taxes or fees!

If your address is remote or the weight exceeds, we will charge a certain fee as a shipping subsidy!

If you purchase two or more items, you will receive an additional wholesale discount.

If you need to make a large purchase, we will offer you more discounts. The more you buy, the more discounts you get.

If you like our product, please give us a five-star review and upload pictures. We would greatly appreciate it, and you can get an additional discount on your second purchase.

Happy shopping:)

Have a wonderful day!

Sincerely

DT store

Description:

- This instrument has four interfaces: single point measurement, scanning, system information, correction and calibration

The default boot into single-point measurement interface.

Note: For the convenience of the user, each time calibration correction options will automatically change to the user calibration. Meanwhile, in order to ensure the integrity of the calibration, the calibration process, the automatic shutdown function fails, the consistent boot.

Impedance measurement range:

1Ω~ 1000Ω@ & lt; 1300 MHz;

1 Ω~300 Ω @>1300MHz (impedance value)

Standing wave measurement range:

1 ~ 65 @ & lt; 1300 MHz;

1~10 @ at 1300 MHz

S11 (dB) measurement range: 0dB to -50dB

Error (single point measurement):

Impedance:< Impedance value x 5%&; 0.1Ω (Z<200Ω， <1.5GHz)

Standing wave:

S11: 0.1dB/5°(0dB to -10dB)

For (dB/°):1dB/10°(-10dB to -20dB); 5dB/20 ° (-20dB to -40dB)

Directionality:< 35dB (calibrated from 140MHz to 2GHz)& Lt; 30dB (2GHz to 2.7GHz)

-Scanning points: 280

-Output level: -18dbm

-Working temperature: 0 ℃~40 ℃

-Atmospheric pressure: 860hPa~1060hPa

1, in order to ensure the accuracy of measurement and calibration, preheat the instrument at least 15 minutes.

2, try to use good quality RF cable and connectors.

3, calibrated cable marked to the next may not need to calibrate and direct use.

4, test cable process affect the measurement accuracy, it is recommended that, where possible, do not choose too long test cable.

5, measurement and calibration before, make sure you are not in a strong wireless signal, so as to avoid interference caused by inaccurate measurements.

6, if the impedance measurements themselves do not understand, you can refer to a vector network analyzer instructions and tutorials. This instrument is equivalent to a single-port vector network analysis

working currency: 140MHz~2700MHz

stepped frequency: 1kHz

display: 2.4inch TFT

resolution: 320*240(QVGA)

battery: 2000mAH(7.4Wh)

power consumption: <1.5W

charge current: 400mA

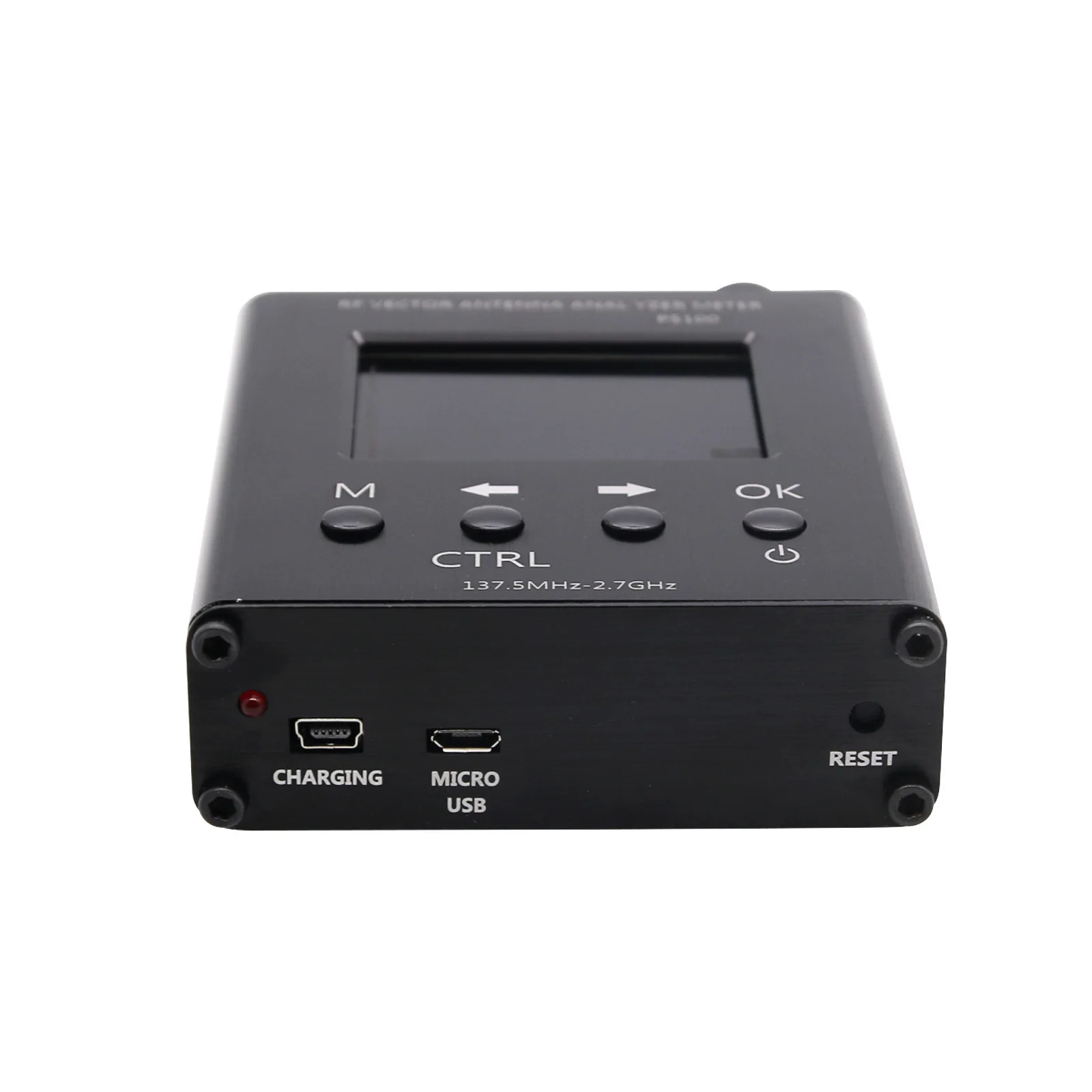

charge port: USB

auto power off can be set 5-60minutes

resistence reactance standing wave s11

resolution ratio: 4 number

frequency accuracy: about 5ppm

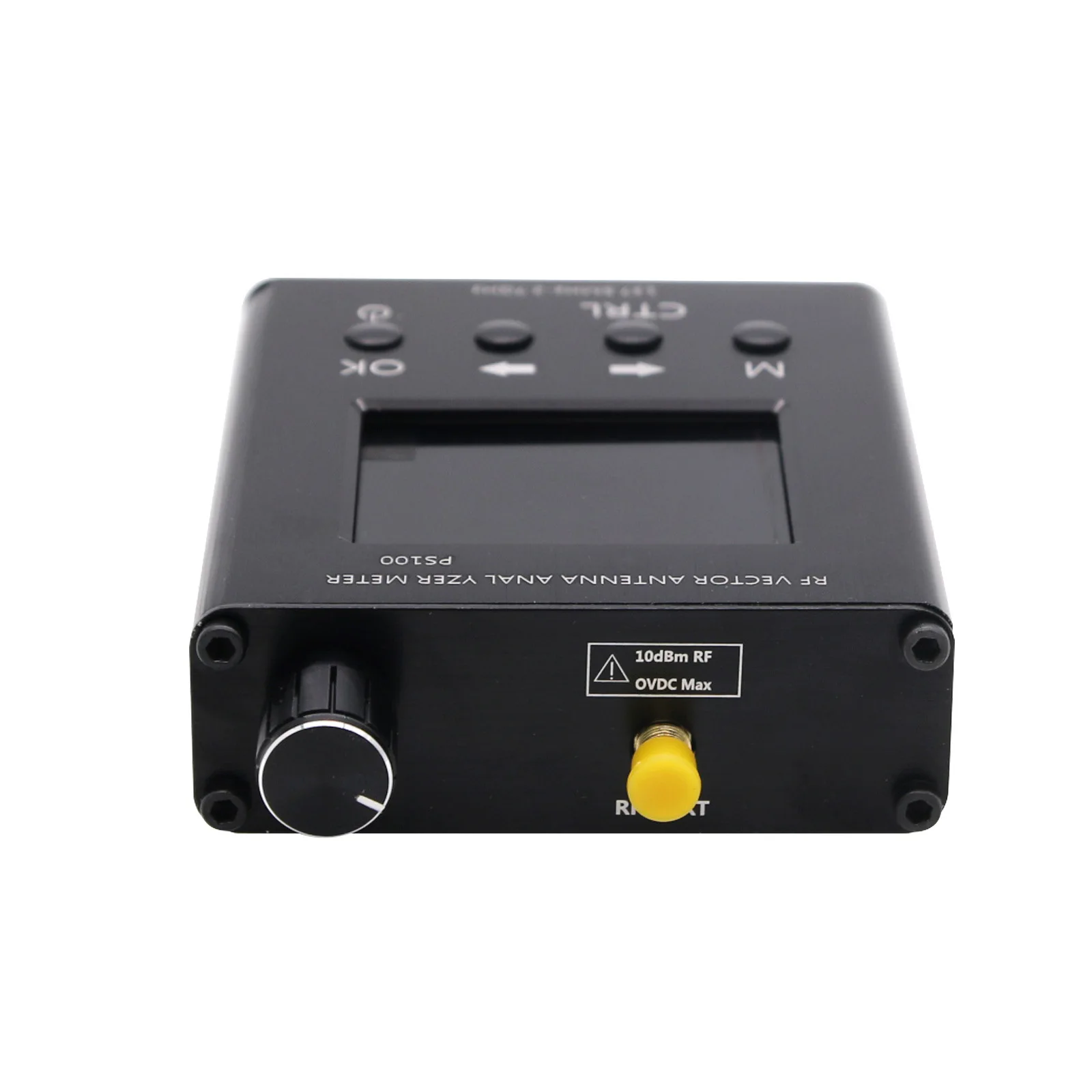

Connector: SMA-K

impedance: 0.1~1000

standing wave: 1.000~65

s11(dB): 0dB~-60dB

working temperature: 0~40 degree

1 x Original N1201SA Antenna Analyzer Meter
