Name: JDS2900 15/30/40/50/60MHz DDS Dual-CH Function Signal Generator Arbitrary Wave
Brand: Prime Living
SKU: H-168440663127
Price: 390.99 CAD
Availability: InStock

Product Description

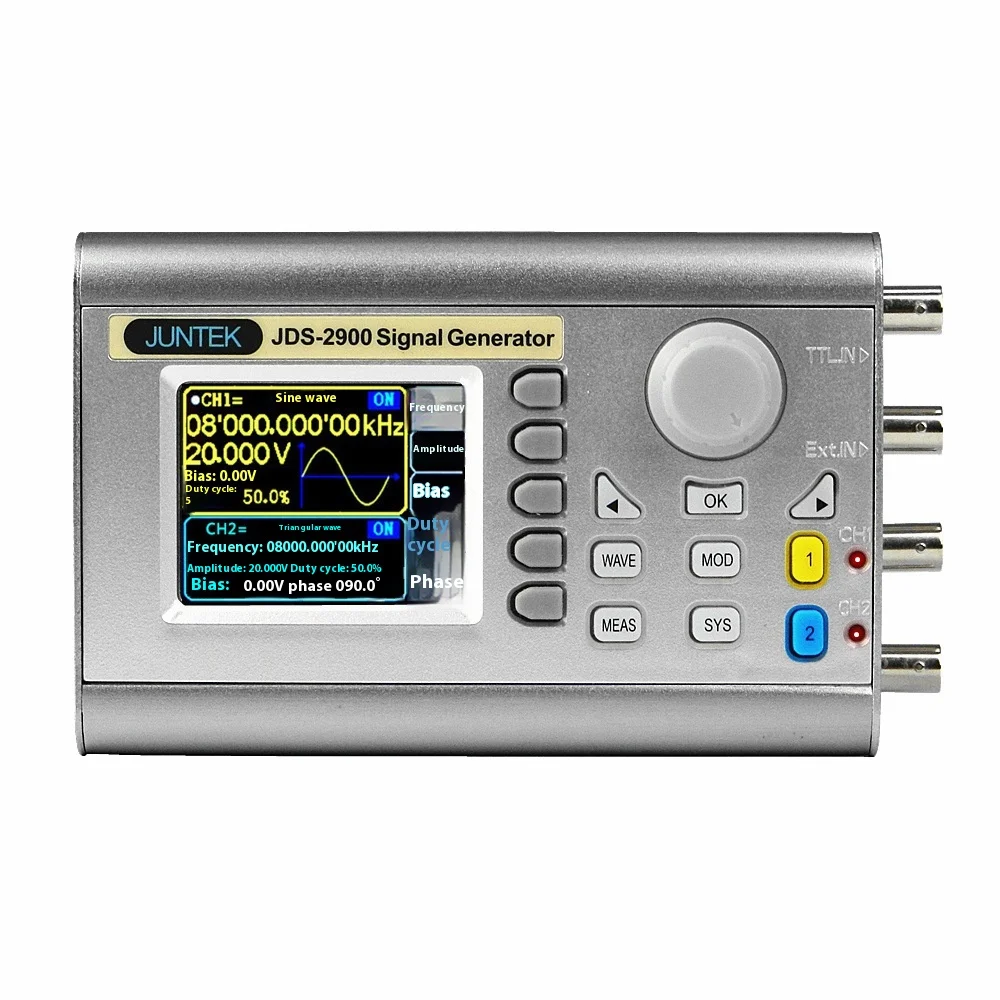

JDS2900 15/30/40/50/60MHz DDS Dual-CH Function Signal Generator Arbitrary Waveform Generator Source Frequency Counter

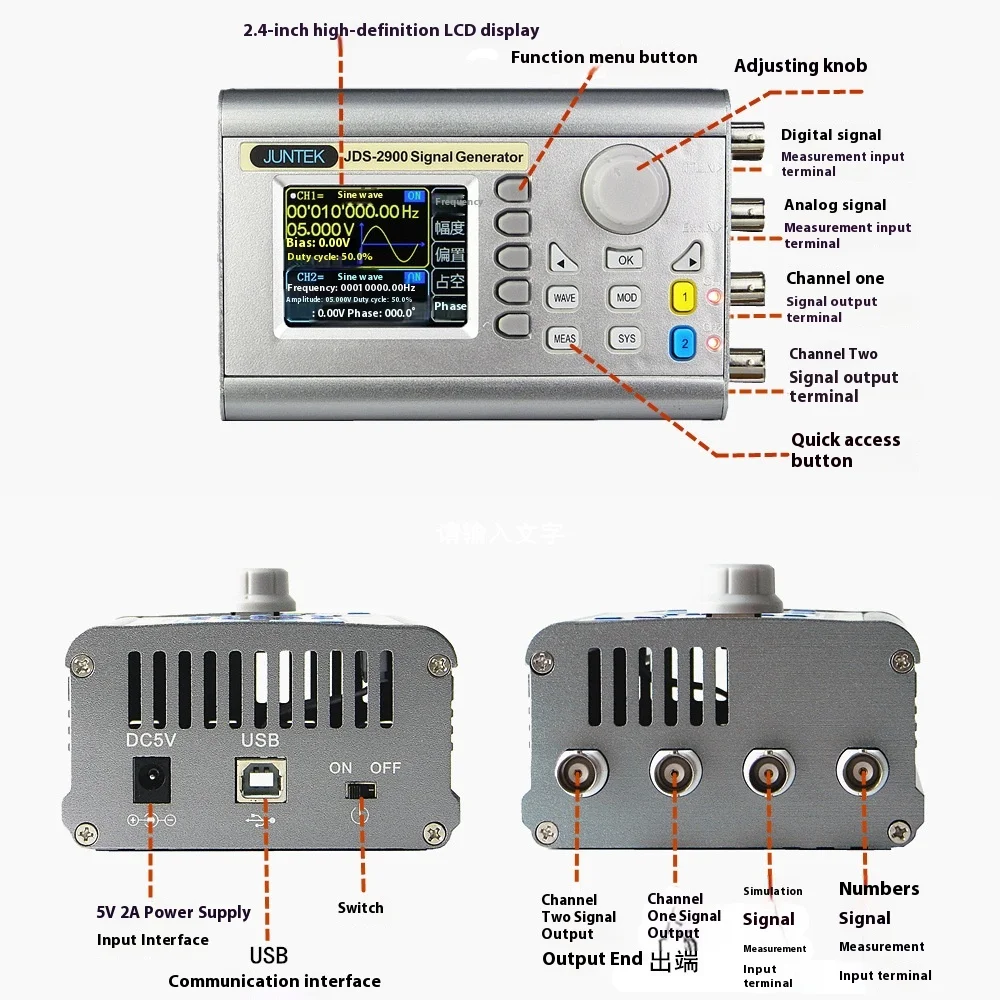

►320*240 2.4" TFT color LCD display, simultaneously display parameters of CH1 and CH2.

►Can reproduce patterns of custom waveform.

►Use soft silicone keys with high sensitivity and convenient for operation.

►Completely independent dual channels output, synchronizing operation

►60 groups of arbitrary wave storage function, memory depth of each group is 2048*14bits.

►High frequency accuracy and resolution: frequency accuracy up to 10^(-6) magnitude, total range frequency resolution is 0.01uHz.

►High amplitude resolution: the minimum amplitude resolution can reach 1mV, amplitude range is 2mVpp~20Vpp.

►Duty-cycle of each channel can be adjusted independently, the adjusting resolution is 0.1%.

►Sweep function: linear sweep and logarithmic sweep functions; 0.1s-999.9s sweep time; forward, backward and roundtrip sweep directions.

►With pulse trains burst output function: allow the unit output 1~1048575 arbitrary pulse trains.

►Measurement functions: can measure signal frequency, cycle, positive/negative pulse width and duty cycle; 1Hz~100MHz frequency range.

►With digital signal output function, CMOS output range 0~10V.

►Storage feature: can store 100 groups of parameters set by the user and extract at any time.

►Arbitrary wave editing function: user can edit arbitrary wave on PC and then download to output from the instrument.

►Communication function: the PC can be used to control the instrument.

►With output short-circuit protection: all signal output can work 60s under load short-circuit condition.

►The model sold on this link is JDS2900-60M,The maximum sine wave frequency is 60MHz, and the maximum square wave is 25MHz, 266MSa/s sampling rate and 14bits vertical resolution.

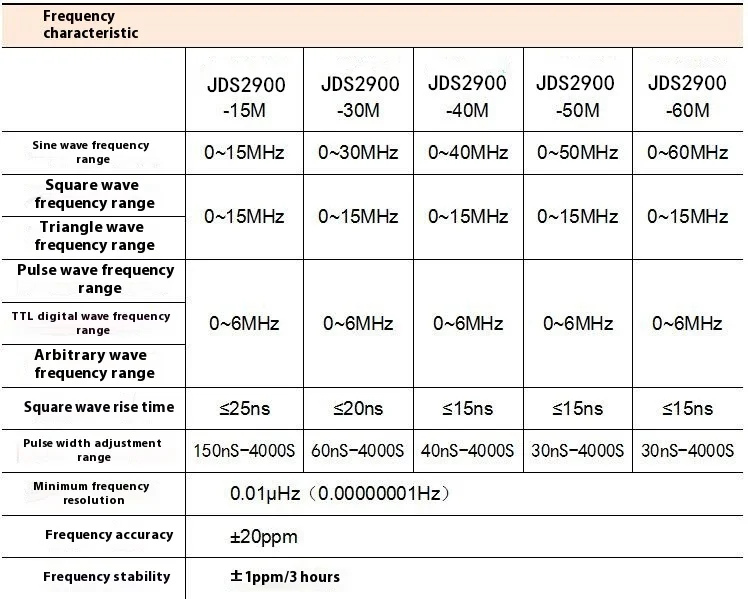

Frequency Characteristics
	JDS2900-15M	JDS2900-30M	JDS2900-40M	JDS2900-50M	JDS2900-60M
Sine wave frequency range	0~15MHz	0~30MHz	0~40MHz	0~50MHz	0~60MHz
Square wave frequency range	0~15MHz	0-25MHz	0-25MHz	0-25MHz	0-25MHz
Triangle wave frequency range
Pulse wave frequency range	0~6MHz	0~6MHz	0~6MHz	0~6MHz	0~6MHz
TTL digital wave frequency range
Arbitrary frequency range
Pulse width adjustment range	100nS~4000S	50nS~4000S	40nS~4000S	30nS~4000S	25nS~4000S
Square wave rise time	≤25ns	≤15ns	≤10ns	≤10ns	≤10ns
Minimum frequency resolution	0.01uHz（0.00000001Hz）
Frequency accuracy	±20ppm
Frequency stability	±1ppm/3hours

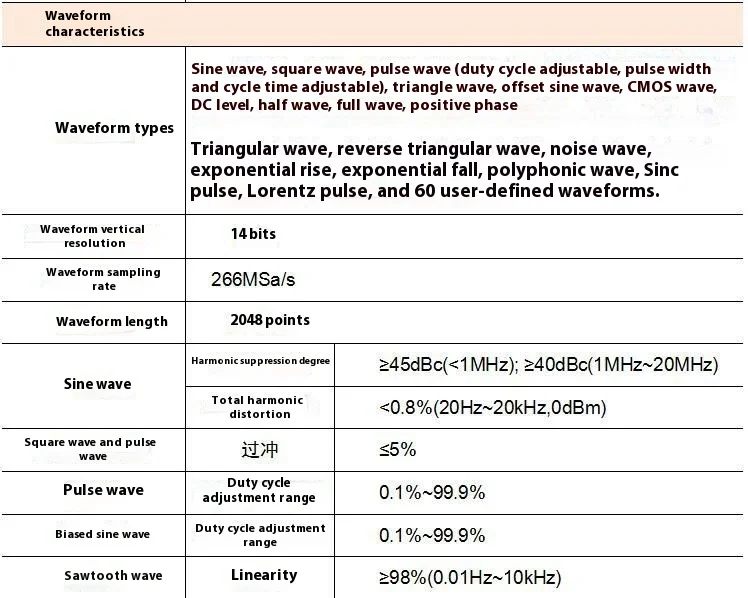

Waveform characteristics
Waveform type	SineSquare、pulse (adjustable duty cycle, precise adjustment of pulse width and period), triangular wave, partial sine wave, CMOS wave, DC level (set DC amplitude by adjusting offset), half wave, full Wave, positive staircase wave, anti-ladder wave, noise wave, exponential rise, exponential drop, multisonic wave, Symplectic pulse and Lorenz pulseand 60 arbitrarywave forms.
Wave length	2048 points
Waveformsampling rate	266MSa/s
Waveform vertical resolution	14-bits
Square wave and pulse wave	Overshoot	≤5%
Pulse wave	Duty cycle adjustment range	0.1%~99.9%
Partial sine wave	Duty cycle adjustment range	0.1%~99.9%
Sine wave	Harmonic Suppression	≥45dBc(<1MHz); ≥40dBc(1MHz~20MHz)
Total harmonic distortion	<1%(20Hz~20kHz,0dBm)
Saw-tooth wave	Linearity	≥98%(0.01Hz~10kHz)

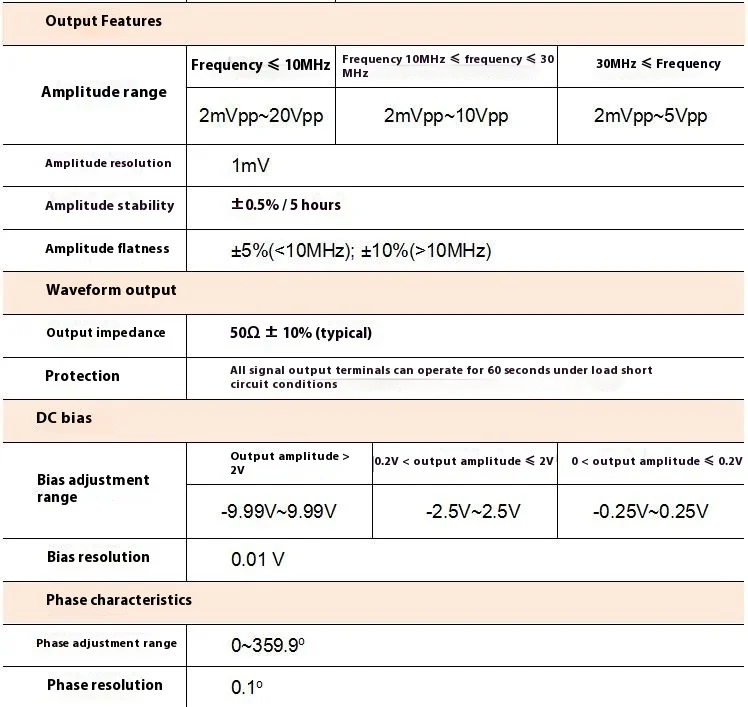

Output characteristics
Sine wave amplitude range	Frequency ＜ 11MHz	11MHz ≤ Frequency ＜ 31MHz	31MHz ≤ Frequency
2mVpp~20Vpp	2mVpp~10Vpp	2mVpp~5Vpp
Squarewave/Triangle wave amplitude range	Frequency ≤ 10MHz	10MHz ≤Frequency ≤25MHz
2mVpp~20Vpp	2mVpp~10Vpp
Amplituderesolution	1mV
Amplitudestability	±0.5%/5 hours
Flatness ofamplitude	±5%(<10MHz); ±10%(>10MHz)
Waveform output
Outputimpedance	50Ω±10% (typical)
Protection	All signal outputs can work within 60 seconds when the load is short-circuited.

DC offset
Offsetadjustment range	\|Offset\|≤10-ampilitude/2
Offset resolution	0.01 V

Phase characteristics
Phaseadjustment range	0~359.9°
Phase resolution	0.1°

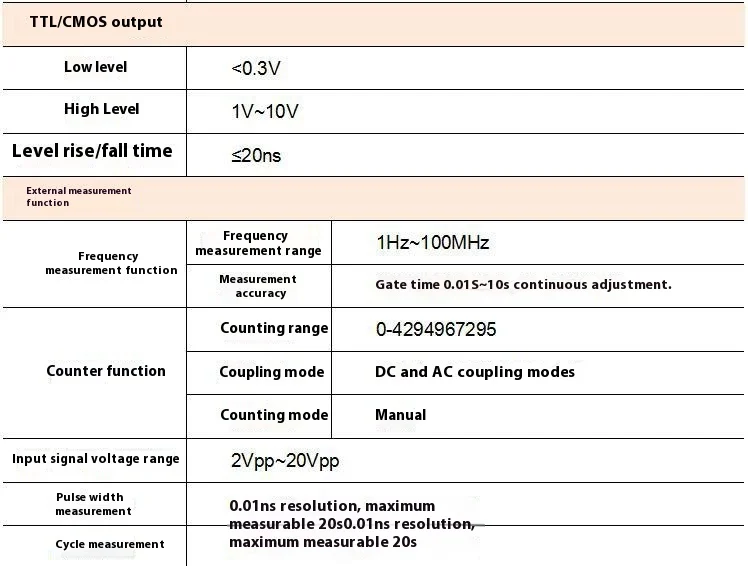

TTL/CMOS output
Low level	<0.3V
High level	1V~10V
Level rise/fall time	≤20ns
External measurement function
Frequencymeter function	Frequency measurement range	1Hz~100MHz
Measurement accuracy	Gate time 0.01S~10s continuously adjustable
Counter function	Counting range	0-4294967295
Coupling method	DC and AC coupling methods
Counting method	Manually
Input signal voltage range	2Vpp~20Vpp
Pulse width measurement	0.01us resolution, measure up to 20s
Period measurement	0.01us resolution, measure up to 20s
Sweep function
Sweep channel	CH1 or CH2
Sweep type	Linear sweep, logarithmic sweep
Sweep time	0.1s~999.9s
Setting range	Any setting between the maximum output frequency of the corresponding model of the starting point (0.01Hz) and the end point
Sweep direction	Forward, reverse and round trip
Bursting function
Number of pulses	1-1048575
Burst mode	Manual burst, CH2 burst, external burst (AC), external burst (DC)

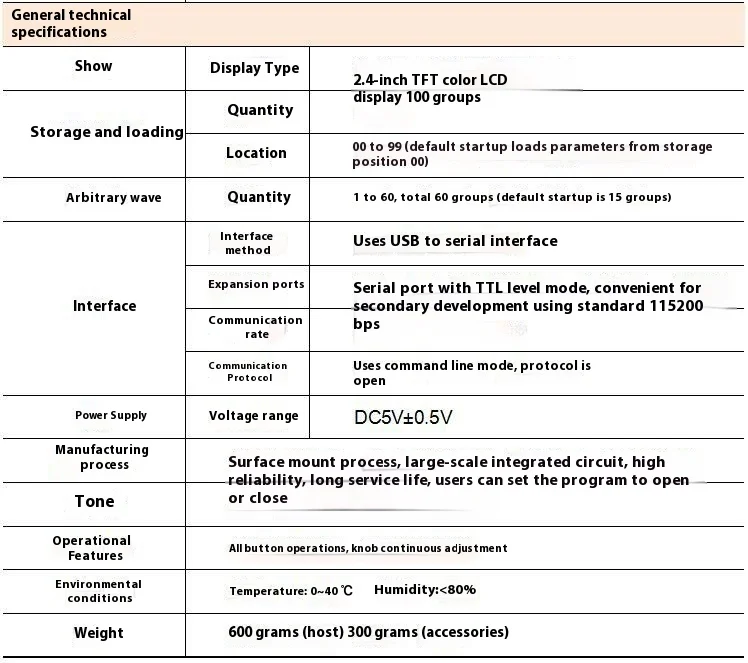

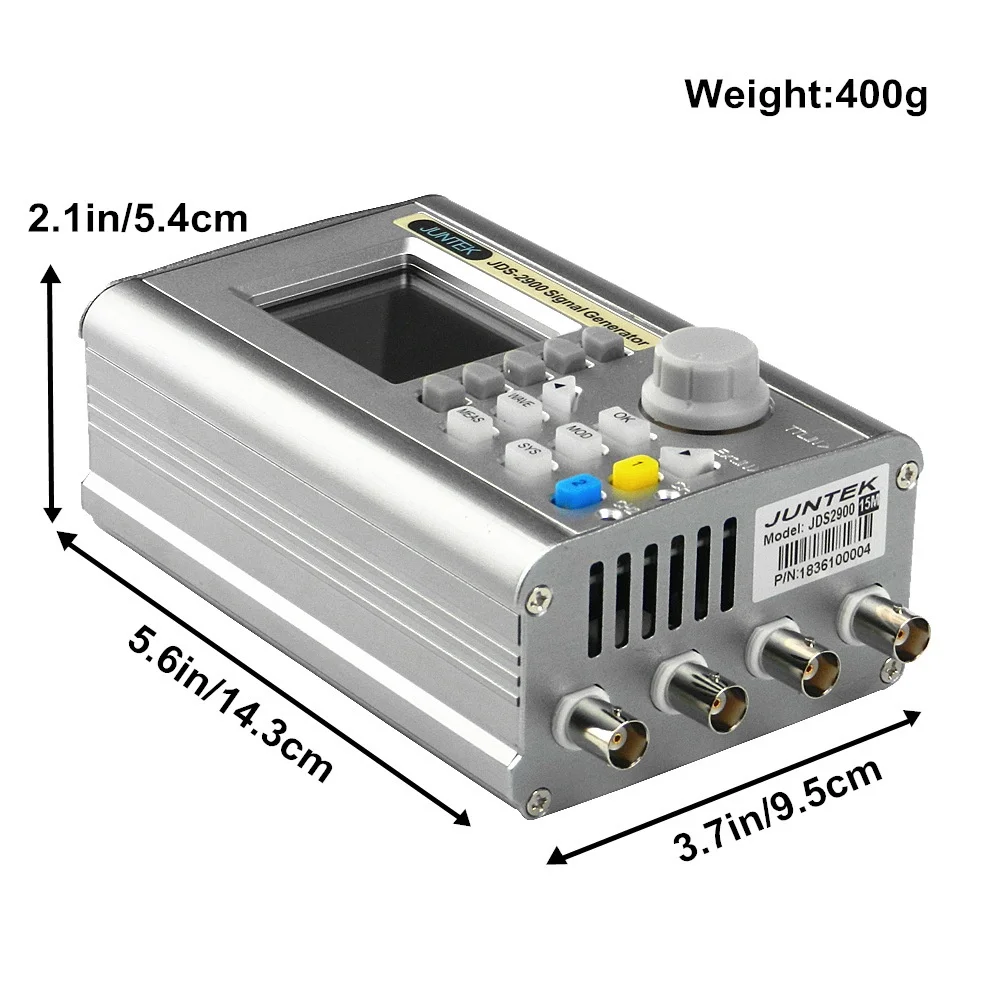

General specifications
Display	Display type	2.4 inch TFT color LCD display
Store and load	Quantity	100
Position	00 to 99 (00 memory location parameter is loaded by default as power on)
Arbitrary wave	Quantity	1 to 60 total 60 groups (15 groups by default as power on)
Interface	Interface mode	USB to serial interface
Extension interface	With TTL level mode serial interface for user secondary development
Communication speed	Adopt standard 115200bps
Protocol	Using the command line, the protocolis made public
Power supply	Voltage range	DC5V±0.5V
Manufacturing technology	Surface mount technology, large-scale integrated circuits, high reliability, long service life
Prompt tone	Users can turn on or off by setting program
Operating characteristics	All key operations, knob continuous adjustment
Environmental conditions	Temperature: 0~40℃ Humidity: <80%
