Product Description

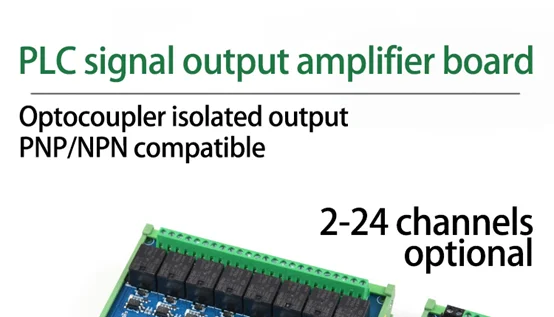

24-Channels Optocoupler Isolation Relay Module PLC Signal Amplifier Board
24-Channels Optocoupler Isolation Relay Module PLC Signal Amplifier Board

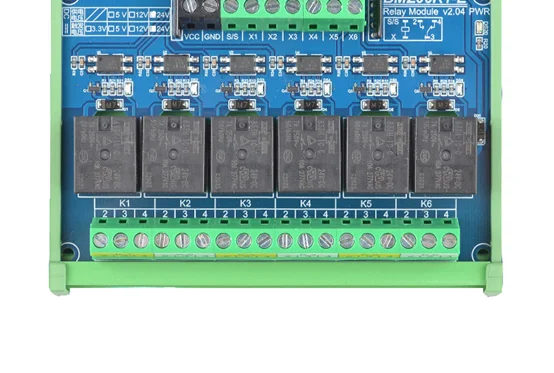

Optocoupler isolation relay module
BMZ-R1-E series relay module, the input adopts photoelectricisolation to amplify the input signal, which effectively solves theproblem that the controller controls the relay output when thedriving ability is insufficient.This product is widely used in: signal amplification ofmicrocontroller GPI pin, l/0 board, Raspberry Pi, PLC, Arduinoand other controllers.
Features
The input adopts the optocoupler isolationmethod, and the signal loop and the powersupply loop are isolated.
Each channel has an LED indicator thatdisplays the current channel status.

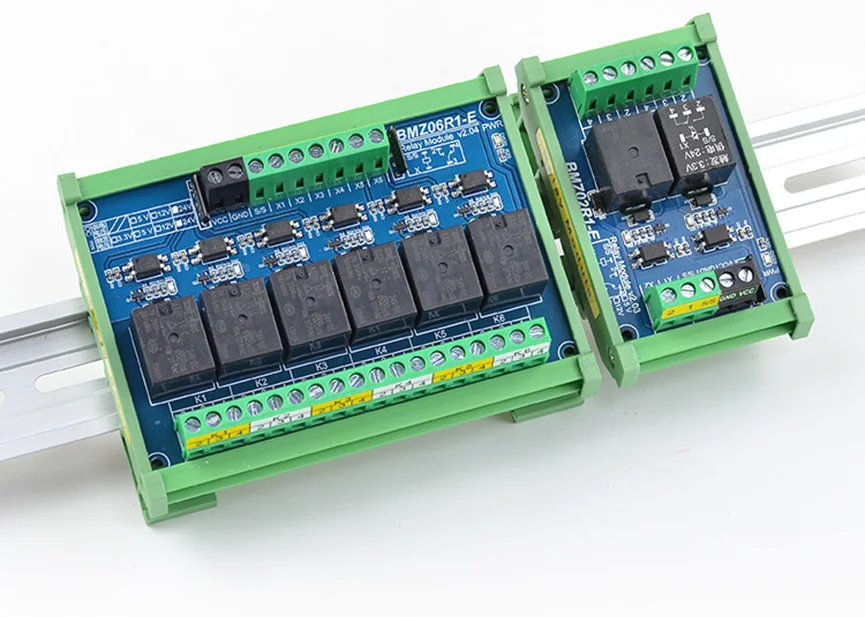

Modules are mounted on 35mm standard"DIN" rails. Trigger signal positive controlnegative control compatible design.
The input trigger signal current is 5mA, which issuitable for signal amplification of microcontrollerGPIO pin, I/0 board, Raspberry Pi, PLC, Ar duino andother controllers.

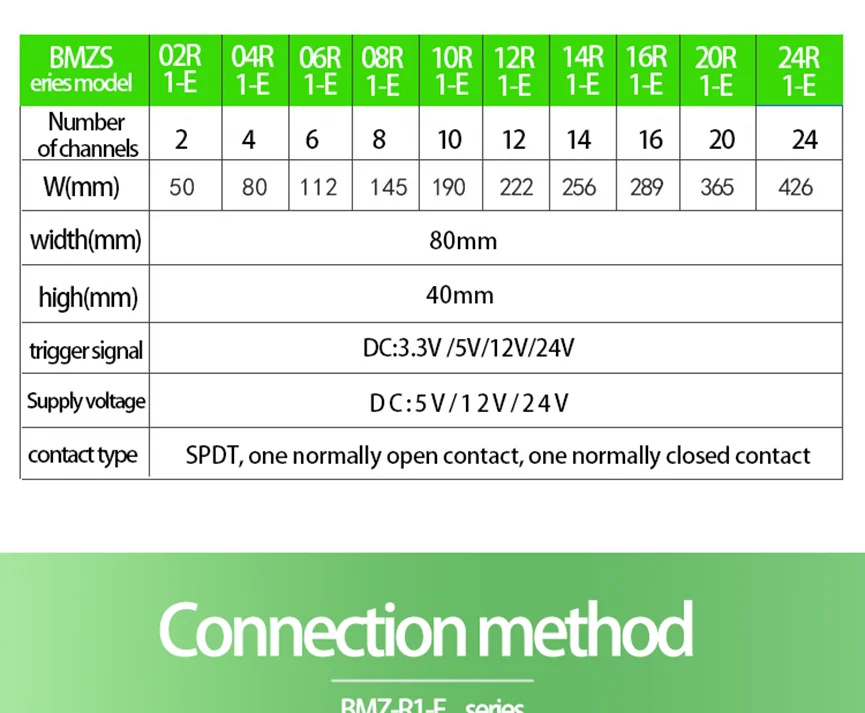

product information:
Product name | optocoupler isolation relay module |
Trigger voltage | DC3.3V/5V/12V/24V |
Power supply voltage | 5V/12V/24V |

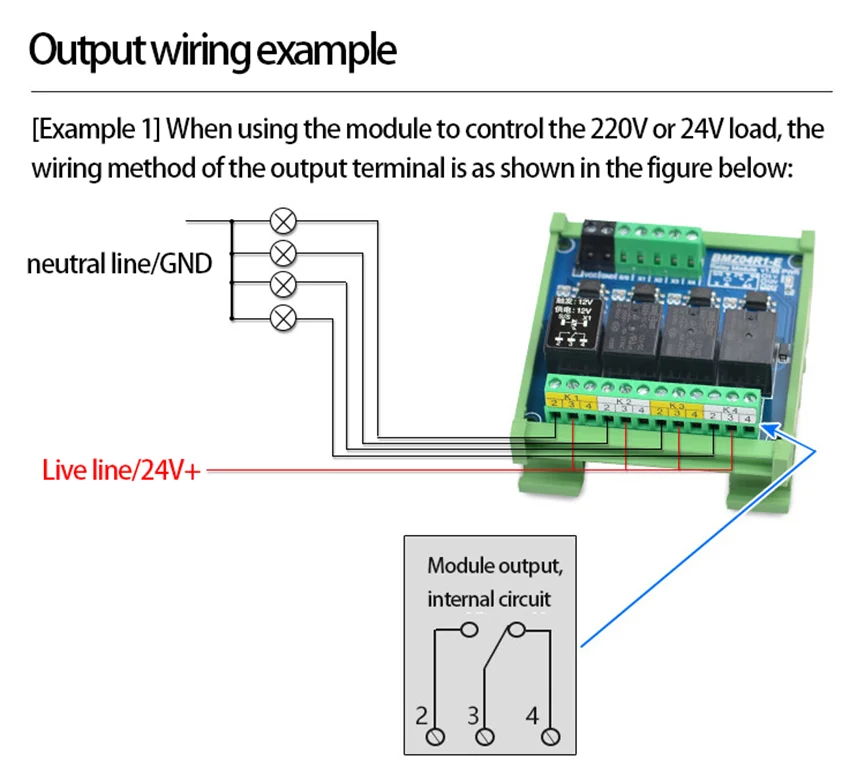

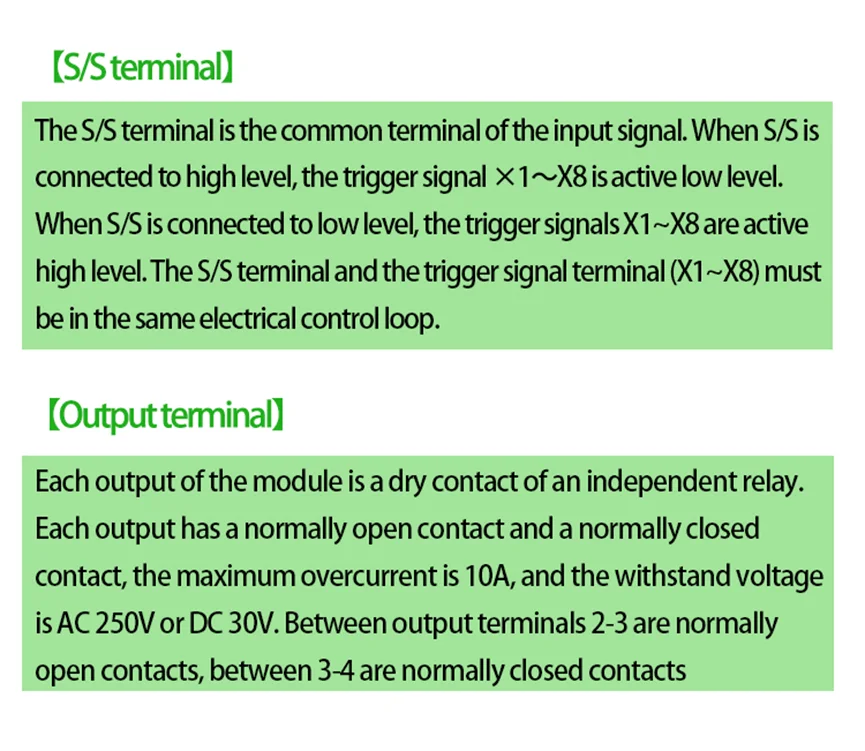

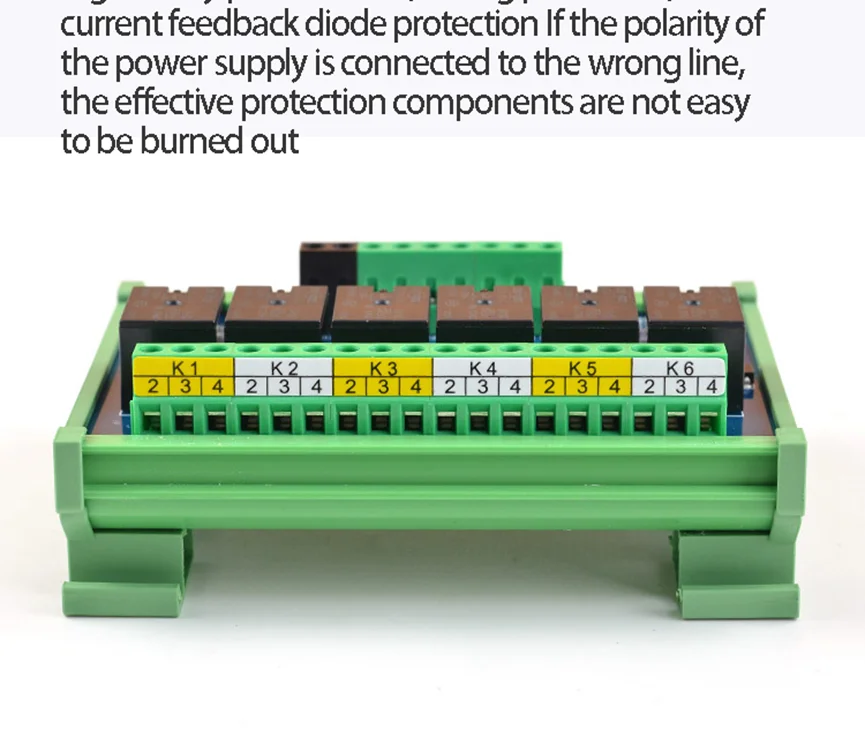

Output type | SPDT(single-pole double-throw), one NO contact and one NC contact |
Reset time | 4ms or less |
Mechanical life | more than 20 million times |

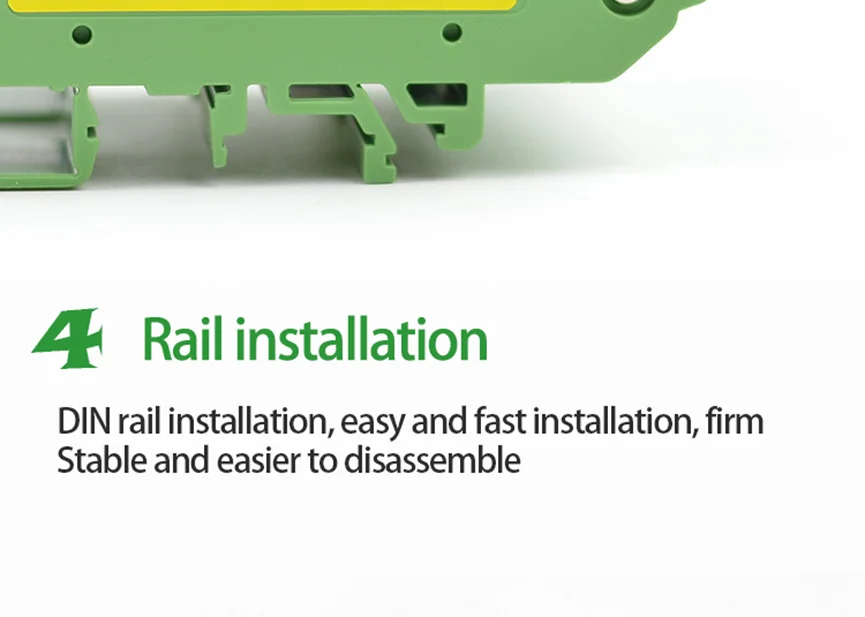

lnstallation method | Standard 35mm DIN rail installation |
Number of modules | 2-24 channels |
Product Model | BMZ-**R1-E |
