Product Description
Ultraviolet Radiation Transmitter 0-5V 0-10V 4-20mA RS485 UV Index Erythema Measurement Monitoring Forecast Photometer
Ultraviolet Radiation Transmitter 0-5V 0-10V 4-20mA RS485 UV Index Erythema Measurement Monitoring Forecast Photometer0-5V 0-10V 4-20mA RS485 Ultraviolet radiation transmitter UV index UV erythema measurement monitoring forecast photometer
This product is based on the principle that photosensitive elements convert ultraviolet rays into measurable electrical signals to realize online
monitoring of ultraviolet rays. This product can be widely used in environmental monitoring, meteorological monitoring, agriculture, forestry and other environments. Measure ultraviolet rays in the atmosphere and in environments such as artificial light sources.
Specification
DC power Supply | 10-30vdc |
Power consumption | RS485 output |
Analog output | |
Load capacity | 4-20mA output |
0-5V/0-10V | |
Work temperature | -25°C ~+60°C |
UV intensity measuring range | 0~15 mW/ cm2 |
Resolution | 0.01 mW/ cm2 |
Precision | ±10% FS(60%RH,25℃) |
UV index measuring range | 0-15 |
Measurement wavelength range | 290-390 nm |
Response time | UV intensity: 0.2s |
UV index: 0.2s | |
Linearity | ≤±1% |
Long-term stability | ≤±3% |
Output | RS485 (Modbus |

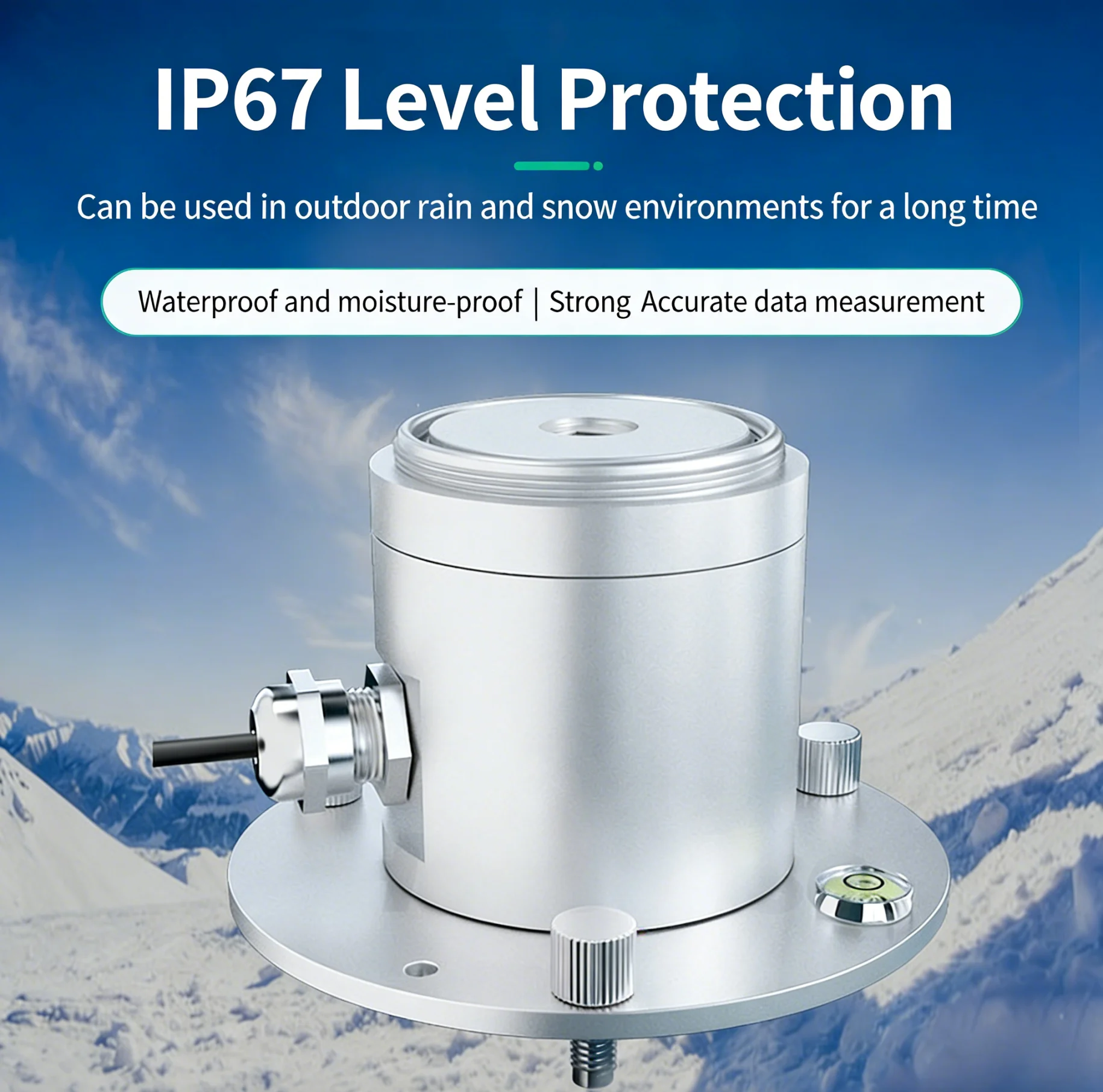

IP Protect | IP67 |

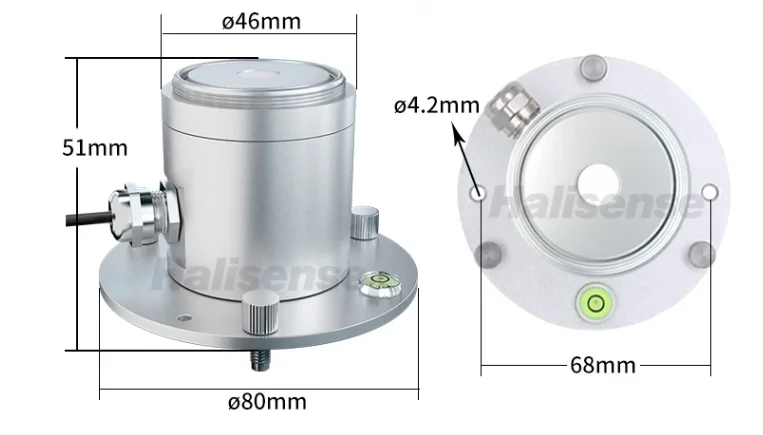

Size and installation
Installation method
1.Use screws through the mounting holes on the sensor to fix the sensor on the mounting bracket
2.Make sure the device is parallel to the ground (adjust the hand screw and check the level of the bubble to determine whether it is
parallel)
3.After installation, remove the protective cover
