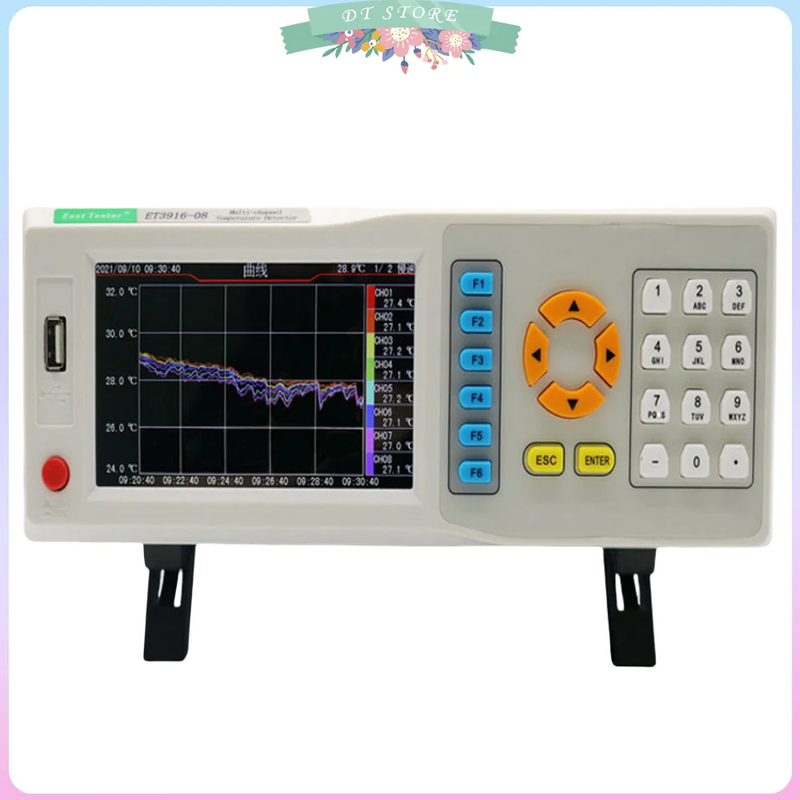

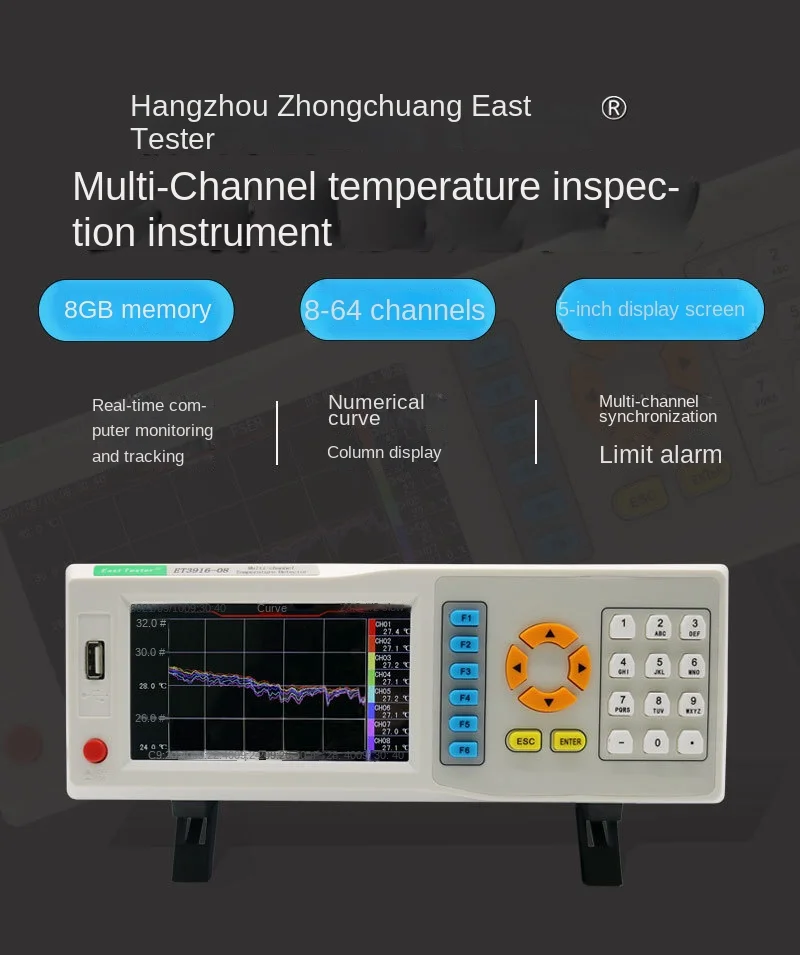

ET3916-08 Digital Temperature Recorder 8 Channels -200℃~1372℃ Industrial Tempera

Product Description

The machine uses 32-bit microprocessor to collect data quickly, and with 5-inch TFT screen display for easy reading. It supports K-type, J-type, E-type, T-type, N-type, S-type, R-type and B-type thermocouple. With multiple display modes and simple operation, it's suitable for production, R&D needs. It can be widely used in lighting appliances, power tools, household appliances, motors, electric heating appliances, medical, petroleum, chemical, metallurgical, electricity and more fields!

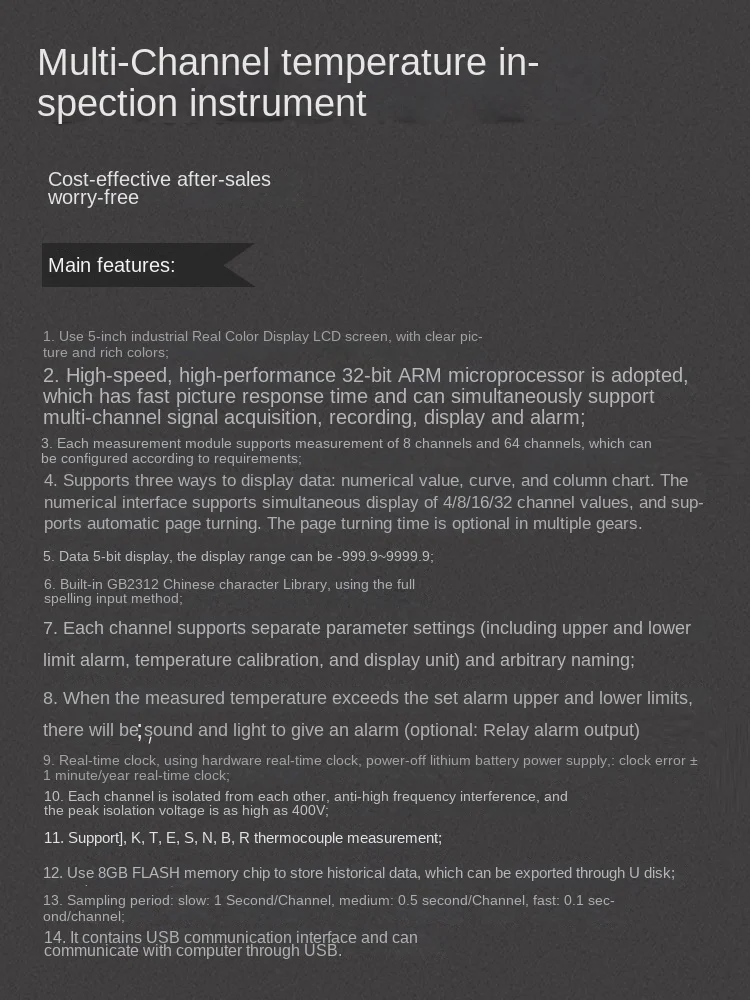

Features:
1. Temperature Recorder -- Supports 8 channels, high accuracy, -200℃~1372℃ wide temperature measuring range, 1s record interval. Built in 8G large memory, supports U disk file export.

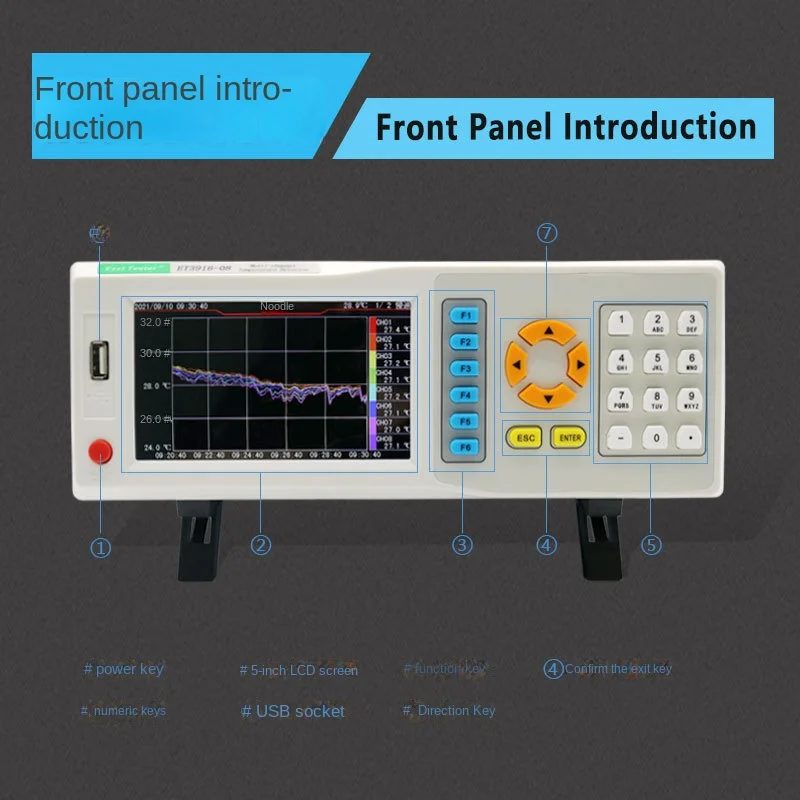

2. 5inch Color Screen & Comfortable Buttons -- 5-inch TFT color screen, 6 digits display, with 854*480 resolution, easy to read, clear at a glance. With comfortable buttons for easy setting and operation.

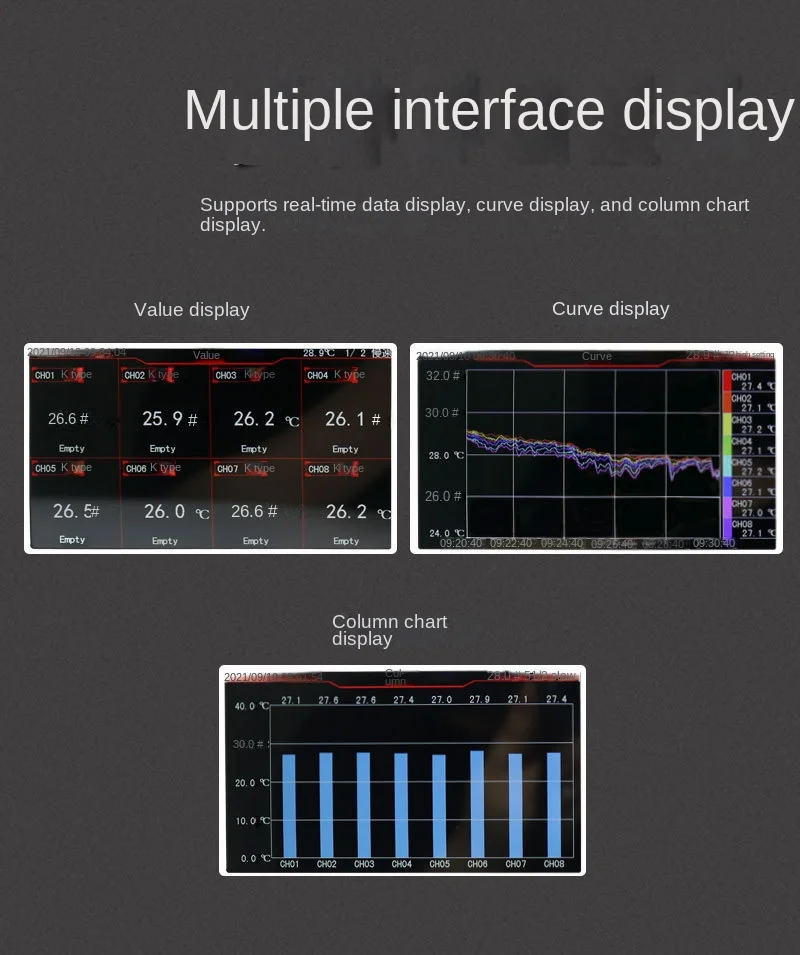

3. Display Form & Multiple Interface Display: Supports 4/ 8/ 16/ 32 multi-interface real-time value display; supports curve and bar charts real-time display of measured data.
4. Quick Response & Stable Performance: Adopts advanced 32-bit microprocessor, features quick response, supports multi-channel data collecting, recording, display and alarm.

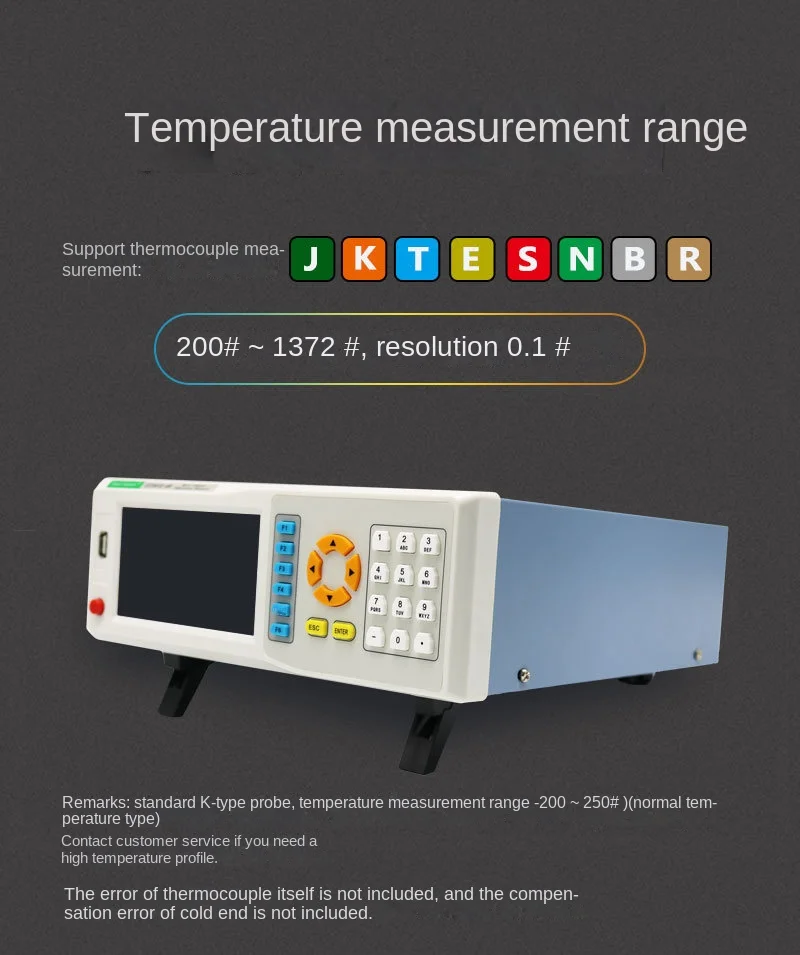

5. Support Thermocouples: K-type, J-type, E-type, T-type, N-type, S-type, R-type and B-type thermocouple. Each channel supports individual parameters settings and arbitrary naming.

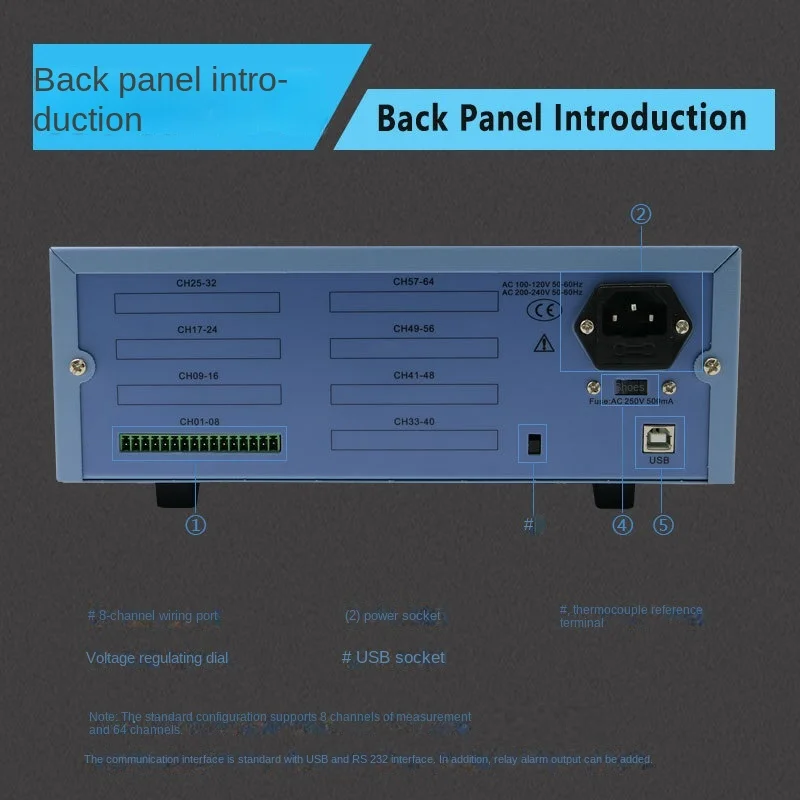

6. Multi-channel Design: 8 channels per module, supports maximum 64 channels. The voltage between each channel can be as high as 400V, with strong anti-interference ability. Each channel can set high and low alarm value, with sound and light alarm function.
7. Wide Use: Widely used in lighting appliances, power tools, household appliances, motors, electric heating appliances, medical, petroleum, chemical, metallurgical, electricity and more fields.

Note:
1. Please read the user manual carefully before use.
2. Size and color may be slightly different due to manual measurement and different light conditions. Thanks for understanding.

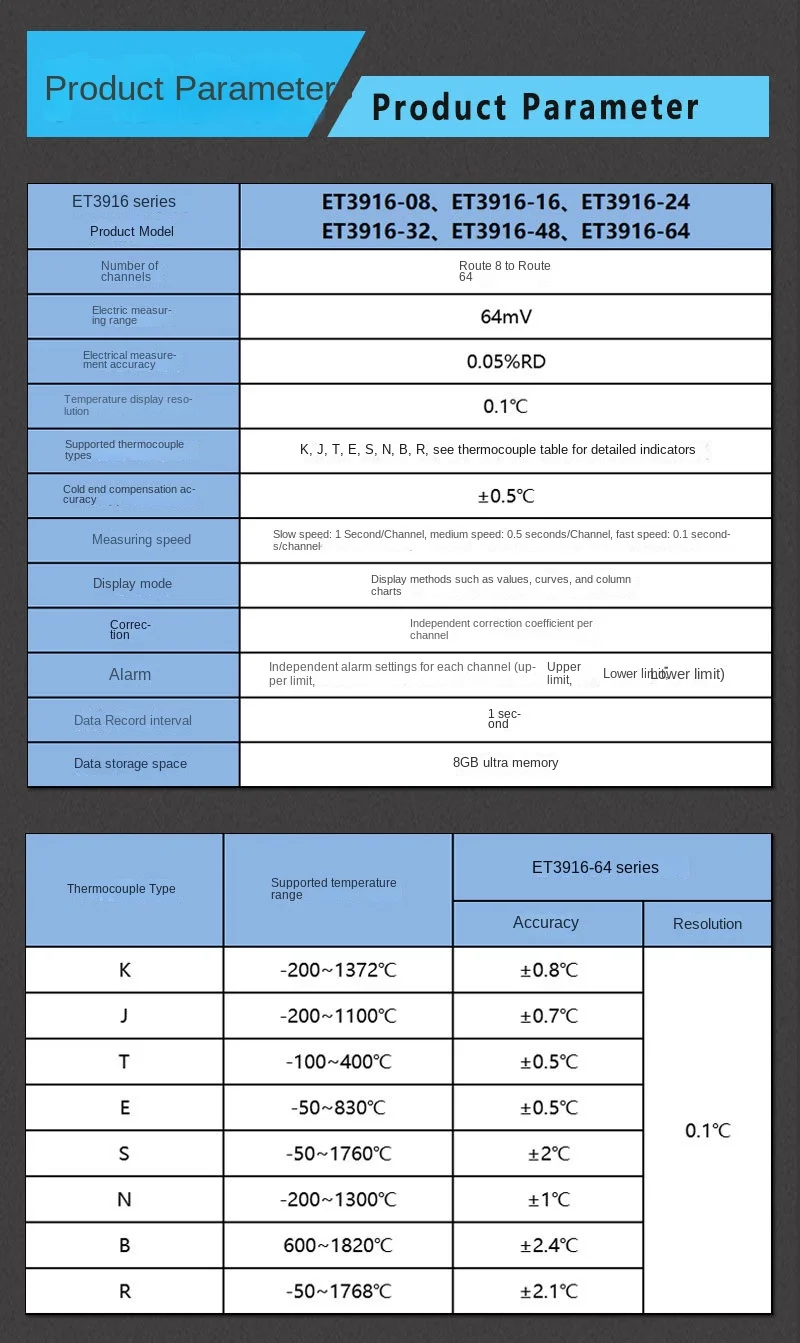

Specifications:
Voltage & Plug: 220V, EU Plug
Color: Grey & Blue
Material: Metal + ABS
Screen: 5" TFT Screen, 854*480 Resolution
Number of Channel: 8
Support Thermocouple: KJETNSRB
Measurement Range: 60mV
Accuracy: 0.05%FS
Temperature Display Resolution: 0.1℃
Cold End Compensation Accuracy: ±0.5℃
Temperature Measuring Range: -200~1372℃ (the equipped K-type thermocouple)
Measuring Speed: 1s/channel (slow), 0.5s/channel (medium)
Display: Numerical, Curve Chart, Bar Chart
Calibration: Isolated Correction Factor of Each Channel
Alarm: Yes
Record Interval: 1s
Memory: 8GB
Communication Interface: USB
Working Temperature: 0~40℃
Storage Temperature: -10~50℃
Humidity: ＜80% RH
Item Size: 300 * 260 * 100mm / 11.81 * 10.24 * 3.94in
Item Weight: 3014g / 6.65lbs
Package Size: 43 * 33 * 20.5cm / 16.93 * 12.99 * 8.07in
Package Weight: 4066g / 8.96lbs

Package List:
1 * Multi-channel Temperature Recorder
1 * Power Cord

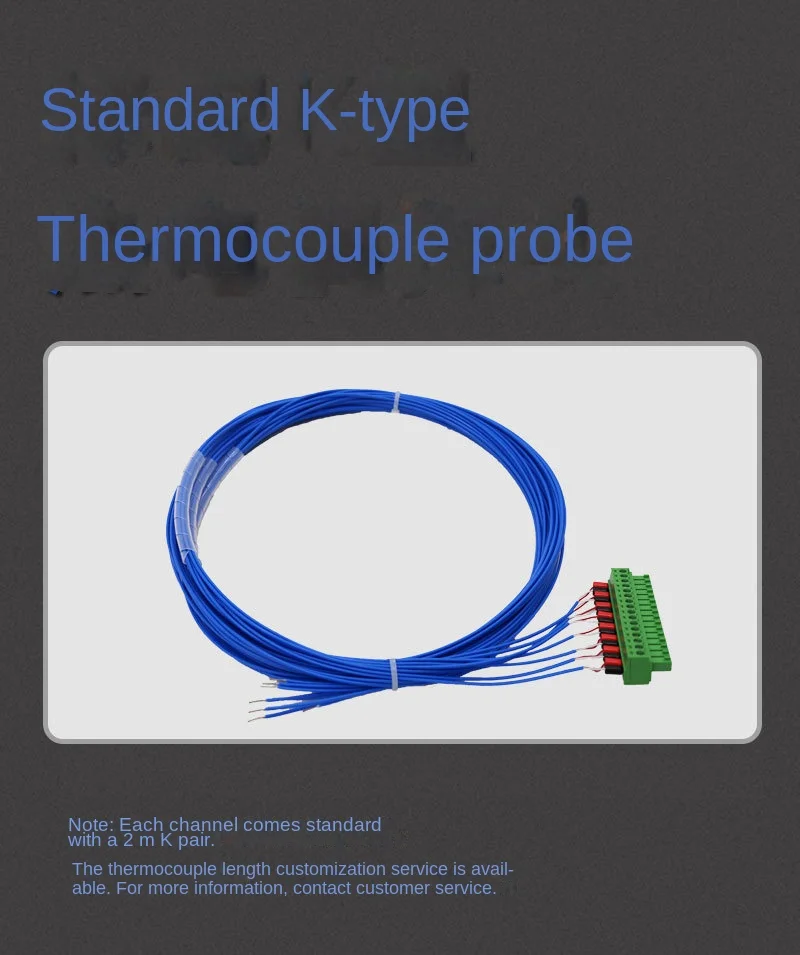

1 * K-type Thermocouple (2m)
1 * User Manual (English)
