RS485 Ultrasonic Wind Speed and Direction Sensor Temperature Humidity Noise PM2.
✓ Paiement protégé✓ Livraison suivie✓ Canadian service

Électronique · H-168294948777

RS485 Ultrasonic Wind Speed and Direction Sensor Temperature Humidity Noise PM2.

NouveauAvailable from Prime Living

15 units available

564.99 CAD
Free worldwide shippingEstimated delivery to Canada: 4–10 business days
Product details
SKU
H-168294948777
Product code
H-168294948777
Condition
Neuf
Department
Électronique
Brand
—
Shipping
Free worldwide shipping

COMPLETE INFORMATION

Product description

Product Description

RS485 Ultrasonic Wind Speed and Direction Sensor Temperature Humidity Noise PM2.5 Pressure Light Rainfall Small Weather StationRS485 Ultrasonic Wind Speed and Direction Sensor Temperature Humidity Noise PM2.5 Pressure Light Rainfall Small Weather StationRS485 Ultrasonic Wind Speed and Direction Sensor Temperature Humidity Noise PM2.5 Pressure Light Rainfall Small Weather Station

RS485 Ultrasonic Wind Speed and Direction Sensor Temperature Humidity Noise PM2.5 Pressure Light Rainfall Small Weather Station


RS485 Ultrasonic Wind Speed and Direction Sensor Temperature Humidity Noise PM2.


Parameters measuring

This small integrated weather station can be widely used in environmental detection, integrating wind speed, wind direction, temperature and humidity, noise collection, PM2.5 and PM10, atmospheric pressure, light, and accumulated rainfall.

It adopts standard MODBUS-RTU protocol, RS485 output, and the communication distance can reach up to 2000m. The data can be uploaded to the customer's monitoring software or PLC, HMI by RS485.

It is widely used in wind speed and wind direction measurement in the fields of meteorology, ocean, environment, airport, port, laboratory, industry, agriculture and transportation.



Features

  • Adopt multi-collection device integrated design, easy to install.

  • Wind speed and direction are measured by ultrasonic, no angle limit, 360° omnidirectional, and data of wind speed and wind direction can be obtained at the same time.

  • Noise acquisition, accurate measurement, range up to 30dB~130dB.

  • Simultaneous acquisition of PM2.5 and PM10, range: 0-1000ug/m3, resolution 1ug/m3, unique dual-frequency data acquisition and automatic calibration technology, consistency up to ±10%.

  • Measure the ambient temperature and humidity, the measuring unit is imported from Switzerland, and the measurement is accurate.

  • Wide range of 0-120Kpa pressure range, can be applied to various altitudes.

  • Adopt special 485 circuit, stable communication.


Product description

Wind speed

  • Measuring range: 0~40m/s, start at 0.5m/s

  • Accuracy: ±0.5+2%FS

  • Response time: 1s

Wind direction

  • Measuring range: 0~359°

  • Accuracy: ±3°

  • Response time: 1s

Humidity


  • Measuring range: 0~99%RH

  • Accuracy: ±3%RH (60%RH,25℃)

  • Long-term stability: ≤1%/year

  • Response time: ≤1s

Temperature


  • Measuring range: -40℃~+80℃

  • Accuracy: ±0.5℃（25℃）

  • Long-term stability: ≤0.1℃/year

  • Response time: ≤1s

  • Measuring range: 0-130Kpa

  • Accuracy: ±0.15Kpa@25℃101Kpa

  • Long-term stability: -0.1Kpa/year

  • Response time: ≤1s

Noise

  • Measuring range: 30dB~120dB

  • Accuracy: ±0.5dB

  • Long-term stability: ≤3db/year

  • Response time: ≤1s

PM10/PM2.5

  • Measuring range: 0-1000ug/m3

  • Accuracy: ±3%FS（@100μg/m3、25℃、50%RH）

  • Particulate counting efficiency: 50%@0.3μm, 98%@>=0.5μm

  • Long-term stability: ≤1%/year

  • Response time: ≤90s

Illumination

  • Measuring range: 0~200000 Lux

  • Accuracy: ±7% (25℃)

  • Long-term stability: ≤5%/year

  • Response time: ≤0.1s

Rainfall

  • Accuracy: ±5%

  • Resolution: 0.1mm

  • Maximum instantaneous rainfall: 24mm/min

  • Rain sensing diameter: 6cm

Solar irradiance

  • Measuring range: 0~1800W/m²

  • Accuracy: ≤±3%@150W/m²

  • Long-term stability: ±3%

  • Response time: ≤10s


Base parameter

DC power Supply

10-30vdc

Maximum power consumption

0.7W (12V)

Working environment

-40～80℃，0～95%RH

Protection level

IP54

Output

RS485 (Modbus RTU protocol)

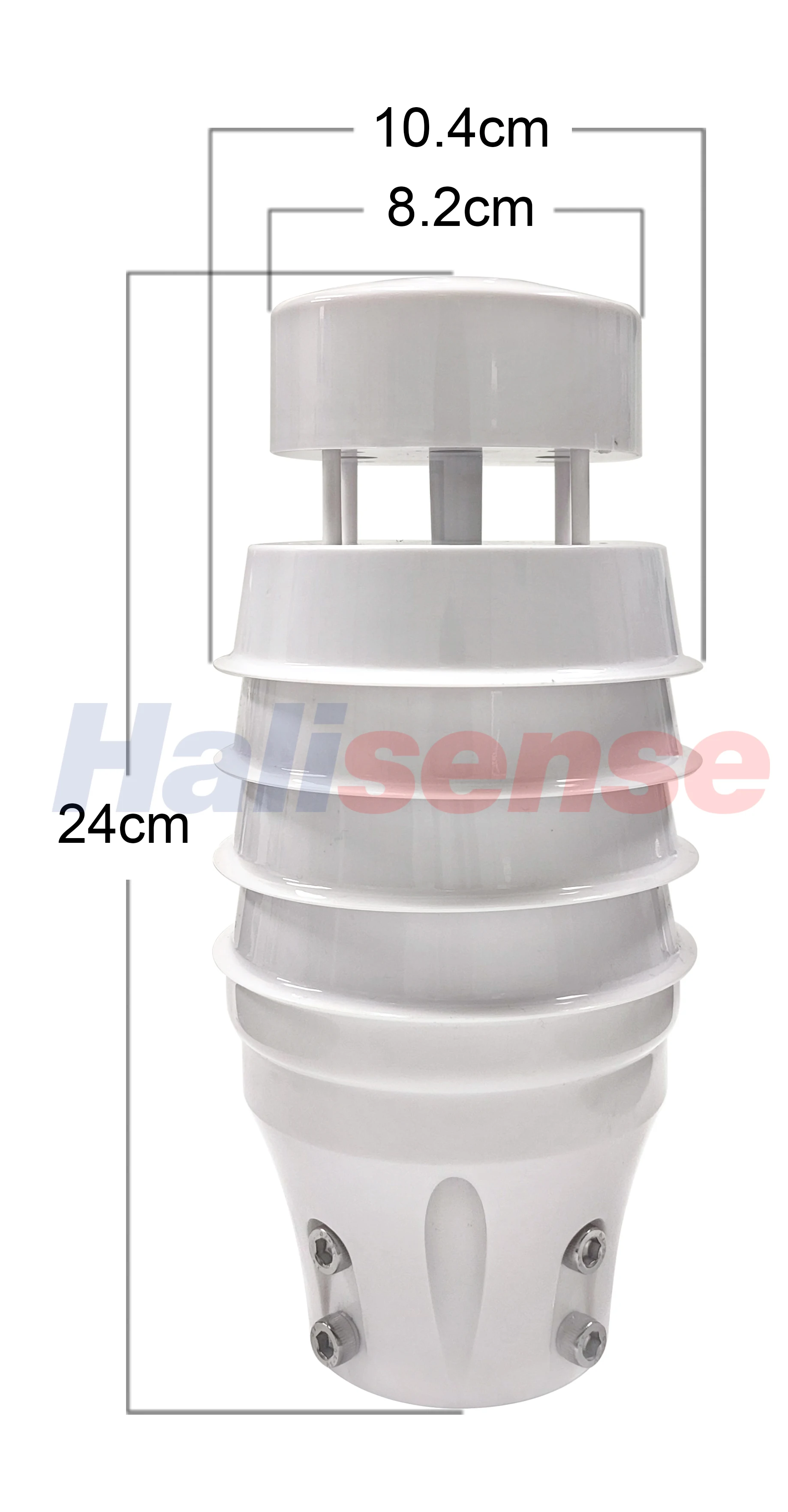

Size and installation

RS485 Ultrasonic Wind Speed and Direction Sensor Temperature Humidity Noise PM2.RS485 Ultrasonic Wind Speed and Direction Sensor Temperature Humidity Noise PM2.

RS485 Ultrasonic Wind Speed and Direction Sensor Temperature Humidity Noise PM2.RS485 Ultrasonic Wind Speed and Direction Sensor Temperature Humidity Noise PM2.RS485 Ultrasonic Wind Speed and Direction Sensor Temperature Humidity Noise PM2.RS485 Ultrasonic Wind Speed and Direction Sensor Temperature Humidity Noise PM2.RS485 Ultrasonic Wind Speed and Direction Sensor Temperature Humidity Noise PM2.


RS485 Ultrasonic Wind Speed and Direction Sensor Temperature Humidity Noise PM2.
