Product Description

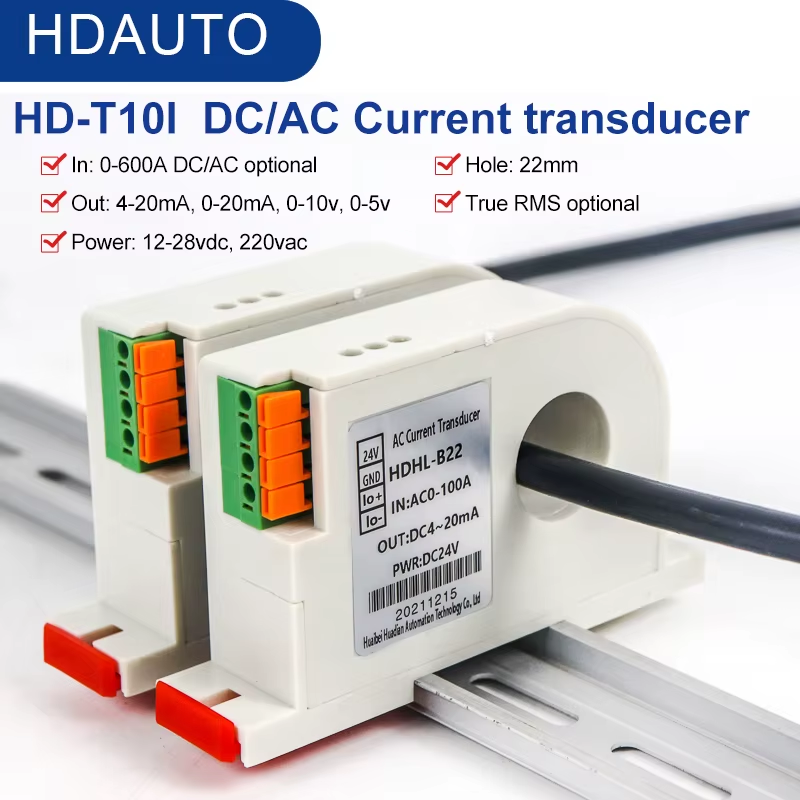

0-50A Input DC AC Hall Effect Current Transducer Output 4-20mA
0-50A Input DC AC Hall Effect Current Transducer Output 4-20mANote:Hole diameter is 22mm.Brief Description:
HD-T10I series AC/DC current transmitter adopts the Hall principle, which directly converts AC high-current signals from industrial sites into standard analog signals, and the input and output signals have a linear relationship.
No transformer is needed, and the three terminals of input, output and power are reliably isolated.
Product selection list | |||
HD-T10I | X | X | X |
Hole size | 22mm | ||
Input type | A | DC | |
B | AC | ||
Input signal | A | 0-10A | |
B | 0-100A | ||
C | 0-500A | ||
D | others | ||
Output signal | 1 | 4-20mA | |
2 | 0-20mA | ||
3 | 0-5V | ||
4 | 0-10V | ||
5 | Relay | ||
6 | others | ||
Power supply | A | DC 12-28V | |
B | 220VAC |
Product model example:
HD-T10I-A-B-1-A: 22mm diameter, input DC 0-100A, output 4-20mA, power supply DC 12-28V
Mainly technical parameters:
Input:
Input current range: 0-600AAC/DC
Frequency range: 40-60HZ
Output:
Output signal: 4-20mA, 0-20mA, 0-10V, etc.
Output load resistance: RL≤500Ω (when the output is a current signal)
RL≥10KΩ (when the output is a voltage signal)
Basic parameters:
Power supply: DC12V / 24V / 220V, AC220V
Rated power consumption: ≤1W (DC24V power supply, at 20mA output)
Basic accuracy: ≤0.2% F.S.
Temperature drift: 0.2% F.S./℃ (-30 ℃ ~ + 85 ℃)
Response time: ≤10ms (0-90%) (TYP)
Insulation strength: 3000V AC / 1min (between input, output and power)
Operating temperature range: -30 ℃ ~ + 85 ℃
Electromagnetic compatibility: in accordance with GB / T 18268.1 (IEC61326-1)
Size:
Wiring diagram:

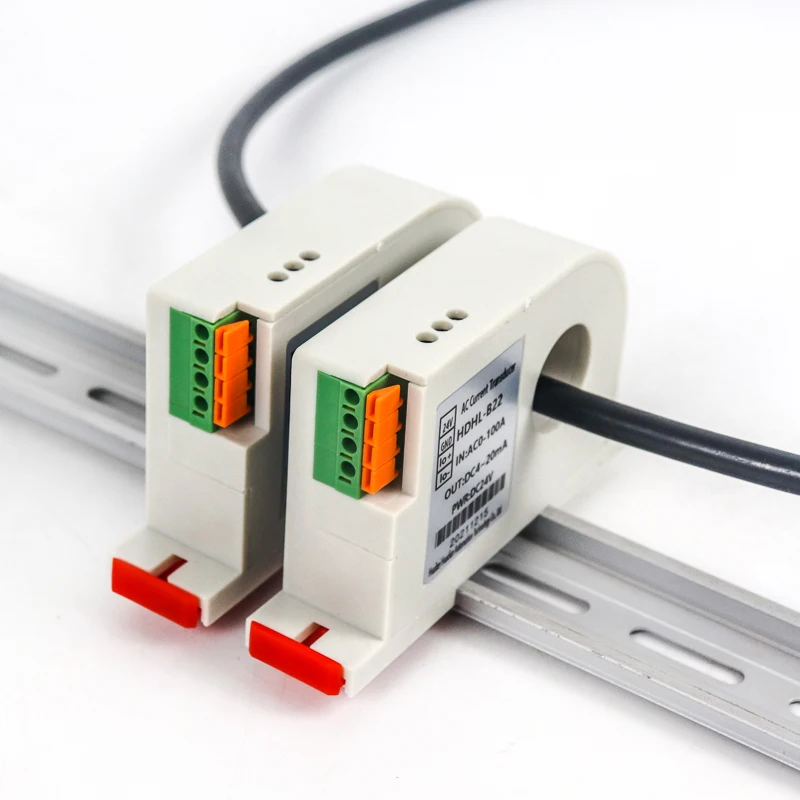

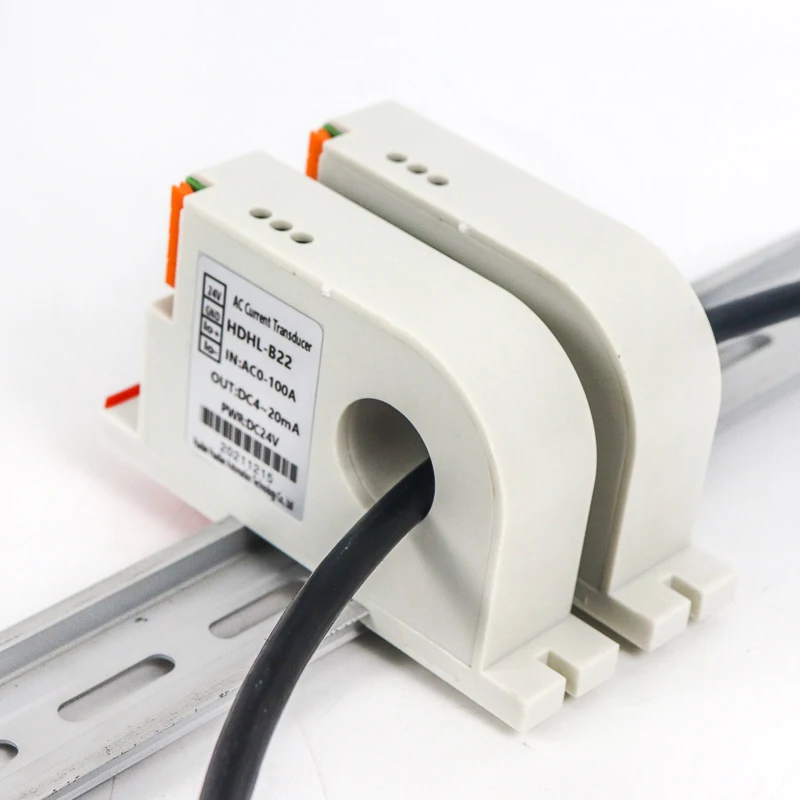

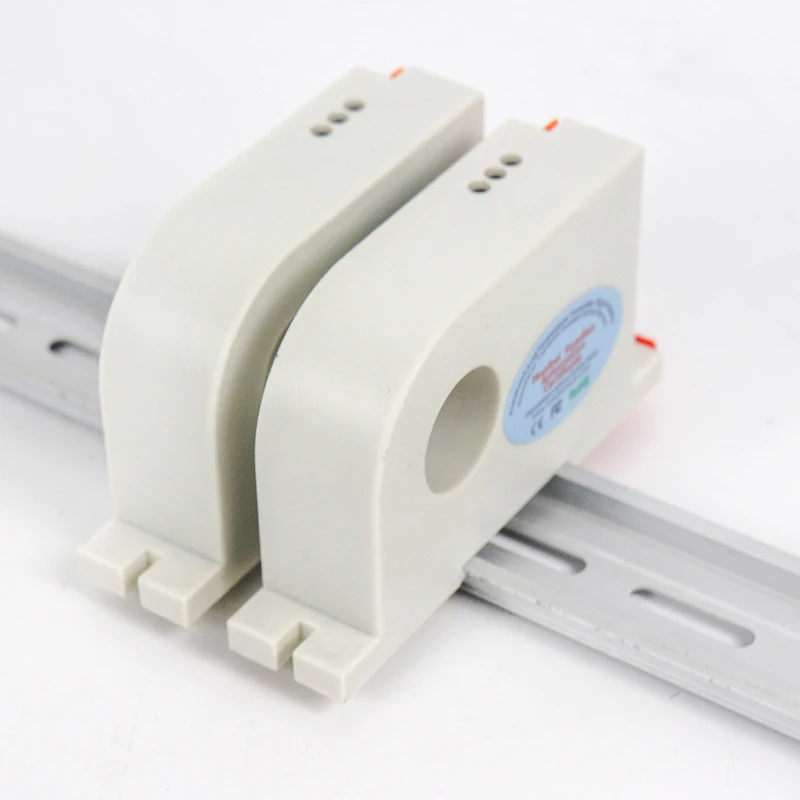

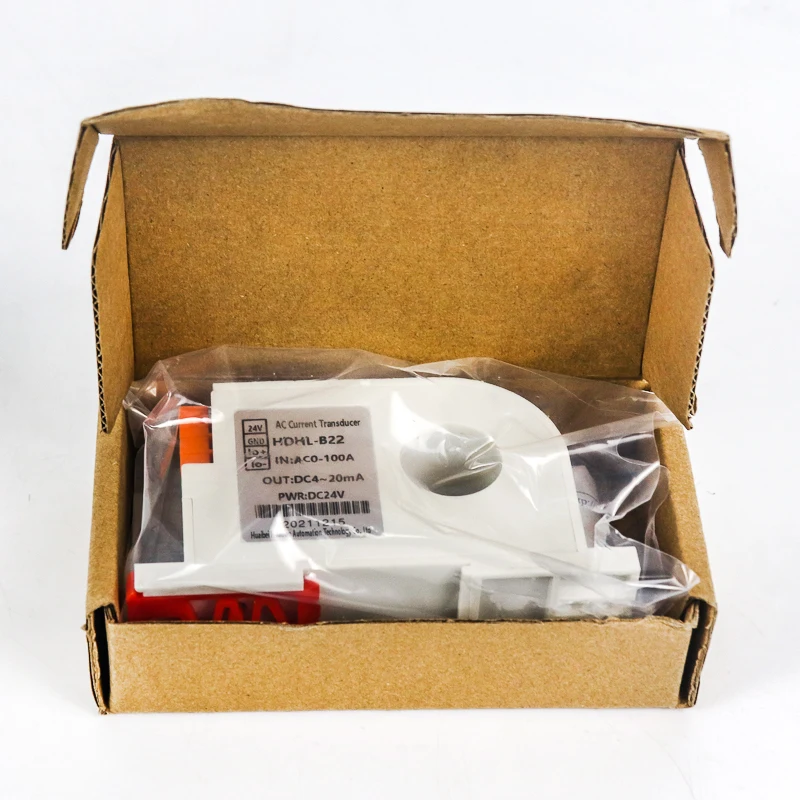

More pictures for your reference:
