Product Description
IP68 IP65 4-20 ma RS485 Distance 10 Meter Water Fuel Oil Tank Liquid Depth Ultrasonic Level Meter Probe Without Display
IP68 IP65 4-20 ma RS485 Distance 10 Meter Water Fuel Oil Tank Liquid Depth Ultrasonic Level Meter Probe Without DisplayNote: The options we can write is limit. If you need other specifications, contact us at anytime!Default : 24vdc power and 2 wire.It is featured by strong anti-interference performance; free setting of upper and lower limits and online output regulation, on-site indication, optional analog, switching value, and RS485 output and easy connection with main unit. The cover, made of waterproof engineering plastics, is small and firm with ABS probe. Therefore, it is applicable for various fields concerning level measuring and monitoring. According tothe practical situation, it also can add othermodules, such as RS 485, current output; it can be match with PLC better.
Ultrasonic level measuring instrument, taking the advantages of various many level measuring instruments, is a universal one characterized by total digitalized and humanized design. It has perfect level monitoring, data transmission and man-machine communication.
Beam angle | default 6 degrees |
Maximum range | 0.5M, 1M, 2M, 3M, 5M, 7M, 10M, 15M, 20M (clean plane, the range can also be customized according to the working conditions) |
Detection blind area | ≤200~500MM |
Detection accuracy | 0.3% |
Output signal | 4~20mA (can with HART), 1~5V, RS485 |
Working power | DC12V, 24V |
Working temperature | -20~60℃ |

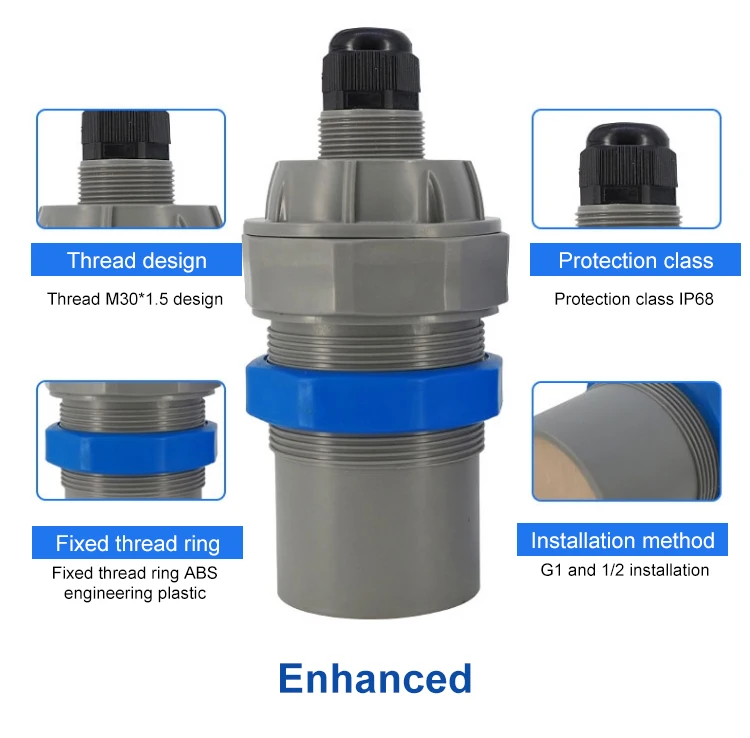

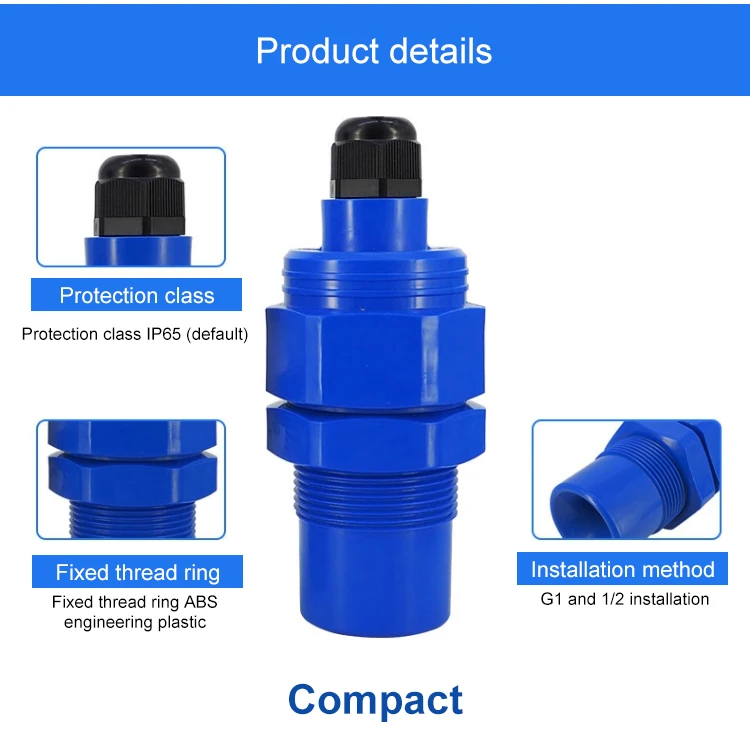

Protection class | IP65 (default), enhanced IP68 |
Outlet method | Default lead wire 0.5 meters |

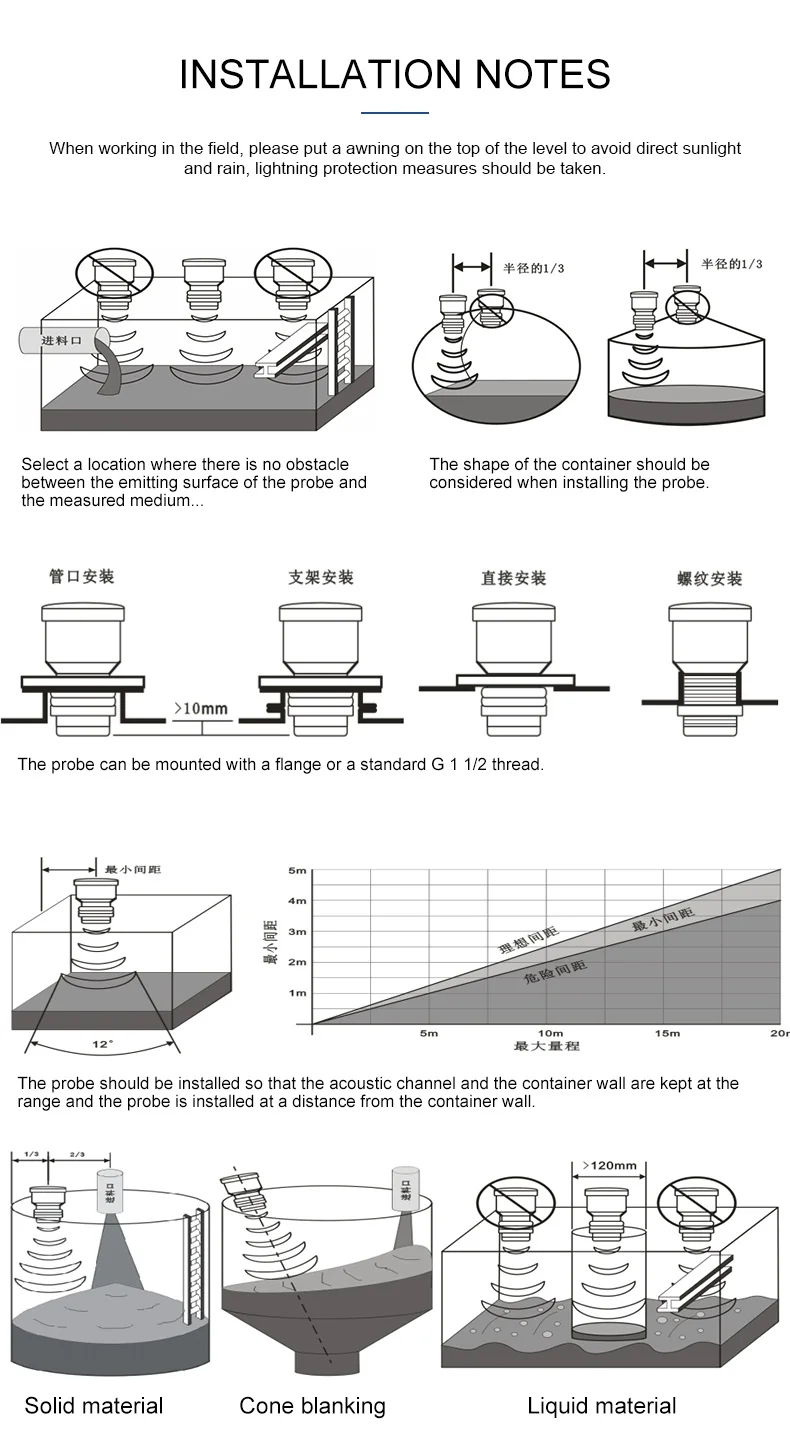

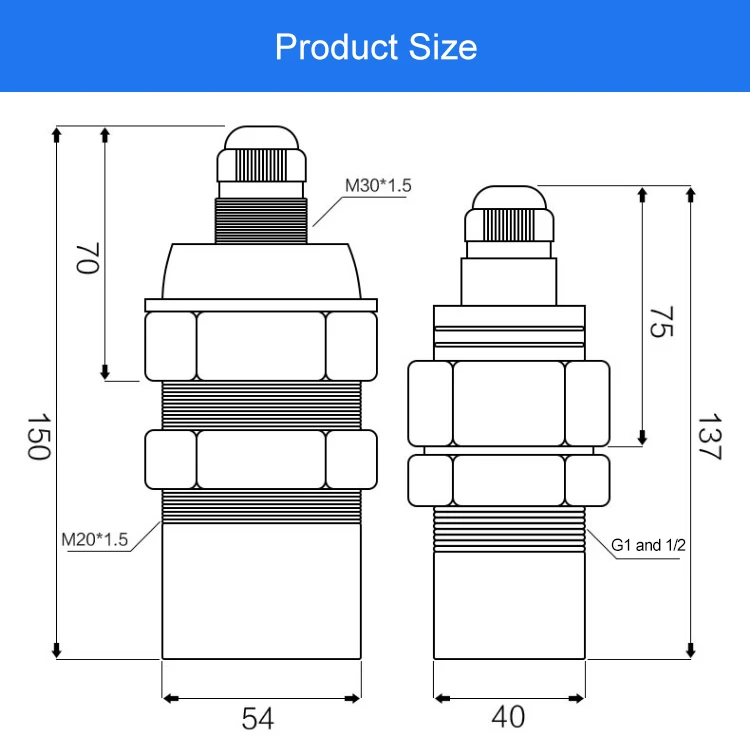

Installation method | Compact G1 and 1/2, enhanced M60*2 |
Package & ShipmentFAQQ: Are you trading company or manufacturer ?
A: We are a manufacturer, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: All of our products are completed with temperature compensation and 48 hours aging test before shipment. And all of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,CE we could send the certification test of our company to you.
Q: What is the warranty of your products?
A: 2 years for level transmitter and pressure transmitter series others are 5 years from shipment date, for non-man-made damages.
Q: What is your shipping method?
A: Small orders are delivered with DHL, FedEx, TNT, UPS ,EMS.Large orders are recommended to ship by sea.
Q: Do you provide samples ?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: How long will you give me the reply?
A: We can support you 24Hours online service via email, skype, what’sapp, facebook etc within 1 hour.
