Product Description

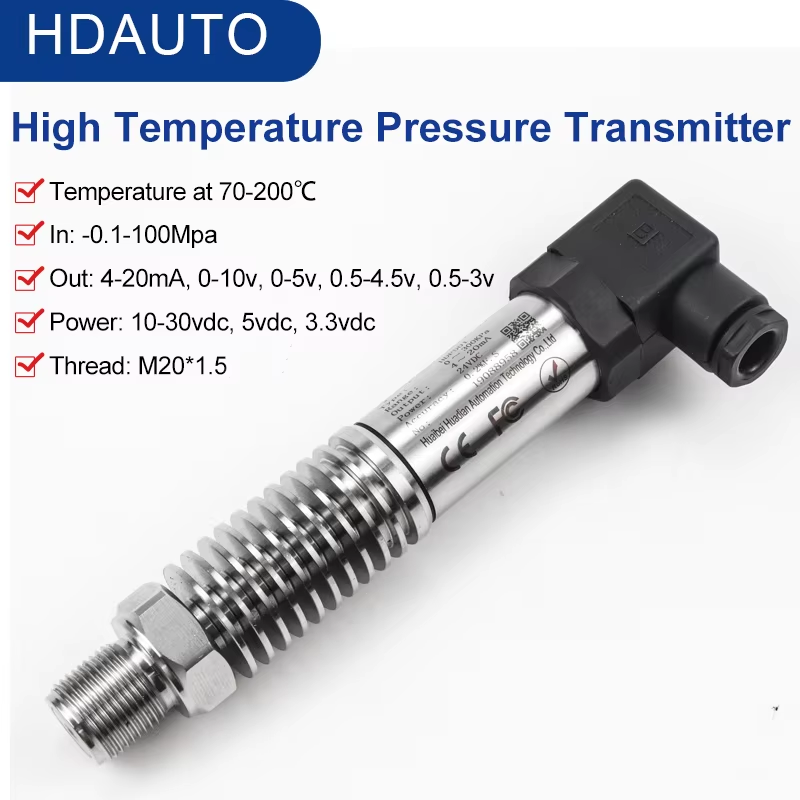

Steam Pressure Transducer 420mA High Temperature Pressure Sensor For Boiler Modbus Pressure Transmitter For Vapor
Steam Pressure Transducer 420mA High Temperature Pressure Sensor For Boiler Modbus Pressure Transmitter For VaporBrief description:
HDP 501 series High Temperature Pressure Transmitter adopts imported thermost ability sensing element, make the transmitter work stability under 200℃.And it welds with cool lasing technology, there are cooling ribs between the pressure sensor chips and amplifier electrical circuit, it avoids the heat conduction efficiently. pressure sensitive core adopt high performance silicon piezo resistive pressure filling core. The internal ASIC converts the sensor millivolt signal into standard voltage, current or frequency signal, which can be directly connected with computer interface card, control instrument, intelligent instrument or PLC. Current output modle can be used for distance transmission. It has small volume, light weight, all stainless steel sealing structure and can work incorrosive environment. The product is easy to installand has high anti-vibration and anti-impact performance. It is widely used in processes control, aviation, aerospace, automobile, medical equipment, HVAC and other fields.Selection Table:
If your temperature over 300°, then can add Heat sink. See picture below.1 circle can resist 50 degrees.
Mainly technical parameters:HDP501 | |
Power supply | 24VDC |
Output signal | 4~20mA,1~5V,0~10V,RS485 |
Measuring range | -0.1...0...100Mpa |
Compensation temperature | -10~70℃ |
Medium temperature | -40~300℃ |
Environment temperature | -40~85℃ |
Measuring media | Gaseous, Liquid, Water |
Pressure type | Gauge pressure, Absolute pressure |
Accuracy | 0.1%F.S, 0.25%F.S, 0.5%F.S (standard) |
Zero tempe drift | ±0.03%F.S/℃ |
Sensitivity temperature drift | ±0.03%F.S/℃ |
Overload | 200%F.S |
Long-term stability | ≤0.2%F.S/year |
Inherent frequency | 5kHz~650kHz |
Protection grade | IP65 |
High Temperature type High temperature digital display Type
Wiring diagram:
Real pictures share with you:
1.We guarantee you the lower pricing from us compared with your any competitive prices from others in volume.
2.We can guarantee you any quality issue from us will be refund you immediately or replace with new & qualified products.
3.OEM, Accept lower quantity trial order
4.Fast delivery.24 hours With Discount Courier, Air shipment
5.Contains a variety of industrial control products such as signal isolators, pressure and liquid level sensors, temperature, current, voltage, frequency and other transmitters.
All products are in stock (except for special customization).
6.We can support you 24Hours onlineservice via Alibaba, email, skype, what’sapp, facebook etc.
7.Long term warranty. Pressure and level transmitters are 2 years. The others in our shop are with 5 years warranty!!
Packaging & Shipping
Q: Are you trading company or manufacturer ?
A: We are a manufacturer, committed to producing high accuracy, long-term stability, cost-efficient pressure/ level/ temperature measuring instruments.
Q: What's your quality control system?
A: All of our products are completed with temperature compensation and 48 hours aging test before shipment. And all of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,CE we could send the certification test of our company to you.
Q: What is the warranty of your products?
A: 2 years for level transmitter and pressure transmitter series others are 5 years from shipment date, for non-man-made damages.
Q: What is your shipping method?
A: Small orders are delivered with DHL, FedEx, TNT, UPS , EMS. Large orders are recommended to ship by sea.
Q: Do you provide samples ?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: How long will you give me the reply?
A: We can support you 24Hours online service via email, skype, what’sapp, facebook etc within 1 hour.
