Product Description
SGQ-150 30W UHF DUPLEXER 136~180MHz Frequency Range VSWR≤1.3
SGQ-150 30W UHF DUPLEXER 136~180MHz Frequency Range VSWR≤1.3Type | MY-150-SGQ-30(SGQ-150) | ||
Frequency Range | 136~180MHz | ||
VSWR | ≤1.3 | ||
Bandwidth(KHz)) | ±150 | ±150 | ±100 |
Frequency Spacing(MHz) | 15 | 5.7 | 3.8-3.5 |
Insertion Loss | ≤1.2dB | ≤1dB | ≤1.2dB |

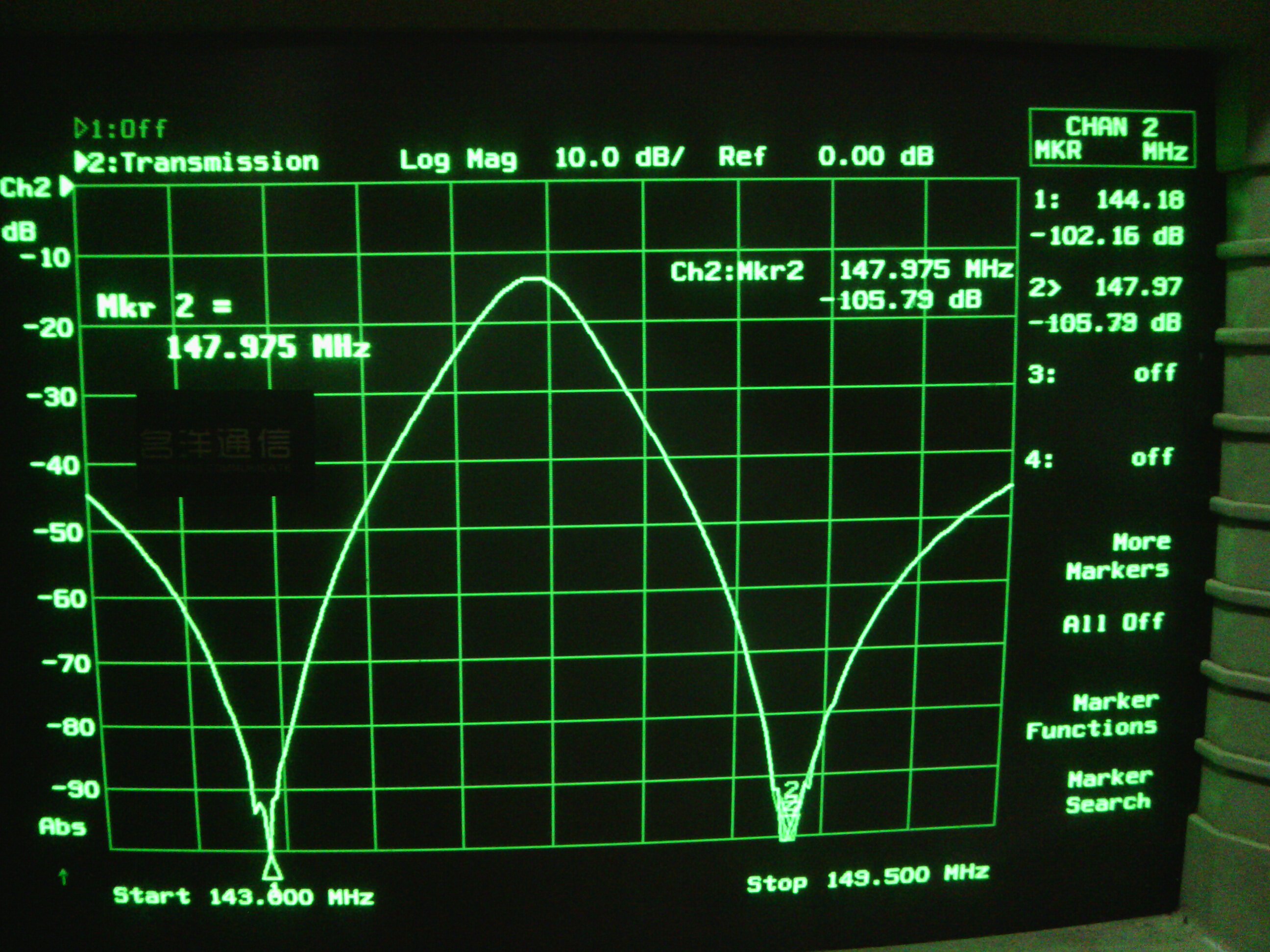

Isolation | Working bandwidth≥75dB,Single frequency point≥90dB | ||
Maximum Input Power | 30W | ||
Normal Impedance | 50Ω | ||
Connector | N-F/BNC-F（Default N-type connector） | ||
Operating Temperature | -20℃~+50℃ | ||
Weight(kg) | 1.2kg | ||
Dimensions（mm) | 215（With connector）×154×32 |

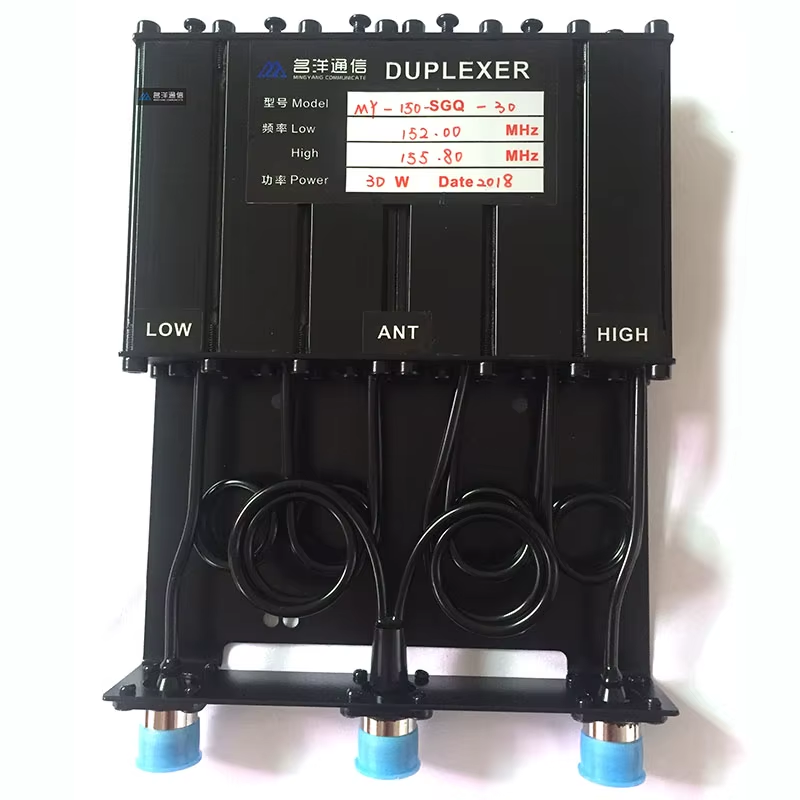

Connection description: The duplex bidirectional performance of our shop is very good, so it does not matter whether it is high-transmission, low-reception or low-transmission and high-reception (upper or lower). Duplex only marked LOW (low-end) port and HIGH (high-end) port, such as duplex marked LOW: 144.15MHz and HIGH: 147.95MHz, the relay wants high transmission and low reception (147.95 transmission, 144.15 reception), then the relay TX Connect the HIGH port of the duplex, the RX port of the relay connects to the LOW port of the duplexer, if low transmission and high reception (144.15 transmission, 147.95 reception), then the TX of the transmitter is connected to the LOW port of the duplex, and the RX port of the receiver is connected HIGH port of the duplexer. Generally, amateur relays have high transmission and low reception. For example, the relay can send and receive wherever there is no electromagnetic interference. If it is not, please choose the best one. The mute setting has nothing to do with duplex.
