Product Description

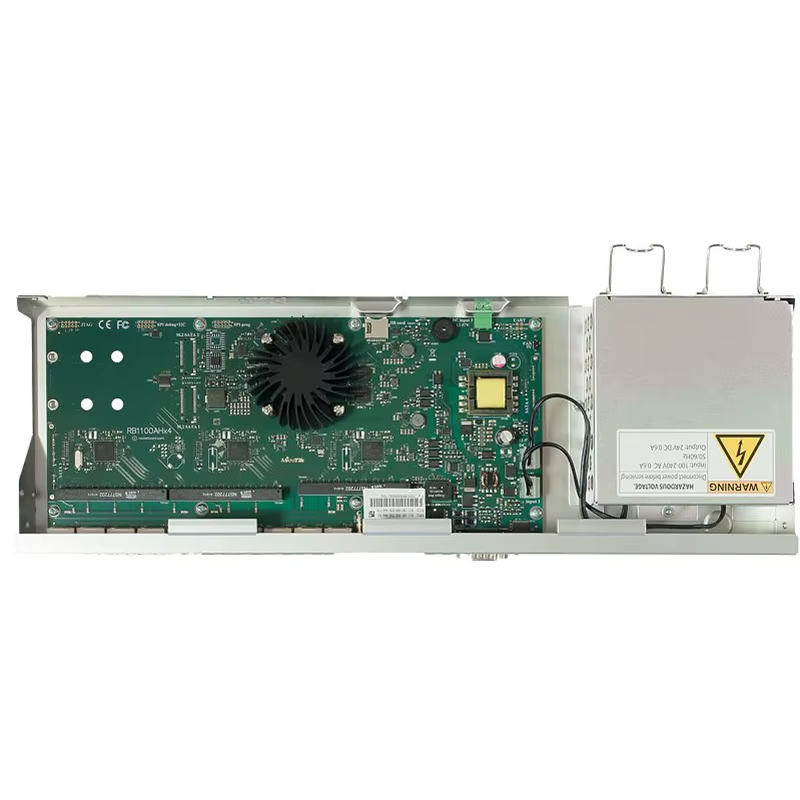

MikroTik RB1100AHx4 13-port Gigabit ROS quad-core router switch
MikroTik RB1100AHx4 13-port Gigabit ROS quad-core router switchDetails | |
Product code | RB1100x4 |
CPU | AL21400-1400-A0-E-1AN-8-C |
CPU core count | 4 |
CPU nominal frequency | 1.4 GHz |
CPU Threads count | 4 |
Dimensions | 444 x 148 x 47 mm |
License level | 6 |
Operating System | RouterOS |
Size of RAM | 1 GB |
Storage size | 128 MB |
Storage type | NAND |
Powering
Details | |
Max Power consumption | 20W |
Number of DC inputs | 2 (PoE-IN, 2-pin terminal) |
PoE in | 802.3af/at |
PoE in input Voltage | 20-57 V |
2-pin terminal input Voltage | -48, 12-57 V |
Number of AC inputs | 2 |
AC input range | 100-240 V |
Ethernet
Details | |
10/100/1000 Ethernet ports | 13 |
Peripherals
Details | |
Serial port | RS232 |
Other
Details | |
Current Monitor | Yes |
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
Ethernet test results
RB1100x4 | AL21400 1G all port test | ||||||
Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
Bridging | none (fast path) | 606.5 | 7,365.3 | 1,736.4 | 7,112.3 | 5,509.7 | 2,821.0 |
Bridging | 25 bridge filter rules | 606.5 | 7,365.3 | 1,107.8 | 4,537.5 | 1,153.2 | 590.4 |
Routing | none (fast path) | 606.5 | 7,365.3 | 1,736.4 | 7,112.3 | 5092.3 | 2,607.3 |
Routing | 25 simple queues | 606.5 | 7,365.3 | 933.6 | 3,824.0 | 960.3 | 491.7 |
Routing | 25 ip filter rules | 543.7 | 6,602.7 | 561.8 | 2,301.1 | 564.6 | 289.1 |
All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
IPsec test results
RB1100x4 | RB1100AHx4 IPsec throughput | ||||||
Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
Single tunnel | AES-128-CBC + SHA1 | 122.0 | 1366.4 | 124.9 | 511.6 | 127.0 | 65.0 |
256 tunnels | AES-128-CBC + SHA1 | 192.7 | 2158.2 | 200.5 | 821.2 | 203.4 | 104.1 |
256 tunnels | AES-128-CBC + SHA256 | 192.4 | 2154.9 | 200.5 | 821.2 | 203.4 | 104.1 |
256 tunnels | AES-256-CBC + SHA1 | 180.0 | 2016.0 | 188.2 | 770.9 | 190.3 | 97.4 |
256 tunnels | AES-256-CBC + SHA256 | 180.0 | 2016.0 | 188.2 | 770.9 | 190.3 | 97.4 |
256 tunnels | AES-128-GCM | 192.7 | 2158.2 | 202.2 | 828.2 | 203.4 | 104.1 |
All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
