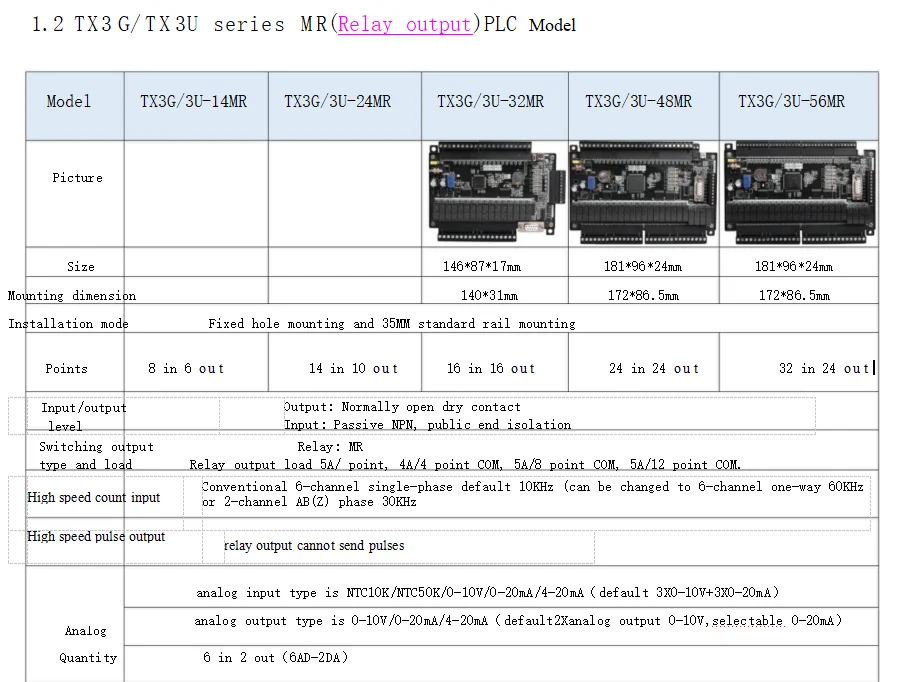

PLC Programmable controller TX3G-56MR 32 in 24 out Relay output 6AD 2DA with RS2

Product Description

1.1PTLTX3GseriesPLCmain advantages and disadvantages are as follows

◆Host computer programming software compatible with GX Developer8.86/GX Works2, support ladder diagram and SFC language, (not supportedStructured programming, tags are not supported）.

◆Super functional. Compatible with Mitsubishi FX3G/FX3U/FX3S series PLC, running fast.

◆It adopts military-grade 32-bit CPU, which is fast and more suitable for industrial environment with high electromagnetic interference.

◆Special encryption function, completely prevent illegal reading. 8-bit encryption, ogin key set to 12345678, can completely close the function of the ladder reading program, thus protecting the user's program.

◆PLC supports RTC and uses rechargeable batteries.

◆It comes with 3 PLC programming ports, TX3G series PLC comes with 1XType C port, faster download speed; 1XRS232 programming port, the interface terminal is standard DB9 232 port; 1X485 port.

◆Optional communication port, support Mitsubishi programming port protocol /MODBUS protocol /RS protocol /BD board protocol, easy to achieve PLC interconnection and communication with human-machine interface and frequency converter and other external equipment. T X 3G series PLC CAN optionally install 1 CAN port or 1 network port

◆The high-speed pulse output is normal 8 channels, Y0~Y3 each channel 100KHz, Y4~Y7 each channel 10K Hz. (The TX3G-14MT high-speed pulse is 2 channels 100 KHz; TX3G-24MT high speed pulse is 4 channels 100 KHz);

◆High-speed counting conventional single-phase 6 channels 60KHz or AB(Z) phase 2 channels 30KHz + AB phase 1 channel 5KHz;

◆Support multiple types of analog input and output alone or mixed, analog input and output accuracy 12 bits. Optional temperature/current/voltage input for analog input, optional voltage/current output for analog output. TX3G series PLC up to 8 in 4 out; TX3G CAN add communication port/analog expansion, up to 2 RS485, 1 CAN port, 6 in and 4 out analog; Or 1 RS485, 1 CAN port, 8 in and 4 out analog capacity; Or 8 in 6 out analog.

◆TX3G series PLC switch quantity up to 40 in 40 out; Switching output Optional relay/transistor/relay and transistor mixed outputs.

◆Easy connection, using pluggable terminals. TX3G series PLC terminal all use 3.81mm and 5.08mm spacing pluggable terminals;

◆Easy to install. Can be mounted with DIN rail (35mm wide) and fixed hole.
