Product Description

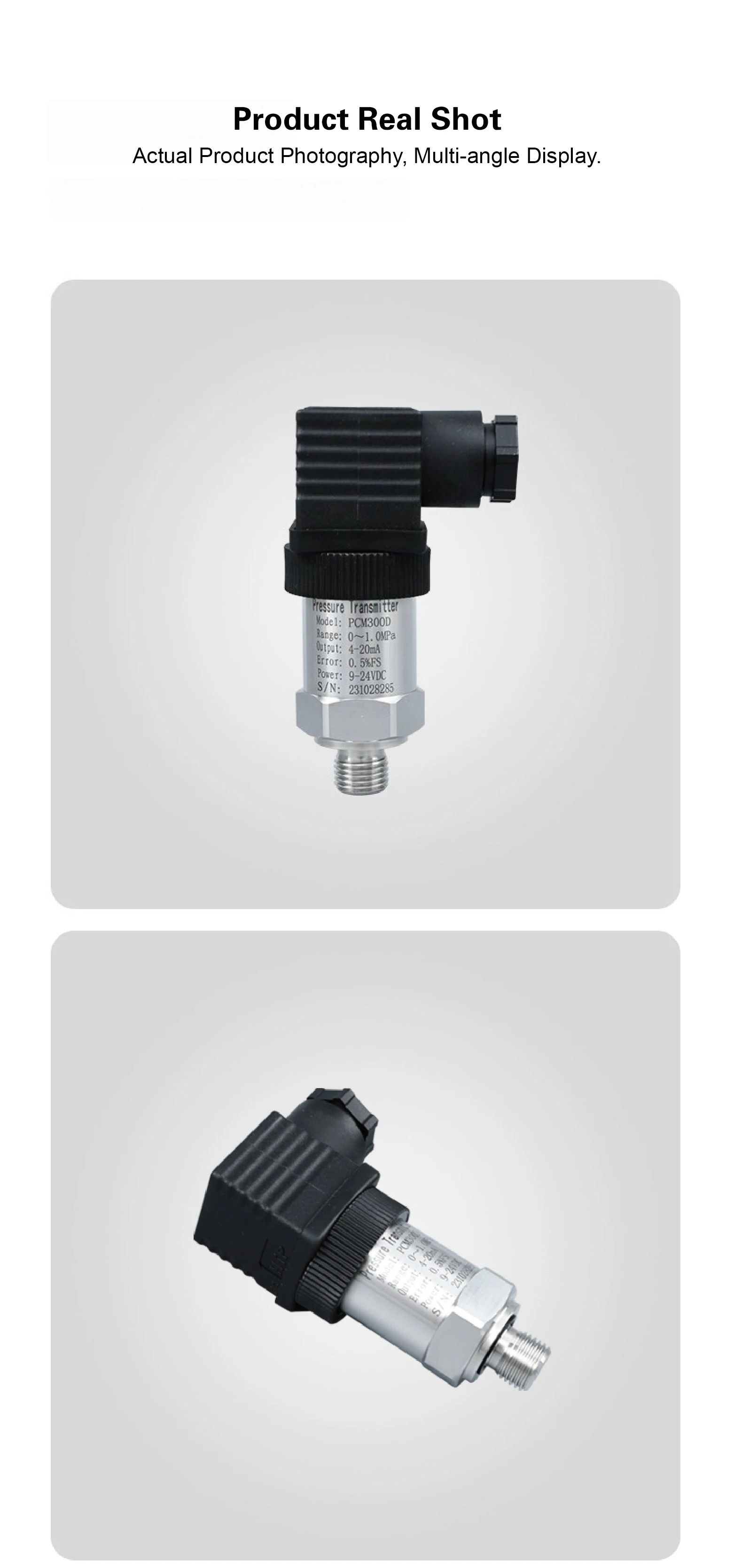

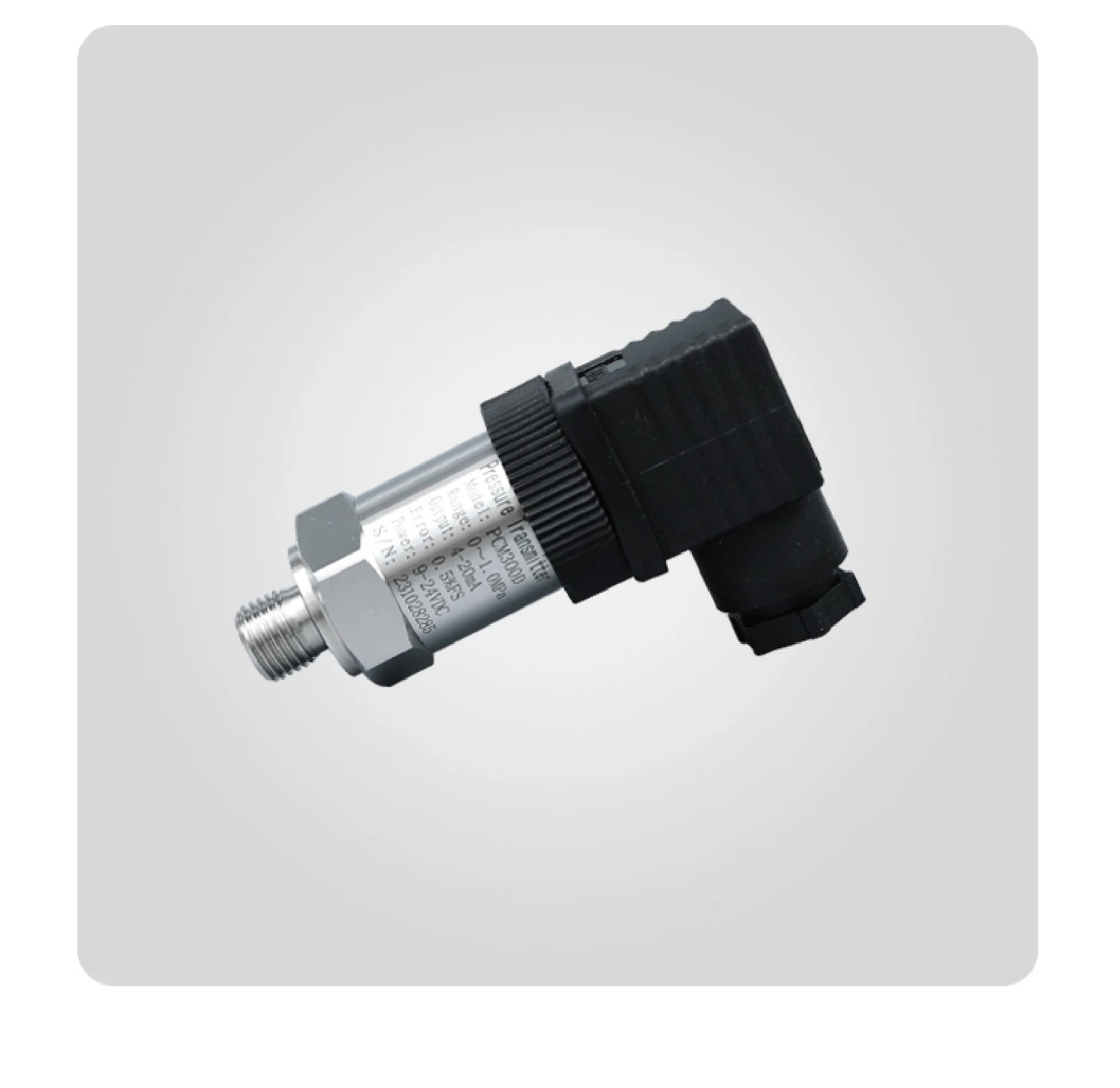

PCM300D Low Power Pressure Transmitter Water Tank Liquid Level Sensor I2C IP65 3.6V 5VDC Industrial Automation
PCM300D Low Power Pressure Transmitter Water Tank Liquid Level Sensor I2C IP65 3.6V 5VDC Industrial Automation1.NOTE:
Configuration and Customization
Default Configuration
Pressure Type: Gauge pressure, standard configuration
Output Signal: 0.5–2.5V
Power Supply: 3.6V lithium battery
Accuracy: ±0.5%FS
Thread: G1/4
Protection Rating: IP65
Optional Configurations
Pressure Type: Absolute pressure
Output Signal: 0.5–2.5V
Higher Accuracy: 0.2%FS or 0.1%FS

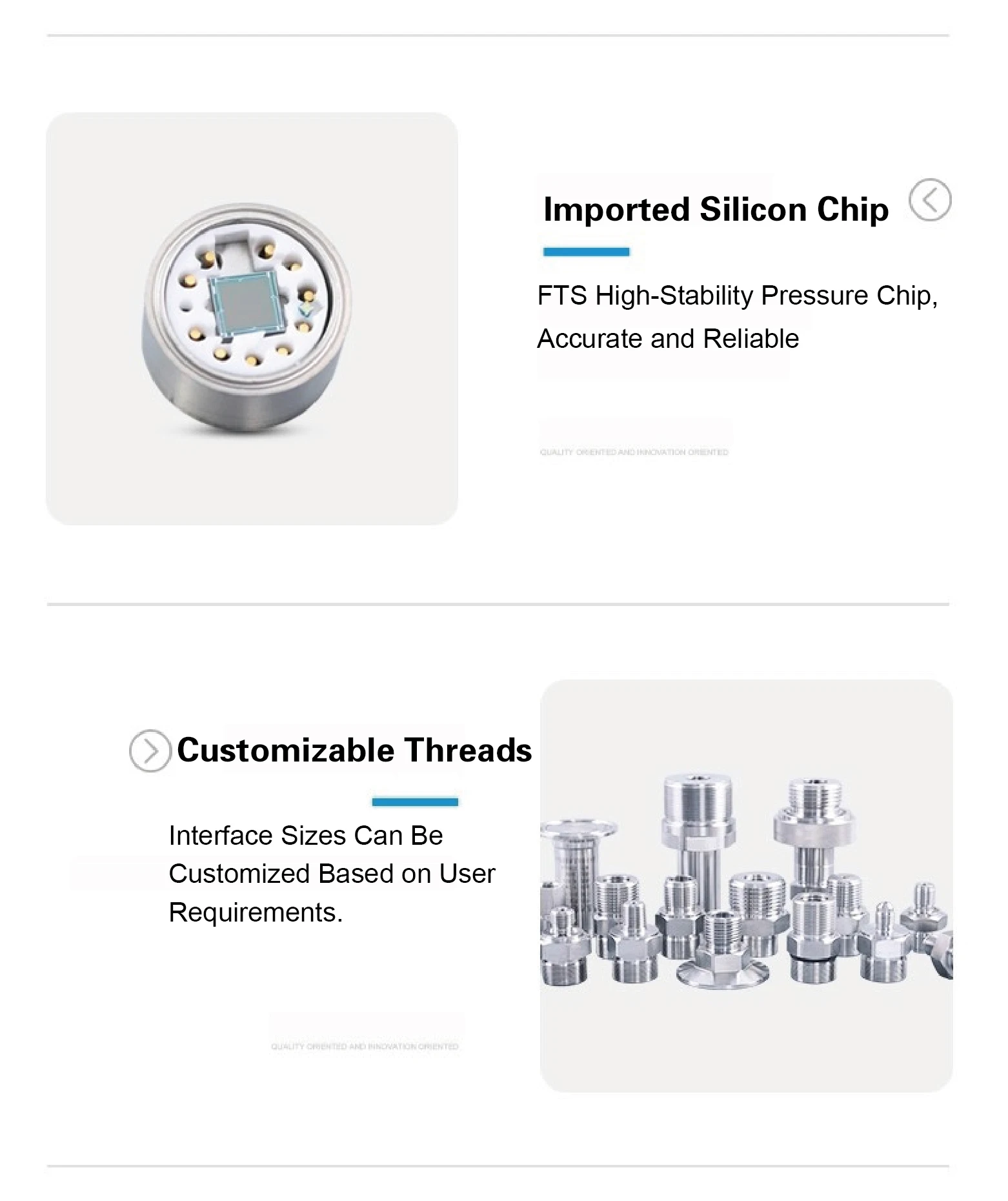

Custom Threads: G1/2, M20×1.5, M14×1.5
For special requirements or customized specifications, please contact us.

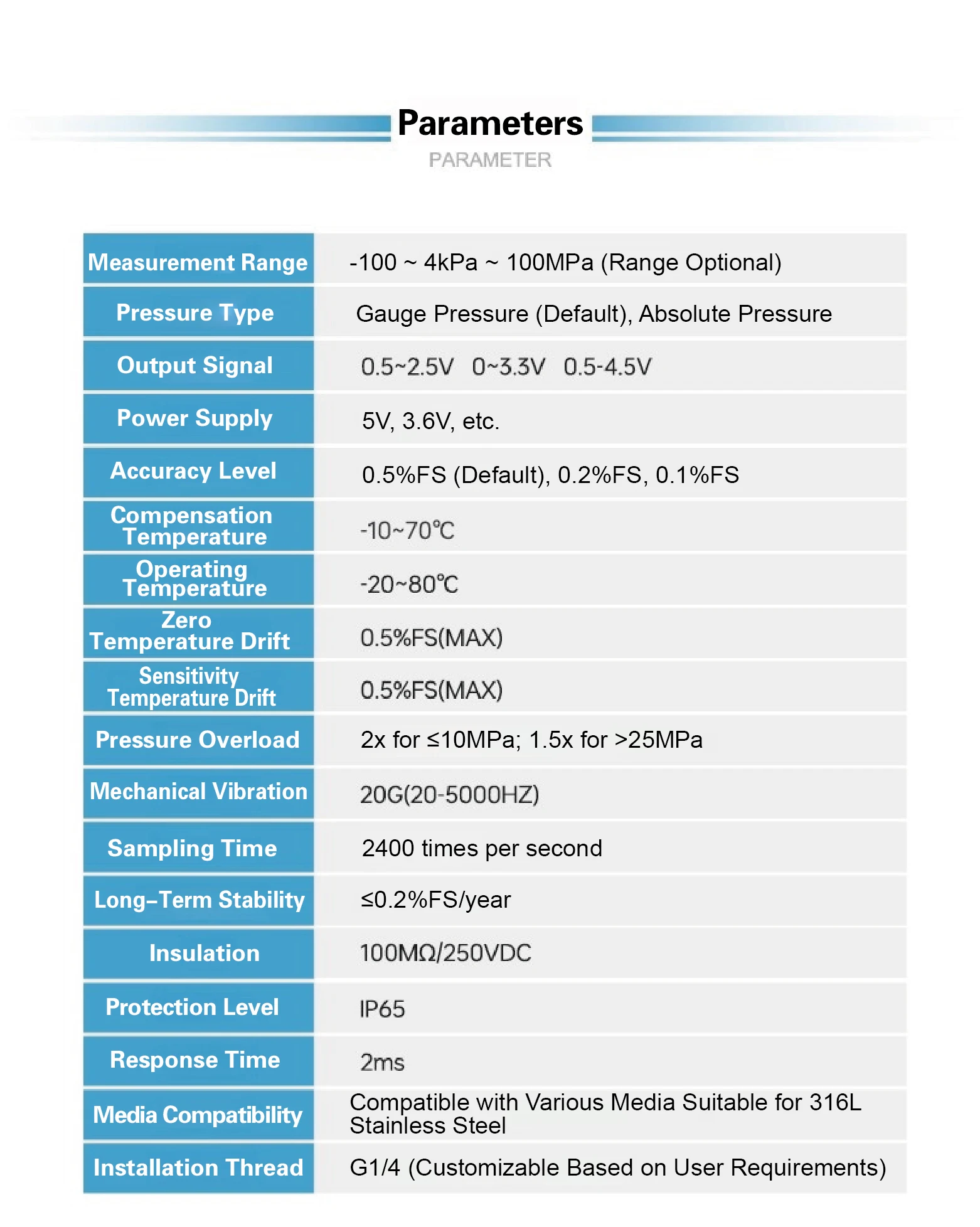

2. Parameters
Parameter | Specification |
Measuring Range | -100～4kPa to 100MPa (selectable) |
Pressure Type | Gauge (default), Absolute |
Output Signal | 0.5–2.5V |
Power Supply | 3.6V lithium battery |
Accuracy Grade | 0.5%FS (default), optional: 0.2%, 0.1%FS |
Compensation Temp. | -10°C to 70°C |
Operating Temp. | -20°C to 80°C |
Zero Temp Drift | Max 0.5%FS |
Sensitivity Temp Drift | Max 0.5%FS |
Overload Pressure | 2× ≤10MPa, 1.5× >25MPa |
Vibration Resistance | 20G (20–5000Hz) |
Sampling Rate | 2400 times/sec |
Long-Term Stability | ≤0.2%FS/year |
Insulation Resistance | 100MΩ @ 250VDC |
IP Rating | IP65 |
Response Time | 2ms |
Media Compatibility | Fluids compatible with 316L stainless steel |
Thread Mount | G1/4 (customizable: G1/2, M20x1.5, etc.) |
3. Features
Low Power Consumption
Powered by a 3.6V lithium battery, ensuring efficient and stable operation with reduced energy use.
Wide Measuring Range
Suitable for a wide range of applications, from micro-pressure measurement to high-pressure environments.
Customizable Output Options
Standard output is 0.5–5V. Other signal output ranges can be customized upon request.
Rugged and Reliable Design
Built with a durable structure and IP65 protection, making it suitable for demanding industrial applications.
Easy Installation
Compact design with multiple thread options for fast installation and easy system integration.
4. Applications

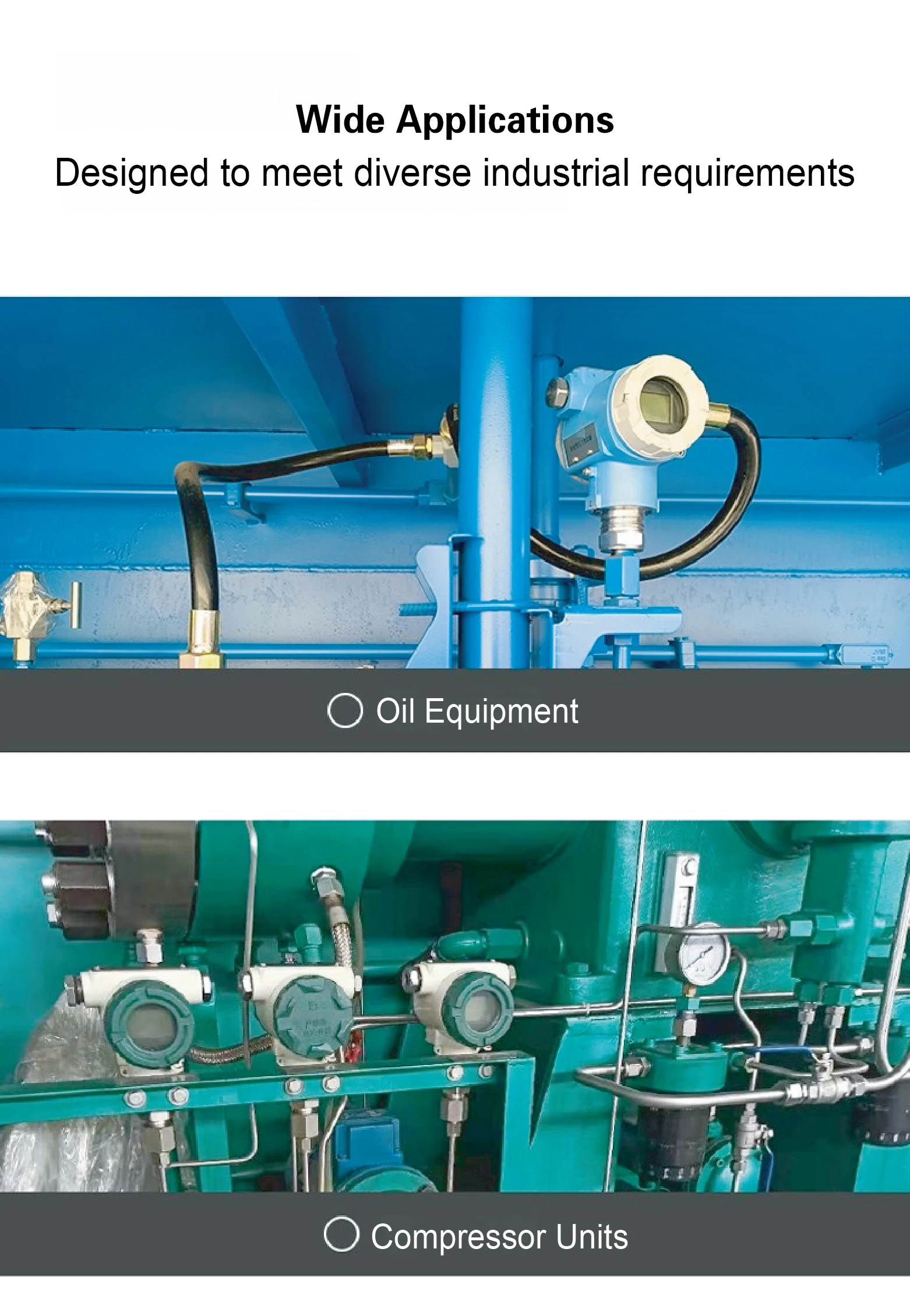

Oilfield and petroleum equipment monitoring
Compressor and pump station system monitoring

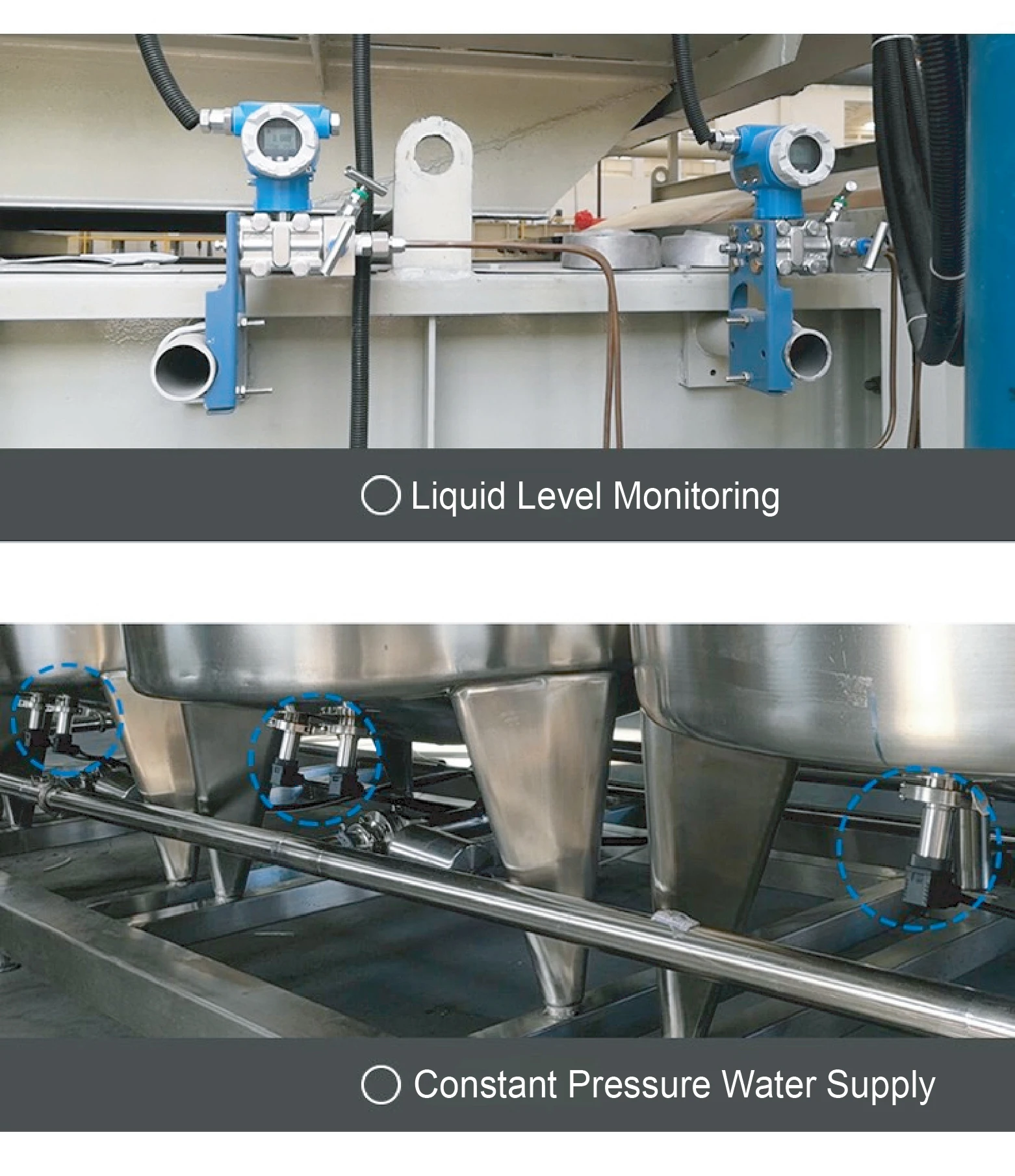

Liquid level control and monitoring
Constant pressure water supply systems
5. FAQs
Q1: Can the output signal be customized?
A: Yes. The standard output range is 0.5–5V. Optional output ranges such as 0.5–2.5V, 0–3.3V, and 0.5–4.5V are also available to match different system requirements.
Q2: How should the transmitter be installed correctly?
A: Tighten the transmitter by applying a wrench to the hexagonal body. Do not touch the isolation diaphragm. Make sure the thread is properly sealed to prevent pressure leakage.
