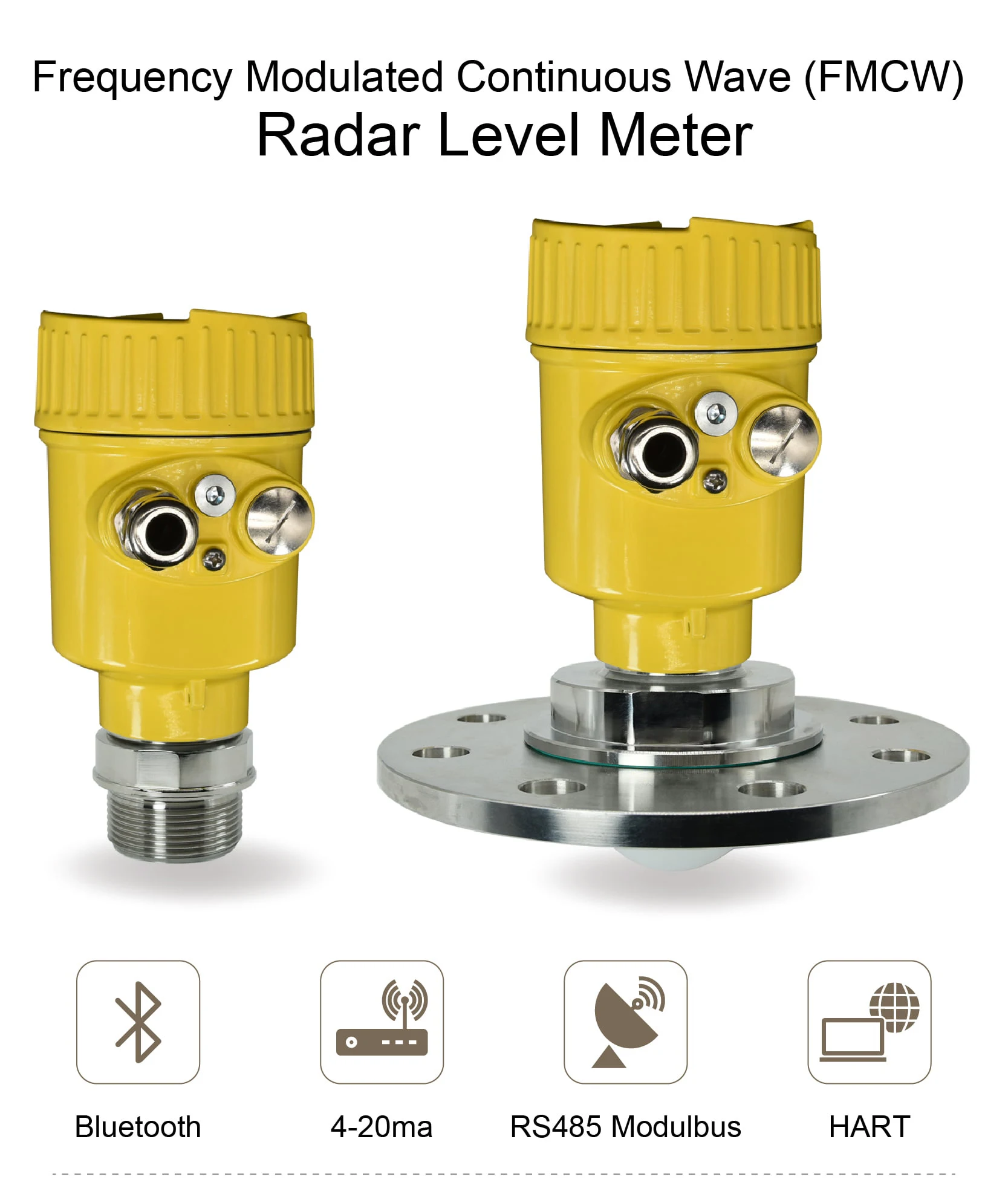

Non Contact Radar Level Meter for Water Tank Chemical Tank 80GHz Radar Level Tra

Product Description

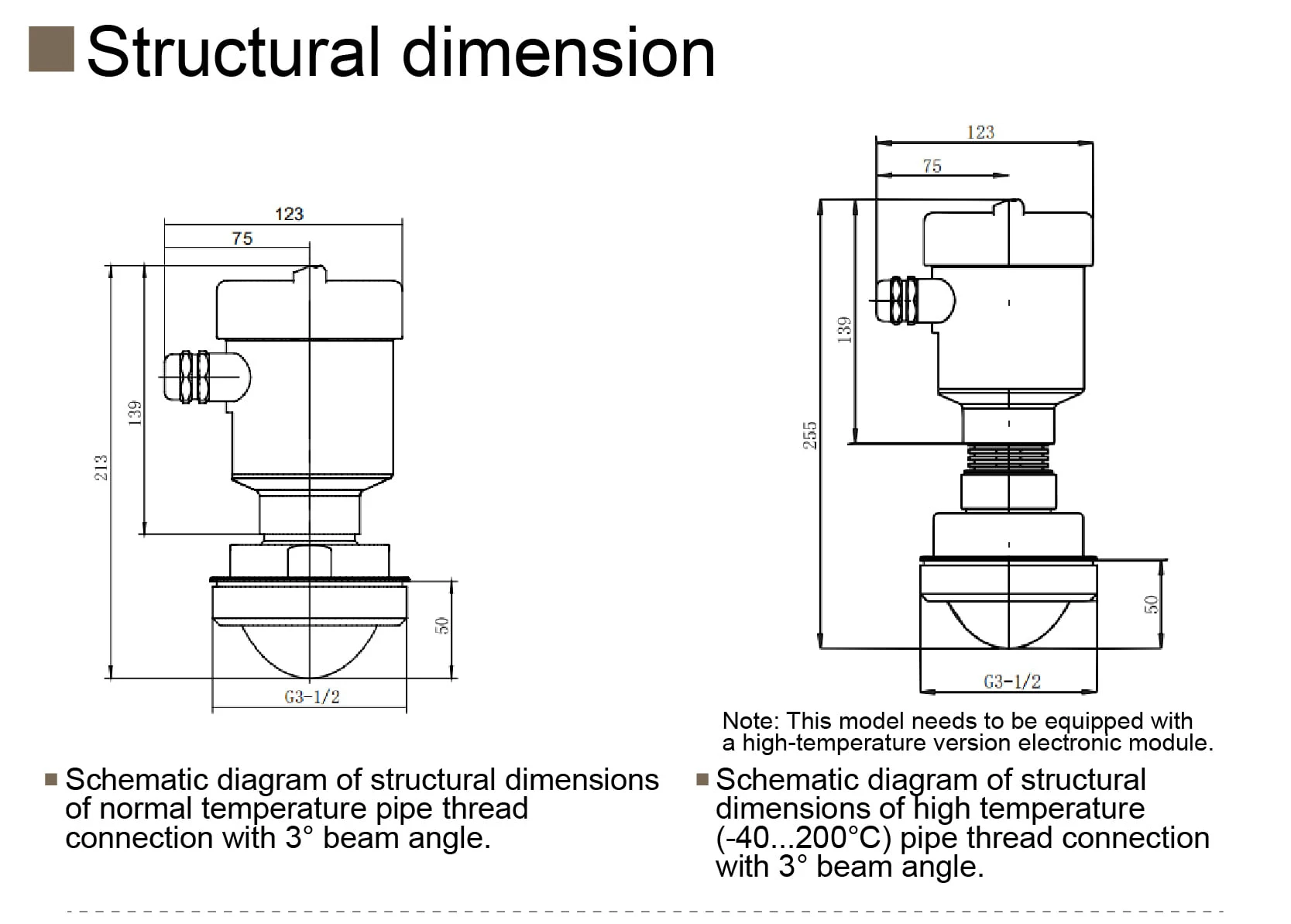

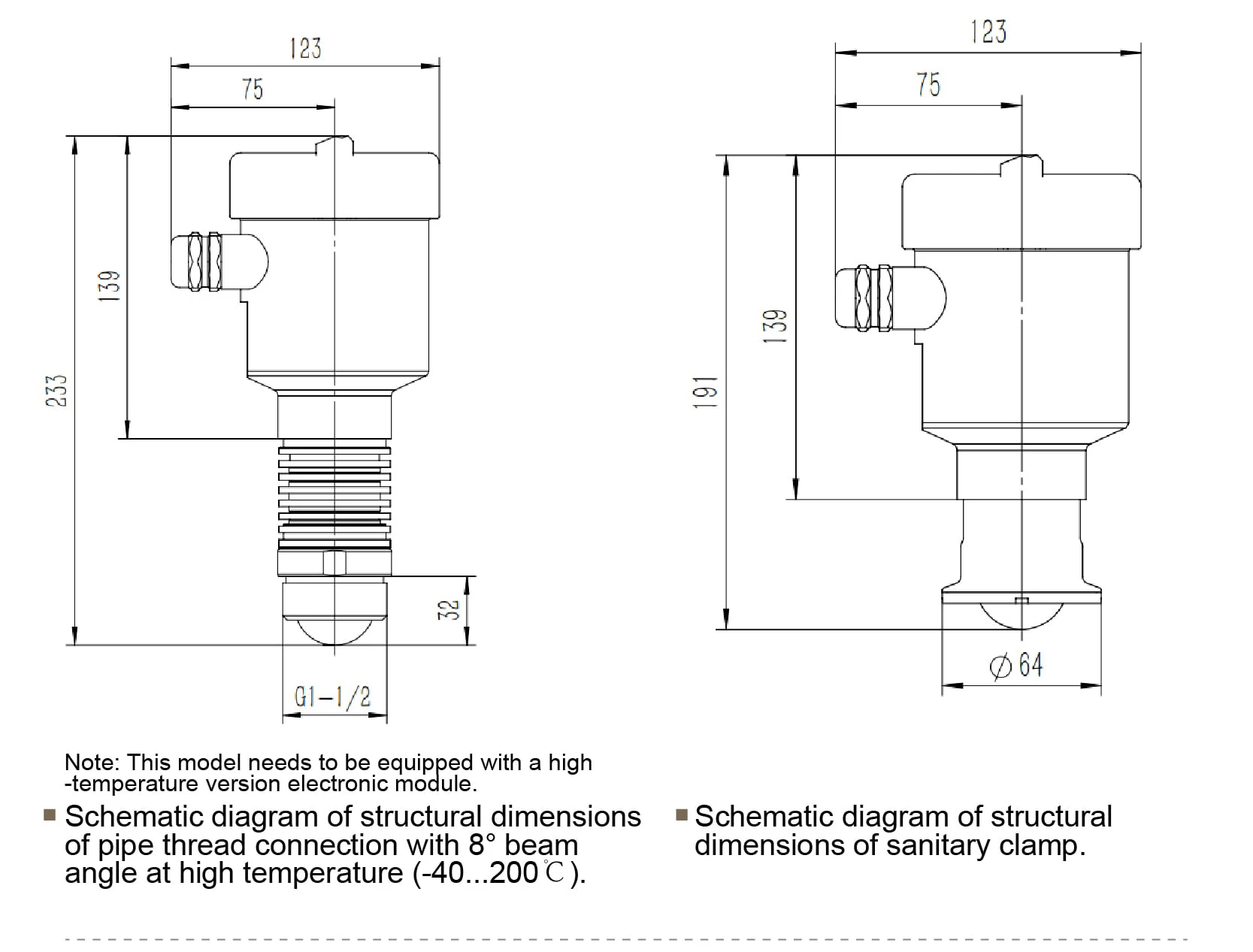

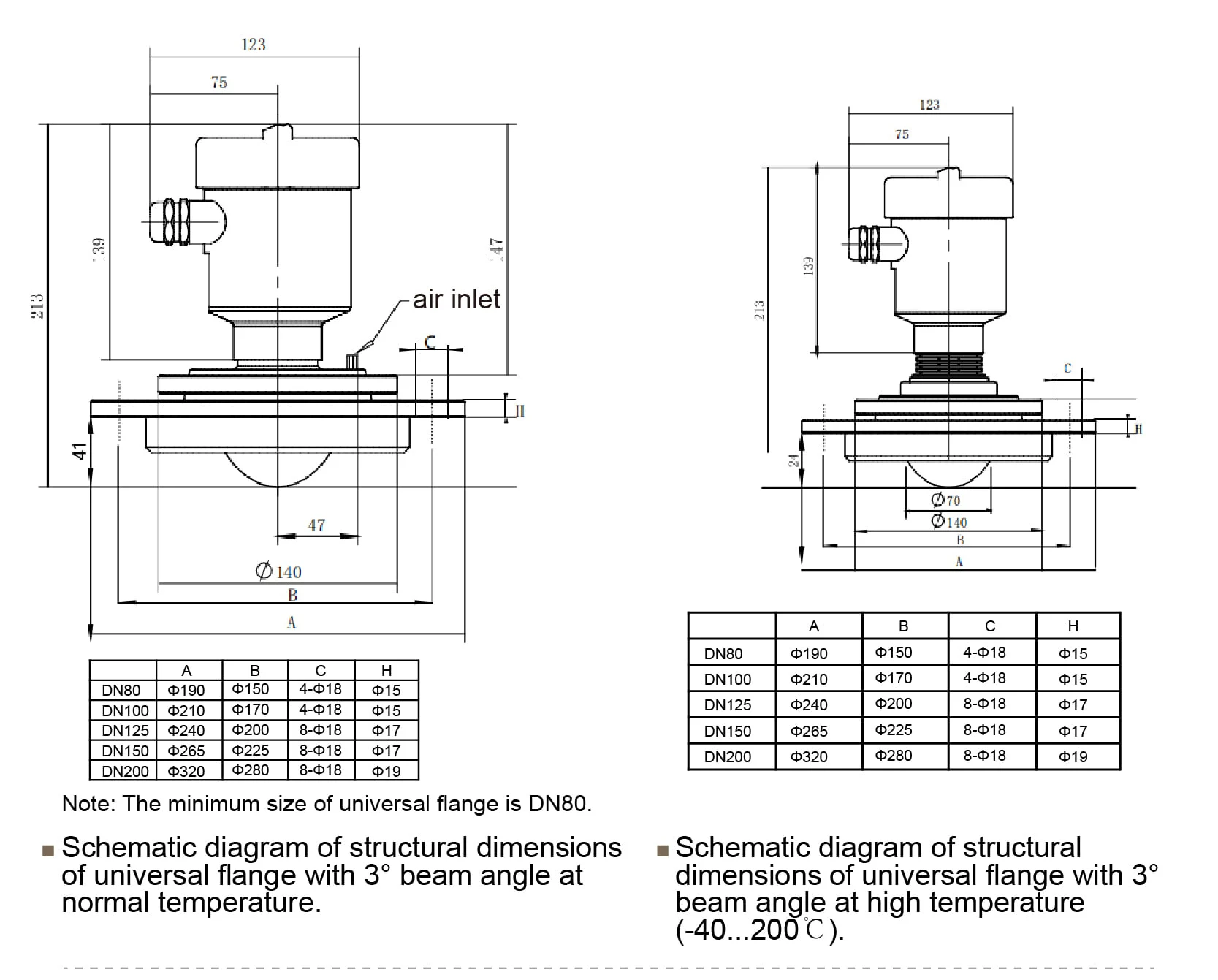

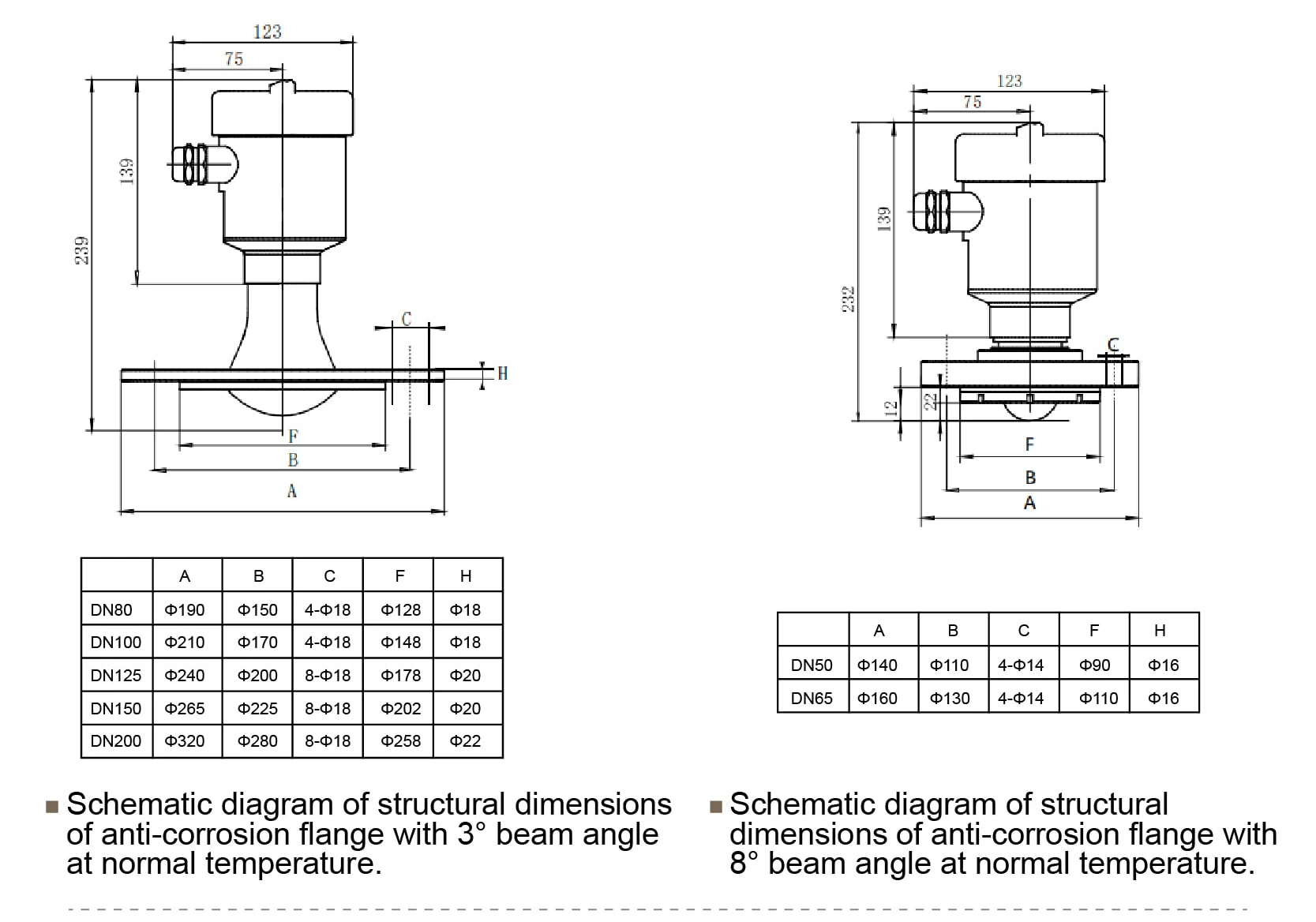

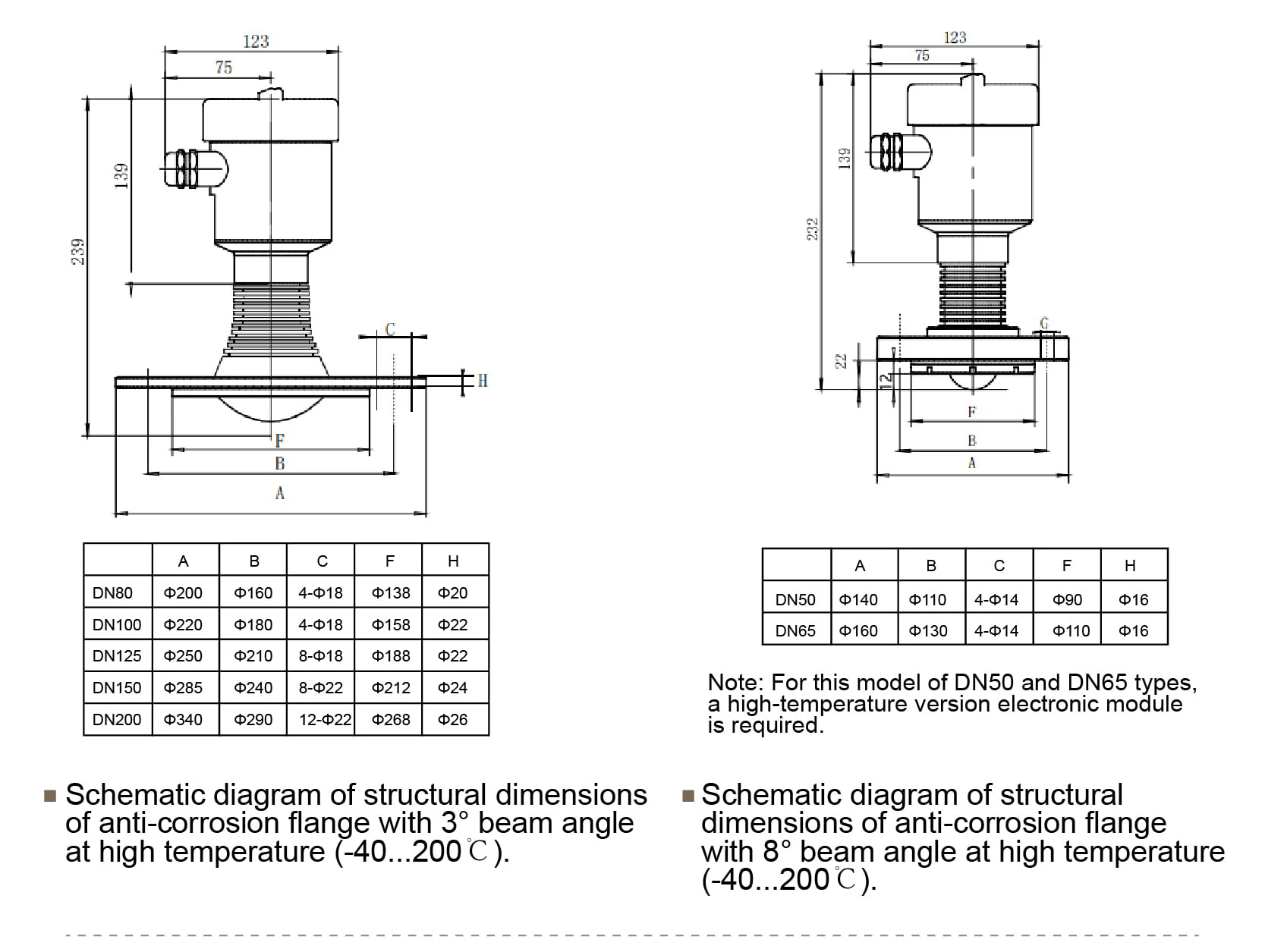

The default flange connection standard is DIN/EN1092-1-2018 (German/European standard). Please refer to the dimension chart on the product details page for specific flange sizes.

If you require customized flanges in other standards such as ANSI/ASME (American standard), JIS (Japanese standard), BS (British standard), or GOST (Russian standard), please contact us.

1.NOTE

Default Configuration

Application:Suitable for liquid level and water level measurement.

Measuring Range:0–35 m

Please leave the required measuring range in your order notes, such as 0–5 m, 0–10 m, or any custom range within 35 m.
If no range is specified, the default 0–35 m configuration will be provided.

Accuracy:±1 mm

Power Supply:15–28 VDC

AC220V power supply can also be customized upon request.

Operating Temperature:-40°C to 85°C

Installation Type:Flange mounting

Available flange sizes:DN50, DN65, DN80, DN100, DN125

Signal Output:4–20 mA + HART

Pressure Resistance:1.6 MPa

Customizable Options

Extended operating temperature:-40°C to 600°C

Optional power supply:DC12V or AC220V

Optional flange sizes:DN50, DN80, DN100, and other customized sizes

Enhanced pressure resistance:Up to 2.0 MPa

Extended measuring range:Up to 0–120 m

Additional communication protocols:RS485 Modbus, Bluetooth, and other communication options available

As a professional industrial instrument supplier, we offer reliable customization support, stable product quality, and competitive pricing.
If your project requires different specifications or special parameters, please feel free to contact us at any time. We can provide a customized solution based on your application requirements.

2.Parameters

3.Features

High Precision with Low Interference

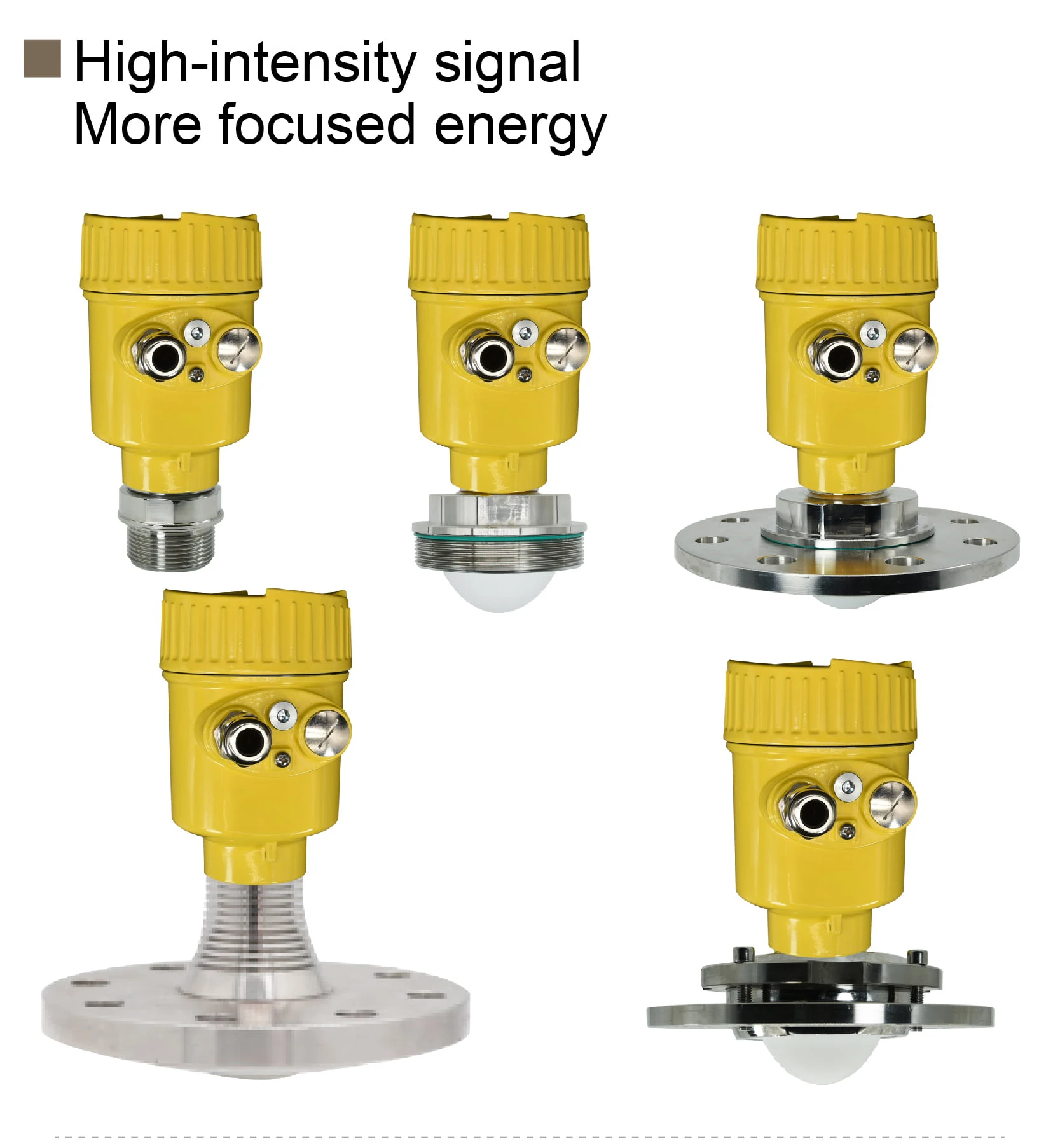

The narrow 3° beam angle delivers highly focused energy, helping reduce signal interference and ensuring more accurate and reliable echo detection.

Excellent Performance in Complex Conditions

Suitable for liquid level measurement in water, chemicals, slurry, and other media. It maintains stable performance in challenging conditions such as high temperature, steam, and foam.

Advanced 80GHz Radar Technology

Built with a high-frequency 80GHz radar chip, offering a smaller blind zone, faster response, and higher measurement resolution.

Flexible Installation Options

Supports threaded, flange, and corrosion-resistant mounting options to meet different installation needs and industrial application requirements.

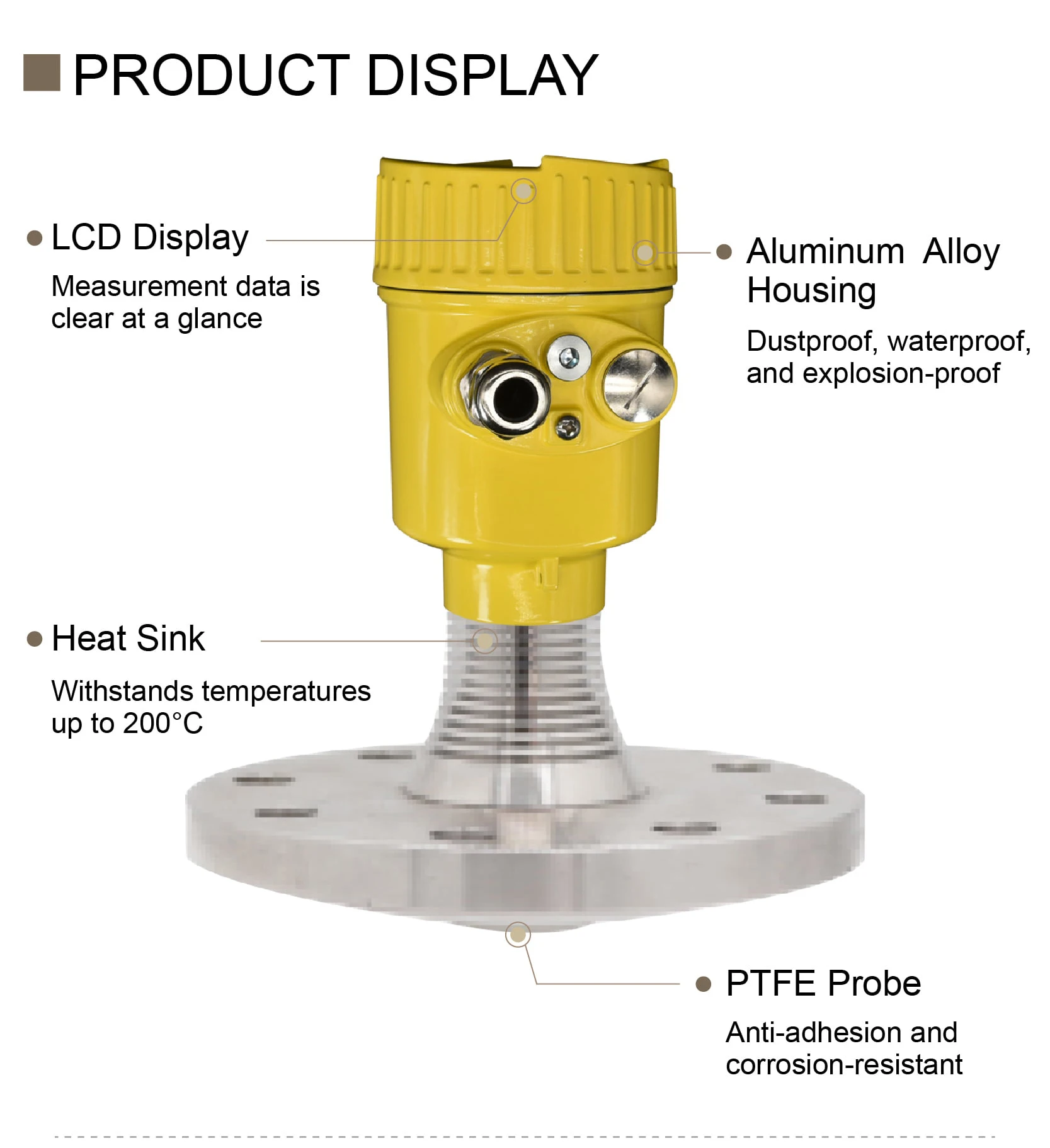

Durable and Reliable Structure

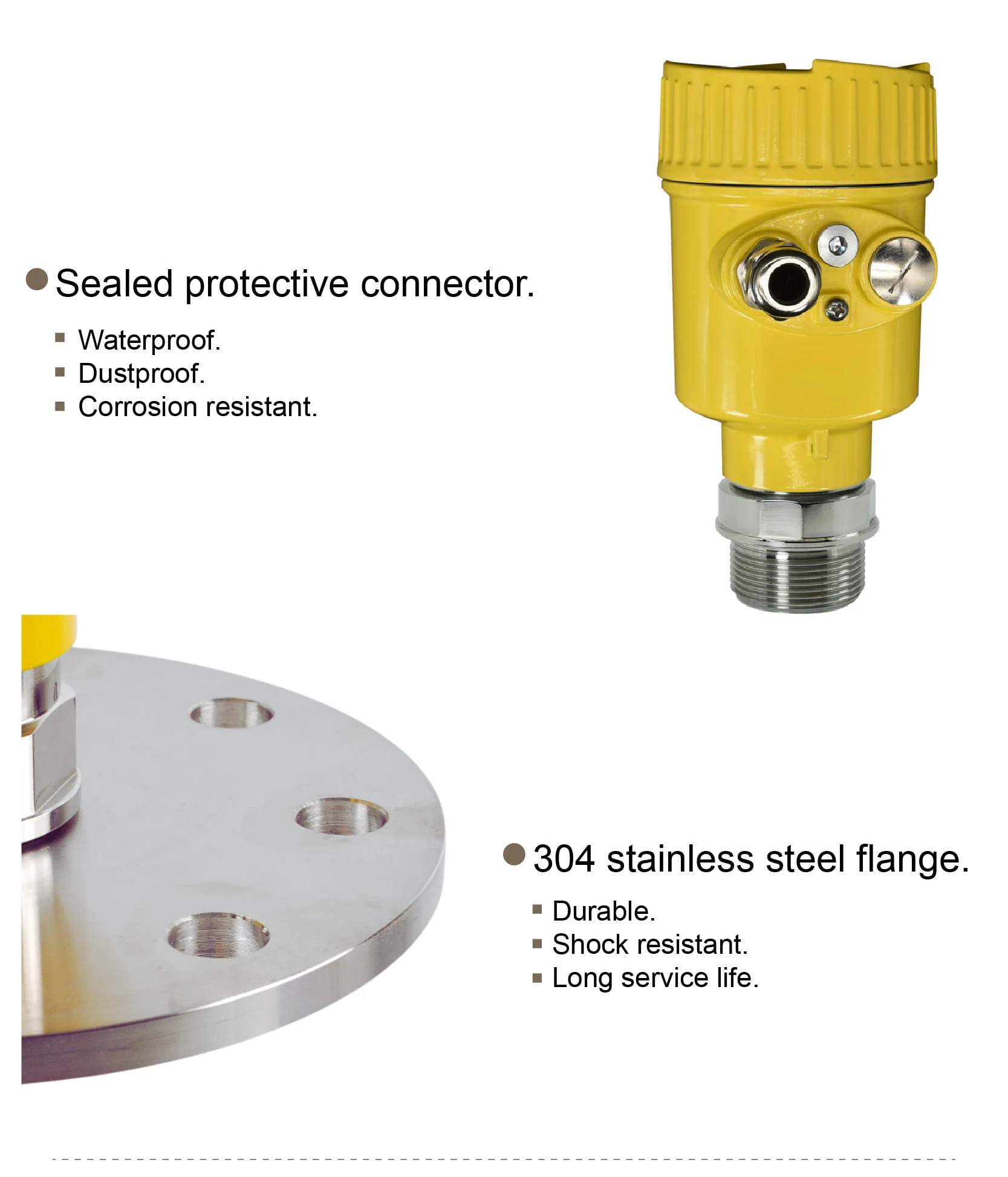

Made with high-quality aluminum alloy or stainless steel housing, and designed with IP65 protection for stable operation in harsh industrial environments.

4.Applications

Suitable for measuring liquid, water, and solid levels in a wide range of industrial applications, including harsh environments with high temperature, high pressure, or other demanding operating conditions.

Especially ideal for highly corrosive media or media with heavy foam. It is widely used in chemical storage tanks, wastewater treatment systems, hydrological monitoring, and other challenging measurement applications.

5.FAQs

Q: Can this radar level transmitter operate in high-temperature environments?
A: Yes. Selected models are engineered to handle temperatures up to 600°C, making them ideal for high-temperature and demanding industrial applications.

Q: What signal output options are available?
A: The transmitter supports a wide range of output and communication options, including 4–20mA, RS485, MODBUS, HART, and Bluetooth, ensuring flexible system integration.

Q: Is it suitable for corrosive chemical applications?
A: Yes. Corrosion-resistant antenna options are available, allowing reliable operation in corrosive chemical environments and other harsh industrial conditions.
