Product Description
Intelligent Automatic Drain Valve Air Compressor Condensate Drain Valve KG316T LCD Timer Solenoid Valve AC220V 16 Programs
Intelligent Automatic Drain Valve Air Compressor Condensate Drain Valve KG316T LCD Timer Solenoid Valve AC220V 16 Programs1.Important Notice
The timer is not waterproof. Do not install it outdoors or in high-humidity environments.
Valve Specifications
Pressure resistance: up to 8 kg
Operating temperature: -5°C to 80°C
The coil is waterproof and suitable for outdoor use.
Recommended continuous power-on time: within 1 hour
Frequent on/off switching is not recommended.
The valve must be installed horizontally, with the coil facing upward.
The medium should be clean. If impurities are present, please install a filter before the valve.
This is a one-way solenoid valve. If reverse pressure exists, a check valve must be installed.
Not suitable for aquariums, fish ponds, or similar applications.
For large water tanks, installing an overflow pipe is recommended to prevent water spillage.
Default Configuration
Timer Parameters
Rated voltage: AC 220V
Rated current: 10A
Housing material: ABS
Solenoid Valve Parameters
Operating voltage: AC 220V
Temperature range: -5°C to 80°C
Operation type: Direct acting

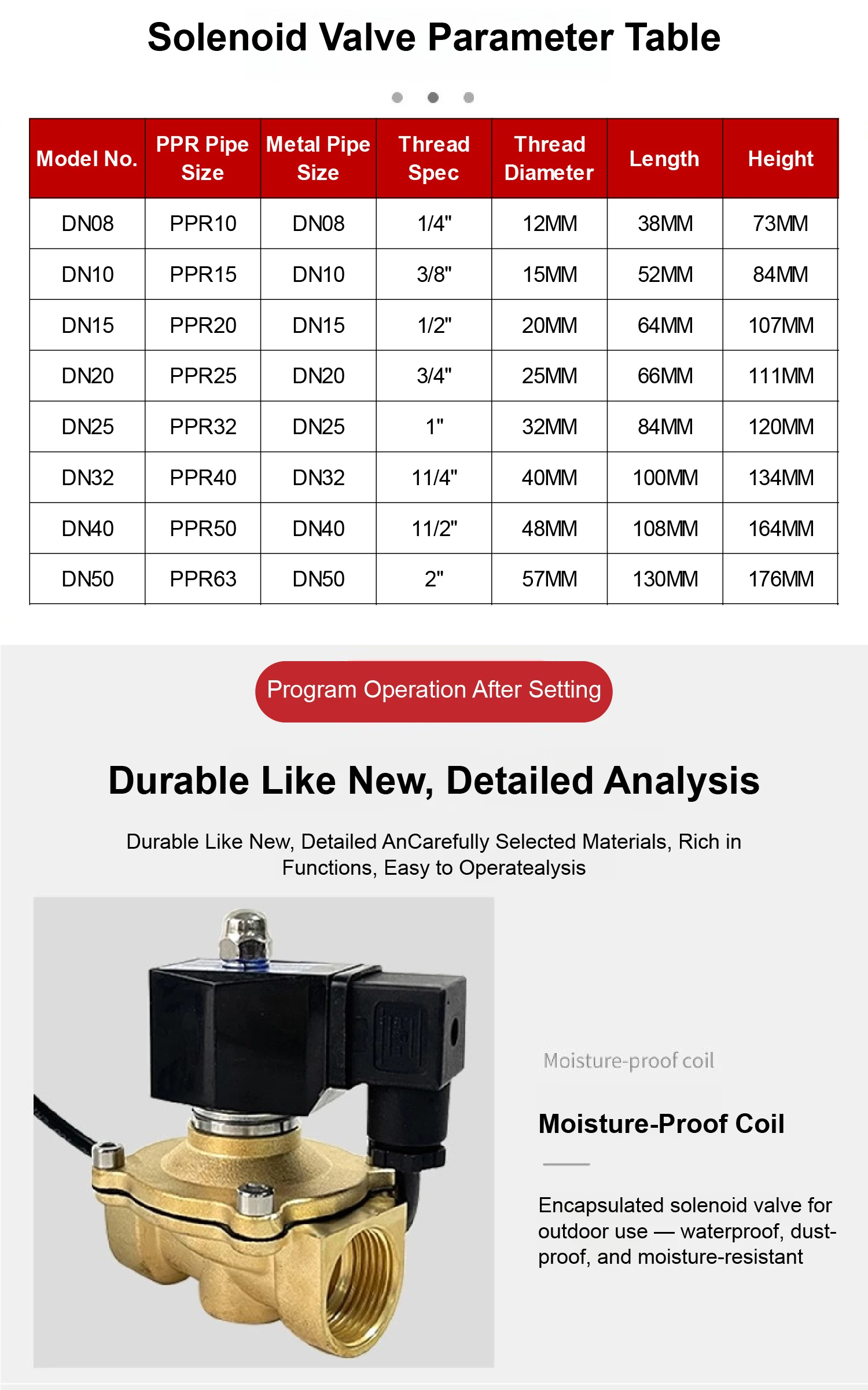

Note: Due to page limitations, not all thread sizes are displayed. Please contact us for customized options.
2.Parameters

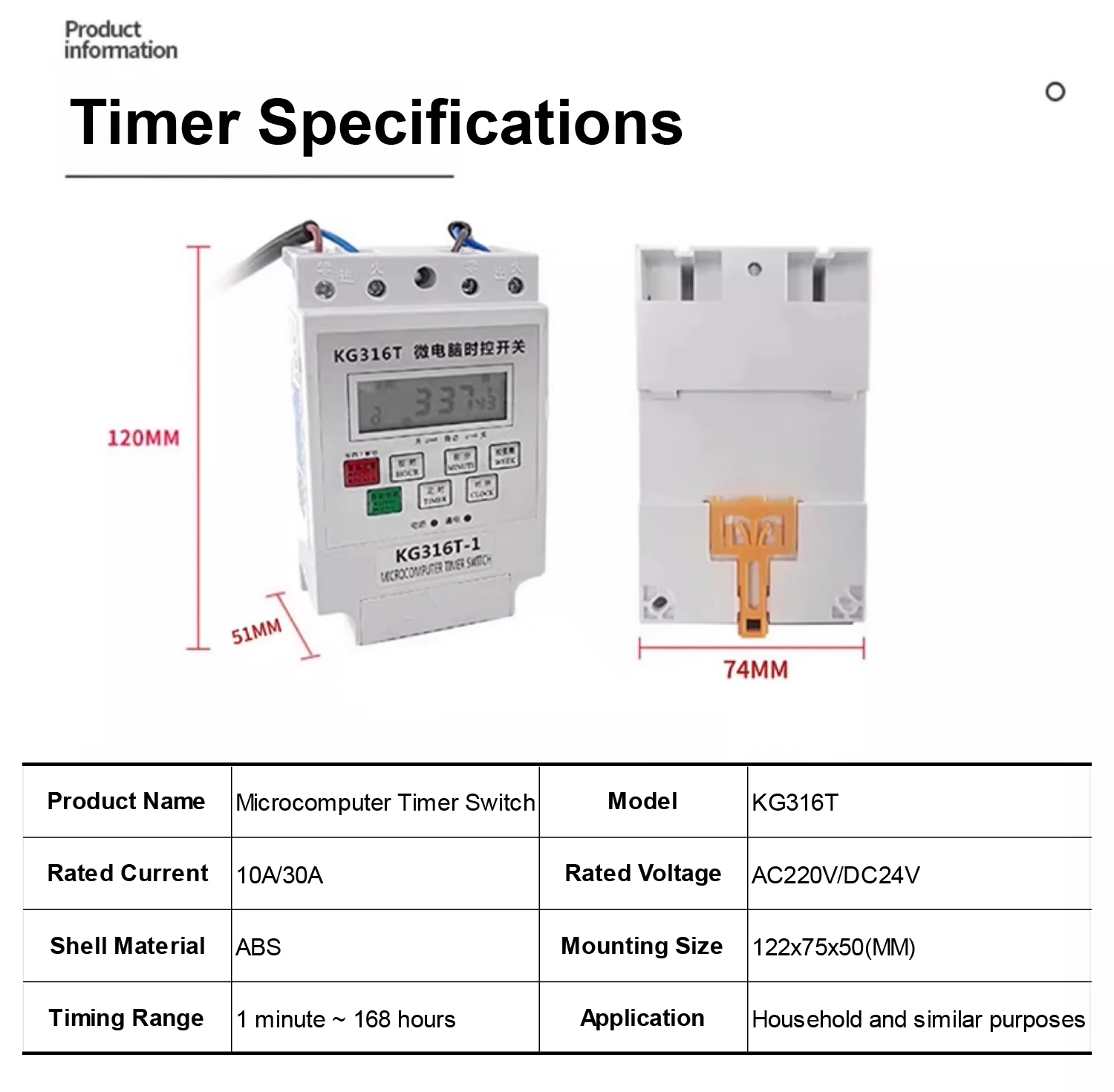

Timer Parameters
Product Name | Digital Timer Switch |
Model | KG316 |
Rated Current | 10A |
Rated Voltage | AC220V |
Housing Material | ABS |
Cutout Size | 122x75x50(MM) |
Timing Range | 1 minute- 168 hours |
Control Power | ≤1000W |
Application | For household and similar use |
Notes: |

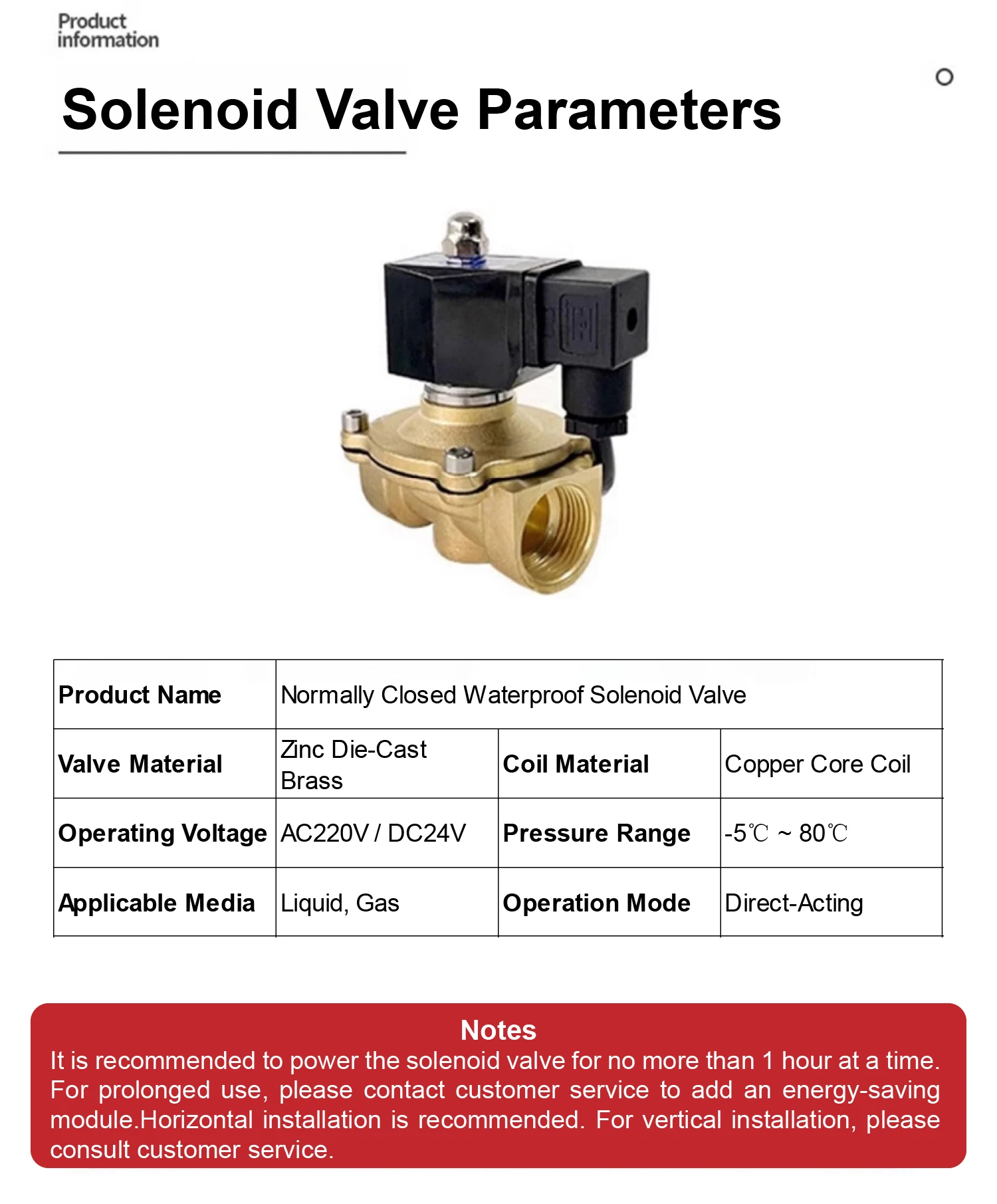

Solenoid Valve Parameters
Product Name | Normally Closed Waterproof Solenoid Valve |
Valve Body Material | Forged Brass |
Coil Material | Copper Core Coil |
Operating Voltage | AC220V |
Temp.Range | -5°C~80°℃ |
Applicable Range | Liquid, Gas |
Usage Method | Direct Acting |
Notes: |
3. Features

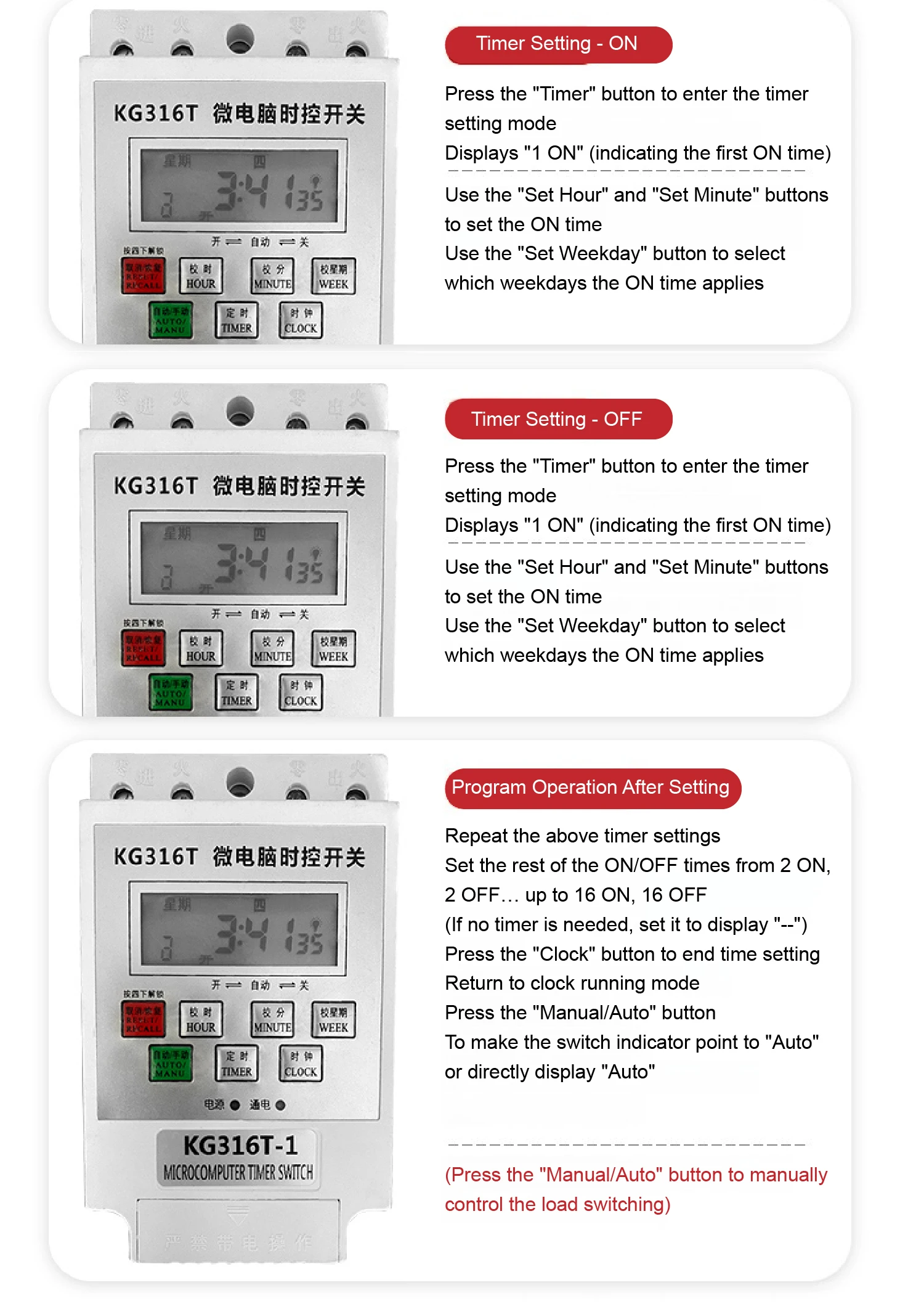

LCD Display with 16 Programmable Settings
Supports up to 16 separate on/off schedules, allowing accurate and flexible time control for different applications.
Battery Backup with Memory Function
Equipped with a replaceable AAA battery to save all timer settings during power outages, ensuring stable and continuous operation.

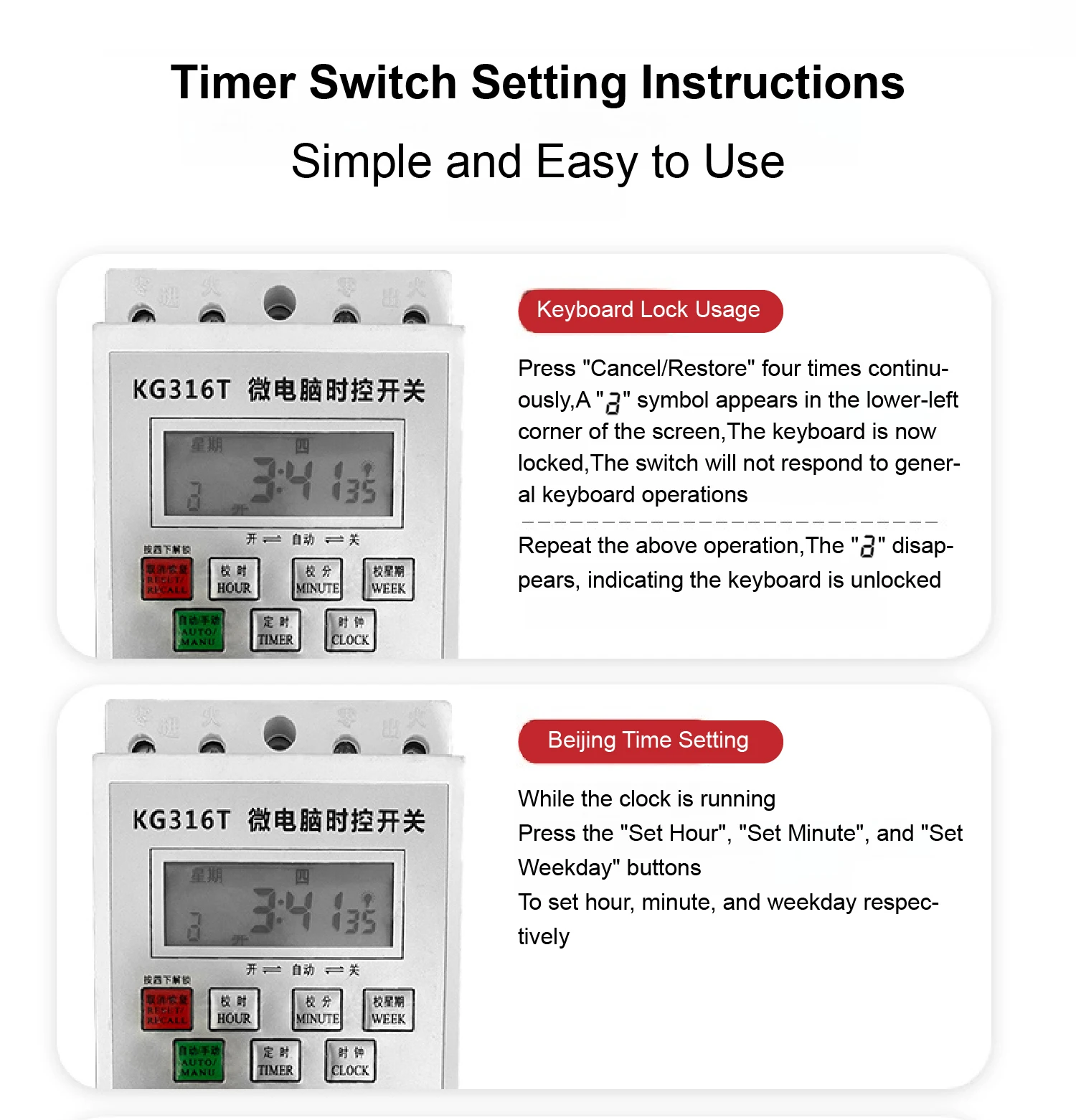

Waterproof Keypad with Auto-Lock Function
Designed with durable waterproof buttons and an intelligent auto-lock screen to prevent accidental changes after setup.
Heavy-Duty Brass Valve and Copper Coil
Made with forged brass and a copper coil for excellent durability, corrosion resistance, and long-lasting reliability.
4. Applications
Ideal for a wide range of timing and automation applications, including:
Automatic irrigation systems
Scheduled water supply control
Fluid and gas flow management
Timed drainage for tanks, pipelines, and related systems
5. FAQs
Q1: Will the timer retain its settings during a power outage?
A1: Yes. The timer is equipped with a replaceable AAA battery that preserves all programmed settings even if the power is interrupted.
Q2: Can the solenoid valve operate continuously for extended periods?
A2: Continuous operation for more than 1 hour is not recommended. If you require longer running times, please contact us about adding an energy-saving module for enhanced performance and reliability.
Q3: Can the solenoid valve be installed vertically?
A3: For optimal performance, horizontal installation with the coil facing upward is recommended. If vertical installation is required, please contact our customer support team for proper installation guidance.
