Product Description

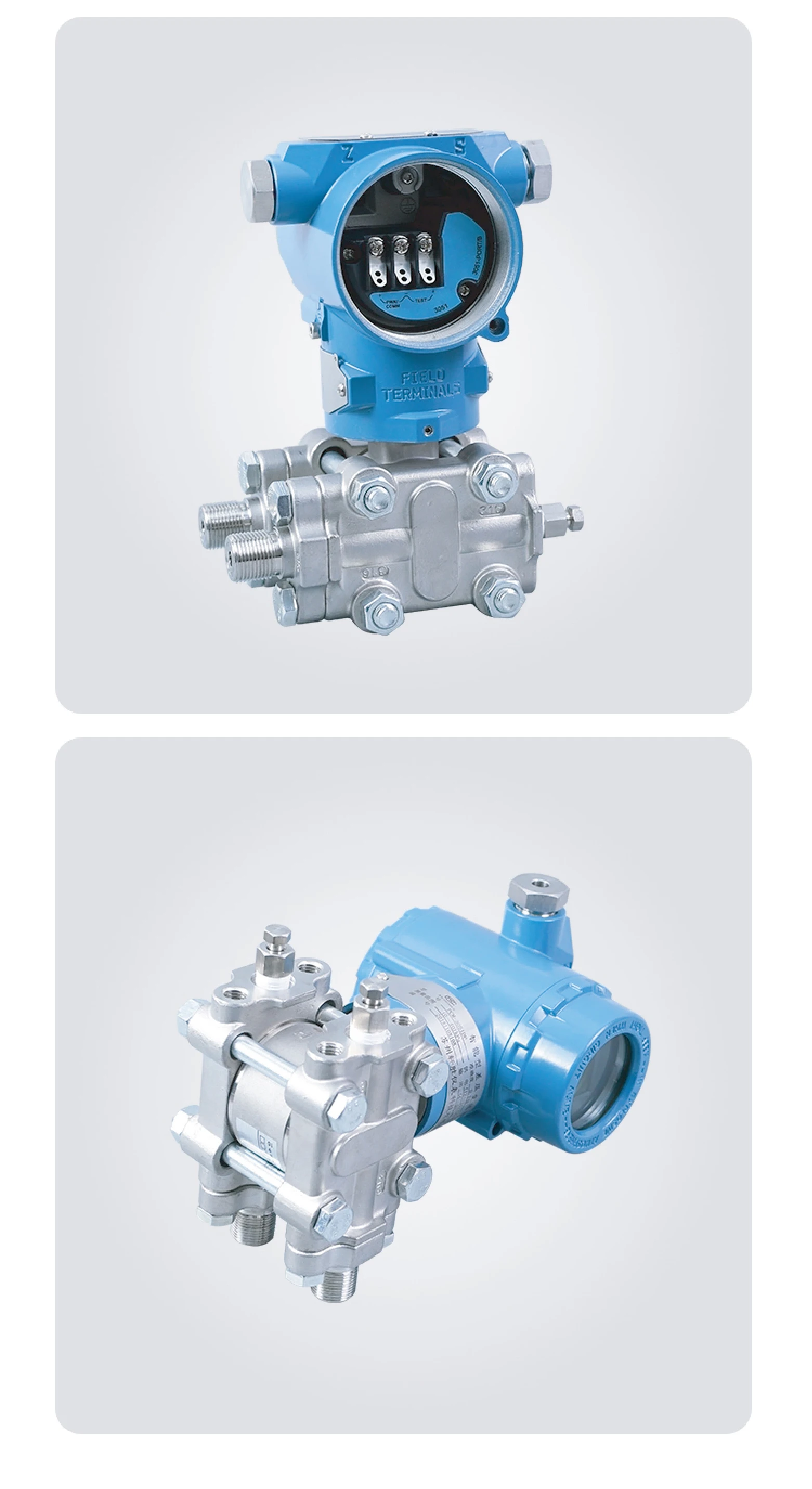

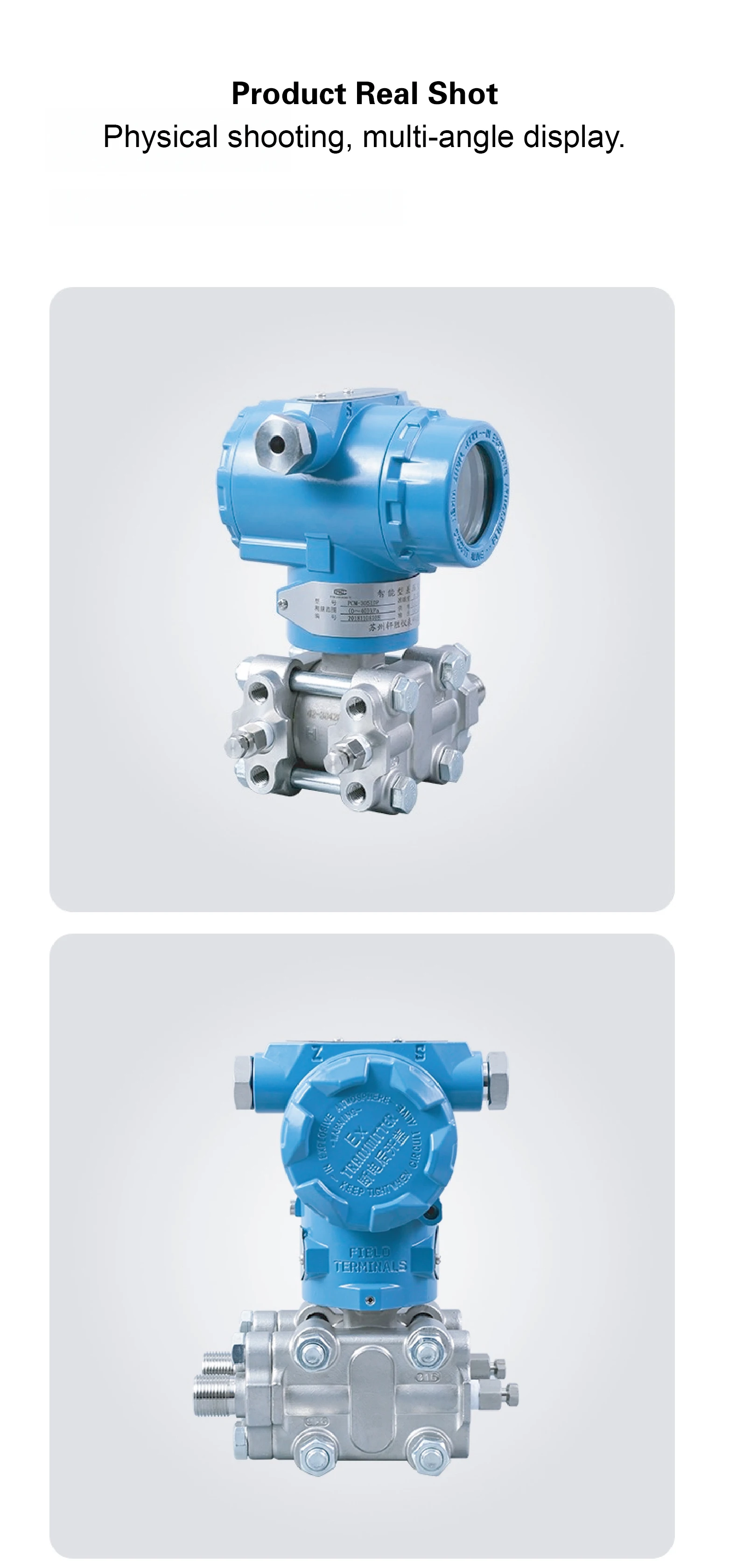

3051DP Capacitive Differential Pressure Transmitter 12-24VDC 4-20mA HART Explosion Proof for Oil Gas Compressor Unit
3051DP Capacitive Differential Pressure Transmitter 12-24VDC 4-20mA HART Explosion Proof for Oil Gas Compressor UnitDue to page limitations, we are unable to list all available pressure ranges and corresponding units. However, any pressure range within -1000pa-7 MPa does not affect the price. Supported pressure units include MPa, kPa, bar, psi, and kgf/cm². If the required pressure range or unit is not listed, please select any available range, along with the desired thread type and signal output, and place your order. Make sure to specify your required pressure range and unit (e.g., MPa, bar, psi) in the order notes. We will produce and ship the product according to your specified parameters. Thank you for your understanding!
1.Default Configuration:
LCD display
Measurement range: -1000 Pa to 7 MPa
Signal output: 4-20 mA + HART
Supply voltage: 12-24 VDC
Operating temperature range: -20°C to 80°C
Accuracy: 0.1% FS

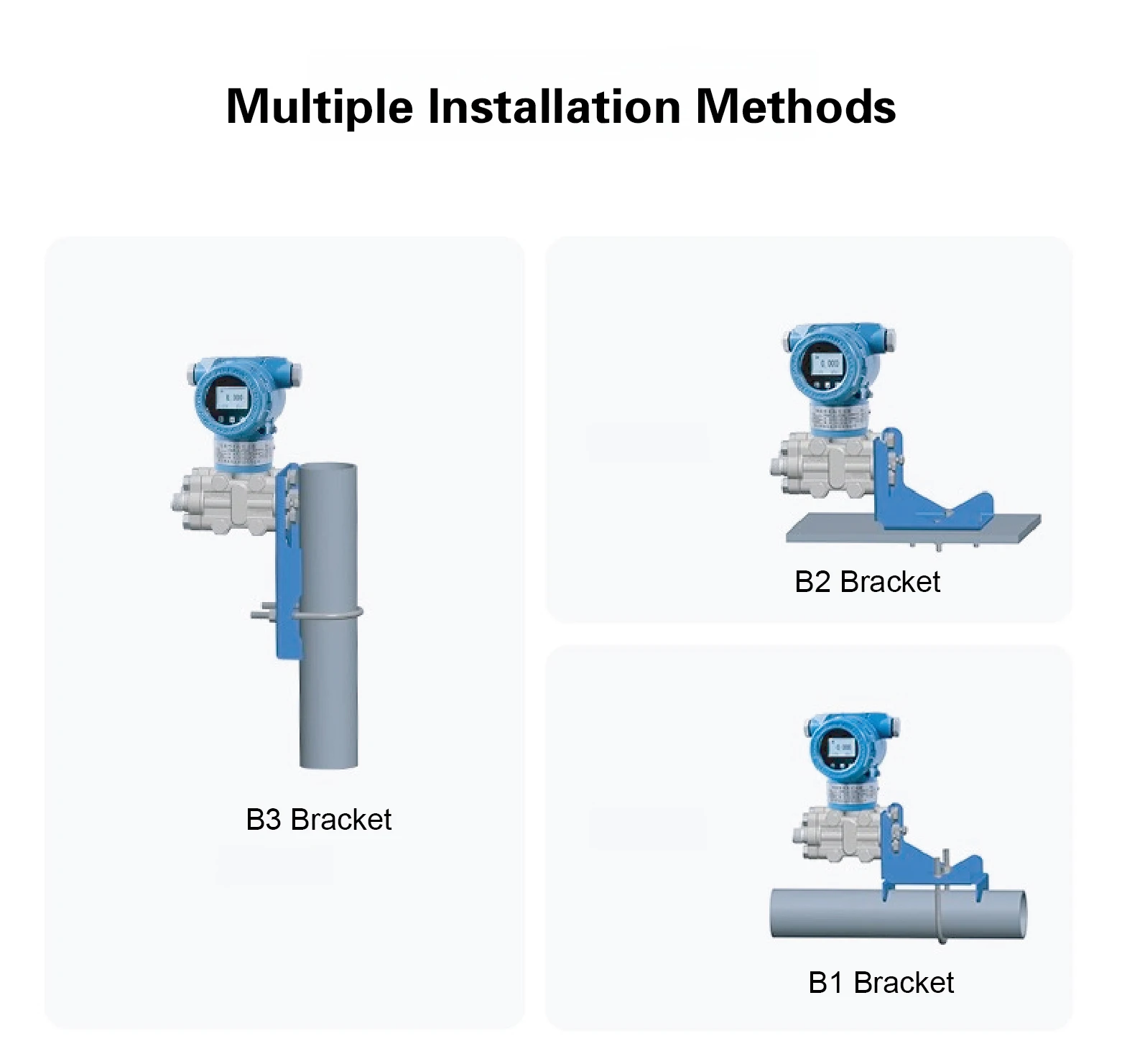

Installation method: bracket mounting
Optional Features:

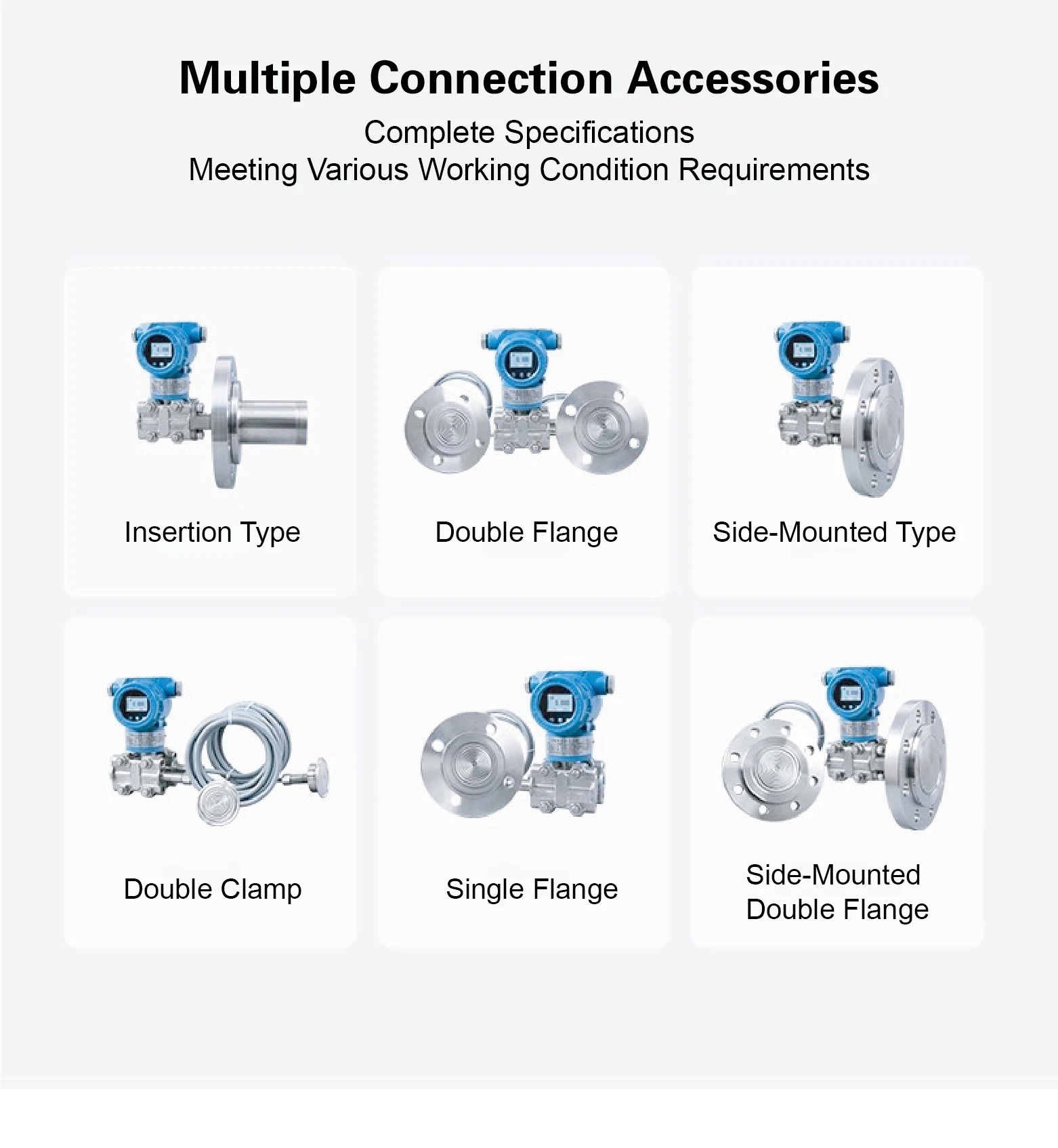

Multiple mounting options are available, including insert type, dual-flange type, side-mount type, single-flange type, and dual-side flange type.
RS485 signal output is available upon request.
The pressure range, connectors, and materials can be customized according to your specific application requirements.
Shipping Note:
If the online shipping cost appears high, especially for bulk orders or large-sized products, we can provide more cost-effective shipping solutions and routes. Please contact us for detailed arrangements.

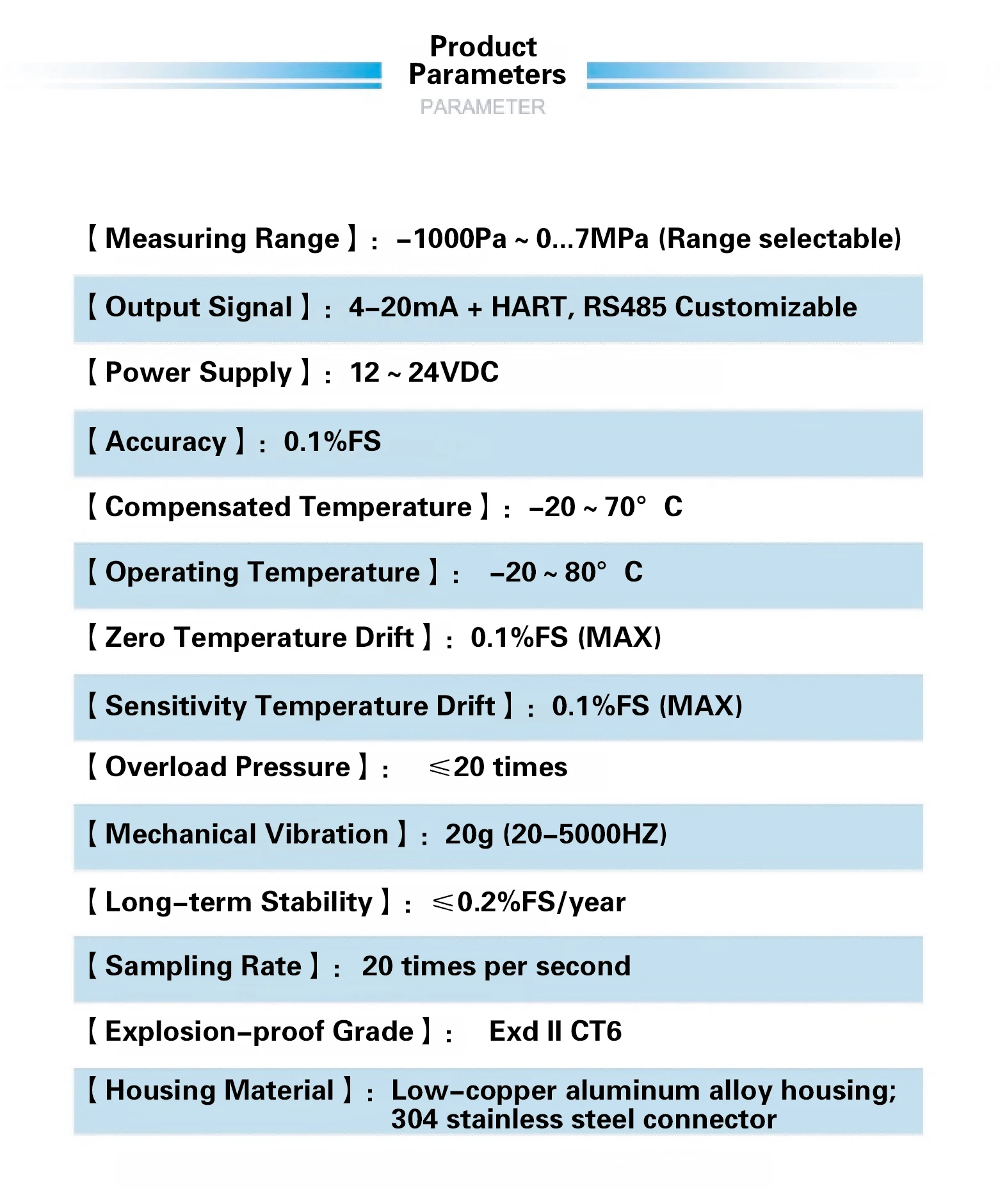

2.Parameters
Parameter | Specification |
Model | PCM3051DP |
Measurement Range | -1000 Pa to 7 MPa (customizable) |
Output Signal | 4-20mA + HART, RS485 (optional) |
Power Supply | 12~24VDC |
Accuracy | 0.1% FS |
Compensated Temp. | -20 to 70°C |
Operating Temp. | -20 to 80°C |
Zero Drift | 0.1% FS (max) |
Sensitivity Drift | 0.1% FS (max) |
Overload Pressure | ≤20 times rated pressure |
Mechanical Vibration | 20g (20-5000 Hz) |
Long-Term Stability | ≤0.2% FS/year |
Sampling Time | 1 second, 20 times per second |
Explosion-proof | Exd IICT6 |
Housing Material | Low-copper aluminum alloy; 304 stainless steel connections |
3.Features

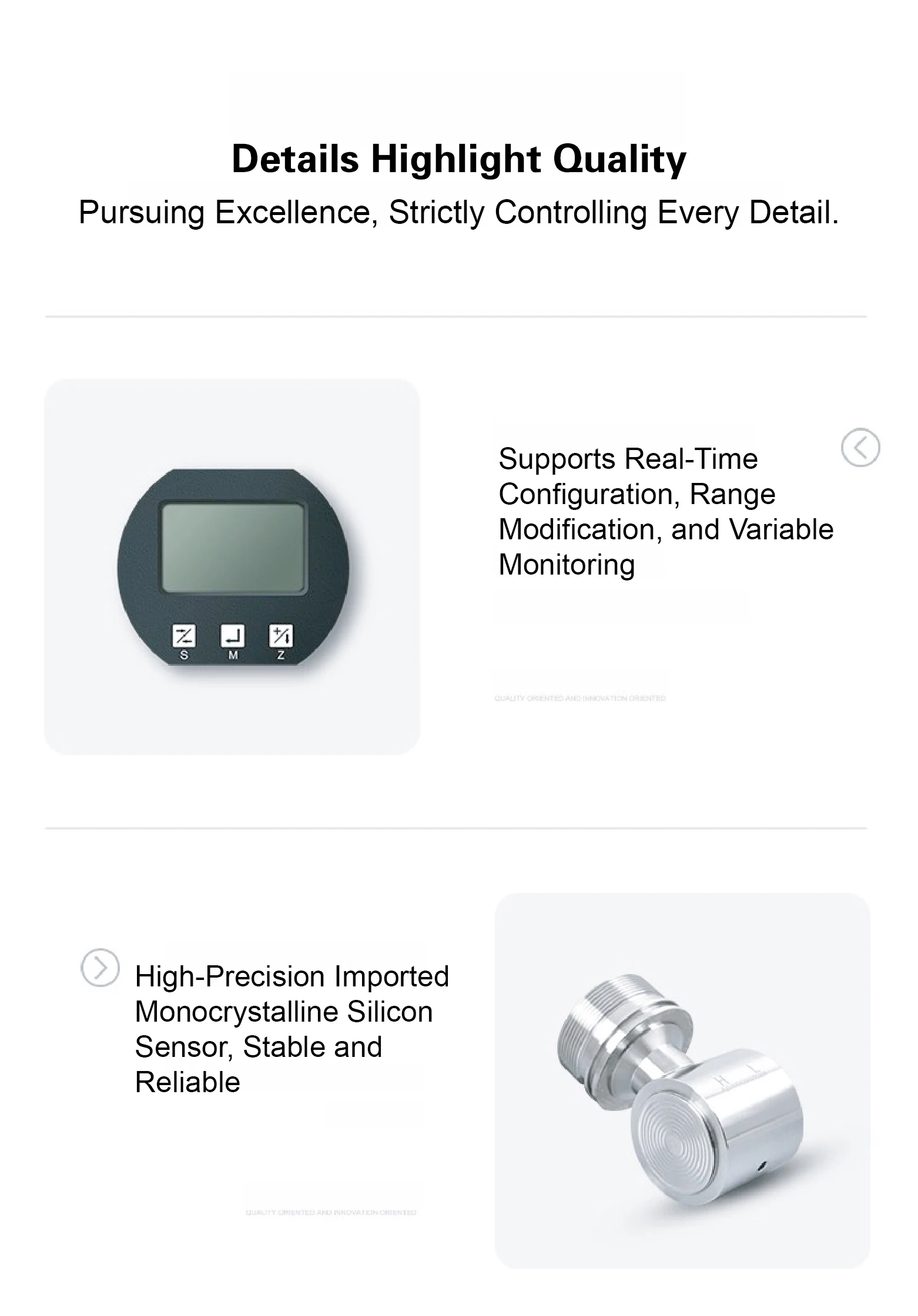

High Precision Sensor
Equipped with a high-precision single-crystal silicon sensor to ensure stable performance and reliable measurement over long-term operation.

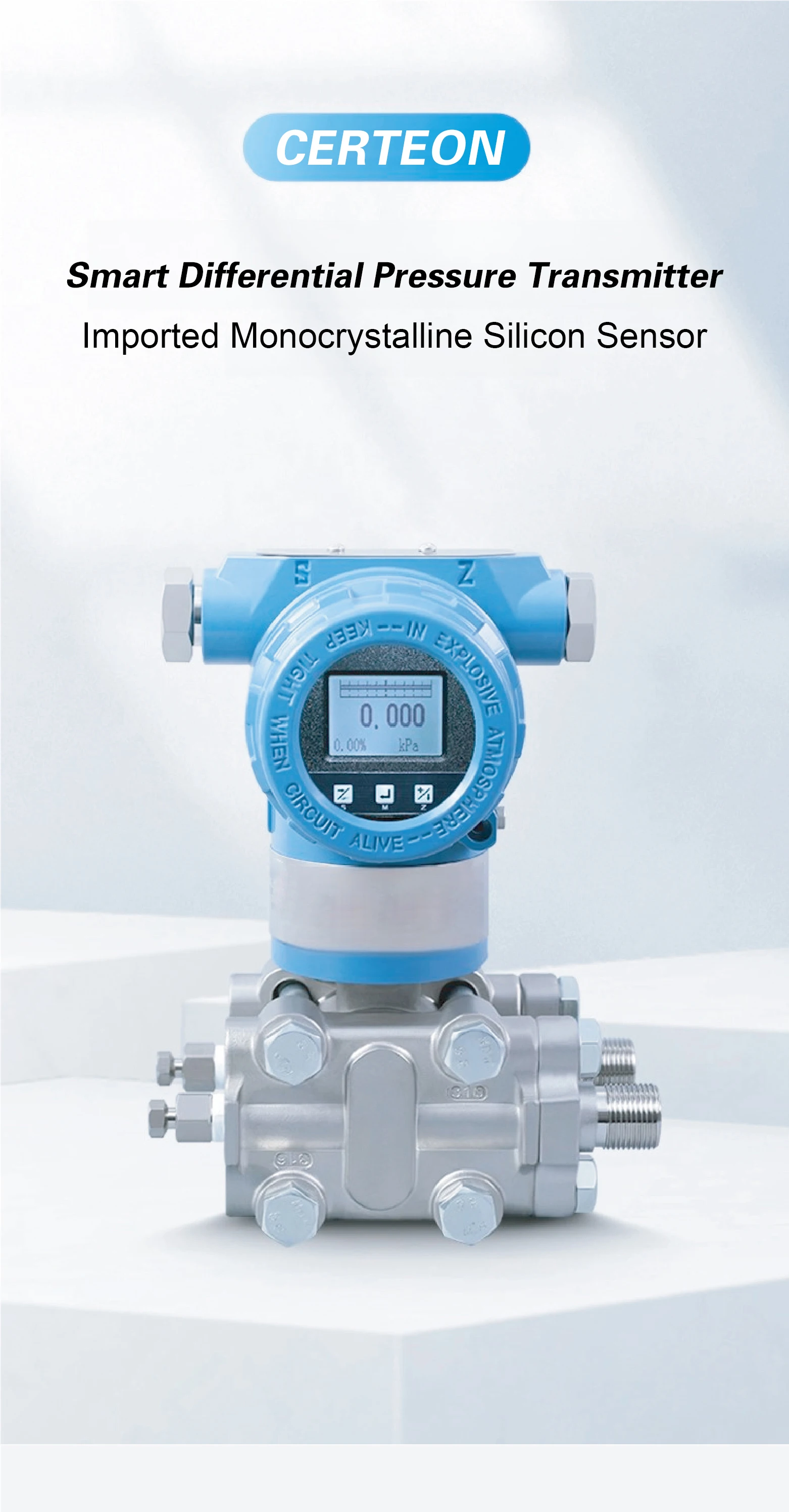

Real-Time LCD Display
The LCD display supports real-time parameter configuration and monitoring, making operation more convenient and user-friendly.
Multiple Mounting Options
Supports various installation methods, including insertion type, flange type, and side-mounted type, suitable for different industrial applications.
Wide Measurement Range
Measurement range adjustable from -1000 Pa to 7 MPa, meeting the needs of a wide variety of industrial environments.
Explosion-Proof Design
Explosion-proof construction ensures safe and reliable operation in hazardous and demanding working conditions.

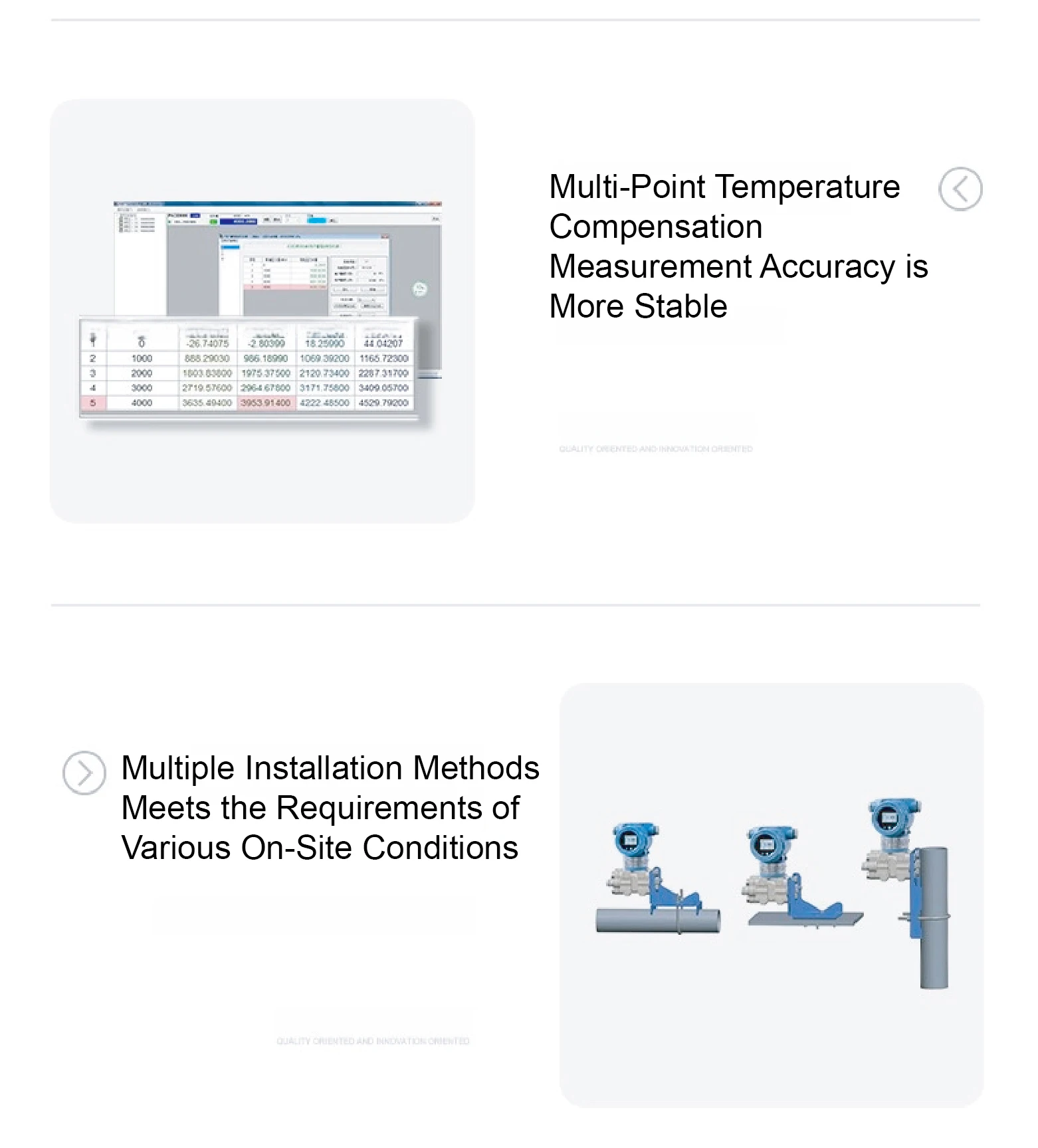

Temperature Compensation
Advanced multi-point temperature compensation technology improves measurement accuracy under varying temperature conditions.

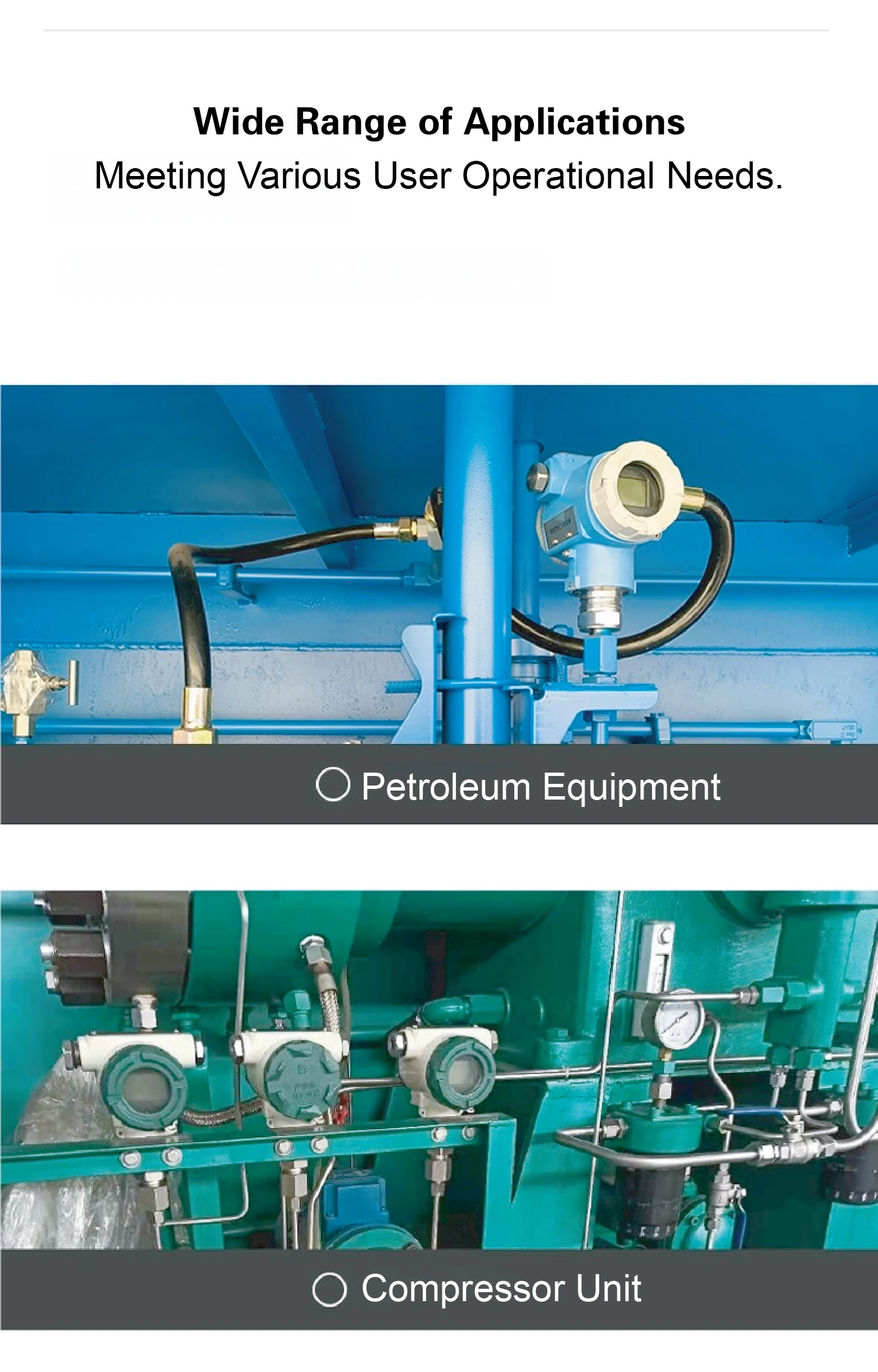

4.Applications
Petroleum equipment
Compressor units

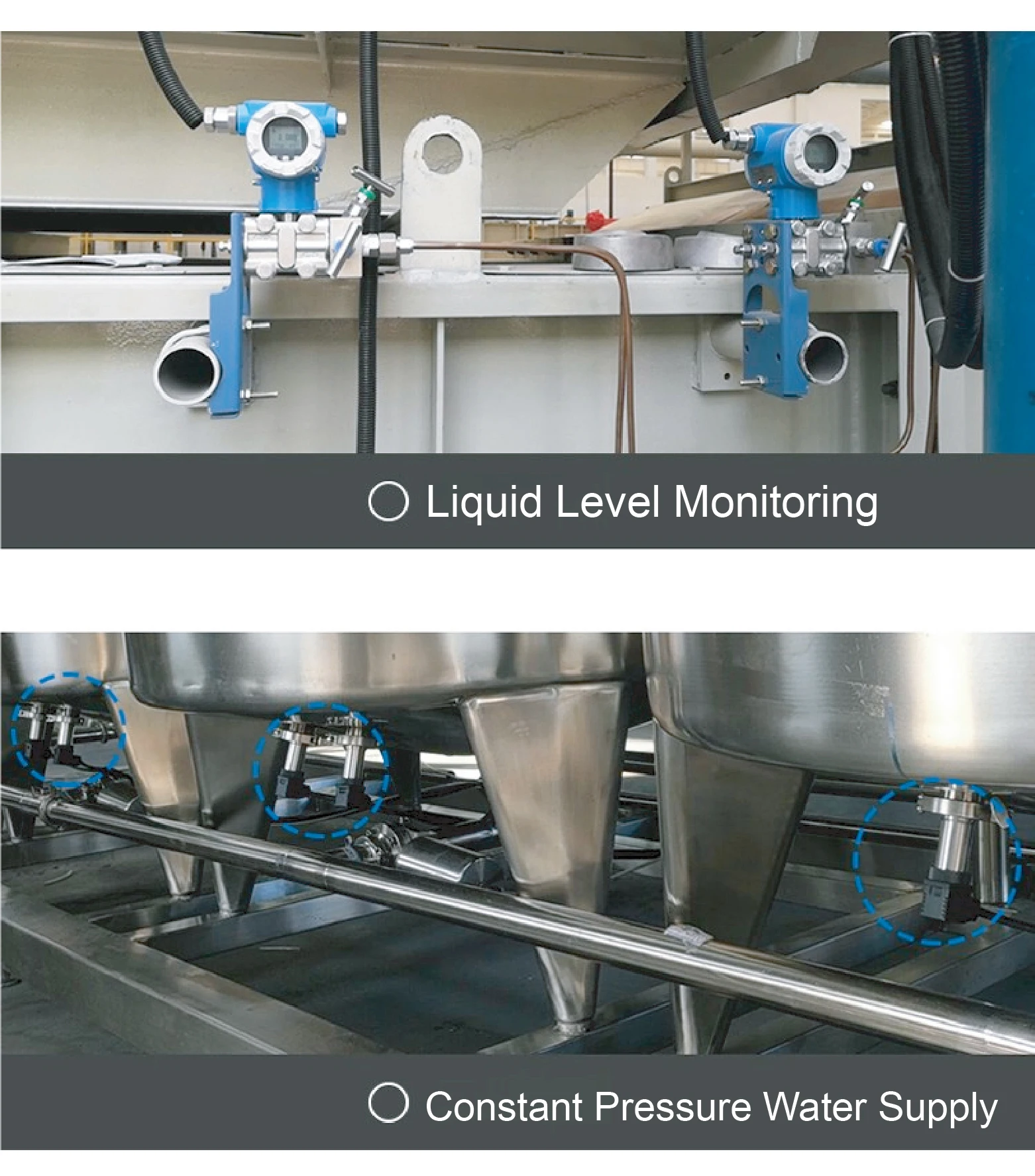

Liquid level monitoring systems
Constant pressure water supply systems
5.FAQs
Q: What is the maximum pressure the PCM3051DP can withstand?
The PCM3051DP is designed to withstand pressures up to 20 times its rated pressure, ensuring excellent overload resistance and reliable operation.
Q: Can the measurement range be customized?
Yes, the measurement range can be customized within -1000 Pa to 7 MPa according to specific application requirements.
Q: What installation methods are available for this transmitter?
The transmitter supports multiple installation methods, including insertion type, dual-flange type, side-mounted type, single-flange type, and other customized configurations to suit different installation environments.
