ZTS-300L Solar Radiation Sensor Pyranometer Irradiance Meter RS485 4-20mA 0-10V

Product Description

1.NOTE

Key Parameters:

Power Supply: 7~30VDC (RS485) / 10~30VDC (Analog)

Model: ZTS-300L

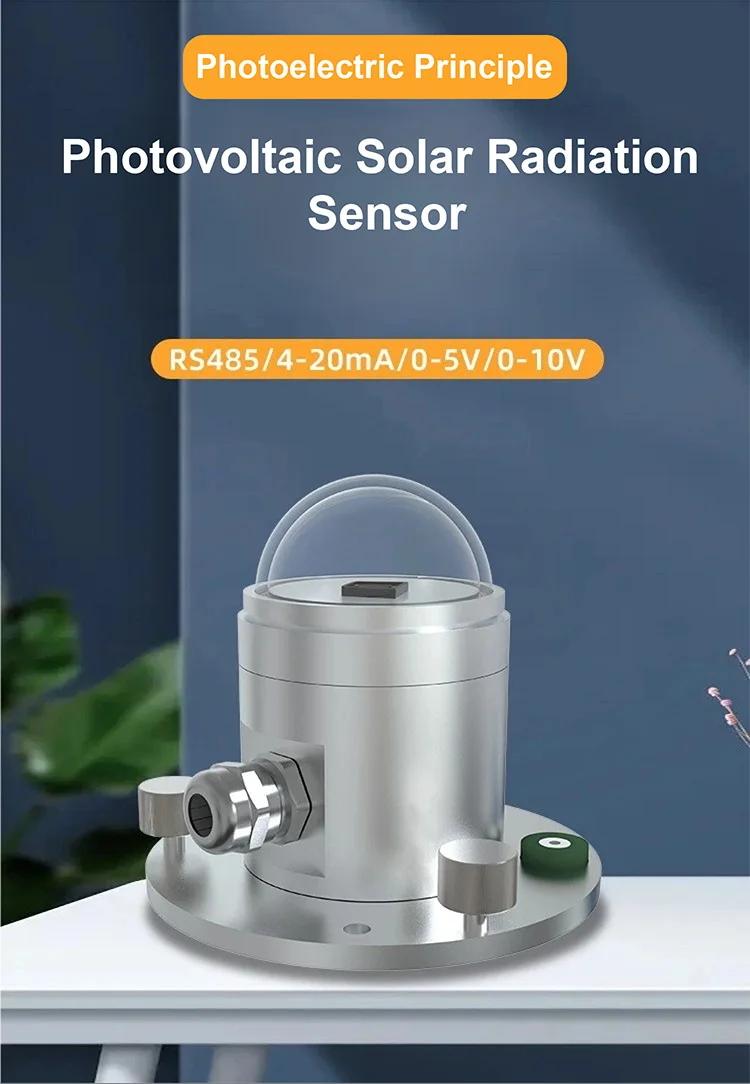

Principle: Photoelectric

Output: RS485 / 4-20mA / 0-5V / 0-10V

Wavelength: 400~1100nm

Measuring Range: 0~1800W/m²,0~2000W/m²(The measurement range is customizable via RS485)

Additional Parameters:

Accuracy: ±5%

Resolution: 1W/m²

Operating Temp.: -25~60°C

Annual Stability: ≤±3%

Spectral Selectivity: ≤±10%

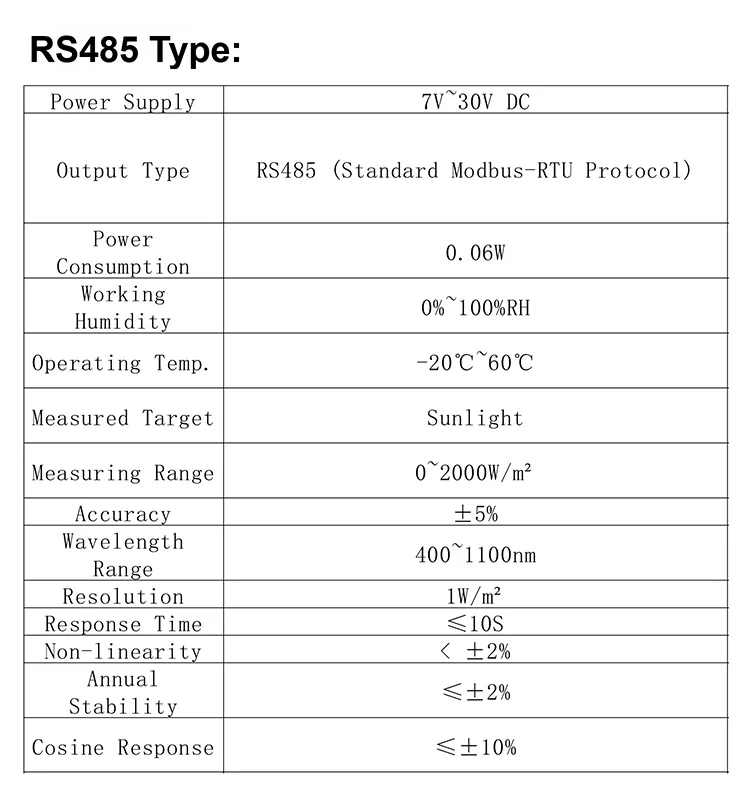

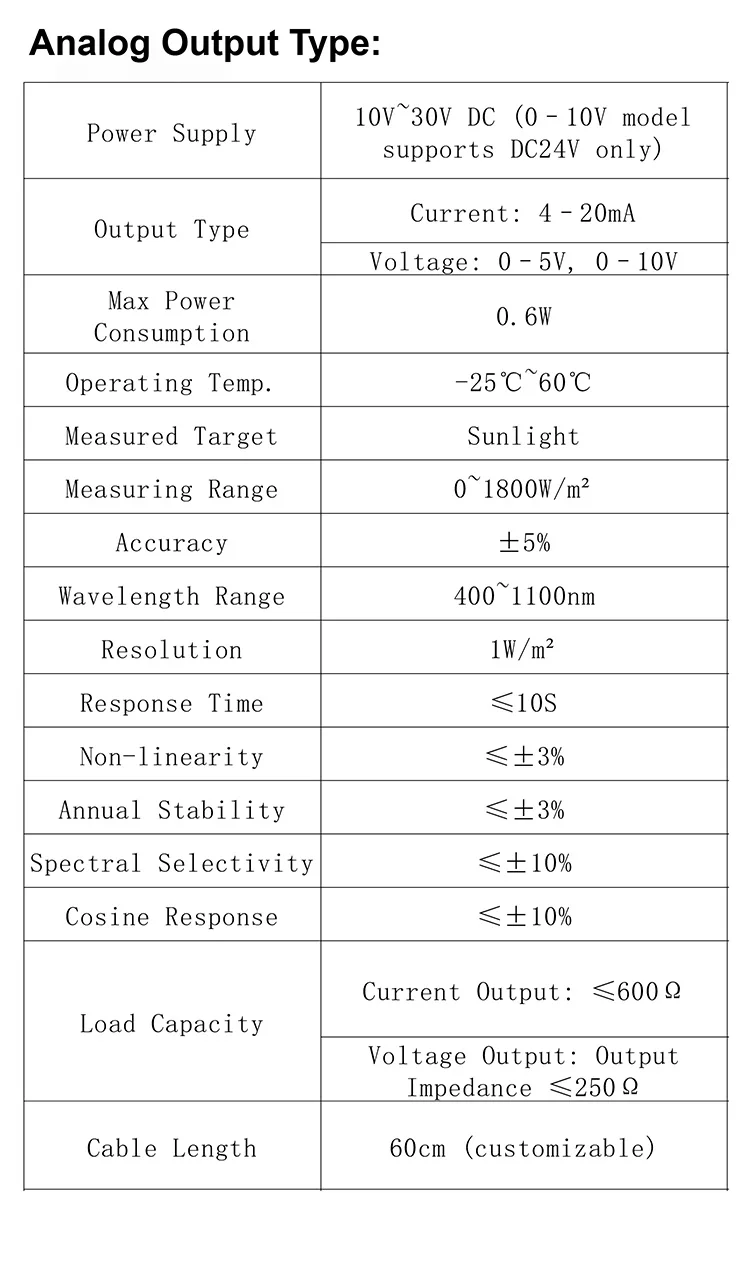

2. Parameters

3. Features

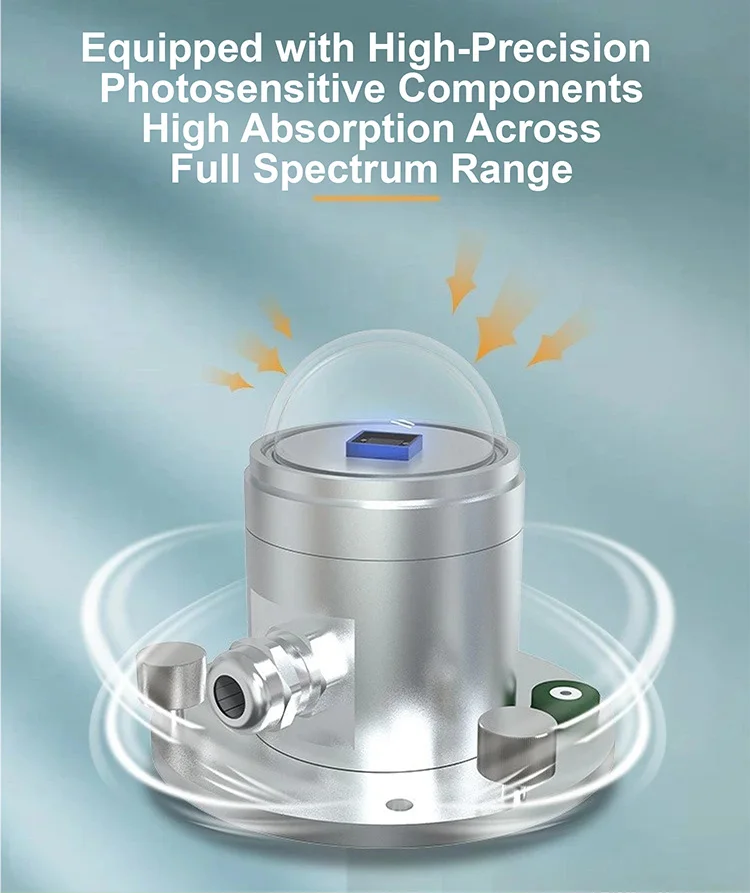

Photoelectric Sensor for Full-Spectrum Solar Detection

High-Sensitivity Sensor Element
Precisely detects solar radiation across the 400–1100 nm range for accurate, real-time monitoring.

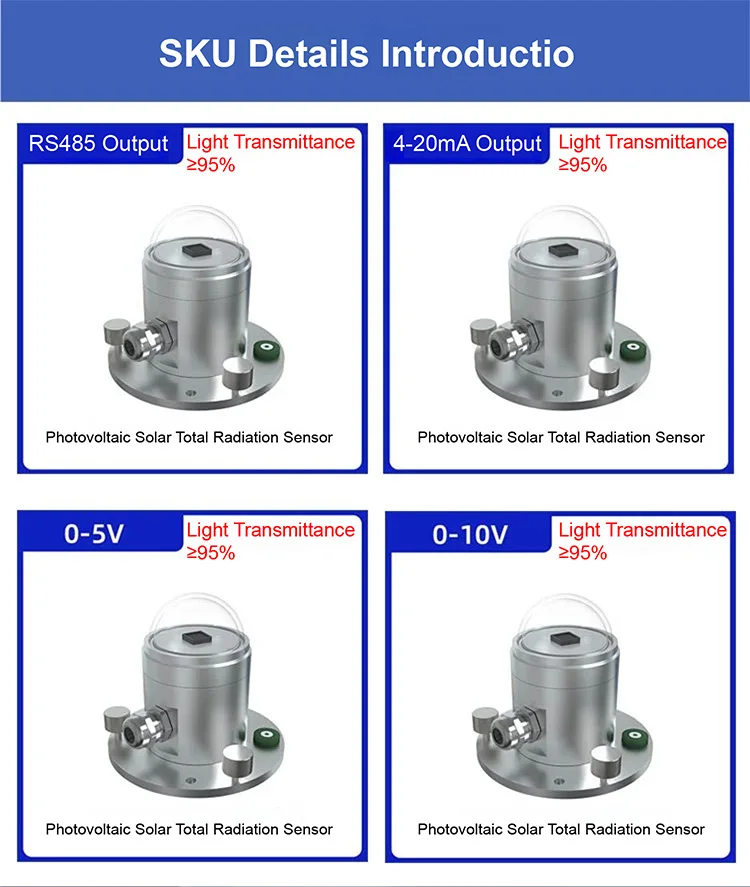

Multiple Output Options
Supports RS485, 4–20 mA, 0–5 V, and 0–10 V outputs, offering compatibility with a wide range of monitoring systems.

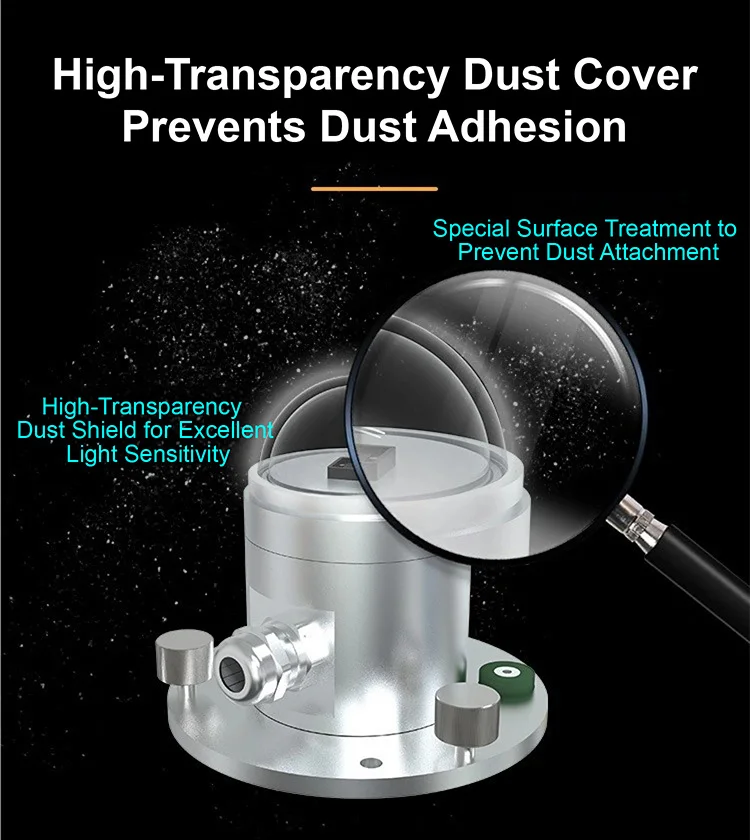

Dustproof High-Transparency Cover
Protects the sensor from dust while maintaining optimal light transmission and detection accuracy.

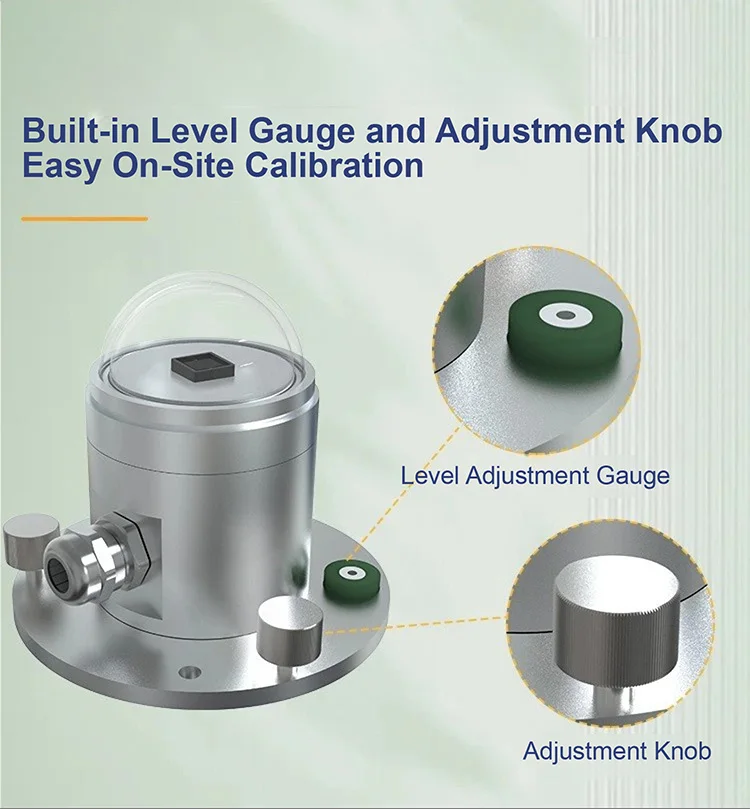

Integrated Level and Adjustment Wheel
Enables quick and precise alignment for accurate installation in any field setting.

All-Weather Accuracy
Delivers consistent ±5% measurement accuracy, built for continuous 24/7 operation in challenging outdoor environments.

Flexible Mounting Options
Can be installed inverted or at various tilt angles to suit different application needs.

4. Applications

Solar energy performance monitoring

Agricultural and greenhouse climate control

Building material aging analysis

Environmental & atmospheric studies

Evapotranspiration & plant growth analysis

5. FAQs

Q1: Can this sensor be used in rainy or humid environments?
A1: Yes, it supports 0%–100% humidity and is designed for all-weather outdoor use.

Q2: How is the sensor calibrated during installation?
A2: The device includes a built-in level and adjustment wheel for quick alignment in the field.

Q3: What output should I choose for connecting to a PLC?
A3: RS485 (Modbus-RTU) or 4-20mA are commonly used for PLC integration.
