TUF-2000H Digital Ultrasonic Flow Meter Handheld Clamp On Liquid Flowmeter for W

Product Description

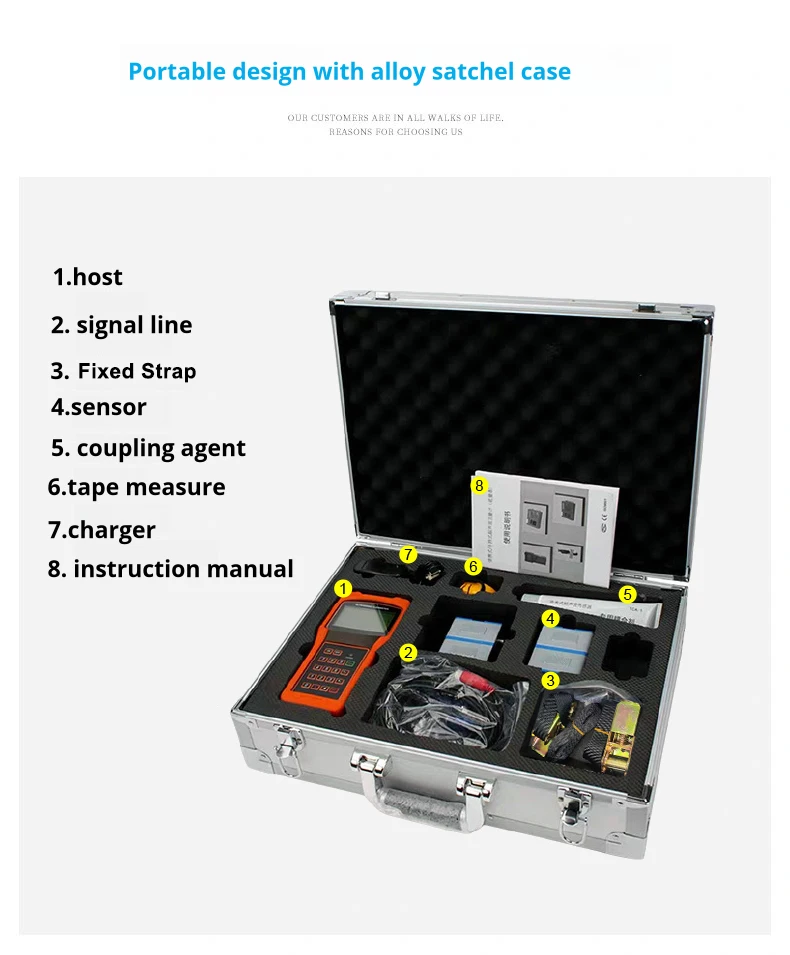

Please note that our handheld ultrasonic flowmeter comes in two options: with or without a carrying case. The version without the case includes all the same accessories, except the case itself. Please confirm whether you need the carrying case before placing your order. Thank you for your support and understanding.

NOTE:

"This product does not include coupling agent due to international shipping restrictions. The coupling agent is a paste-like substance that may cause shipping rejection by logistics companies.

However, the coupling agent is essential for the proper operation of the ultrasonic flowmeter. It eliminates air gaps between the sensor probe and the pipe surface, ensuring effective ultrasonic signal transmission and accurate measurements.

You may use locally available alternatives such as industrial grease, petroleum jelly, or No.2 lithium-based grease."

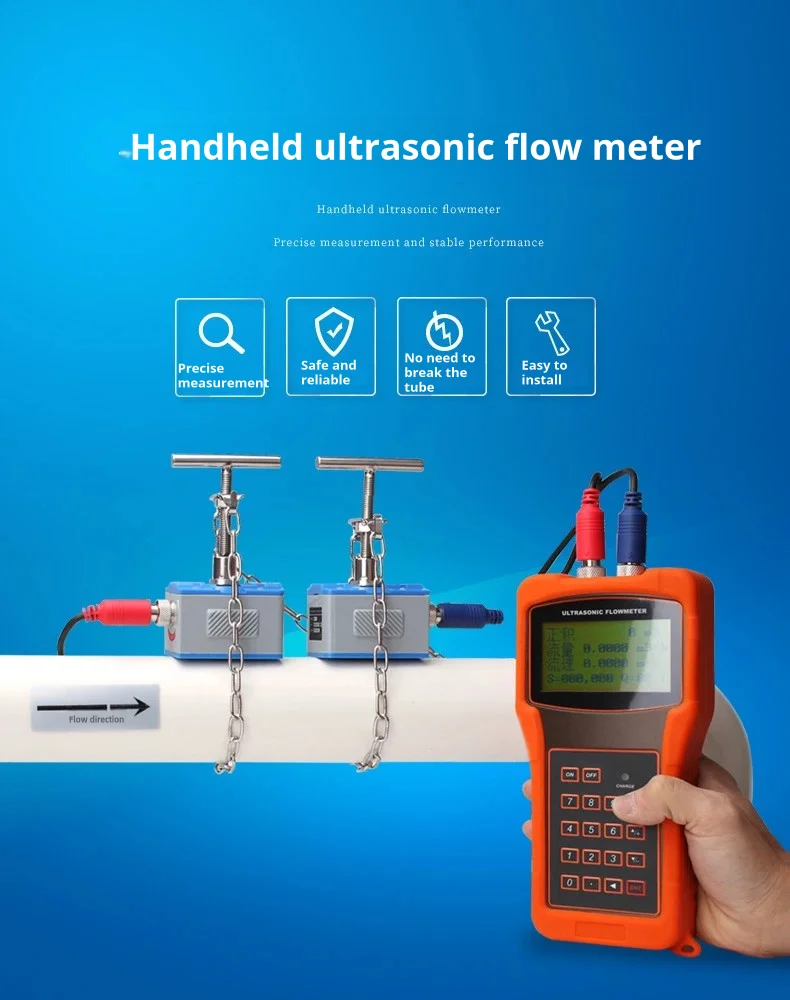

The TUF-2000H Series Handheld Ultrasonic Flow Meter supports three types of clamp-on transducers to cover a wide range of pipe sizes:

S-Type Transducer: Suitable for DN25–100 pipes
M-Type Transducer: Suitable for DN50–700 pipes
L-Type Transducer: Suitable for DN300–6000 pipes

Please ensure that the pipe diameter matches the appropriate transducer when placing your order. Since the transducers are detachable, customers may also choose to purchase all three types together for greater flexibility across different pipe sizes and applications.

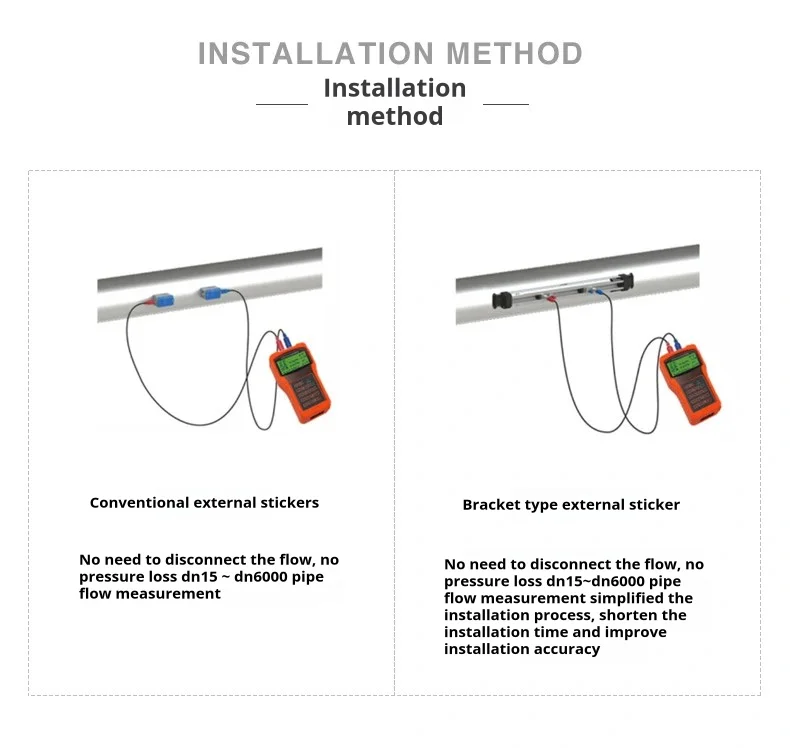

One of the key advantages of the handheld ultrasonic flow meter is its non-invasive installation. The clamp-on transducers allow flow measurement without cutting the pipe or interrupting system operation, making installation quick, convenient, and cost-effective. Compared with traditional in-line flow meters, handheld ultrasonic models may have certain limitations in measurement accuracy and performance depending on operating conditions.

The TUF-2000H handheld ultrasonic flow meter is suitable for measuring flow in pipes made from materials such as metal, PP, PVC, and glass. However, it is not recommended for use with corrugated pipes or pipelines made from non-homogeneous materials, as these may affect signal transmission and measurement stability.

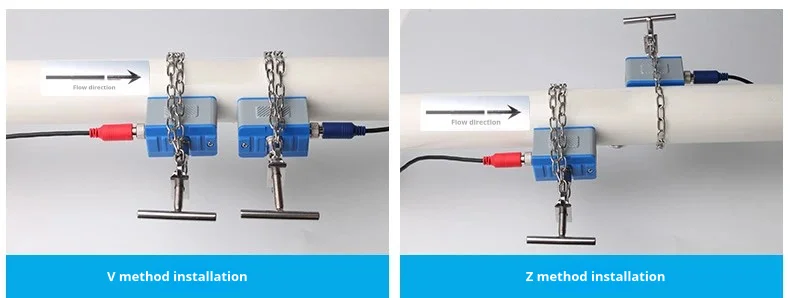

For optimal measurement accuracy, it is important to follow the installation instructions carefully. Based on practical experience, internal rust, scale, or dirt buildup inside the pipeline can significantly influence ultrasonic signal performance and measurement results. Proper pipe maintenance and surface preparation are strongly recommended to ensure stable and accurate flow readings.

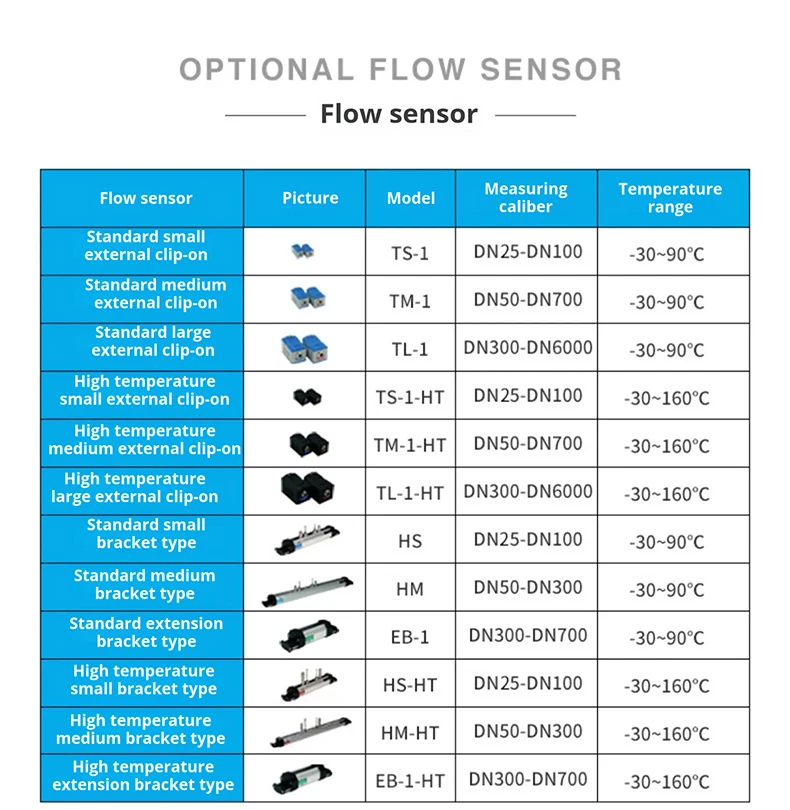

Probe Selection Guide

S Probe: For DN25–100
M Probe: For DN50–700
L Probe: For DN300–6000

Please select the suitable probe according to your pipe size requirements. For wider measurement coverage, all three probe types can also be purchased together.

Features

Non-Contact Measurement
The clamp-on ultrasonic design allows flow measurement without cutting the pipe or interrupting system operation, ensuring convenient installation and maintenance.

Built-In Data Logger
Integrated data logging function enables automatic storage of measurement data for easy monitoring and analysis.

Rechargeable Battery
Equipped with a built-in rechargeable battery for portable and long-term field operation.

High Measurement Accuracy
Provides stable and reliable flow measurement performance under proper installation and operating conditions.

Wide Measurement Range
Compatible with a broad range of pipe sizes and liquid applications.

Compact and Lightweight Design
Portable structure makes it ideal for on-site inspection, maintenance, and temporary flow monitoring.

Typical application

The wall-mounted ultrasonic flow meter is suitable for a wide variety of liquid flow measurement applications across different industries. It can measure both clean liquids and liquids containing a small amount of suspended particles.

Applicable liquids include:

Water
Hot water, chilled water, city water, seawater, wastewater, etc.

Sewage
Sewage containing small quantities of particles.

Oil
Crude oil, lubricating oil, diesel oil, fuel oil, and similar liquids.

Chemicals
Alcohol, acids, and various chemical solutions.

Industrial Effluent
Plant discharge and process wastewater.

Food and Beverage Liquids
Beverages, liquid food products, and related process liquids.

Ultra-Pure Liquids
Suitable for high-purity liquid applications.

Other Liquids
Solvents and many other homogeneous liquids.

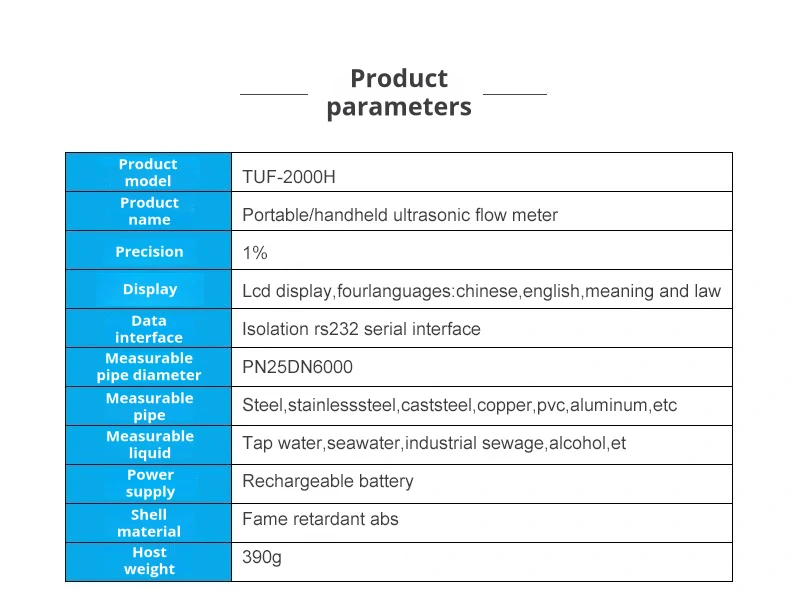

Parameters

5.FAQs

Q: Can this flow meter measure liquids other than water?
A: Yes. The ultrasonic flow meter is suitable for measuring a wide range of single and homogeneous liquids, including water, oil, chemicals, solvents, and other clean liquids.

Q: What pipe diameter range does this flow meter support?
A: Different transducer packages are available for different pipe size ranges:

Small Package (S Probe): Suitable for DN25–100
Medium Package (M Probe): Suitable for DN50–700
Large Package (L Probe): Suitable for DN300–6000

Please select the appropriate package according to your pipe diameter requirements.
