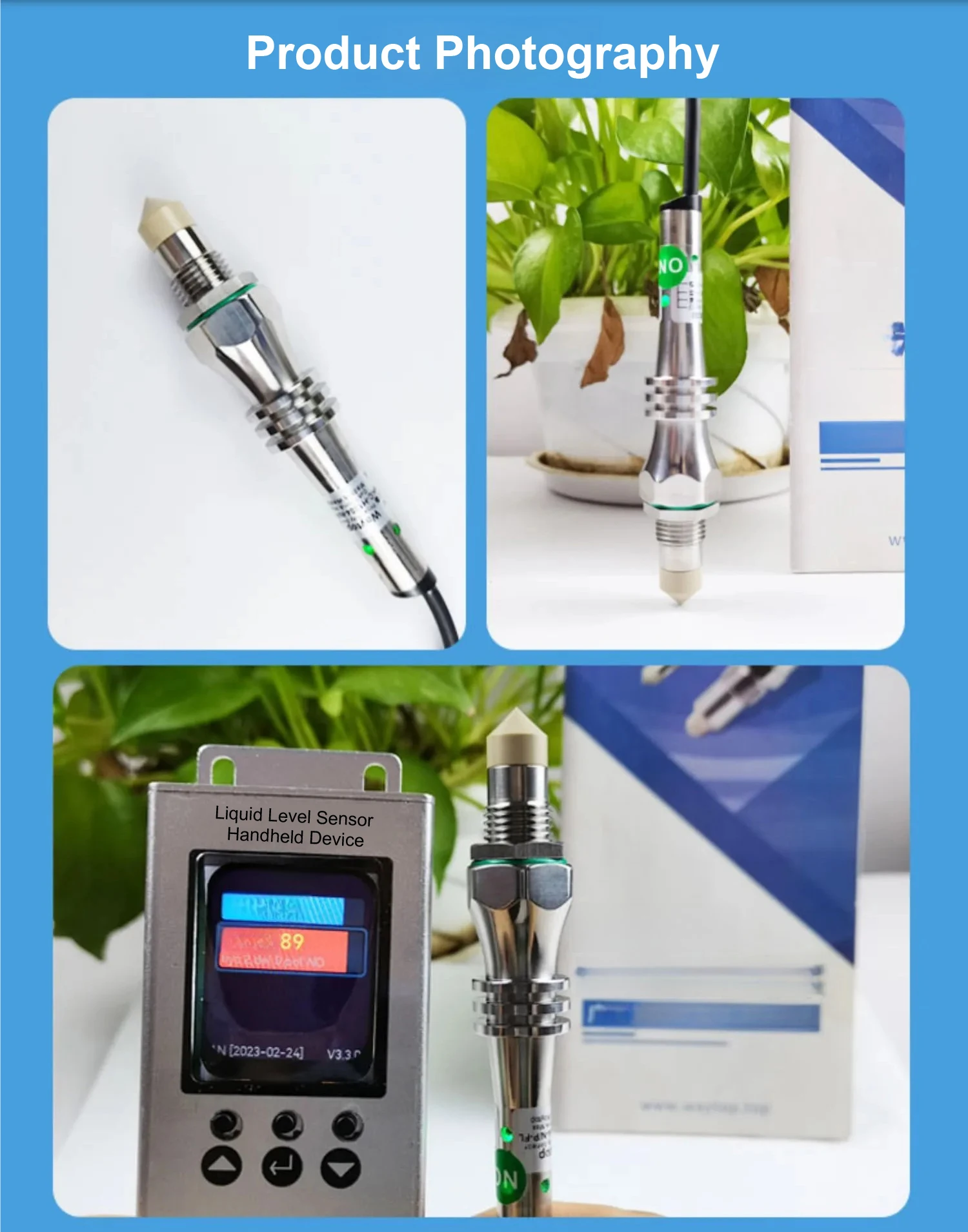

WKCH1304 Capacitive Liquid Level Sensor 120°C Food Grade Stainless Steel Level S

Product Description

1.NOTE

Due to limited page space, not all available configurations are listed. For customized requirements, please contact us.

Default Configuration

Model: WKCH1304

Detection Principle: Capacitive

Detection Type: Contact detection

Compatible Media: Viscous liquids and low-corrosive paste-like materials

Output: Dual output, NPN + PNP

Sensitivity Adjustment: Potentiometer adjustment

Indicators: LED display, red for power and green for output

Operating Temperature: -25°C to 120°C

Thread Size: G1/4

Material: 304 or 316 stainless steel housing

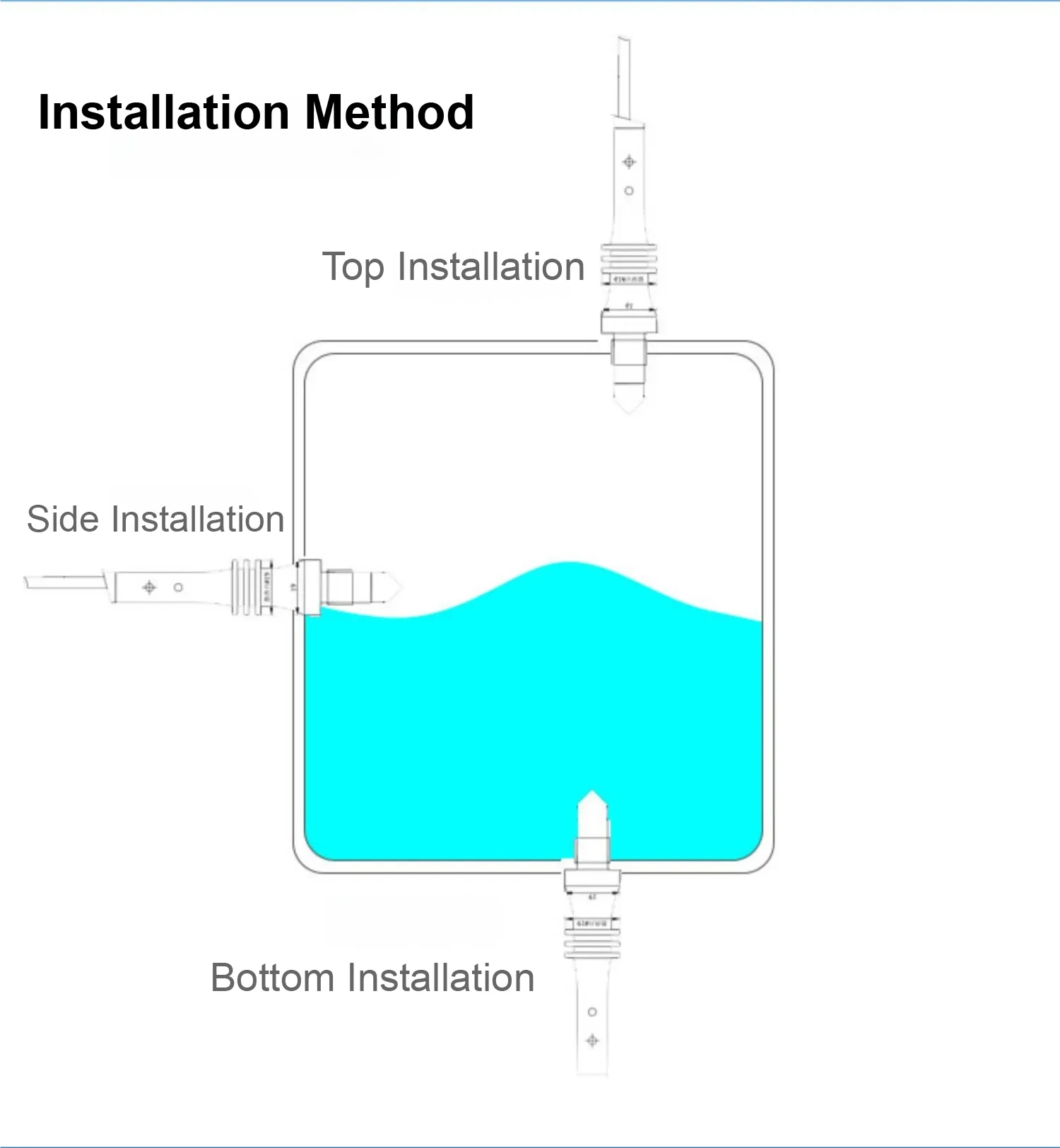

Mounting Options: Top, side, or bottom installation

Wiring Method: Direct cable connection

Protection Rating: IP65

Optional Configuration

Sensitivity adjustment via handheld visual configurator, sold separately

Customizable PWM output

Customizable output mode, such as normally closed

Thread size and mounting options can be customized upon request

Note

Please ensure the operating temperature remains within -25°C to 120°C and the pressure does not exceed 4MPa. This sensor is not suitable for highly corrosive liquids.

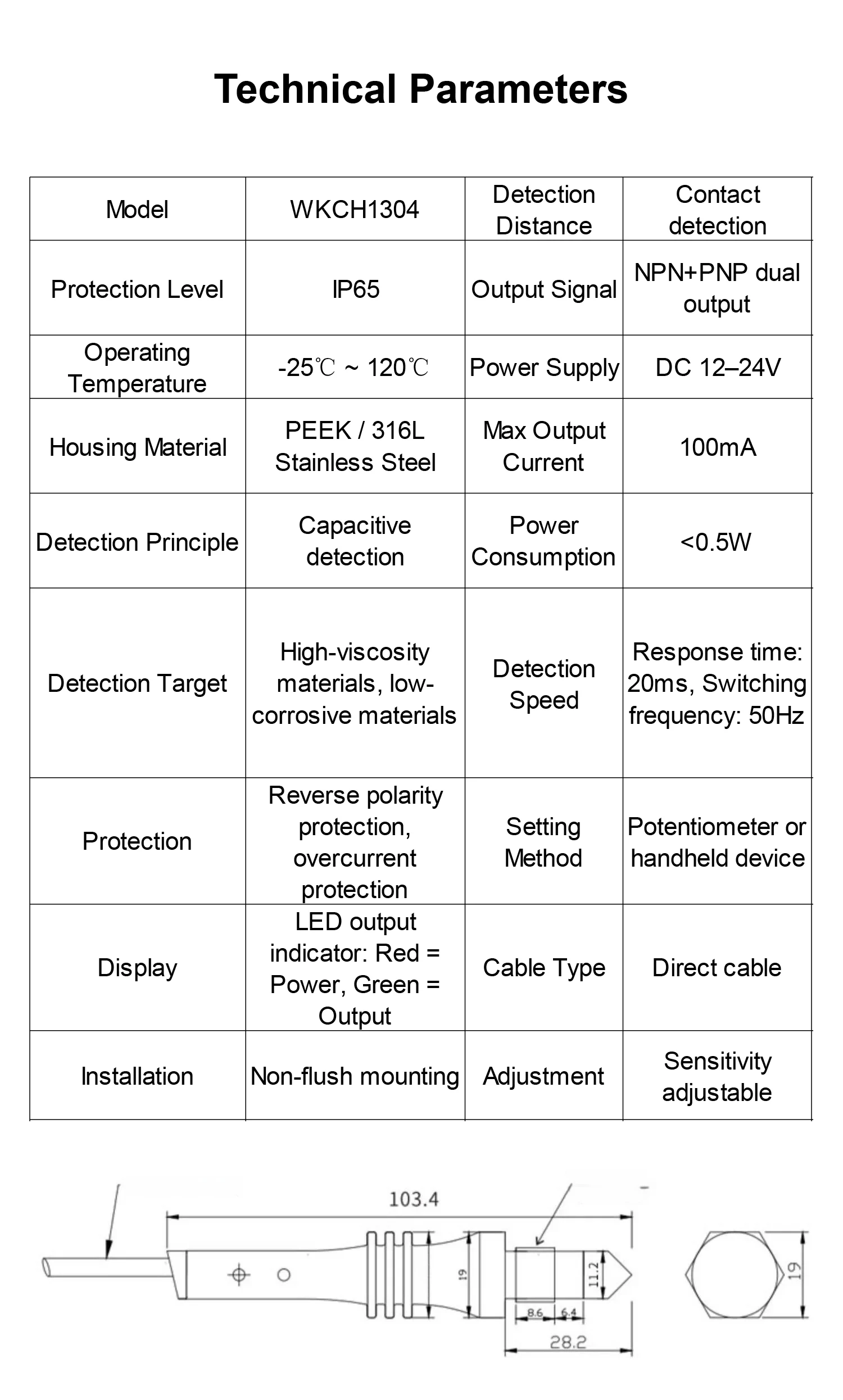

2. Parameters

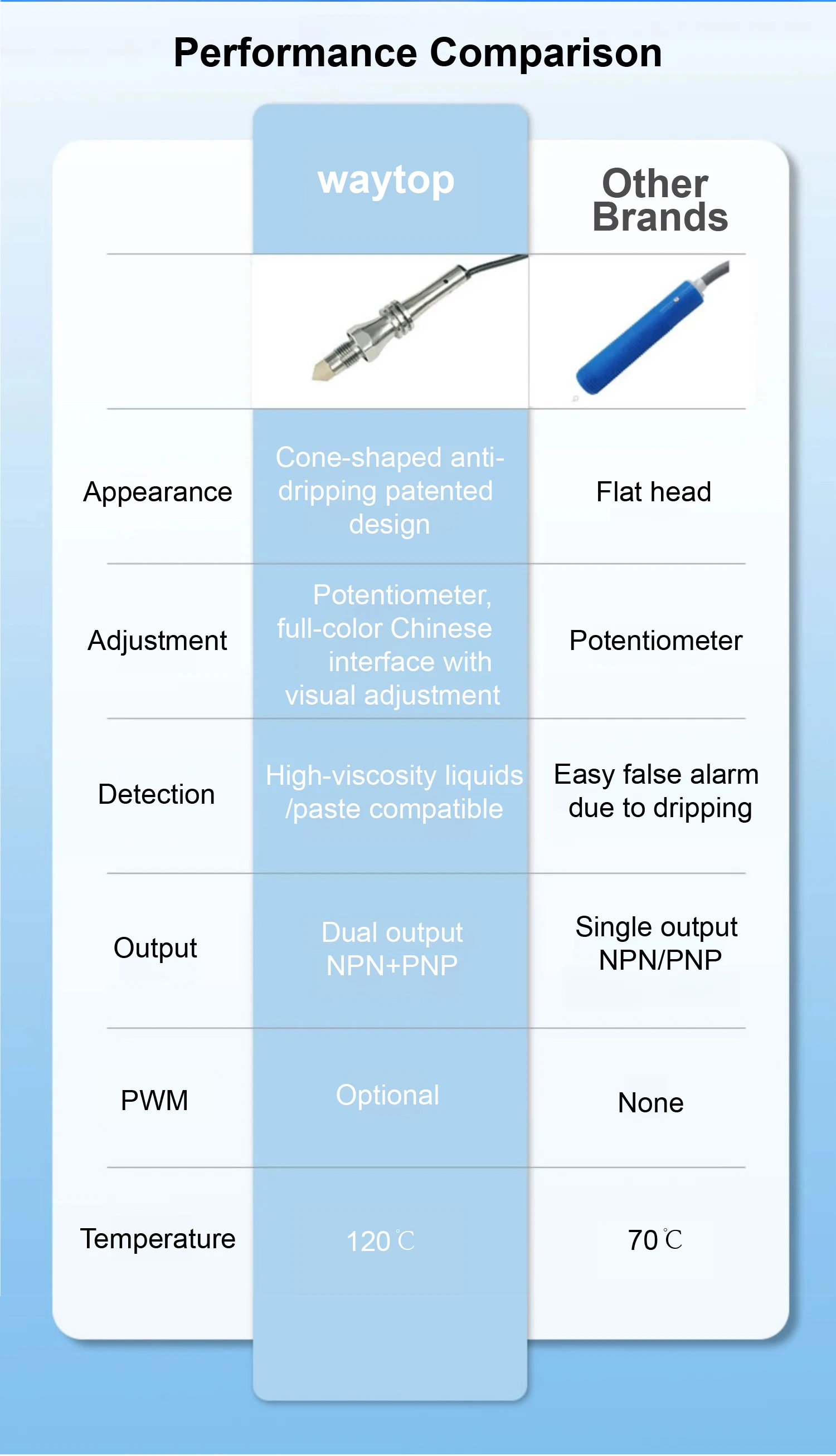

3. Features

120°C High-Temperature Resistance

Engineered for reliable performance in harsh industrial environments, including chemical processing and food manufacturing.

Capacitive Detection for High-Viscosity Media

Accurately detects viscous and paste-like materials, maintaining stable performance regardless of fluid thickness or consistency.

Dual NPN and PNP Output

Provides wide compatibility with different control systems, making system integration easier and more flexible.

Optional Visual Setup with Handheld Configurator

Supports a user-friendly digital interface for precise and efficient parameter configuration.

Manual Sensitivity Adjustment by Potentiometer

Allows quick on-site tuning to adapt to different fluid characteristics.

Rugged, Corrosion-Resistant Construction

Made with durable PEEK and 316L stainless steel to resist corrosion and extend service life.

4. Applications
Industrial tanks containing viscous or paste-like materials

Chemical and food processing industries

Liquid level monitoring in high-temperature environments

5. FAQs

Q1: Can this sensor detect corrosive liquids?
A1: No, it is not designed for highly corrosive substances.

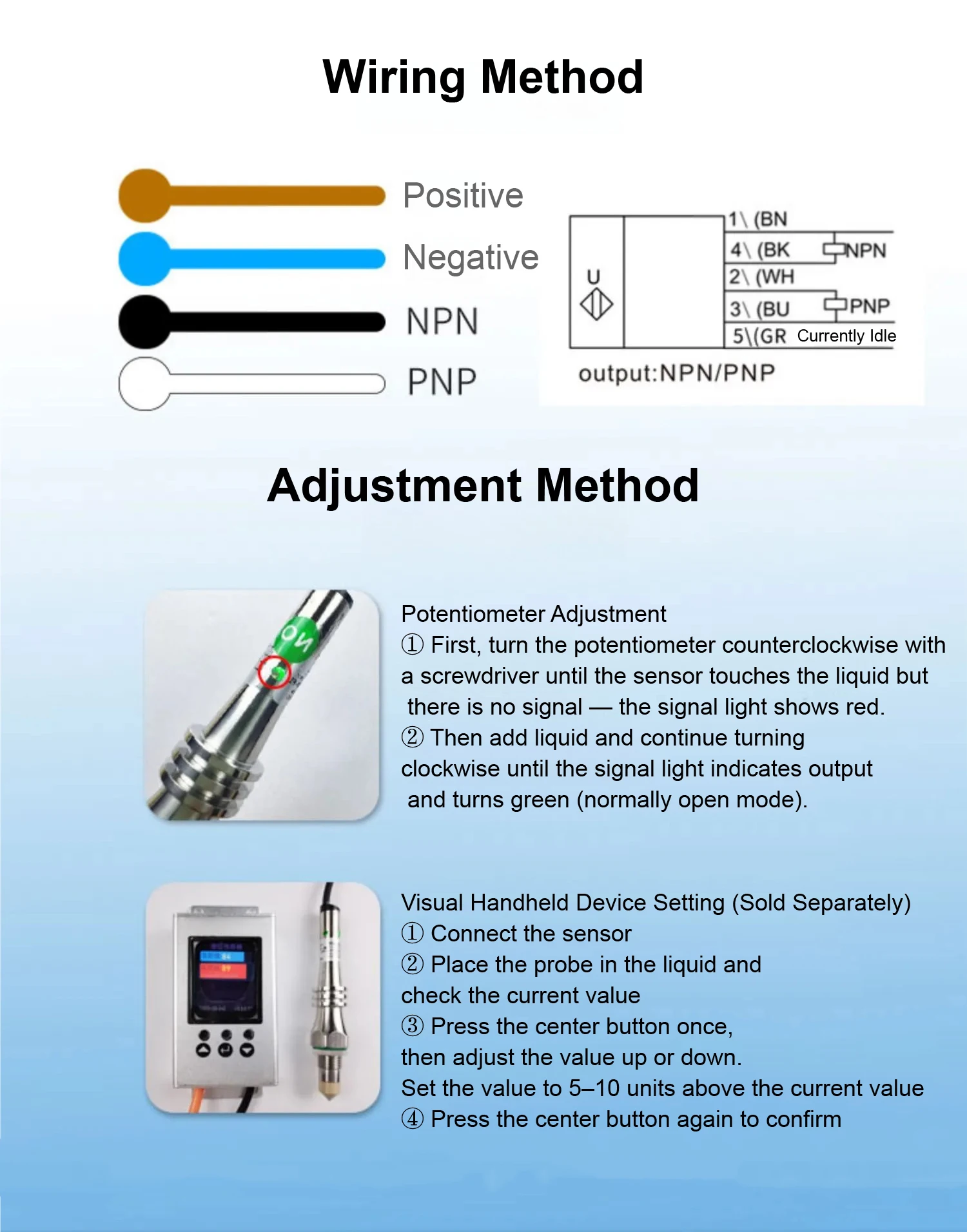

Q2: How can I adjust the sensitivity manually?
A2: Rotate the potentiometer with a screwdriver until the green indicator light turns on when the sensor is submerged.

Q3: Is the handheld visual adjuster included?
A3: No, it is an optional accessory and must be purchased separately.
