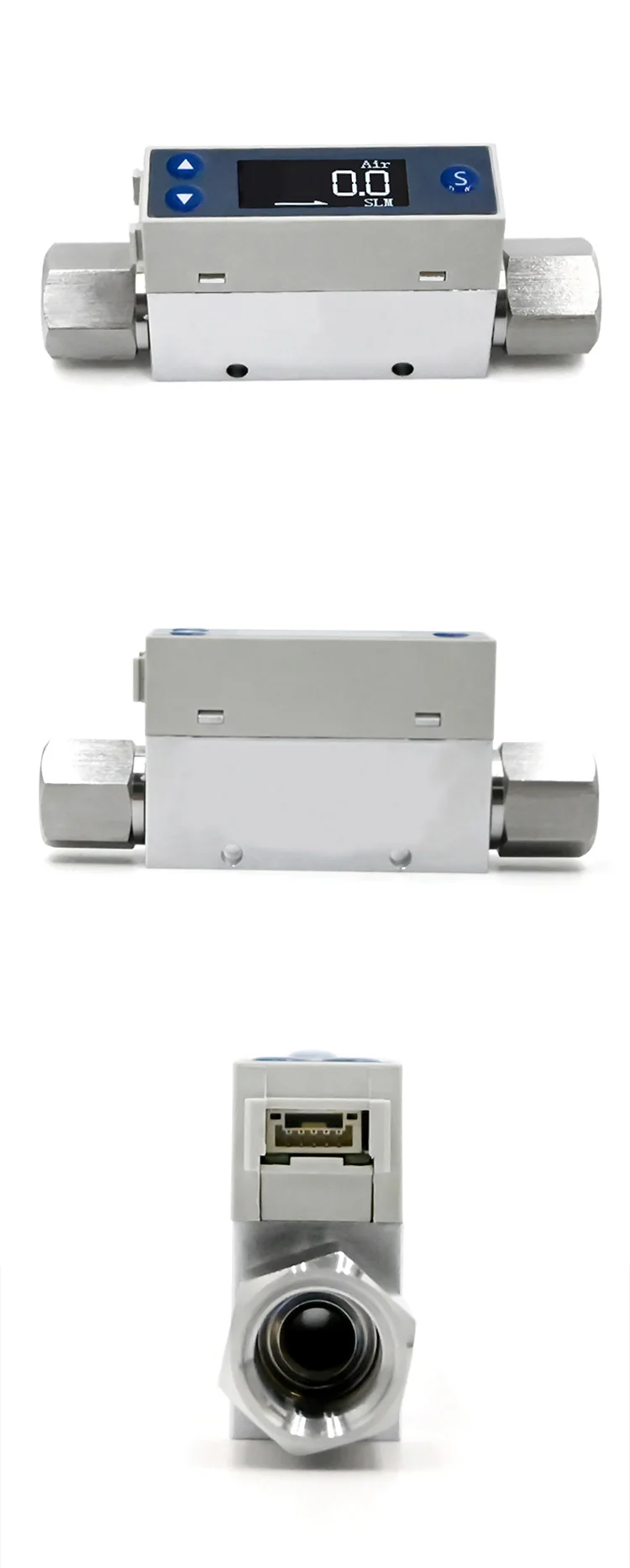

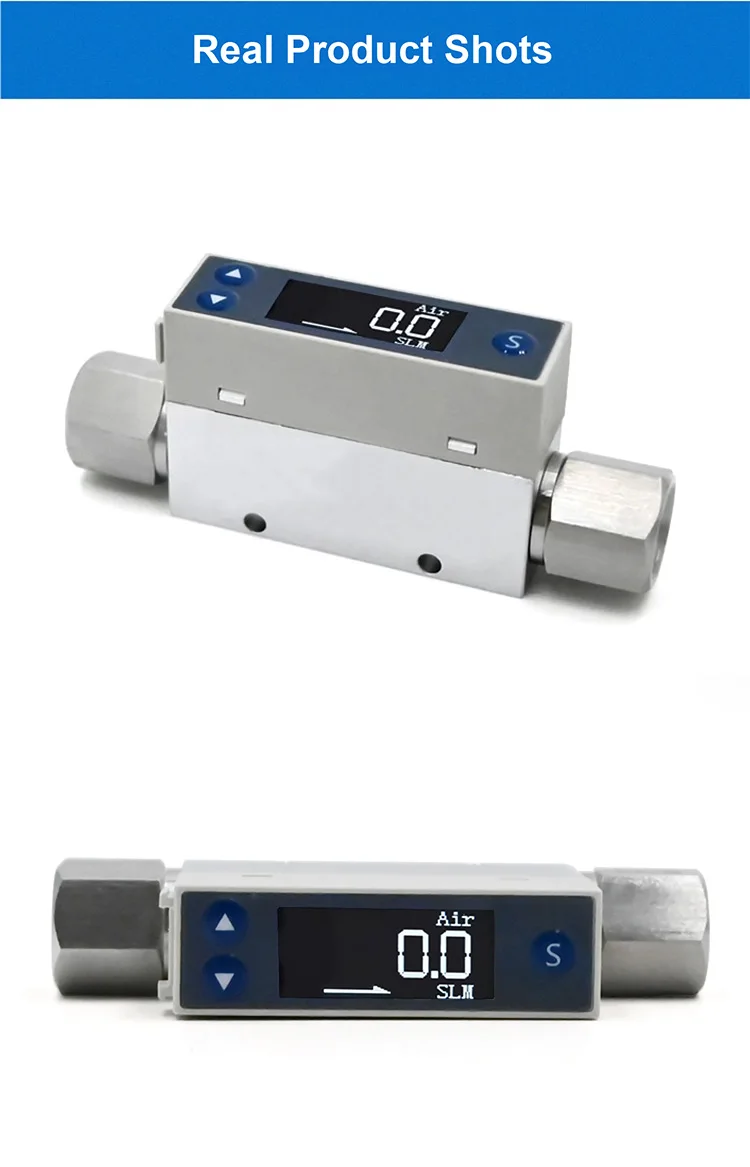

TC5200 Thermal Gas Mass Flow Meter LCD Display MEMS RS485 4 20mA PNP NPN for Pho

Product Description

1.NOTE:
Model: TC5200

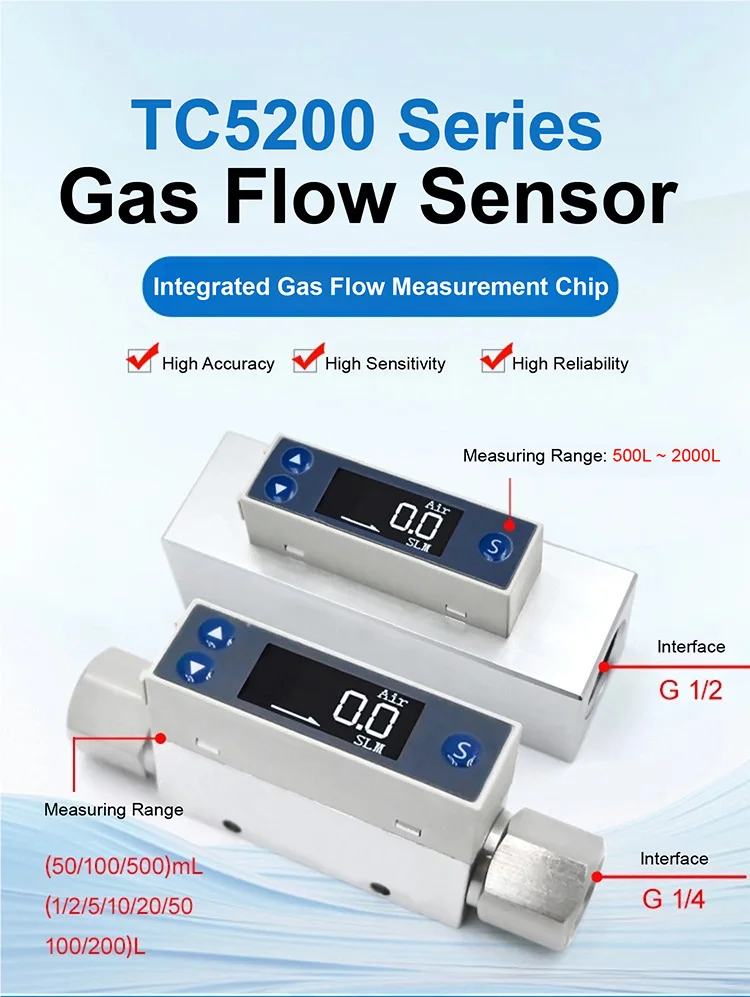

Installation Type: Threaded or quick-connect options available, including G1/4, G1/2, and 4mm, 6mm, or 8mm fittings

Flow Range: 50 mL/min to 2000 L/min

Operating Temperature: 0°C to 50°C

Storage Temperature: -20°C to 70°C

Maximum Pressure: 1 MPa

Power Supply: 9–24VDC

A 24VDC power supply is recommended when using current output.

Signal Output: 4–20mA, RS485 with MODBUS RTU protocol, or customized PNP/NPN output

Important Notice: Please make sure the supply voltage does not exceed 24VDC. Overvoltage may cause permanent damage to the product.

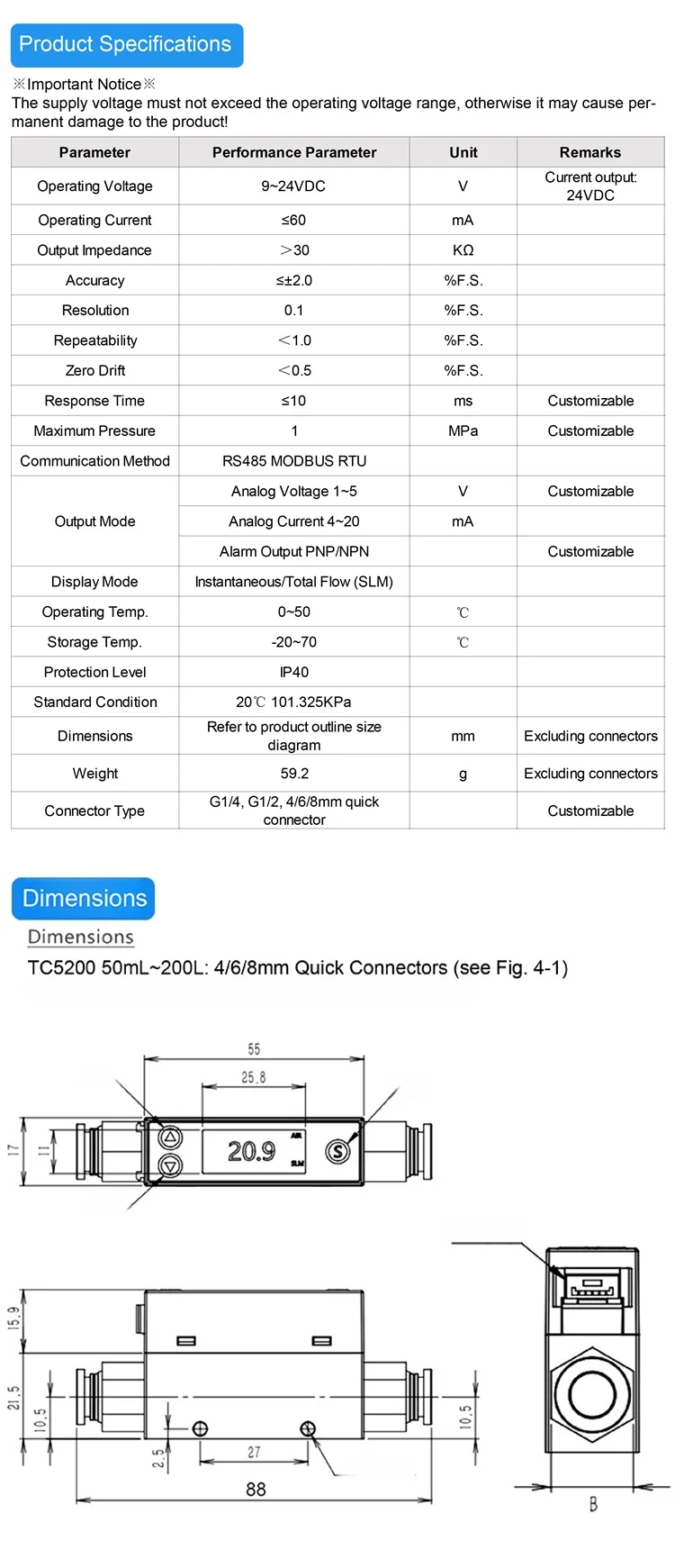

2. Parameters

3. Features

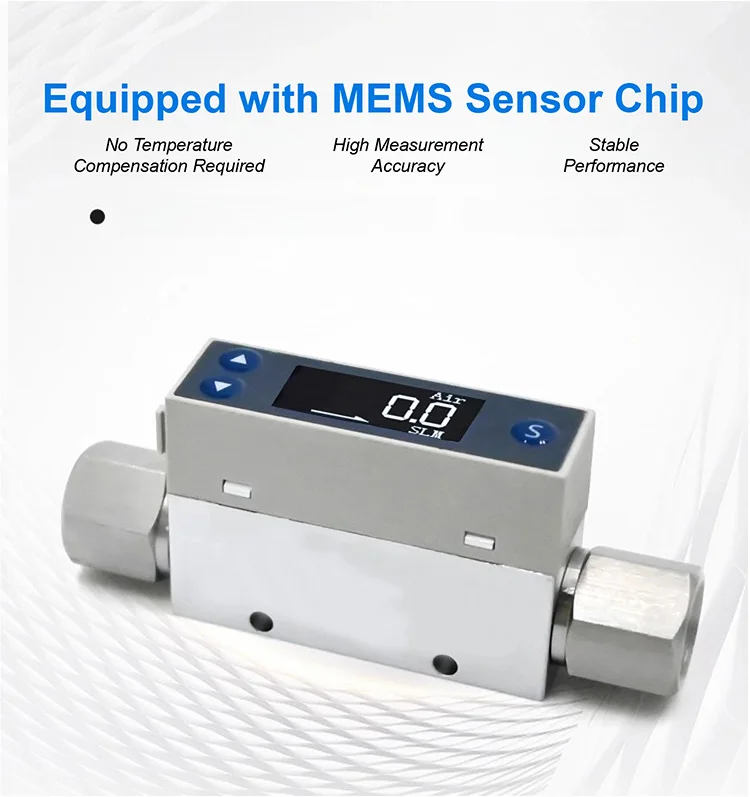

No Temperature Compensation Required

Internal calibration provides accurate output without the need for external temperature compensation.

Wide Flow Range Options

Available from 50 mL/min to 2000 L/min, suitable for a variety of application requirements.

Fast Response Time

Response time of less than 10 ms helps improve system control efficiency and performance.

Compact Integrated Design

Small and space-saving structure with built-in A/D conversion and logic circuit for easier installation and use.

Digital Communication Support

Supports RS485 MODBUS communication for convenient system integration and data transmission.

Flexible Output Signal Options

Available with multiple output options, including 4–20 mA, 1–5 V, and PNP/NPN alarm outputs.

Reliable Performance in Harsh Conditions

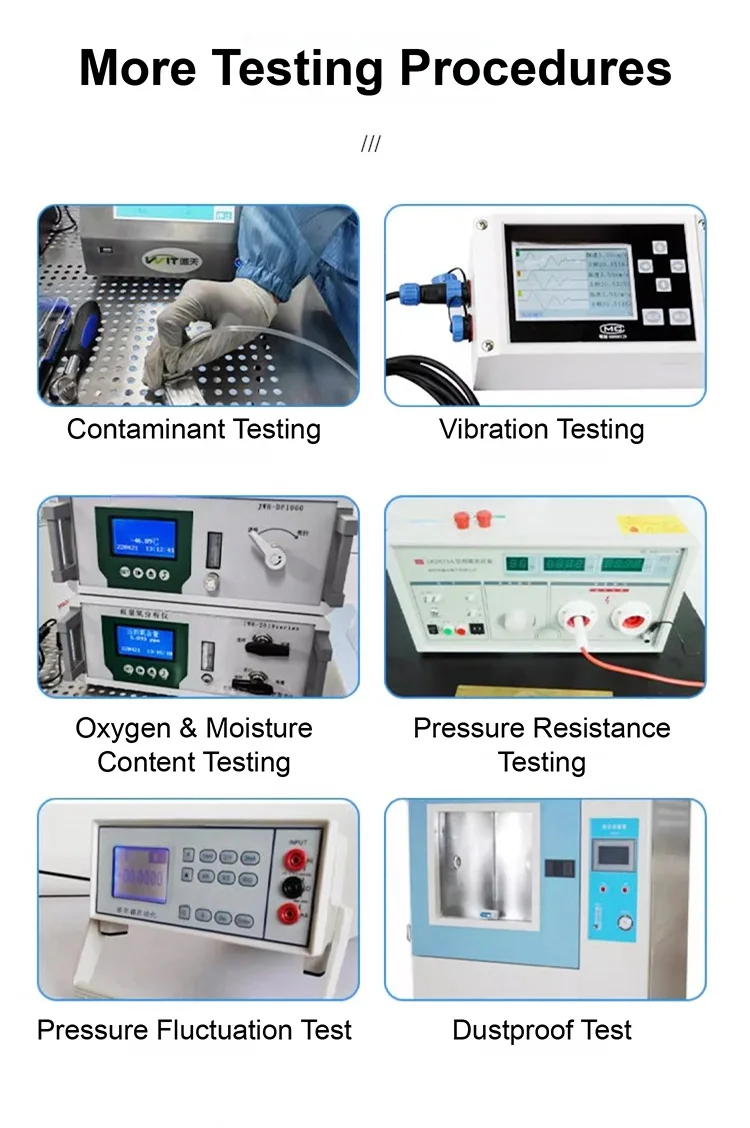

Pressure resistant up to 1 MPa and tested for vibration, dust, oxygen/humidity exposure, and pressure fluctuations.

4. Applications

Widely used in photovoltaic equipment, vacuum pumps, CPAP machines, anesthesia systems, analytical instruments, environmental monitoring systems, and gas flow controllers.

5. FAQs

Q1: What gases are compatible with the TC5200?
A1: The TC5200 is designed for use with clean and dry gases. It supports gas switching and is compatible with a wide range of industrial gases.

Q2: Is calibration required after installation?
A2: No. The TC5200 features built-in calibration and compensation algorithms, allowing it to deliver accurate performance without the need for external calibration or adjustment.

Q3: Are different connection options available?

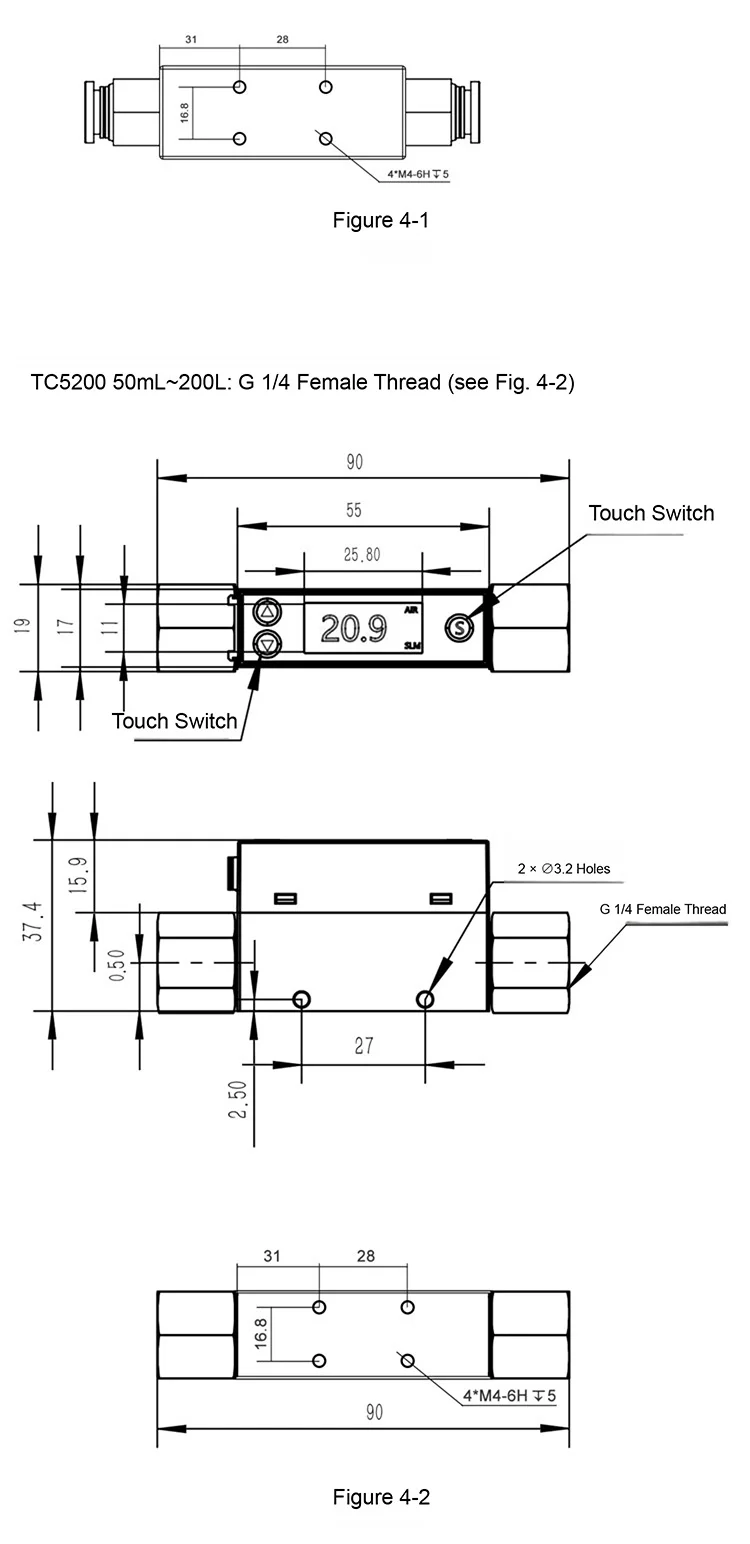

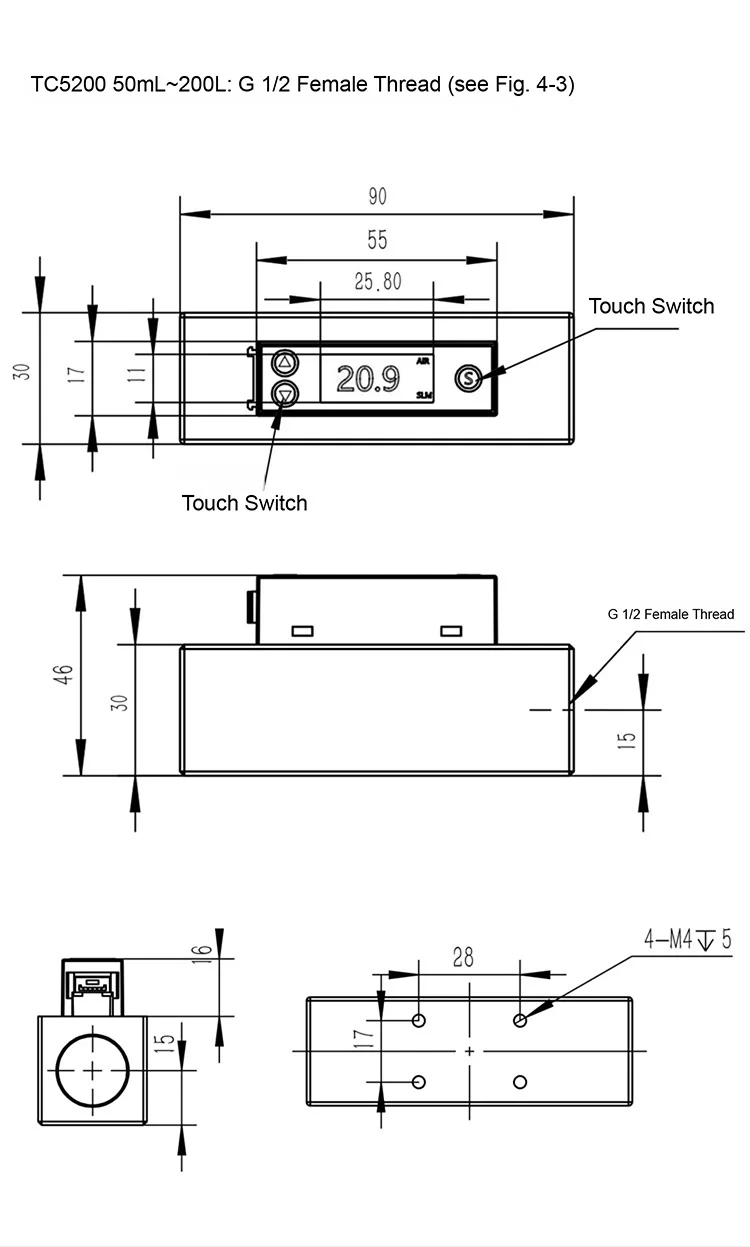

A3: Yes. The sensor supports multiple connection types, including G1/4, G1/2, and 4/6/8 mm quick connectors, depending on the selected flow range.
