Product Description
R7100 7 Inch Paperless Recorder RS485 1-16CH Temperature Pressure Current Voltage Data Logger Process Monitoring
R7100 7 Inch Paperless Recorder RS485 1-16CH Temperature Pressure Current Voltage Data Logger Process Monitoring1. Descriptions
Default Parameters
Input: 1–16 optional channels

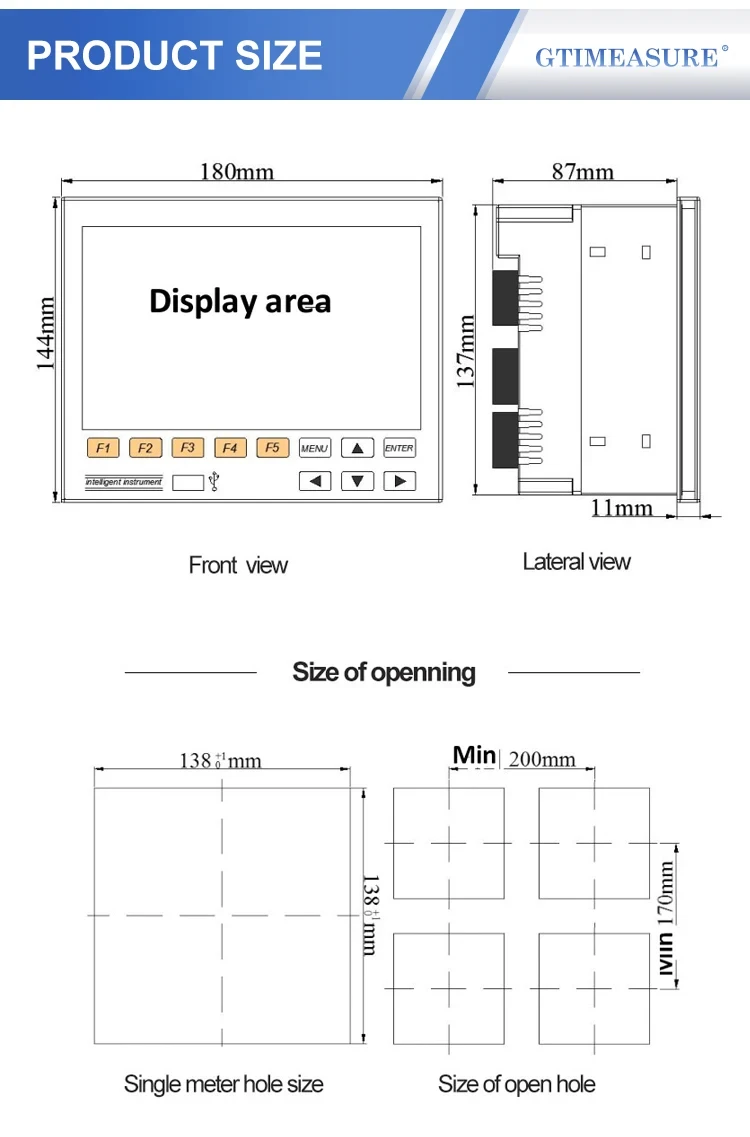

Dimensions: 180 × 144 mm
Power Supply: AC 220V
Output: RS485 + 2 relay outputs
The standard configuration includes one DC 24V power feed, a USB interface, 128MB storage capacity, and Chinese/English language switching.
Customizable Options
Input Channels: Up to 16 channels can be supported.
Additional charges apply for the following customization options:
Adding extra input channels
Adding one 4–20mA output
Adding relay output
By default, the device does not include additional customized outputs. If you need relay output, 4–20mA output, or RS485 output customization, please contact us before placing an order.

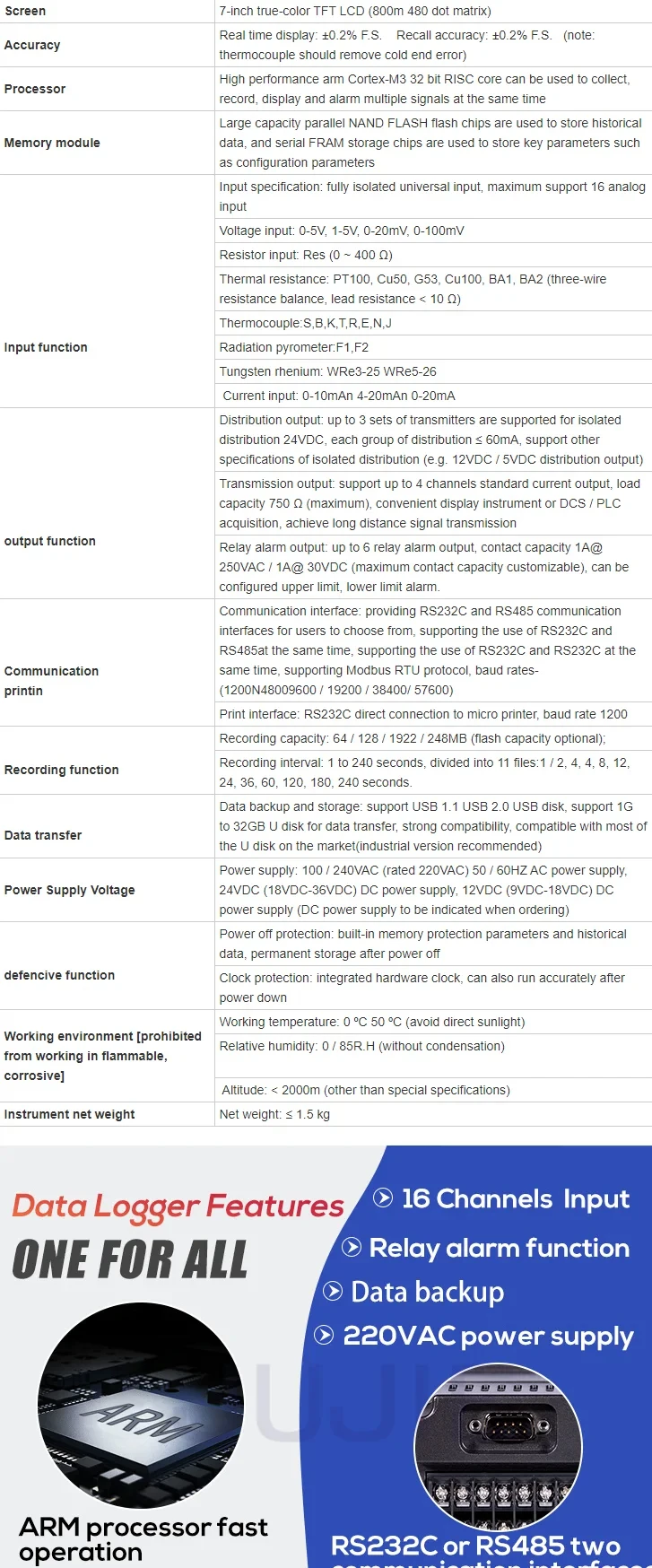

2. Parameters
Specification | Default |
Model | R7100Touchscreen Wireless Recorder |
Input Channels | 1–8 channels |
Interface Language | Chinese/English switchable |
Input Signals | Current: 0–10mA, 4–20mA, 0–20mA |
Display | 7" TFT LCD, 800×480 resolution |
Accuracy | 0.2% F.S. |
Recording Interval | Selectable: 0.1s to 240s |
Alarm Output | 6 relay outputs, 1A @250VAC/30VDC |
Analog Output | 4-channel current output |
Power Supply | AC 100–240V; DC 24V/12V optional |
Storage Capacity | 64MB / 128MB / 192MB / 248MB |
Communication Ports | RS485, Ethernet (RJ45), USB |
Mounting Method | Panel-mount, indoor use |
3. Features
Multi-Channel Input Support
Supports up to 8 channels with universal input capability, making it compatible with a wide range of sensors and measurement requirements.
Fast and Flexible Data Recording
Recording intervals can be freely adjusted from 0.1 to 240 seconds, allowing accurate monitoring of both rapidly changing and stable processes.

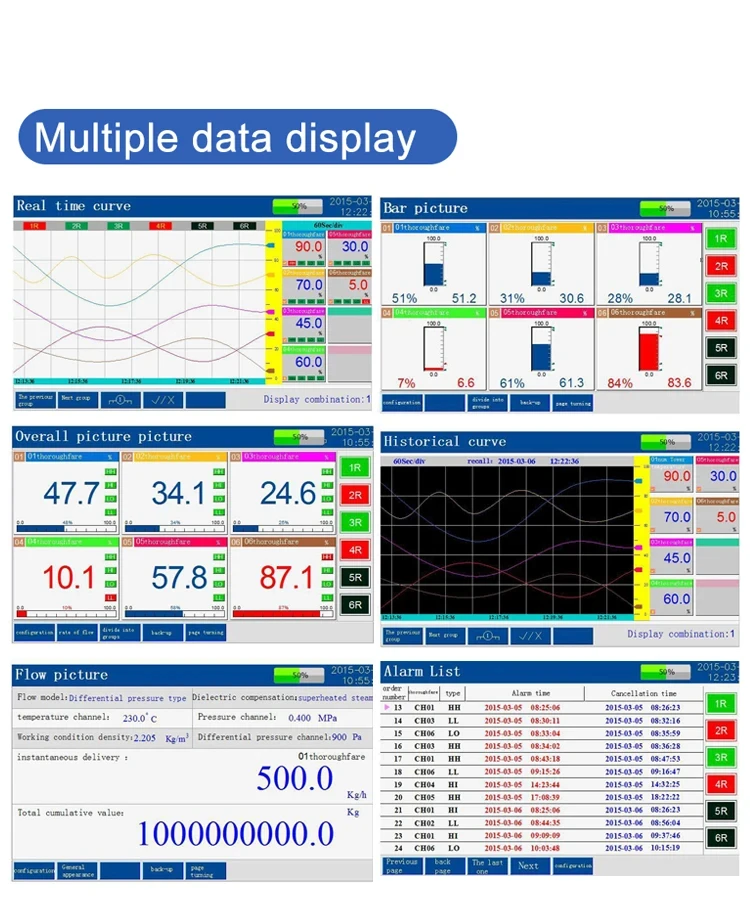

High-Resolution Touchscreen Display
Equipped with a 7-inch TFT color LCD touchscreen, providing an intuitive user interface and clear real-time data visualization.

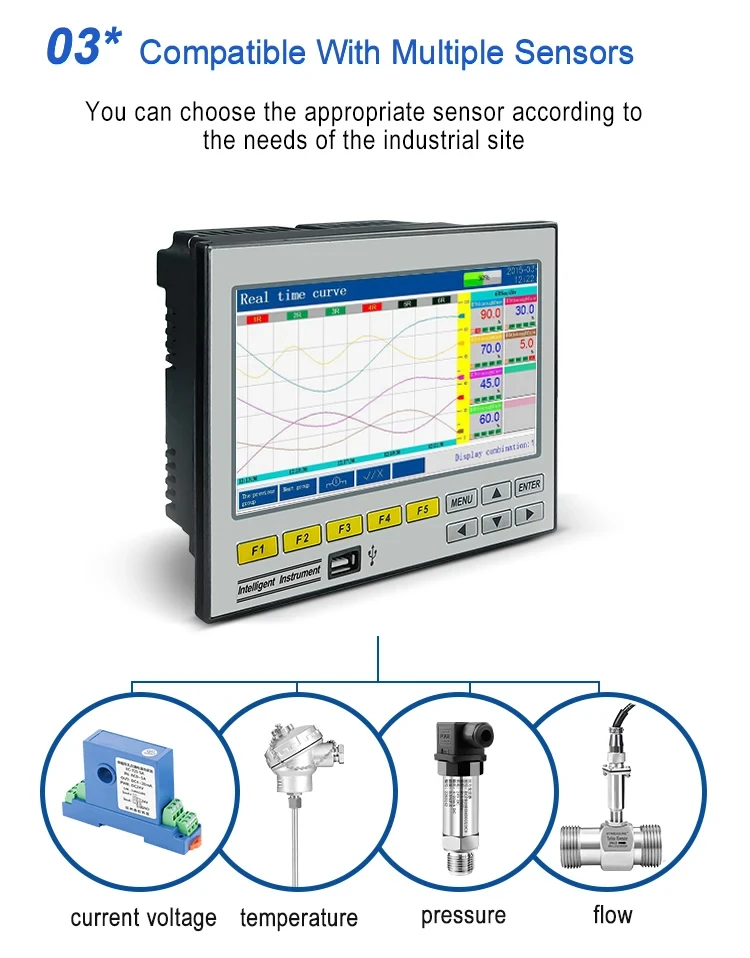

Wide Signal Compatibility
Supports thermocouples, RTDs, mV, mA, and voltage signals, ensuring excellent compatibility across various industrial applications.
Multiple Communication Interfaces
Built-in Ethernet, RS485, and USB interfaces enable convenient data transfer, remote communication, and seamless system integration.

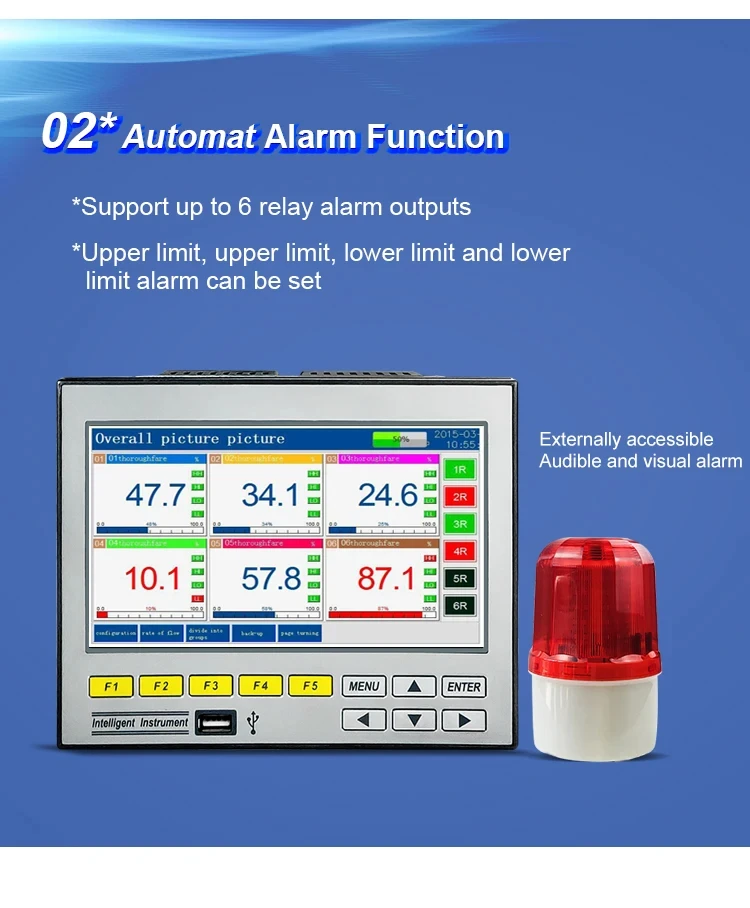

Alarm and Control Functions
Features 6 relay outputs for real-time alarm notifications, equipment protection, and automated process control.

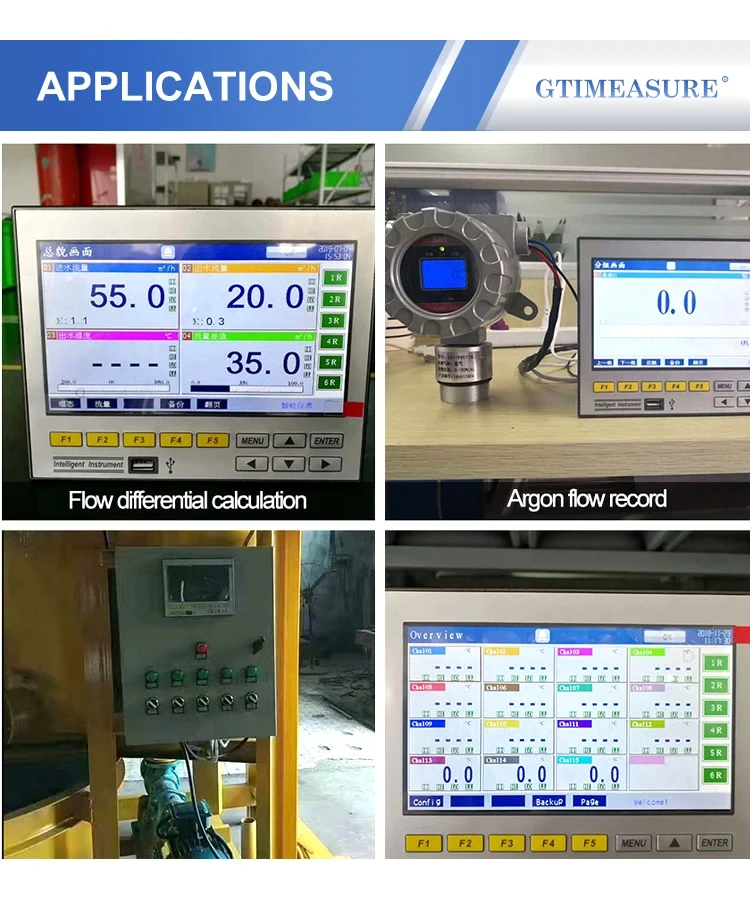

4. Applications
Industrial Process Monitoring and Control
Ideal for monitoring and controlling production processes in manufacturing and industrial environments.
Laboratory and Research Data Acquisition
Suitable for collecting, recording, and analyzing experimental and test data with high accuracy.
Power Plant Equipment Monitoring
Provides reliable monitoring of critical equipment and operational parameters in power generation facilities.
Food and Pharmaceutical Environmental Recording
Designed for temperature, humidity, and environmental data recording in food processing, storage, and pharmaceutical applications.
Factory Automation and Sensor Integration
Supports integration with various sensors and automation systems for efficient factory management and intelligent process control.
5. FAQs
Q1: Is the recorder compatible with third-party sensors?
A1: Yes, it supports standard thermocouples, RTDs, and analog signals, making it compatible with most industrial sensors.

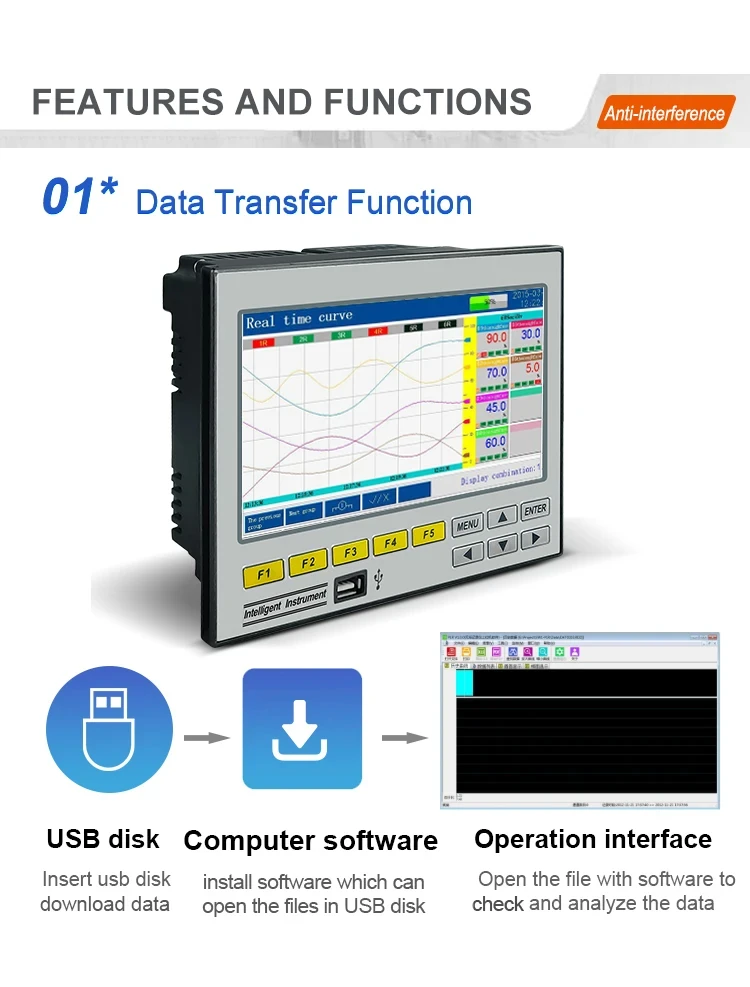

Q2: Can data be exported to a computer or USB drive?
A2: Yes, data can be easily transferred via USB flash drives (1–32GB) or through Ethernet/RS485 using the Modbus RTU protocol.
Q3: How is the device powered?
A3: The device supports AC 100–240V input and also offers optional 24VDC or 12VDC inputs for flexible installation and integration.
