TH485D RS485 Temperature Humidity Transmitter LCD Display Wall Mount Modbus 10-3

Product Description

1.NOTE

Default Configuration

Signal Output: RS485, 4-20mA, 0-5V, 0-10V

Power Supply: 10-30V DC

Accuracy Default B Level: Humidity ±3%RH, Temperature ±0.5°C at 25°C

Probe Operating Temperature: -40°C to 80°C

Probe Operating Humidity: 0%RH to 100%RH

Protection Level: IP65 enclosure with IP68 cable gland

Extended Probe Cable Length: Default 0.5 m

Optional Features

High Accuracy A Level: Humidity ±2%RH, Temperature ±0.4°C

Multiple Probe Types Available

Standard Probe: Fast response, not waterproof

Waterproof Probe: Suitable for high-dust environments

High-Temperature Probe: Suitable for environments above 80°C

Customizable Extended Probe Cable Length: Up to 15 m

Metal Windproof Probe: Made of 316L stainless steel, corrosion-resistant and designed to withstand strong winds

For compatibility confirmation, please contact us.

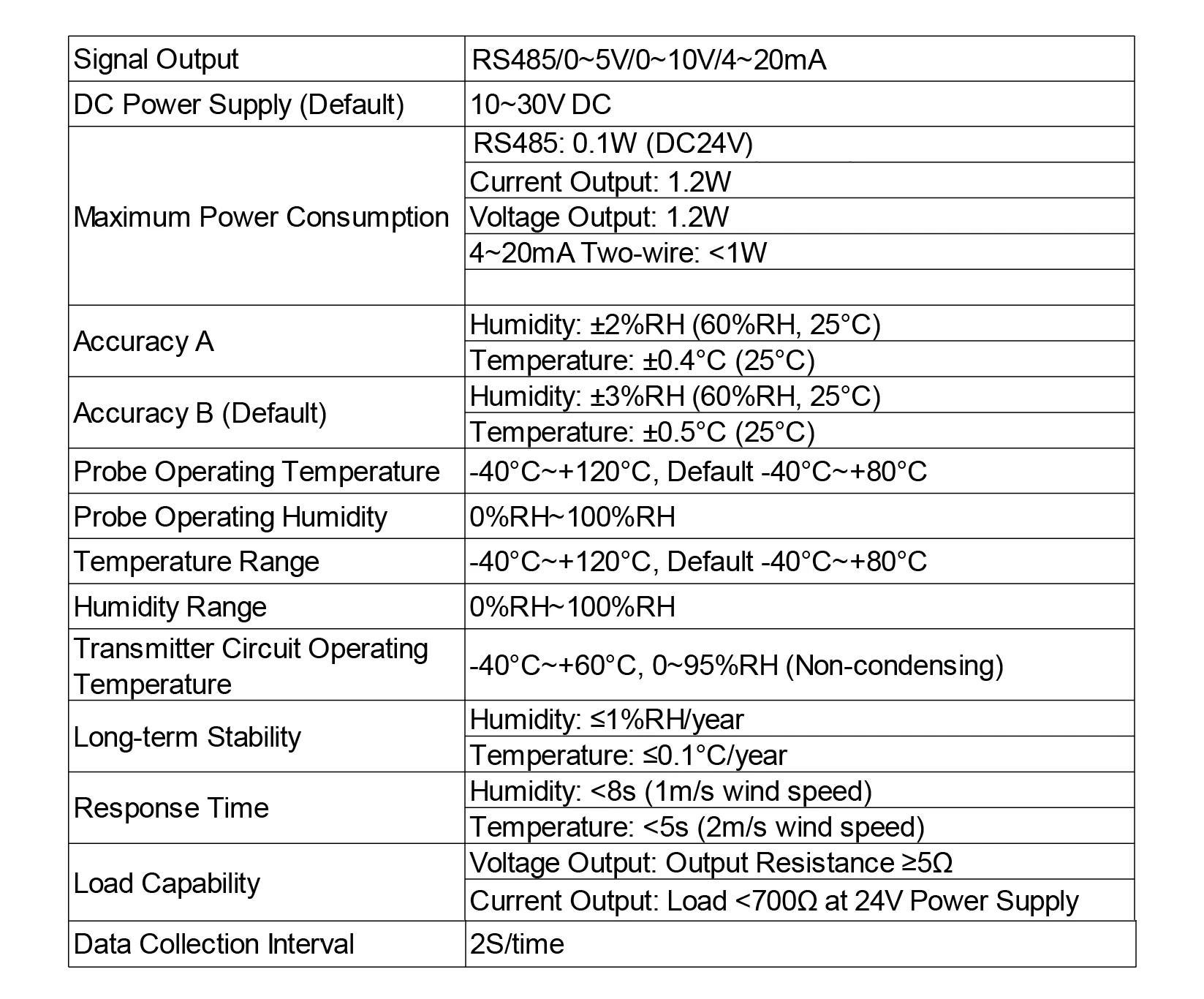

2. PARAMETERS

3. APPLICATION

Agricultural Applications

Ideal for greenhouses, flower cultivation, and other agricultural environments requiring precise temperature and humidity monitoring. Helps maintain stable growing conditions for improved crop quality and productivity.

Industrial Applications

Widely used in underground corridors, warehouses, workshops, server rooms, and other industrial environments. Supports multi-point data collection and can upload monitoring data to platforms through data loggers or environmental controllers.

Commercial and Public Facilities

Suitable for cold chain logistics, museums, laboratories, and other locations where strict environmental control is essential. The device supports smooth integration with centralized management systems for efficient monitoring and control.

4. FEATURES

High Accuracy Measurement

Equipped with a high-precision sensor providing humidity accuracy up to ±2%RH and temperature accuracy up to ±0.4°C for reliable environmental monitoring.

Reliable Protection Design

Features an IP65-rated transmitter housing and IP68-rated connectors, ensuring stable performance even in demanding environments.

Multiple Probe Options

Available with waterproof, dustproof, high-temperature, and high-sensitivity probe configurations to meet different application requirements.

Easy Installation

Wall-mounted design allows quick and convenient installation, with flexible expansion options suitable for a wide range of applications.5. FAQ

Q: How do I choose the right probe?

A: The standard probe is suitable for most environments. For high-dust environments, we recommend the waterproof probe. For high-temperature applications, please choose the high-temperature probe. Dust-resistant and corrosion-resistant probes are also available for special application requirements.

Q: What signal output options are supported?

A: The device supports multiple signal outputs, including RS485, 4-20mA, 0-5V, and 0-10V.

Q: What display options are available?

A: Optional display types include high-brightness LED digital displays, low-power LCD displays, and colorful OLED displays, providing clear and intuitive real-time data viewing.
