WKCH2 DN8 DN15 200°C High Temperature Oil Grease Glue Sauce Tank Level Sensor Ca

Product Description

1.NOTE
Product Specifications

Power Supply: DC 12–24V

Output Type: NPN / PNP, NC / NO

Operating Temperature: -40°C to +160°C

Probe Material: 316L Stainless Steel + PTFE Teflon

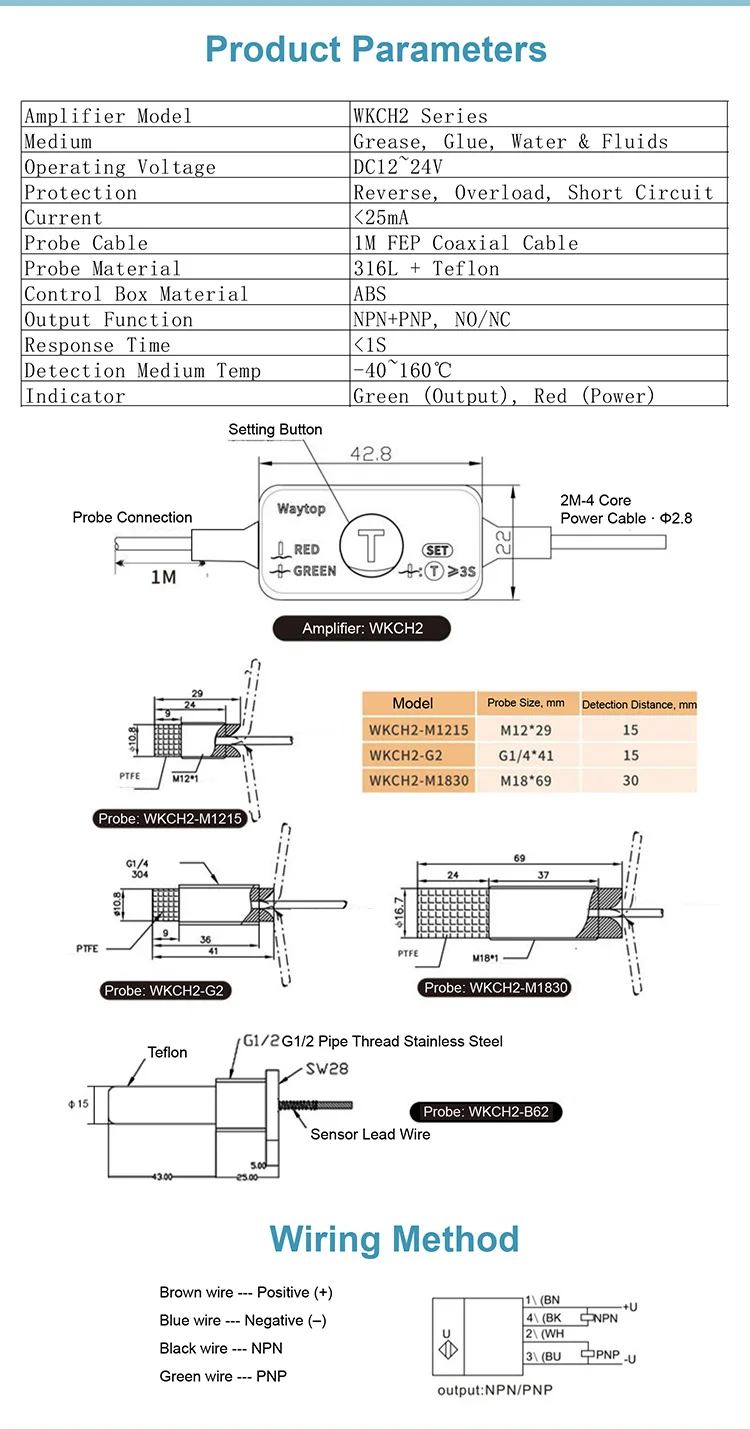

Model Dimensions

WKCH2-B62
Thread Size: G1/2
Diameter: 15 mm

WKCH2-G2
Thread Size: G1/4
Diameter: 10.5 mm

2.Parameters

3.Features

Durable Probe Construction

Made with 316L stainless steel and PTFE for excellent corrosion resistance and a long service life.

Wide Temperature Resistance

Operates reliably from -40°C to 160°C, making it suitable for harsh and extreme environments.

Flexible Dual Output Options

Supports both NPN and PNP outputs, with NO/NC selection for easy integration into different systems.

Fast and Reliable Response

Less than 1 second response time ensures accurate and timely fluid detection.

Multi-Protection Design

Built-in reverse polarity, overload, and short-circuit protection for safer and more stable operation.

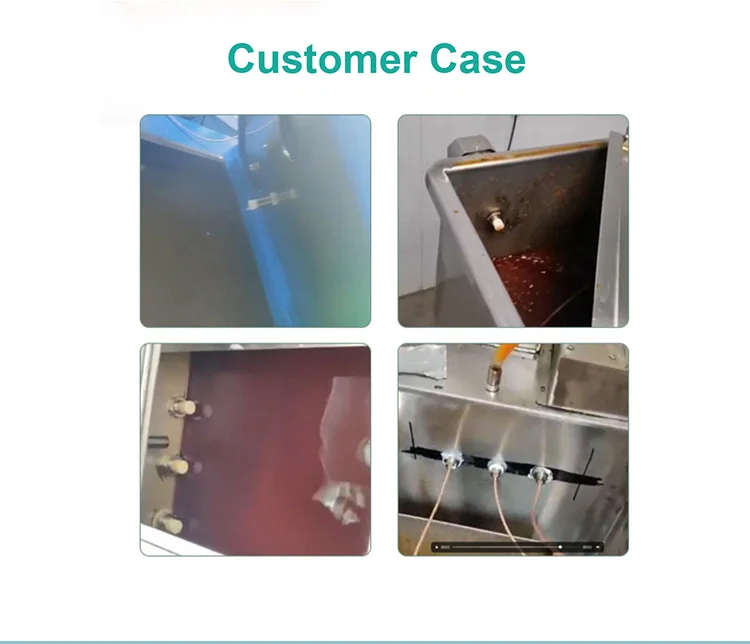

4.Applications

Ideal for detecting fluid levels and material presence in lubrication systems, glue dispensing equipment, chemical processing applications, and industrial automation systems.

5.FAQs

Q1: What types of fluids can this sensor detect?

A1: This sensor is suitable for detecting oil, grease, glue, and other viscous fluids.

Q2: Is the sensor easy to install and connect?

A2: Yes. It comes with a 1-meter FEP coaxial cable for a stable connection and supports both NPN and PNP wiring.

Q3: Can it be used in high-temperature environments?

A3: Yes. It operates reliably within a wide temperature range from -40°C to 160°C.
