Product Description
LR400 Laser Displacement Sensor 160-400mm RS485 NPN PNP 0.1mm for Automation Position Height Thickness Detection
LR400 Laser Displacement Sensor 160-400mm RS485 NPN PNP 0.1mm for Automation Position Height Thickness Detection1.Note
Power Supply: 12–24V
Output Interface: RS-485 + NPN/PNP
Cable Length: 2 m
Model Parameters
LR400:
Measuring Range: 60–400 mm
Accuracy: 0.1–0.8 mm
TOF:
Measuring Range: 40–1000 mm
Accuracy: 1.5 mm

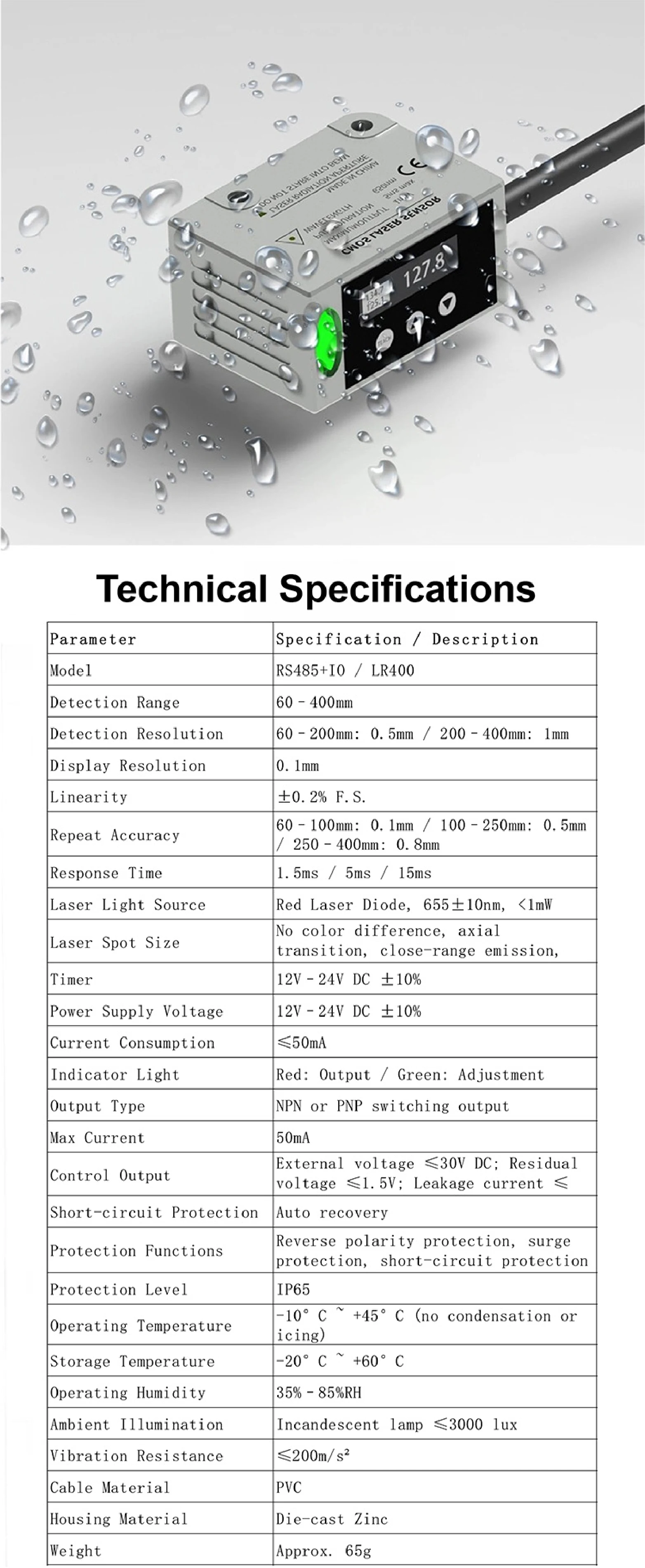

2. Parameters
Parameter | Value |
Model | RS485 + IO LR400 |
Sensing Range | 60–400 mm |
Differential Detection | 60–200mm: 0.5mm / 200–400mm: 1mm |
Display Resolution | 0.1 mm |
Linearity | ±0.2% F.S |
Repeat Accuracy | 60–100mm: 0.1mm / 100–250mm: 0.5mm / 250–400mm: 0.8mm |
Response Time | 1.5ms / 5ms / 15ms |
Laser Type | Red Semiconductor Laser, Class I (655±10nm) <1mW |
Power Supply | 12–24V DC ±10% |
Current Consumption | ≤50mA @ 24V |
Output Mode | RS485 + IO / NPN or PNP open collector |
Output Impedance | Max 300Ω |
Output Configuration | Normally Open / Normally Closed switchable |
Protection Features | Reverse polarity, surge, and short circuit protection |
Housing Material | Die-cast zinc |
Protection Grade | IP65 |
Operating Temperature | -10°C to +45°C (no condensation/freezing) |
Storage Temperature | -20°C to +60°C |
Operating Humidity | 35%–85% RH |
Ambient Light Resistance | ≤3000 Lux (incandescent light) |
Altitude Limit | Below 2000m |
Cable | PVC |
Weight | Approx. 85g |
3. Features

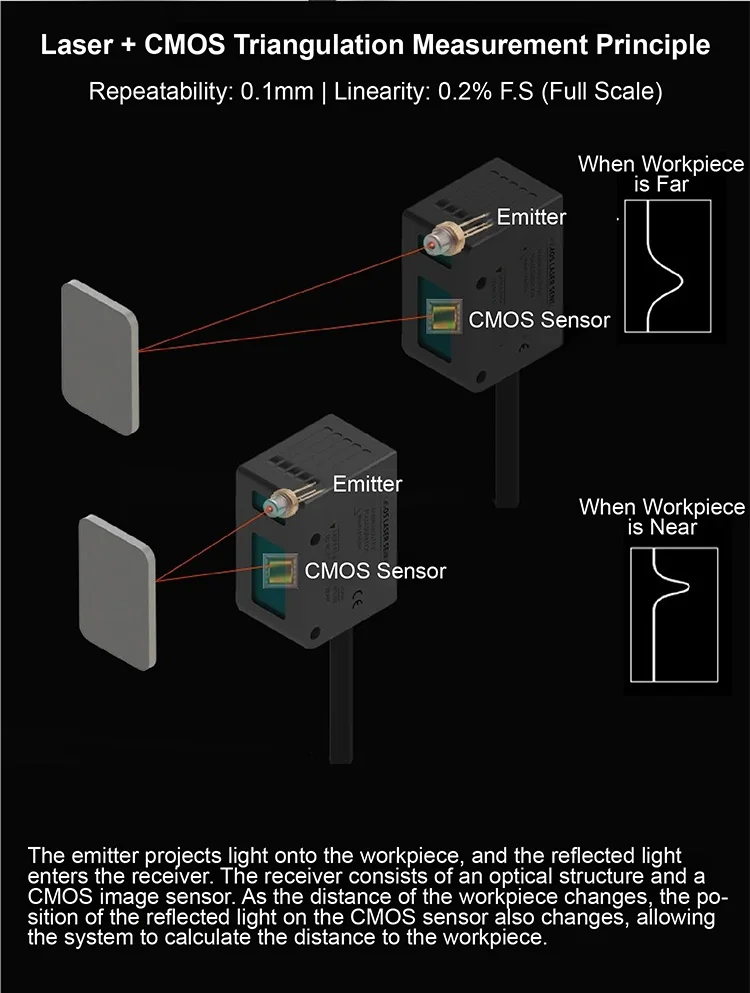

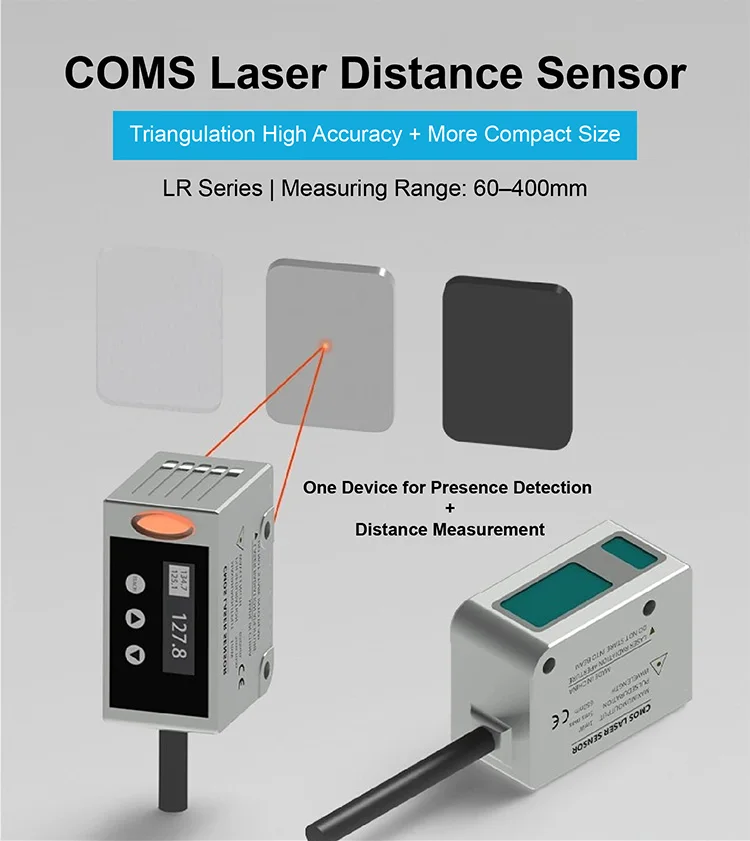

CMOS Triangulation for High Precision
Utilizes advanced laser triangulation and CMOS image sensing technology to deliver stable 0.1 mm repeatability and ±0.2% linearity for highly accurate measurement results.
Adaptive Light Control Algorithm
Automatically adjusts laser power, gain, and exposure time to ensure reliable detection on reflective, dark, or uneven surfaces.
Improved Detection on Low-Reflectivity Materials
Capable of detecting black rubber and other low-reflectivity targets below 10% reflectivity at up to twice the sensing distance compared to traditional models such as EZ-BG.

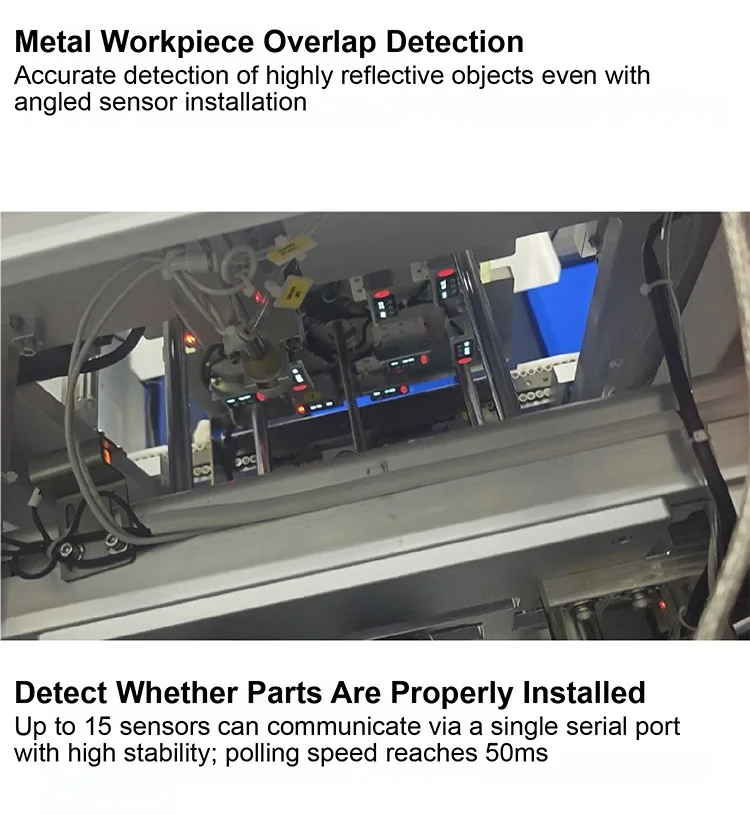

Reliable Detection on Reflective Metal Surfaces
Provides stable and accurate measurements even on glossy or angled metal objects, making it suitable for demanding industrial applications.

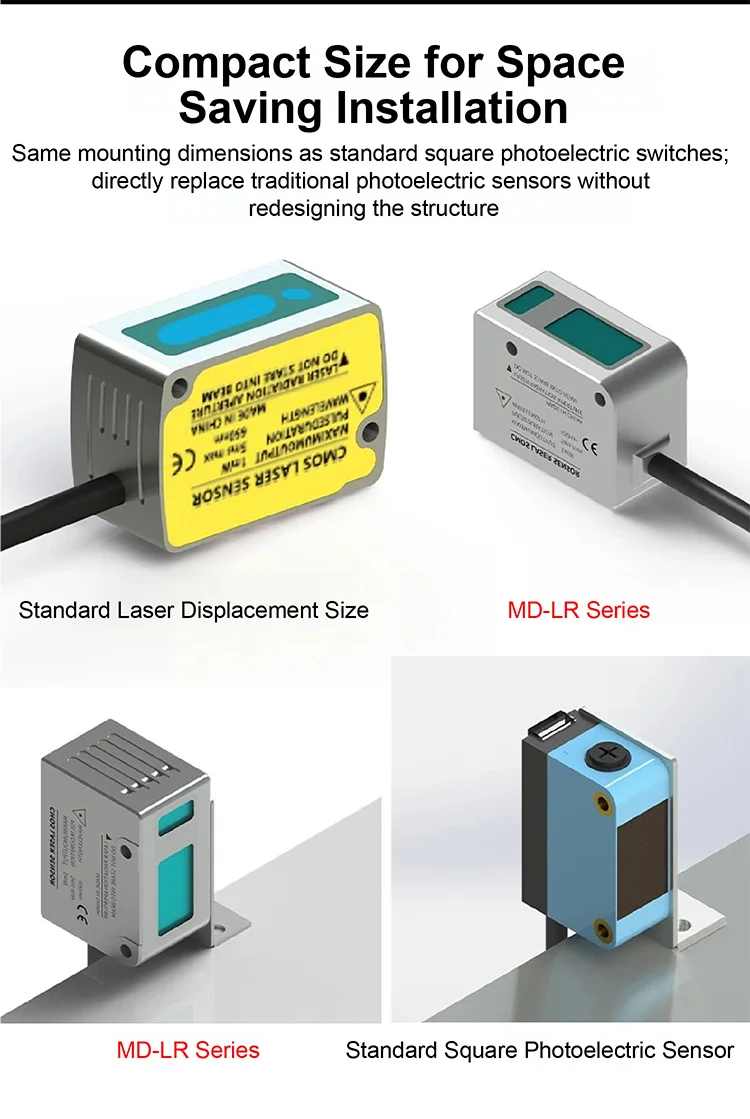

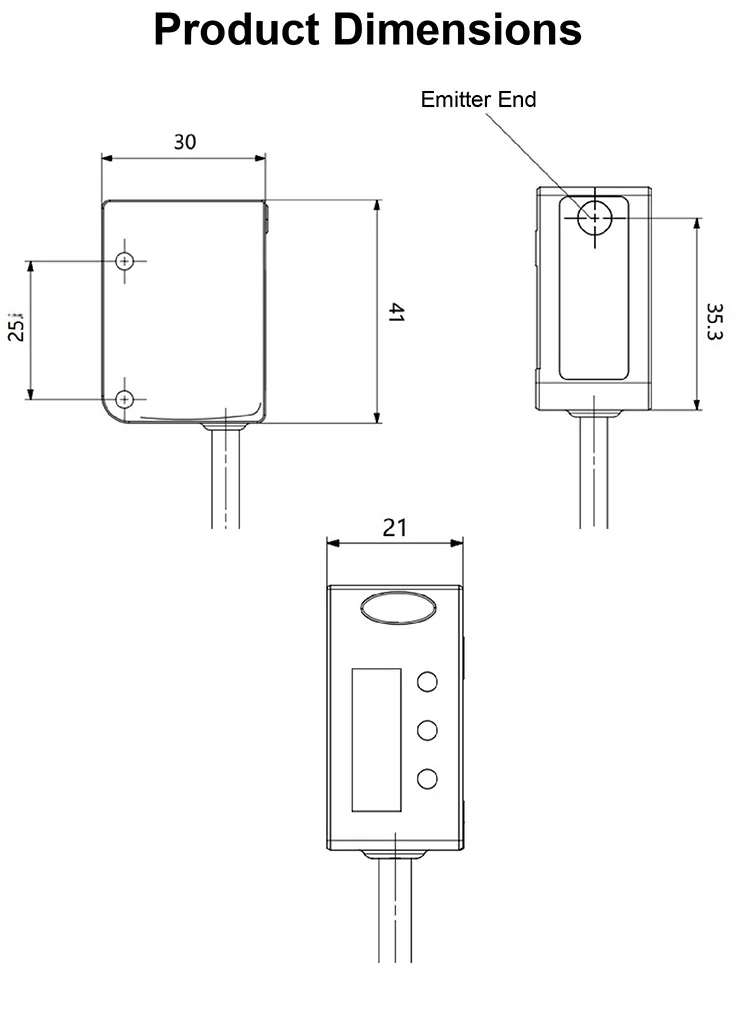

Compact Design for Easy Replacement
Designed with dimensions compatible with standard photoelectric sensors, allowing quick upgrades without mechanical modifications.

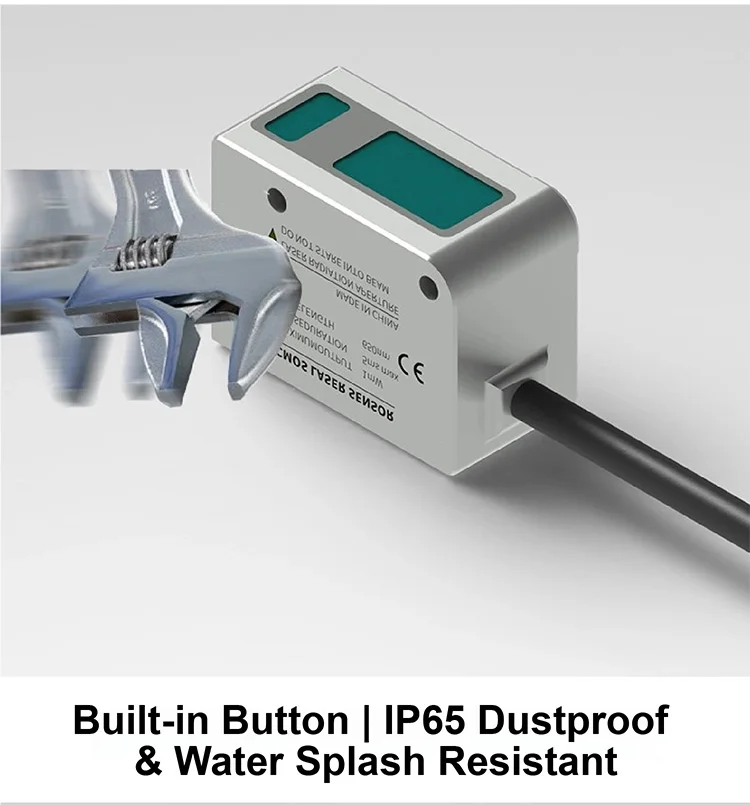

IP65 Protection with Integrated Control Buttons
Dustproof and splash-resistant housing with built-in operation buttons for convenient setup and parameter adjustment.

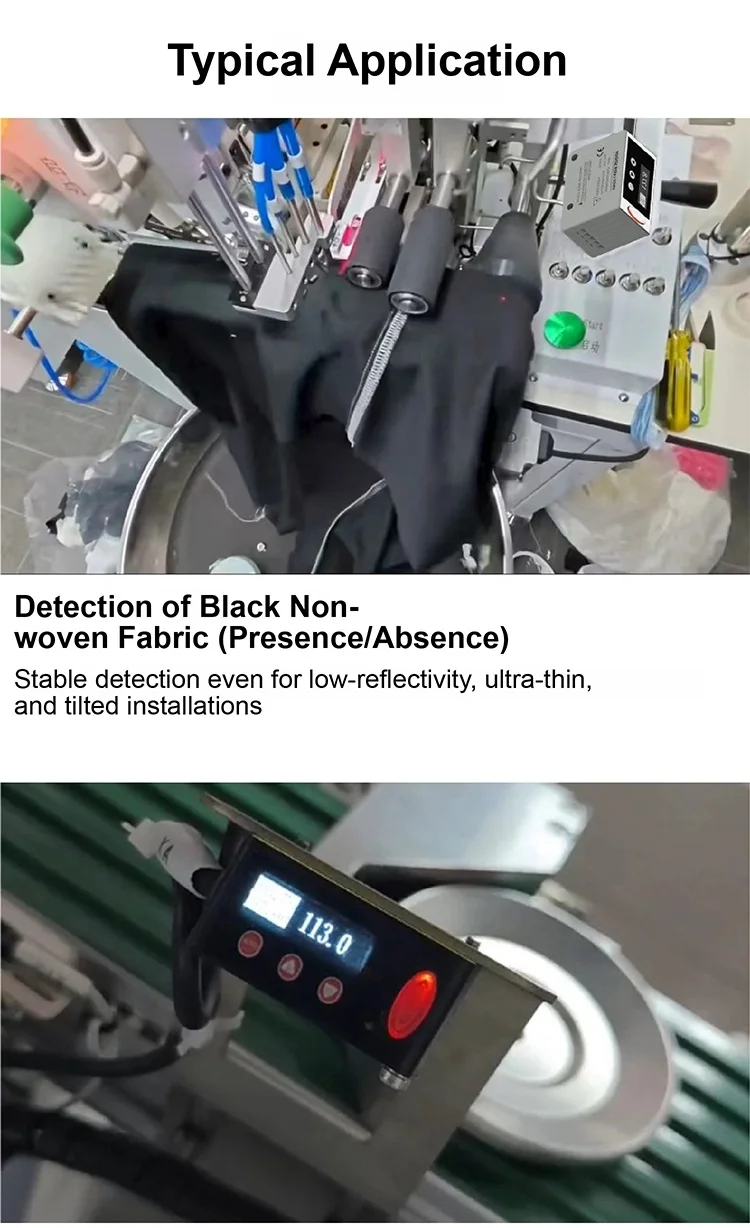

4. Applications
Ideal for precise positioning, height measurement, and thickness inspection in automated production systems.
Suitable for detecting black rubber, reflective metal parts, and inclined objects in various industrial environments.
5. FAQs
Q1: Can this sensor detect low-reflectivity materials such as black rubber?
A1: Yes, it is capable of detecting low-reflectivity targets below 10% reflectivity with excellent accuracy and extended sensing range.
Q2: Is it compatible with standard photoelectric sensor installations?
A2: Yes, it features the same form factor and mounting dimensions as standard photoelectric switches, allowing direct replacement without mechanical redesign.
Q3: What output modes are supported?
A3: The sensor supports RS485 communication as well as NPN/PNP IO outputs for flexible system integration.
