WCKP1404 Grease Level Switch Oil Level Sensor for Glue Dispenser Glue Filling Ma

Product Description

1.NOTE:
Some configurations may not be fully displayed due to page limitations. For customized requirements, please contact us.

Default Configuration:
Detection Method: Capacitive contact sensing

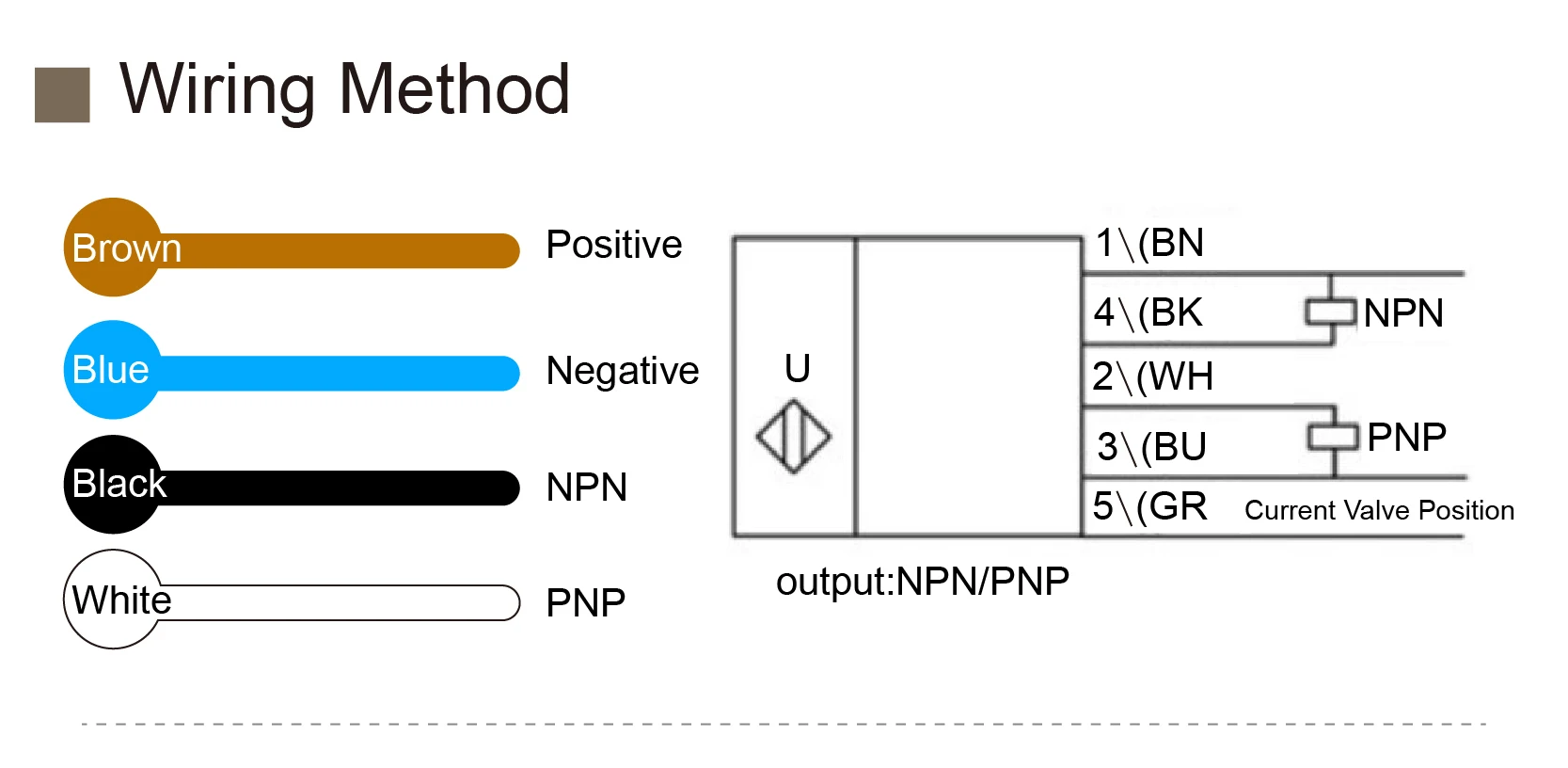

Output Signal: NPN/PNP or PWM
Material: POM housing
Power Supply: DC 12–24V
Maximum Output Current: 100mA
Indicators: LED lights, Red for Power and Green for Output

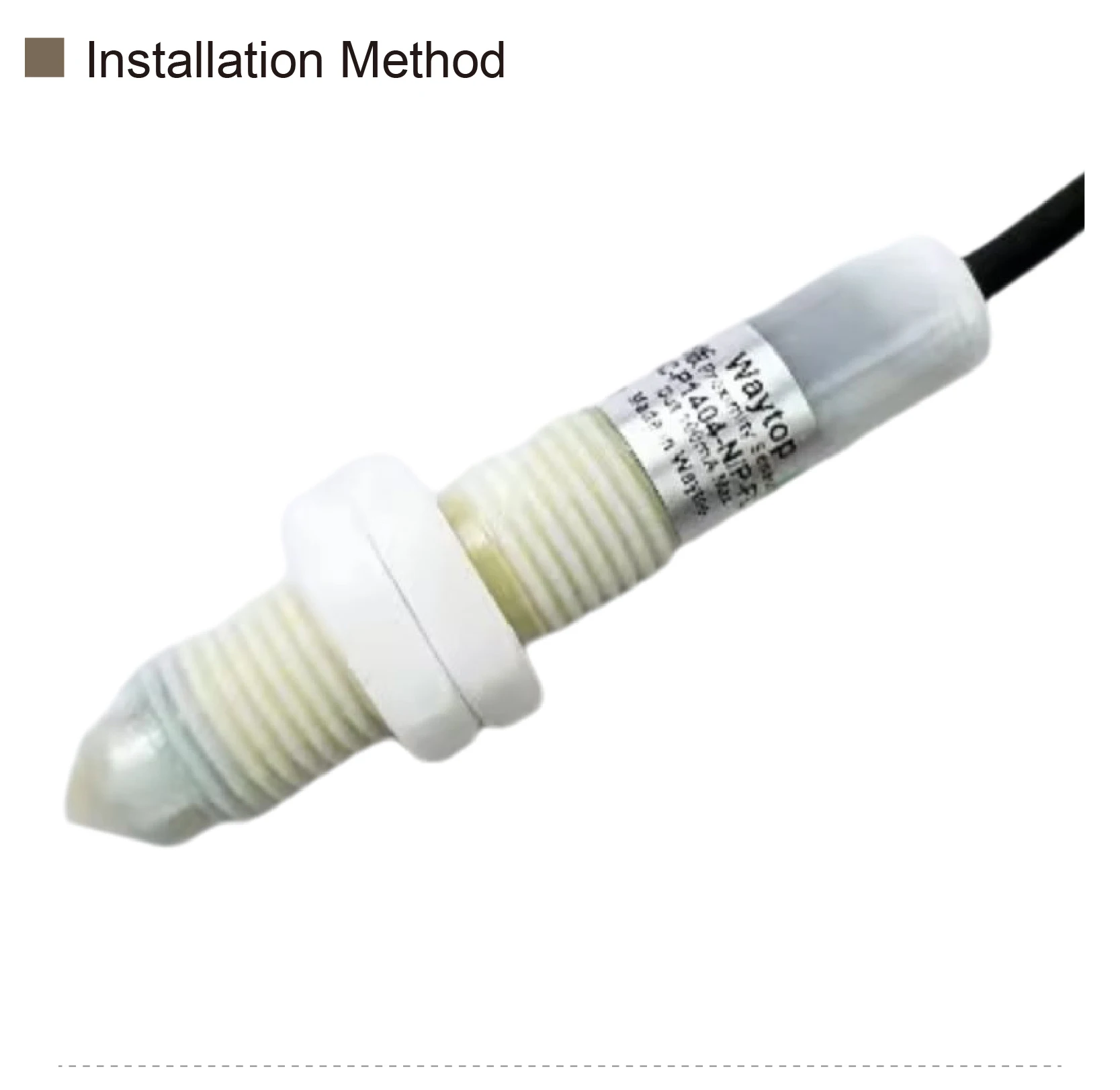

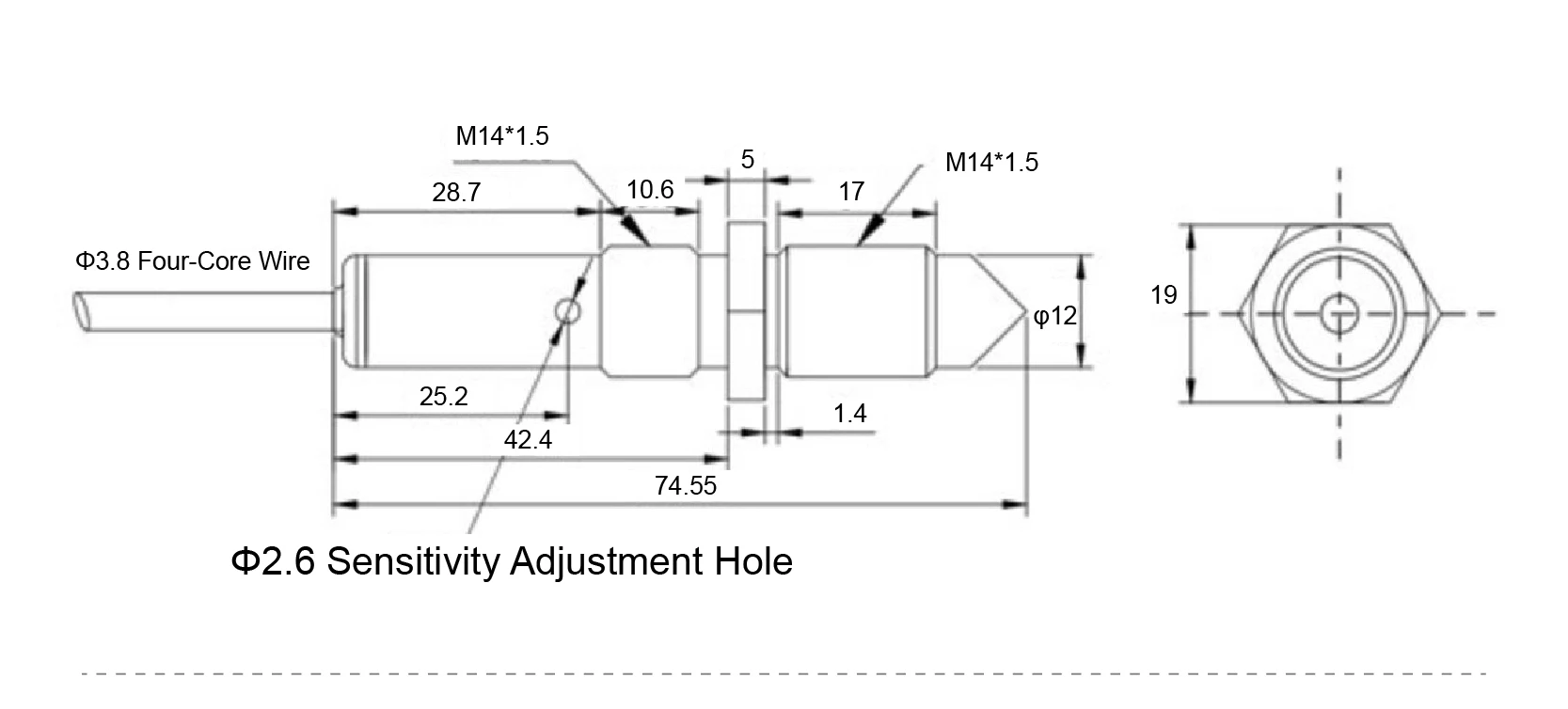

Mounting: Built-in flange design, supports both front and reverse installation

Features:
Adjustable sensitivity for different application needs
Reverse polarity protection
Overcurrent protection
Stable and reliable performance for liquid level detection

Optional Settings:

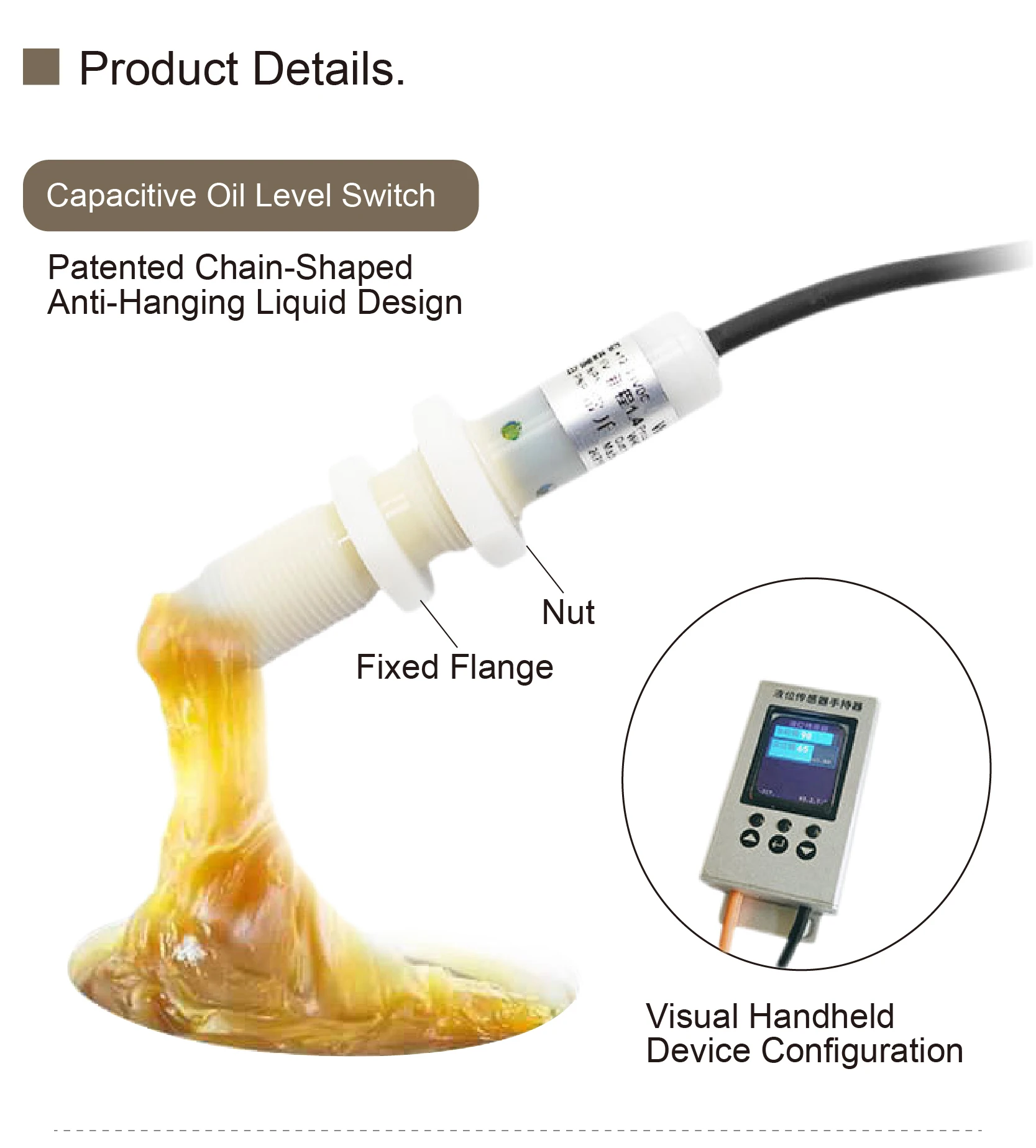

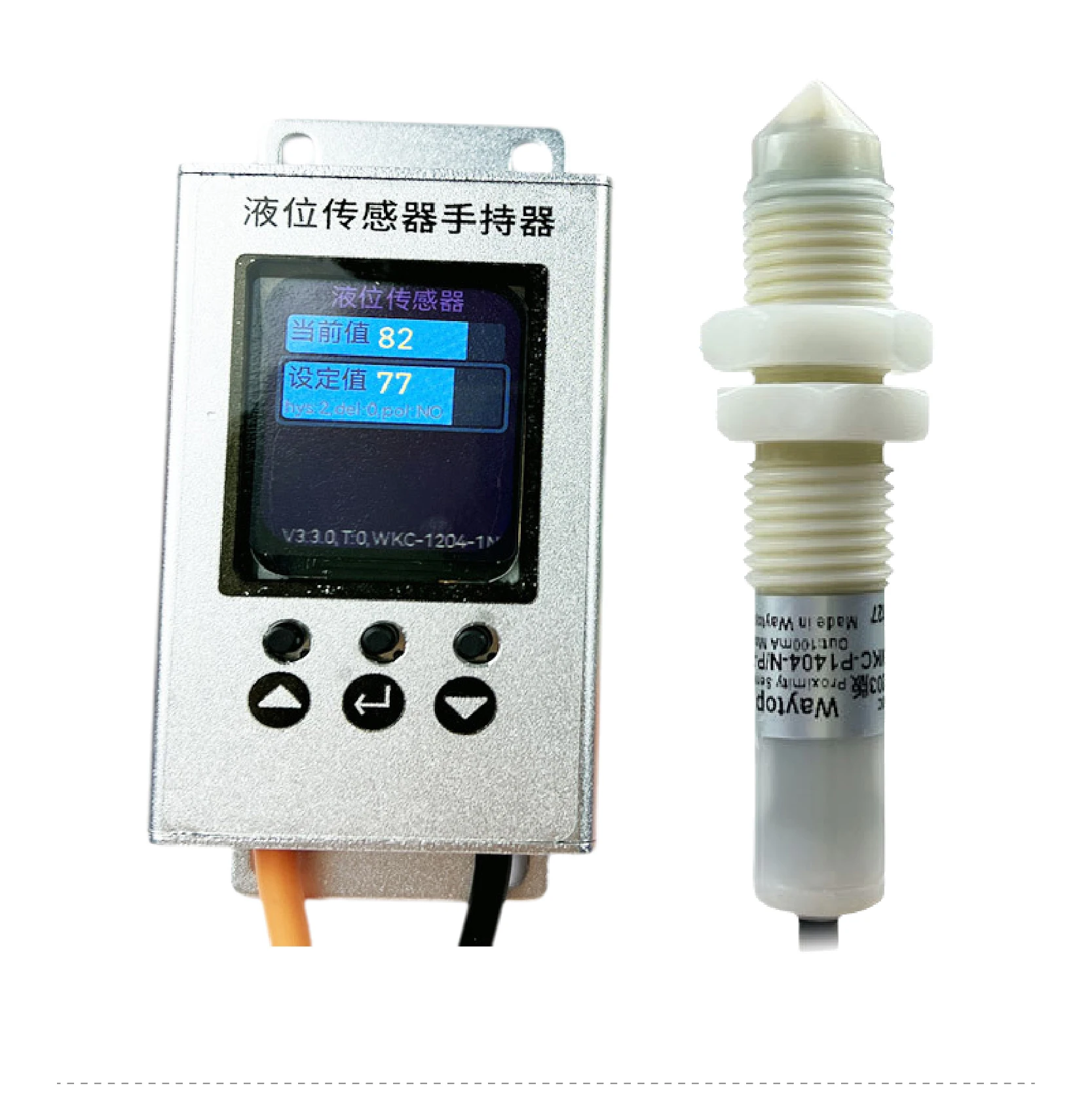

Handheld configurator, sold separately, supports visual parameter adjustment
Flexible installation positions: side, top, bottom, or tube-type installation for high and low level detection
Tube is not included

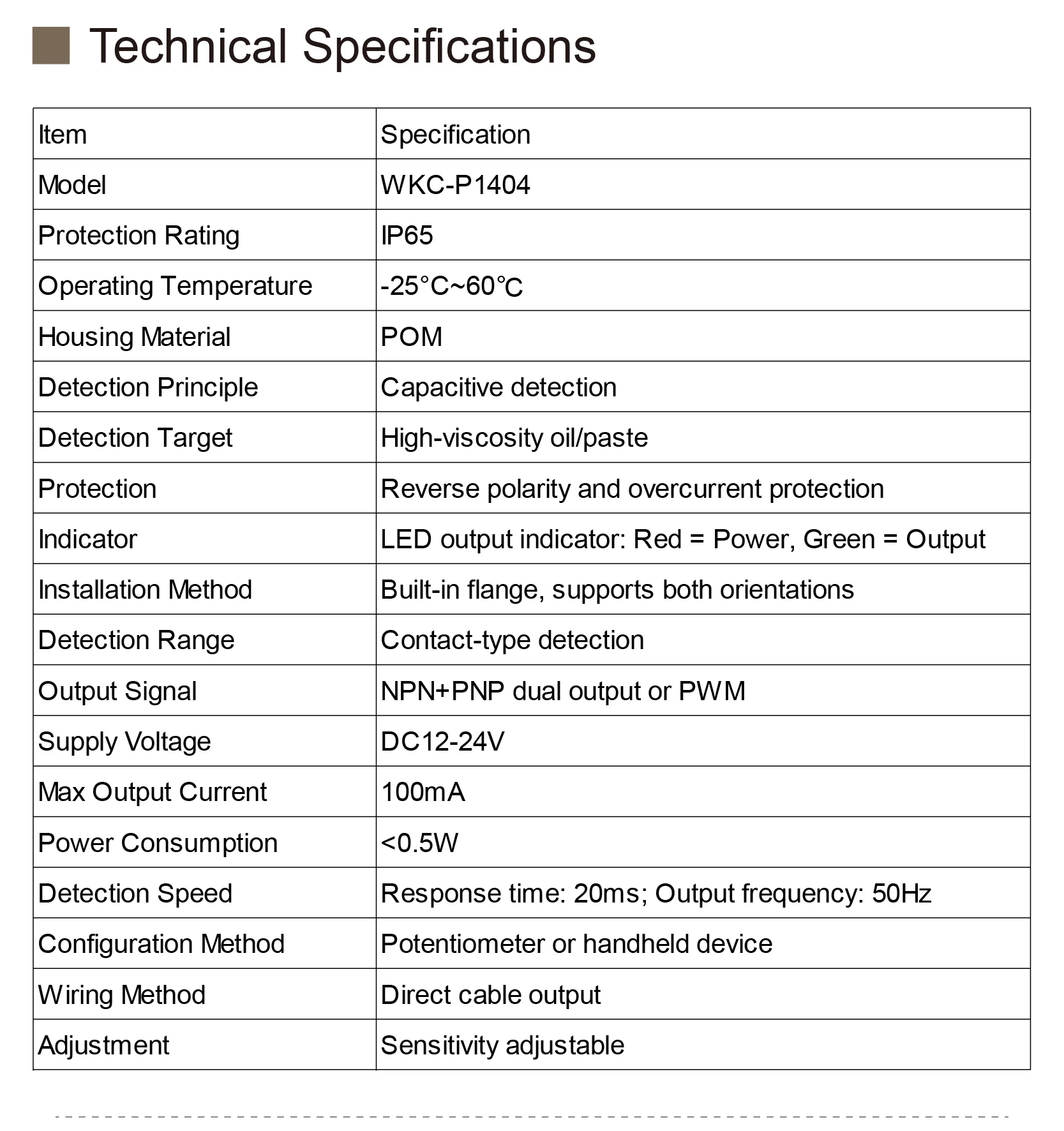

2.Parameters

3.Features

Capacitive Contact Detection

Designed to provide stable and reliable measurement for viscous media such as grease, paste, and other thick fluids.

Fast 20 ms Response Time

Supports real-time fluid level monitoring, making it suitable for automated control systems and continuous production processes.

LED Status Indicators

Red LED indicates power-on status, while green LED indicates signal output, allowing quick and easy operation checking.

IP65 Waterproof Rating

Built for reliable performance in dusty, humid, and mildly wet working environments.

Adjustable Sensitivity

Sensitivity can be easily adjusted using the built-in potentiometer or an optional external handheld programmer, allowing flexible setup for different applications.

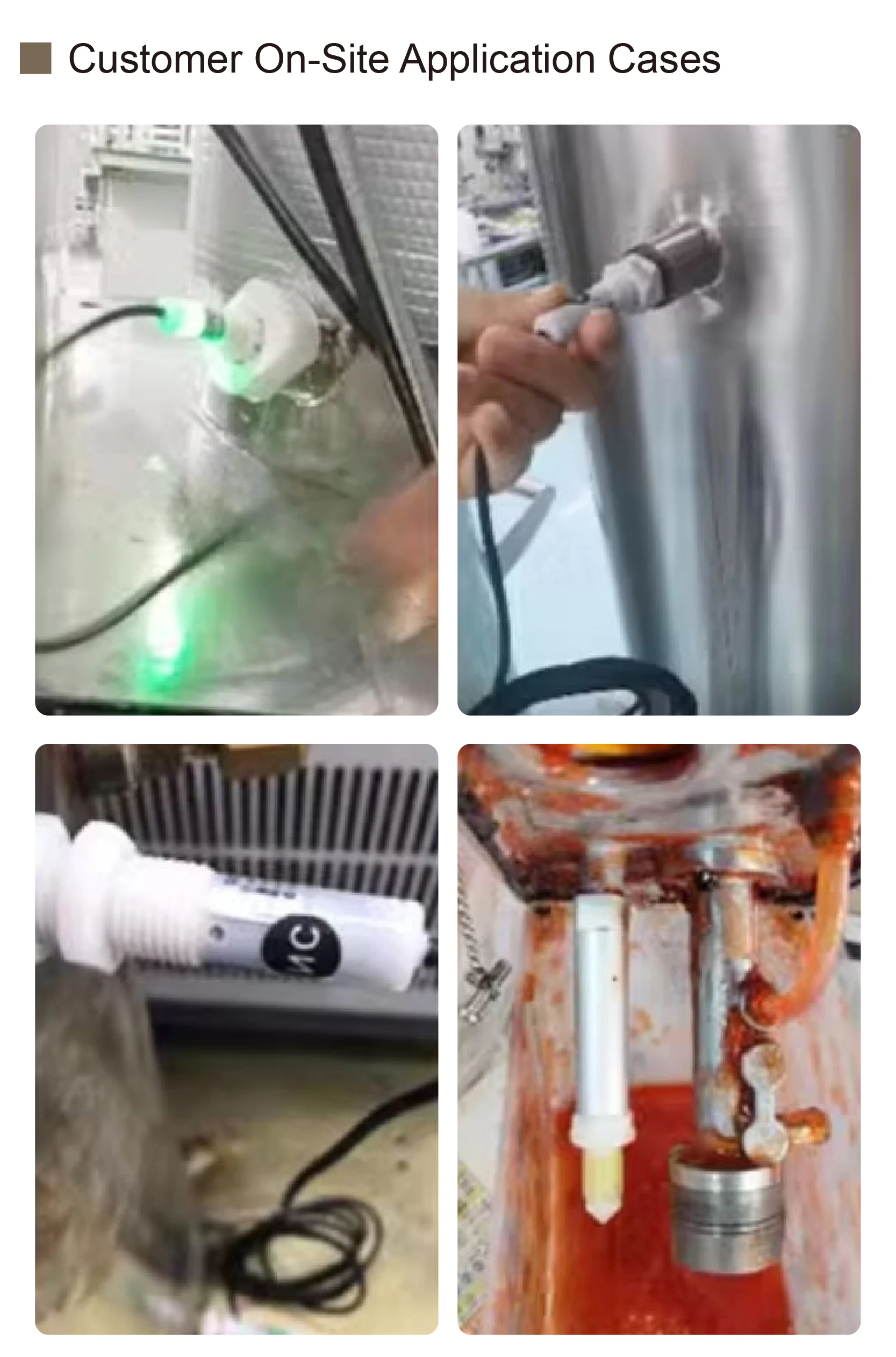

4.Applications

Glue dispensing machines
Dipping and coating equipment
Chemical fluid level detection
Industrial lubrication systems

5.FAQs

Q1: Can this switch detect corrosive liquids?

A1: No. This switch is not suitable for highly corrosive liquids or chemically aggressive media.

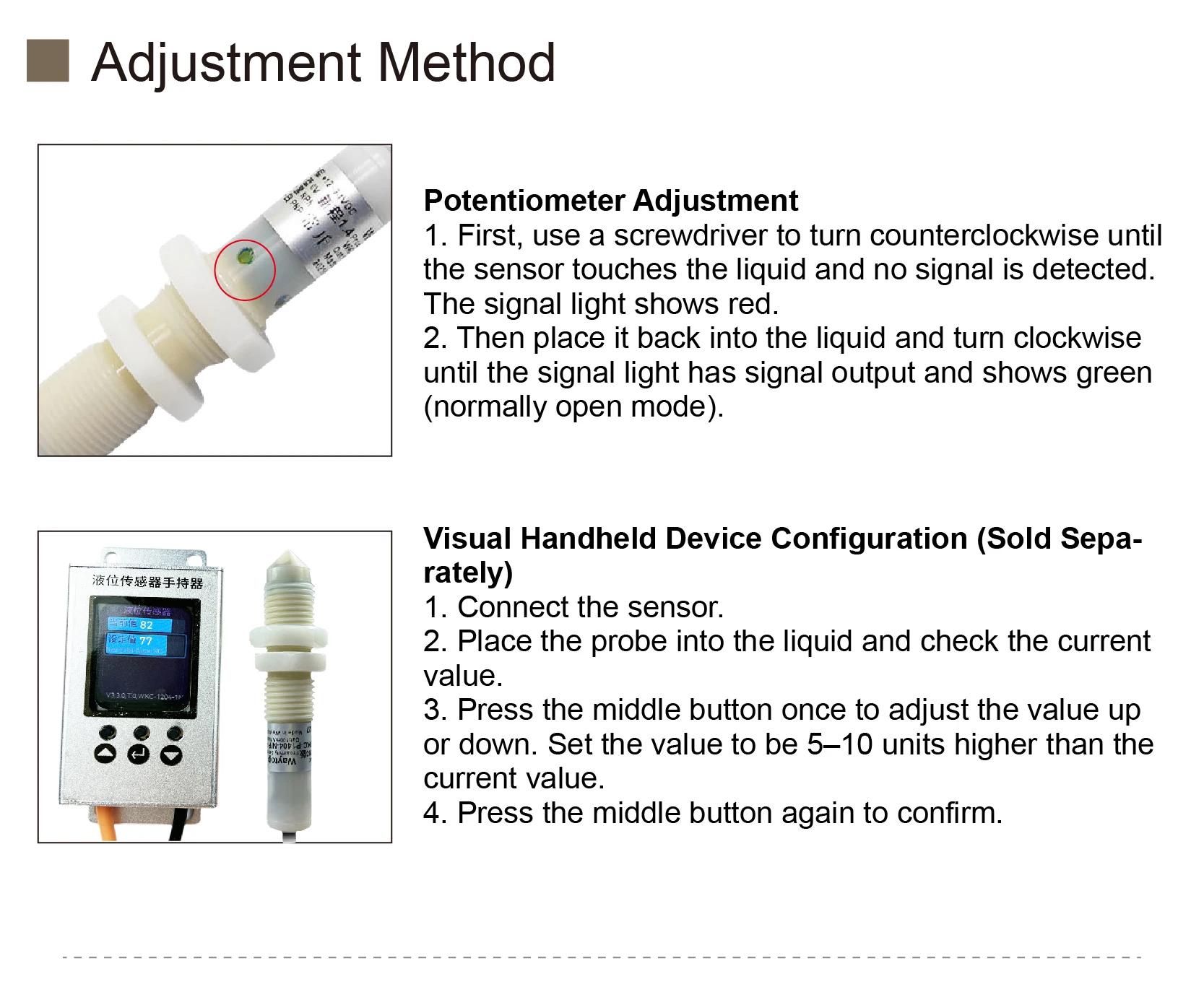

Q2: How can I adjust the sensitivity?

A2: The sensitivity can be fine-tuned with a screwdriver by adjusting the potentiometer. For more precise visual calibration, an external handheld programmer can also be used. The programmer is sold separately.

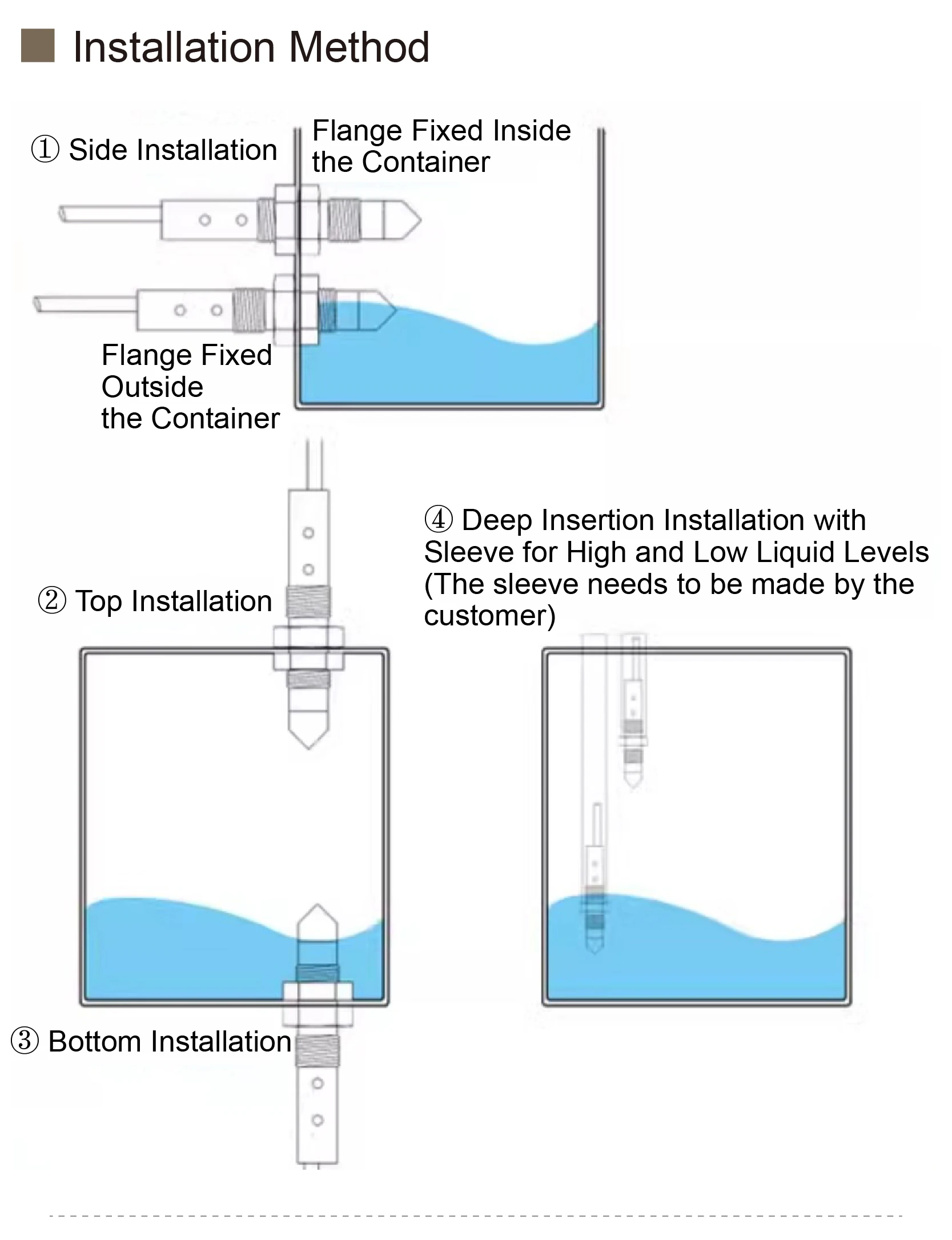

Q3: What installation options are available?

A3: The sensor supports side, top, or bottom installation on a container. It can also be integrated into a deep tube for high and low liquid level detection. Please note that the tube must be custom-made by the user.
