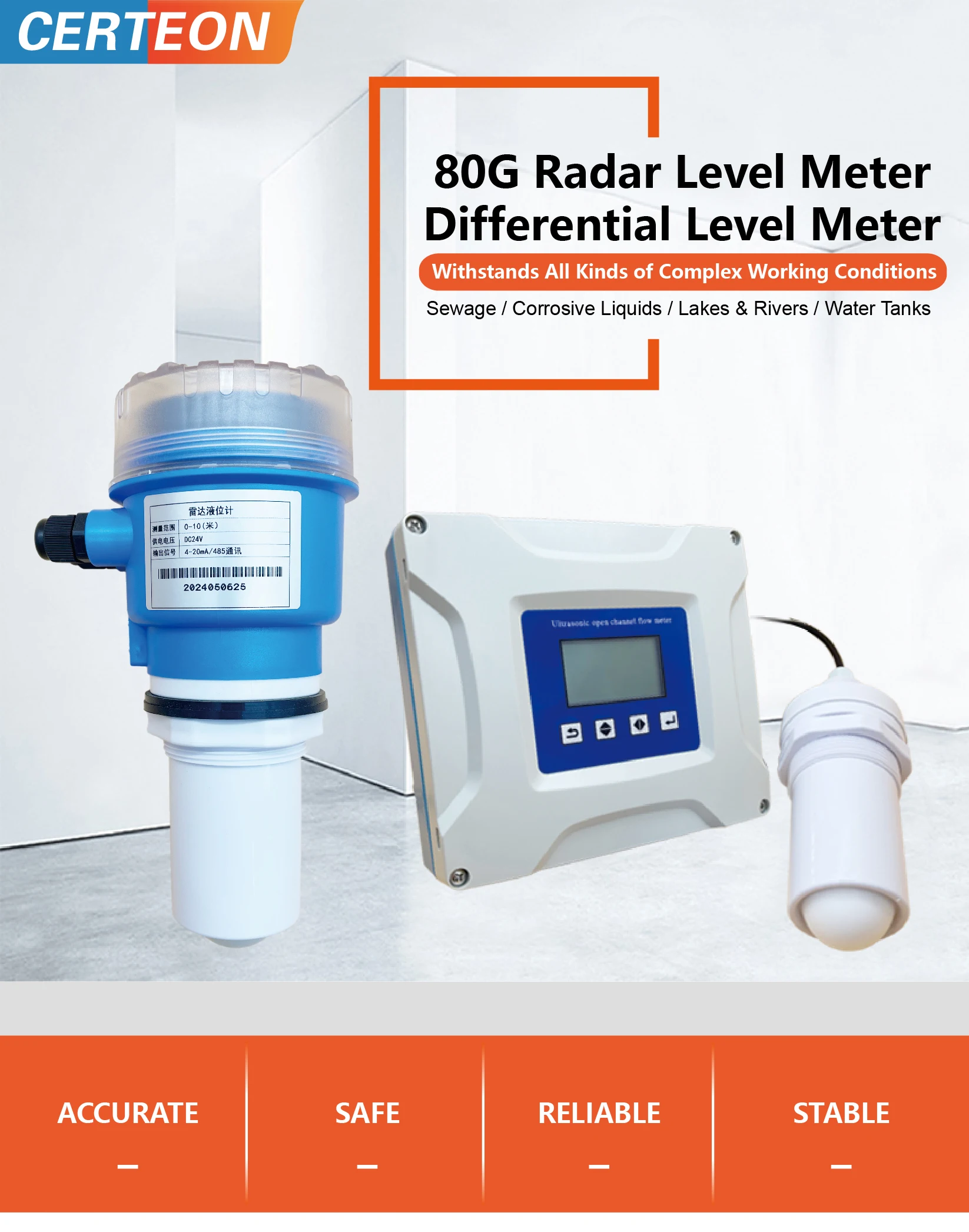

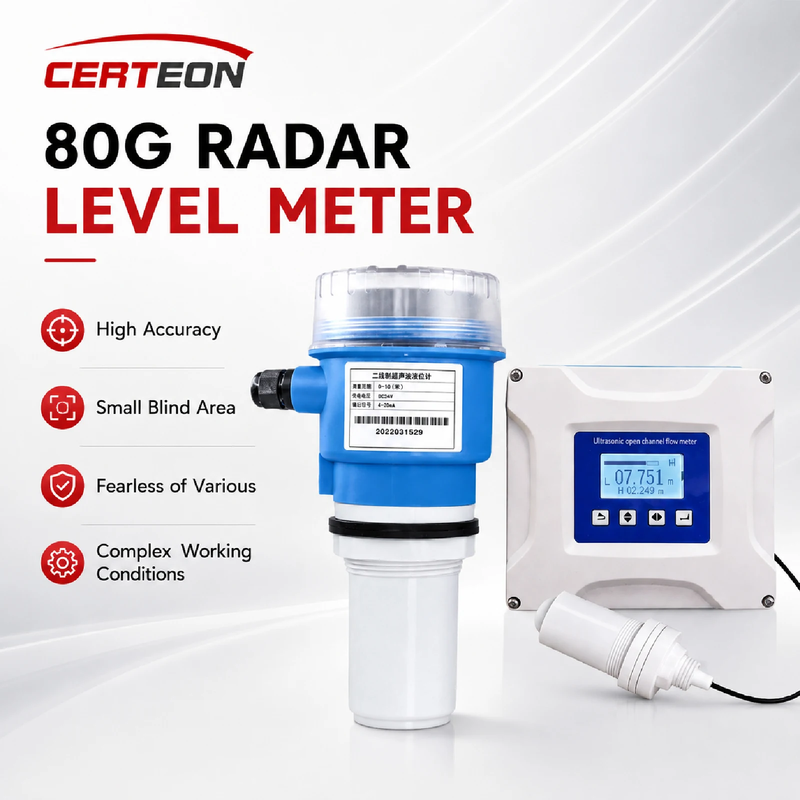

SLD-RDY80 Radar Level Sensor 0-20m High Accuracy Liquid Level Transmitter 4-20mA

Product Description

Please kindly note that this radar level meter is specially made for liquid level measurement. It is not suitable for measuring solids or powders.

1.Default Parameters
Type: Integrated Radar Level Meter, Split-type Radar Level Meter, Radar Level Difference Meter
Measuring Range: 0–5 meters, 0–10 meters, 0–20 meters (optional)
Power Supply: DC 24V
Output: 4–20 mA + RS485
Protection Rating: IP67
Connection Size: G2 thread
Cable Length (for split-type): 0–5 meters, 0–10 meters, 0–20 meters (customizable based on measuring range)

Customizable Parameters
Measuring Range: Up to 0–40 meters, 60 meters, or 80 meters
Power Supply: AC 220V (optional)
Output: Dual relay outputs (optional)
Cable Length (for split-type): Up to 80 meters (optional)
Protection Rating: IP68 (optional)

Note: The sensor’s cable outlet uses a PG7 waterproof electrical connector. Ensure it is securely tightened and properly protected to maintain optimal performance.

2. Parameters

3. Features

80GHz High-Frequency Radar
Focused radar beam delivers high-precision measurements with excellent interference rejection.

Ultra-Short Blind Zone (0.07m)
Enables accurate detection at low levels with minimal measurement dead space.

Fully Sealed Sensor Head
Provides superior protection against steam, dust, and water ingress for reliable operation.

Smart Echo Processing Algorithm
Filters out false echoes to ensure higher measurement accuracy and stability.

Bright LCD Display
Displays liquid levels clearly with an intuitive, easy-to-read interface.

Enhanced Enclosure Protection
Dustproof and waterproof housing with sealed cable ports ensures long-term durability.

4. Applications

Ideal for use in sewage treatment plants, acid and alkali tanks, rivers, reservoirs, chemical mixing vessels, and foggy or enclosed industrial environments.

5. FAQs

Q1: Can this radar level meter operate in strong acid or alkaline environments?
A1: Yes, it is constructed with corrosion-resistant materials and a fully sealed enclosure, making it suitable for harsh chemical conditions.

Q2: Is it accurate when measuring foamy or mist-covered surfaces?
A2: Yes. The high-frequency, narrow-angle radar combined with a smart echo processing algorithm effectively filters out false signals caused by foam or mist.

Q3: What installation methods are supported?
A3: The meter supports standard G2 thread installation, with optional flange or bracket mounting available for flexible setup.
