Product Description

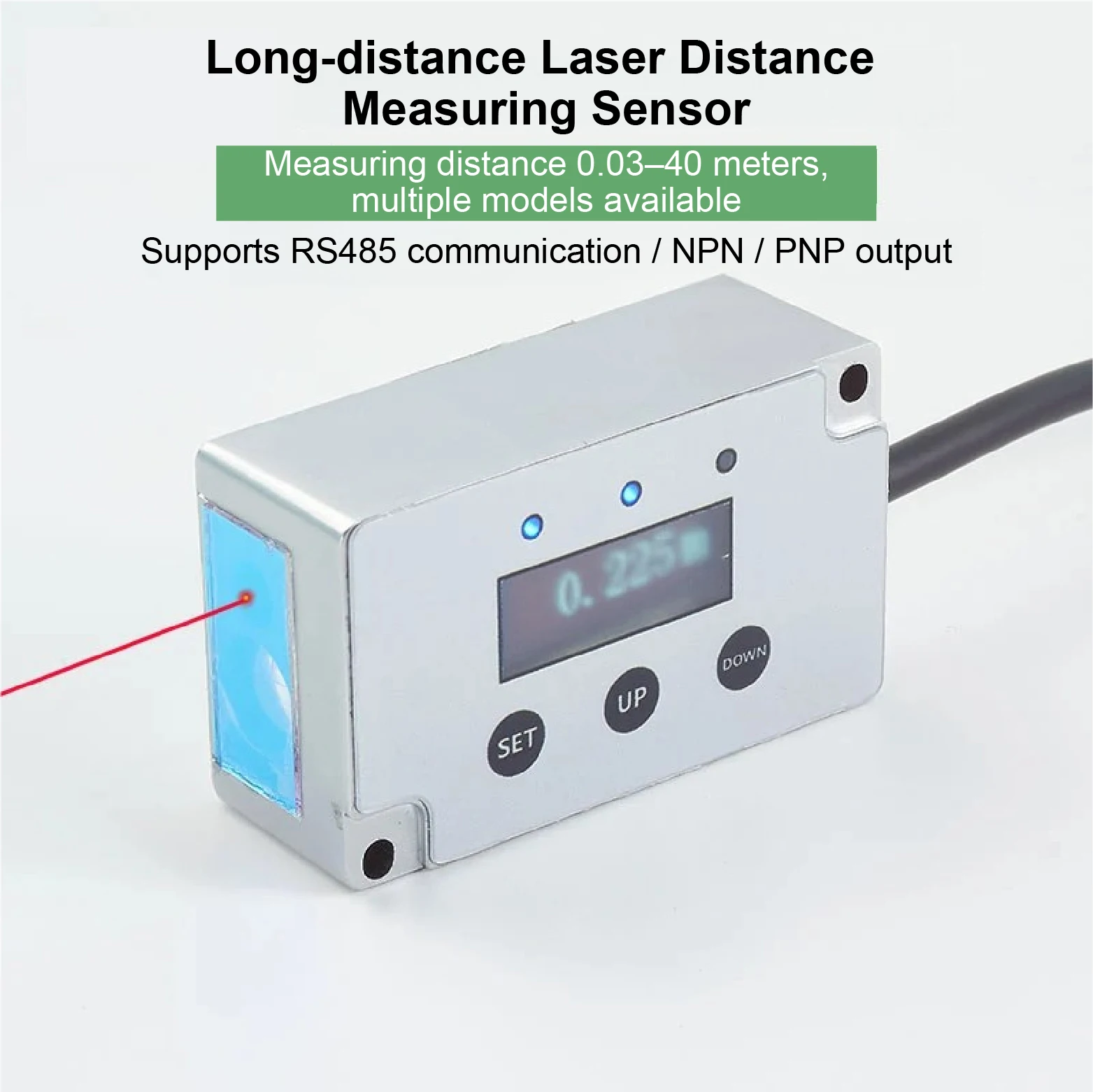

NT-HL 40m Laser Displacement Sensor Long Range RS485 Distance Sensor for Industrial Automation Object Detection DC12-24V
NT-HL 40m Laser Displacement Sensor Long Range RS485 Distance Sensor for Industrial Automation Object Detection DC12-24V1.Note
Power supply: DC 12–24 V
Measuring distance: 30 mm – 40 m
Output: RS485 / PNP / NPN
Cable length: 2 m

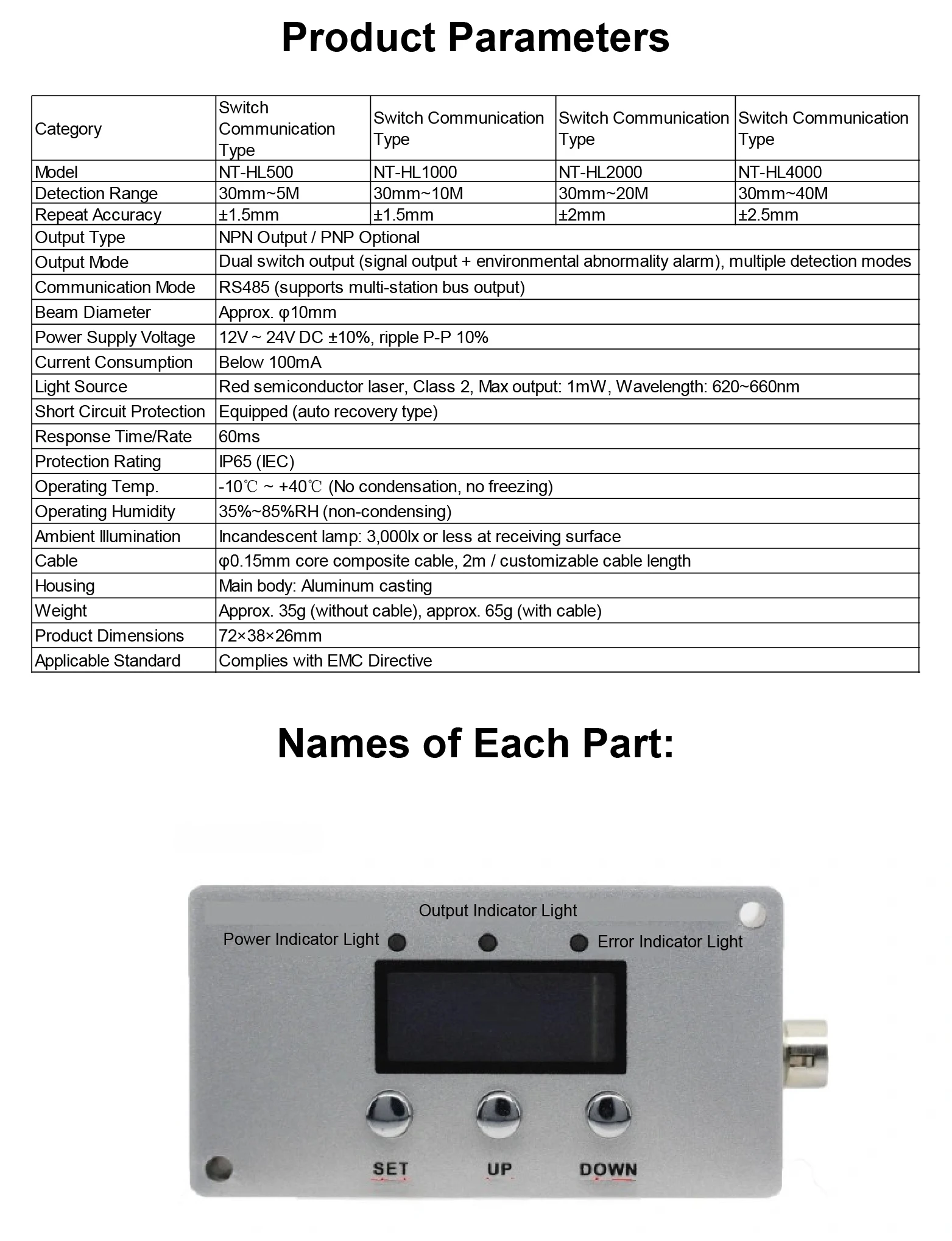

2. Parameters
Parameter | Specification |
Measuring Range | 30mm – 5m / 10m / 20m / 40m |
Repeat Accuracy | ±1.5mm / ±2mm / ±2.5mm |
Output Type | NPN / PNP selectable |
Output Mode | Dual switch output (signal + alarm) |
Communication Interface | RS485 (supports multi-station) |
Beam Diameter | Approx. 10mm |
Power Supply | DC12~24V ±10% |
Current Consumption | <100mA |
Laser Source | Red semiconductor laser (Class 2), 620–690nm |
Response Time | 60ms |
Protection Rating | IP65 (IEC standard) |
Operating Temperature | -10°C ~ +40°C (no condensation/frost) |
Operating Humidity | 35%~85%RH (non-condensing) |
Housing Material | Aluminum alloy casting |

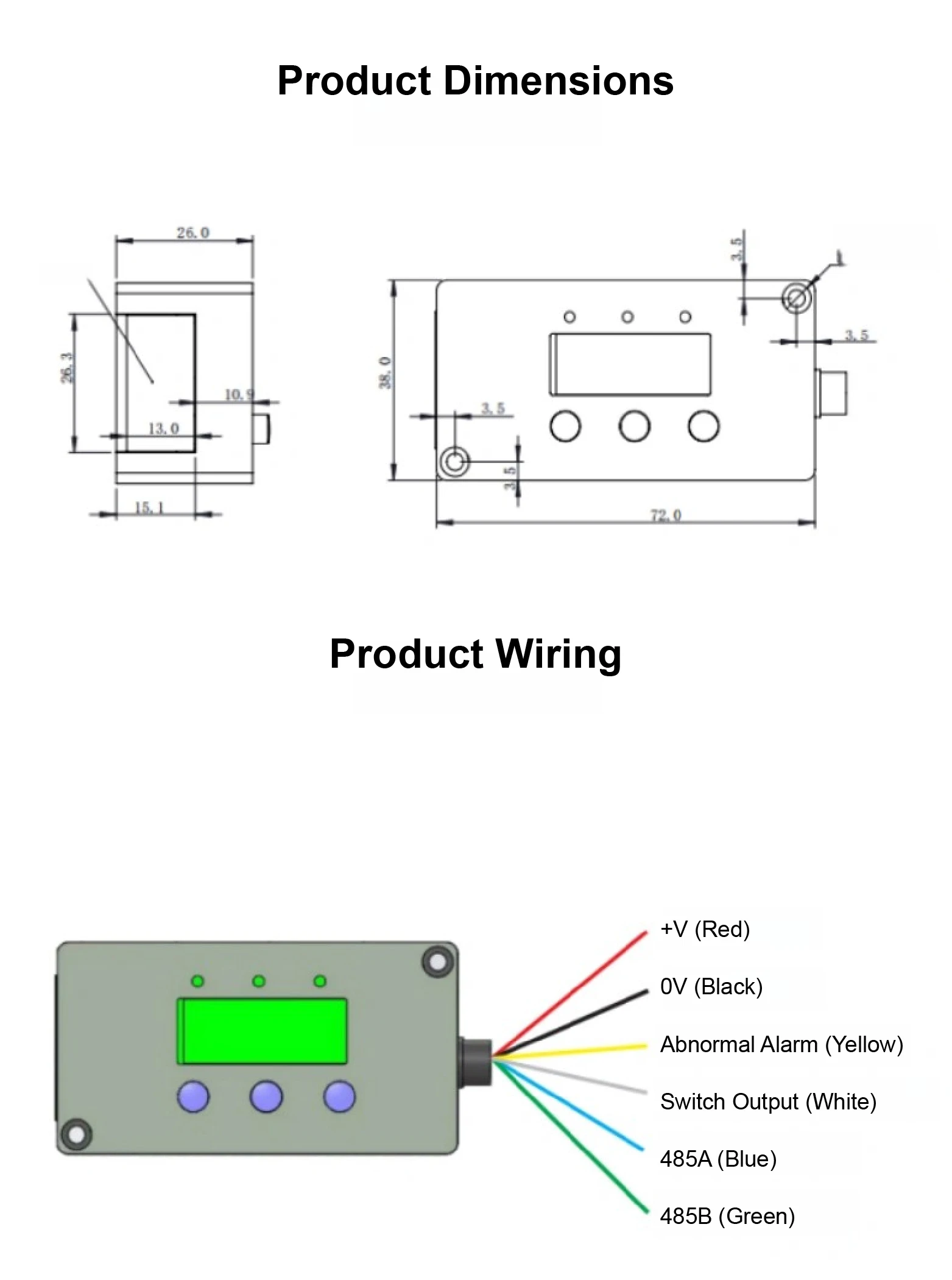

Product Size | 72 × 38 × 26mm |
Weight | Approx. 85g (with cable) |
Cable | 2m 6-core cable (custom lengths available) |
Detection Method | Through-beam reflective type |
3. Features
Multiple Range Options
Available in 5m, 10m, 20m, and 40m models to suit diverse industrial needs.

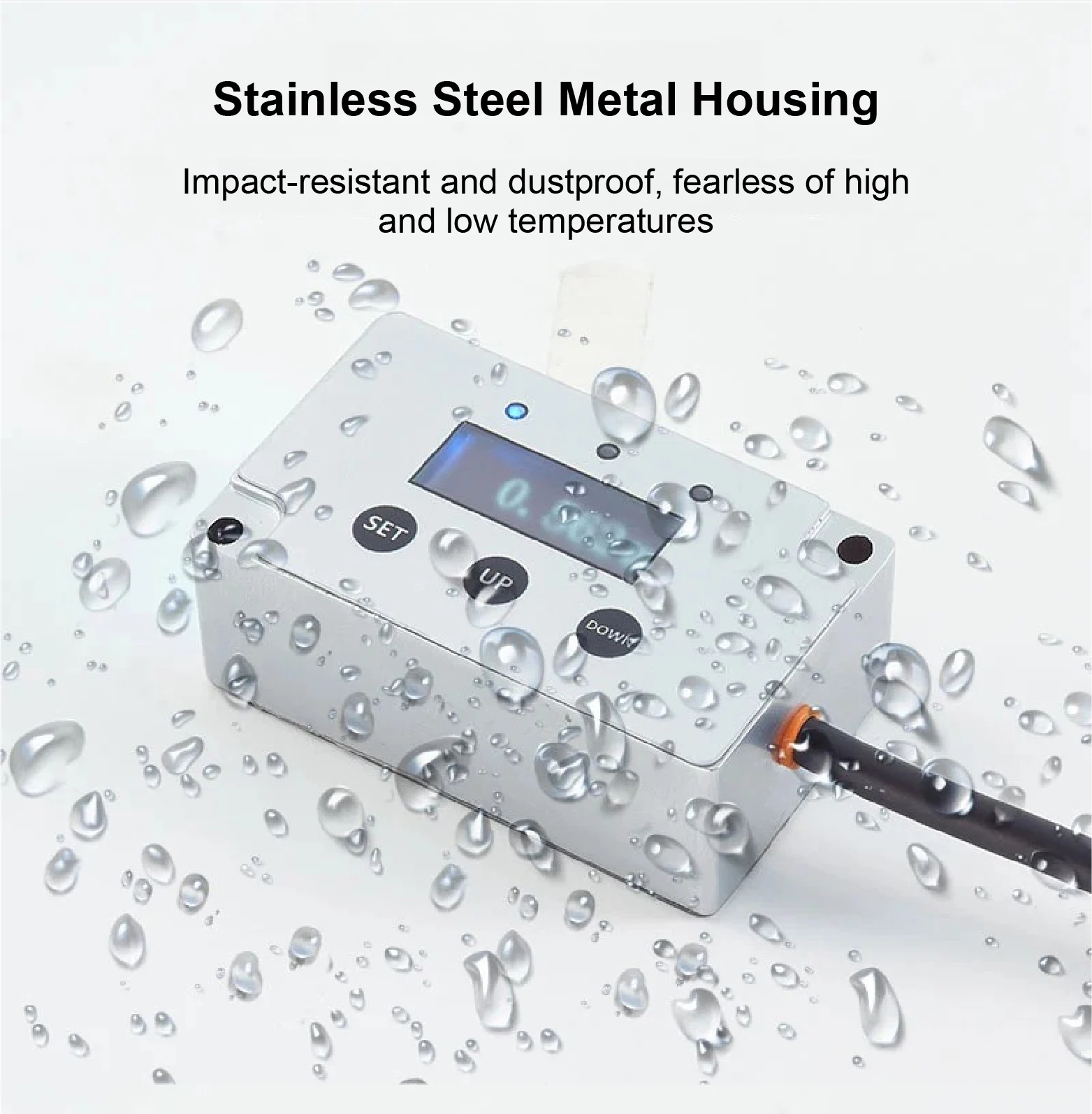

Industrial-grade Durability
Aluminum and stainless steel housing with IP65 protection ensures reliable operation in harsh conditions.
RS485 & Dual Output Support
Seamless integration with control systems via RS485, plus dual outputs for signal and error alarm.

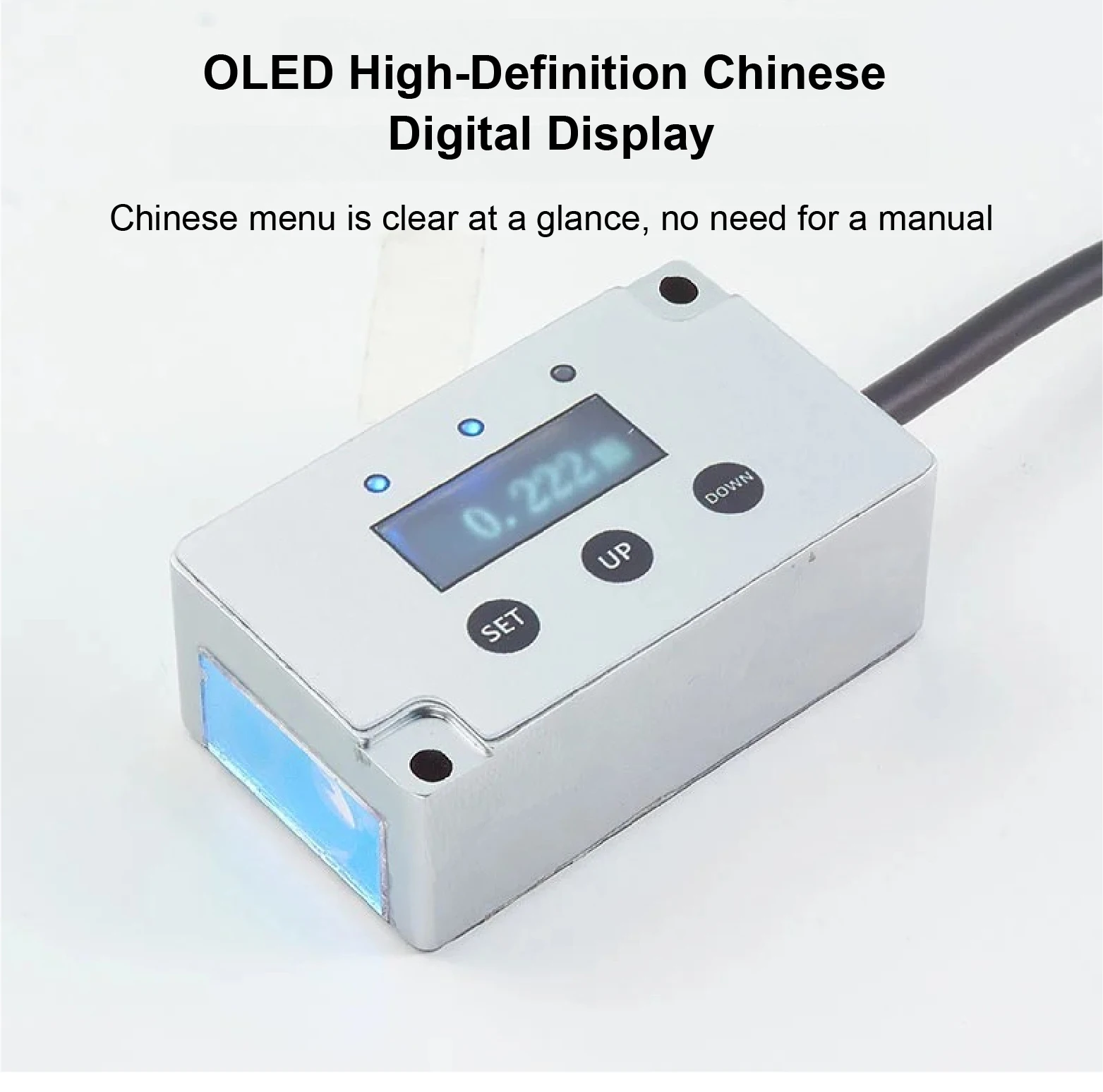

OLED Display with Intuitive Menu
High-contrast OLED screen and Chinese menu design make operation straightforward even without a manual.

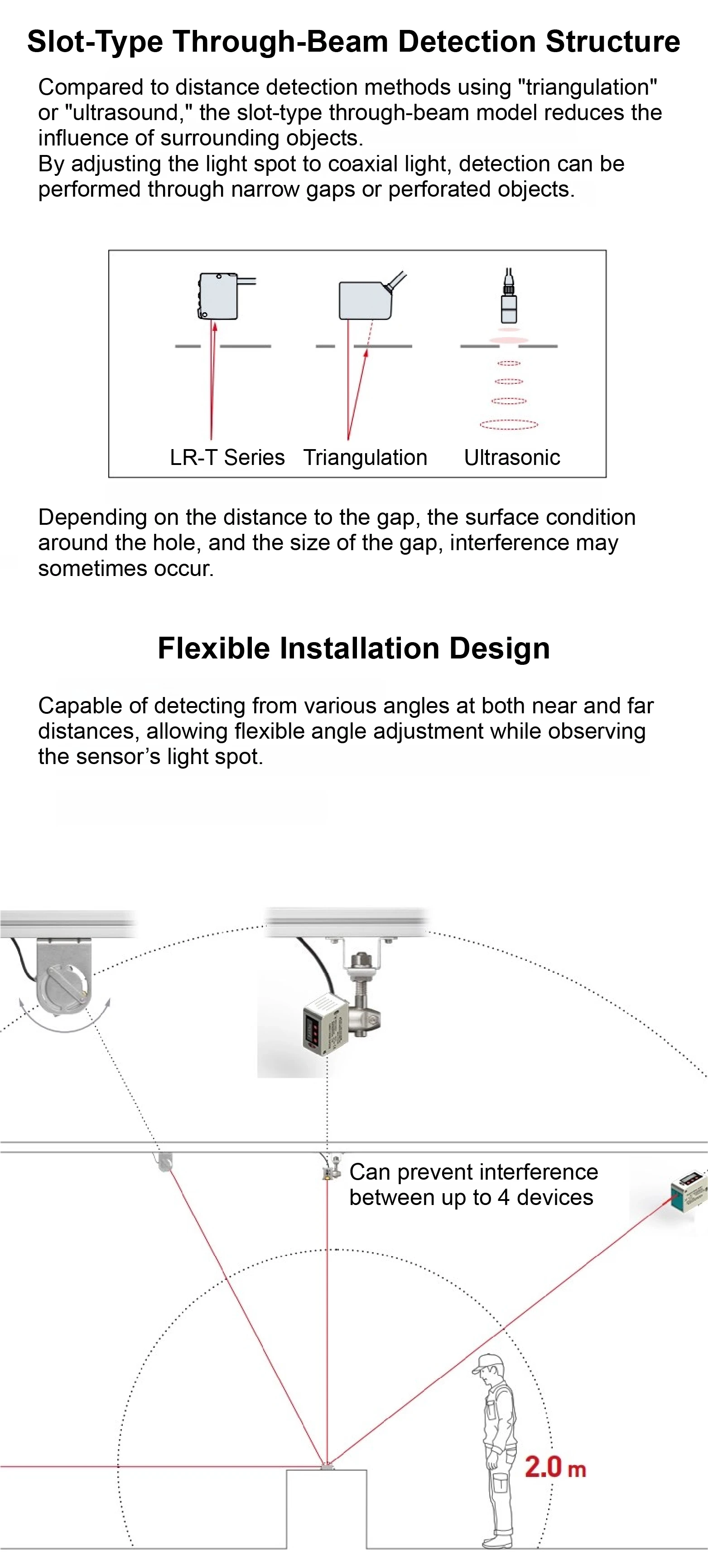

Through-gap Detection
Designed to reduce interference from surrounding objects, enabling detection through narrow gaps or perforated surfaces.
Flexible Mounting and Visible Beam
Adjustable installation angles with a visible laser spot for easy alignment and targeting.

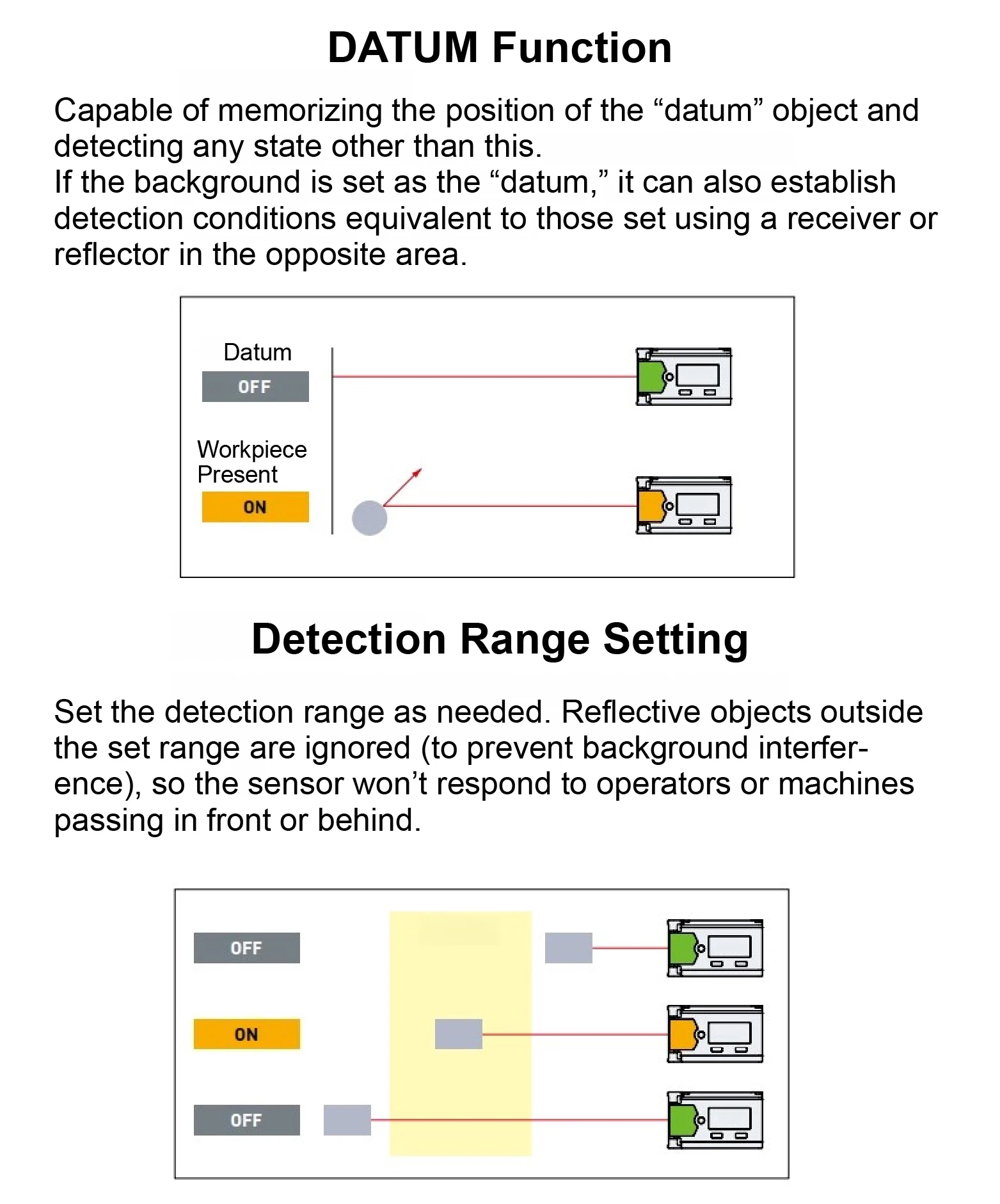

DATUM Function
Set a reference object to detect deviations—perfect for background suppression or dynamic environments.
Custom Detection Range
Define detection areas to ignore background objects or unintended interference from operators or machines.
4. Applications

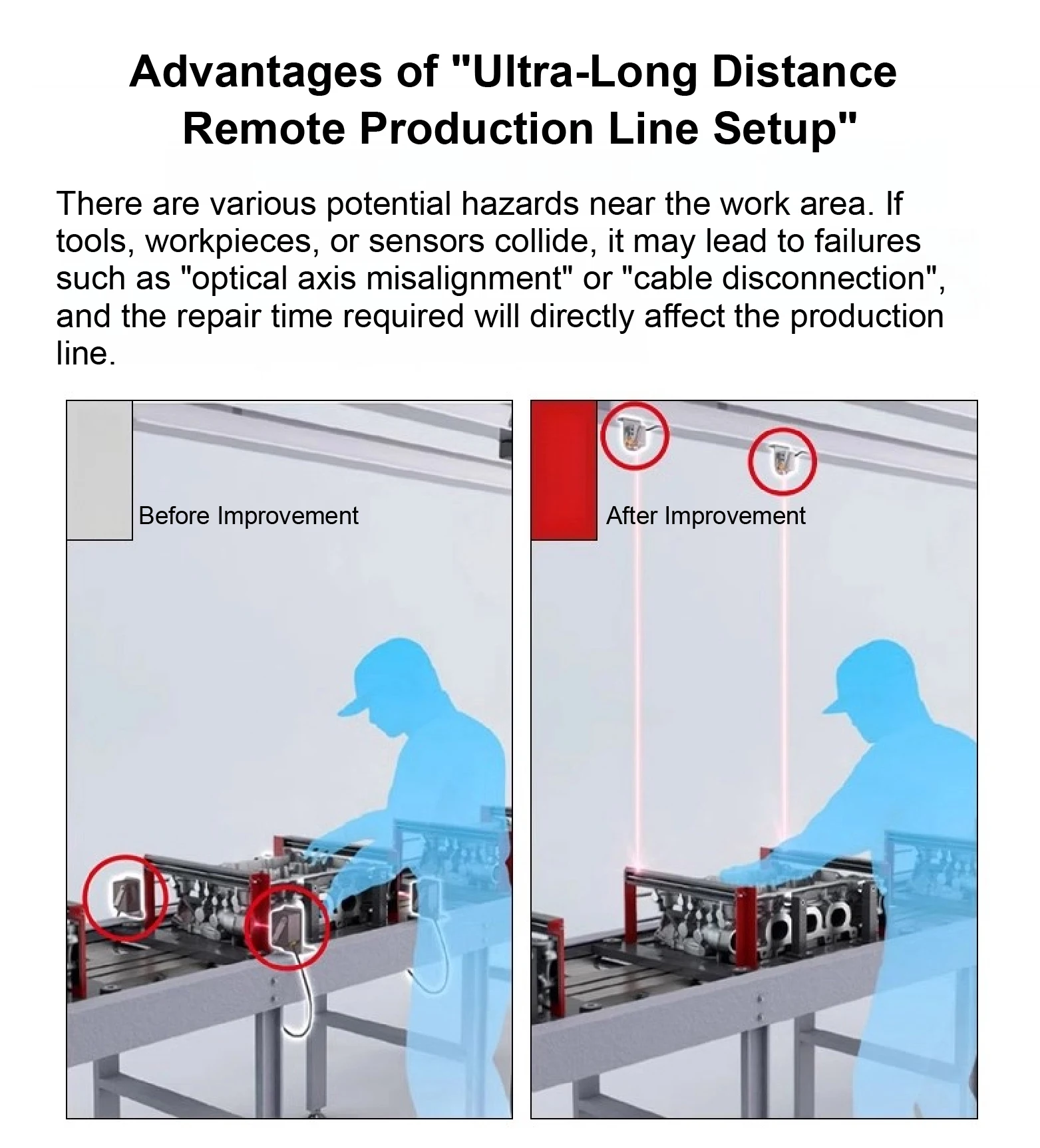

Automated production lines for object positioning and distance control
Warehouse and logistics systems for package detection and sorting
Harsh industrial environments with dust or temperature extremes
Material sorting and flow monitoring
Safety zone detection for machinery or robot arms
5. FAQs
Q1: Can this sensor operate in dusty or high-temperature environments?
A1: Yes, the IP65-rated housing protects the sensor in both dusty and extreme temperature conditions.
Q2: How do I align the laser during installation?
A2: The visible laser spot allows real-time visual alignment, and the flexible mounting design enables easy positioning.
Q3: Is it compatible with PLCs or industrial control systems?
A3: Absolutely. It supports RS485 communication and offers NPN/PNP output options for seamless system integration.
