80GHz Radar Level Sensor Non Contact Water Level Meter RS485 4-20mA Stainless St

Product Description

Please note: this radar level sensor is designed for measuring water only. It cannot be used for other types of liquids.

1. NOTE

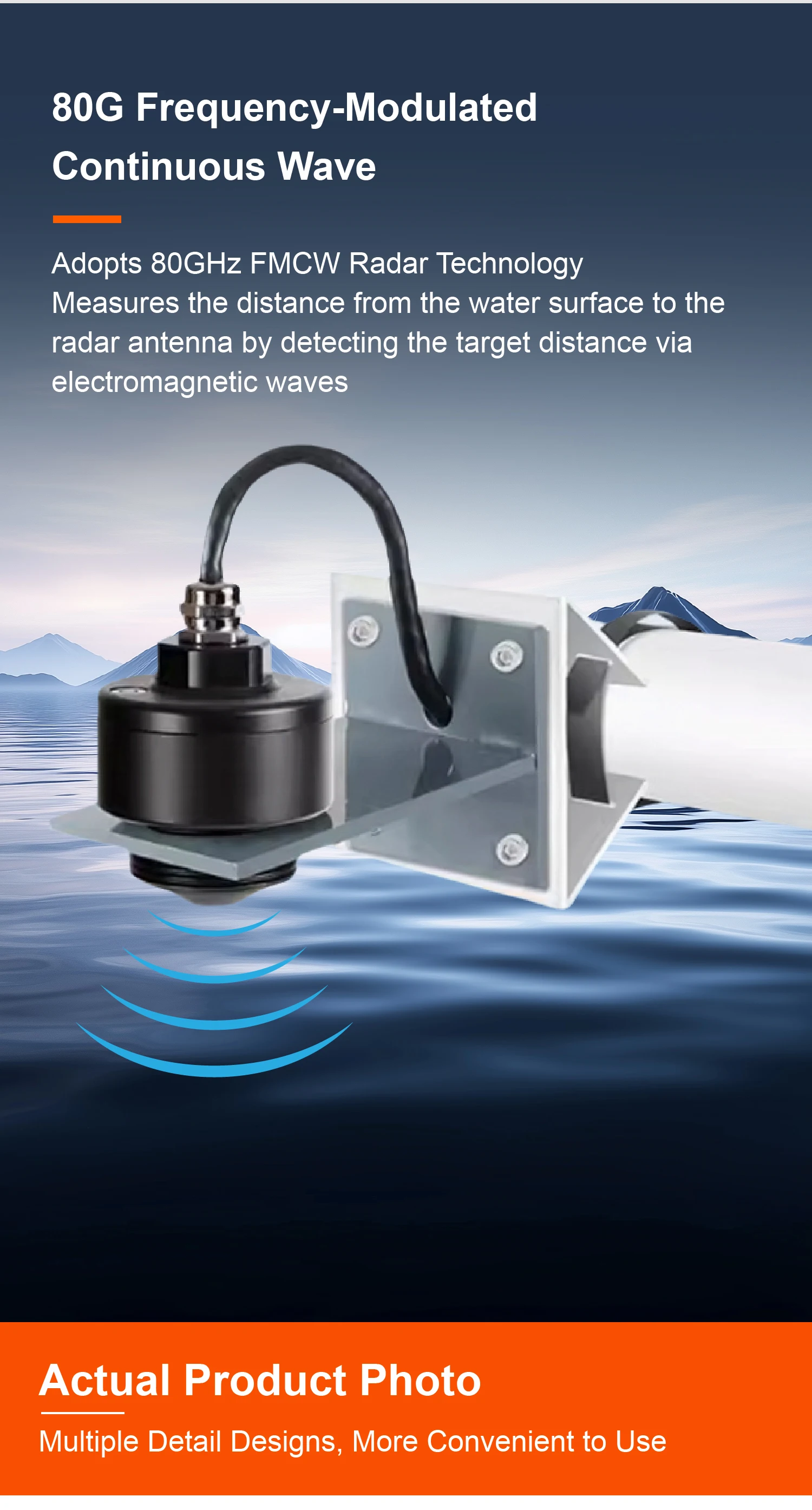

• Install the device perpendicular to the liquid surface to avoid radar beam interference.

• Verify the power supply voltage and cable specifications before installation.

• Avoid installation in areas with strong vibration or strong magnetic fields.

• Inspect and clean the device regularly to ensure stable operation.

Usage Guidelines

• Measuring Range: Customizable up to 120m

• Power Supply: DC24V / DC12V / AC220V

• Output Signal: 4–20mA / HART / RS485 / Modbus / Bluetooth

• Flange Standards: ANSI / JIS / DIN / EN

• Cable Length: Customizable (5m, 10m, or 20m)

• Material Options: SS316L / PTFE anti-corrosion coating / PP

• Installation Method: Flange / Thread / Clamp

• Environmental Adaptability: High temperature, high humidity, and corrosion-resistant options

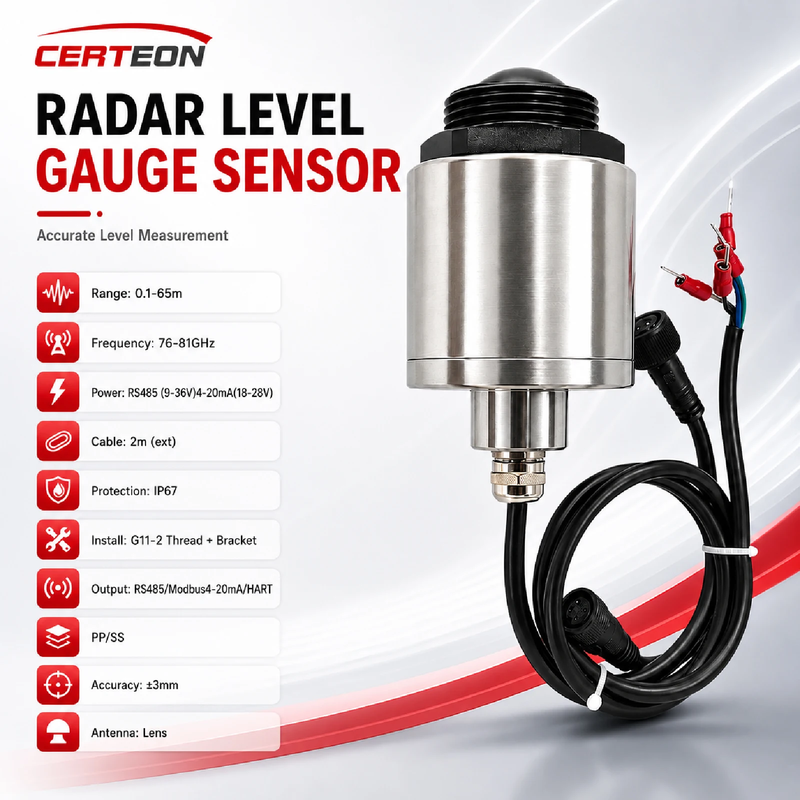

Optional Configurations

• Frequency: 76–81GHz

• Measuring Range: 0.1–65m

• Accuracy: ±3mm

• Power Supply: RS485 9–36VDC / 4–20mA 18–28VDC

• Output Signal: RS485 / 4–20mA

• Material: SS304

• Antenna Type: Lens Antenna

• Cable Length: Standard 2m, extendable externally

• Protection Rating: IP67

• Installation Method: G1/2 Thread with Bracket

Standard Configuration

Due to page space limitations, some configurations may not be fully displayed. For special requirements or custom options, please contact us.

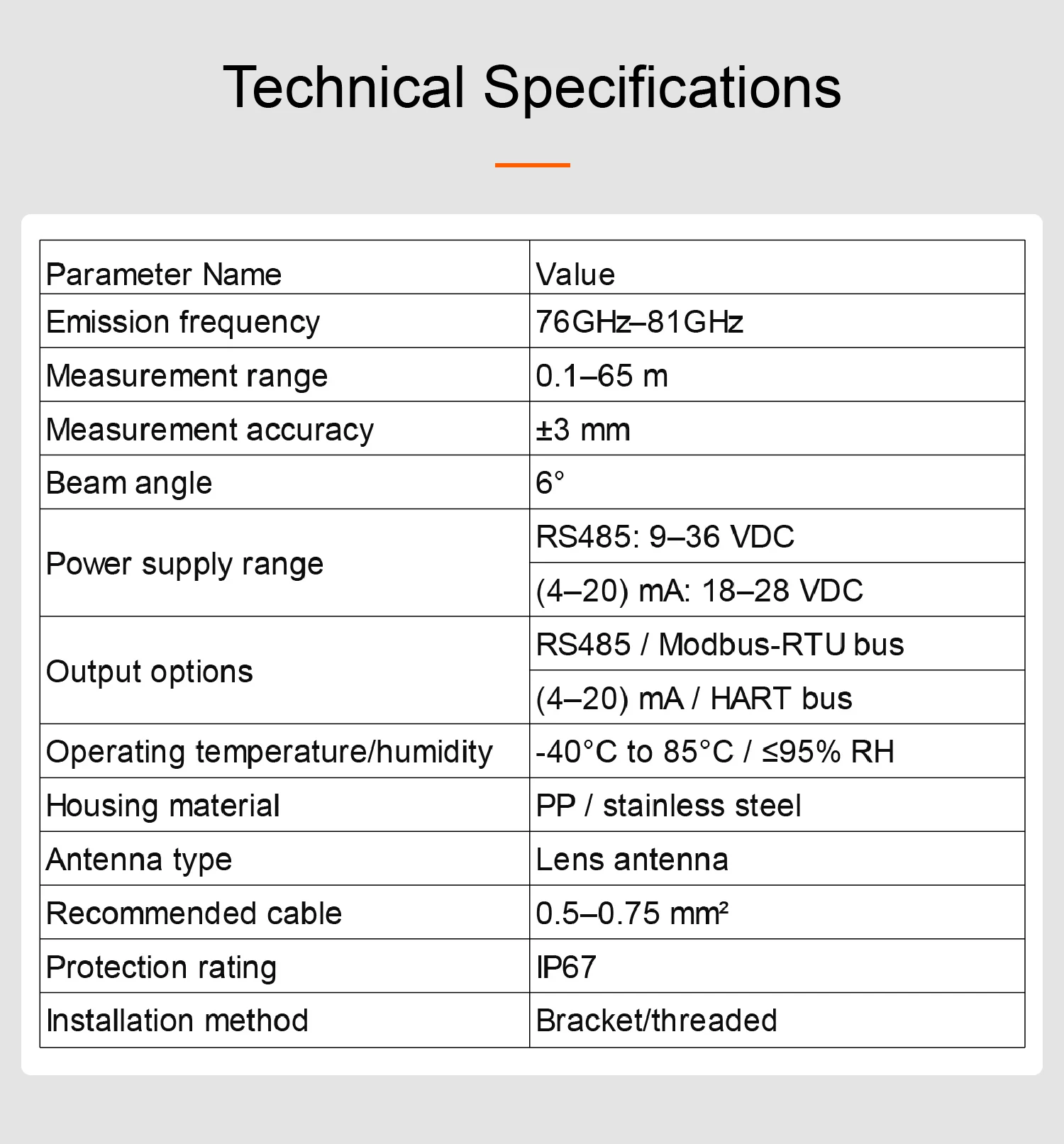

2. PARAMETERS

3. APPLICATIONS
Ideal for industrial liquid level measurement in chemical plants, reservoirs, power plants, dyeing factories, and other similar environments.

4. FEATURES

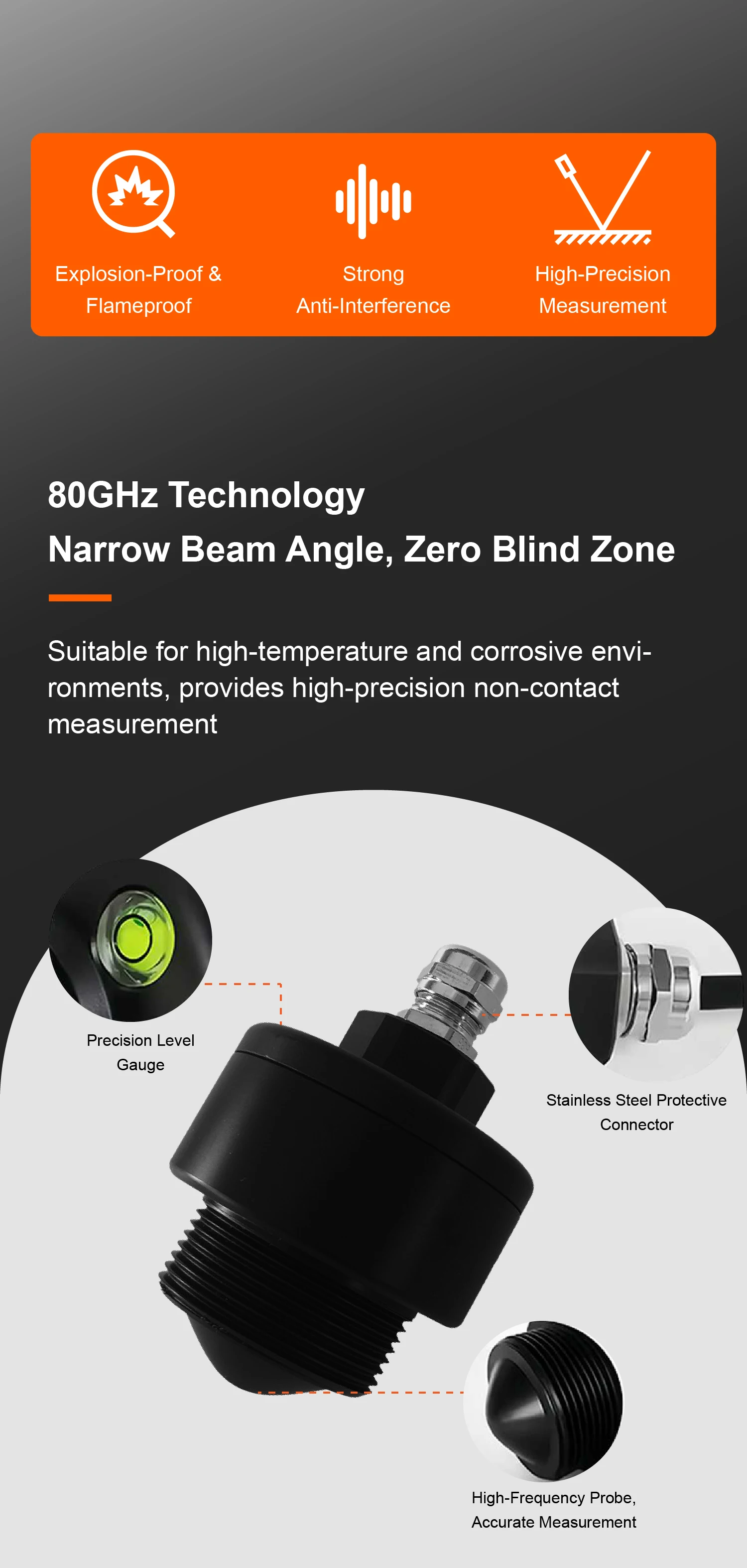

Advanced intelligent chip with a compact RF architecture for higher signal-to-noise ratio, ensuring stable and precise measurements.

Supports RS485 communication with MODBUS protocol, enabling long-distance communication up to 2000m.

IP67-rated protection ensures reliable operation in rain, snow, dust, fog, and other challenging conditions.

Easy installation and user-friendly operation; proper setup helps minimize interference and maximize measurement accuracy.

5. FAQ

Q1: How can I ensure accurate measurement?
A1: Install the sensor perpendicular to the water or liquid surface and ensure there are no obstacles within the radar beam path.

Q2: Can this product be used in harsh weather conditions?
A2: Yes. With an IP67 protection rating, it is suitable for demanding outdoor and industrial environments.

Q3: What should I do if my application requires custom specifications?
A3: Please contact us. We can provide customized solutions tailored to your specific application requirements.

Q4: Can the cable length be customized?
A4: Yes. The standard cable length is 2 meters with 0.5–0.75mm² cable. Longer cables can be customized to meet your needs—please contact us for details.
